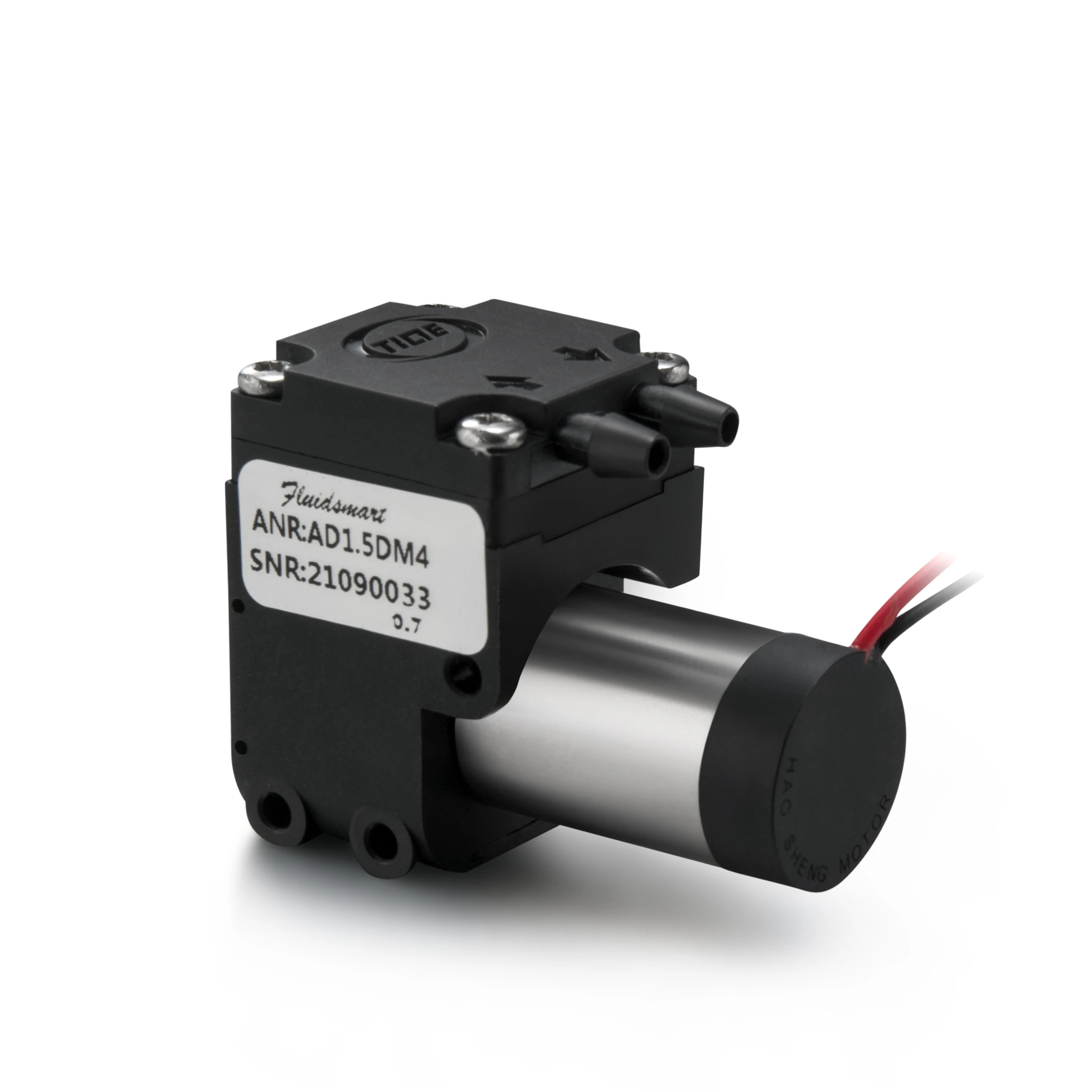

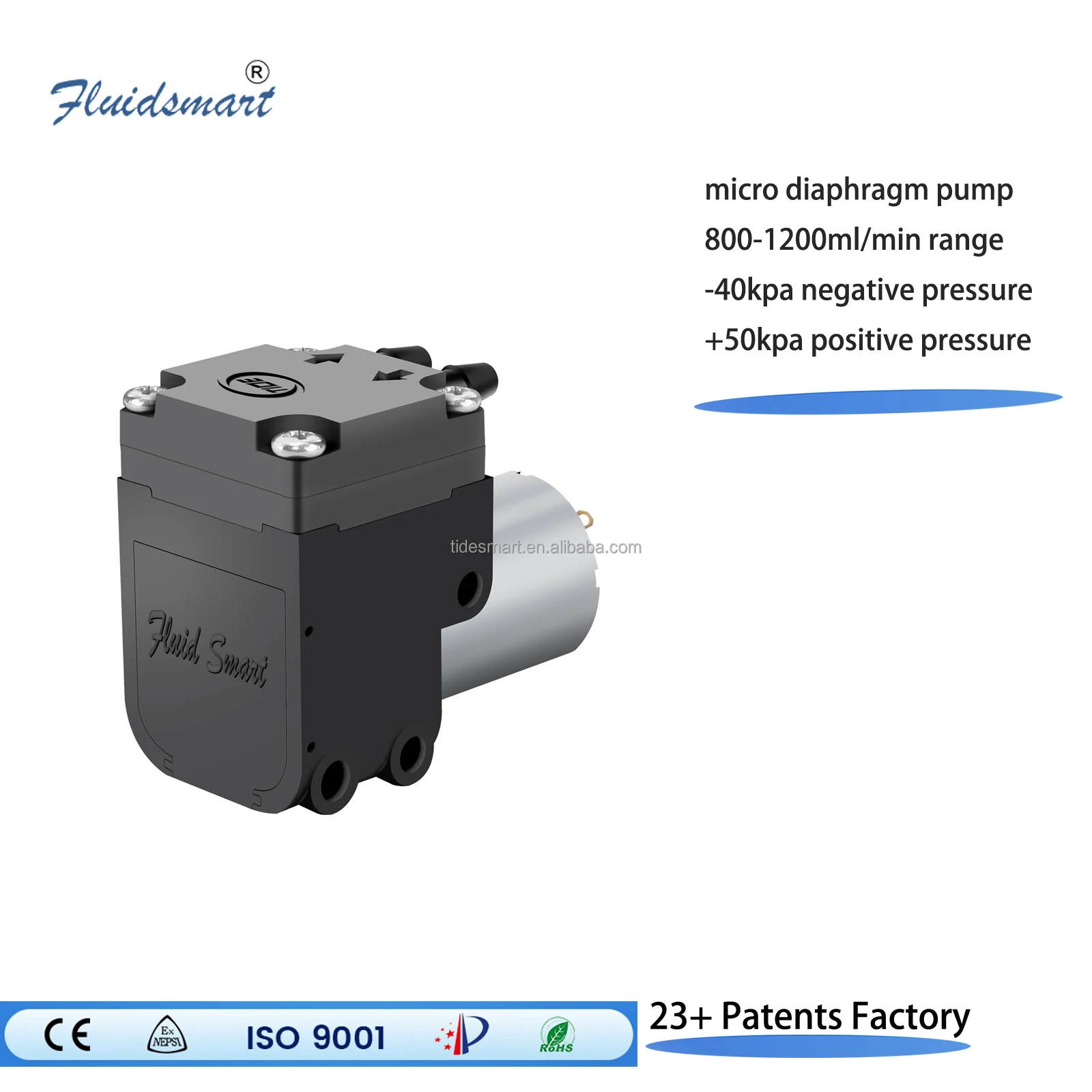

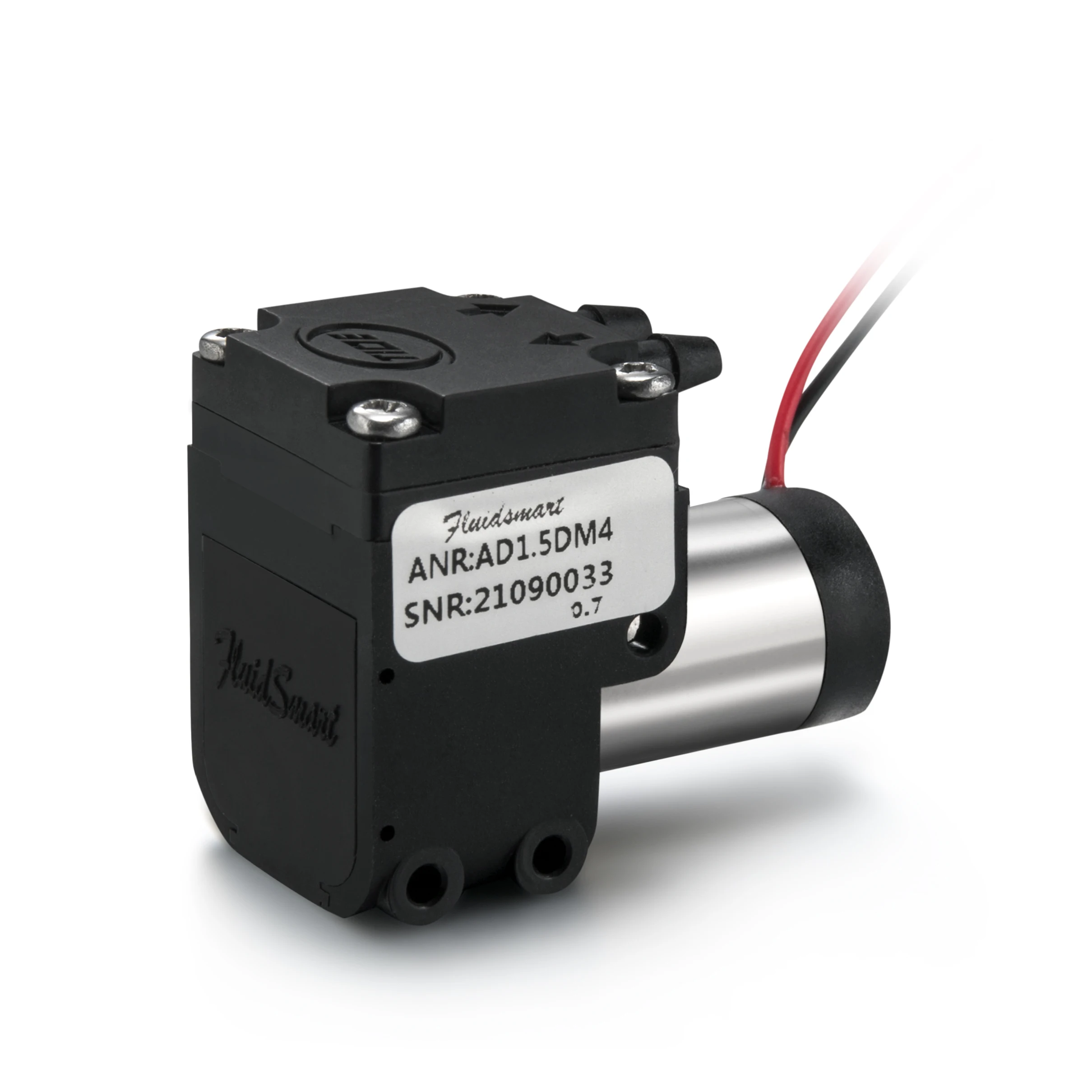

Fuildsmart 1v 4vdc 500ml/min air compressor pump industrial electric diaphragm vacuum brush motor air pump
- Category: >>>
- Supplier: Tide Smart Technology (Shanghai) Co. Ltd
Share on (1600430653918):
Product Overview
Description
Features
Optimized pump body to ensure small volume, provide large flow and maintain relatively low power consumption.
The gas flow is stable and the motor runs in a wide range.
* Professional seal design ensures low leakage rate
* Pollution-free sample gas
* High quality imported EPDM and PTFE/FKM
rubber materials, withstand a variety of gas corrosion
* Long lifetime:
* Dc brushed motor: 2000-3000hours
* Dc brush coreless motor:4000-5000hours

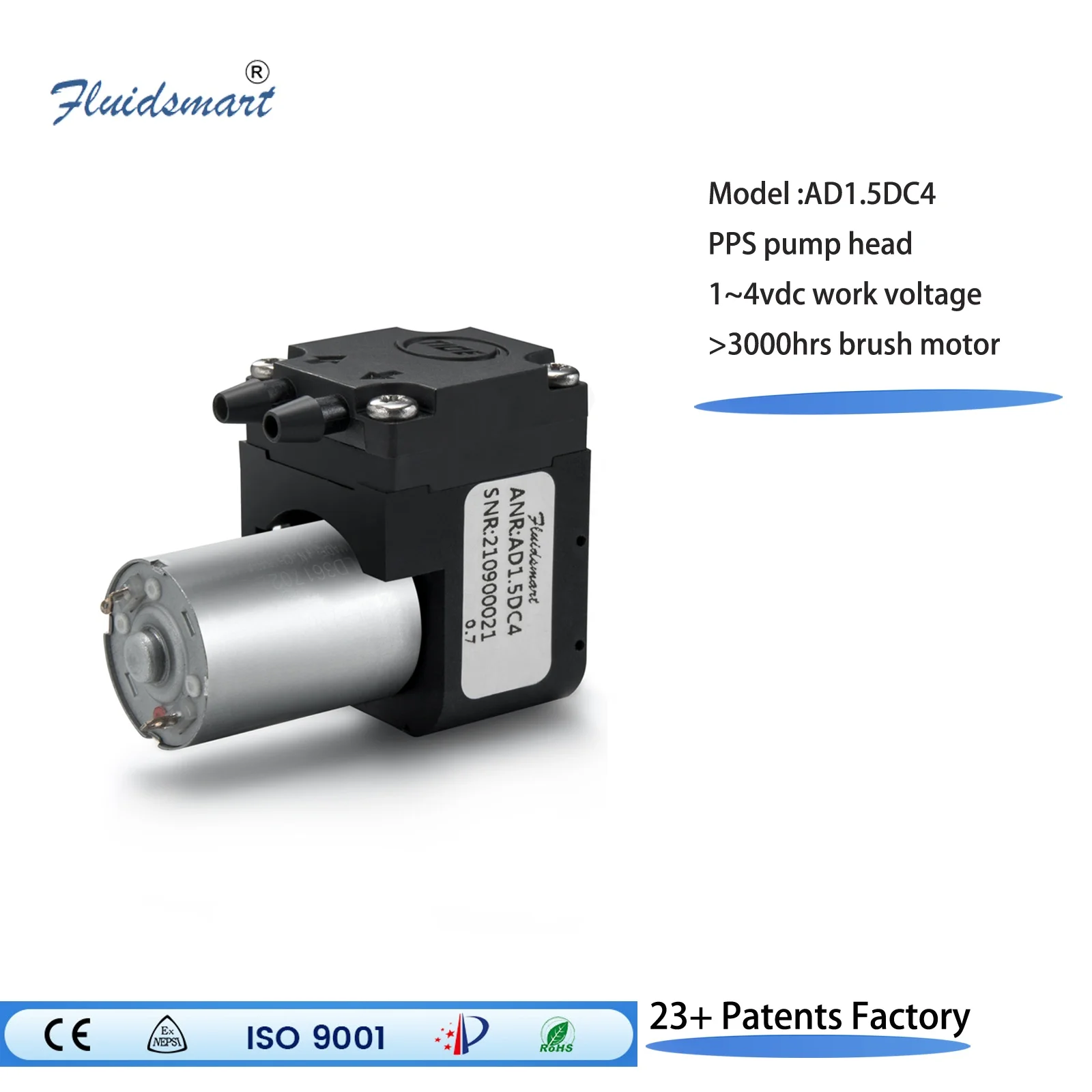

Model: | AD1.5DC4 (common brushed) | AD1.5DM4/ AD1.5DM4EX-A (explosion-proof) | AD1.5DM4PV/ AD1.5DM4PVEX-A (explosion proof） |
Voltage range: | 1Vdc~4Vdc | 1Vdc~4Vdc | 1Vdc~4Vdc |
Maximum flow(3.3v): | 800-1200 ml/min | 800-1200ml/min | 2L/min |
Max. negative pressure: | -40Kpa | -40Kpa | -45Kpa(in parallel) |
Max. positive pressure: | +50Kpa | +50Kpa | +50Kpa( in parallel) |
Motor type: | Dc brush motor | coreless brush motor | coreless brush motor |
Max. power: | 0.4w | 0.4w | 0.8w |
Waterproof grade: | IP20 | IP20 | IP20 |
Storage environment temp.: | -40℃~60℃ | -40℃~60℃ | -40℃~60℃ |
Working environment temp.: | -20℃~50℃ | -20℃~50℃ | -20℃~50℃ |
Pump head material: | PPS | PPS | PPS |
Pump diaphragm/valve material: | EPDM or customized FKM | EPDM or customized FKM | EPDM or customized FKM |
Pump Body material: | polyamides | polyamides | polyamides |
Dimensions(mm): | 43*34*23mm | 43*34*23mm | 47*47*23mm |
