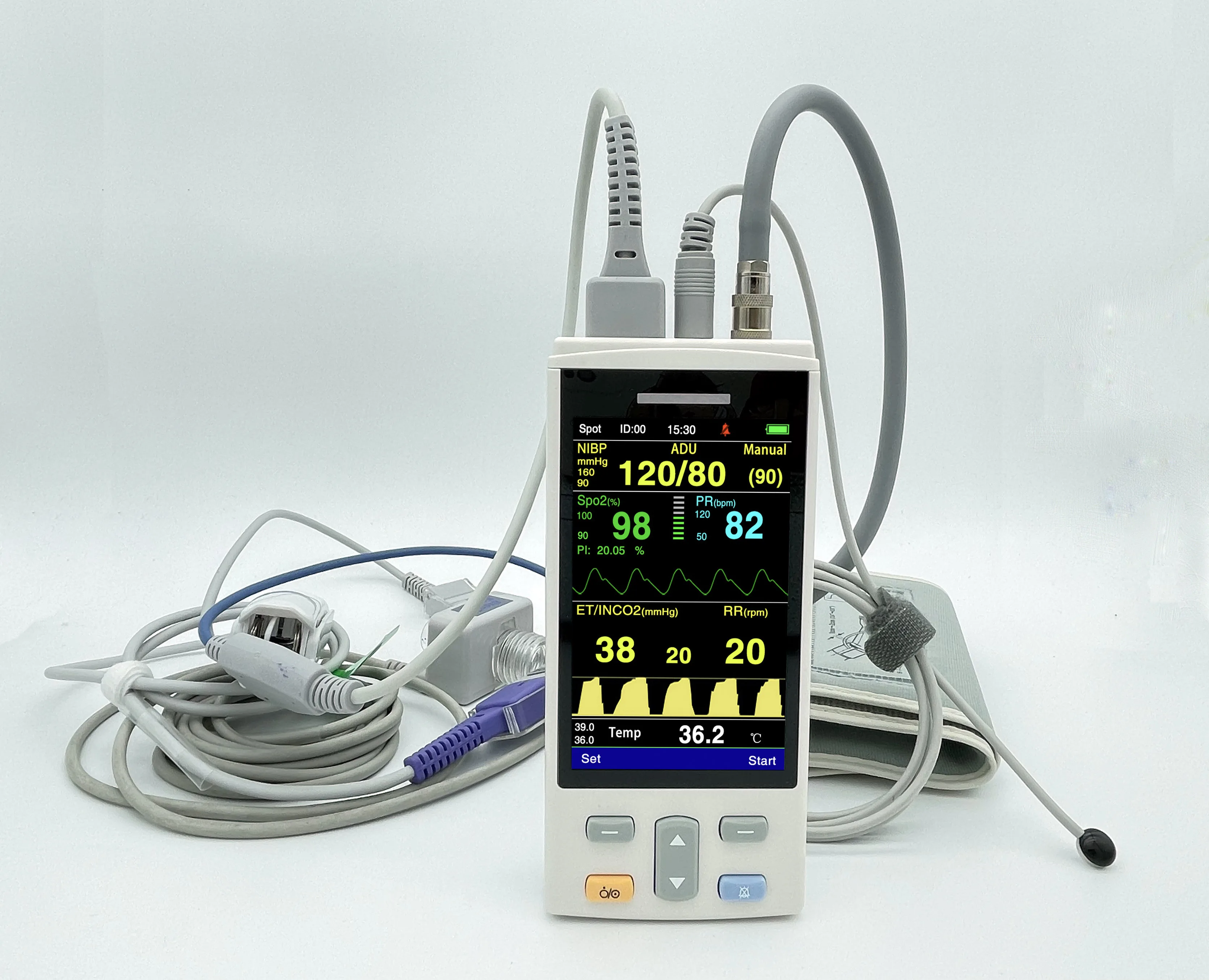

VT300H Veterinary 4inches Handheld /portable Capnograph/spo2 Saturation /nibp/temp

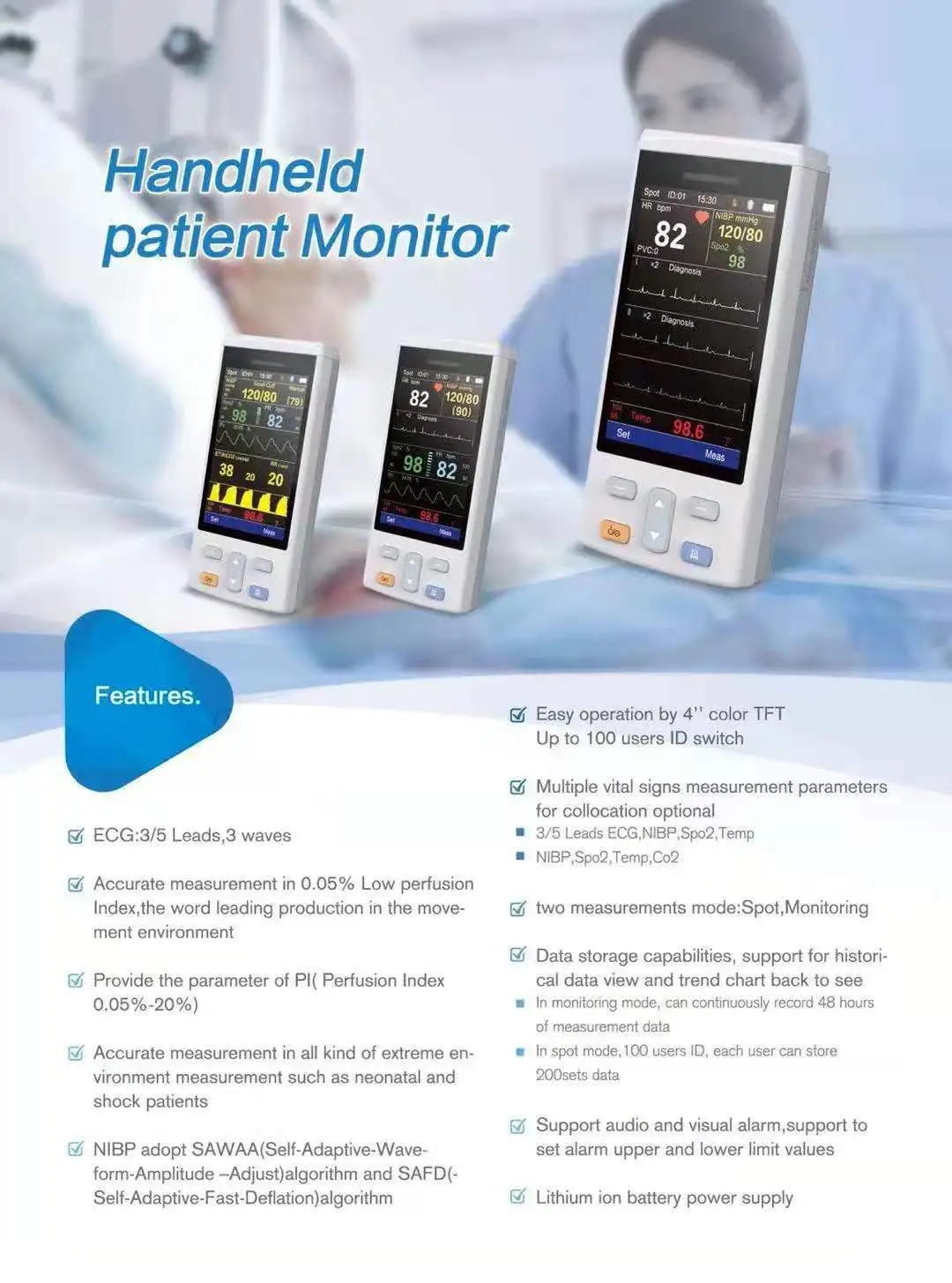

Features

 SPO2+NIBP+TEMP+ETCO2

l Accurate measurement in 0.05% Low perfusion Index,the word leading production in the movement environment

l Provide the parameter of PI( Perfusion Index 0.05%-20%)

l Accurate measurement in all kind of extreme environment measurement such as neonatal and shock patients

l NIBP adopt SAWAA(Self-Adaptive-Waveform-Amplitude –Adjust)algorithm and SAFD(Self-Adaptive-Fast-Deflation)algorithm

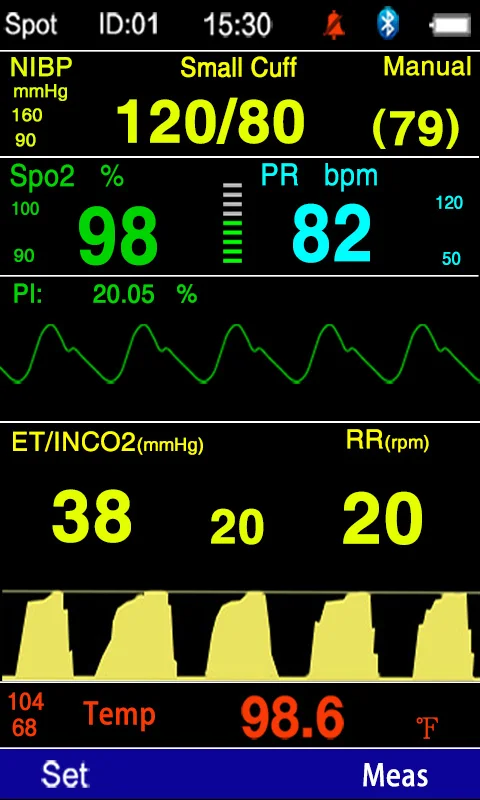

l Easy operation by 4’’ color TFT

Up to 100 users ID switch

l Multiple vital signs measurement parameters for collocation optional

           3/5 Leads ECG,NIBP,Spo2,Temp

            NIBP,Spo2,Temp,Co2

l two measurements mode:Spot,Monitoring

l Data storage capabilities, support for historical data view and trend chart back to see

In monitoring mode, can continuously record 48 hours of measurement data

In spot mode,100 users ID, each user can store 200sets data

l Support audio and visual alarm,support to set alarm upper and lower limit values

l Lithium ion battery power supply

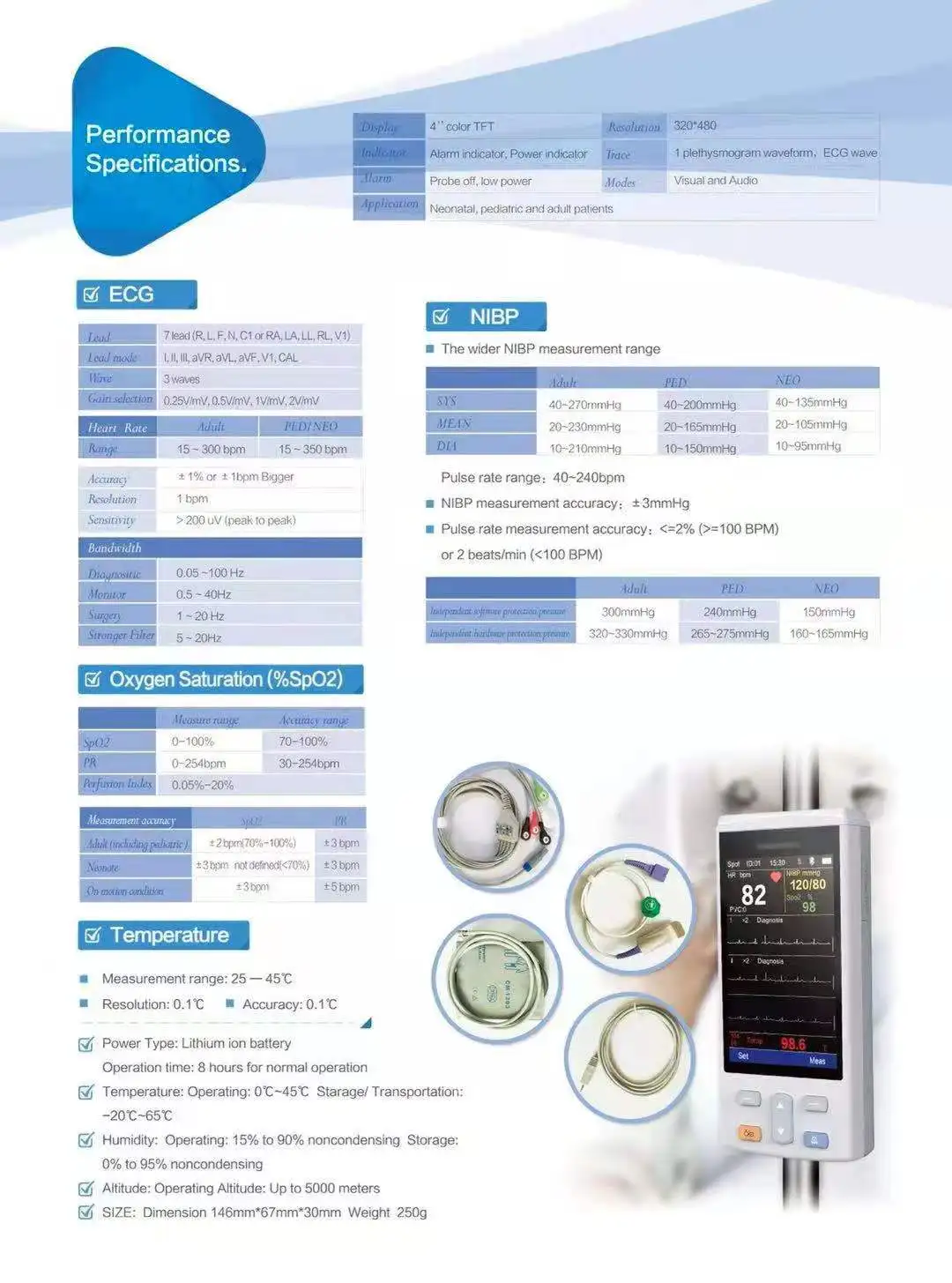

Performance  Specifications

Heart  Rate:

Range

Adult 15 ~ 300 bpm

Neo/Ped     15 ~ 350 bpm

Accuracy ±1% or ±1bpm Bigger

Resolution     1 bpm

Sensitivity    > 200 uV (peak to peak)

Bandwidth

Diagnositic  0.05 ~100 Hz

Monitor      0.5 ~ 40Hz

Surgery          1 ~ 20 Hz

Stronger Filter  5 ~ 20Hz

l Oxygen Saturation(%Spo2)

Measurement Range: Spo2: 0~100%

                    PR:0-254bpm

Perfusion Index:     0.025%-20%

  Accuracy range:     SpO2:70%-100%

           PR:30-254bpm

Perfusion Index: 0.05%-20%

Measurement accuracy

SpO2 saturation:

Adult (including pediatric ) ±2bpm(70%--100%)      PR:   ±3bpm            Neonate  ±3bpm  not defined(<70%)              PR:   ±3bpm            On motion condition ±5bpm

l Temperature

    Measurement  range: 25 — 45°C

    Resolution:             0.1°C

    Accuracy:         ±0.1°C

Power Type: Lithium ion battery

Operation time: 8 hours for normal operation

Temperature: Operating: 0℃~45℃  Starage/ Transportation: -20℃~65℃

Humidity:  Operating: 15% to 90% noncondensing  Storage:  0% to 95% noncondensing

Altitude: Operating Altitude: Up to 5000 meters

SIZE:  Dimension 146mm*67mm*30mm  Weight  250g

l Display: 3.5’ ’  color TFT             Resolution: 320*480

Indicator: Alarm indicator,Power indicator

Trace:   1 plethysmogram waveform,ECG wave

Alarm:   Probe off, low power          Modes:   Visual and Audio

Application:  Neonatal,pediatric and adult patients

l NIBP

The wider NIDP measurement range

Adult Mode

SYS  40 ~270 (mmHg)

MEAN     20 ~230(mmHg)

DIA      10 ~210 (mmHg)

 Pediatric Mode

 SYS  40 ~ 200 (mmHg)

MEAN  10 ~ 150 (mmHg)

 DIA  20 ~ 165 (mmHg)

 Neonatal Mode

SYS  40 ~ 135 (mmHg)

MEAN  20 ~ 105 (mmHg)

  DIA  10 ~ 95 (mmHg)

Pulse rate range:40~240bpm

NIBP measurement accuracy:±3mmHg

Pulse rate measurement accuracy:<=2% (>=100 BPM) or 2 beats/min (<100 BPM)

Independent  software protection pressure

Adult         300mmHg

PED          240mmHg

NEO          150mmHg

Independent  hardware protection pressure

Adult         320--330mmHg

PED          265--275mmHg

NEO          160--165mmHg

ETCO2
