PP PE Bottle Washing Recycling Line for Sale Automatic Series Waste Plastic
- Category: >>>
- Supplier: Suzhou Juya Machinery Technology CO. LTD.
Share on (1600430673304):
Product Overview
Description
Final Products
Plastic recycling.
Waste plastic is an important recyclable resource. Common recyclable plastics include PET bottles, agricultural films, garbage bags, woven bags, milk bottles, food packaging boxes, etc. Usually recycled waste plastics need to be pelletized before they can be reproduced. For different plastic types, our company can provide corresponding solutions.
Product Description

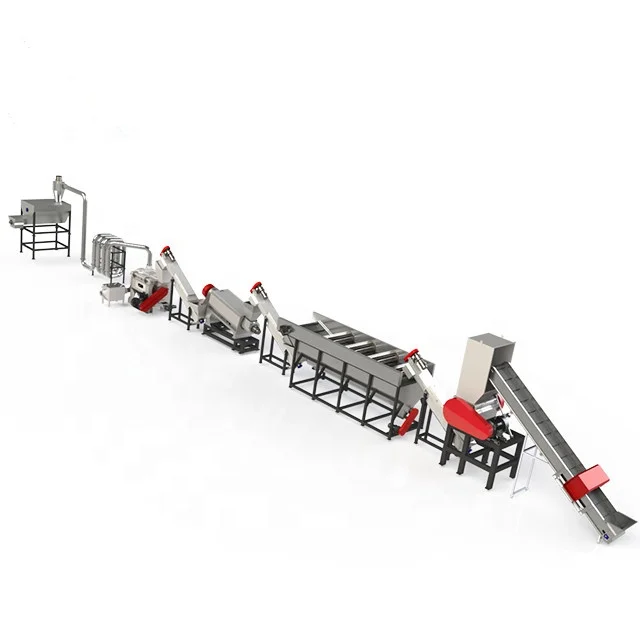

Plastic washing and recycling line.
1. From raw material crushing, cleaning, feeding to granulation are all automated, saving labor costs
2. Both the screw and barrel are made of imported high-strength, high-quality carbon structural steel, which is durable and prolongs the service life of the machine.
3. Make full use of the high-pressure friction uninterrupted heating system, automatic heating production, save electricity and energy for you.
2. Both the screw and barrel are made of imported high-strength, high-quality carbon structural steel, which is durable and prolongs the service life of the machine.
3. Make full use of the high-pressure friction uninterrupted heating system, automatic heating production, save electricity and energy for you.
Product Details

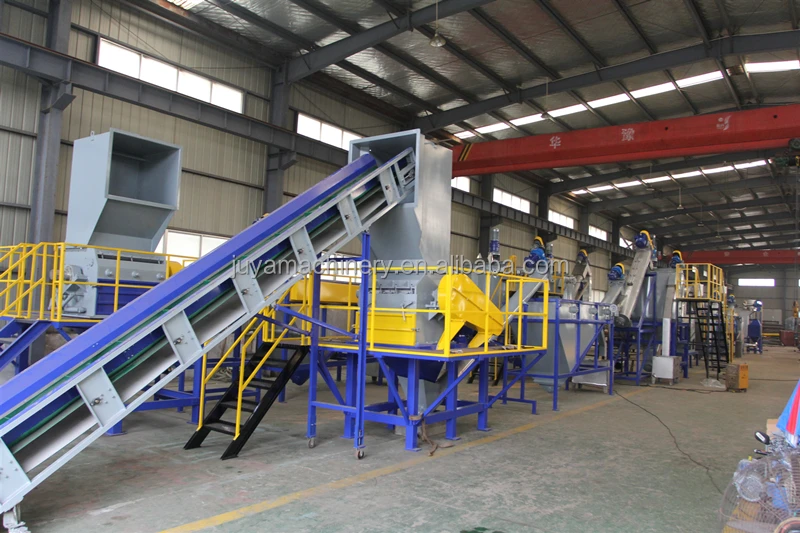

Belt conveyor.
Used to convey material into next machine.
Crusher.
Crush the material into small sizes. Clean the material with water and cool the blade during the crushing process.
Friction washer.
To convey material into next machine, cleaning material at same time.

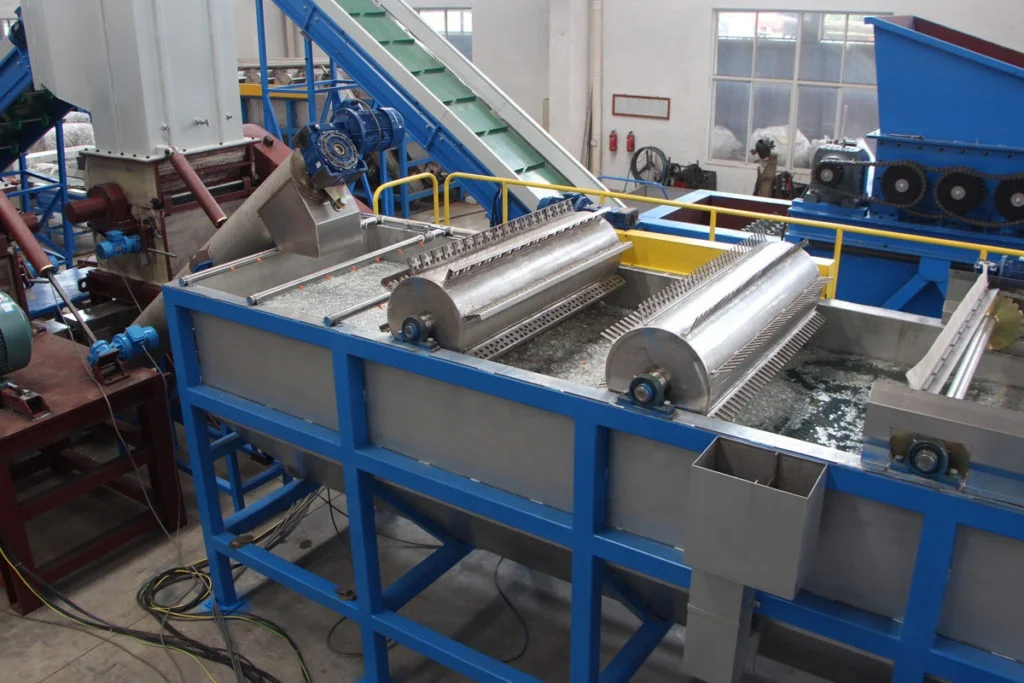

Float washing tank.
Wash away the soil, sand and other impurities in the waste plastic.
Dewatering machine.
Make the material dry. It also has high-speed friction, which can further clean the material.
Product Paramenters
PE PP film/woven bag washing and recycling line.
Capacity(kg/h) | Total Power(kw) | Area Required(㎡） | Labour Required | Water Consumption(m³/h) |
300 | 210 | 240 | 3-4 | 1.5 |
500 | 340 | 360 | 4-5 | 3 |
1000 | 550 | 450 | 5-6 | 4.5 |
1500 | 800 | 520 | 5-6 | 6 |
PE PP hard material washing and recycling line.
Capacity(kg/h) | Total Power(kw) | Area Required(㎡） | Labour Required | Water Consumption(m³/h) |
500 | 300 | 340 | 4-5 | 3 |
1000 | 500 | 420 | 4-5 | 4.5 |
2000 | 650 | 550 | 5-6 | 6 |
3000 | 800 | 700 | 5-6 | 7 |
PET bottle washing and recycling line.
Capacity(kg/h) | Total Power(kw) | Area Required(㎡） | Labour Required | Water Consumption(m³/h) |
500 | 200 | 350 | 6-8 | 1 |
1000 | 450 | 650 | 8-10 | 2 |
2000 | 700 | 1000 | 10-12 | 4 |
3000 | 900 | 1500 | 12-14 | 6 |
5000 | 1200 | 2400 | 14-16 | 10 |
Recommend Products
Crusher
Shredder
Why Choose Us
Suzhou Juya Machinery Technology Co., Ltd.
Suzhou Juya Machinery Technology Co., Ltd. is one of the manufacturers of plastic granulation production line, plastic recycling washing production line, plastic pipe and profile production line, and plastic auxiliary machines. Juya has many experienced and outstanding plastic machinery talents, so it can continuously develop the new products by self-innovation or by introduction and absorbing new technology, meanwhile also improves constantly the design of products and production technology service.

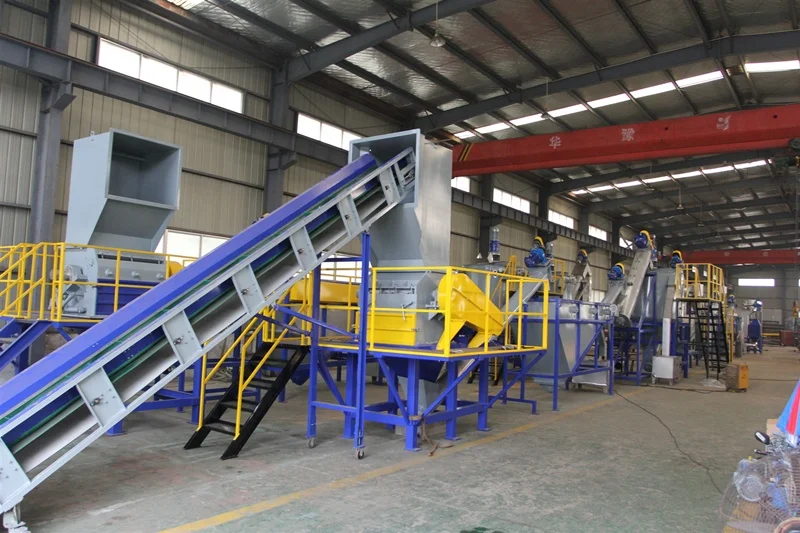

Workshop.
Juya persists in the business philosophy that technology goes with quality: technology is the root, innovation is the soul, customers come first. 1. Installation Services: During the period of installation and debugging, we shall offer training about effective operation and maintenance. 2. Technical Services: We can assist our clients to solve all kind of technical problems with our capable technical team, and we own adequate experience for production line transformation project.
Cooperation partners.
We have many cooperation partners over the world,such as SIEMENS,GEFRAN,OMRON and so on.Product quality assurance is our biggest pursuit.
Certificates.
FAQ
1. Are you a factory or a trading company, where are you located?
We are a factory located in Zhangjiagang, Jiangsu.
We are a factory located in Zhangjiagang, Jiangsu.
2. How long is the delivery time?
In general, the delivery time is 4-5 weeks.
3. What is your guarantee term?
The warranty period for our products is one year.During the warranty period, the seller is responsible for replacing free damageable parts , while the buyer pays for freight.
4. How about the oversea installation and debugging?
Our engineer can be assigned for installation and debugging. Or we can use long-distance technical assistance based on Industry 4.0
