etl listed tennis court area led parking lot lighting garden street light waterproof ip65 led area
- Category: >>>
- Supplier: Shenzhen Yaorong Technology Co. Ltd.
Share on (1600430688937):
Product Overview
Description
Product Description

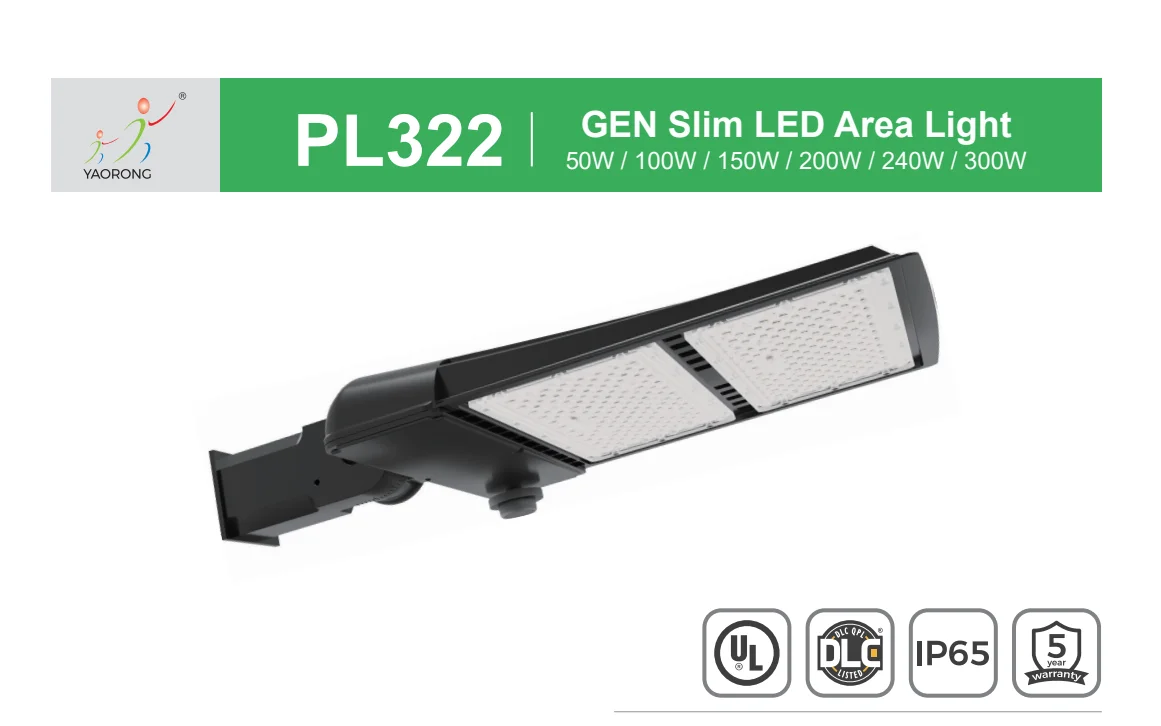

6th Gen Slim LED Area Light

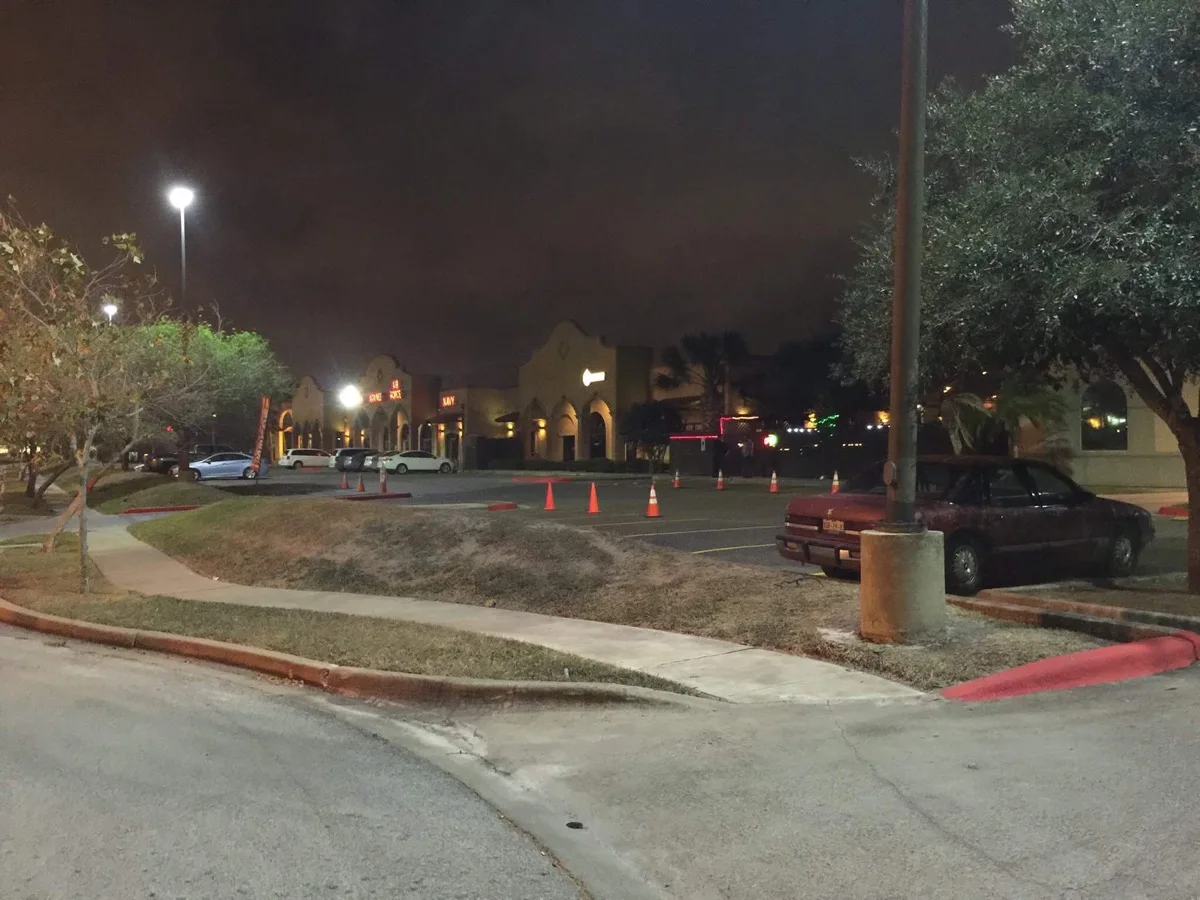

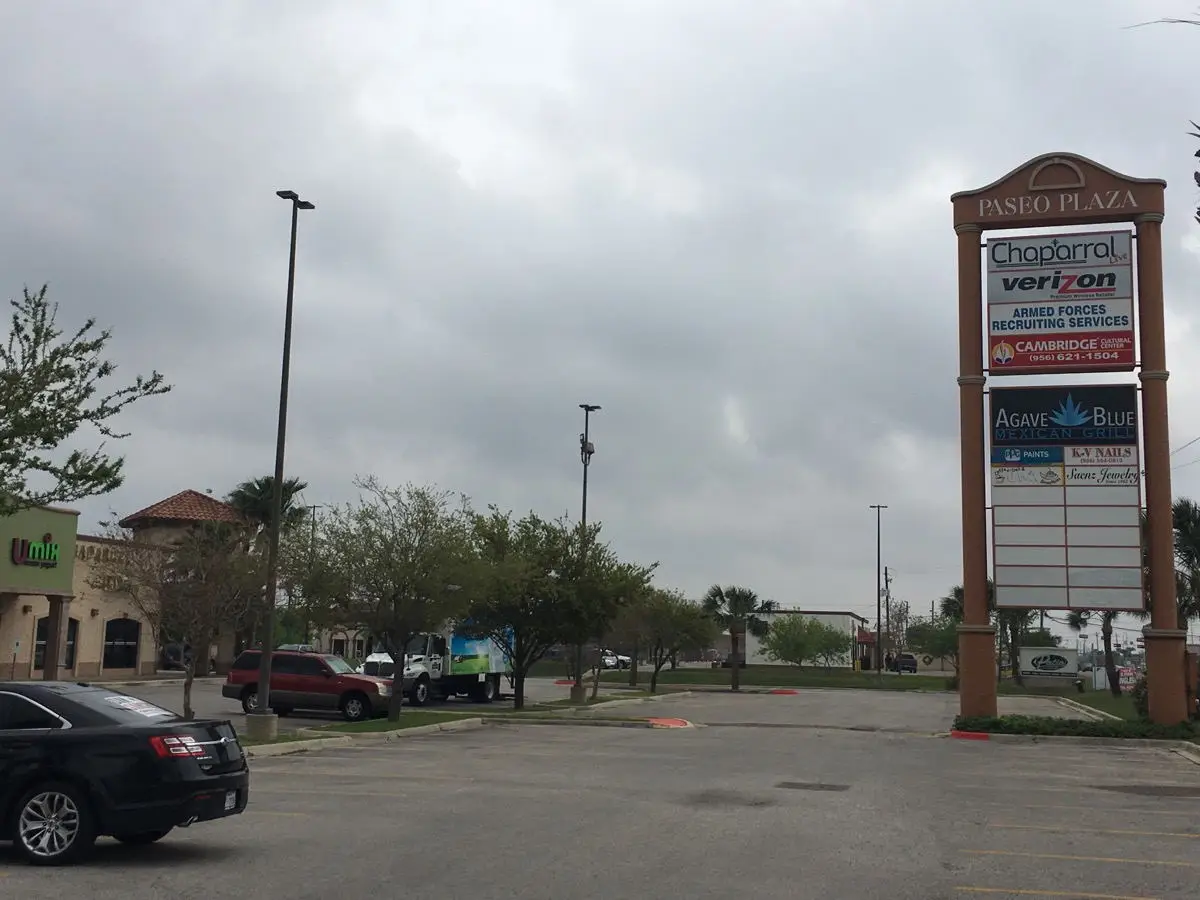

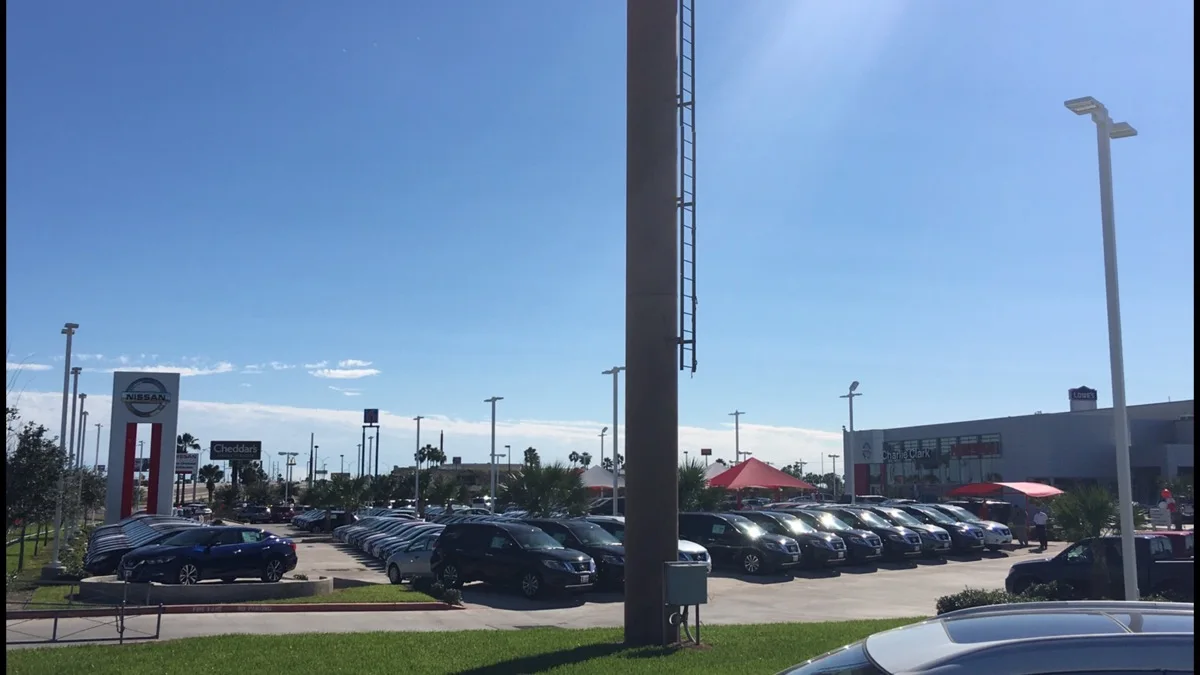

6th Gen Slim LED Area Light project cases
Application: Sports field, Plaza, Stadium, Bill board, Parking lot, Outside walls, Landscape plant, etc.

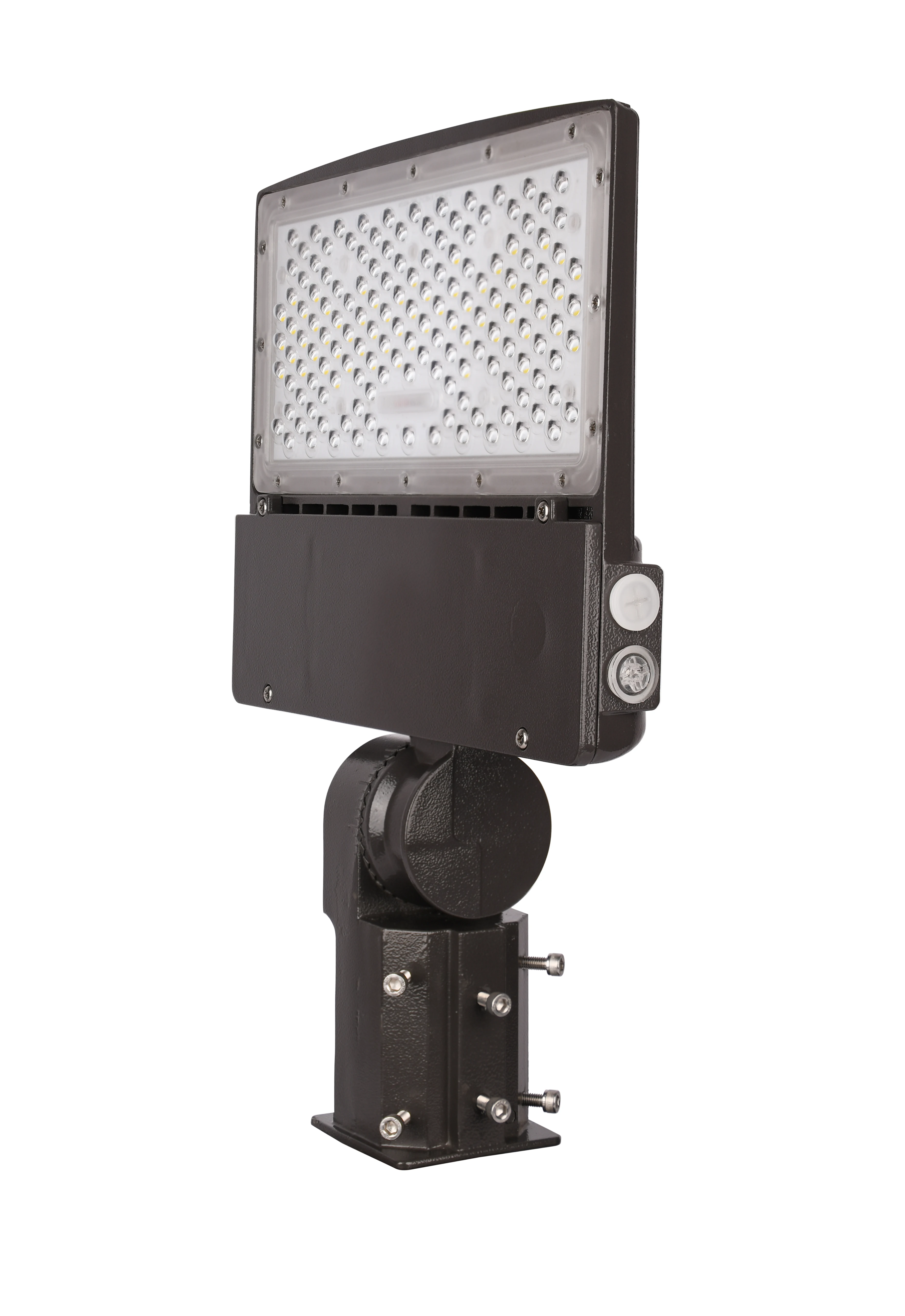

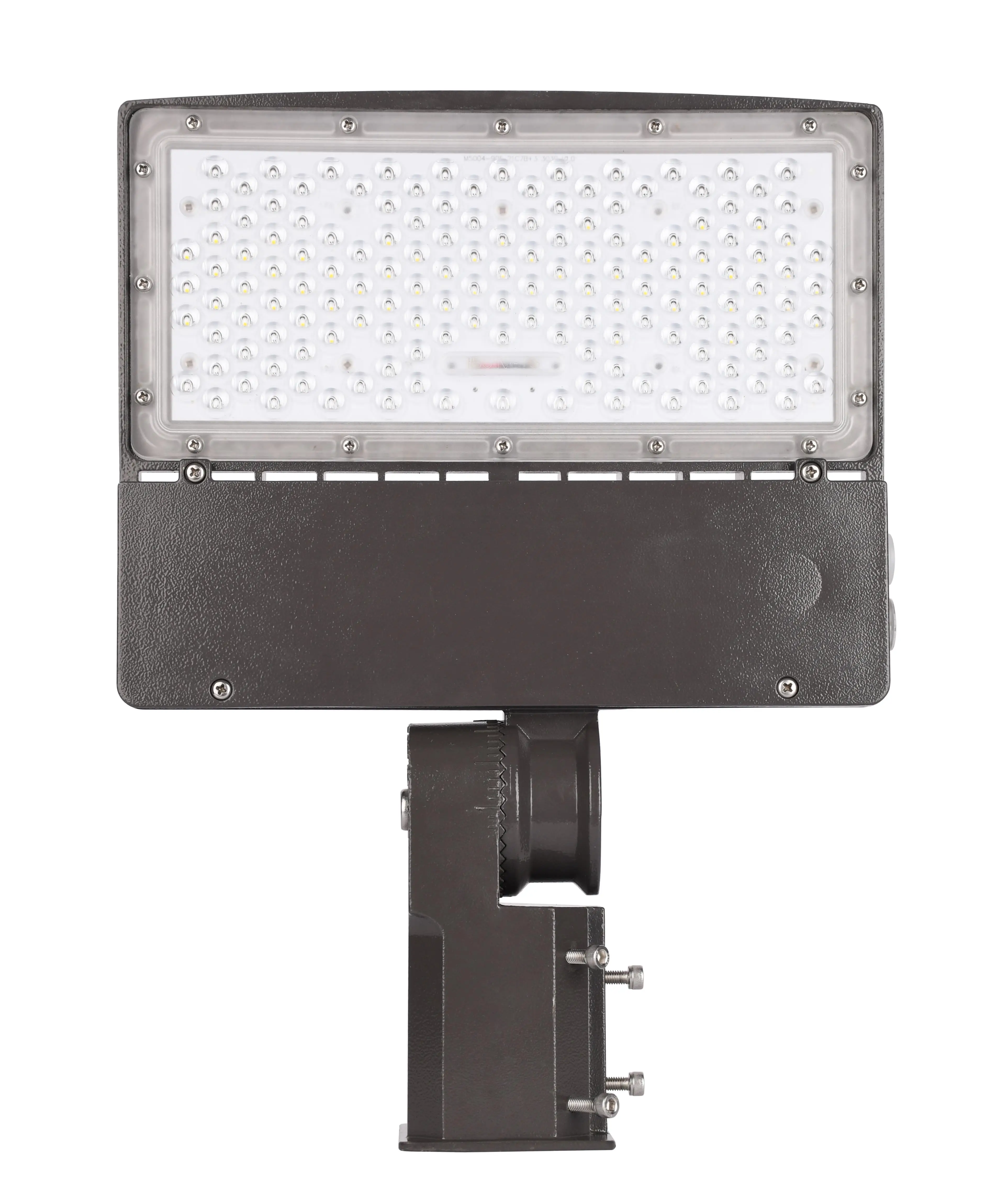

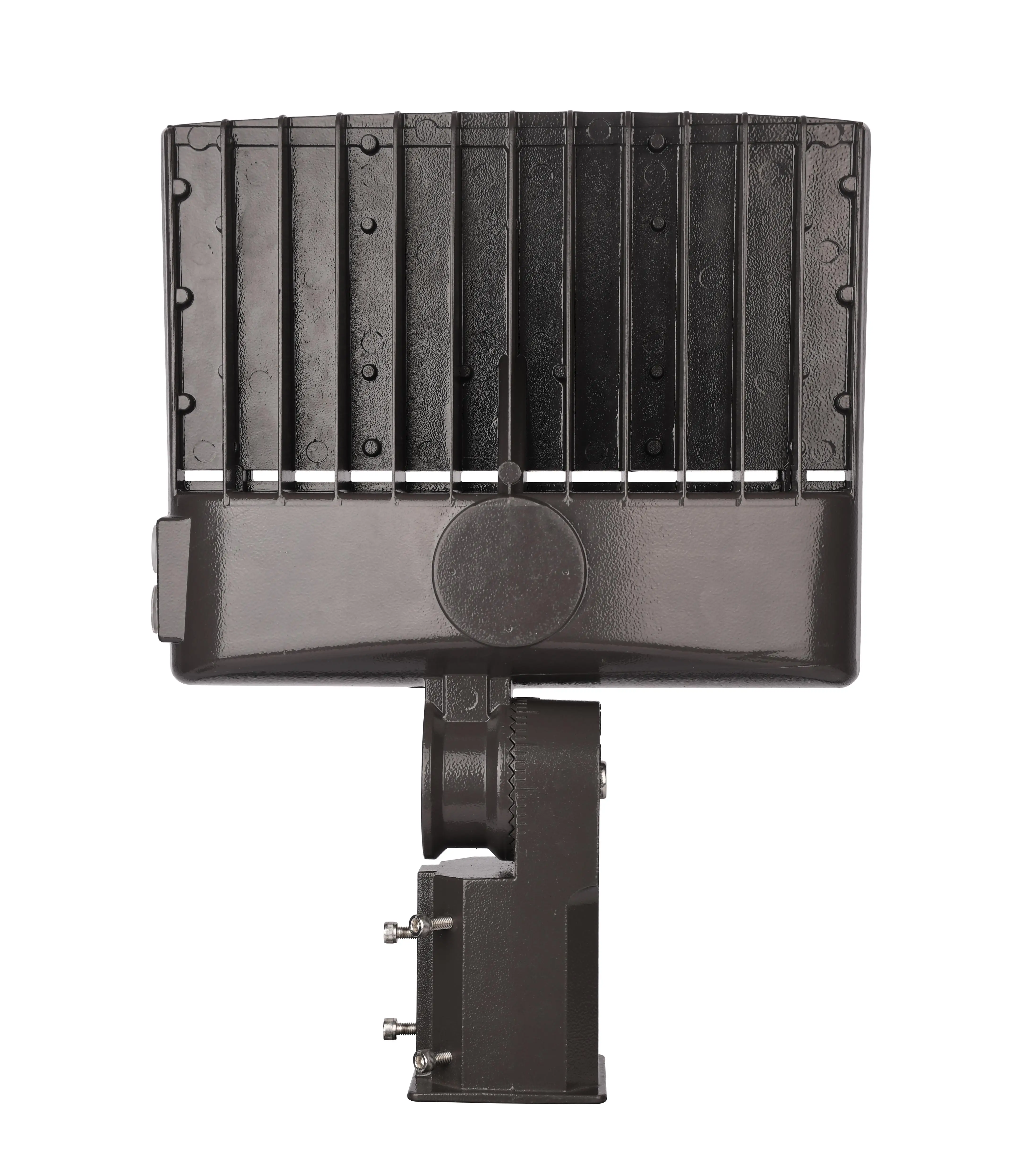

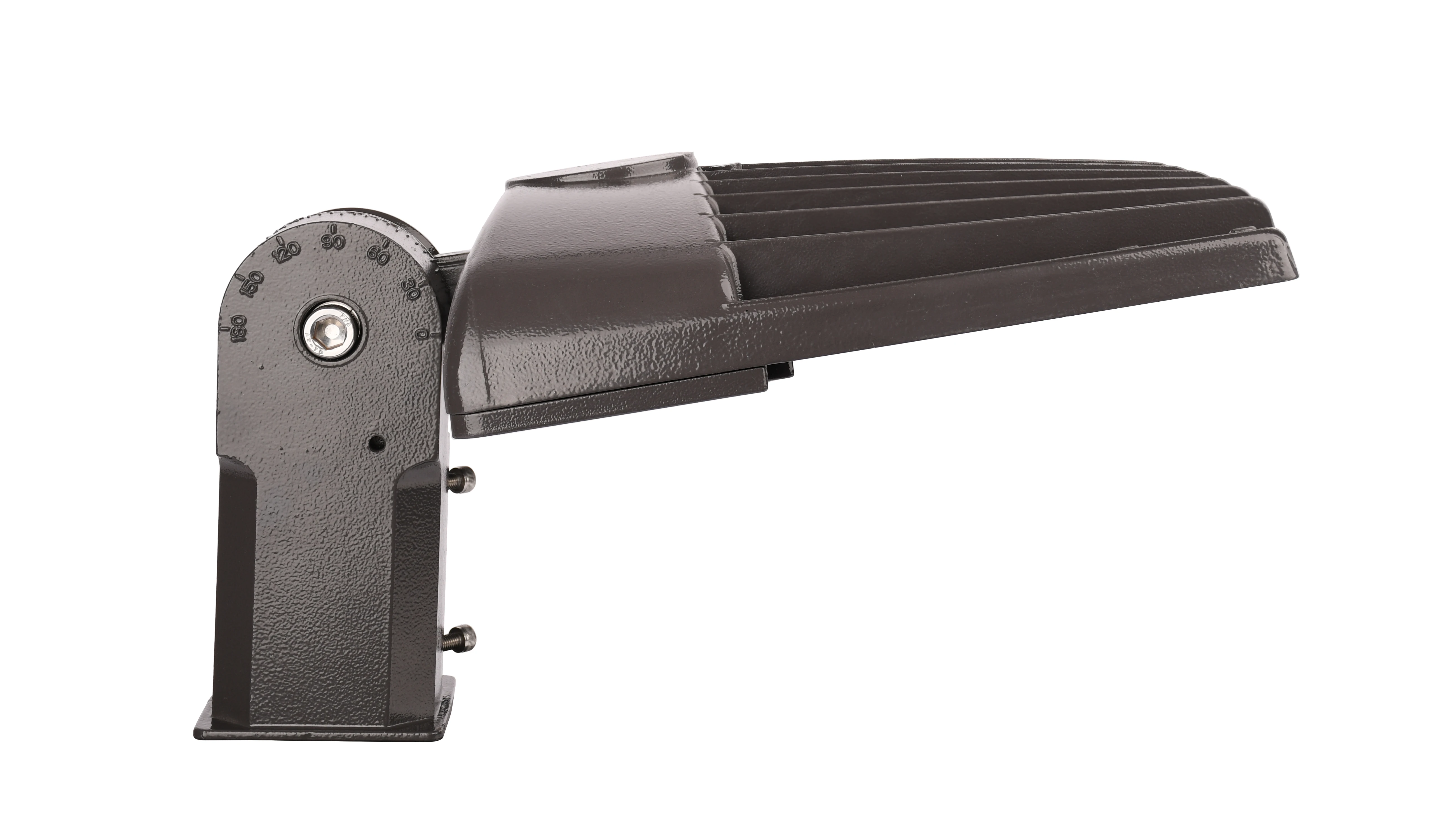

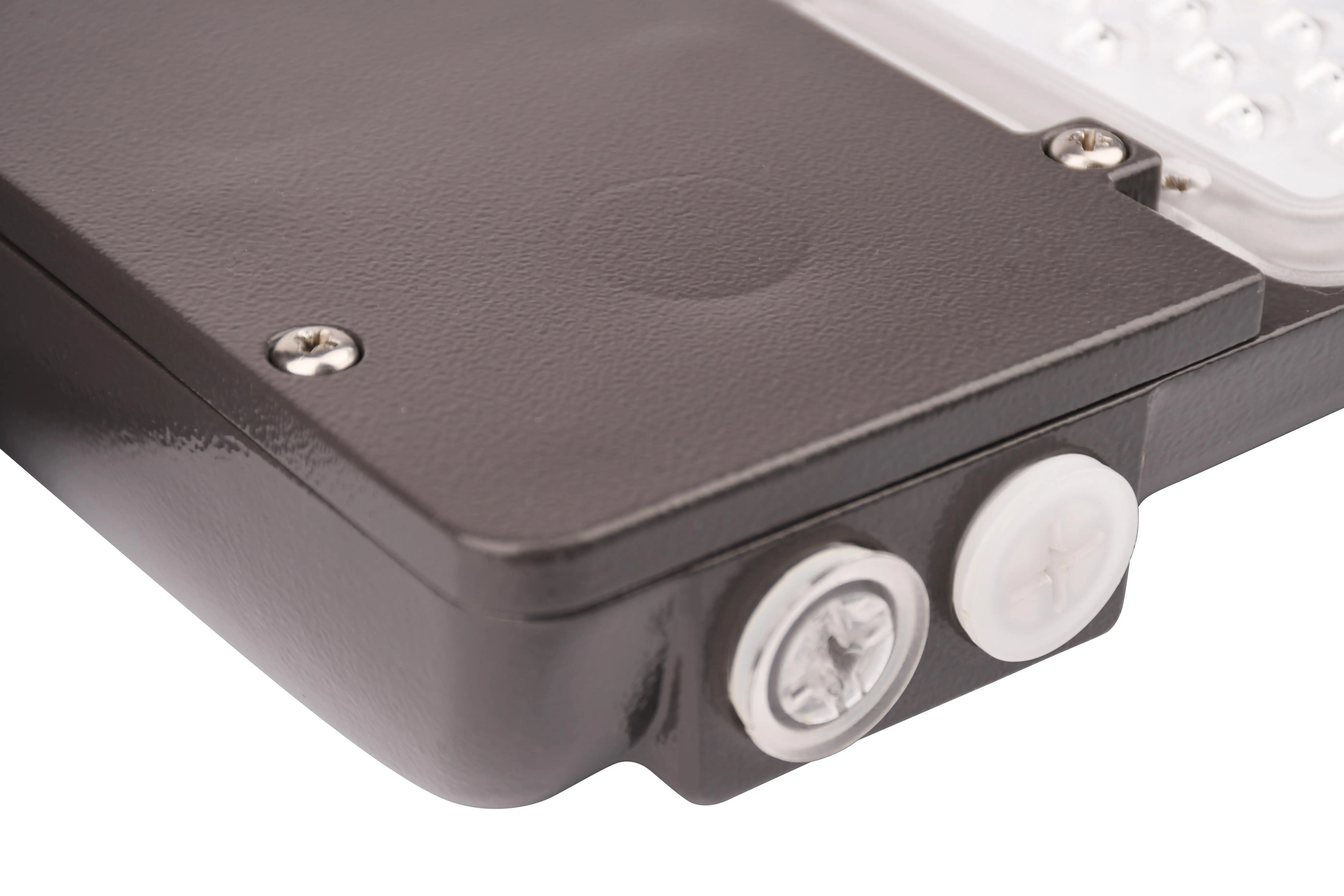

Detailed Images
Introduction of product advantages or application effect or application mode
Features
1. High efficacy up to 130 LM/W.

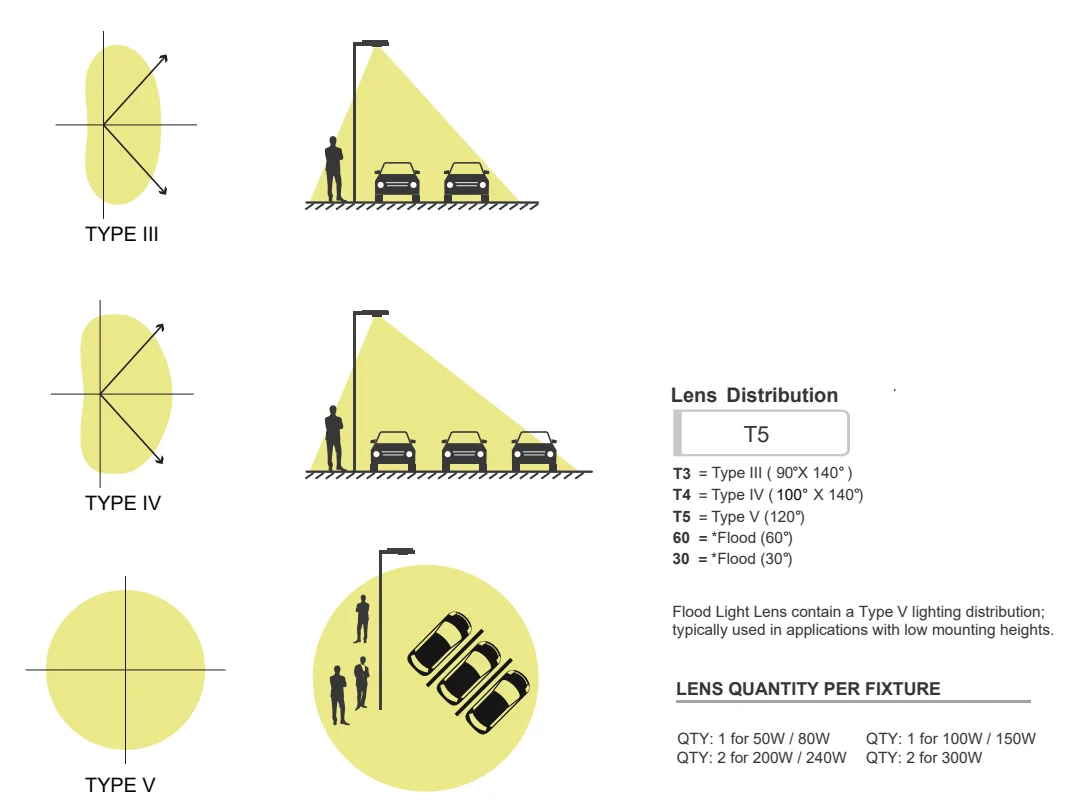

2. Optical lens with different beam angle 90*140°/100*140°/120°.
3. IP65 waterproof for outdoor
4. Motion sensor, emergency backup, 0-10V/dali dimming support.
5. Different installation menthods: Square/round arm mount/Slip Fitter/Wall Mount
Specifications | ||
Item | YR-FL322 | |
Power | 50W/100W/150W/200W/240W/300W | |
LED brand | SMD 2835 or other brands | |
System Efficacy | 130 LM/W | |
Light Output | 6500LM /10400LM/13000LM/19500LM/26000LM/31200LM/39000LM | |
Power factor | PF>0.90 | |
Color Tempreture | 2700K-6500K | |
Housing Color | Bronze / Black / Silver / White | |
Different for Installation | Square/round arm mount/Slip Fitter/Wall Mount | |
Beam angle | 90*140°/100*140°//120° | |
Working temperature | -40°C to +45°C(-40°F to +113°F) | |
IP rating | IP65 | |
Warranty | 5 years | |

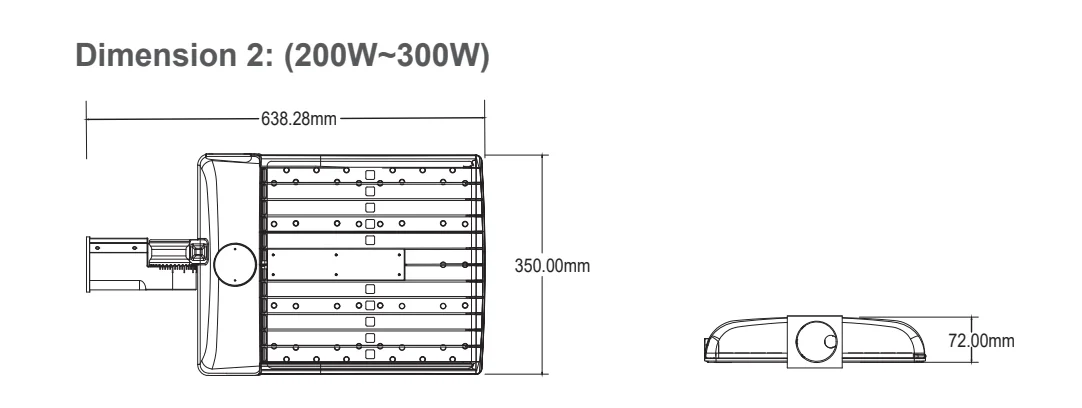

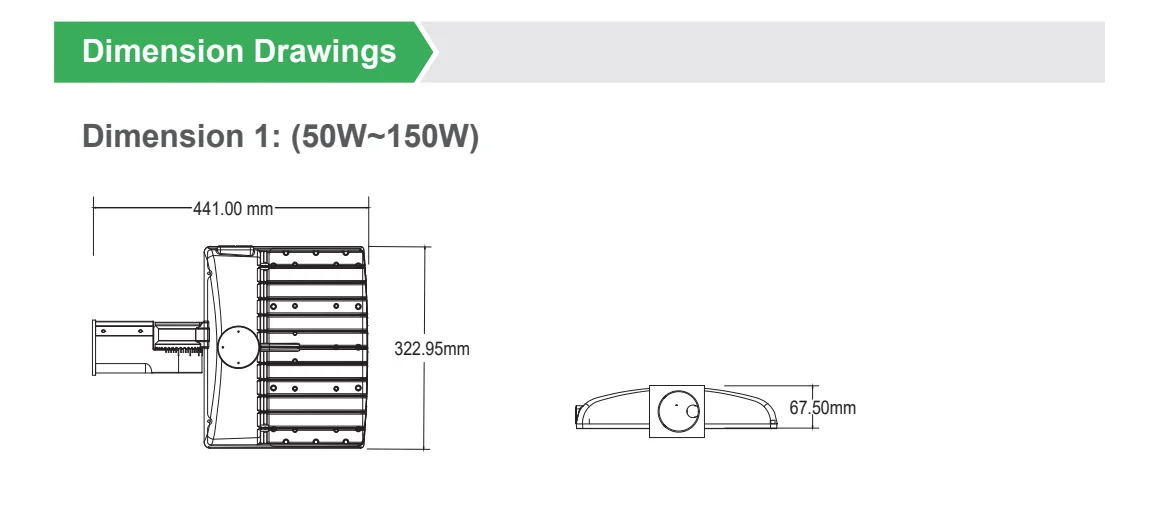

Power | Dimension(mm/in) | Carton Box Size(mm/in) | N.W(kg/lb) | G.W(kg/lb) | QTY |
50W | 340 x 322 x 77.5 mm 13.39 x 12.68 x 3.05 in | 580 x 400 x 130 mm 22.83 x 15.75 x 5.12 in | 3.8 Kg(8.38 Ib) | 4.8kg(10.59lb) | 1PCS |
100W | 340 x 322 x 77.5 mm 13.39 x 12.68 x 3.05 in | 580 x 400 x 130 mm 22.83 x 15.75 x 5.12 in | 3.8 Kg(8.38 Ib) | 4.8kg(10.59lb) | 1PCS |
150W | 340 x 322 x 77.5 mm 13.39 x 12.68 x 3.05 in | 580 x 400 x 130 mm 22.83 x 15.75 x 5.12 in | 3.8 Kg(8.38 Ib) | 4.8kg(10.59lb) | 1PCS |
200W | 538 x 354 x 72 mm 21.18 x 13.94 x 2.83 in | 610 x 410 x 130 mm 24.02 x 16.14 x 5.12 in | 5.2 Kg(11.47Ib) | 6.7kg(14.78lb) | 1PCS |
240W | 538 x 354 x 72 mm 21.18 x 13.94 x 2.83 in | 610 x 410 x 130 mm 24.02 x 16.14 x 5.12 in | 5.2 Kg(11.47Ib) | 6.7kg(14.78lb) | 1PCS |
300W | 538 x 354 x 72 mm 21.18 x 13.94 x 2.83 in | 610 x 410 x 130 mm 24.02 x 16.14 x 5.12 in | 5.2 Kg(11.47Ib) | 6.7kg(14.78lb) | 1PCS |

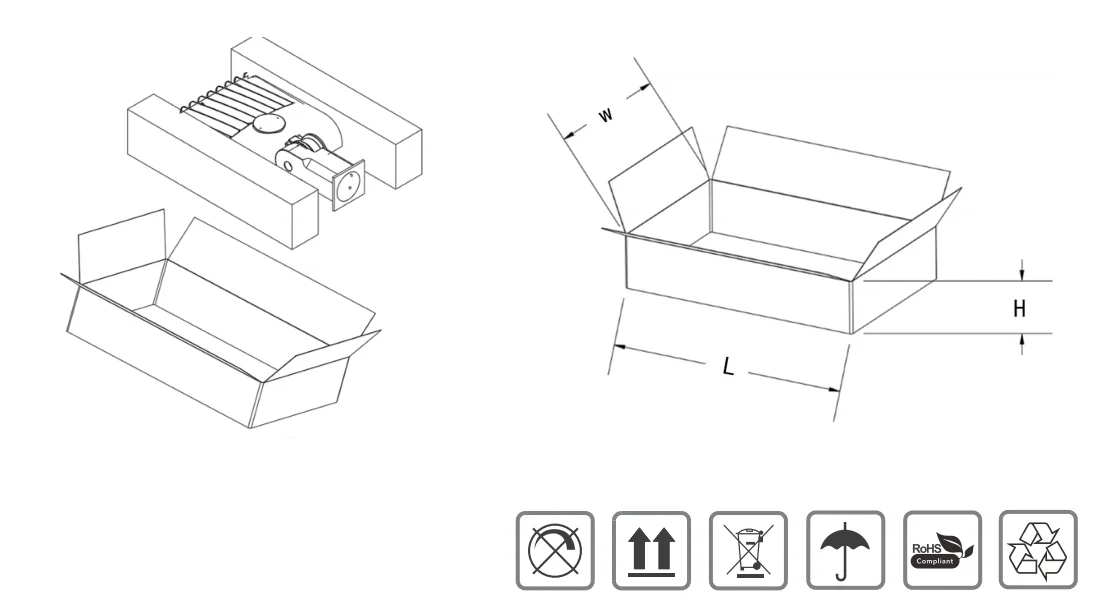

Packing&Shipping

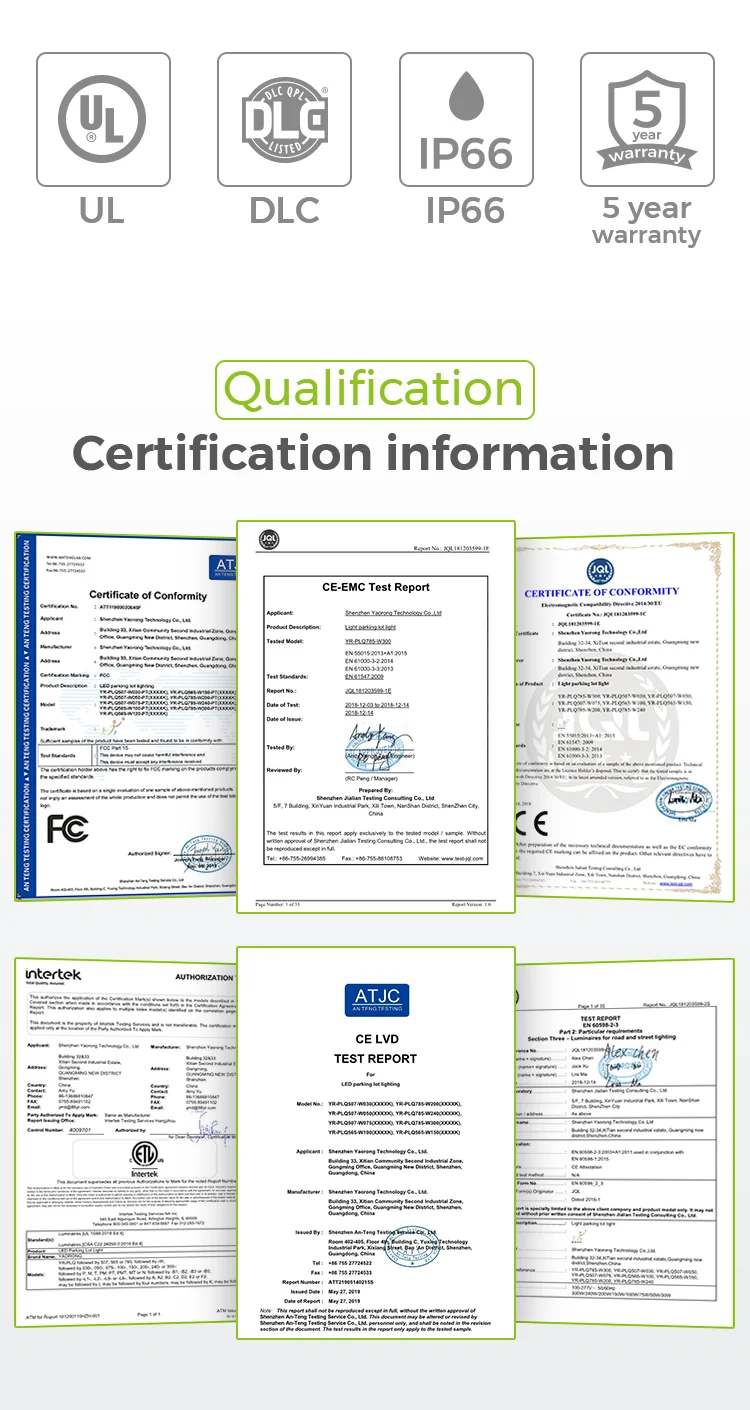

Certificate
Related Products

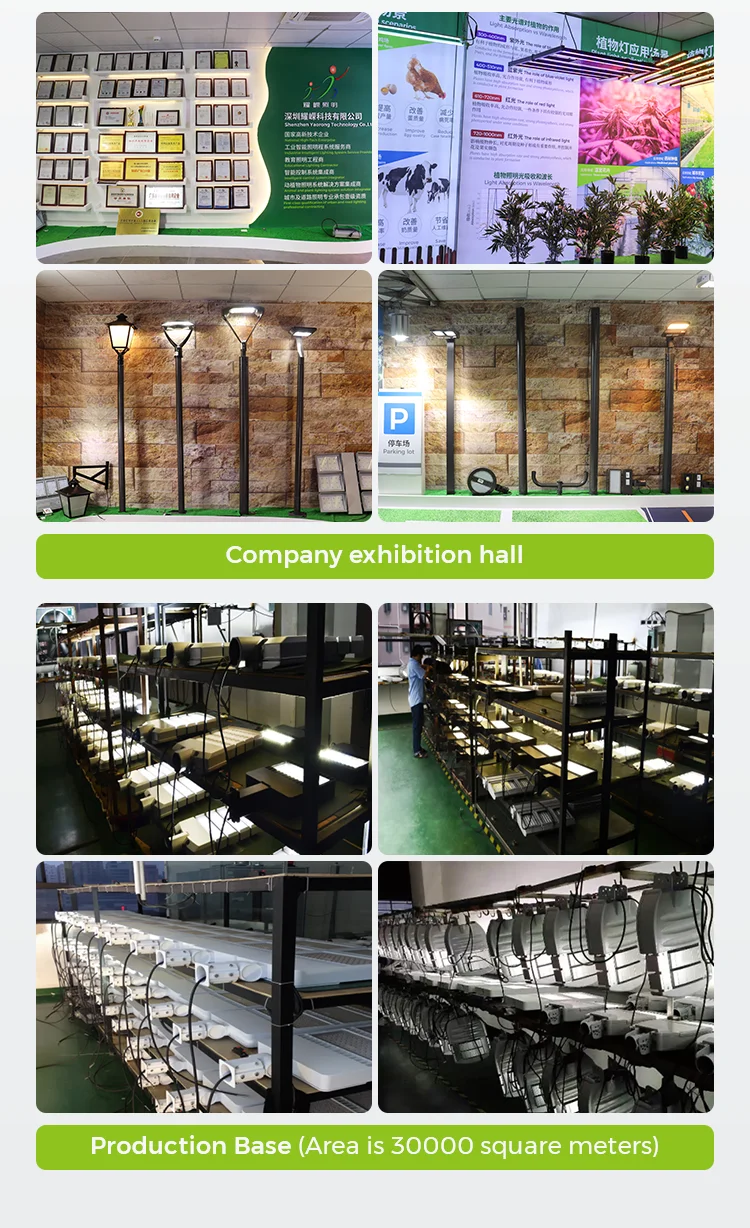

Company Introduction
FAQ
Q: What is your MOQ?
A: For Sample order, 1 pcs is acceptable.
Q: Are you trading company or factory?
A: We both have our own factory and company(we have a video about factory; if need, please send us message for getting more info
about us). We can design, produce and deliver the product to you with fast lead time, also can provide a professional and nice
service.
Q: Can you print the logo on the lamp and provide special carton?
A: Of course. Laser carving for logo and special carton according to your requirement.
Q: If we have special requirement about product, can you solve it for us?
A: YES. We are professional on this. If any problem or special requirement, please let us know. We will try our best to solve it.
Q: How can you guarantee the quality and how to solve the faulty?
A: We will have a reply after receiving your message within 1 hour, handle and provide the solution within 1 day. During the
warranty years, we will resend a new product or repair broken product within 7 days.
A: For Sample order, 1 pcs is acceptable.
Q: Are you trading company or factory?
A: We both have our own factory and company(we have a video about factory; if need, please send us message for getting more info
about us). We can design, produce and deliver the product to you with fast lead time, also can provide a professional and nice
service.
Q: Can you print the logo on the lamp and provide special carton?
A: Of course. Laser carving for logo and special carton according to your requirement.
Q: If we have special requirement about product, can you solve it for us?
A: YES. We are professional on this. If any problem or special requirement, please let us know. We will try our best to solve it.
Q: How can you guarantee the quality and how to solve the faulty?
A: We will have a reply after receiving your message within 1 hour, handle and provide the solution within 1 day. During the
warranty years, we will resend a new product or repair broken product within 7 days.
