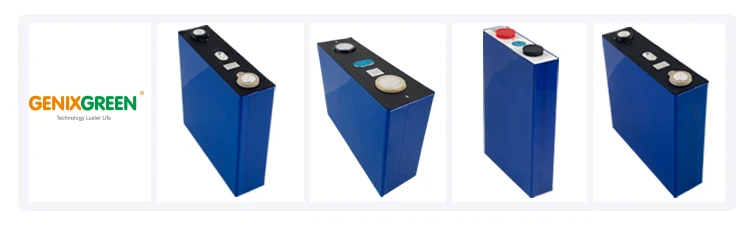

Lithium titanium oxide battery 10 years warranty portable generator powerwall 3.2v 12V 48V 100ah lifepo4 lithium ion batteries
- Category: >>>
- Supplier: Shenzhen Genixgreen Technology Co. Limited
Share on (1600430689443):
Product Overview
Description

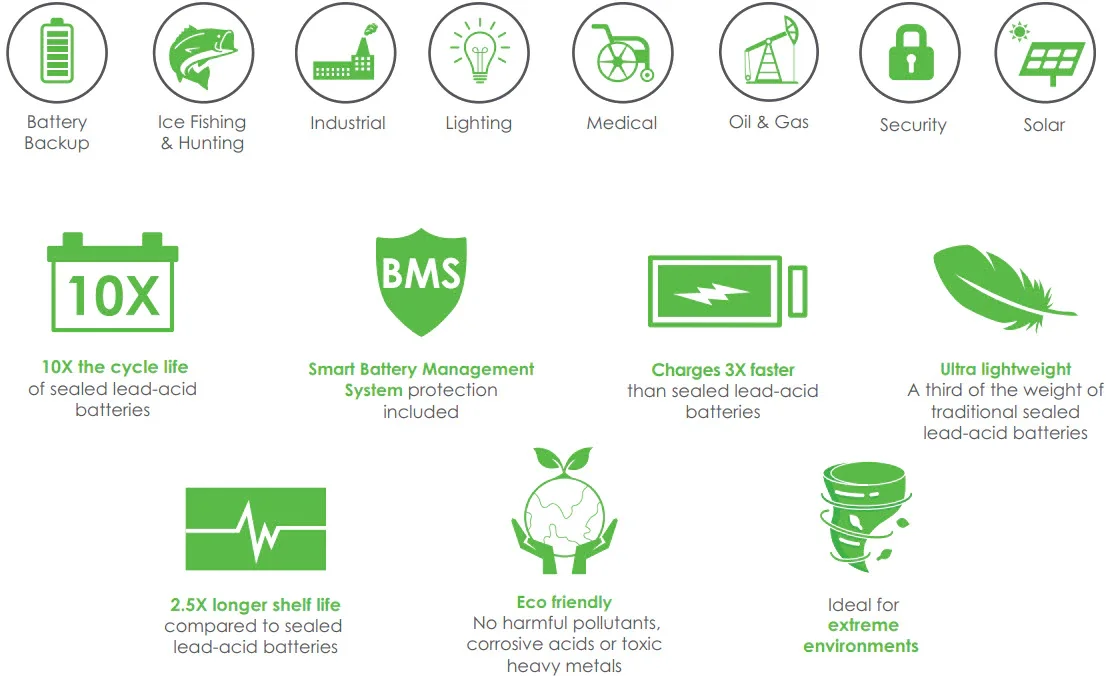

Product Application
Product parameter
Model | LFP48173150E-100Ah | LFP5016116A-102Ah | RD-LF105-S01-LF | LFP48173170E-120Ah |
Battery Type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
Nominal capacity | 100AH | 102AH | 105AH | 120AH |
Nominal voltage | 3.2V | 3.2V | 3.2V | 3.2V |
AC impendence | ≤0.32 mΩ | 0.27mΩ≤R≤0.4mΩ | ≤0.5mΩ | ≤0.3 mΩ |
Battery weight | ≤2.50 kg | ≤1.92 kg | ≤2 kg | ≤2.86 kg |
Standard charge current | 0.5 C | 0.5 C | 0.5 C | 0.5 C |
Peak pulse charge current | 2 C | 2 C | 2 C | 2 C |
Standard discharge current | 0.5C | 0.5C | 0.5C | 0.5C |
Long pulse discharge current | 1 C | 1 C | 1 C | 1 C |
Peak pulse discharge current | 2C | 2C | 2C | 2C |
Operating voltage | T>0 ºC: 2.5~3.65 V T≤0 ºC: 2.0~3.65 V | T>0 ºC: 2.5~3.65 V T≤0 ºC: 2.0~3.65 V | T>0 ºC: 2.5~3.65 V T≤0 ºC: 2.0~3.65 V | T>0 ºC: 2.5~3.65 V T≤0 ºC: 2.0~3.65 V |
Operating temperature | Charge: 0~50 ºC Discharge: -20~55 ºC Store -30~45 ºC | Charge: 0~50 ºC Discharge: -20~55 ºC Store -30~45 ºC | Charge: 0~50 ºC Discharge: -20~55 ºC Store -30~45 ºC | Charge: 0~50 ºC Discharge: -20~55 ºC Store -30~45 ºC |
Voltage tolerance test for dielectric film | 0~10 mA | 0~10 mA | 0~10 mA | 0~10 mA |

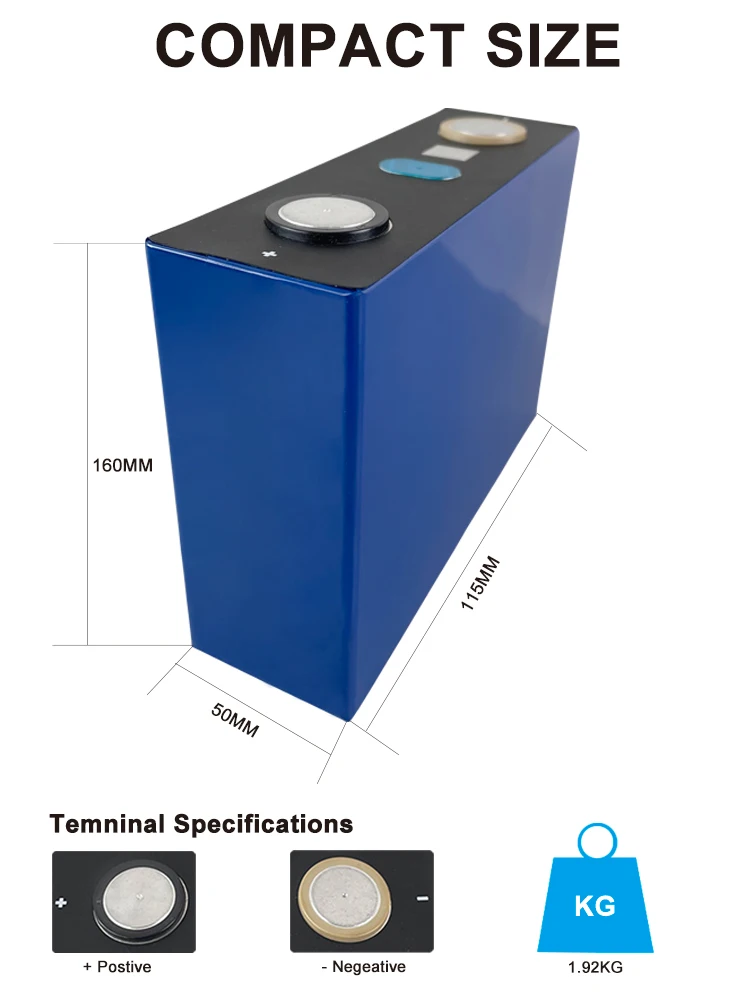

L*W*H (mm) | 49*174*150 | 50*160*119 | 37*200*130 | 49*174*170 |
Features of LiFePO4 Battery
Longer Cycle Life: Offers a significant longer cycle life and longer float/calendar life than lead acid batteries helping to minimize replacement cost and reduce total cost of ownership.
Higher Power:Delivers twice the power of lead acid batteries, even high discharge rate, while maintaining high energy capacity.
BMS Protection: Under/Over voltage and current protection ensuring safe and efficient operation.
Charging: Designed to work with AGM chargers.
Safety: Advanced LiFePO4 cell design includes various safeguards including high temp thermal fuse, flame retardant additive and pressure relief valves.
Increased Flexibility: Battery Specialist LiFePO4 batteries are a "drop-in replacement" of lead acid batteries.
Higher Power:Delivers twice the power of lead acid batteries, even high discharge rate, while maintaining high energy capacity.
BMS Protection: Under/Over voltage and current protection ensuring safe and efficient operation.
Charging: Designed to work with AGM chargers.
Safety: Advanced LiFePO4 cell design includes various safeguards including high temp thermal fuse, flame retardant additive and pressure relief valves.
Increased Flexibility: Battery Specialist LiFePO4 batteries are a "drop-in replacement" of lead acid batteries.

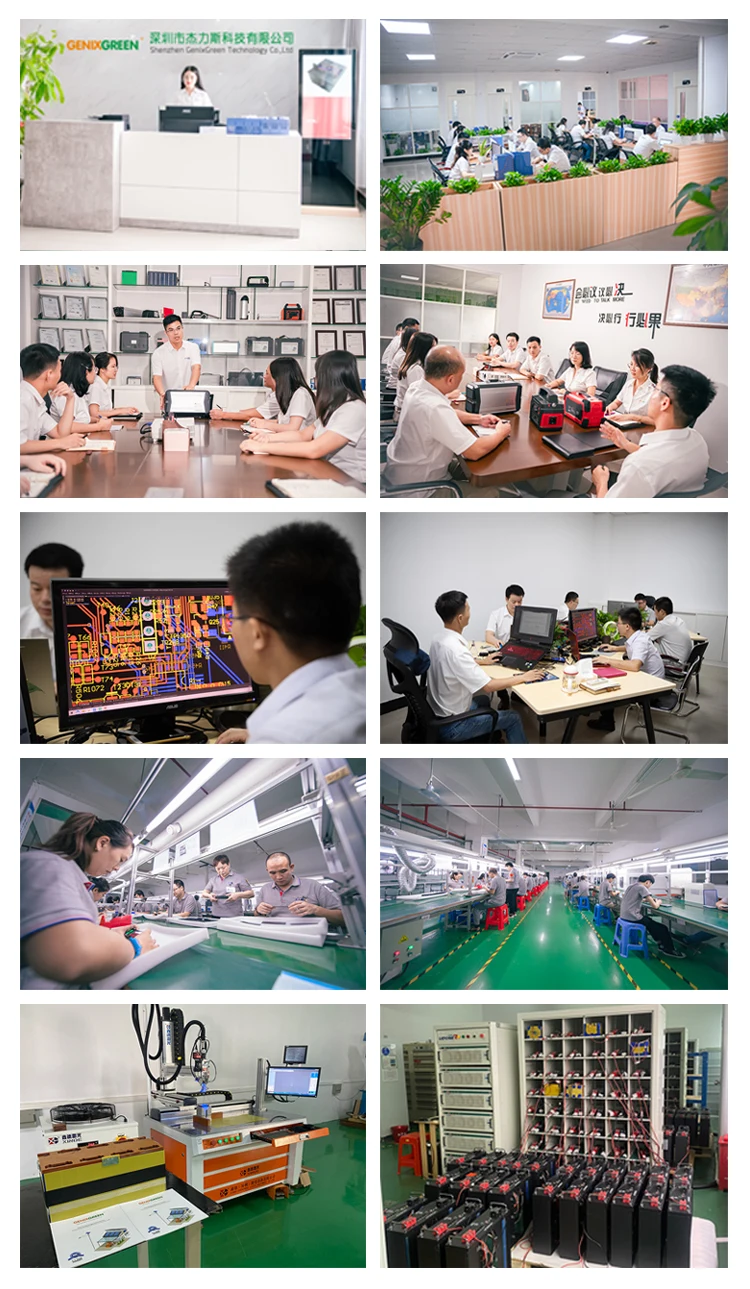

Factory Show
Battery capacity detector
Battery cell before assembling will be tested the capacity, internal resistant, etc. grading test.
Automatic welder
Battery is assembled by battery plastic holder-orderly and good for heat radiation, etc.
Automatic welder welding battery pack
Battery cell sorting
Automatic sorting machine,test voltage and inner resistance
Aging Testing
All battery pack will do two aging test, one is PVC pack, one is after housing.
Certifications
Cooperation Brand
About us&Exhibition
FAQ
A: Yes,it is indeed 100% original and authentic, we never sell fake battery, honest is the best policy.
* What's your delivery time?
A: The cargo will be shipped out within 2-3 working days and 7-15 days to arrive to your hand.

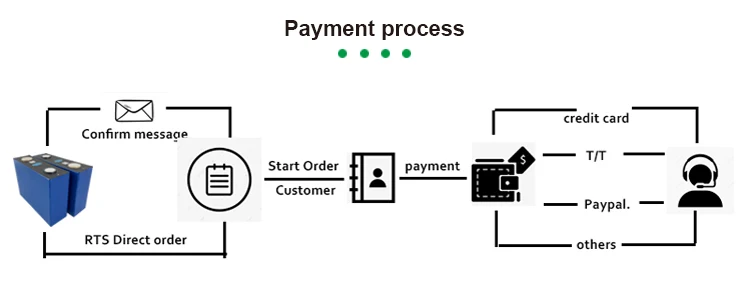

* How can I place order?
A: You can place order on https://genixgreen.en.alibaba.com/contactinfo.htm Allibaba directly or contact us by email about your order details.
* What is your guarantee life for the battery?
A: 5 years shelf life for LiFePO4 battery.
* How do I take care when your client received defective products?
A: replacement. If there are some defective items,we usually credit to our customers or replace in next shipment.
A: 5 years shelf life for LiFePO4 battery.
* How do I take care when your client received defective products?
A: replacement. If there are some defective items,we usually credit to our customers or replace in next shipment.
