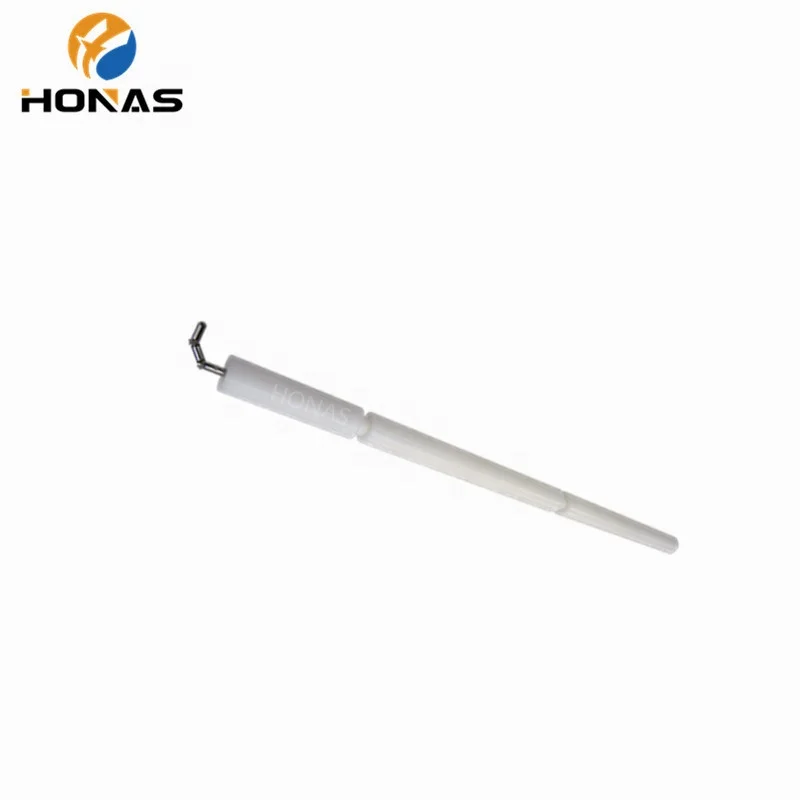

iec61032 fig12/13 standard jointed children ul test finger probe 18 and finger 19
Product Description
Application:
Manufactured according to the corresponding clauses of GB4706.21-2008, IEC61032-1997 and UL.
It complies with IEC61032 Figure 12 Test Tool 18, GB/T16842 Figure 12 Test Tool 18, GB4706.1, IEC335.1, UL1017 and other standards, and is used to simulate whether children older than 36 months but less than 14 years old touch dangerous parts.

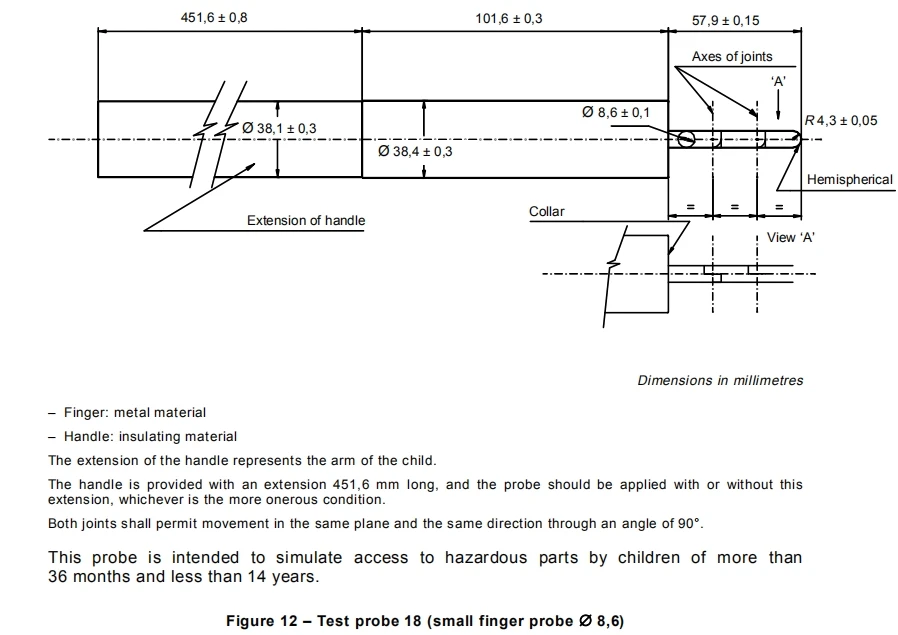

Technical parameters of children's test curved finger:
1. Diameter of curved finger: 8.6mm
2. Head radius: 4.3mm
3. The total length of the curved fingers: 57.9mm (three sections, 19.3mm each)
4. Diameter of the handle of the first section: 38.4mm
5. The handle length of the first section: 101.6mm
6. *Second section handle diameter: 38.1mm
7. *Two-section handle length: 451.6mm
8. Reference standard: IEC61032: 1997 Figure 12, GB4706.21-2008
1. Diameter of curved finger: 8.6mm
2. Head radius: 4.3mm
3. The total length of the curved fingers: 57.9mm (three sections, 19.3mm each)
4. Diameter of the handle of the first section: 38.4mm
5. The handle length of the first section: 101.6mm
6. *Second section handle diameter: 38.1mm
7. *Two-section handle length: 451.6mm
8. Reference standard: IEC61032: 1997 Figure 12, GB4706.21-2008

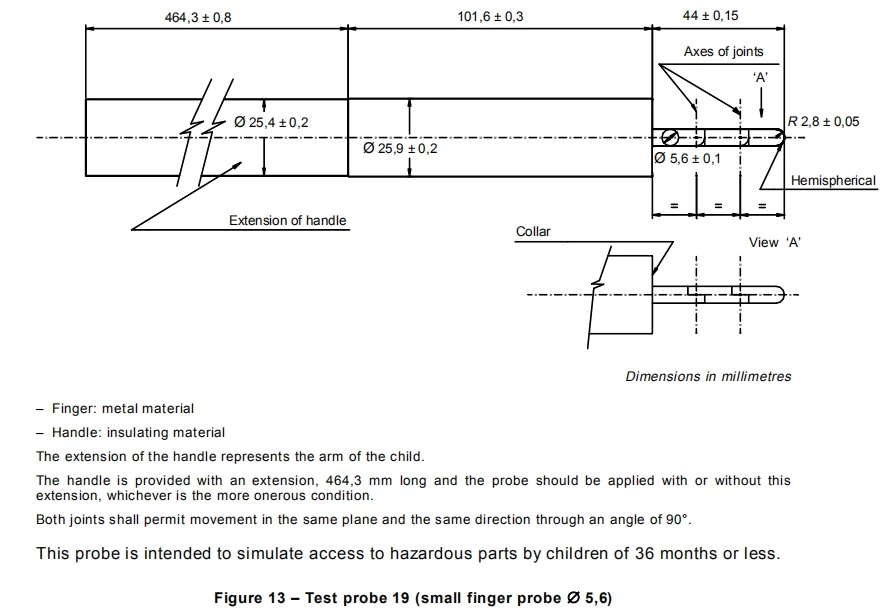

Item | Test probe 18 | Test probe 19 |
Diameter of curved finger | 8.6mm | 5.6mm |
Head radius | 4.3mm | 2.8mm |
The total length of the curved fingers | 57.9mm (three sections, 19.3mm each) | 44mm (three sections, 16.7mm each) |
Diameter of the handle of the first section | 38.4mm | 25.9mm |
The handle length of the first section | 101.6mm | 101.6mm |
Second section handle diameter | 38.1mm | 25.4mm |
Two-section handle length | 451.6mm | 464.3mm |
Standard | IEC61032: 1997 Figure 12 | IEC61032: 1997 Figure 13 |
