RF honeycomb filter configurations to be adapted to the existing shield structure

Features for rf honeycomb filter configurations to be adapted to the existing shield structure

1- Provide maximum RF attenuation while allowing optimum airflow.

2- Available to suit individual requirements

3- Soldering waveguide windows use imported tin-plating to press molding, to ensure the quality while transport and assembly process and guarantee the shielding effect.

4- Produce various customized specification for civil or military use



Standard Dimension for  honeycomb filter configurations to be adapted to the existing shield structure

Honeycomb Materials	(A) Steel                                                         (B) Brass                                         (C) Stainless steel            (D) Aluminum
Honeycomb Size	(A) 300*300mm                                         (B) 300*600mm                                              (C) 450*450mm                                               (D) 600*600mm                           (E) 600*900mm
Honeycomb Thickness	(A) 12.5mm                                               (B) 19mm                                                 (C) 25mm                                                  (D) 50mm
The Hole size	(A) 3.2mm                                                (B) 4.0mm                                                 (C) 4.8mm
Frame Type	(A) With frame                                         (B) Without frame



Sheilding Performance for honeycomb filter configurations to be adapted to the existing shield structure



Magnetic field	14KHz≥75dB     150KHz≥100dB
Electric field	200KHz-50MHz≥110dB
Flat wave	50MHz-1GHz≥110dB
Microwave	1GHz-10GHz≥100dB  10GHz-18GHz≥90dB

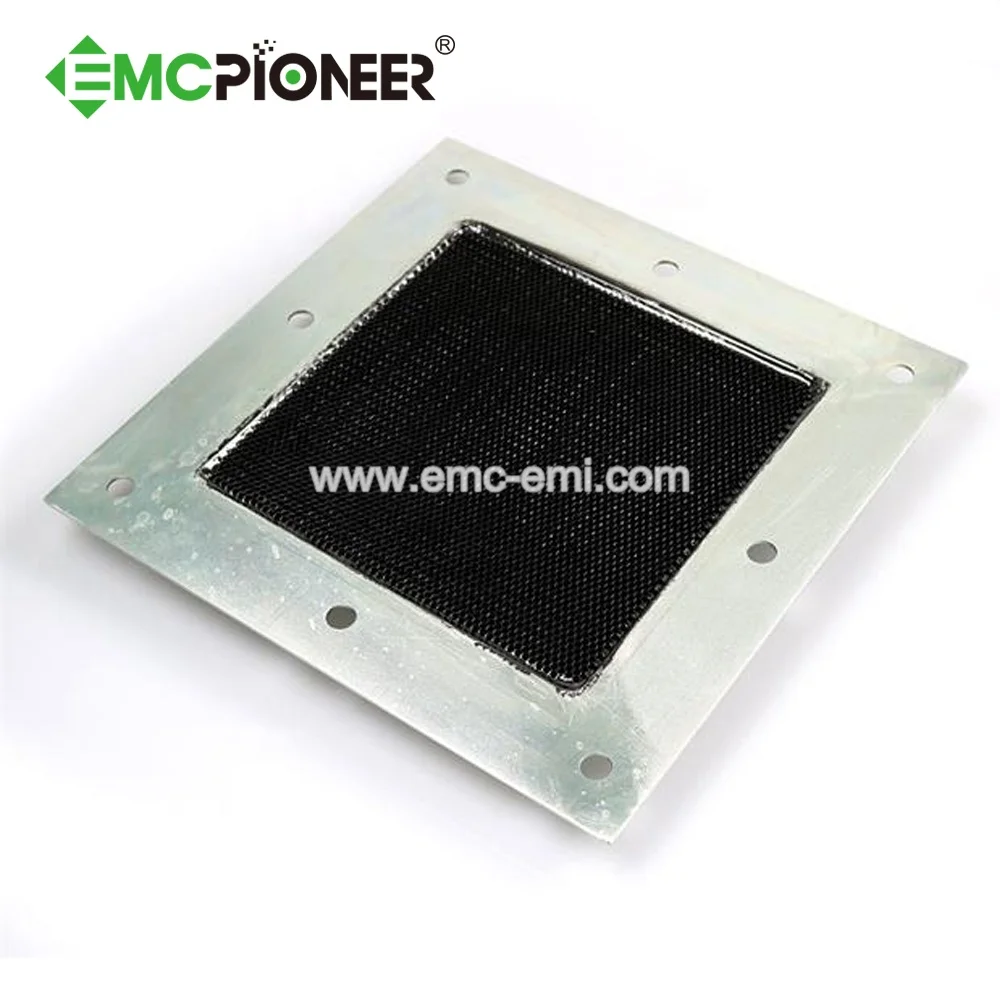

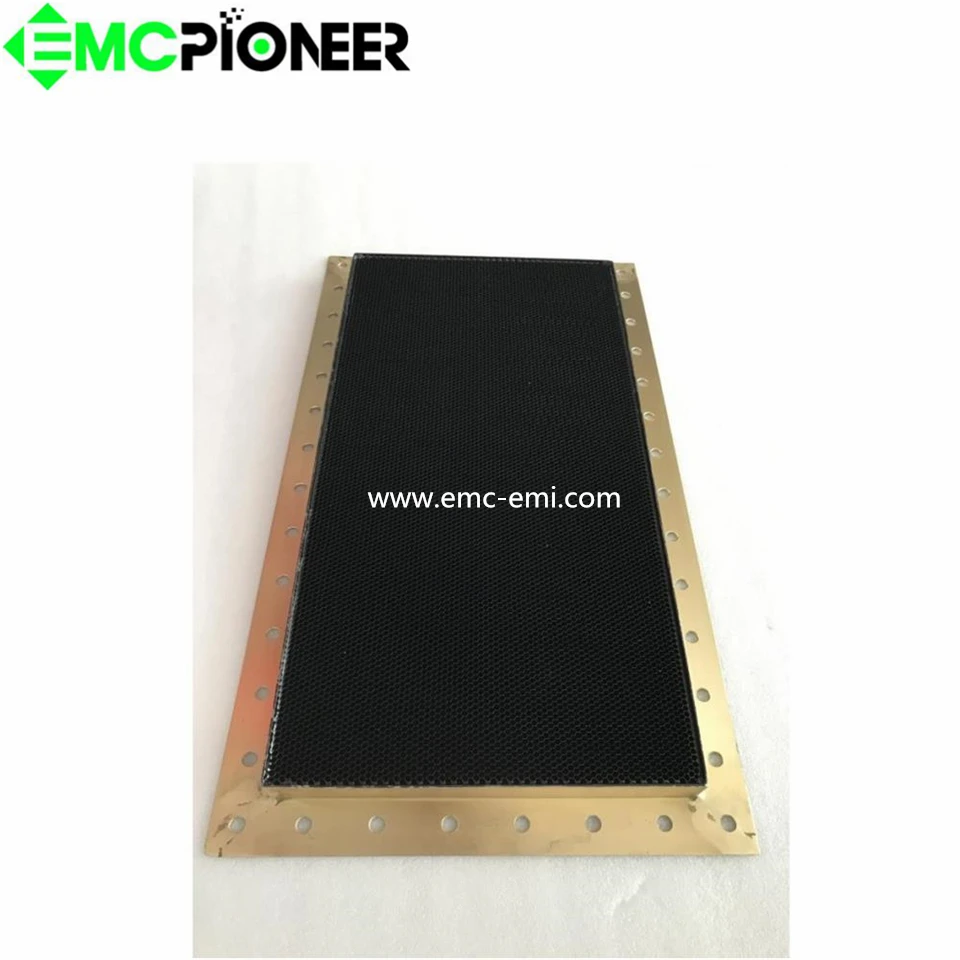

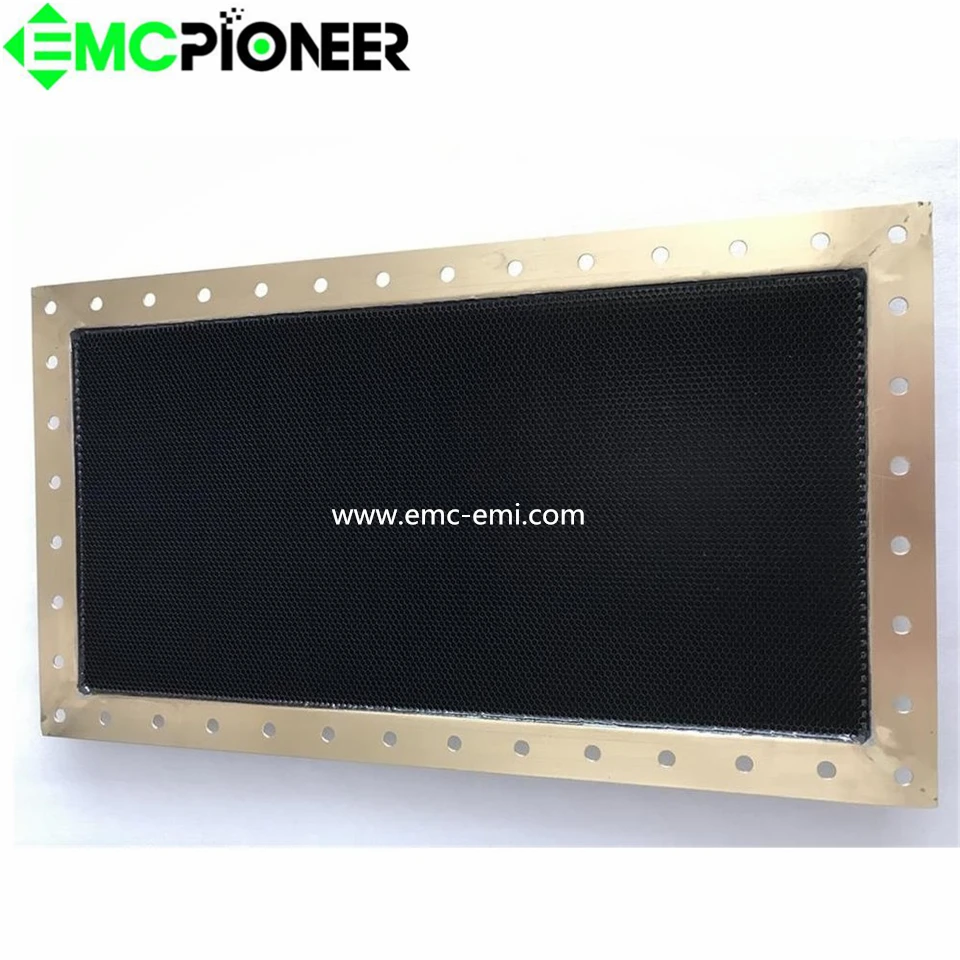

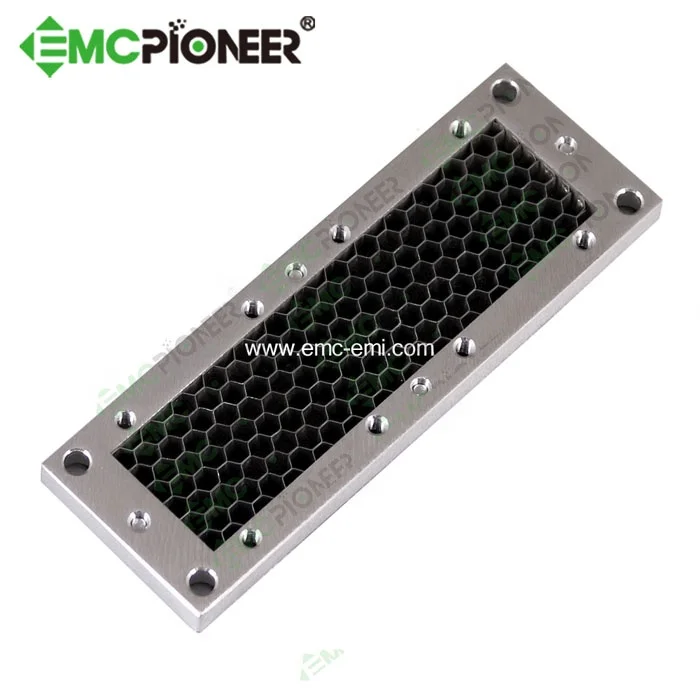

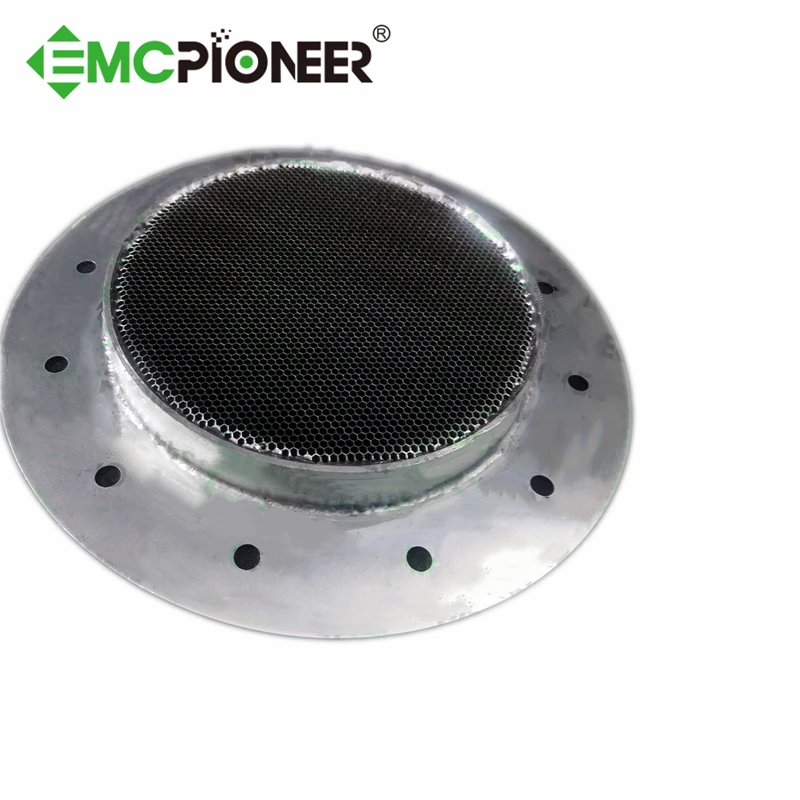

Pictures for rf honeycomb filter configurations to be adapted to the existing shield structure







What should be provided if need price



1. Honeycomb material

2. Honeycomb size: length, width, thickness

3. Hole size

4. Frame type: with or without frame

5. Quantity
