Wuhan Easy-Sight Technology Co., Ltd, found in Nov 2000, in Wuhan, Hubei province, China, is a leading producer of pipe cleaning, inspection and rehabilitation equipment.

In July 2015, Easy-Sight successfully became the first listed company on the New Third Board in the industry in China with a stock code of 833122. As a team with over 300 employees, Easy Sight is dedicated to providing a whole series of sewer industry products and systems to meet customers' different requirements.

Our main products include pipe periscope (Quickview), CCTV inspection robots, pipe sonar system, sonar-CCTV system, push rod camera, video jetting nozzle, UV curing rehabilitation system, 3D manhole scanner, GIS data management system and so on.

The company adheres to the implementation of ISO's quality management system and continuously improves the quality of employees and products. Easy-Sight, as an intelligent pipeline solution supplier, has got approval of ISO9001, ISO14001, OHSA18001 and other management system certifications, such as CCTV inspection robots and pipe periscope have obtained FCC certification, CE certification.


Products Description


X1-P1Pipe Periscope
X1-p1 is mainly used for quick detection and diagnosis of internal conditions of industrial container or pipeline. By putting the camera probe with light into the pipeline or industrial container through the operation pole, the functional and structural defects within the pipeline or container can be clearly detected.

The detection depth can be up to 30 meters, and data can be collected smoothly with high definition and fluency around 60 meters’ area.

X1-P1 can record and save internal image and video during the detection,and can catch and save defect images rapidly, or input characters by keyboard, overlap-display and save them in the video during recording.



Product Specification










  Main Control
Display: 8.1 " touch screen, screen resolution 1280 * 800
Storage capacity: 4GB memory + 32G solid state drive
Main controller wifi connection with the system
Screenshot: rapidly catch and save defect images
Playback: browser and play back video files or pictures
Text Input: through the soft keyboard to input info, superimposed display , support for multi-languages
Work time: continuous working time ≥ 8 hours
Positioning: with GPS function, able to obtain the current detection position
Interface: USB interface, TF card interface
Protection: Probe protection class IP68, long-term immersion in water depth of 10 meters; Controller protection class IP67, effectively dustproof, Weight:less than 700g

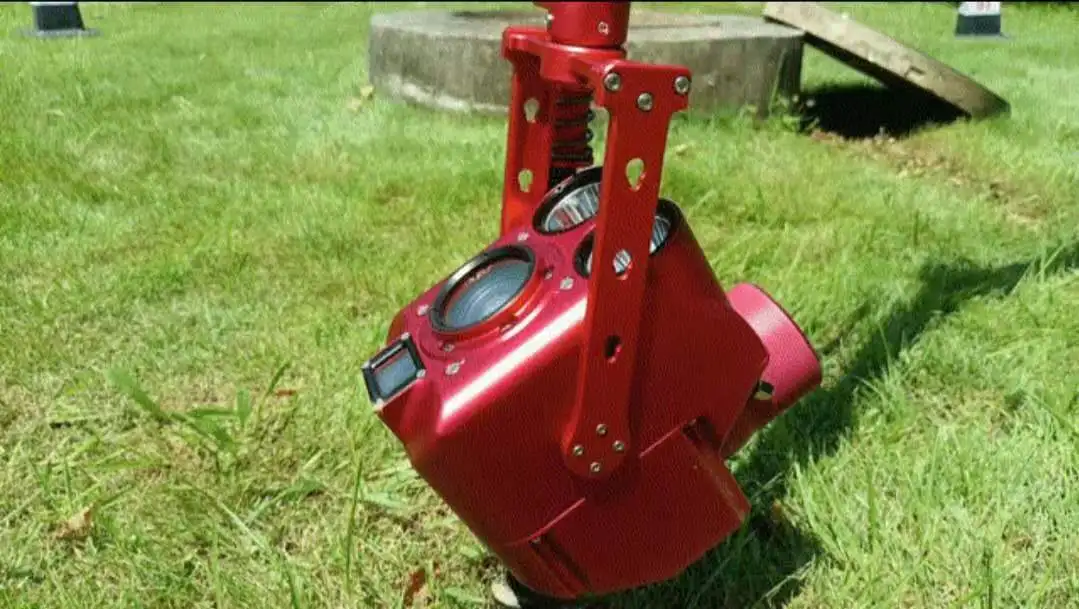

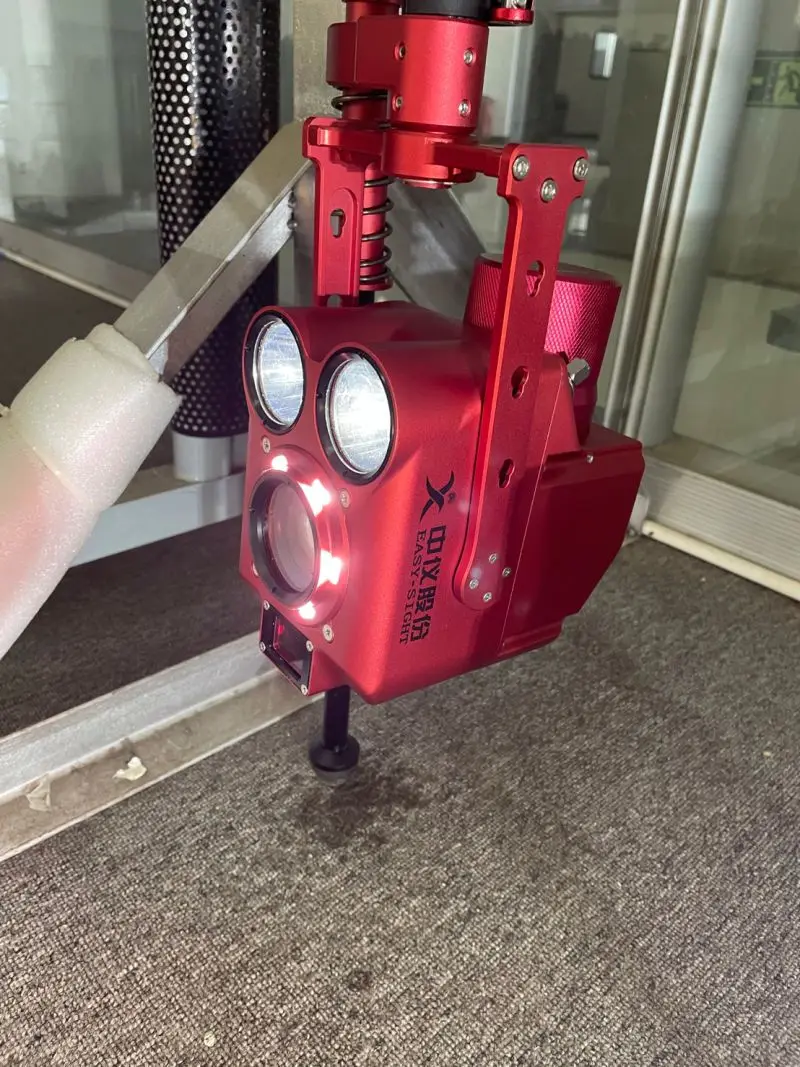

 Camera Probe
Suitable for pipe diameter DN100mm~DN2000mm
Working Temperature:-20℃~50℃
Lighting:can move along with camera probe, up 35°,down 25°.With main and auxiliary lighting. Main lighting is with 10W LED and spotlight cup; There are 8X3W LED as auxiliary lighting with floodlight design. Main and auxiliary lighting is independ, effective irradiation distance is 1-50meters
Image sensor:Color 1/2.8 Progressive scanning CMOS
Image resolution:PAL. 1920*1080,2.1 megapixel
Camera angle:horizontal 65.1°(wide-angle) 2.34°(long sight)
Zoom:30x optical,manual or auto focusing
Luminous sensitivity (minimum illumination): 0.01LX
Adaptation: one click to defog,one click to center the len
With laser measurement module, distance measuring precision ±0.001mm, distance-measuring range 0.2m~80m
Data display: real-time measurement, results displayed in the video screen
Waterproof: IP68
Weight: about 2kg



  Standard Control Pole
Made of carbon fiber material (compression resistance is 10 times of normal rolled steel)
Nested telescopic design, strong fixed joints, the length of total stretch is 4.8m
Two standard extention poles are provided. One single extention pole is 0.8 meter after contraction, and 1.5 meter after extention. Quick connection design , and can be up to 25m at most




Support Pole
Carbon fiber material , 0.8m length
Height can be adjusted,with rubber cushion ball at the buttom
Disassembly free design, can be put into package case directly

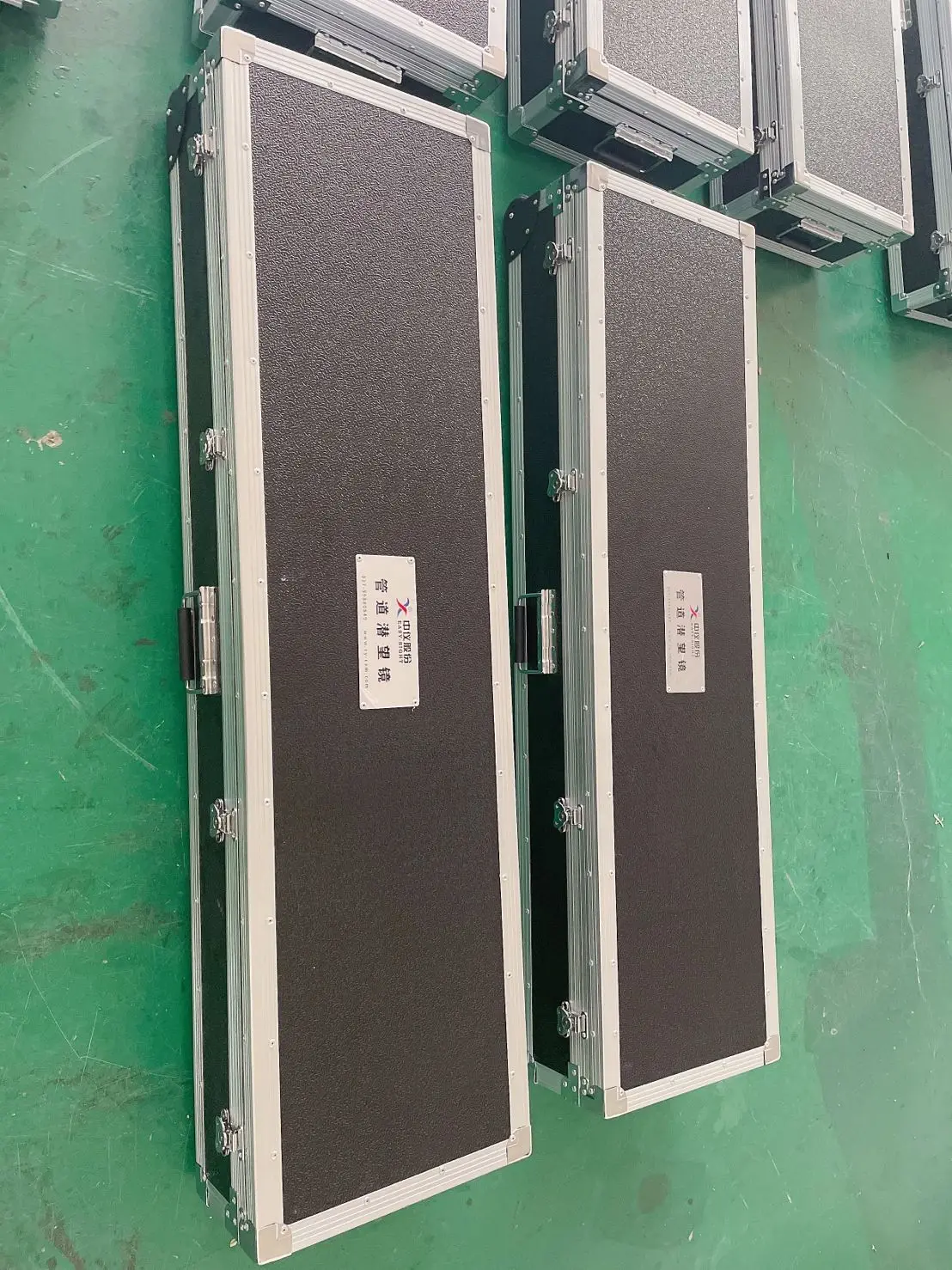

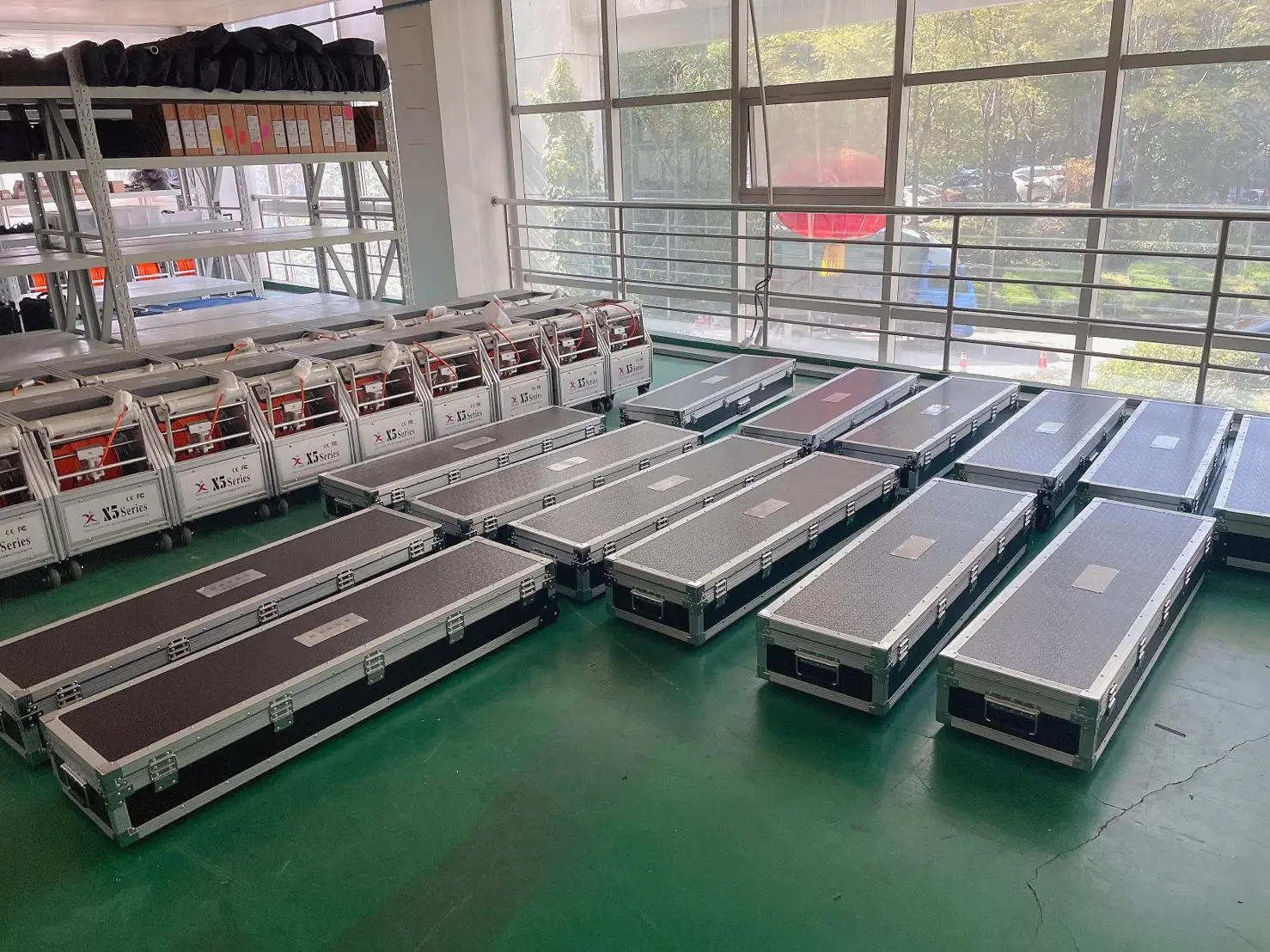

Construction Packing case
Strength: integrative high-strength construction packing case
Portability: it is equipped with tension rod and wheels so that it is portable for carrying
Dimension: 1362mm*406mm*172mm


Application Overseas

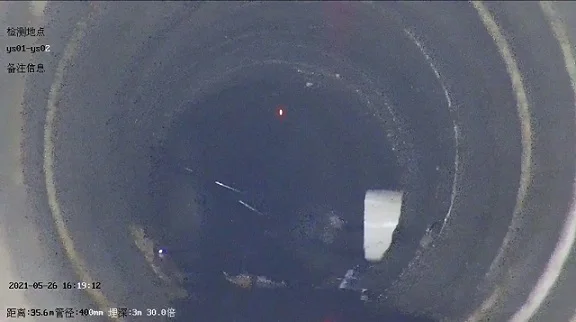

Inspection Photo




Exhibition




FAQ


Q: What's the package?
A: We have standard plywood packing case. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. So please don't worry, you will receive the parcel in good condition.

Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. Most customers can learn by themselves.

Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
