Product Overview
Description

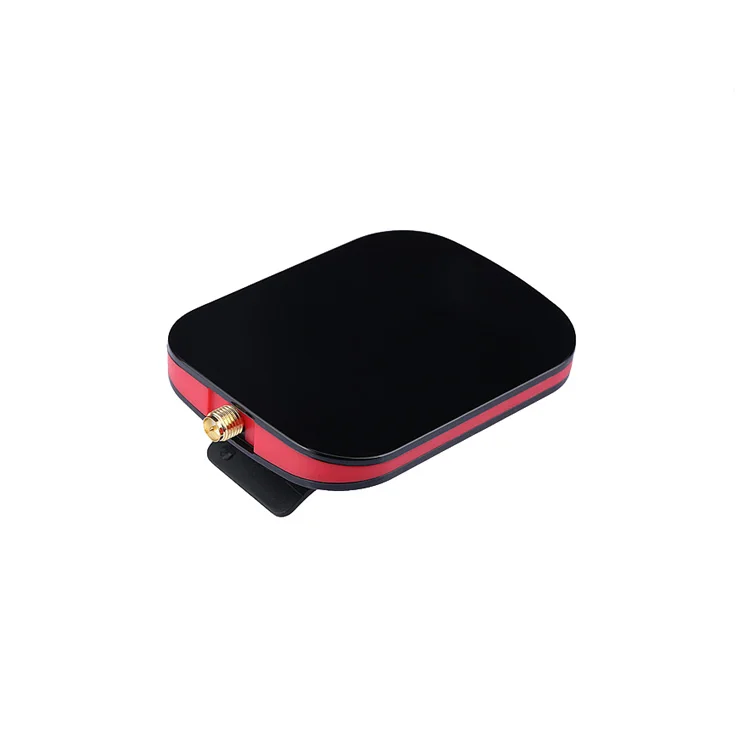

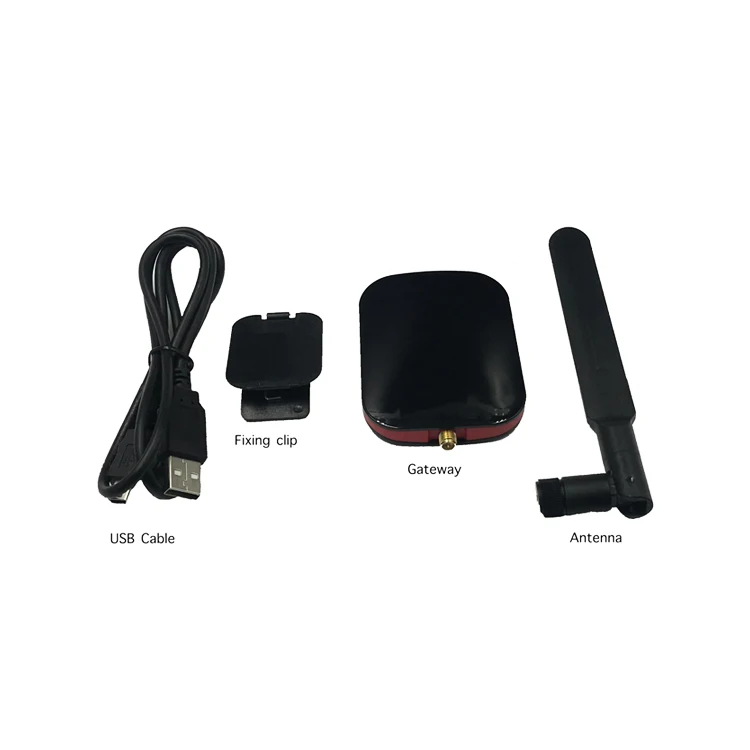

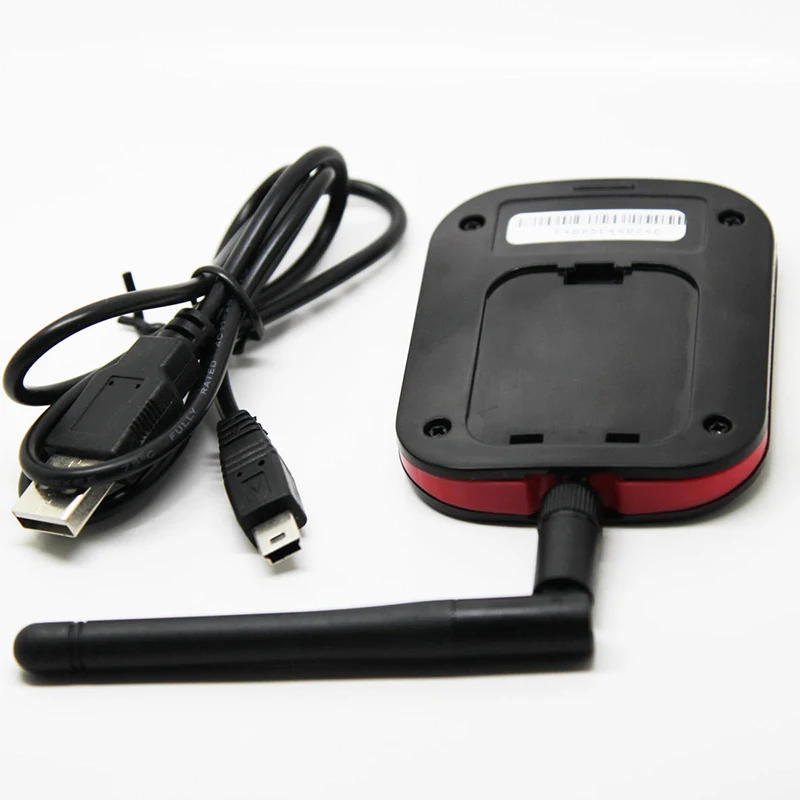

BLE WIFI Gateway
100m Long Range nRF52832 Chip BLE iBeacon Wifi Beacon ibecon tag
W1 is a BLE to WiFi gateway and bridge.The gateway reads iBeacon, Eddystone data, or other data from sensors through Ble, and it communicates using WiFi through TCP/HTTP sockets to upload the collected readings and/or receive instructions from a central cloud based server.
Features

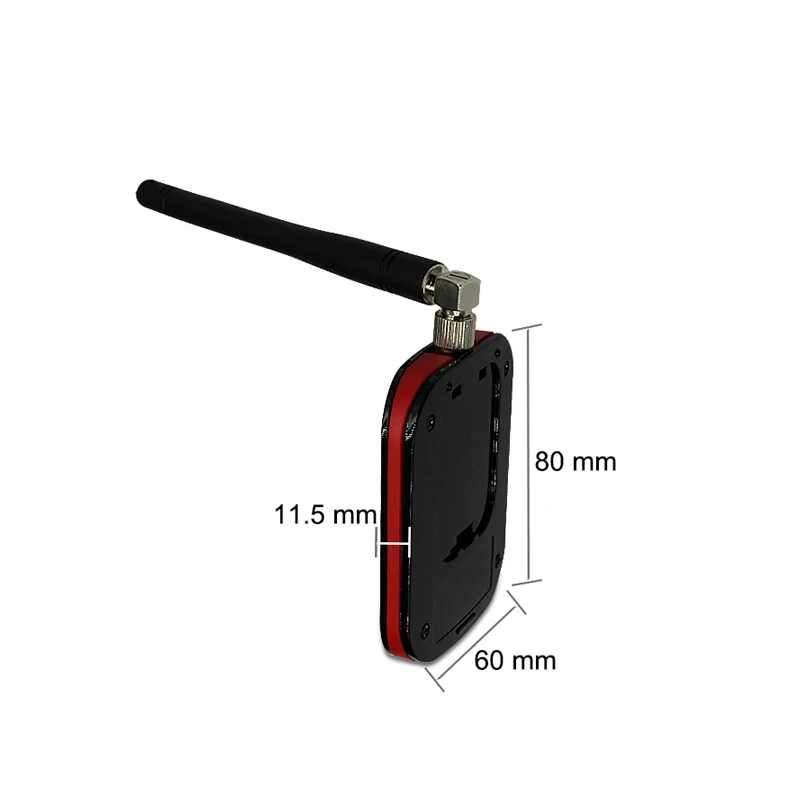

■ Size: 80mm*60mm*11.5mm(not including antenna)

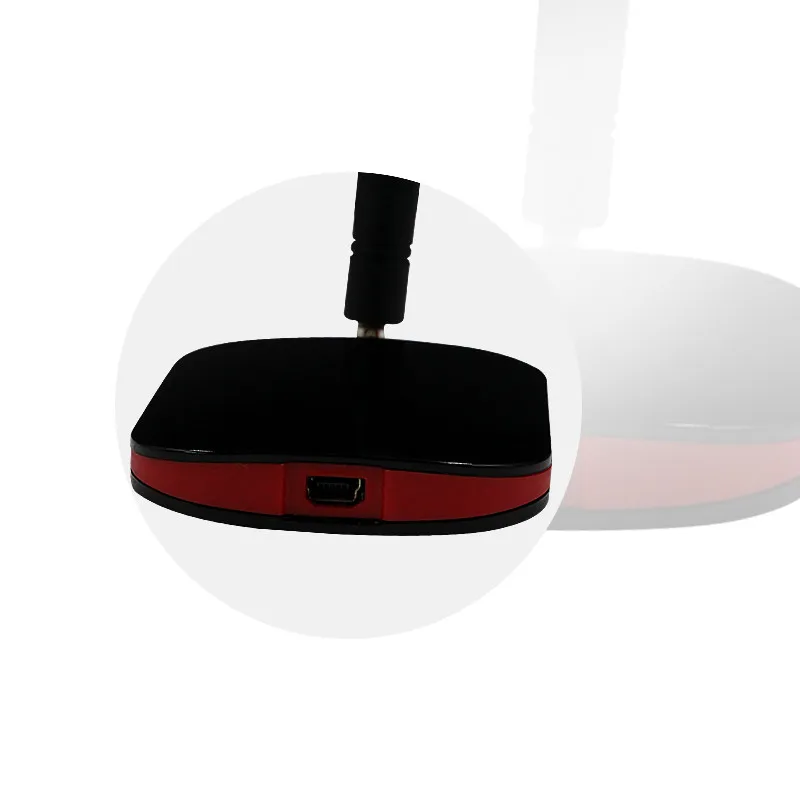

■ Input: 5V, 500mA, mini-USB
■ Low power consumption, 70mA typical working current
■ Reads multiple BLE devices in the same time
■ Support TCP/HTTP server
Features
BLE
■ 100M range in open space
WiFi
■ 2.4GHz frequency band
■ Connect to Cloud server or local server
■ 100M range in open space
Application
■ iBeacon/Eddystone/tag receiver/Sensors for location tracking
■ BLE sensor reader for sensor network
■Building automation
■Health and wellness monitoring
■ Cycling, biking
■ Security
■ Location tracking
■ Access management
■ Advertisement
■ Industrial automation
iBeacon Parameters
WiFi RF Specification | ||||||
Wireless | IEEE 802.11b/g/n | |||||
Network modes | Wi-Fi Direct, soft-AP | |||||
Frequency band | 2.400 – 2.484 GHz | |||||
Channel Bandwidth | 20MHz | |||||
Modulation | OFDM, DSSS (Direct Sequence Spread Spectrum), DBPSK, DQPSK, CCK , 16QAM, 64QAM | |||||
Maximum receive input level | - 10dBm (with PER < 8%@11 Mbps) | - 20dBm (with PER < 10%@54 Mbps) | - 20dBm (with PER < 10%@MCS7) | |||
Minimum receive input level | - 70dBm (typ. with PER < 10%@54 Mbps) | - 70dBm (typ. with PER < 10%@54 Mbps) | - 70dBm (typ. with PER < 10%@MCS7) | |||
Transmit Power | 17dBm (typical)@802.11b | 13dBm (typical)@802.11g | 11dBm (typical)@802.11n | |||
Range | 100M in open area | |||||
Security | WPA/WPA2 | |||||
BLE RF Specification | ||||||
Receiver Sensibility | -96 dBm | |||||
Range | 100M in open area | |||||
Certifications
Our Service
Case customization
For the bulk purchase consumer, we provide the case customization and even the hardware design just for your customized housing
Logo printing customization
We can print your own logo on the case in any color (Gradient color will relatively cost more).
Firmware customization
We provide the firmware customization.you can change the UUID, major, minor and other parameters.
