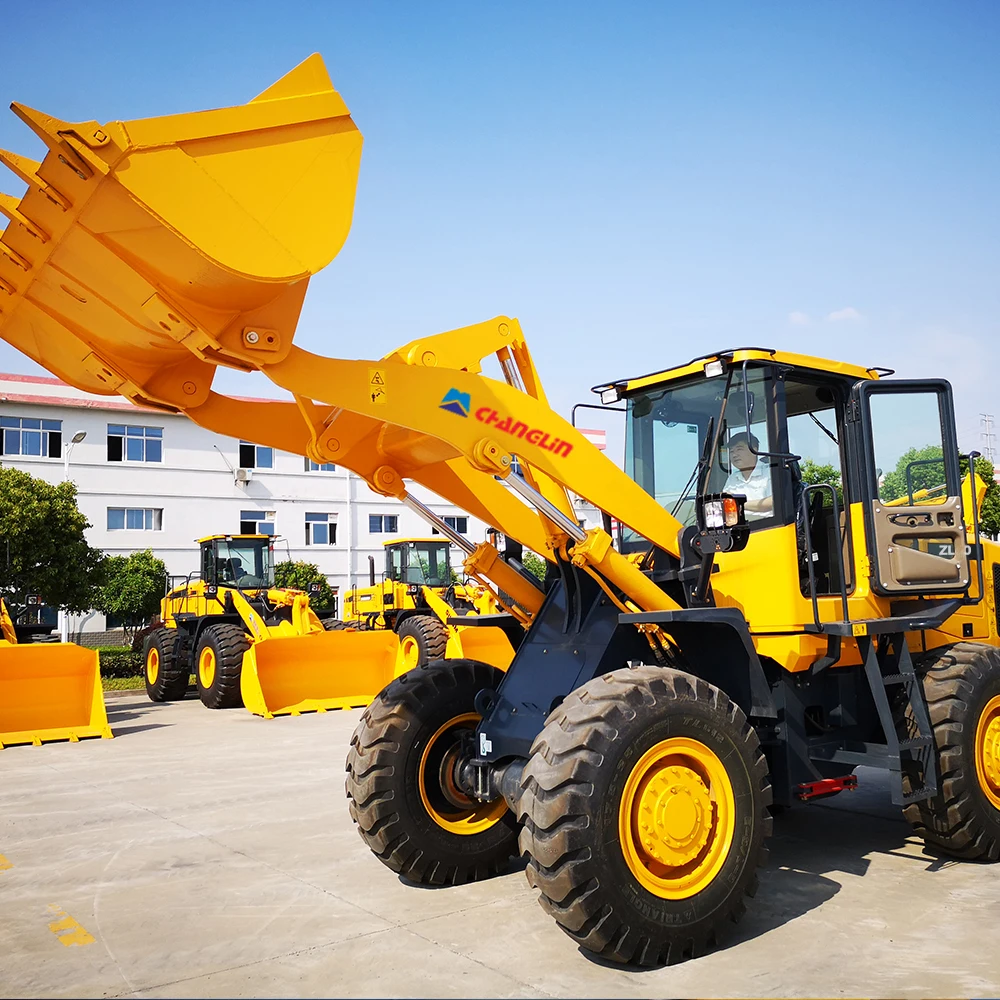

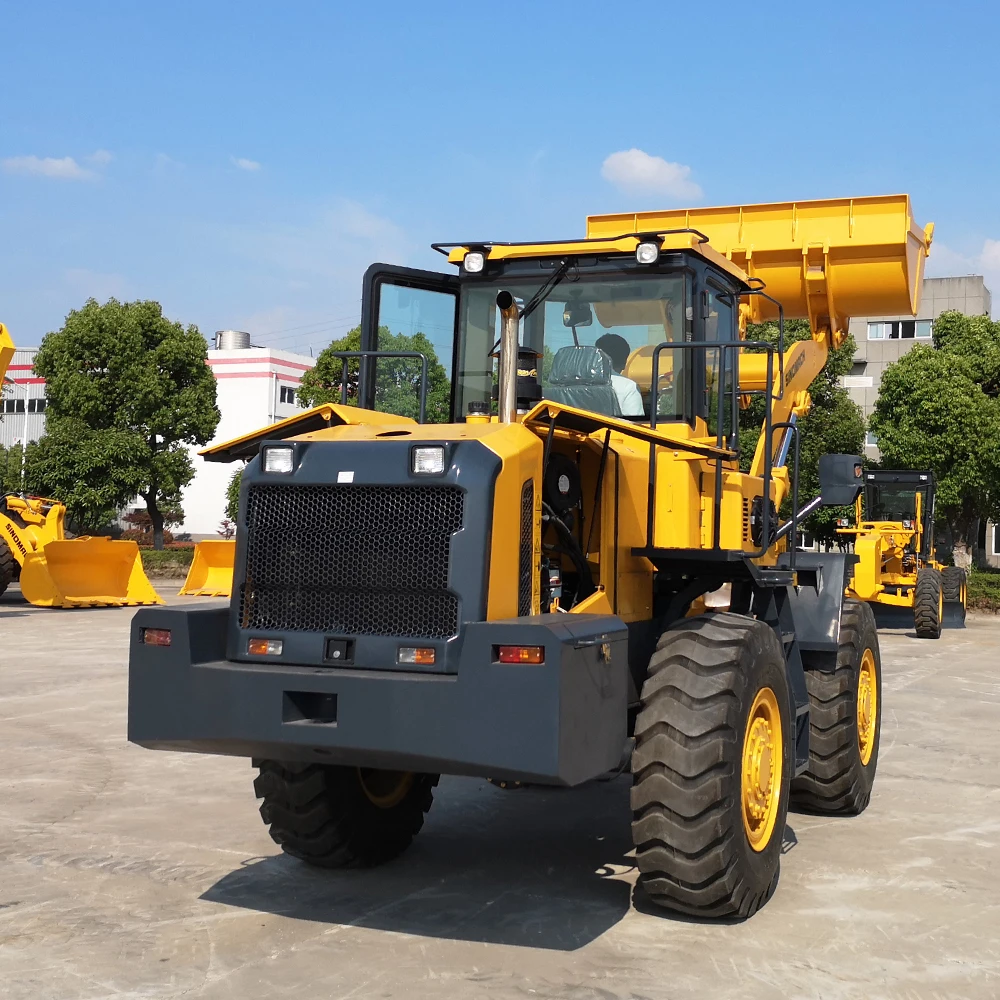

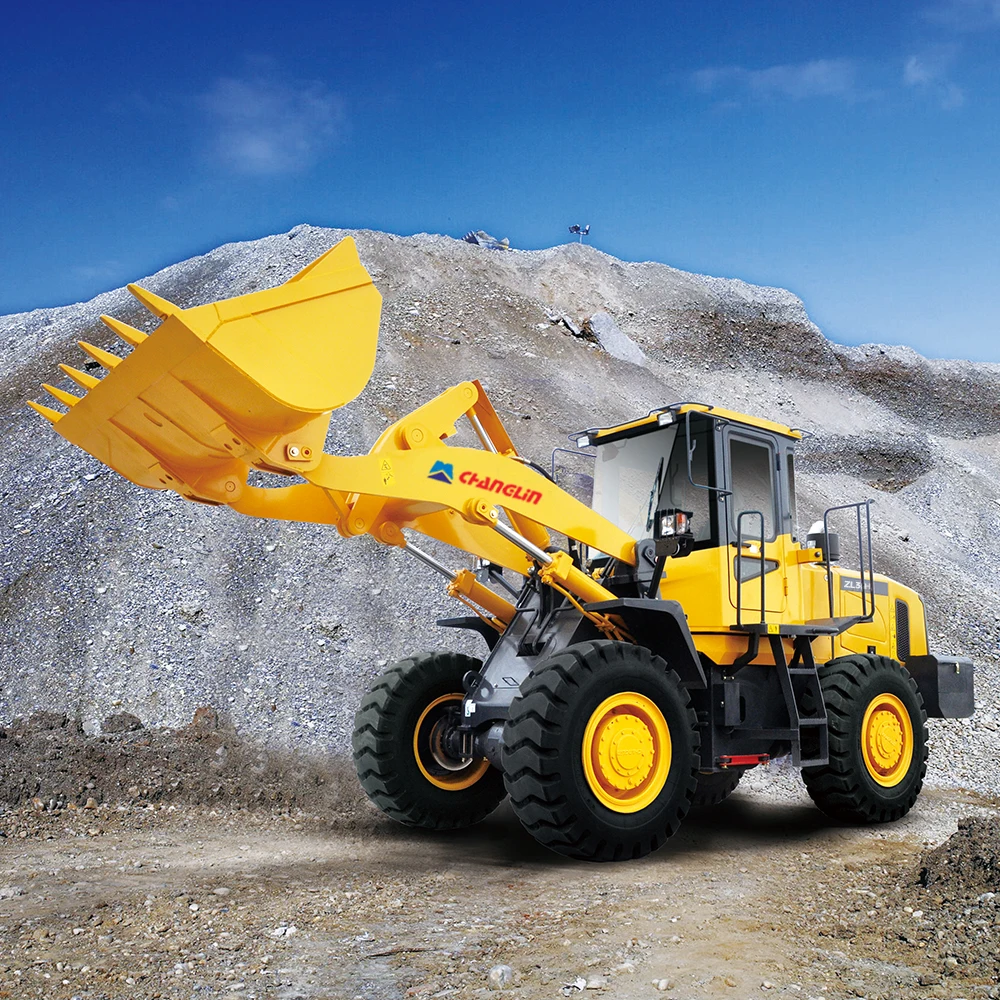

Changlin New 3ton Heavy duty Front End Payloader Shovel Wheel Loader with Clamp Bucket
- Category: >>>
- Supplier: Sinomach-Hi International Equipment Co. Ltd.
Share on (1600430767277):
Product Overview
Description
Product Description
| Dimensions | Overall length (bucket on the ground) | 6983mm |
| Overall width(outside of wheels) | 2305mm | |
| Bucket width | 2430mm | |
| Overall height | 3136mm | |
| Wheel base | 2750mm | |
| Min. ground clearance | 360mm | |
| Specification | Rated load | 3000kg |
| Rated bucket capacity | 1.7m³ | |
| Operating weight | 10200kg | |
| Min. turning radius(outside of the tyre) | 5185mm | |
| Turning angle of the chassis | 38º | |
| Performance | Travelling speed | Forward:7.8/14.7/23.5/41.2 km/h |
| Max. tractive force | 96kN | |
| Grade ability | 30 º | |
| Dumping angle | 38 º | |
| Dumping clearance | 2934mm | |
| Dumping reach | 1043mm | |
| Total cycling time | ≤10s | |

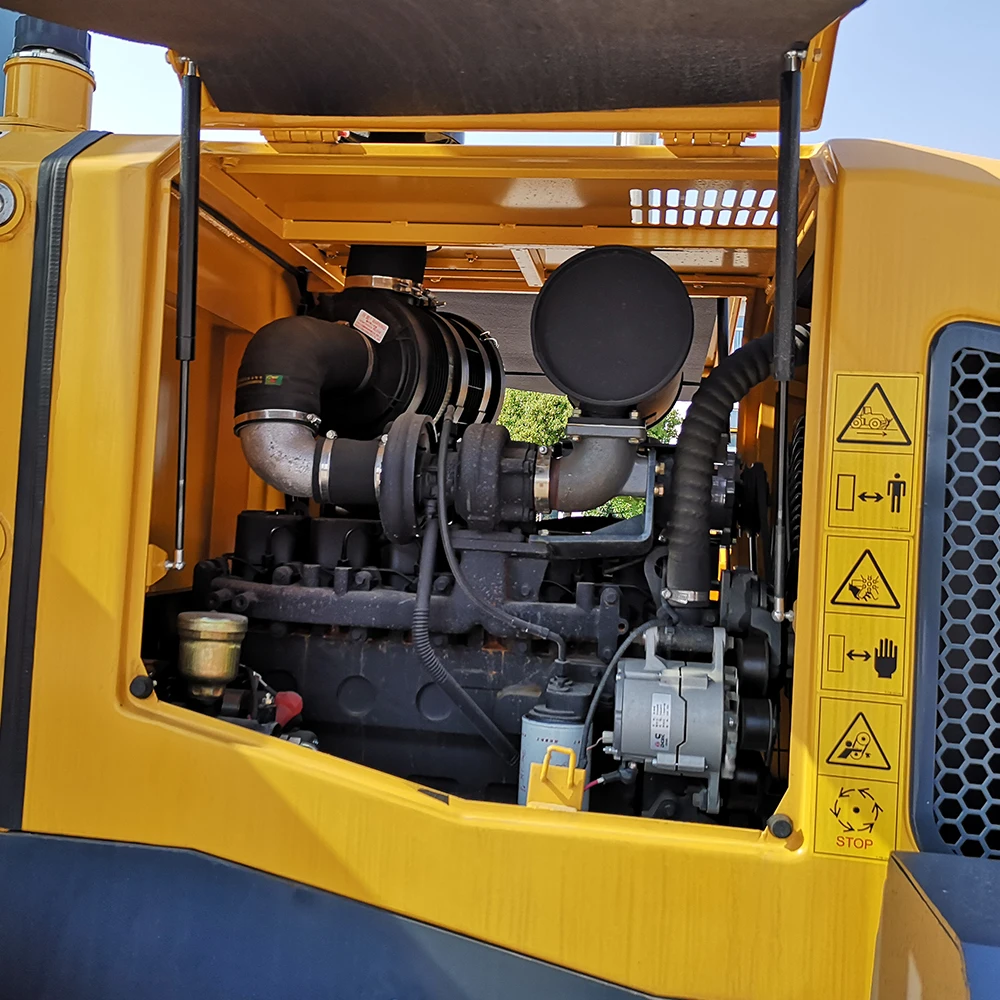

| Engine | Model | Cummins 6BT5.9/ |
| Type | Direct injection,turbocharged,water cooling | |
| Rated power | 97/92kW | |
| Max. torque | 440(N.M)@1500rpm /500(N.M)@1500rpm |
Main Features:
•Equipped with WEICHAI or Cummins engine which is environmentally friendly, energy-saving, and powerful, and it meets the TIER II emission standards specially optimized for rapid throttle response, getting the job done fast, but not at the expense of the environment.
•The fixed-axis power shift gearbox has 4 forward gears and 2 reverse gears, including torque converter, adapts to any situation, ensuring the maximum transfer of power to the transmission for improved performance and fuel efficiency.
·Working system adopted independent hydraulic that features simple structure and high stability and low maintenance cost.
·Hydraulic tank with vacuum device ensures easy maintenance and fixing of hydraulic system.
·The optimized strengthened front/rear frame was more solid and durable, single-plate structure of rear frame reduce distortion and irregular welds and greatly promote reliability.
·The working equipment with optimized design of single swing arm has big break force and high working efficiency.

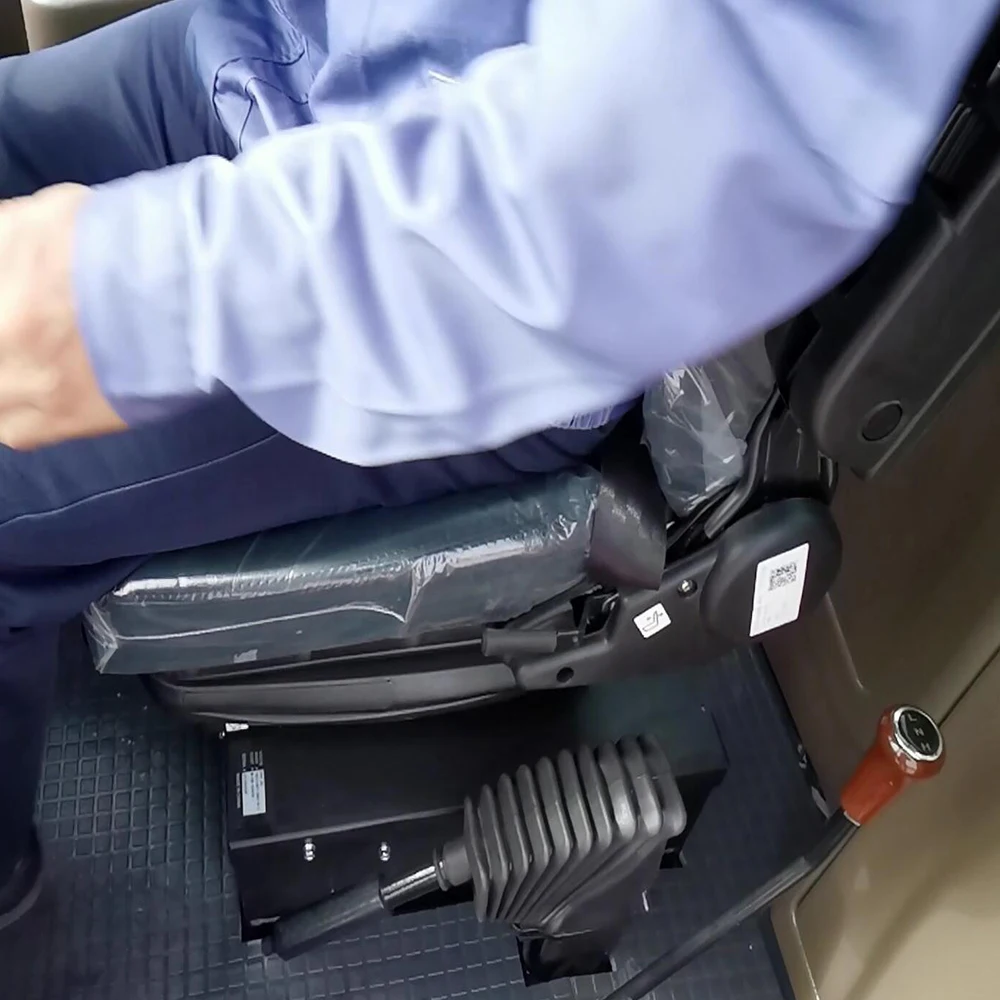

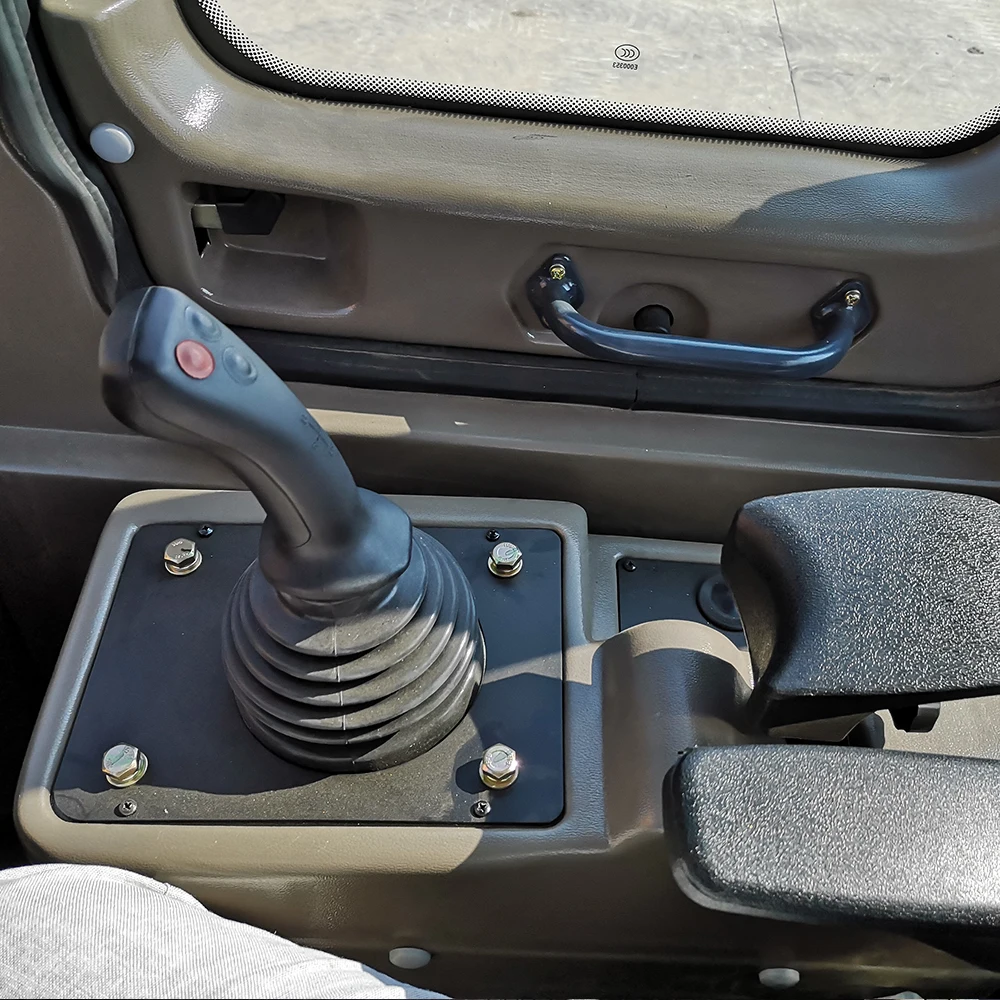

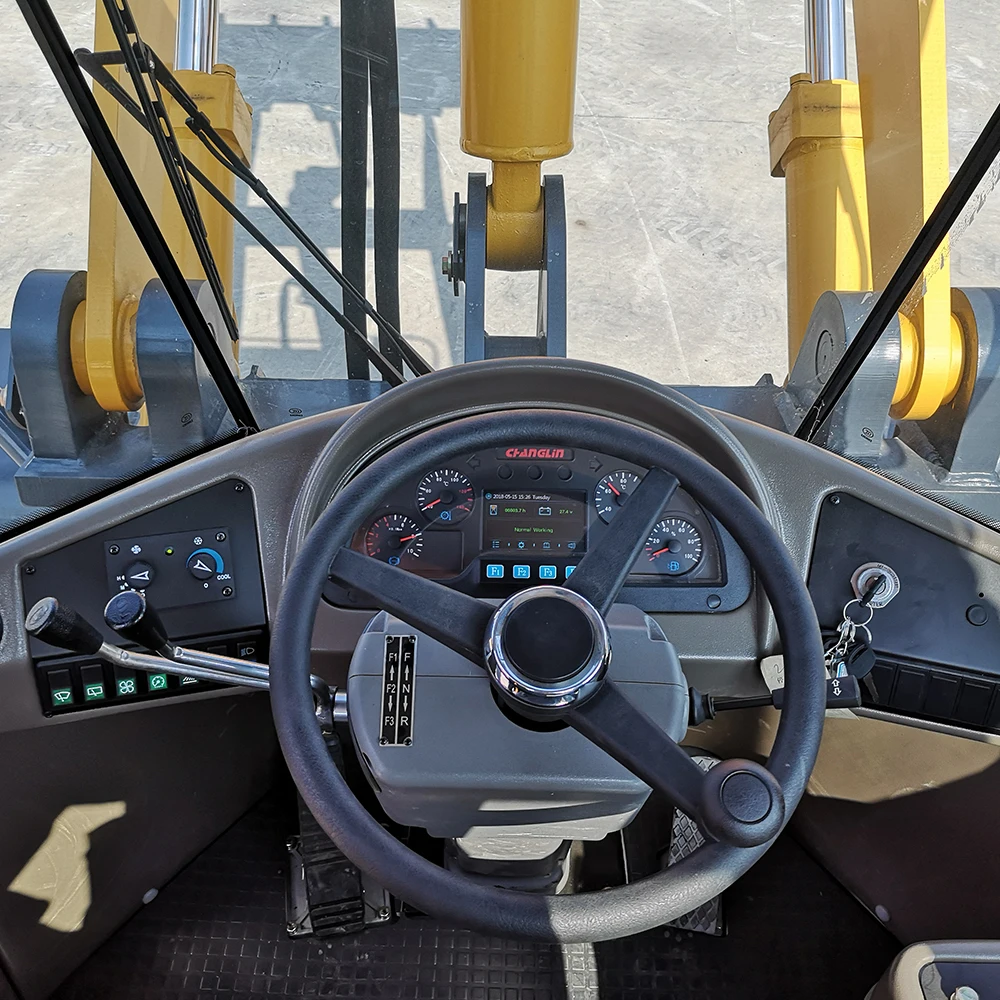

•Introduce industrial styling design and emphasize user experience (comfortable cab, convenient maintenance, improved quality and reliability)
Related Products
About Us
International Cooperation
Overseas Service
Exhibition
Case
Packing & Shipping
Certifications
FAQ
After sales warranty services provided:
- A Worldwide network of agents and subsidiaries are able to serve you on site.
- Remote real-time guidance for troubleshooting via 24-hour video link
- 24-hour troubleshooting response through telephone, whats app, Facebook, YouTube, WeChat, etc,
- 48-hour warranty parts ready for delivery free of charge through DHL, TNT
- By shooting video, guide the troubleshooting clearly and efficiently
After warranty service:
- Remote real-time guidance for troubleshooting via 24-hour video link
- 24-hour troubleshooting response through telephone, whats app, Facebook, YouTube, WeChat, etc,
- By shooting video, guide the troubleshooting clearly and efficiently
Q1.are you original manufacturer?
A:Yes, we Changlin are an official leading manufacturer in construction machinery, We set up joint ventures with korean and japanese company in 1990s.
Q2: what kind terms of payment can be accepted?
A: L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
Q3. Which incoterms 2021 can we work?
A: FOB, CFR, CIF are the usual trade terms
Q4: What about the delivery time?
A: 7-30 days after receiving the deposit.
Q5: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
Q6: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
Q7: Do you accept OEM or ODM?
A: We can provide OEM or ODM manufacturing service Accept product customization on special working device, color & brand requirement.
Q8: Can you provide online technical services?
A:Yes, the digital service team is able to provide online technical services via shooting video, remote real-time video link,
