u box type refrigerator freezing copeland semi hermetic condensing units
- Category: >>>
- Supplier: Hangzhou Xuantong Machinery Co. Ltd.
Share on (1600430768711):
Product Overview
Description
Product Description
Products Description

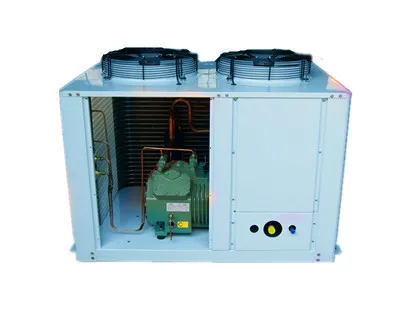

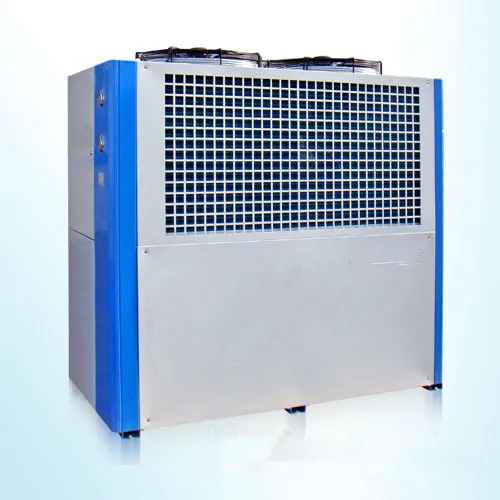

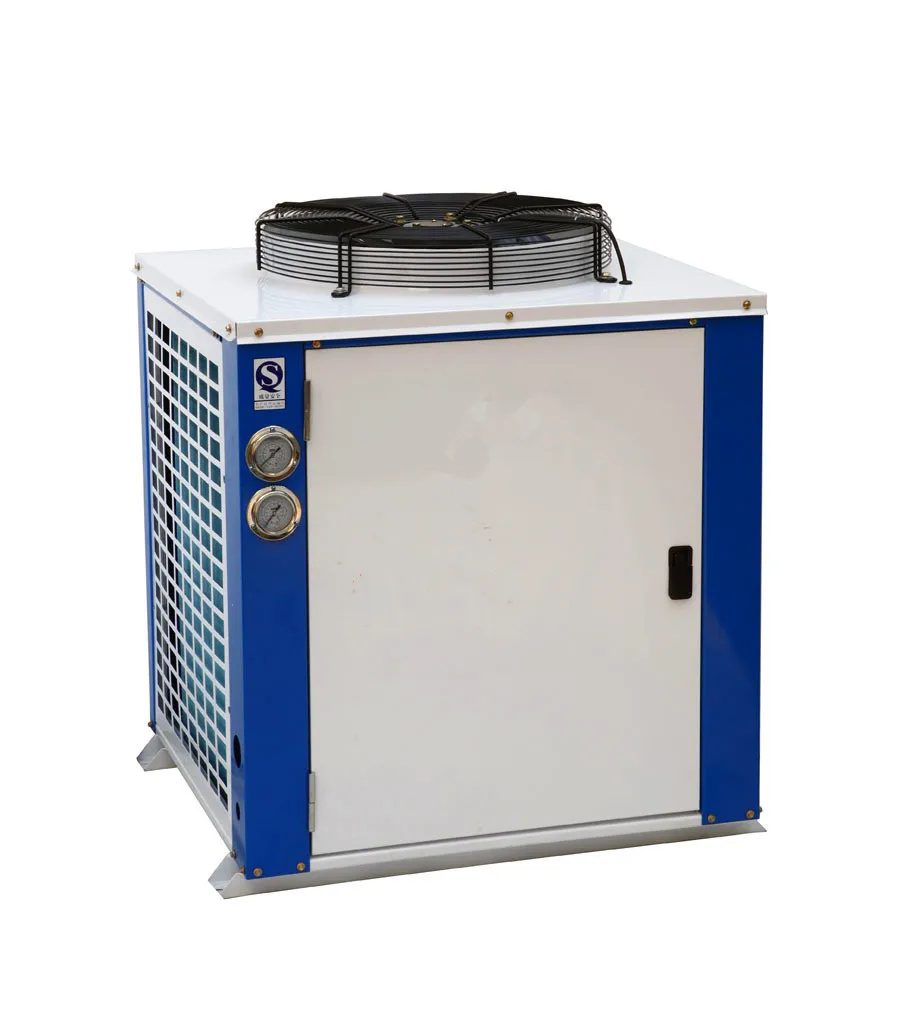

u-box type refrigerator freezing copeland semi hermetic condensing units
compressor evaporative cooling unit
The unit with high-quality cooling accessories can be installed conveniently, and can operate quietly.
1. Using box-type overall design, compact in structure and beautiful in appearance;
2. Scientific designs, steady air flow, fully exert the heat-transfer capacity of the unit;
3.Rational performance design and high EER(energy efficiency ratio) of the unit;
4.Using external rotor motor, fans good appearance, low noise operation;
5. Maintenance:The panel is easy to remove.
refrigeration condensing unit:
The unit with high-quality cooling accessories can be installed conveniently, and can operate quietly.
1. Using box-type overall design, compact in structure and beautiful in appearance;
2. Scientific designs, steady air flow, fully exert the heat-transfer capacity of the unit;
3.Rational performance design and high EER(energy efficiency ratio) of the unit;
4.Using external rotor motor, fans good appearance, low noise operation;
5. Maintenance:The panel is easy to remove.
parameter | model | |||||||||||||||
FUBZ-005 | FUBZ-008 | FUBZ-010 | FUBZ-012 | FUBZ-015 | FUBZ-020 | FUBZ-025 | FUBZ-030 | |||||||||
Compressor model | 4DC-5.2 | 4TCS-8.2 | 4PCS-10.2 | 4NCS-12.2 | 4H-15.2 | 4G-20.2 | 6H-25.2 | 6G-30.2 | ||||||||
Cooling capacity | 7284 | 12333 | 14722 | 16796 | 21250 | 24565 | 31535 | 36380 | ||||||||
rated power | 3.75 | 6 | 7.5 | 9 | 11.25 | 15 | 18.75 | 22.5 | ||||||||
gas | r22 | |||||||||||||||
power supply | 380v-3ph-50hz | |||||||||||||||
motor quantity and diameter | 1*550 | 2*400 | 2*450 | 2*500 | 2*500 | 2*500 | 2*500 | 2*600 | ||||||||
condenser power | 1*550 | 2*190 | 2*250 | 2*420 | 2*420 | 2*420 | 2*420 | 2*800 | ||||||||
condenser area | 55 | 70 | 80 | 100 | 120 | 140 | 170 | 190 | ||||||||
fan flow m3/h | 1*8740 | 2*3980 | 2*7800 | 2*6560 | 2*6560 | 2*6560 | 2*6560 | 2*10840 | ||||||||
remarks:evaporating temperature:-18C abiment temperature:32C ,Overheating temperature:0c .overcooling temperature:5C | ||||||||||||||||
model | reciver capacity | overall size | mounting size | connecting size | weight | ||||||||
L | A | B | C | E | F | suction | liquid | kgs | |||||
FUBZ-005 | 8 | 990 | 753 | 857 | 950 | 530 | 1-1/8 | 1/2 | 113 | ||||
FUZB-008 | 10 | 1240 | 803 | 852 | 1200 | 580 | 1-3/8 | 5/8 | 195 | ||||
FUBZ-010 | 10 | 1500 | 854 | 867 | 1460 | 630 | 1-3/8 | 5/8 | 210 | ||||
FUBZ-012 | 12 | 1500 | 903 | 875 | 1460 | 680 | 1-3/8 | 5/8 | 215 | ||||
FUBZ-015 | 16 | 1500 | 953 | 867 | 1460 | 730 | 1-5/8 | 3/4 | 261 | ||||
FUBZ-020 | 20 | 1606 | 1003 | 1004 | 1566 | 780 | 1-3/8 | 3/4 | 280 | ||||
FUBZ-025 | 25 | 1704 | 1053 | 1108 | 1664 | 830 | 2-1/8 | 3/4 | 326 | ||||
FUBZ-030 | 30 | 1704 | 1053 | 1108 | 1664 | 830 | 2-1/8 | 7/8 | 344 | ||||
