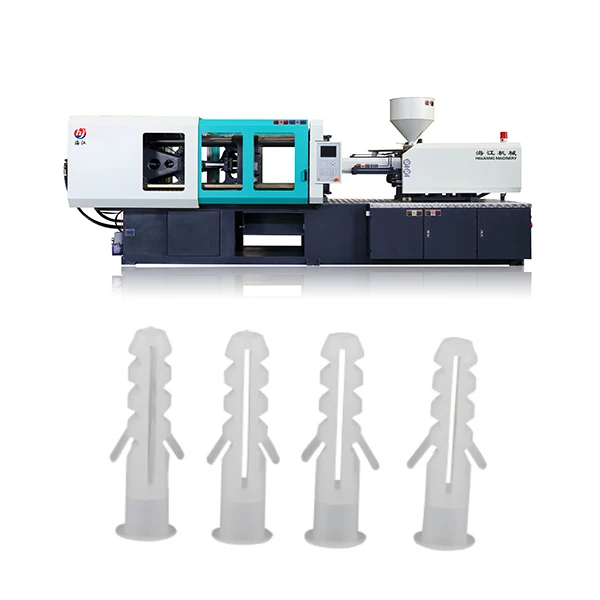

pp injection machine plastic tag pin injection molding making machine
- Category: >>>
- Supplier: Ningbo Haijiang Machinery Manufacturing Co. Ltd.
Share on (1600430791263):
Product Overview
Description
SIMILAR PRODUCTS
Product Overview
COMPANY INFORMATION
NINGBO HAIJIANG MACHINERY MANUFACTURING CO.,LTD., situated in Ningbo Yinzhou Investment & Innovation Center, coversa land of more than 50,000M2.It was established in 1992 and now employs a staff of more than 500 people. with CE and ISO9001. We supply all kinds of injection molding machines from 25T to 3000T, including color chips making machines,energy saving injection molding machines, gears making machines, dual clear color injection molding machine bakelite injection molding machines, PET preform injection molding machines, Fixed pump and variable pump injection molding machines, PVC fitting injection molding machines and etc

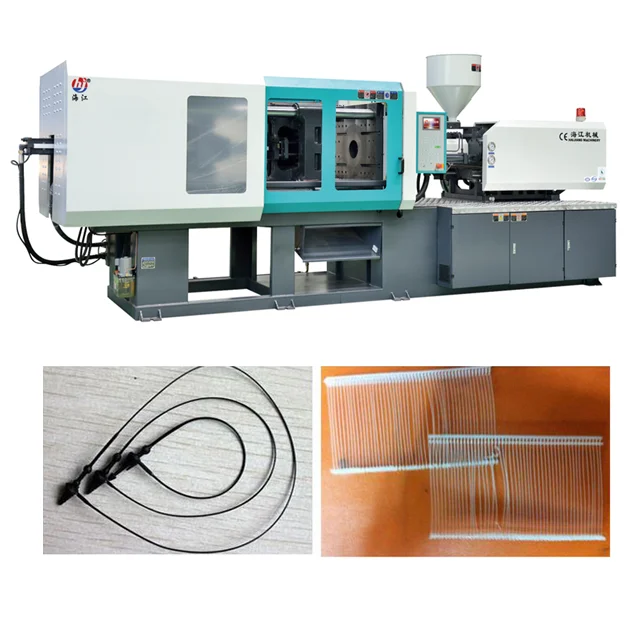

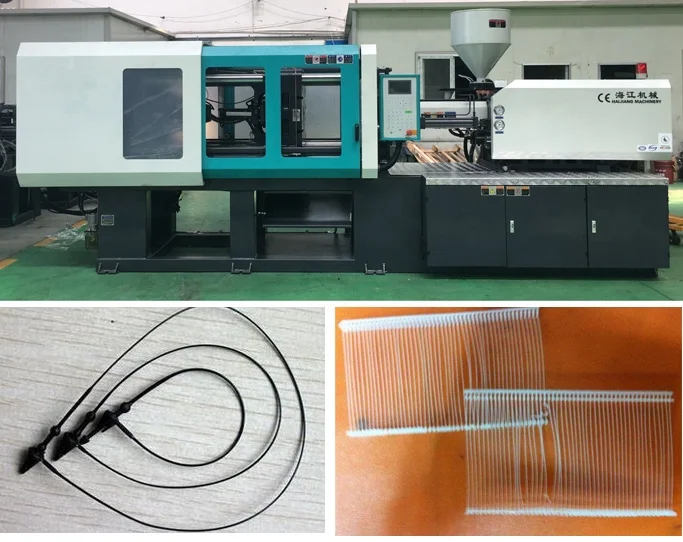

Plastic TAG PIN INJECTION MOLDING MACHINE
Clamping Unit:
1.) Optimized Platen Design with high rigidity and enlarged space between tie bars
2.) Euromap-based Platen Layout with both T-slot & tap holes, locating design in moving platen to better suit various molds
3.) New ejection system design with longer ejection stroke, bigger space and better rigidity
4.) Hydraulic drivien gear-type mold height adjustion mechanism
5.) Relocation of mechanical safety interlock for easier operation
6.) linkage structure for front connecting rod increases connectingrod's strength greatly, as well as the whole clamping unit's rigidity & accuracy.
Injection Unit:
1.) High Quality Linear Motion Guide ensure the smooth & accuracy of injection process
2.) High Speed & Pressure injection structure can improve the injection speed
3.) Twin nozzle cylinder ensures more even & stable structure
4.) Specilized screw barrel design for various appliance
Hydraulic System:
1.) The double proportional compound valve control system pressure & flow, highly sensitive & stable
2.) Imported high quality Pump, low in noise, long in lifespan & stable in performance
3.) World-famous servo hydraulic system optional, better performance in lower noise & energy saving
4.) The precise feedback control of servo system to the pressure & flow, with higher sensitivity & more accurate repeatability precision
5.) High performance hydraulic valve, less failure, fast switch, convenient maintenance
6.) Low pressure mold protect system, which is more suitable for the precise mould
7.) Greese & lubrication oil in dependent lubrication system can lubricate everywhere in the best situation
1.) Optimized Platen Design with high rigidity and enlarged space between tie bars
2.) Euromap-based Platen Layout with both T-slot & tap holes, locating design in moving platen to better suit various molds
3.) New ejection system design with longer ejection stroke, bigger space and better rigidity
4.) Hydraulic drivien gear-type mold height adjustion mechanism
5.) Relocation of mechanical safety interlock for easier operation
6.) linkage structure for front connecting rod increases connectingrod's strength greatly, as well as the whole clamping unit's rigidity & accuracy.
Injection Unit:
1.) High Quality Linear Motion Guide ensure the smooth & accuracy of injection process
2.) High Speed & Pressure injection structure can improve the injection speed
3.) Twin nozzle cylinder ensures more even & stable structure
4.) Specilized screw barrel design for various appliance
Hydraulic System:
1.) The double proportional compound valve control system pressure & flow, highly sensitive & stable
2.) Imported high quality Pump, low in noise, long in lifespan & stable in performance
3.) World-famous servo hydraulic system optional, better performance in lower noise & energy saving
4.) The precise feedback control of servo system to the pressure & flow, with higher sensitivity & more accurate repeatability precision
5.) High performance hydraulic valve, less failure, fast switch, convenient maintenance
6.) Low pressure mold protect system, which is more suitable for the precise mould
7.) Greese & lubrication oil in dependent lubrication system can lubricate everywhere in the best situation
FEATURES AT A GLANCE
High Energy saving
Under the ideal working state, Power consumption is 40% less than that of variable displacement pump and 70% less than that of fixed displacement pump, save the cost effectively.
High precision
Precise control of low pressure & low flow, repeating precision is less than 0.5%. Weight error of the products is 0.4%~0.7%, with semi-close loop system nearly.
Low noise
Different from ordinary fixed pump injection molding machine, servo power-saving injection molding machine is working only when necessary. And working noise is less than 70dB, will be much quieter for your working area.

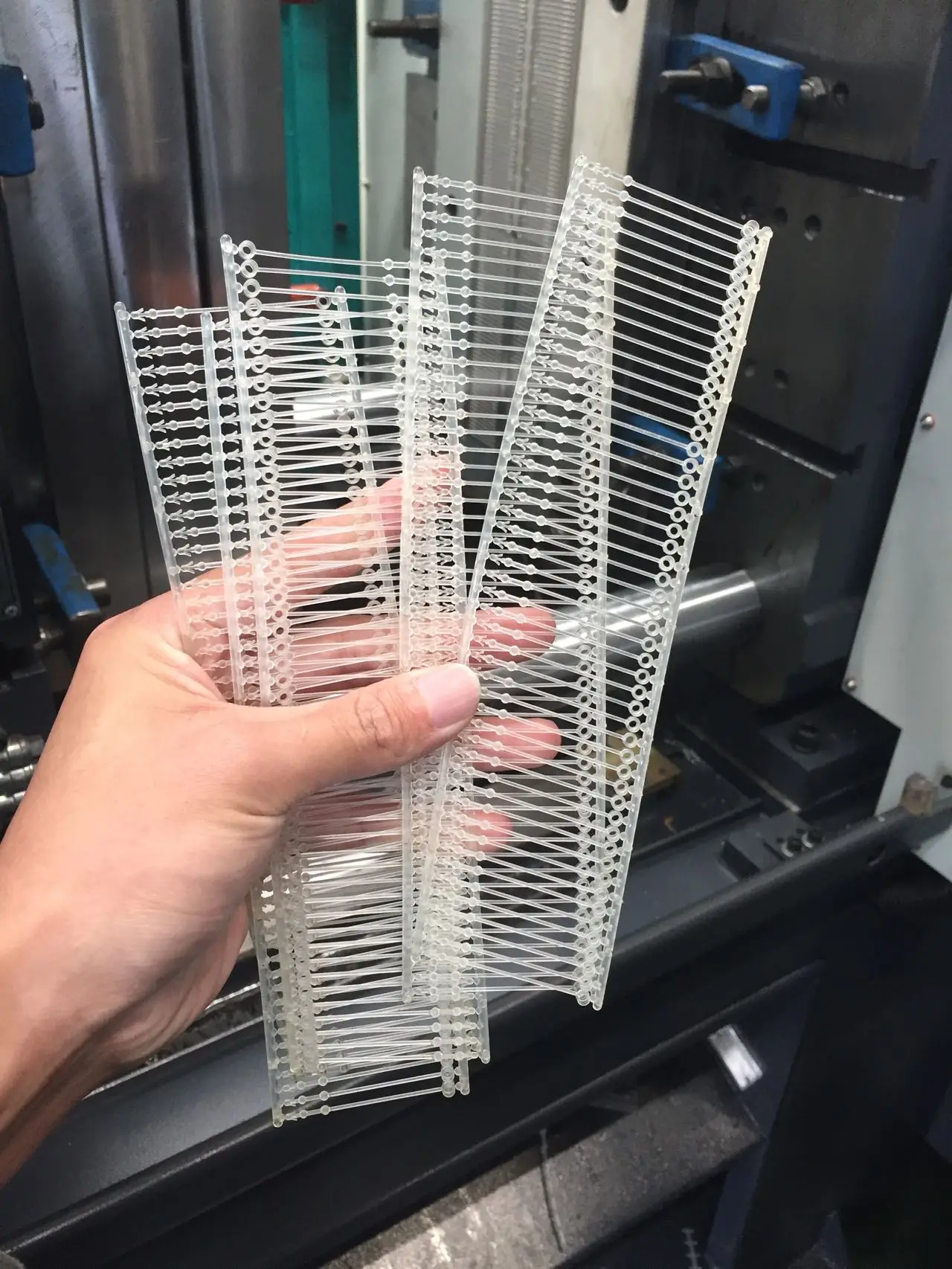

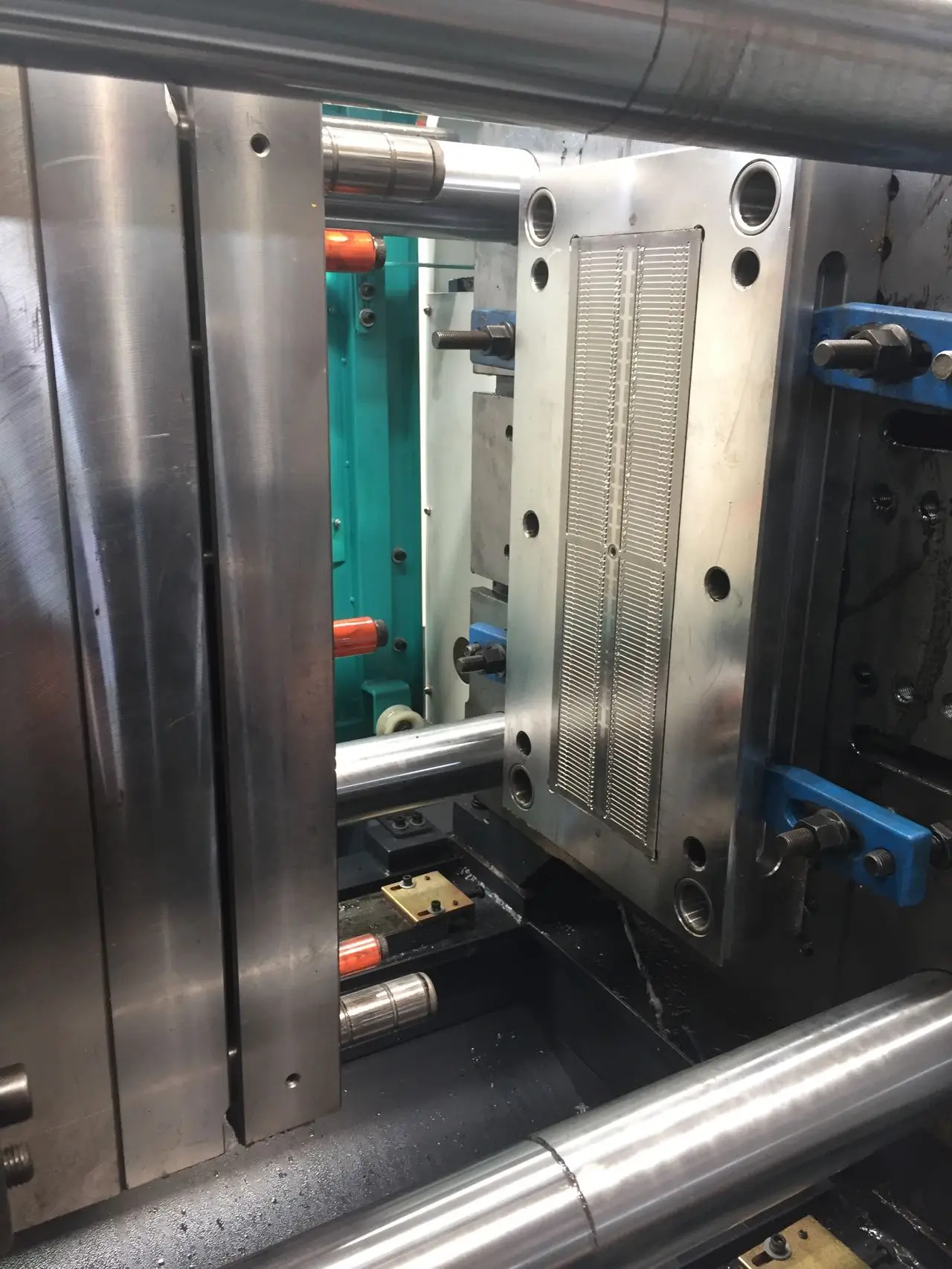

PLASTIC TAG PIN INJECTION MOILD
2.GOOD QUALITY GOOD PRICE
3.SUPPORT CUSTOMIZATION OF VARIOUS SIZES OF PLASTIC TAG PIN MOLDS
4.PROVIDE MOLD AND INJECTION MOLDING MACHINE TESTING SERVICES TO ENSURE STABLE PRODUCTION OF TAG PIN BEFORE SHIPMENT
→ bigger space between tie-bars
→ central-clamping structure
→ famous components
→ energy saving with servo motor
→ low noise, fast respons
→ high precision, Stable and super long life
→ T-Slot Platen
→ abundant Spare Parts
→ better price

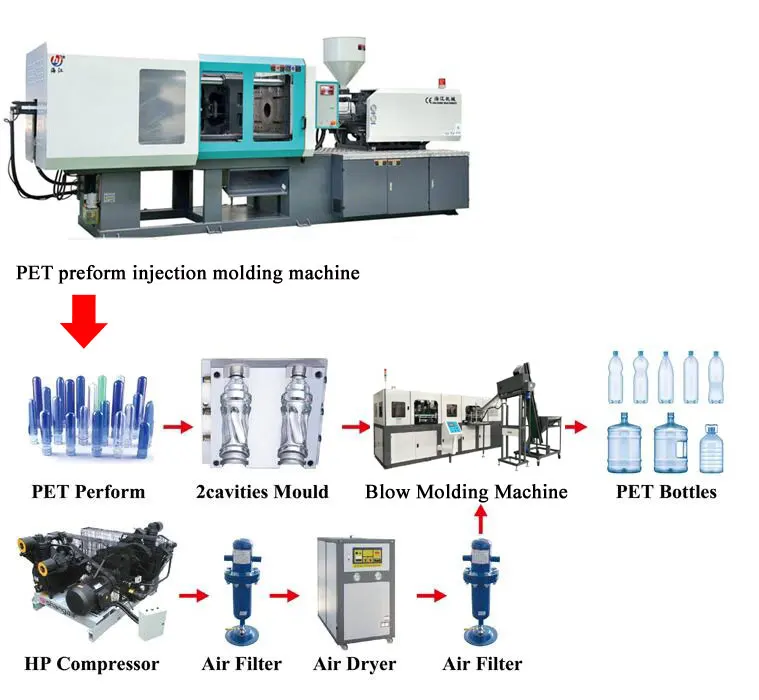

PET blow mold
blow molding machine
PET Bottle

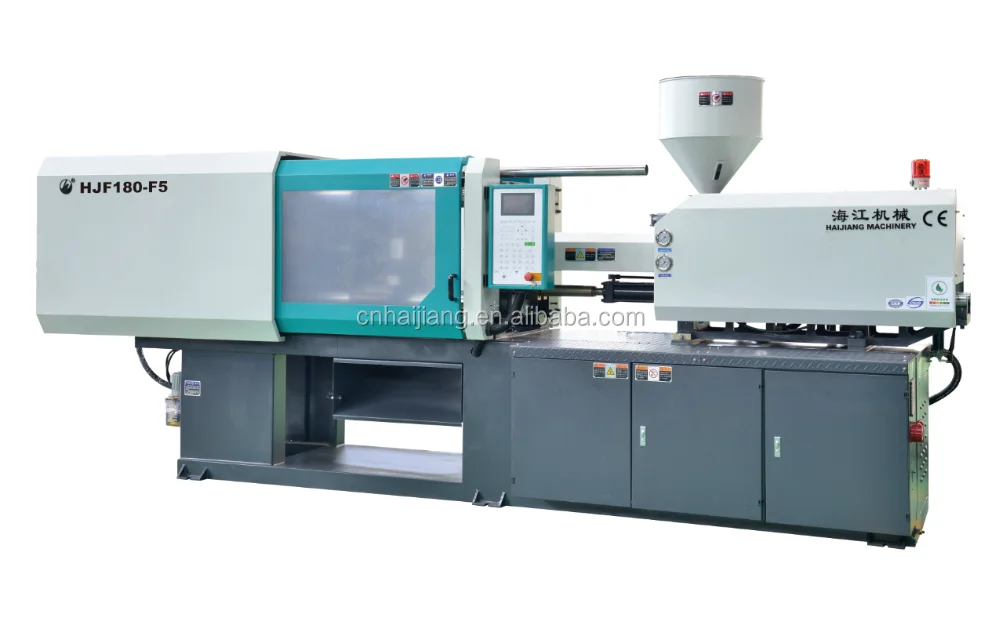

PRODUCT SPECIFICATIONS
SPECIFICATION | HJF240 | ||||||
Screw Type | A | B | C | ||||
Screw Diameter | Mm | 50 | 55 | 60 | |||
Screw L/D Ration | L/D | 22.2 | 20 | 18.2 | |||
Shot Size(Theoretical) | cm3 | 508 | 593 | 706 | |||
Injection Weight(PS) | g | 462 | 534 | 642 | |||
Injection Rate | g/s | 148 | 179 | 202 | |||
Injection Pressure | MPa | 1180 | 160.8 | 128 | |||
Screw Speed | rpm | 0-180 | |||||
Clamping Force | KN | 2400 | |||||
Opening stroke | mm | 490 | |||||
Space Between Tie Bars | mm | 530*510 | |||||
Max.Mold Height | mm | 530 | |||||
Min.Mold Height | mm | 200 | |||||
Ejector Stroke | mm | 165 | |||||
Ejector Tonnage | KN | 70 | |||||
Max.Pump Pressure | MPa | 16 | |||||
Pump Motor Power | KW | 18.5 | |||||
Heater power | KW | 11.65 | |||||
Machine Dimension(L*W*H) | M | 5.4*1.5*2 | |||||
Machine weight | T | 7 | |||||
Oil Tank Capacity | L | 340 | |||||
PRODUCT CONFIGURATION
SHENZHEN/ TAIWAN/AUSTRIA PLC
Stronger Nodular cast iron template
Imported cnc processing
USA ALBERT servo motor
USA VICKES directional valve
Infrared nano heater-optional
SALES AND SERVICE NETWORK
Product Delivery
1
2
3
4
5
6
FAQ
Q1. What is the warranty for the plastic injection molding machine
A1:Total 18 month,Included machine platen,base,injection unit,clamping unit.
Q2:Can you sending engineer to oversea install machine and trainning customer's workers.
Q2: Yes,We will send engineer to customer factory install the machine or trainning customer's workers. in one week,total free. After one week, 50$ per day
Q3:How Many spare parts you will prepare for customer?
A3: Spare parts included: mould clamp, long and short nozzle,heating band,Wrench,Switch,Thermocouple,Operation manual,Tool box,Lubricate Oil,Sealing,Filter etc.
Q4:Computer sytem,Except English, can you change other language,say: French,Spanish,Arabic,Russian.
A1:Yes,when you place order,please tell us the language which you required. Standard one with English,Japanese,Chinese,Korea.
Q5:Can you change the power source for us? Say:we need 3 Phase 220V 60HZ
A5: When you place order,please write clearly.Then we will change the electric system for you.
Q6:If i Need Green Color machine,can you do it for us?
Q7: Yes,please give us the color sample.So we can do it for you
A1:Total 18 month,Included machine platen,base,injection unit,clamping unit.
Q2:Can you sending engineer to oversea install machine and trainning customer's workers.
Q2: Yes,We will send engineer to customer factory install the machine or trainning customer's workers. in one week,total free. After one week, 50$ per day
Q3:How Many spare parts you will prepare for customer?
A3: Spare parts included: mould clamp, long and short nozzle,heating band,Wrench,Switch,Thermocouple,Operation manual,Tool box,Lubricate Oil,Sealing,Filter etc.
Q4:Computer sytem,Except English, can you change other language,say: French,Spanish,Arabic,Russian.
A1:Yes,when you place order,please tell us the language which you required. Standard one with English,Japanese,Chinese,Korea.
Q5:Can you change the power source for us? Say:we need 3 Phase 220V 60HZ
A5: When you place order,please write clearly.Then we will change the electric system for you.
Q6:If i Need Green Color machine,can you do it for us?
Q7: Yes,please give us the color sample.So we can do it for you
