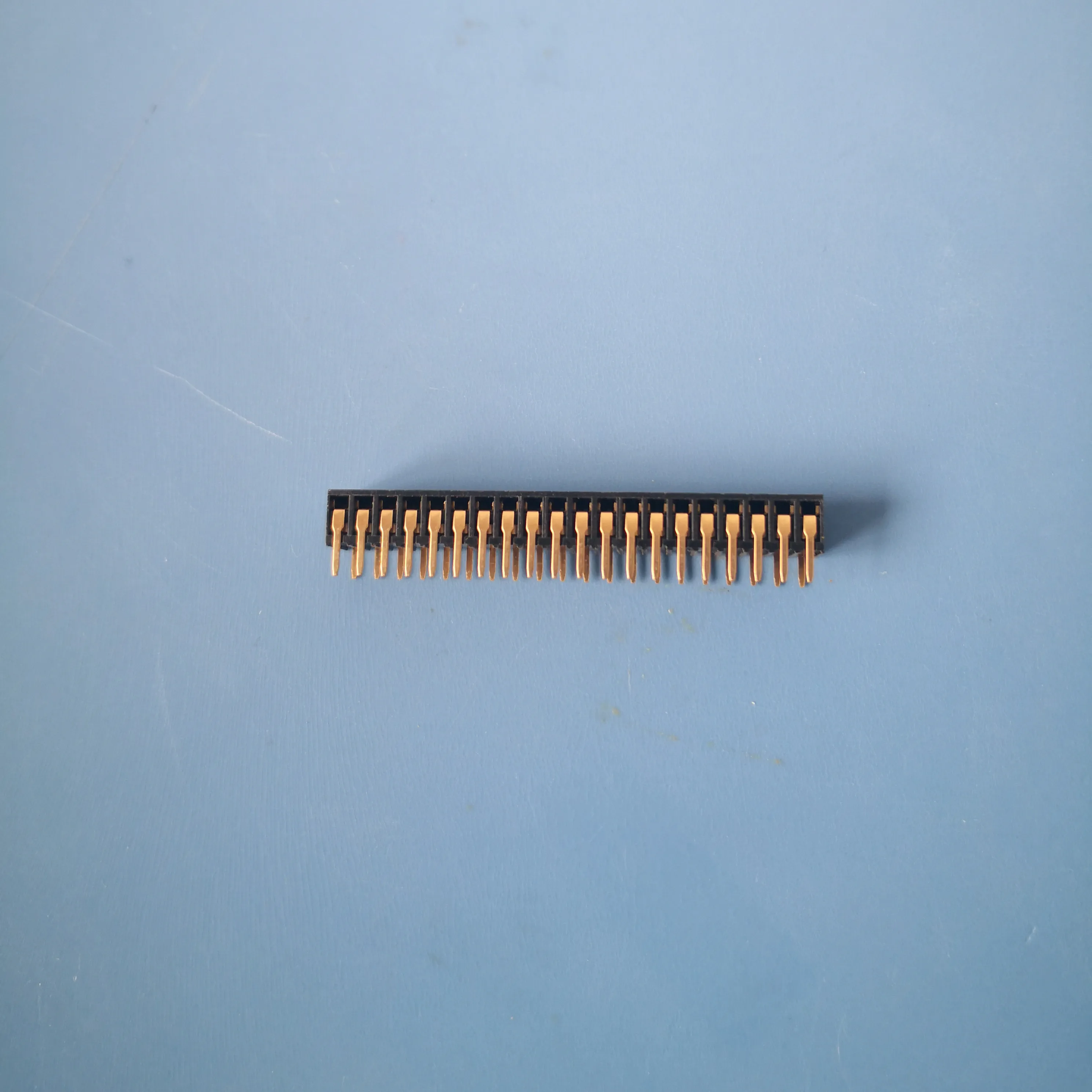

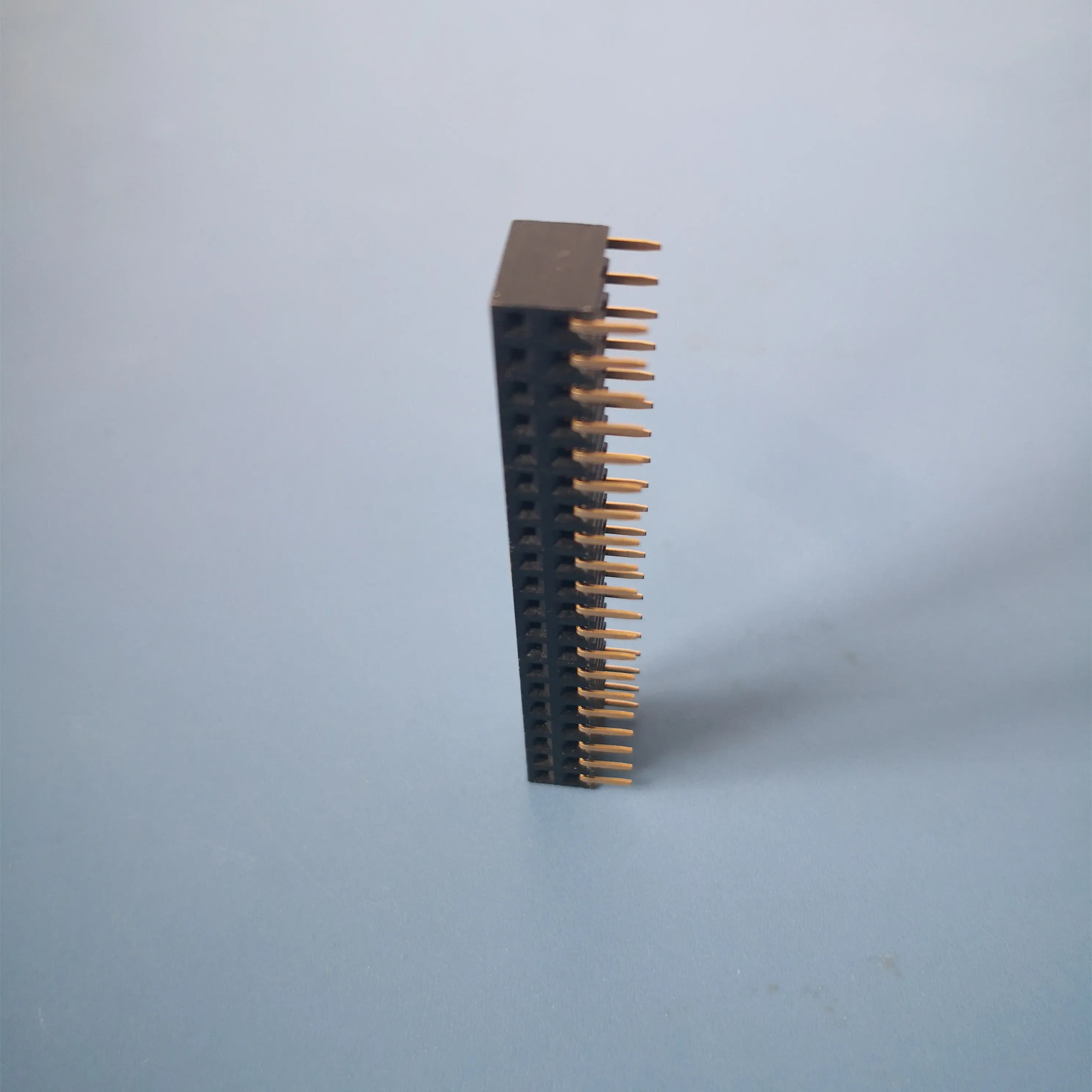

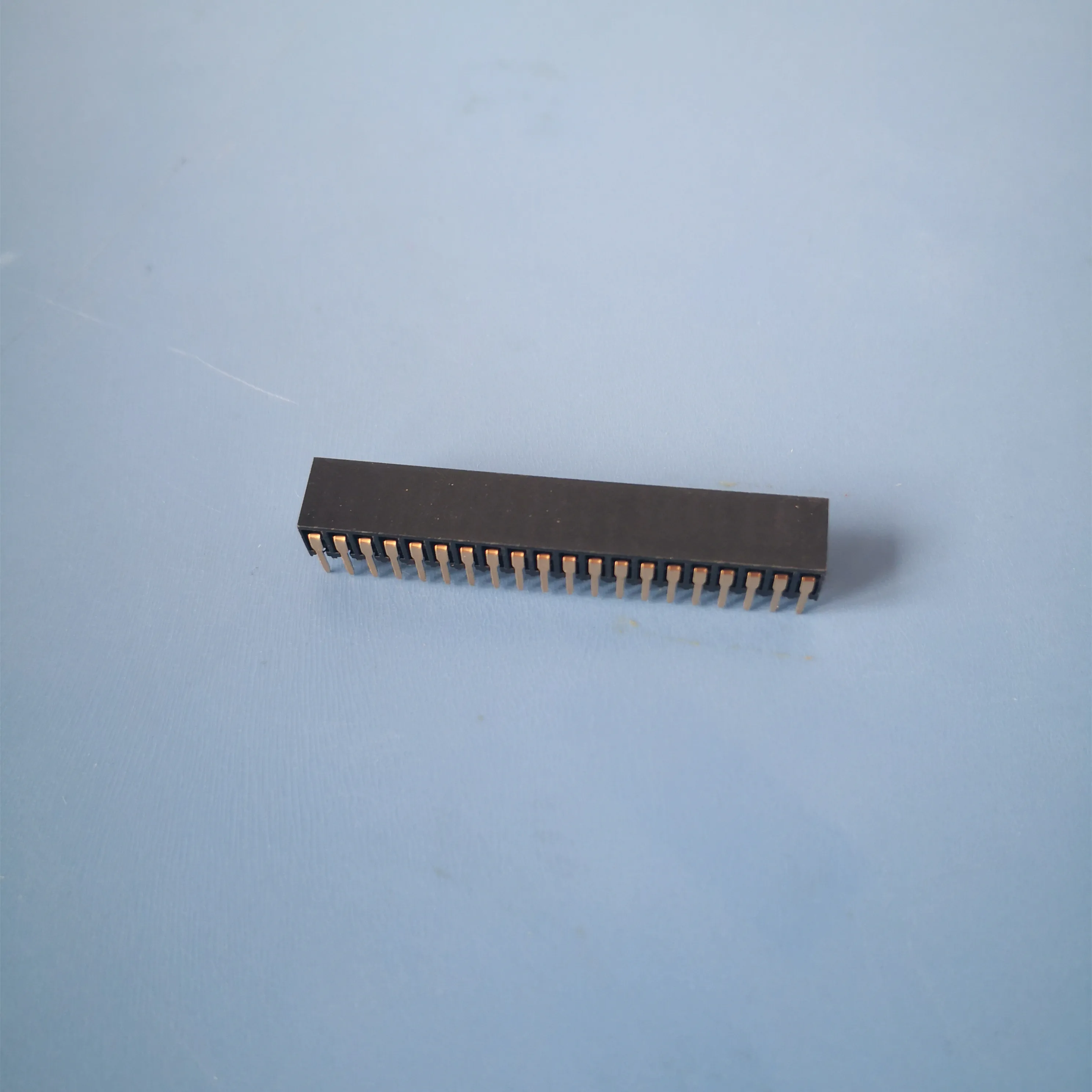

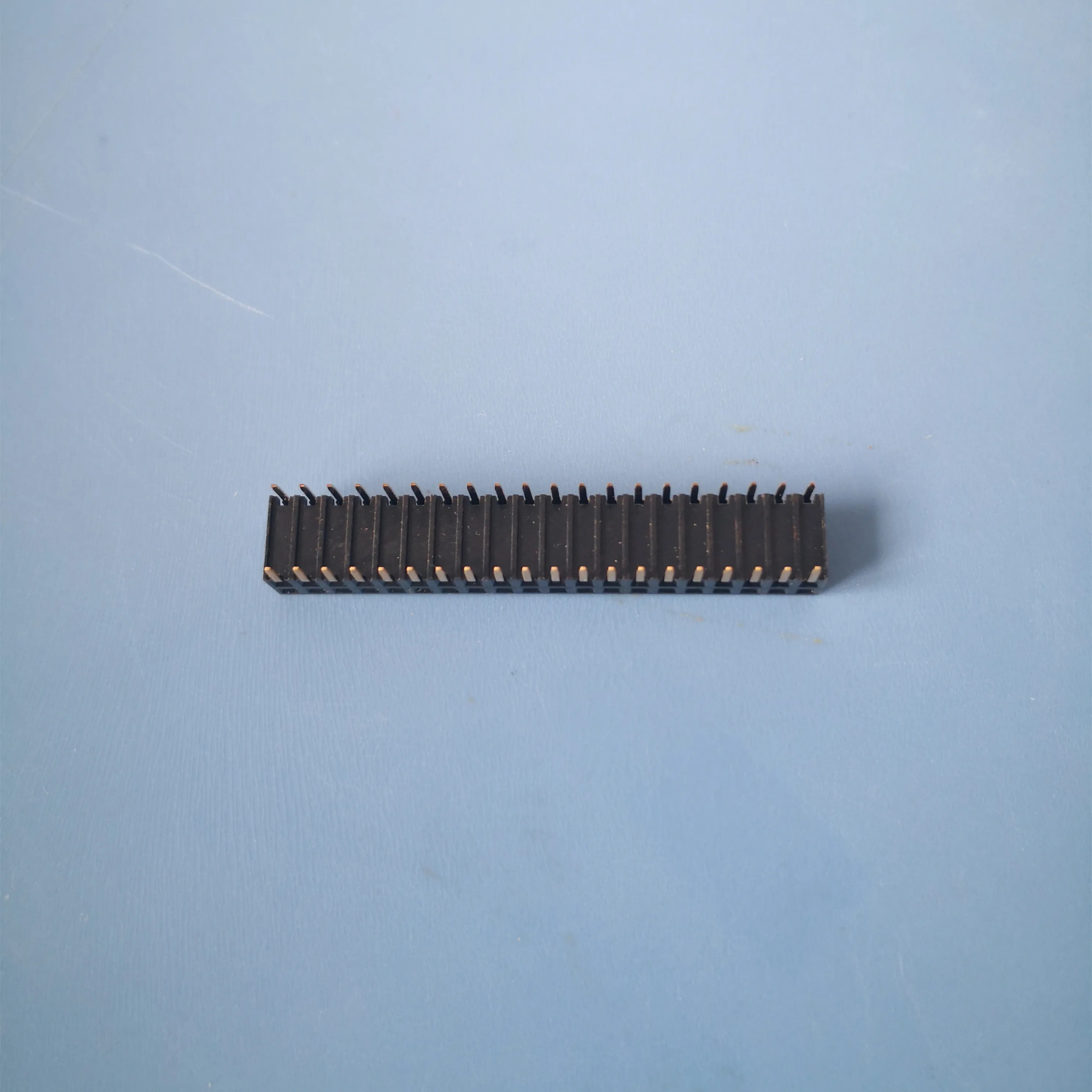

PCB application side entry through hole gold plated 2.54mm female header

Share on (1600430820192):


Price:

Quantity:


Product Overview

Description


Female header SPECIFICATIONS
Current Rating       :3AMP
Operation Temperature:-40C to+105C
Contact Resistance   :20mΩ Max.
Insulation Resistance:1000MΩ Min.
Withstanding Voltage :AC 1000V
Insulator Material   :Polyester(UL94V-O)
                      Standard:PBT
Contact Material     :Phosphor bronze
Contact plating      :Au or Sn over 50u" Ni





Specification
















































Rated Current


3.0AMP


Contact Resisitance


20MΩ Min


Withstand Voltage


500V AC/DC


Insulation Resistance


800MΩ Min


Operation Temperature


-40℃ to +105℃


Insulator material


Polyester(UL94V-0)


Standard


PA6T


Contact Material


Brass


Contact Plating


AU OR SN Over Ni


Max Processing Temp


:230℃ for 30-60 seconds (260℃ for 10 sencond





Certifications







Our Services







Product Description







Term & Conditions


1. Lead-time.


    The L/T for mass production will take about 1 to 2 weeks after orders placed.


2. Payment


    a. T/T in advance, balance before shipment for first shipment.


    b. T/T, L/C, D/A, D/P Paypal all acceptable.


3. Shipment.


    a. UPS/DHL/FEDEX/TNT with estimated time of 3 to 7 days.


    b. By air or by sea is normally use through your forwarder.


       If you have no forwarder, we can arrange our cooperation forwarder for you if need.


4. Shipping term.


     F.O.B. term basic.


5. Packing


    Carton/Tray/Bubble Wrap.
