high temperature high press furnace
- Category: >>>
- Supplier: Anhui Beq Equipment Technology Co. Ltd.
Share on (1600430821765):
Product Overview
Description
Product Description

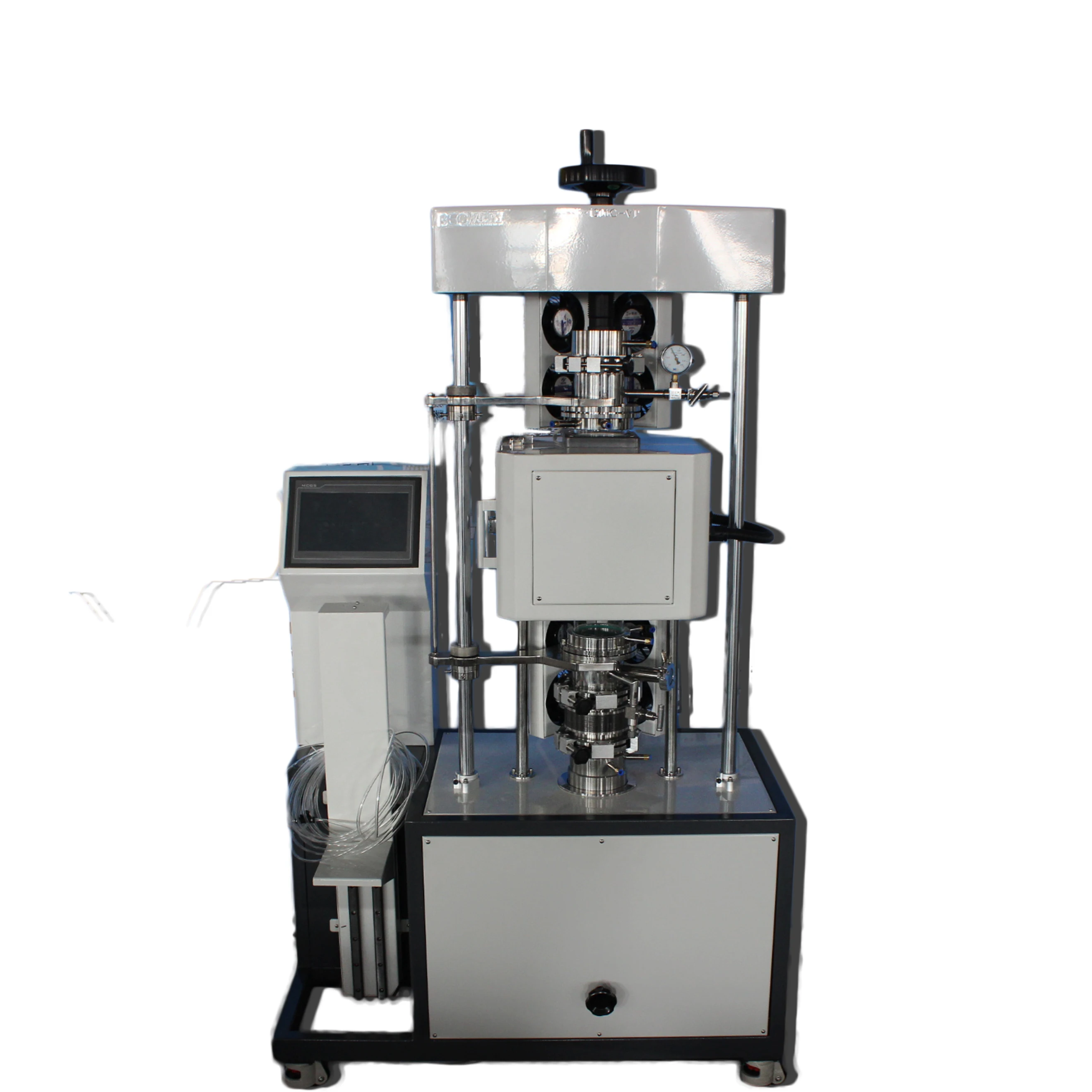

Hot-pressing furnace, BTF-1200C-VP
Main features:
Ø Open type vertical heating furnace,tube and flange can pivot and move away from chamber.
Ø With standard configuration of OD100mm quartz tube and 40T electrical press
Ø Adopt graphite push rod and mould,at the same time of pressing,heat the powder to common sintering temperature or lower,to get the dender and uniform product after a short time
Technical Parameters
Power
| · Power rated: 3KW |
Voltage
| · Voltage rated: AC220V 50/60HZ |
Working Temperature
| · Max. Temperature: 1200 °C · Continuous working temperature: ≤1150℃ · Max. heating Rate: ≤10°C /min
|
| · PID automatic control and auto-tune function. · 30 programmable segments for precise thermal processing. · Built-in protection for the over-heated and broken thermocouple.
|
Heating Elements
| · Resistance wire, Fe-Cr-Al Alloy doped by Mo |
Temperature Accuracy
| +/- 1 °C |
Processing tube
| · Φ100*600mm
|
Graphite rod diameter
| 87mm |
Pressure maintain time | 0-50min |
Movable distance | 50mm |
Plunger diameter | 87 mm |
Pressure stability | ≤1MPa/5min |
Weight | 400kg |
| · Special designed flanges
|
Vacuum Pressure
| · 10^-1 can be achieved by mechanical pump · 10^-4 pa can be reached by molecular pump
|
Warning
| · Graphite must used under anaerobic condition · Considering contact area calculate pressure |
