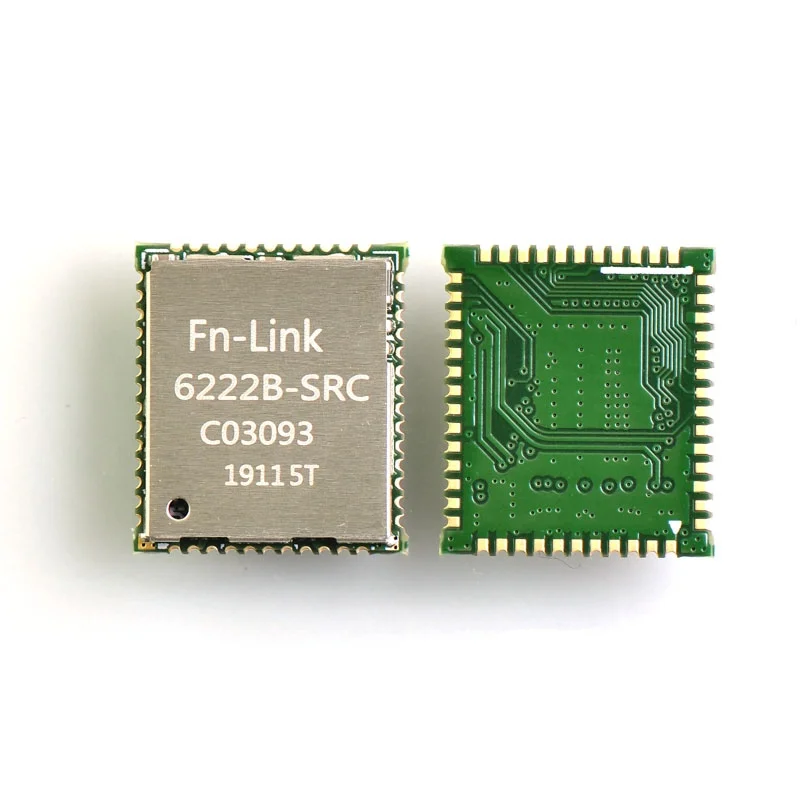

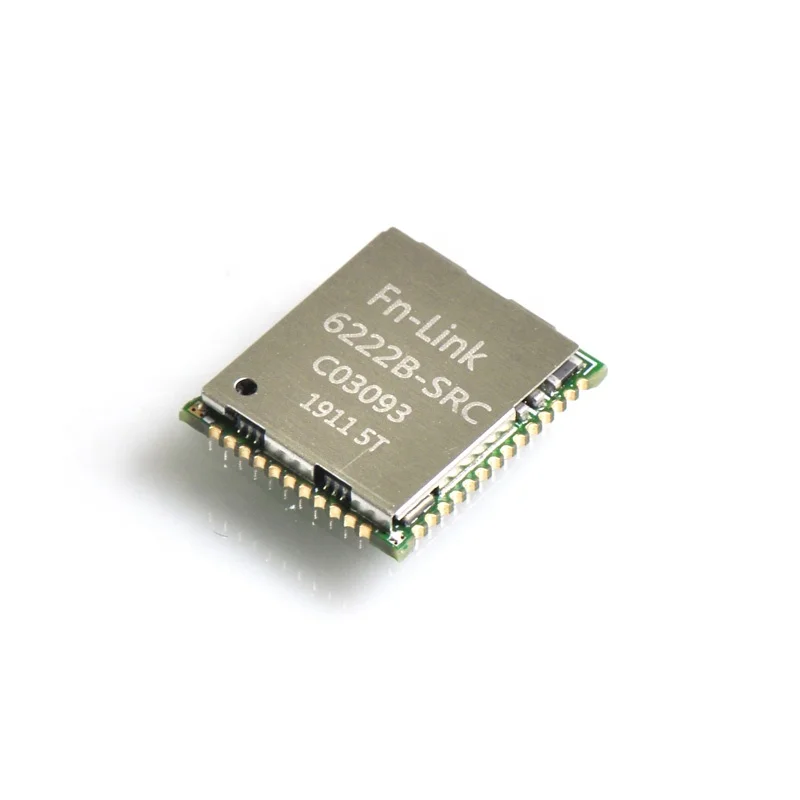

effective wifi solution rtl8822cs realtek ic chip wifi access point module for dashcam
- Category: >>>
- Supplier: Shenzhen Ofeixin Technology Limited
Share on (1600430828970):
Product Overview
Description
Product Description
Introduction
Fn-Link Technology would like to announce a low-cost and low-power consumption module which has all of the Wi-Fi functionalities. It is a highly-integrated IEEE 802.11 a/b/g/n/ac MAC/Baseband/RF WLAN single chip. For Wireless LAN operation. The integrated module provides SDIO interface for Wi-Fi . The module provides simple legacy and 20MHz/40MHz/80MHz co-existence mechanism to ensure backward and
network compatibility
The wireless module complies with IEEE 802.11 a/b/g/n/ac 2x2 MIMO standard and the speed can achieve up to 867Mbps with dual stream in 802.11n. The integrated module provides SDIO interface for Wi-Fi, UART / PCM interface for Bluetooth. This combo module is a total solution for a combination of Wi-Fi and Bluetooth V5.0 technologies. The module is specifically developed for all portable devices.
Features
Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ 802.11ac, or 2.4G/5G 802.11n WLAN applications.
Dual-stream spatial multiplexing upto 867 Mbps data rate.
Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz
Supports low power SDIO3.0 interface for WLAN and UART/PCM interface for Bluetooth.
Supports Bluetooth V5.0+HS, BLE and be backwards compatible with Bluetooth 1.2, 2.X+ enhance data rate.
Supports WLAN-Bluetooth coexistence and ISM-LTE coexistence.
Supports Bluetooth for class1 and class2 power level transmissions without requiring an external PA.
BT host digital interface:
- HCI UART(up to 4 Mbps)
- PCM for audio data
Dual-stream spatial multiplexing upto 867 Mbps data rate.
Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz
Supports low power SDIO3.0 interface for WLAN and UART/PCM interface for Bluetooth.
Supports Bluetooth V5.0+HS, BLE and be backwards compatible with Bluetooth 1.2, 2.X+ enhance data rate.
Supports WLAN-Bluetooth coexistence and ISM-LTE coexistence.
Supports Bluetooth for class1 and class2 power level transmissions without requiring an external PA.
BT host digital interface:
- HCI UART(up to 4 Mbps)
- PCM for audio data
Module have 3 antenna port, 2WLAN+1BT.
Application Range:
& Consumer Application
Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys
& Commercial And OA Application
Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment
& Industrial And Vehical Application
Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile
& Medical Application
Medical equipments/Medical instruments
& Other Consumer Electronic Products
Detailed Parameters

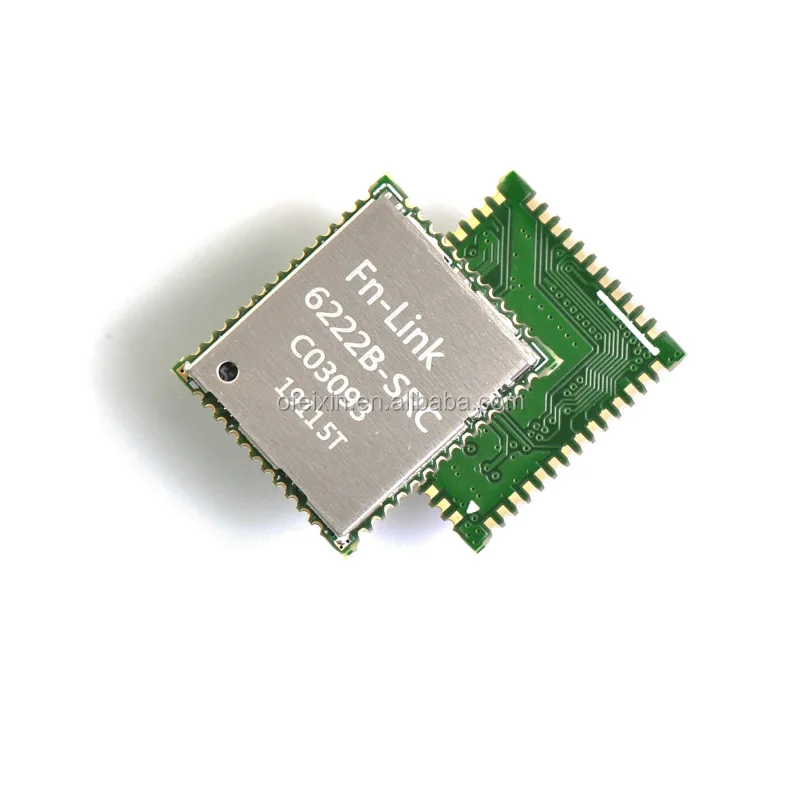

Model No | 6222B-SRC-00 | Main Chipset | RTL8822CS |
WIFI/BT Interface | SDIO/Uart/PCM | WIFI Standards | IEEE802.11 a/b/g/n/ac |
Date Rates | 867Mbps | Certification | RoHS,REACH |
RF Antenna | External Antenna | OS Supported | Android /Linux/ Windows |
Operating Frequency | 2.4-5.8GHz | Operating Voltage | 3.3V |
Dimensions | L x W x H : 15x13x2.15 | RF Chains | 2T2R |
Operating Temperature | 0°C to 70°C | Storage Temperature | -40°C to 85°C |
Note
Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download form the official website or sales.
