Seden company China Germany joint venture Big used tyre rubbers plastic waste recycling to oil and biogas pyrolysis plant
- Category: >>>
- Supplier: Shangqiu Seden Environmental Equipment Co. Ltd
Share on (1600430854155):
Product Overview
Description
Product Description
| Item | Continuous pyrolysis plant | ||
| Model | SD-1200 | SD-1800 | SD-2200 |
| Capacity | 1MT/HOUR | 1.5MT/HOUR | 2MT/HOUR |
| Power | 65kw | 90kw | 130kw |
| Working type | continuous | ||
| Reactor type | Multiple reactor (depends raw material) | ||
| Rotation | Chains transmission | ||
| Cooling system | water cooling / antifreezing solution | ||
| Reactor material | Q245R/Q345R/CRMOV/304SS/310SS/316SS | ||
| Heating mode | Electric heating / fuel oil /gas heating | ||
| Raw material | waste plastic /rubber/tyre/aluminium/oil sludge | ||
| Output | |||
| Item | Manual(batch) model pyrolysis plant | |
| Specification | SD-2200*6000 | |
| SD-2200*6600 | ||
| SD-2600*6600 | ||
| SD-2800*6000 | ||
| SD-2800*6600 | ||
| SD2800*8000 | ||
| Raw material | Q245R/Q345R/CRMOV/304SS/316SS/310SS | |
| Steel thickness | 14MM/16MM/18MM/20MM | |
| Power | 18KW-35KW | |
| Cover area | 300-400 square meter | |
| Worker | 3-4workers | |
| Loading mode | Hydraulic feeder | |
| Heating mode | Fuel oil/gas/electric heating mode | |

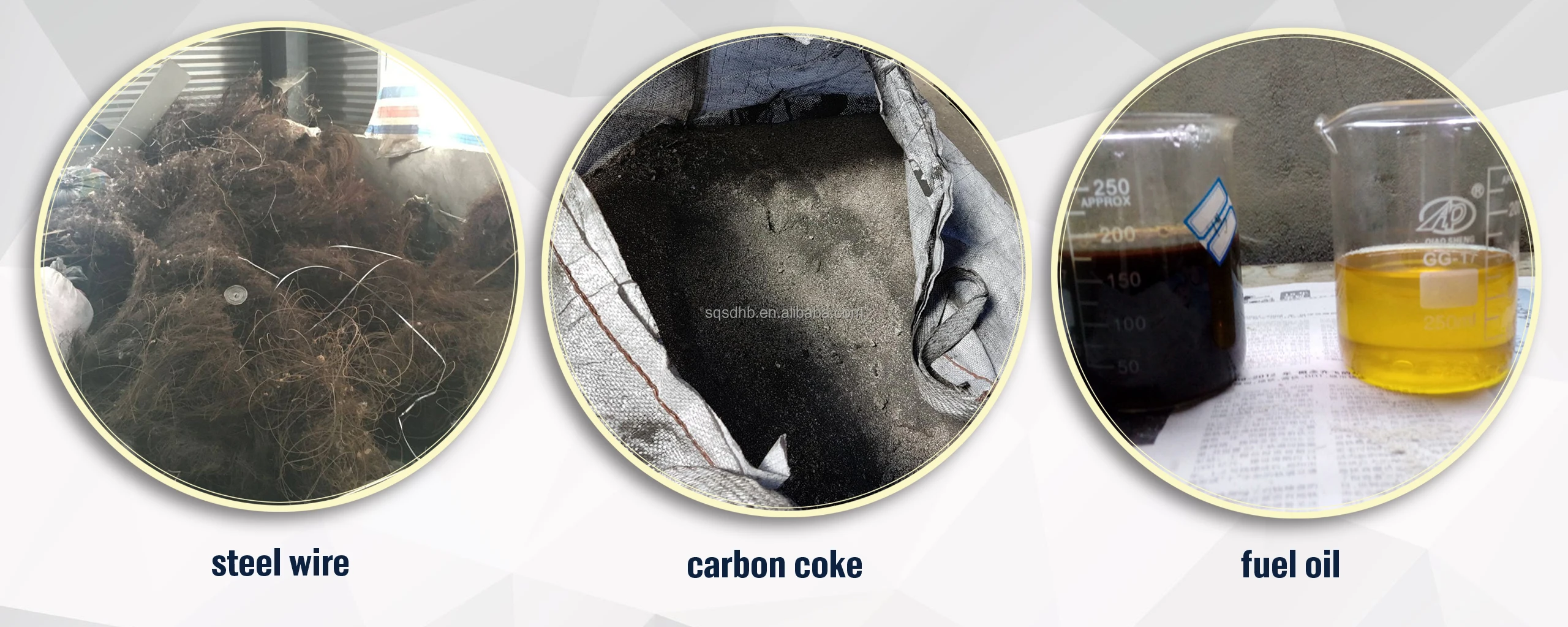

End Product after pyrolysis :
| Raw material | End product | |||
| waste rubber/tyre | Fuel oil 40%-45% | carbob coke 30%-40% | 10%-15% steel | 10%-15%gas |
| waste plastic | Fuel oil 20%-80% | carbon coke40%-50% | 10%-15% steel | 10%-15%gas |
| Fuel oil : can be sold to ceramic factory ,glass factory,brick factory to burn as energy | ||||
| carbon coke : can be used for industrial carbon coke N550,N330, or as additive for shoes , cover and so on | ||||
| steel : can be recycled for the steel factory | ||||
| Gas : can be recycled by the machine itself to heat and save energy or compress by our gas compression system to store it . | ||||
About our company introduction
We shangqiu Seden environmental equipment company is a professional enterprise (China Germany joint venture ) specializing in integrating reasearch ,manufacture for waste rubber/plastic/tyre pyrolysis to oil machine , oil distllaiton machine .
We company introduce advanced Germany technology and set up office in European countries since 2018 years .
The business involve manual one batch type , PLC contiuous type plastic/rubber/tyre/oil sludge pyrolysis plant with a capacity 10KG-50000KG . For the oil distillation machine with a handle capacity 10KG -200MT . we cooperate with famous Sinopec equipment research institute of China to make sure you get the most advanced technology and best one machine .

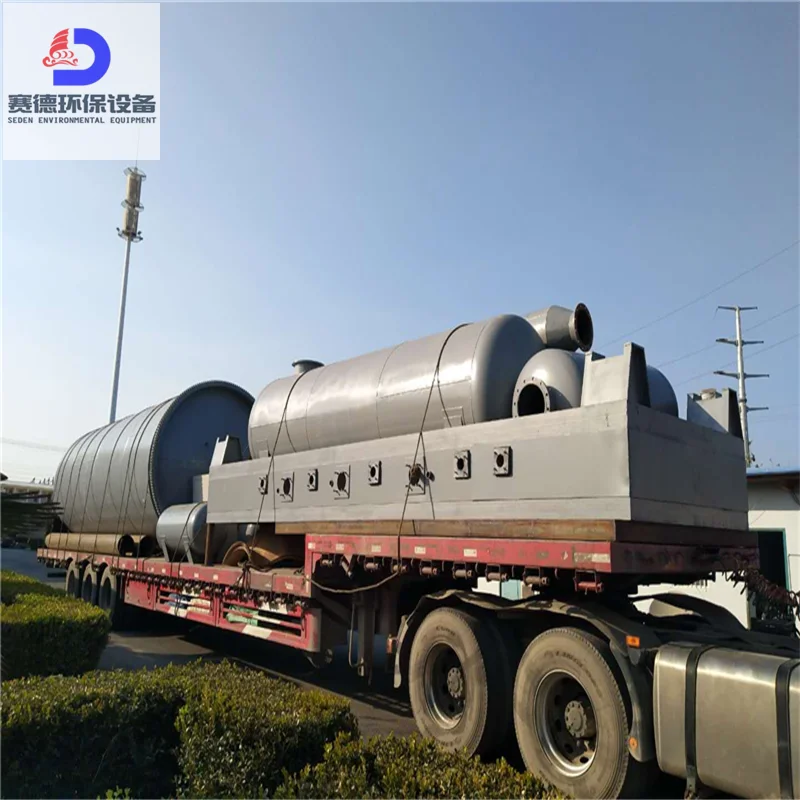

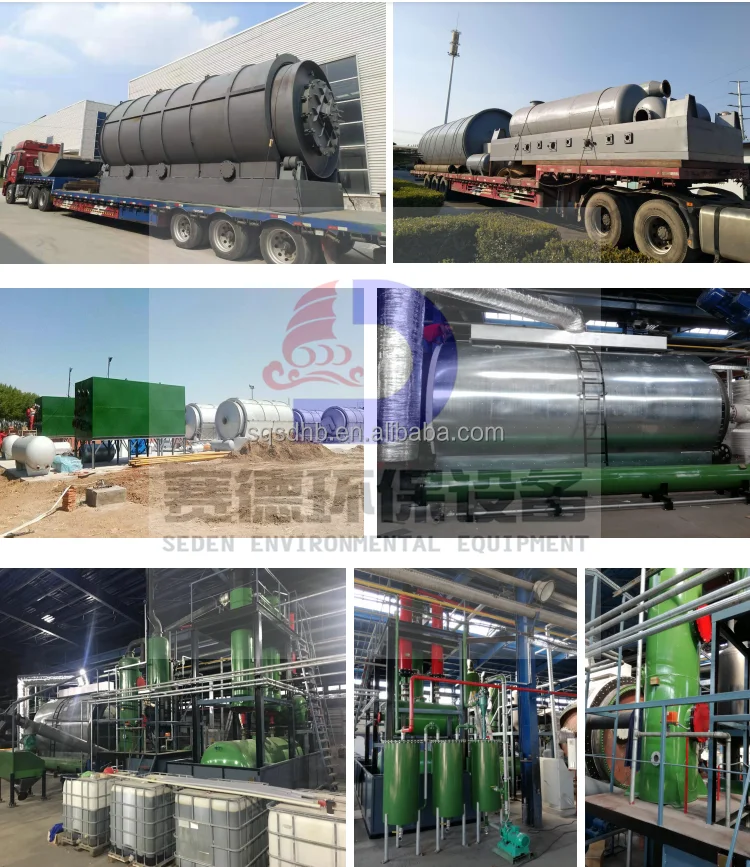

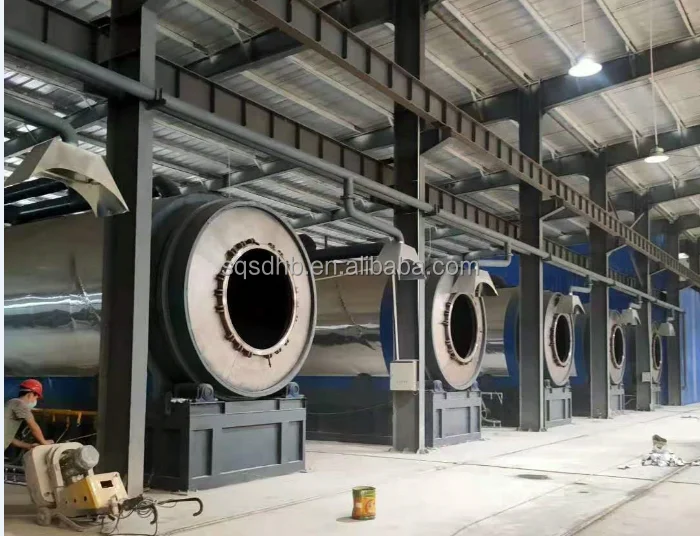

Packaging and shipping ,installation site :
Our company certification : ISO, CE, SGS , TUV.
