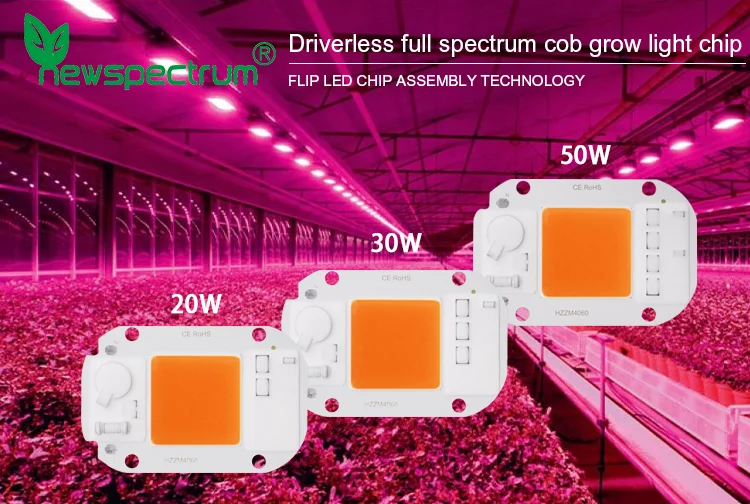

F6040 driverless AC cob LED free driver integrated 20W 30W 50w full spectrum led light chip cob 380nm~840nm COB LED
- Category: >>>
- Supplier: Shenzhen Colighting Ltd.
Share on (1600430865356):
Product Overview
Description
Features

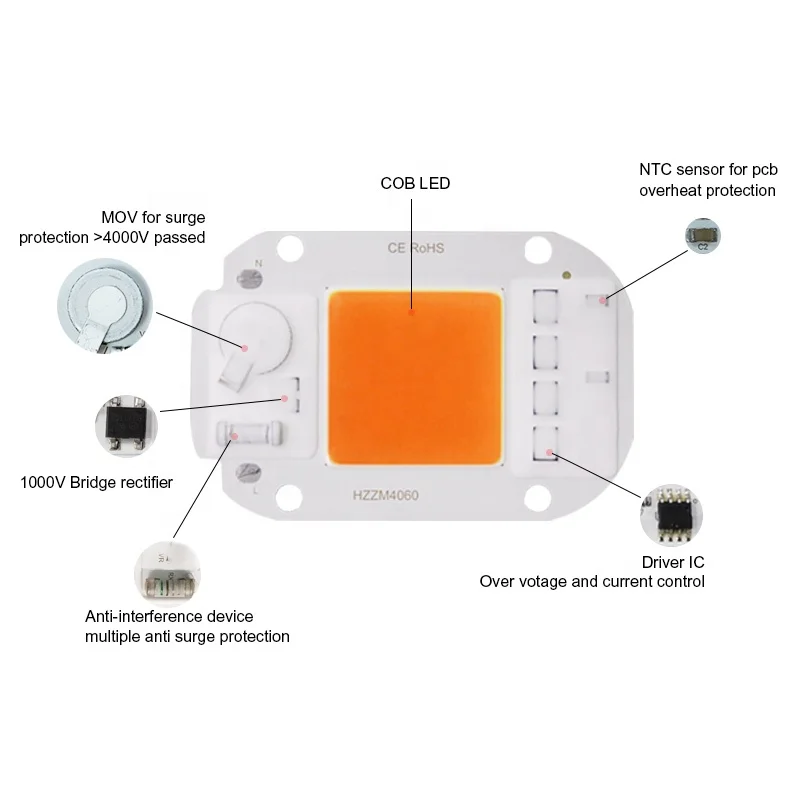

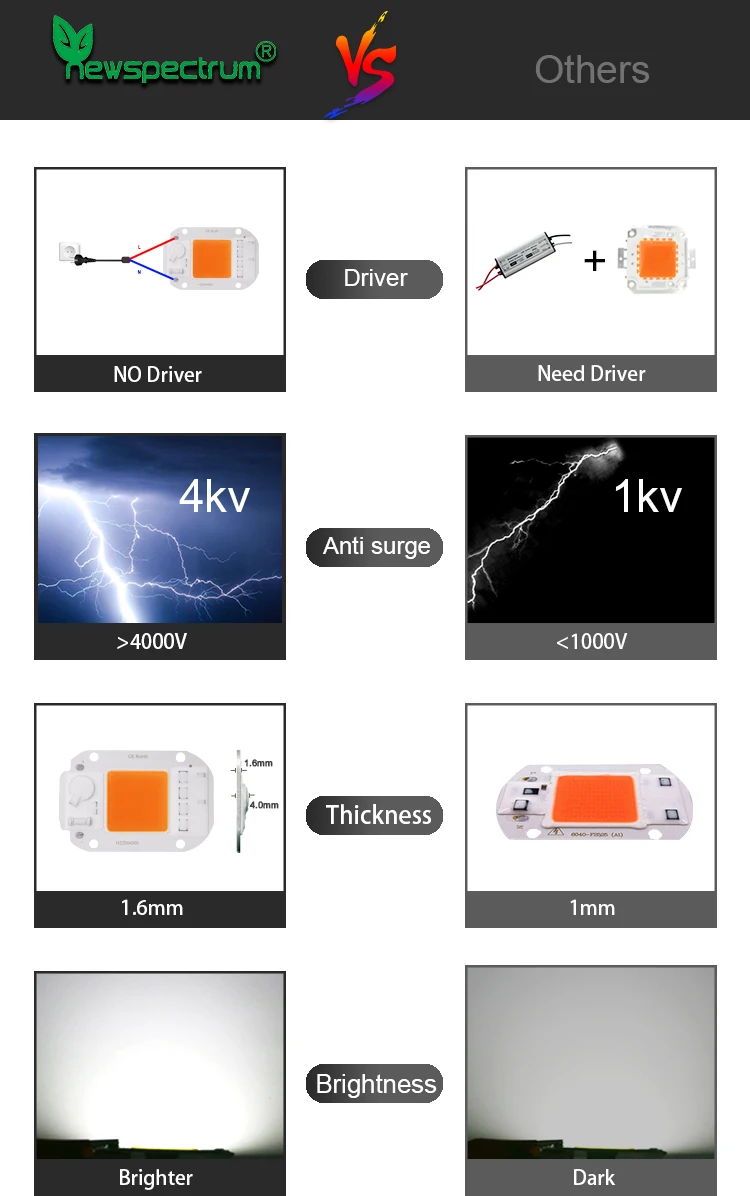

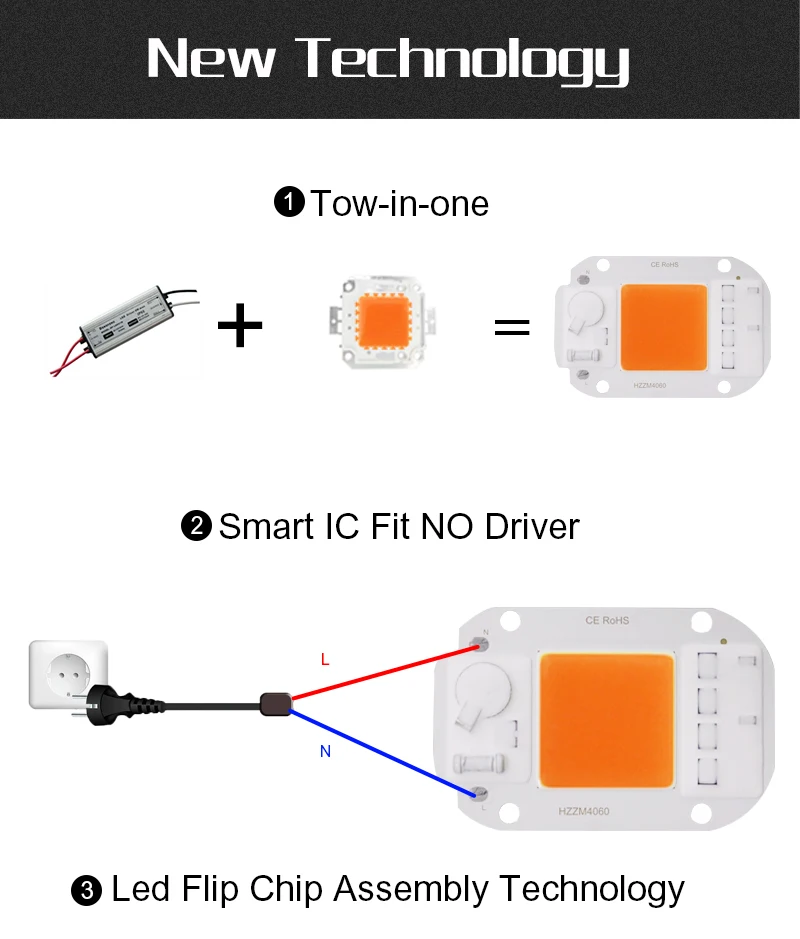

①:LED flip chip assembly technology. Good heat dissipation effect, higher light output rate, long life

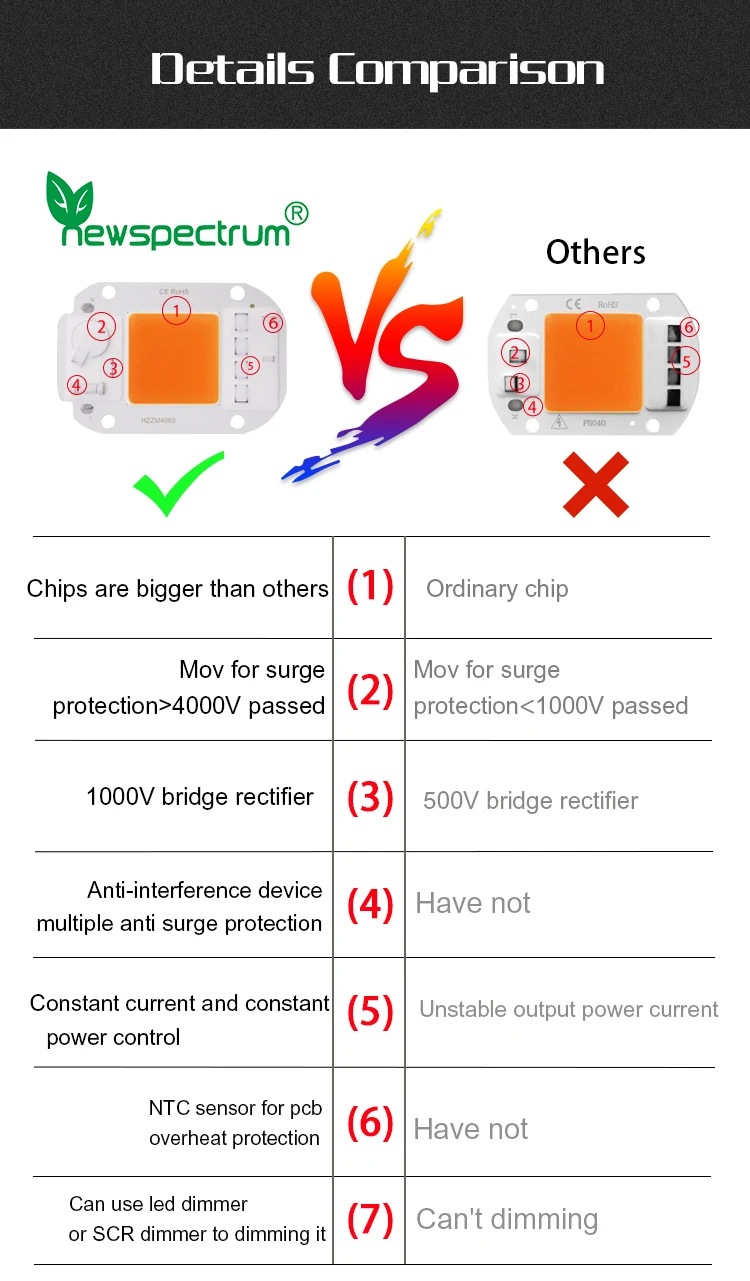

②:High brightness, our led chips are bigger than others
③:Smart IC Fit NO Driver
②:High brightness, our led chips are bigger than others
③:Smart IC Fit NO Driver

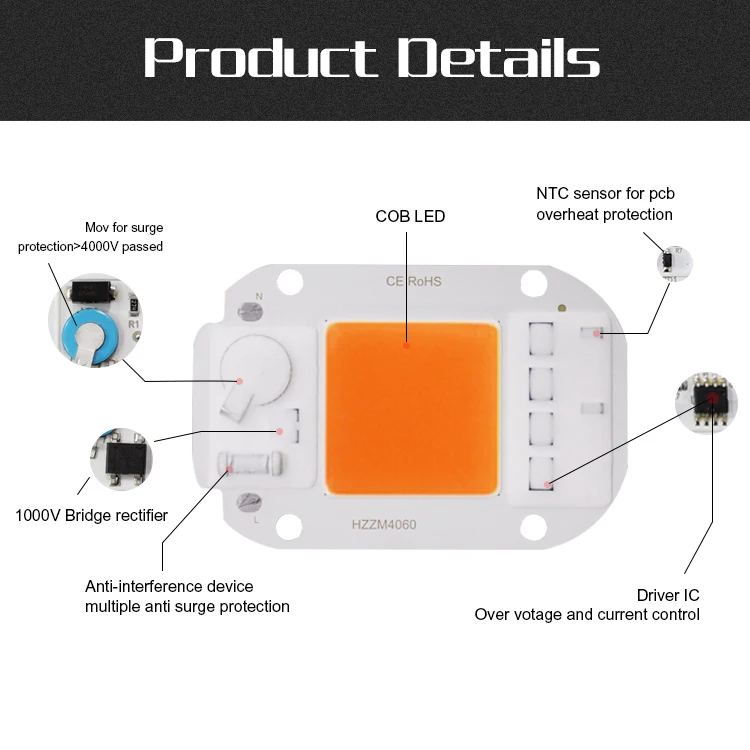

④:Constant current and constant power control
⑤:NTC sensor for pcb overheat protection
⑥:Voltage-regulator for ic vdd protectio
⑦:Driver IC, over voltage and over current control
⑧:It can use led dimmer or SCR dimmer to dimming it
⑨:MOV for surge protection>4000V passed
⑩:1000V Bridge rectifier
⑩:1000V Bridge rectifier

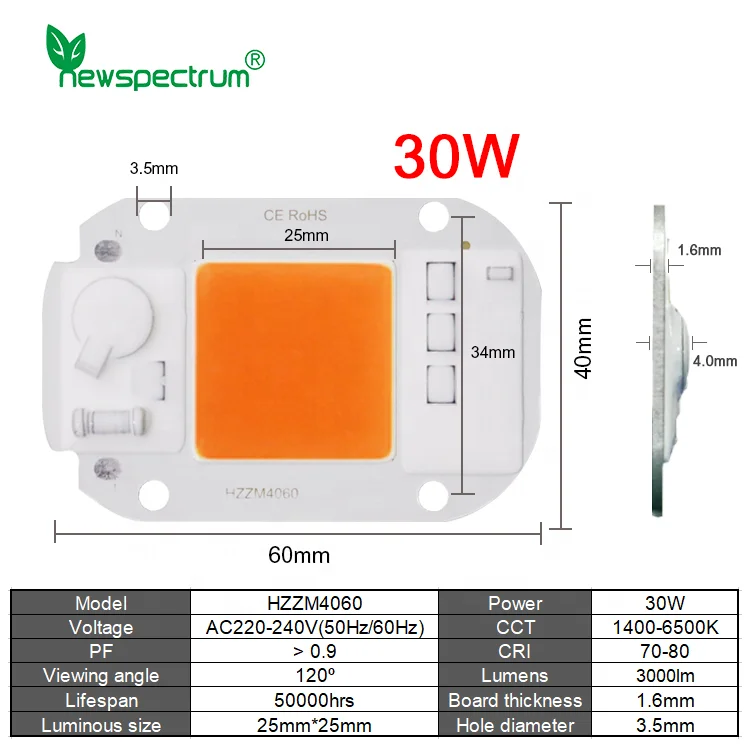

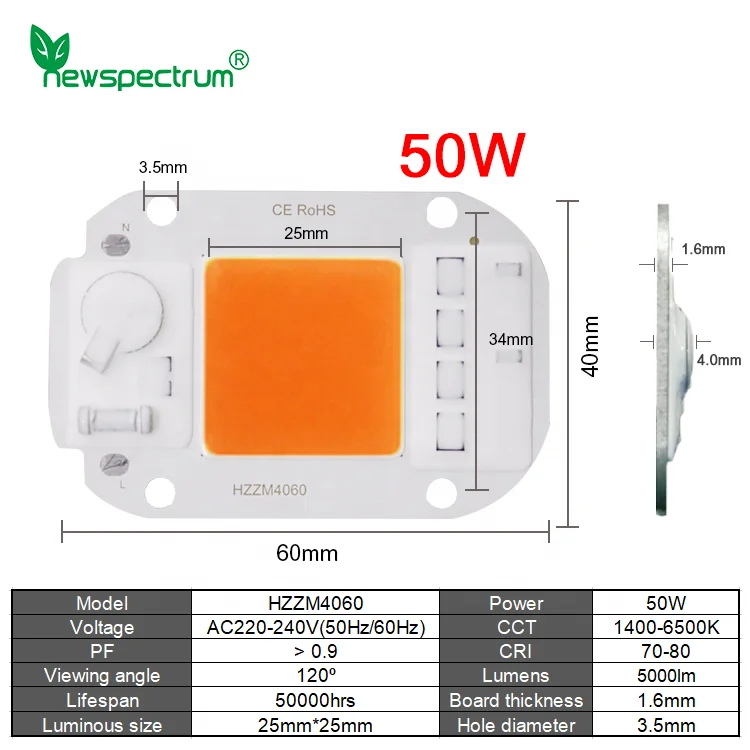

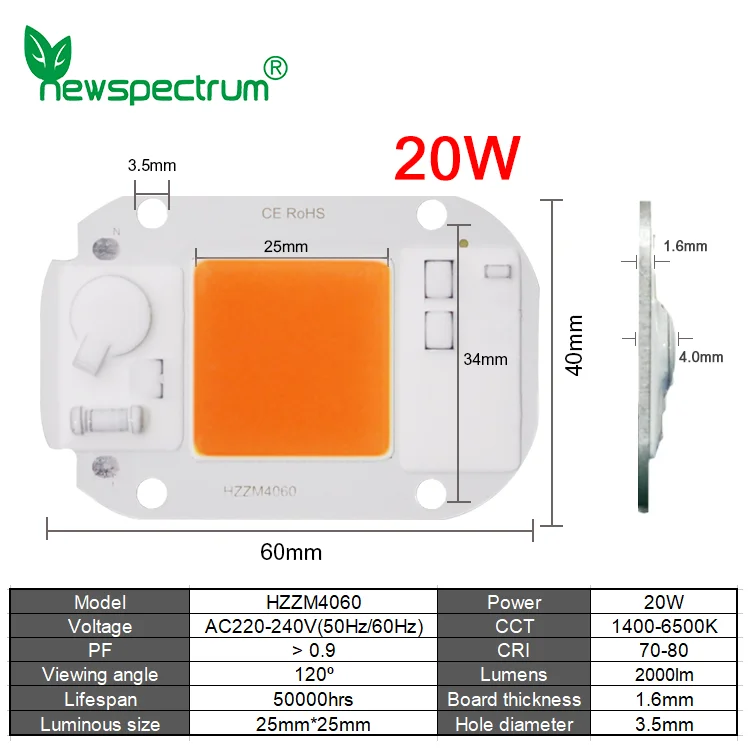

Specification
Power | 20W | 30W | 50W | ||
Voltage | AC220-240V(50Hz/60Hz) | AC220-240V(50Hz/60Hz) | AC220-240V(50Hz/60Hz) | ||
Color | Pink/Others | Pink/Others | Pink/Others | ||
CRI （Ra） | 70-80 | 70-80 | 70-80 | ||
CCT | 1400-6500K | 1400-6500K | 1400-6500K | ||
Luminous Flux | 80lm/W | 80lm/W | 80lm/W | ||
Board Size | 40mm*60mm | 40mm*60mm | 40mm*60mm | ||
Luminous Size | 25mm*25mm | 25mm*25mm | 25mm*25mm | ||
Hole Distance | 30mm*30mm | 30mm*30mm | 30mm*30mm | ||
Working Temperatur | -20℃~60℃ | ||||
Customized | Color/Brightness/Logo/Others | ||||
Flip Chip
A1:No lead connection required
A2:No line shading, higher light output rate
A3:Direct bonding, good heat dissipation effect
A4:Suitable for high-power light sources
A5:Longer life
Wire Bonding Chip
A1:Need lead connection
A2:The front electrode blocks light, and the light output rate is low
A3:Insulating glue solid crystal, low heat dissipation efficiency
A4:Only suitable for small current
A5:Wired occupies volume, small space
A3:Insulating glue solid crystal, low heat dissipation efficiency
A4:Only suitable for small current
A5:Wired occupies volume, small space
Focus on AC/COB for 10 years

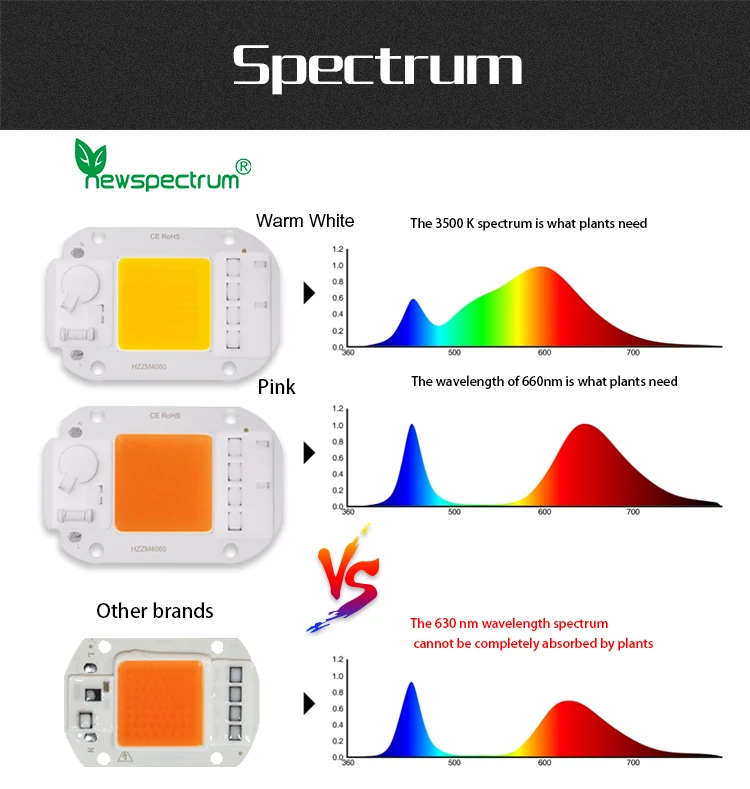

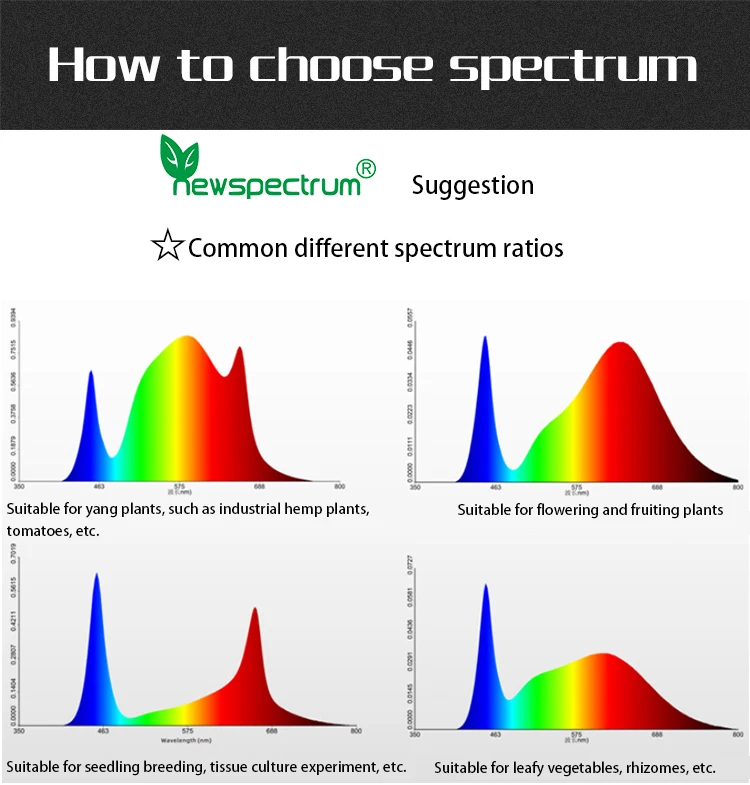

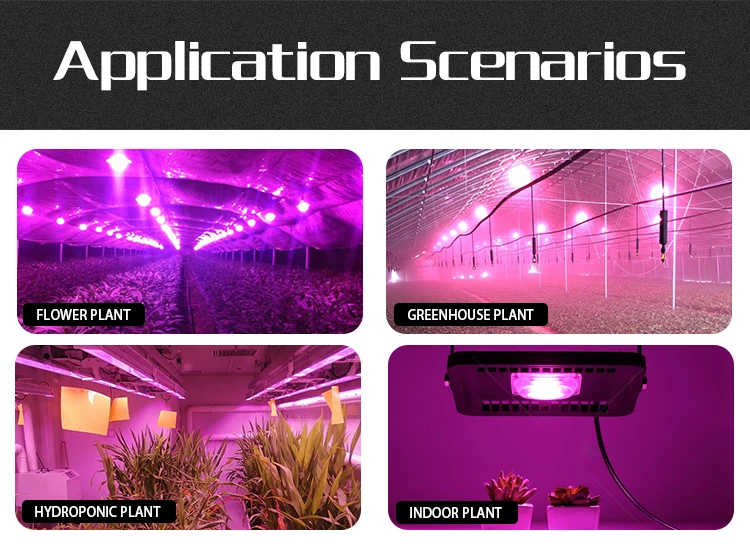

Different spectrum can be customized for different plants.
The professionally customized full-spectrum LED plant photosensitive lamp beads can have higher PPFD and PAR than the conventional full-spectrum,
And the efficiency is also higher.
And the efficiency is also higher.

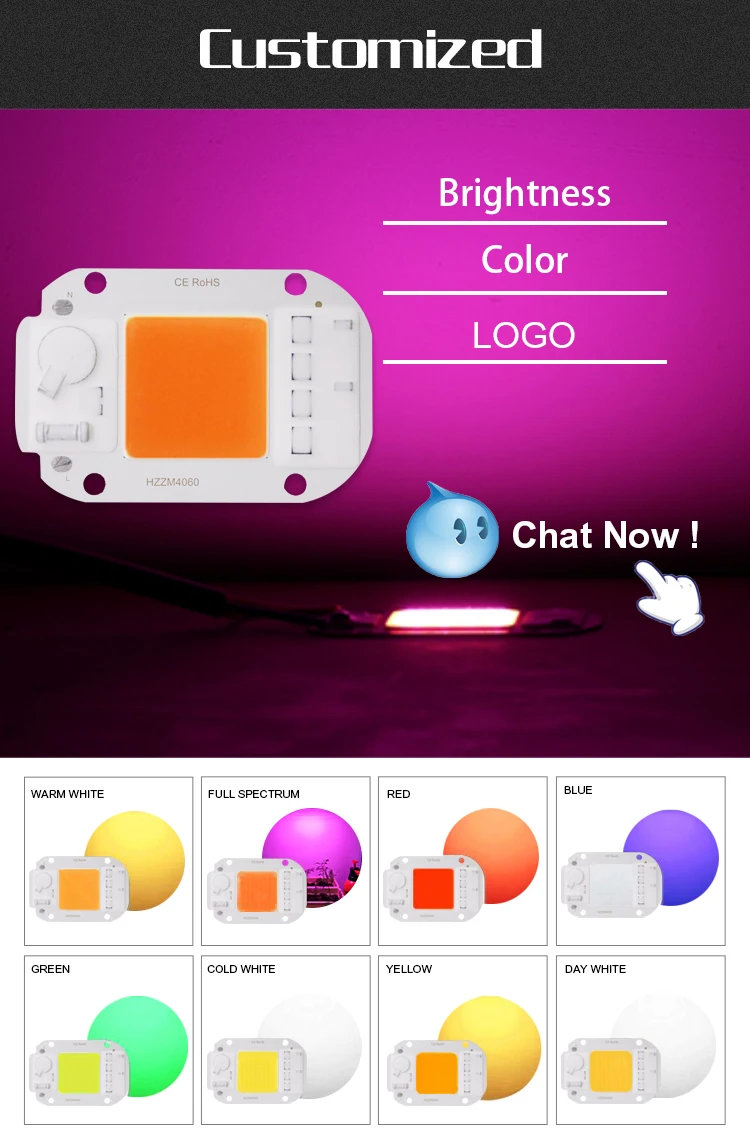

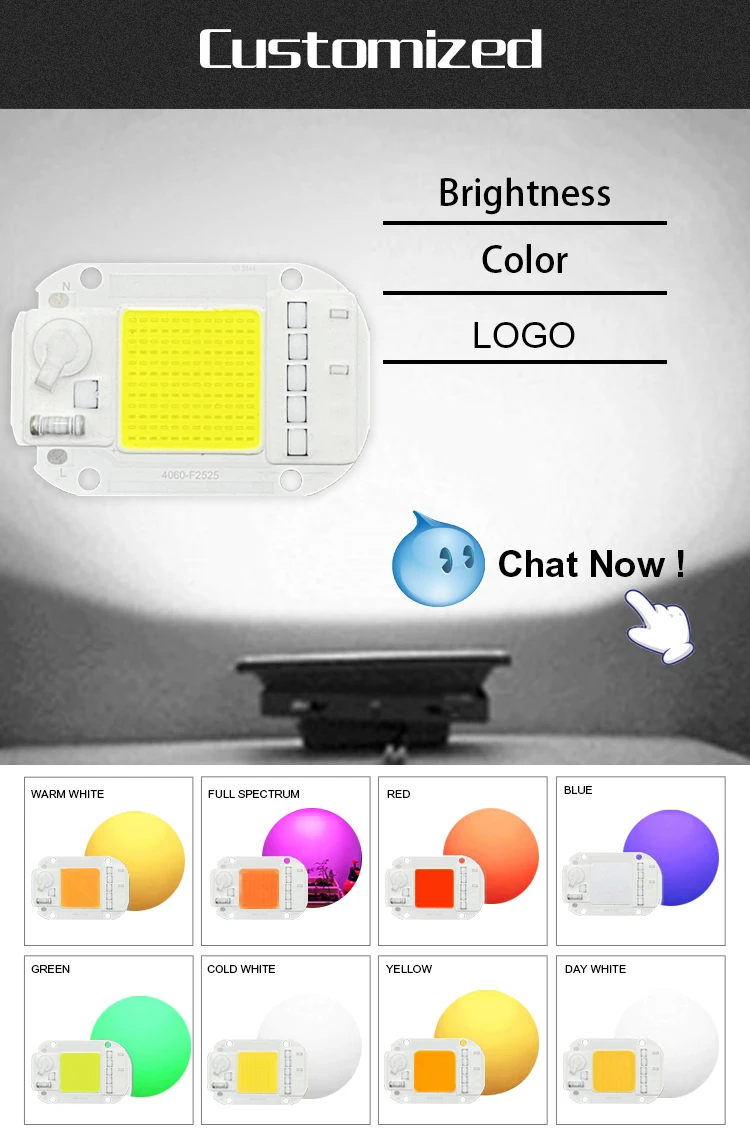

For customization，
Click on “Chat Now” pls！
Company Profile

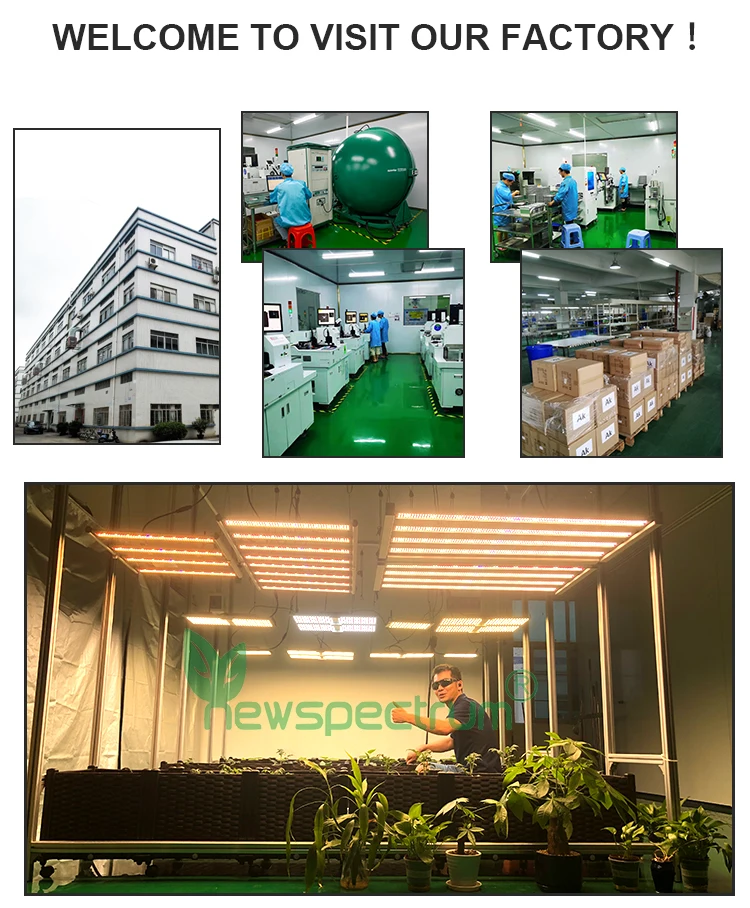

Shenzhen Colighting Ltd which was founded in 2013 is the leading manufacturer of LED products in China. We focus to develop and assemble the products of led modules,plant grow lighting, special lighting and so on.
We have big volume production for advanced DOB modules with independent intellectual property rights, COB/SMD/Special led modules and plant grow light,floodlight.
Our product quality have been certified by customers. We will focus on the research and development of high quality and nice price led products and promote the healthy development of lighting industry.
FAQ
Q1. Are you manufacturer or trading company ?
A:We are a leading smart led grow light manufacturer found in 2013 in Shenzhen,China. We have a professional R & D team with more than 18 years experiences in LED industry.OEM&ODM are available.We have many patent products with independent innovation.We provide standardization products as well as customization service that already benefited many customers all over the world with “OPTIMAL” quality products at “OPTIMAL” prices.
Q2: Can I have a sample order to test？
A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is
available.
available.
Q3: How long will you ship after the order is placed?
A : Sample in stock:1-3days.Customized production:7-15days depends on the order quantity.
Q4: How can you guarantee the quality?
A : Professional product quality inspection team ensures order defective rate;
Otherwise, we take full responsibility according to our wholesome after-sales support system.
A : Professional product quality inspection team ensures order defective rate;
Otherwise, we take full responsibility according to our wholesome after-sales support system.
Q5: How to order the good?
A: First, tell us your request or application.
Second, according to your requirements, we give you the quotation.
Third, the customer confirms the sample of the official order, the destination of the transportation, and thfee for the payment of the sample.
Fourth, after receiving the payment,we will arrange production and deliver the goods in time.
