FA Lenses



Mstar offers C-Mount FA Lenses with a wide range of image formats of 1/1.8'', 1/2'', 2/3'', 1'', 4/3'', and 1.1'', with focal length from 6mm to 75 mm. You can easily find the right lens for most of our cameras. All the lenses are equipped with locking screws for focus and iris to prevent movement caused by vibration or shock. Even under production and / or extreme conditions, the robust mechanical design with lockable focus and iris setting mechanism guarantees reliable continuous use in which the set optical parameters remain in place.

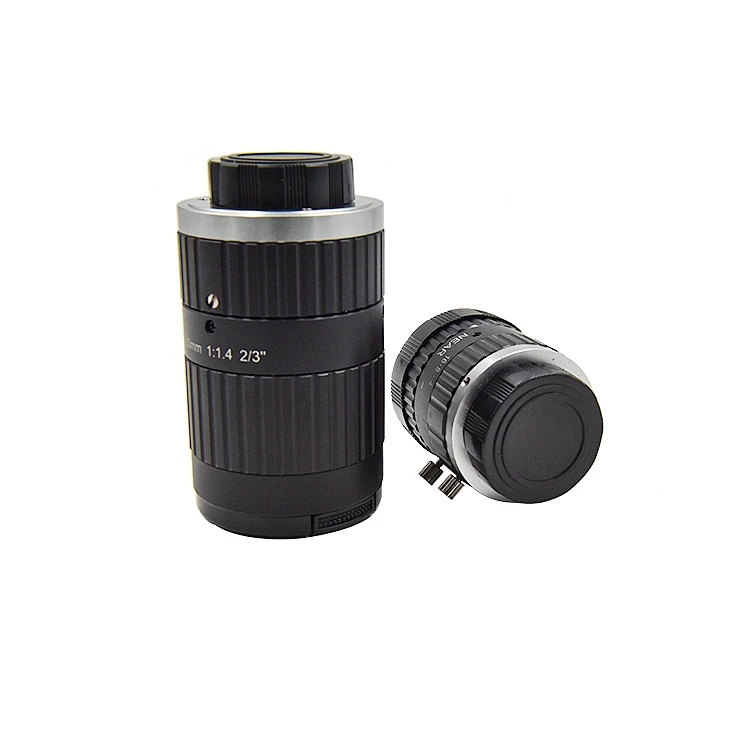

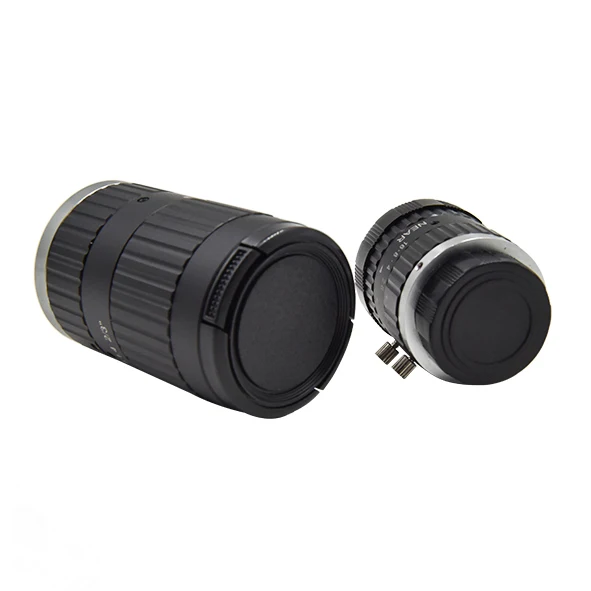

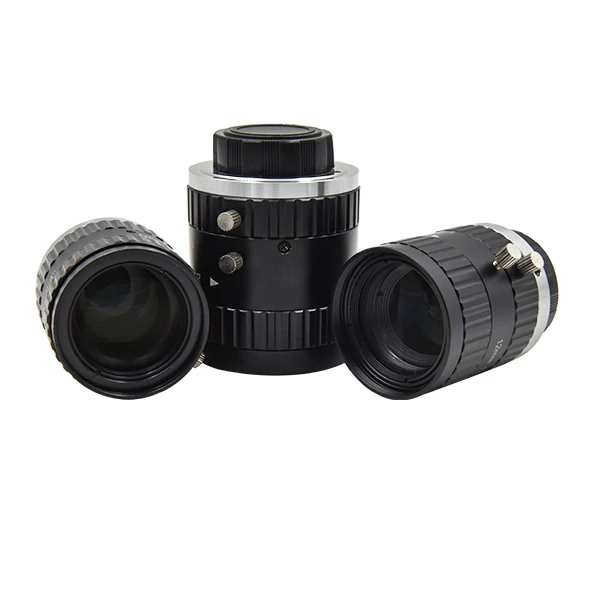

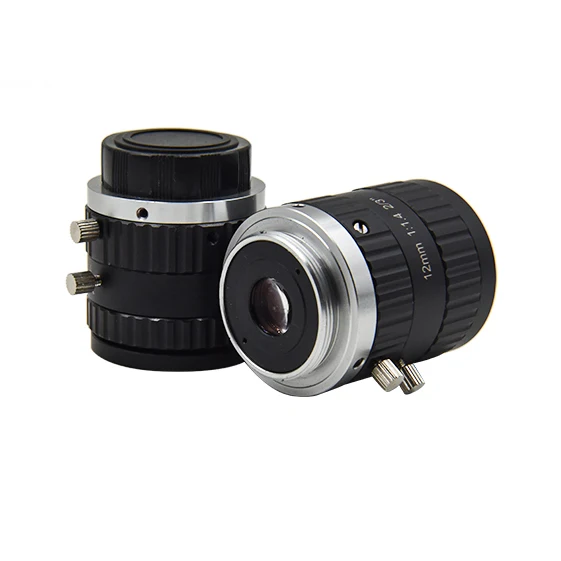

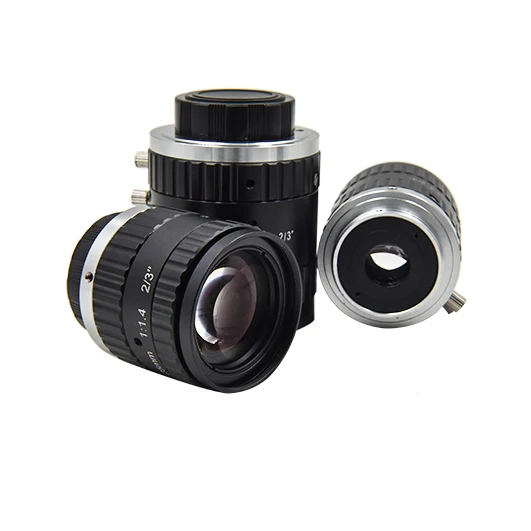

FAxx01D Series

5 Mega-Pixel Fixed Focus Lens (Manual Iris Lens, compatible with 5 mega-pixel cameras)

Features

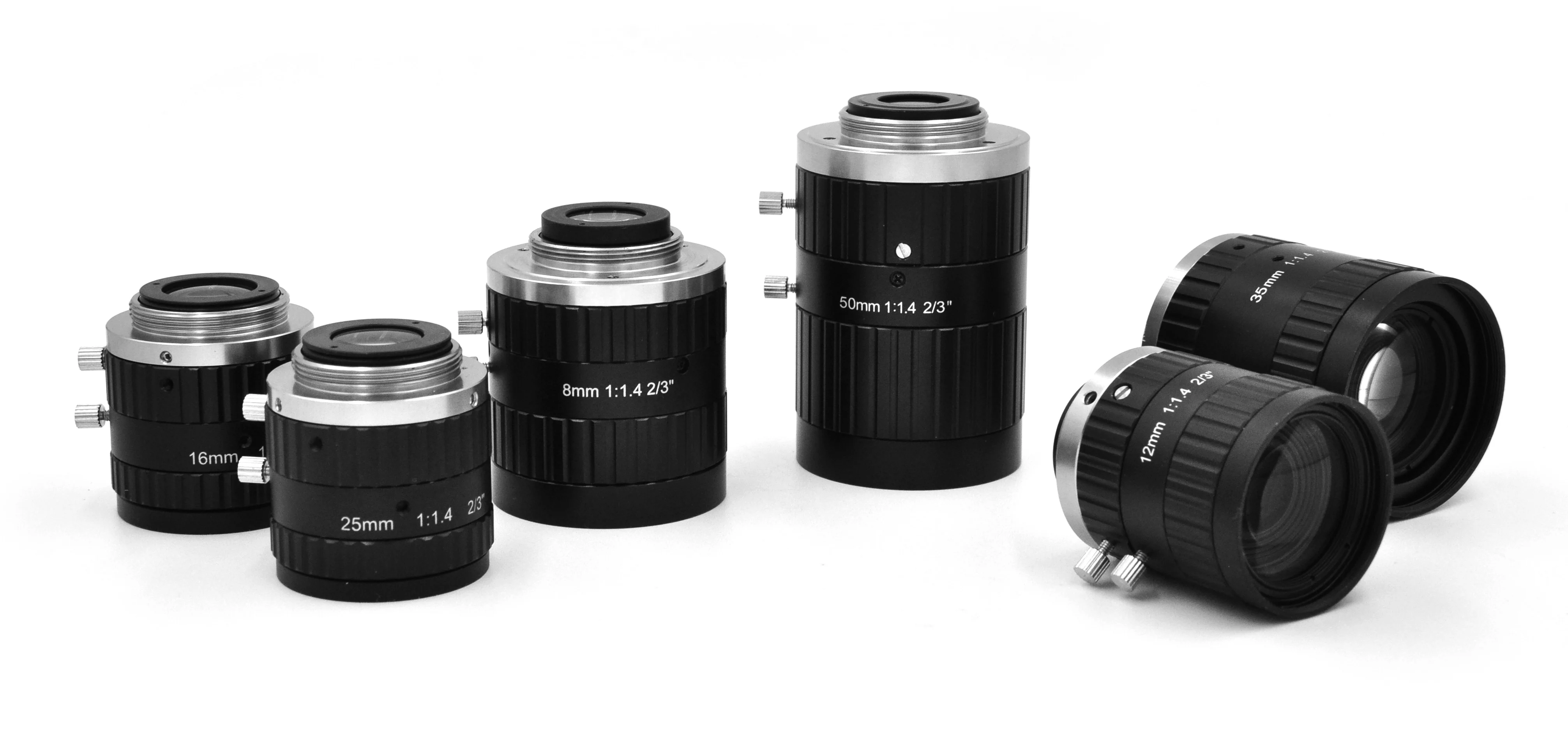

• 8, 12, 16, 25, 35 and 50mm focal lengths

• Ultra-low distortion

• Higher relative illumination rate

• Captures full resolution of 5 megapixel cameras

• Assured excellent light intensity even in peripheral areas

• High contrast and sharp picture in all areas of the screen

• Compact design

• Locking set screws for focus and iris





Line-up



Product No.	Image Size	Resolution	EFL	F/No.	HxV	TV Distortion	M.O.D
FA0802D	2/3"	5m	8mm	1.4~16	2/3":123x91 1/2":88x65.5	<0.5%	0.1m
FA1202D	2/3"	5m	12mm	1.4~16	2/3":231.4x173 1/2":167.7x125.5	<-0.2%	0.1m
FA1602D	2/3"	5m	16mm	1.4~16	2/3":170.4x127.6 1/2":123.7x92.7	<0.2%	0.1m
FA2502D	2/3"	5m	25mm	1.4~16	2/3":108x82 1/2":79.4x59.4	<0.2%	0.1m
FA3502D	2/3"	5m	35mm	1.4~16	2/3":81x60 1/2":43.6x32.7	-0.20%	0.2m
FA5002D	2/3"	5m	50mm	1.4~16	2/3":124x92.9 1/2":67.6x50.7	<0.2%	0.3m



FA5002D Specification

2/3" F1.4/50 C-Mount				Working Distance	Optical Magnification	2/3'' Field of View
Focal Length		f=50mm
F/NO		F=1:1.4-C		mm		H	V
Image Size		2/3"	1/2"	2000	0.025	352.0	264.0
Angle FOV	H	10.46	7.6	1000	0.051	172.5	129.4
	V	7.86	5.27	900	0.057	154.4	115.8
	D	13.04	9.52	850	0.06	146.7	110.0
Distortion		-0.8%	-0.4%	800	0.064	137.5	103.1
Object Dimension at WD.300mm	H	46.8mm		750	0.068	129.4	97.1
	V	35.08mm		700	0.073	120.5	90.4
	D	58.54mm		650	0.079	111.4	83.5
Focus distance (min)		0.3m		600	0.0858	102.6	76.9
Flange back		17.526mm in air		550	0.094	93.6	70.2
Back focus		12.4MM		500	0.104	84.6	63.5
Filter screw size		M37*P0.5		450	0.116	75.9	56.9
Front/Rear effective dia		Front Φ 24  Rear Φ11.78		400	0.131	67.2	50.4
Mount		C-Mount		350	0.15	58.7	44.0
Temperature range		-10~+50℃		300	0.177	49.7	37.3
Storage temperature range		-20~+60℃

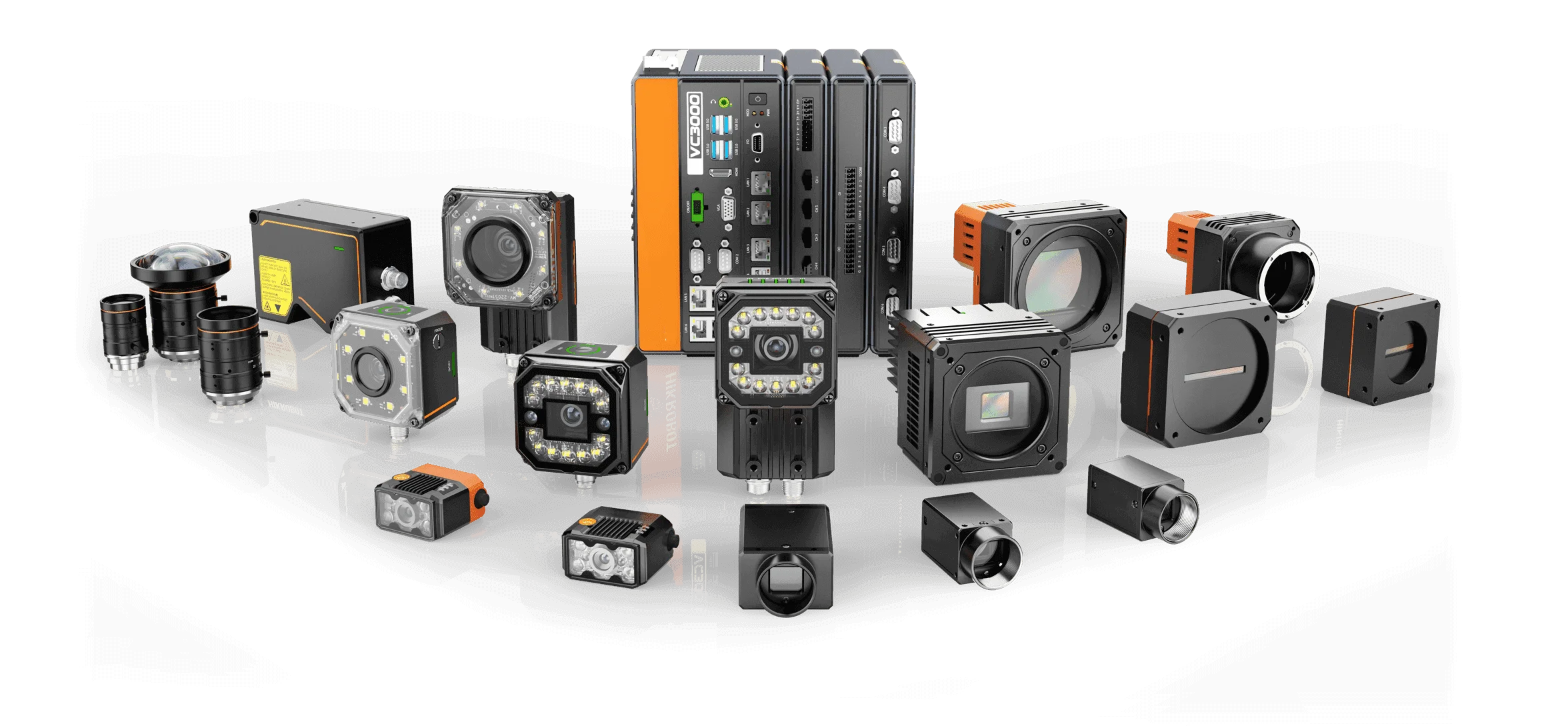

Located in Hangzhou, Mstar Technologies, Inc is a professional manufacturer of machine vision products. We have over 6 years of experience in machine vision and have a good reputation in this field.
