Product Overview
Description
Constant Airflow Ec Fans Dc Fan Conditioning Recuperators Air Exchange Ventilation System Energy Saving Ventilator Recuperator
Product Description

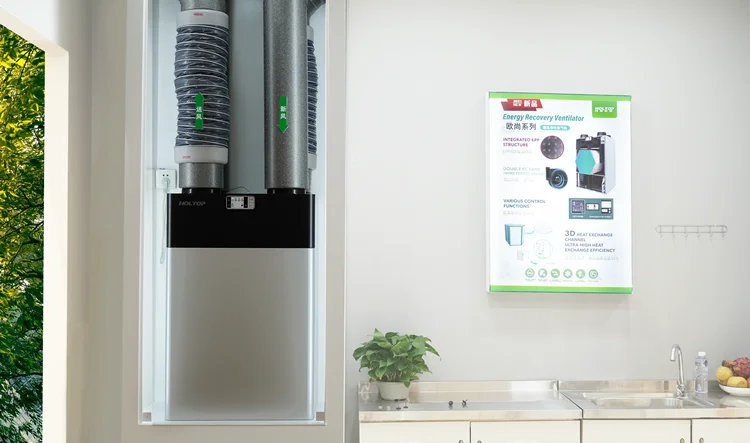

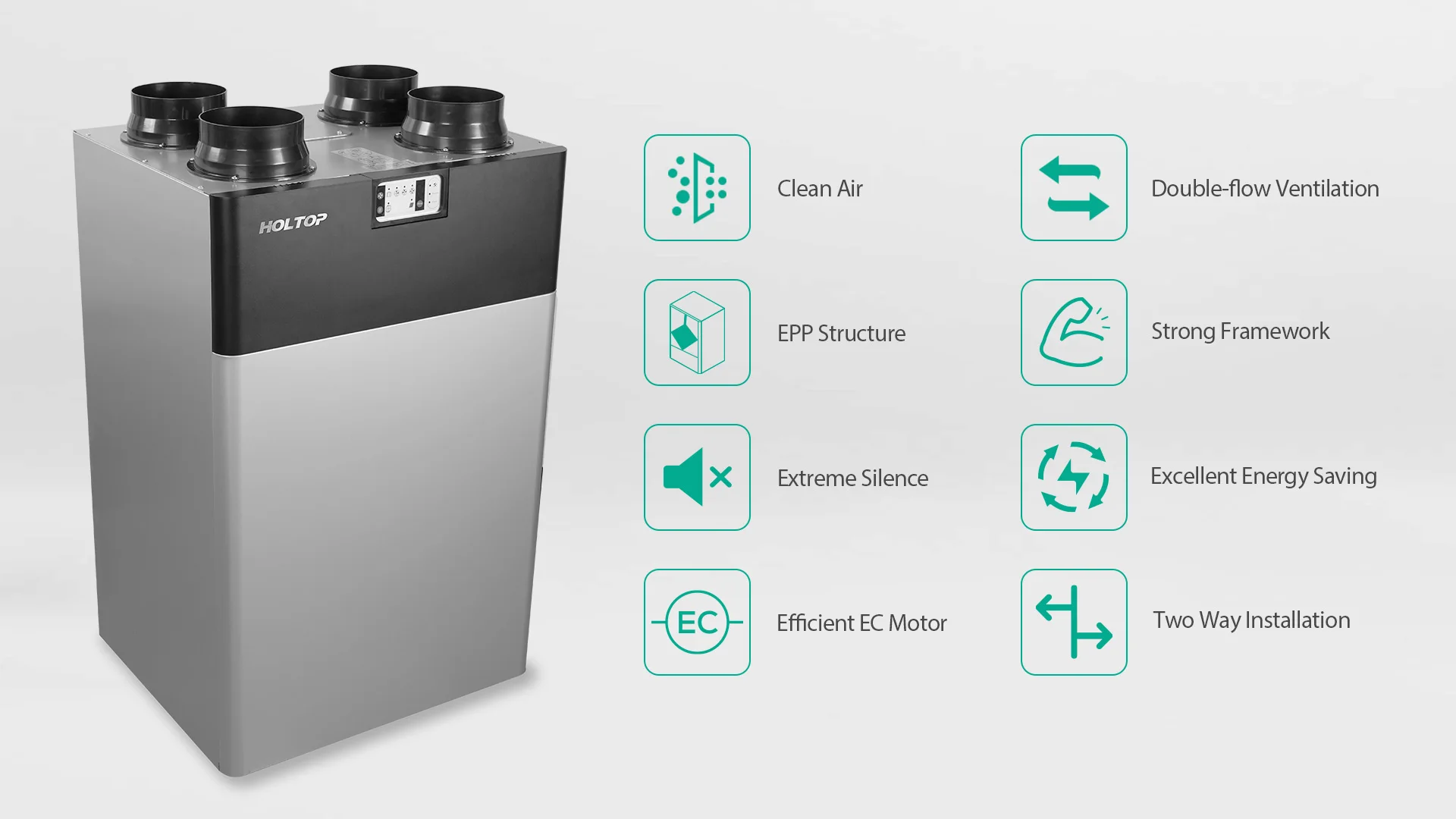

Top port, compact unit. Ideally suited for tight installations.
|
Product Specifications for Top Port Vertical Heat Recovery Ventilator
| Model | CFA 250T | CFA 350T | CFA 500T | |
| HRV | Housing material | sprayed sheet metal | ||
| Internal structure | EPP | |||
| Heat exchanger | Polystyrene | |||
| Fan motor | EC | |||
| Filter grade | G4 or optional F7 | |||
| Control Panel | Two screen control, buttons + indica tor light/digital tube | |||
| Bypass | 100% auto bypass | |||
| Working condition | Standard | -10~40°C | ||
| Equipped with pipeline heater | -20 to 40°C | |||
| Pipe connection | pipe diameter | Φ160mm | Φ200mm | |
| Electrical | Power supply | 230V 50Hz 1Ph | ||
| Max. power | 170W | 320W | 480W | |
| Max. current | 1.5A | 2.4A | 3.2A | |

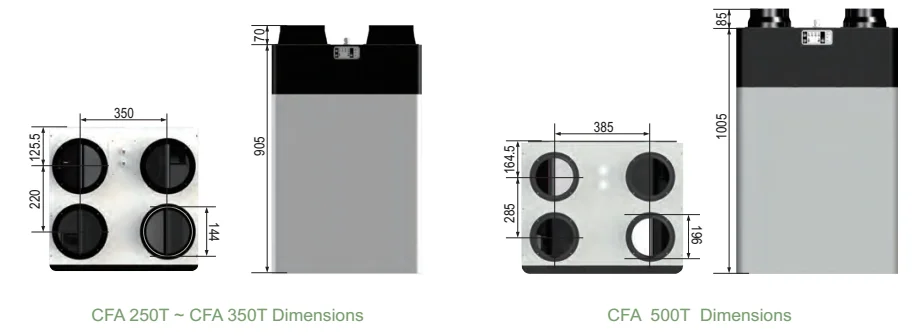

Product Size for Top Port Vertical Heat Recovery Ventilator

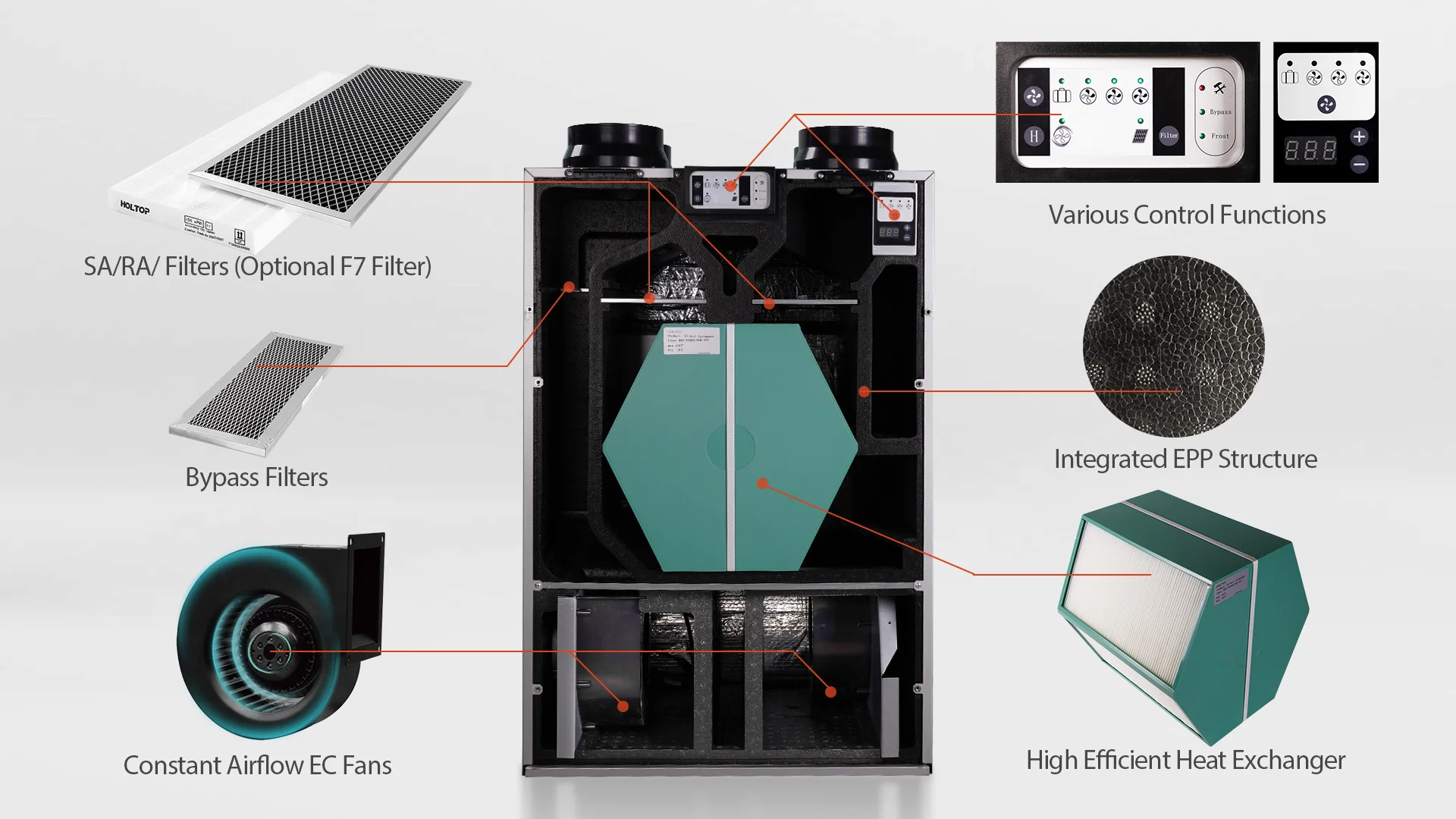

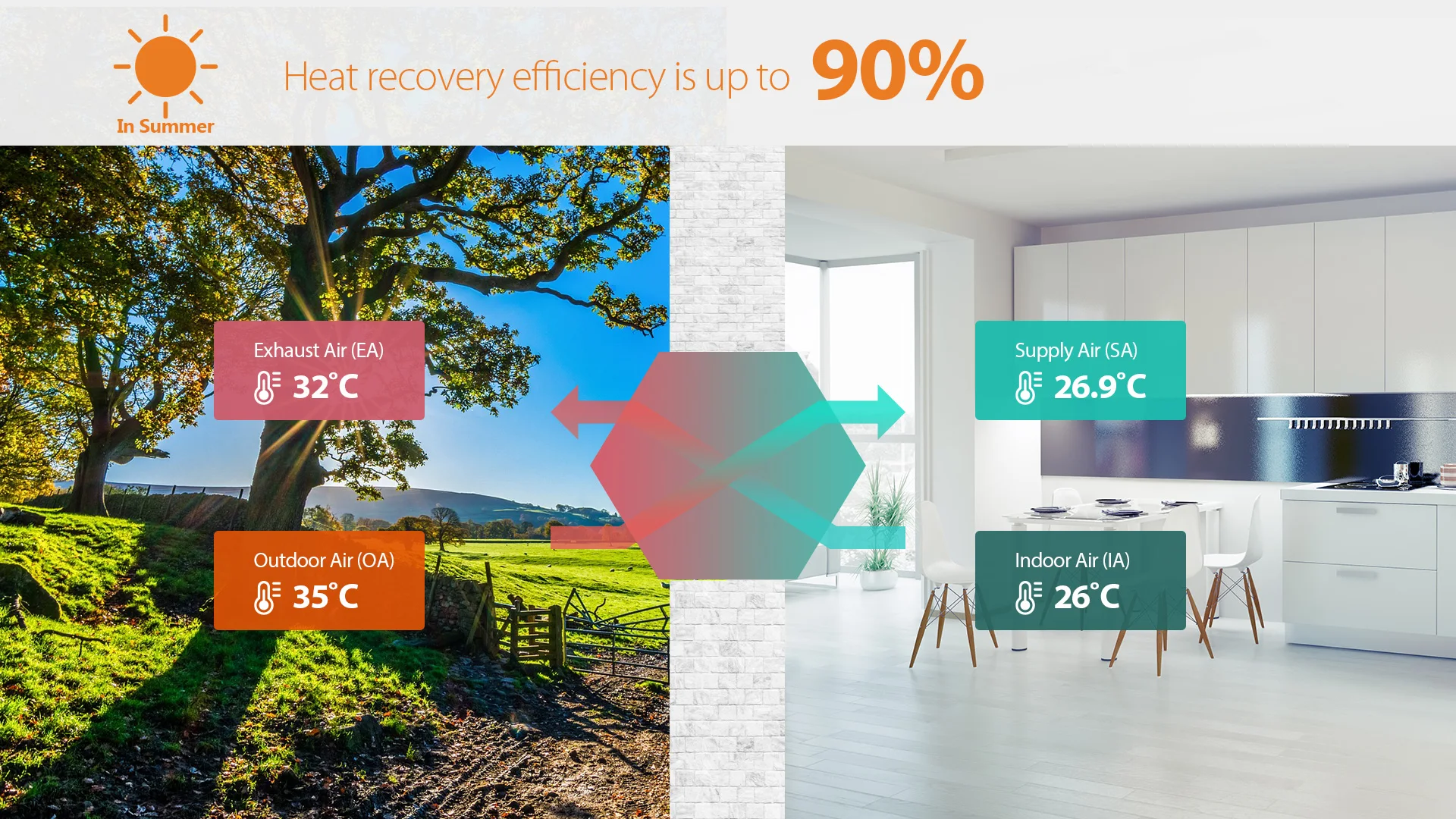

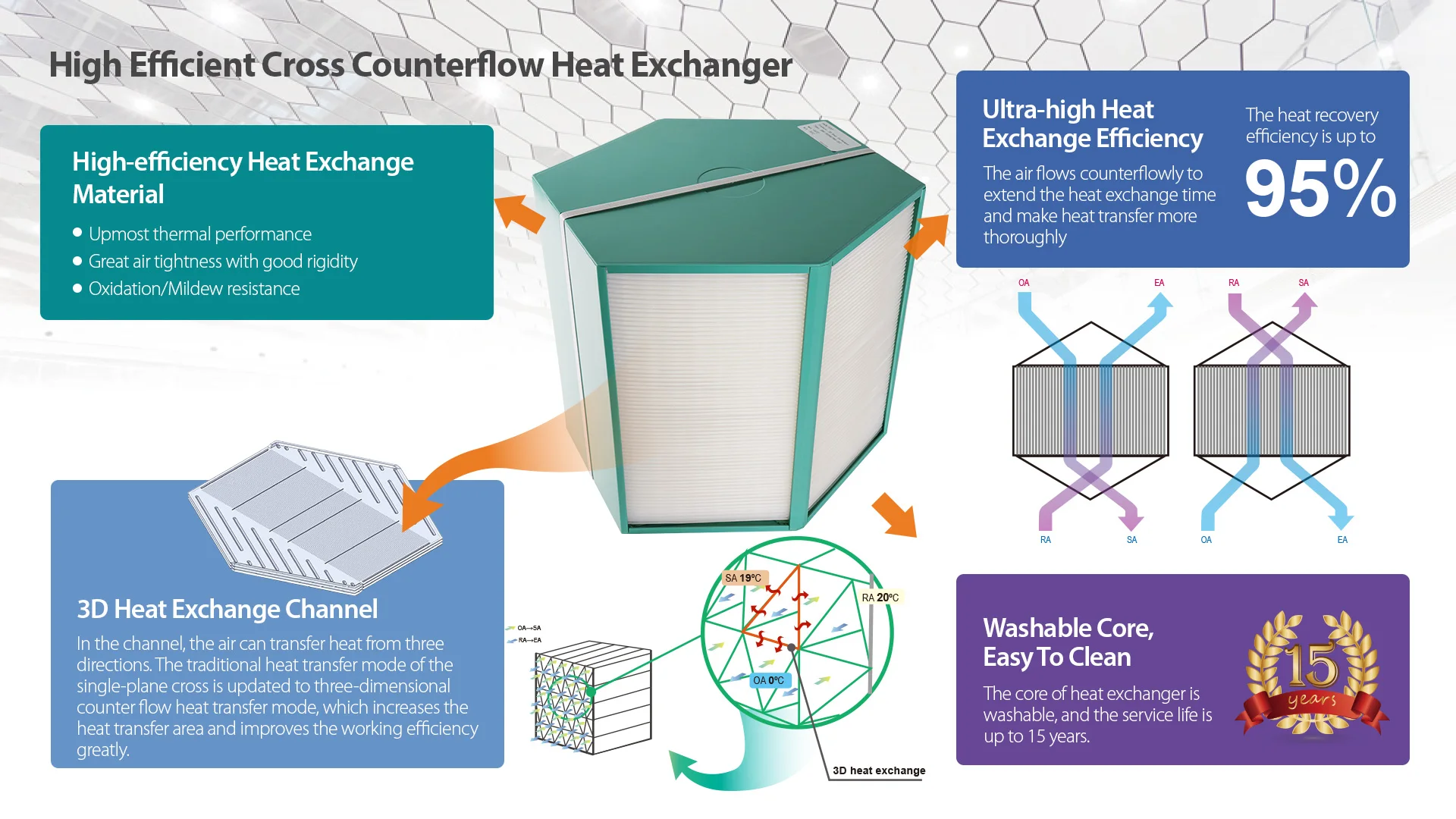

Heat exchanger for Top Port Vertical Heat Recovery Ventilator

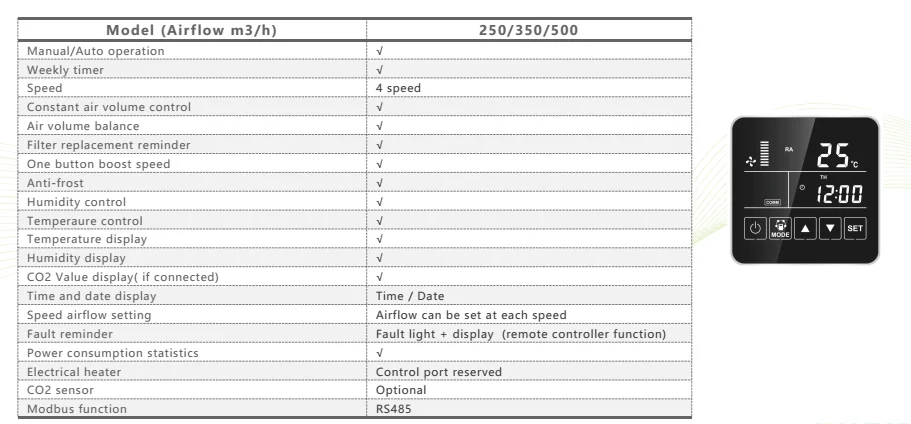

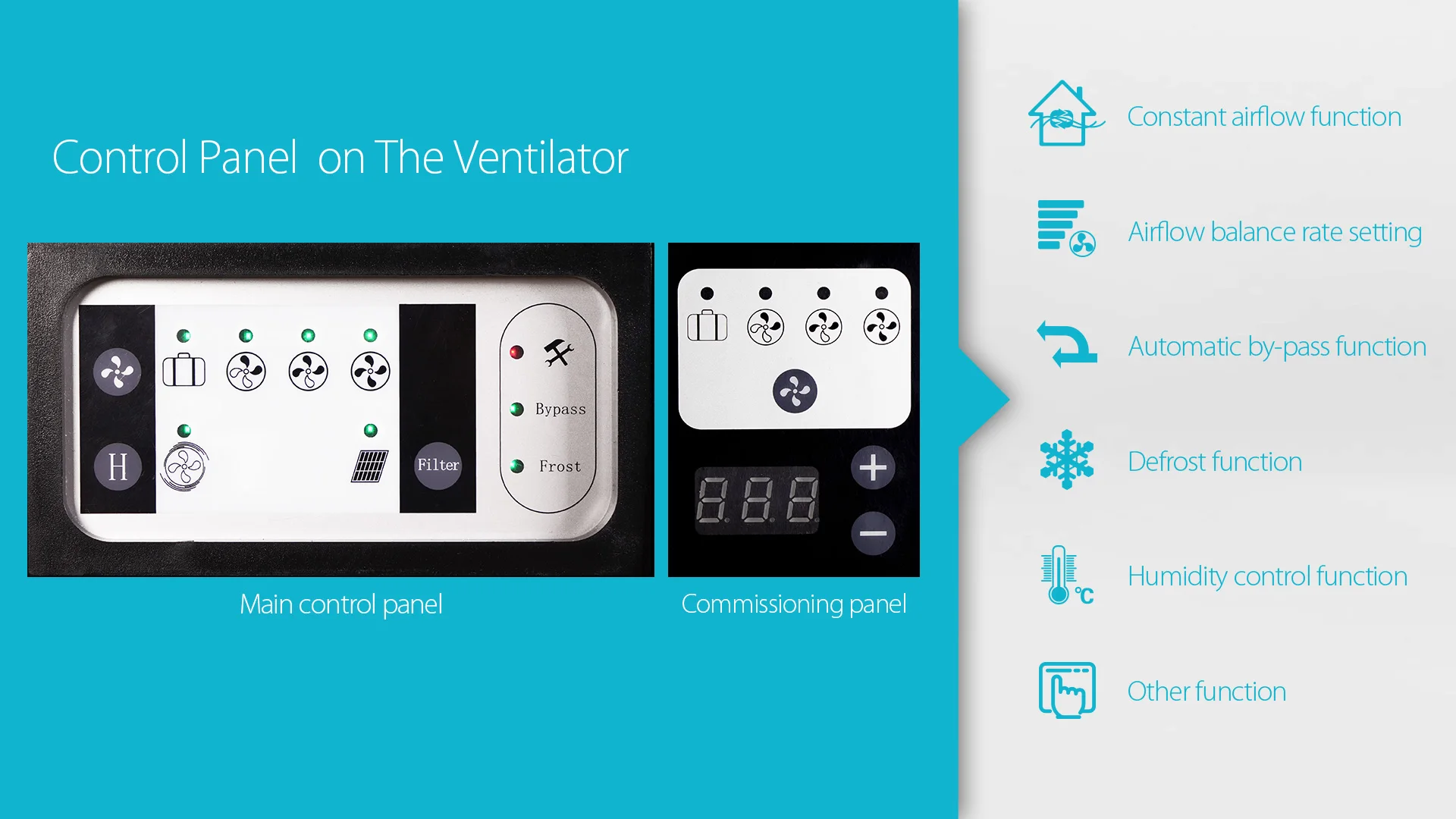

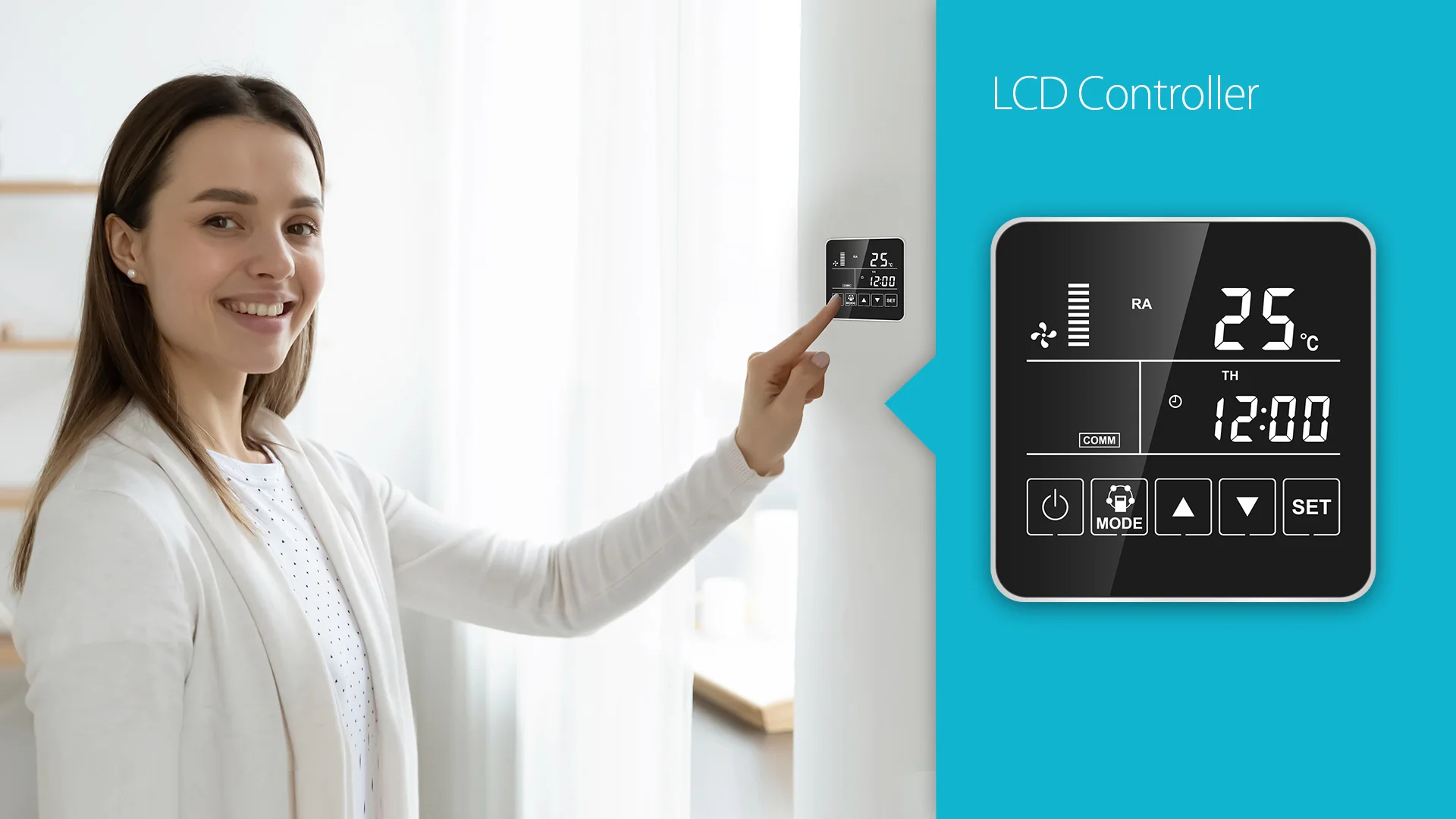

Controller for Top Port Vertical Heat Recovery Ventilator
WIFI control function is coming soon!

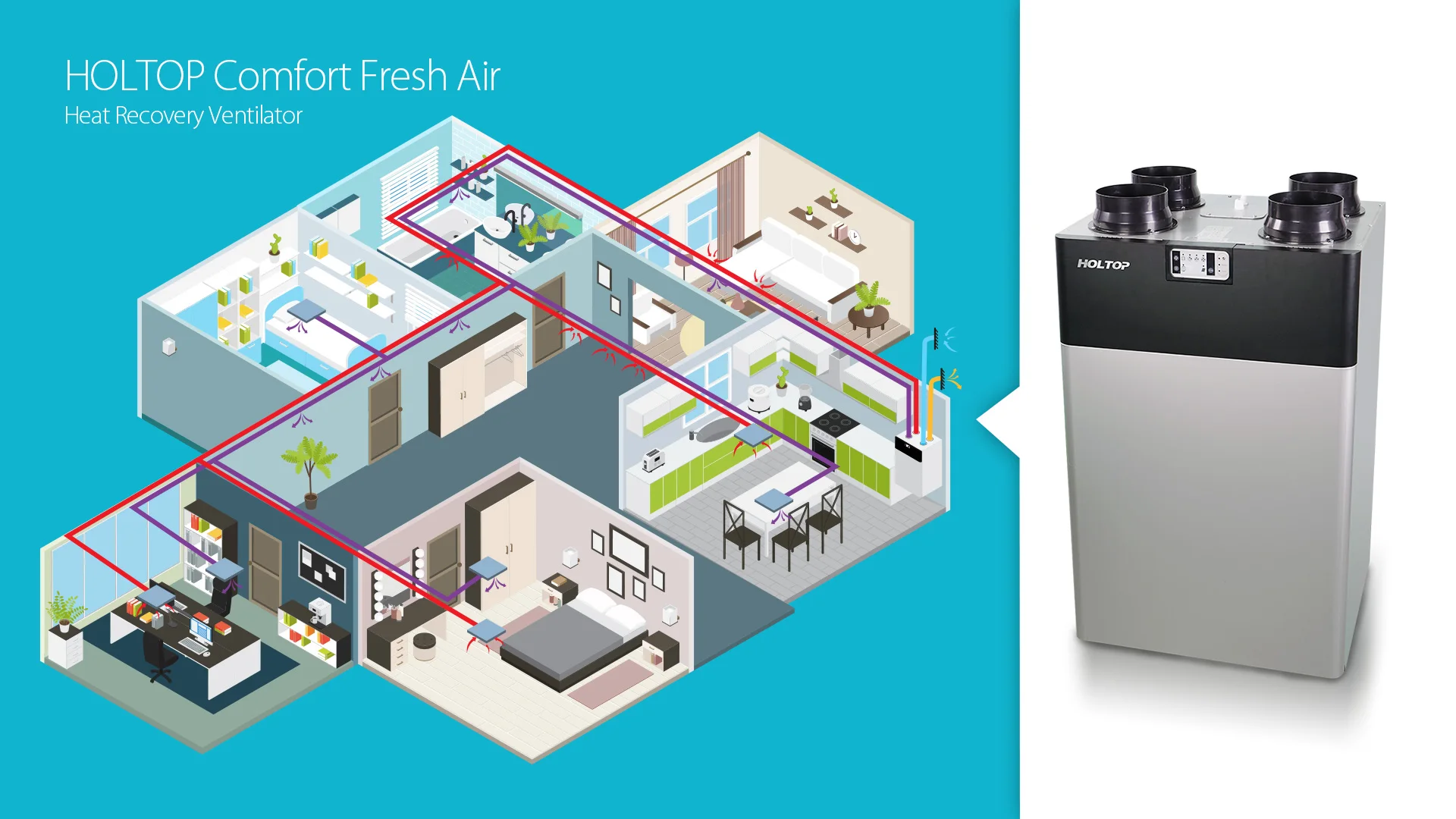

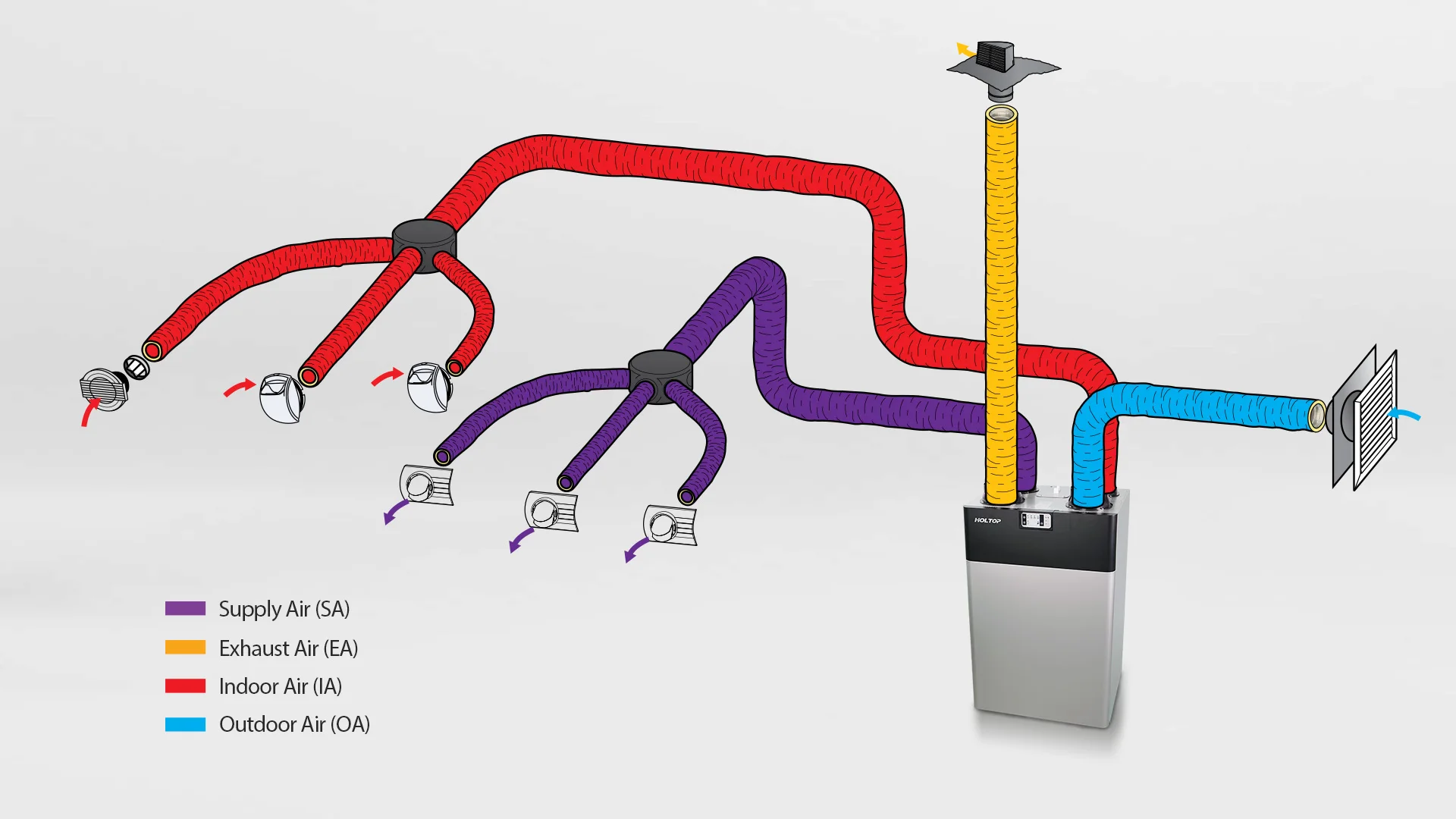

Installation Guide of Comfort Fresh Air HRV

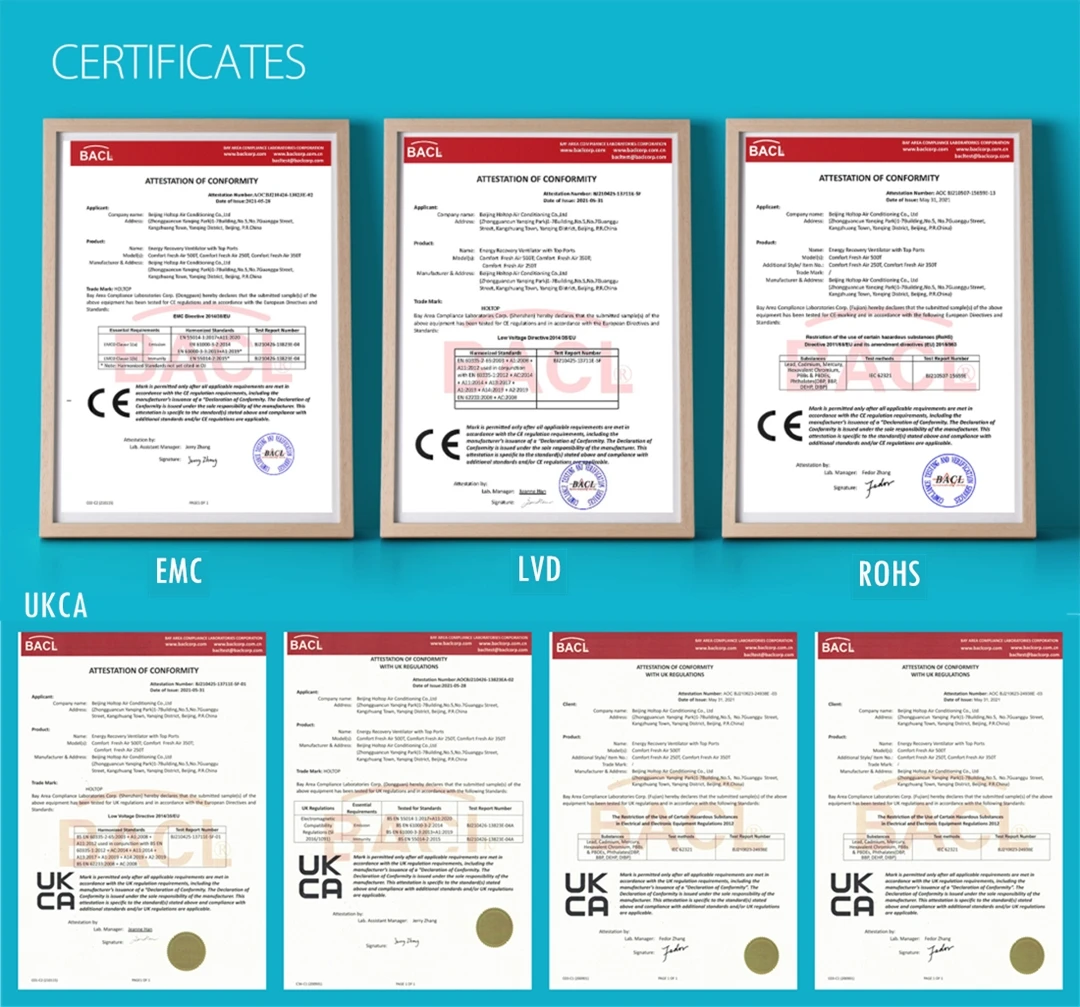

Certification of Comfort Fresh Air HRV
Holtop products stand for TOP quality in heat recovery ventilation filed in China, certificated by CE, LVD, EMD, RoHs, UKCA, ERP, etc.
Company Information

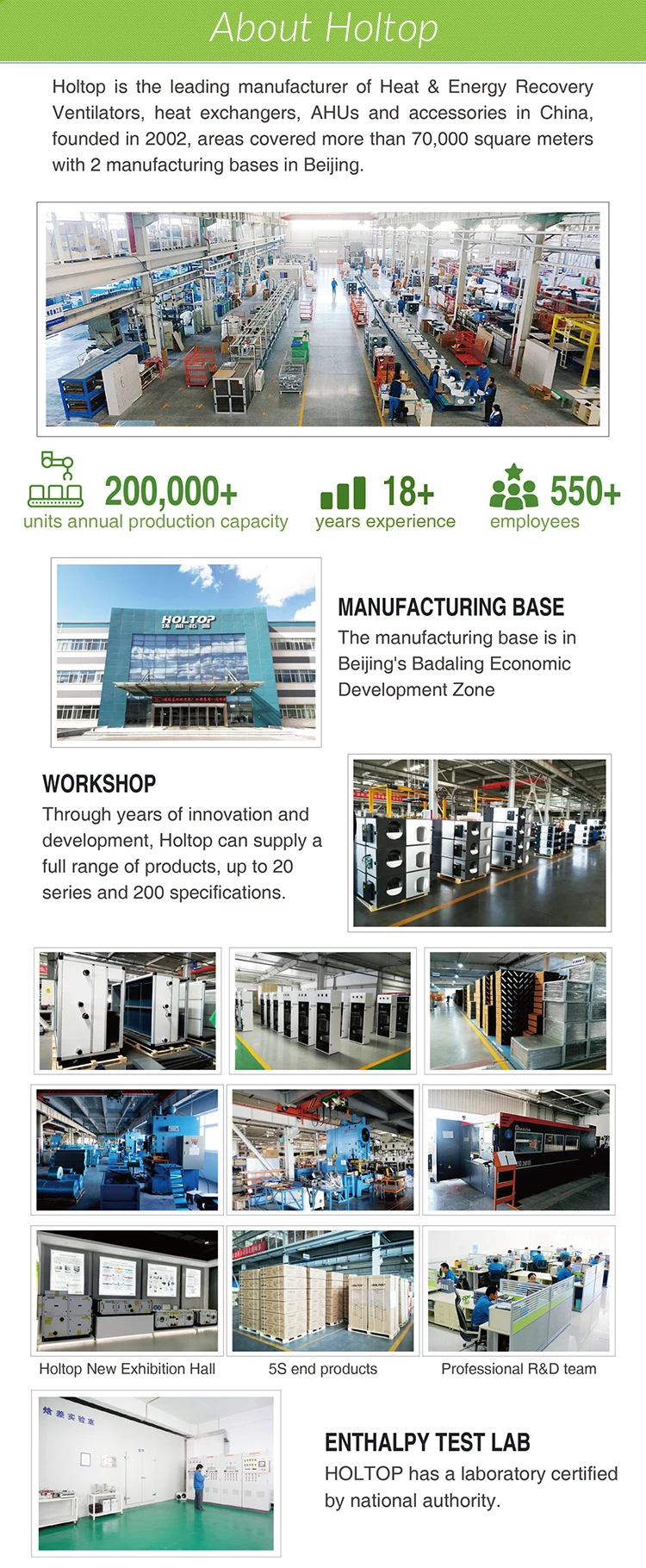

Holtop Factory
Holtop is the leading manufacturer in China specializing in the production of air to air heat recovery equipments. It is dedicated to the research and technology development in the field of heat recovery ventilation and energy saving air handling equipments since 2002. The main products includes energy recovery ventilator ERV/HRV, air heat exchanger, air handling unit AHU, air purification system. Besides, Holtop professional project solution team can also offer customized hvac solutions for different industry.
Holtop headquarters is located at the foot of Beijing Baiwangshan Mountain, covering area of 30,000 square meters. The manufacturing base is in Beijing's Badaling Economic Development Zone, covering an area of 60 acres, with an annual production capacity of 200,000 units of air heat recovery equipments.
Holtop builds a sound certificate system of ISO9001, ISO14001 and OHSAS18001 as well as product certification systems. Moreover, it has a laboratory certified by national authority. As a well-known manufacturer in the field of heat recovery, Holtop has a strong R&D team and possesses dozens of national invention patents, and participated in the compilation work of several national standards, Holtop was also elected as Zhongguancun High-Tech Enterprise.
Holtop partner
Holtop cooperate with world famous brand or offer OEM service.

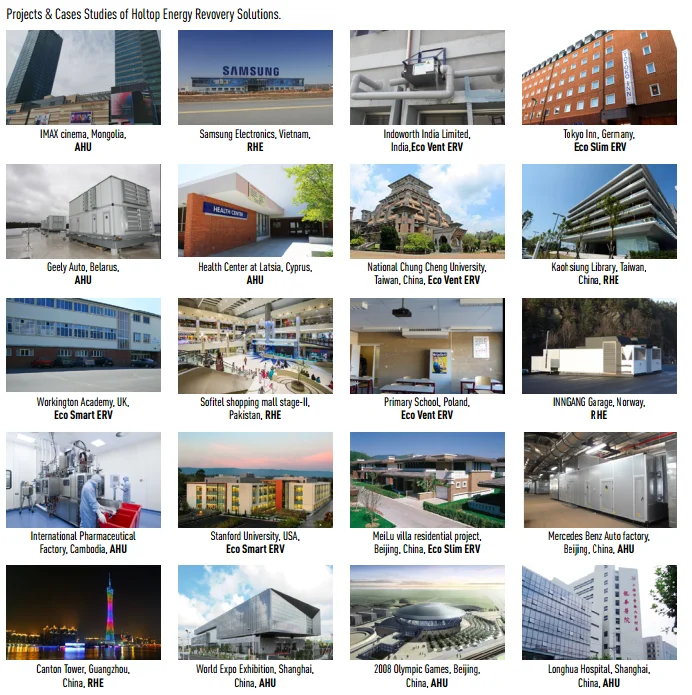

Project Reference

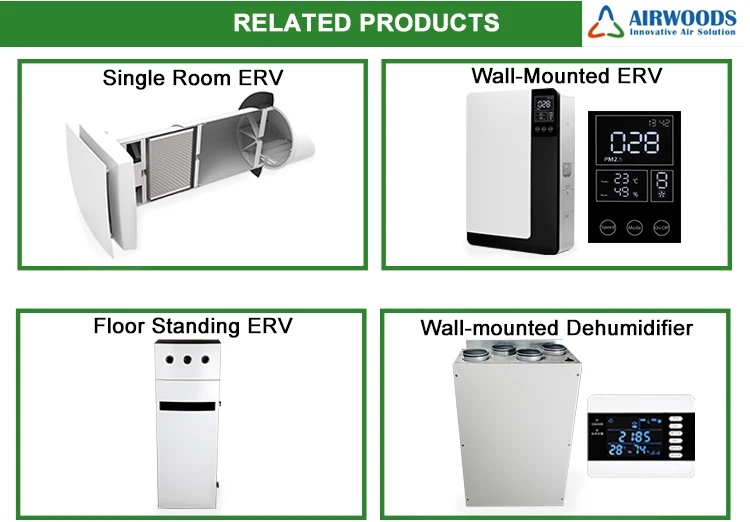

Related Products
