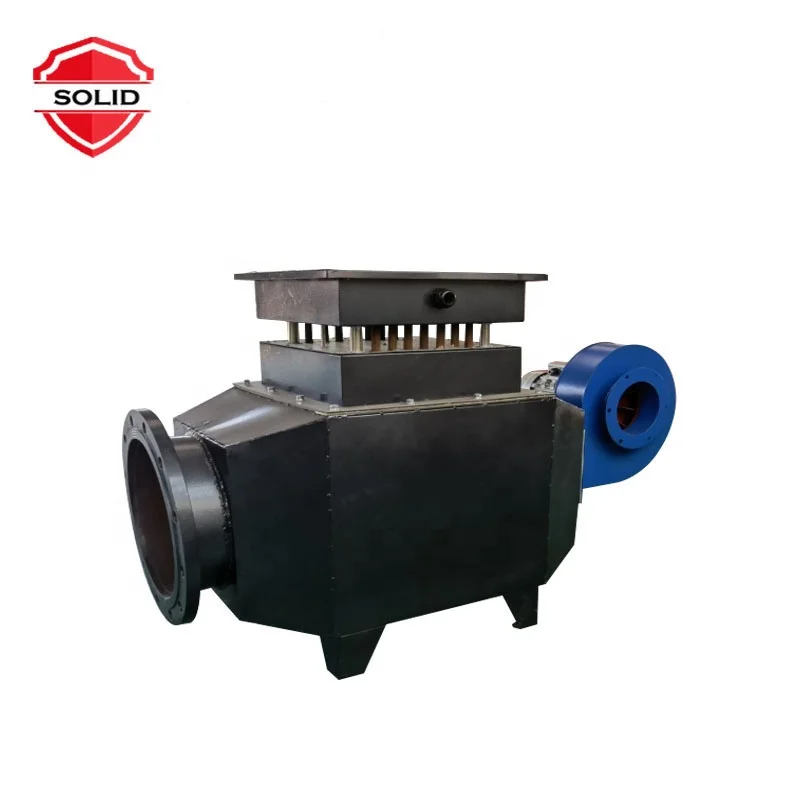

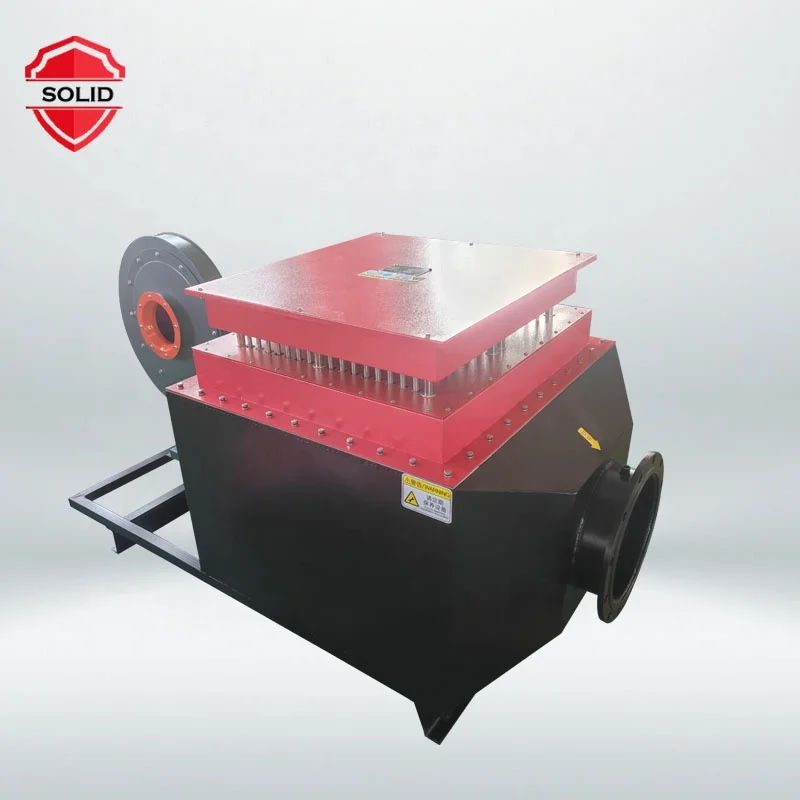

poultry electric brooder heater Stainless steel air heater cheap Rapid heating hot air heater
- Category: >>>
- Supplier: Jiangsu Solid Electric Heating Equipment Co. Ltd.
Share on (1600430913735):
Product Overview
Description

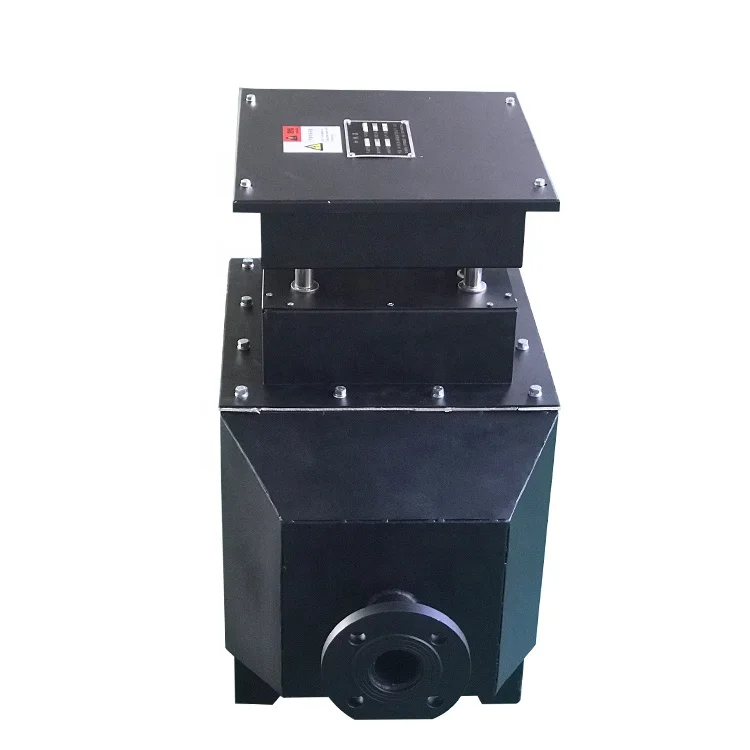

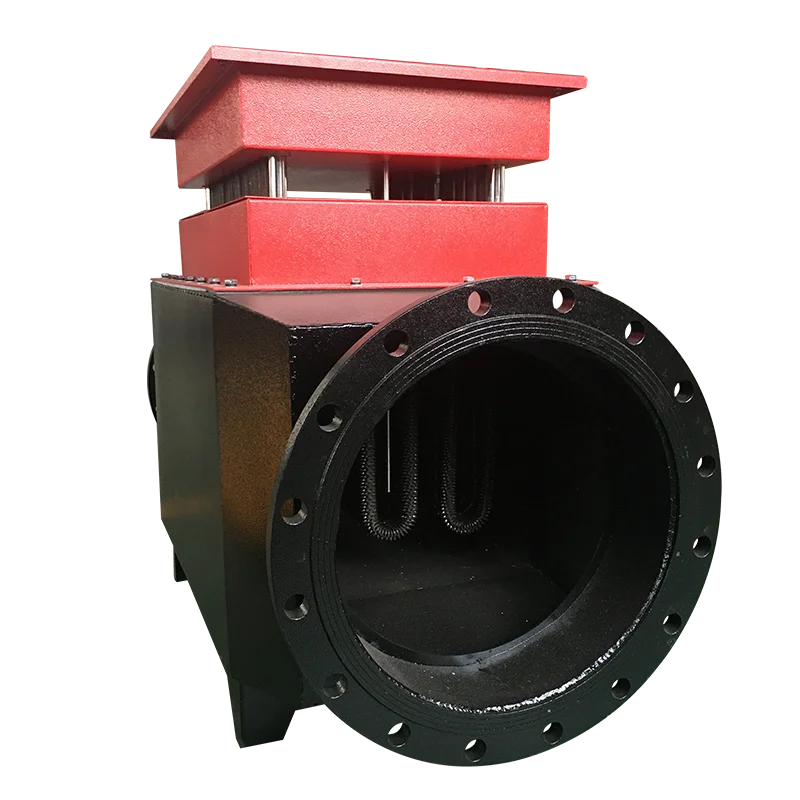

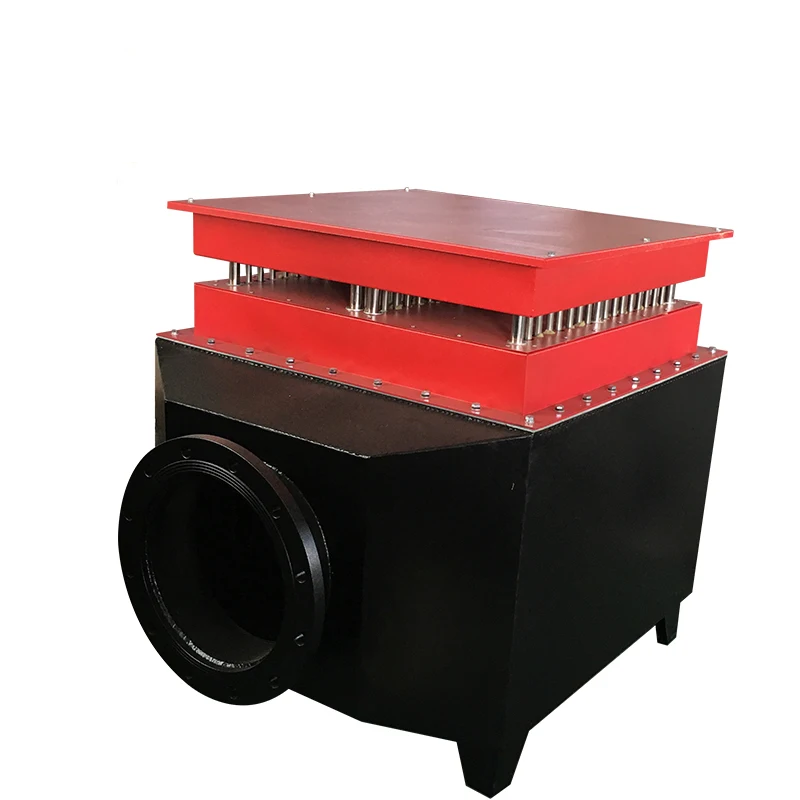

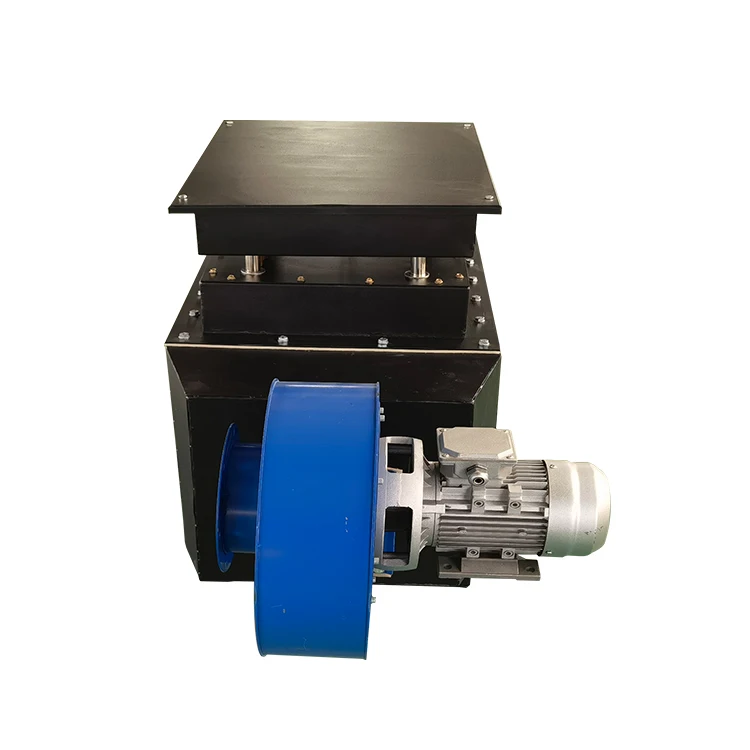

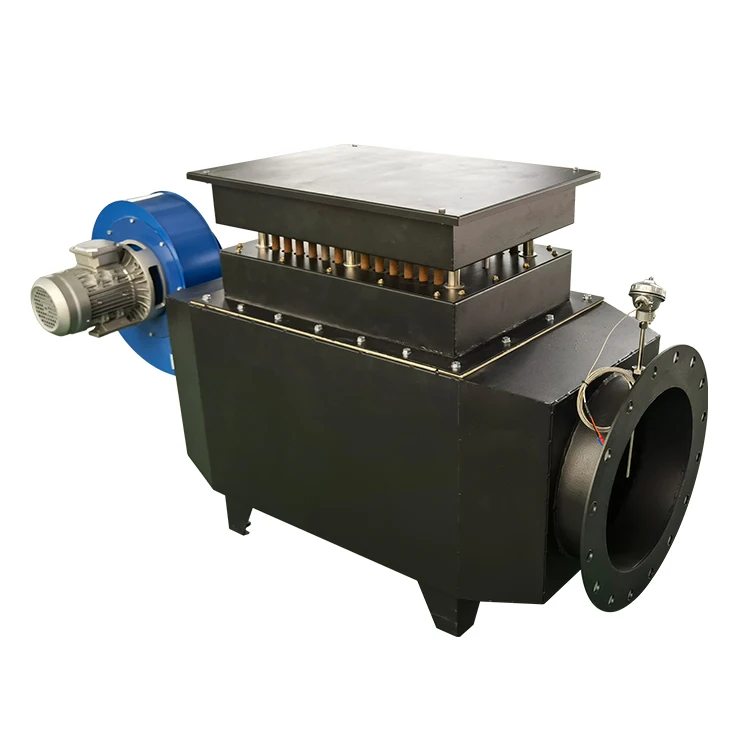

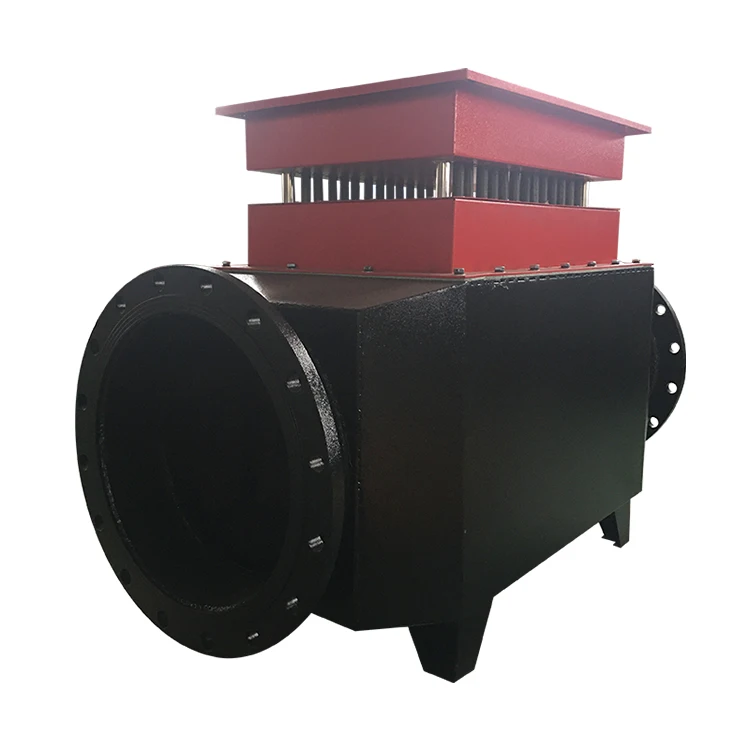

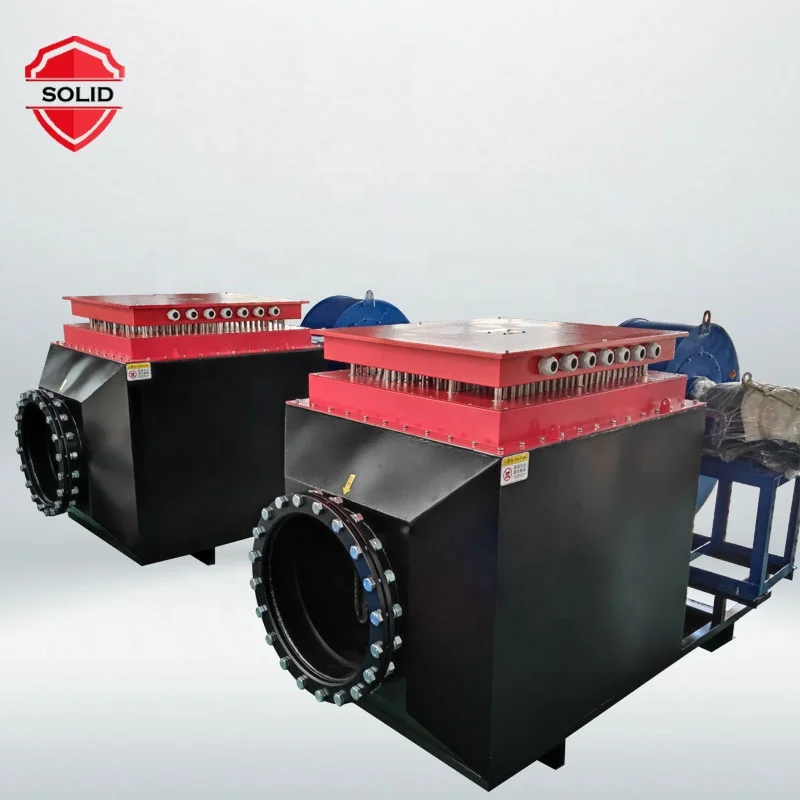

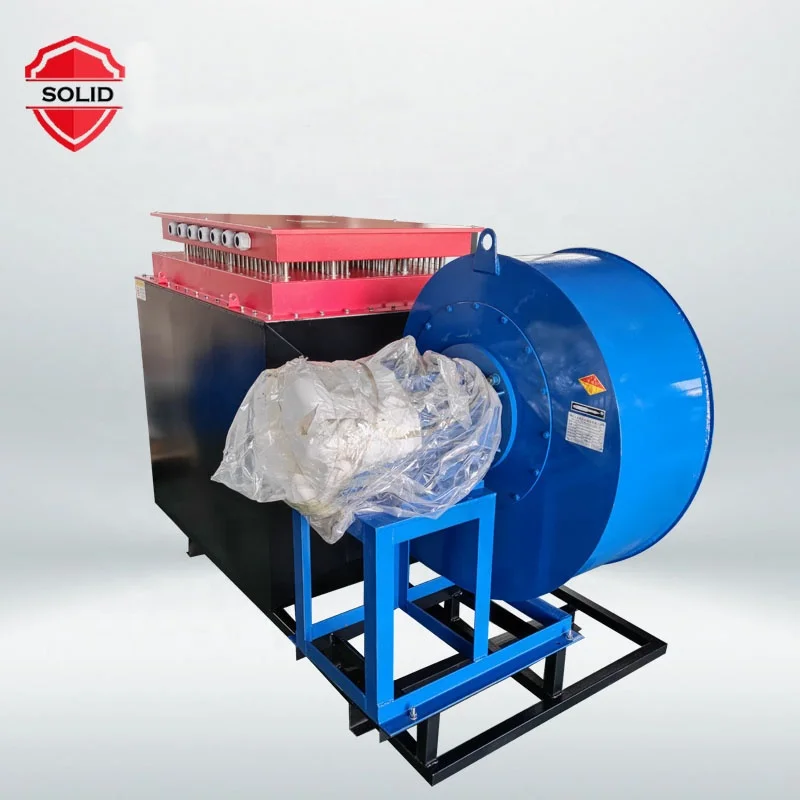

The air duct heater is mainly used for heating the air in the air duct. The specifications are divided into three types of low temperature, medium temperature and high temperature. The common thing in the structure is that the steel plate is used to support the electric heating tube to reduce the vibration of the electric heating tube, and it is installed in the junction box. There is an over-temperature control device. In addition to the over-temperature protection in terms of control, an intermodal device is also installed between the fan and the heater to ensure that the electric heater must be started after the fan is started, and a differential pressure device must be added before and after the heater to prevent the fan failure, the gas pressure heated by the channel heater should generally not exceed 0.3Kg/cm2. If you need to exceed the above pressure, please use a circulating electric heater; the maximum temperature of the low-temperature heater does not exceed 160℃; the medium-temperature type does not exceed 260 ℃; high temperature type does not exceed 500℃.
Air duct heaters are widely used in drying rooms, spray booth, plant heating, cotton drying, air-conditioning auxiliary heating, environmentally friendly waste gas treatment, greenhouse vegetable growing and other fields.
Air duct heaters are widely used in drying rooms, spray booth, plant heating, cotton drying, air-conditioning auxiliary heating, environmentally friendly waste gas treatment, greenhouse vegetable growing and other fields.
Technical specifications | ||||||||||||
Model | Power(KW) | Heater ineer bore size(Length * Width * Height, mm) | Outlet connection caliber | Power of Connected fan | Temperature control accuracy | Temperature range | ||||||
SOLID-FD-10 | 10 | 300*300*300 | DN100 | 300℃ | 0℃-300℃ | |||||||
SOLID-FD-15 | 15 | 400*300*300 | DN150 | 750W | ||||||||
SOLID-FD-20 | 20 | 400*300*400 | DN150 | |||||||||
SOLID-FD-25 | 25 | 400*400*400 | DN200 | 1.5KW | ||||||||
SOLID-FD-30 | 30 | 400*400*400 | DN200 | |||||||||
SOLID-FD-40 | 40 | 500*400*400 | DN250 | |||||||||
SOLID-FD-50 | 50 | 600*400*400 | DN250 | |||||||||
SOLID-FD-60 | 60 | 700*400*400 | DN250 | |||||||||
SOLID-FD-70 | 70 | 700*400*500 | DN300 | 3KW | ||||||||
SOLID-FD-80 | 80 | 800*500*500 | DN300 | |||||||||
SOLID-FD-90 | 90 | 900*400*500 | DN350 | 5.5KW | ||||||||
SOLID-FD-100 | 100 | 1000*500*500 | DN350 | |||||||||
SOLID-FD-120 | 120 | 1000*500*500 | DN400 | |||||||||
SOLID-FD-140 | 140 | 1000*500*500 | DN400 | |||||||||
SOLID-FD-160 | 160 | 1000*700*500 | DN400 | |||||||||
SOLID-FD-180 | 180 | 1000*700*500 | DN450 | 11KW | 300℃ | 0℃-300℃ | ||||||
SOLID-FD-200 | 200 | 1000*700*500 | DN450 | |||||||||
SOLID-FD-250 | 250 | 1000*800*800 | DN500 | 15KW | ||||||||
SOLID-FD-300 | 300 | 1200*1000*1000 | DN500 | |||||||||
SOLID-FD-350 | 350 | 1200*1000*1000 | DN600 | 18.5KW | ||||||||
SOLID-FD-400 | 400 | 1400*1000*1000 | DN600 | |||||||||
SOLID-FD-450 | 450 | 1400*1000*1000 | DN700 | 22KW | ||||||||
SOLID-FD-500 | 500 | 1400*1000*1000 | DN700 | |||||||||
SOLID-FD-600 | 600 | 1600*1000*1000 | DN800 | 37KW | ||||||||
SOLID-FD-700 | 700 | 1800*1000*1000 | DN800 | |||||||||
SOLID-FD-800 | 800 | 1800*1000*1000 | DN800 | |||||||||
SOLID-FD-900 | 900 | 2000*1000*1000 | DN800 | |||||||||
SOLID-FD-1000 | 1000 | 2400*1000*1000 | DN800 | |||||||||
