Diagnosis Sphygmomanometer Portable Emg and Ncv Machine

Product Overview

Description

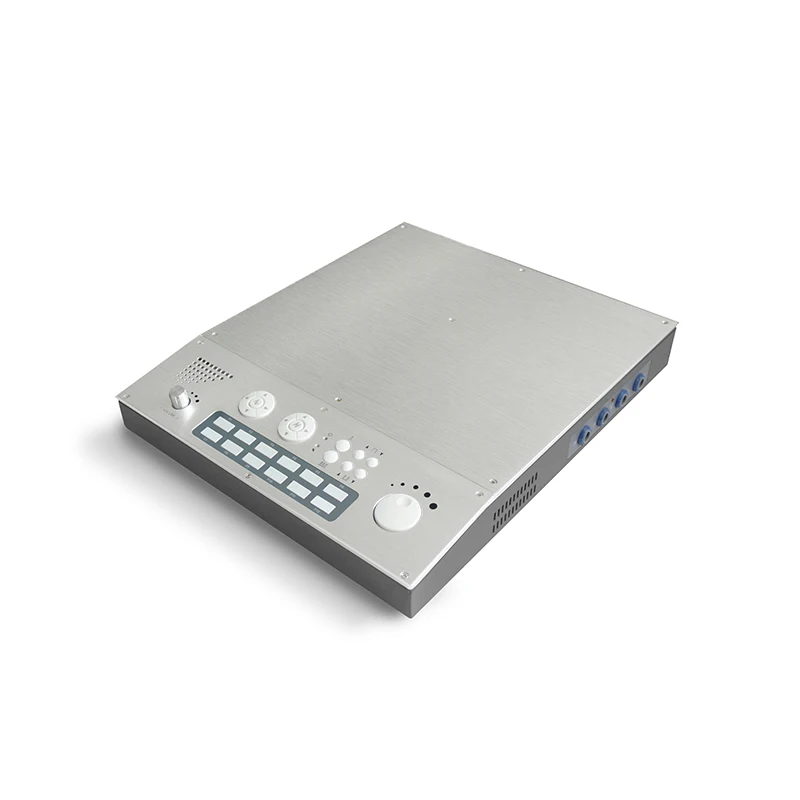

Model:CMS6600B

Introduction:

PC based 4-channel EMG / EP system-Evoked records bioelectricity activity of nerve muscle for determining its function state, which combines with nerve conduction speed, to give patient an auxiliary diagnosis.

Checking contents: EMG(electromygram), MCS(motor nerve conductor velocity), SCS(sensory nerve conductor velocity), F wave, Hreflex, RNS(repetitive nerve stimulation), Blink Reflex, VEP(visual evoked potential), BAEP(brainstem auditory evoked potential), SEP(somatosensory evoked potential), etc.



Features:

1. Professional EMG/EP system operation platform and perfect test items, complete each test in the shortest time.


2. Neuro and muscle navigation system, convenient in selecting test part.


3. Powerful normal values system, contrast with normal data automatically.


4. Flexible software design, configure system parameters according to requirements.


5. High-speed data collection, electromagnetic interference suppression, Photoelectric isolation and low noise.


6. Integrative hardware system, compact in configuration and easy in moving.

Performance:



• Main system part
  A/D conversion resolution 16 Bit
  Sampling ratio 200kHz
  Analysis time 5-5000ms
  Stimulating frequency 0.1-50Hz


• Amplifier part
  Four-channel
  Sensitivity 0.05μV-20mV/Grid
  Earth noise EMG <= 4μV(Vpp)
  EP <=0.1μV(Vpp) (1000 times in average)
  Common-mode rejection ratio >= 100dB
  50Hz Ban wave setting:
  Upper limit for Filter-frequency 20kHz
  Lower limit for Filter-frequency 1Hz
  Gain amplifies 25 times-400000 times


• Stimulator part
  Constant current 0.2-100mA
  Pulse width 50-1000μS
  Short circuit and overloading protection


• Auditory Stimulator
  Stimulation wave 40Hz Short, Sound Stim
  Stimulation polarity nondense wave, dense wave and alternant wave.
  Sound strength 40-120db (5db per level)
  Stimulation mode left, right, left & right
  Frequency of 40Hz carrier wave 500-8000Hz


• Visual stimulator
  Mode tessellation, horizontal bar and vertical bar.
  Stimulation view all-view, half-view and quarter-view
  Resolution 3x4, 6x8, 12x16, 24x32, 48x64
  Flash stimulator all quench,left light,right light,l&r light

Physical characteristic:

Dimension 420mm*350mm*46mm(L×W×H)
Net weight 6KG

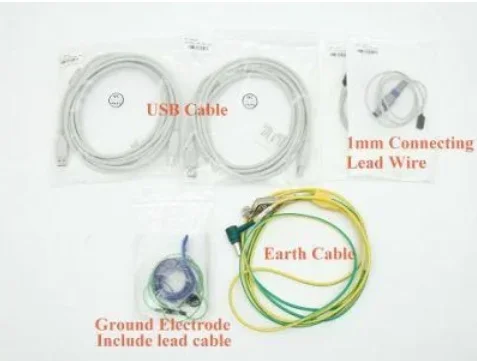

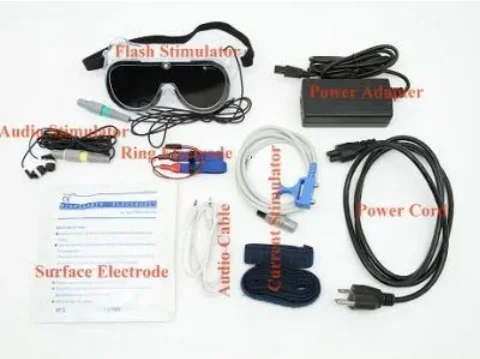

Accessories:



1.  Disk


2. Power Cord


3. Power Adapter


4. USB Cable


5. Audio Cable


6. Earth Cable


7. Current Stimulator

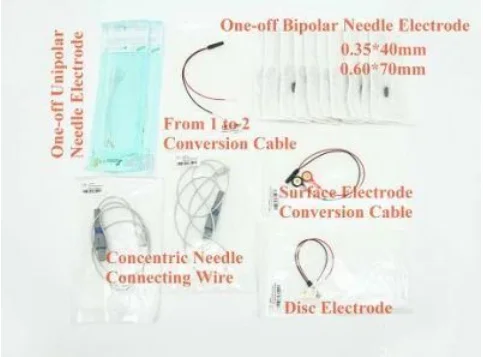

8. One-off Bipolar Needle Electrode D039035408, 0.35*40mm, D039060706, 0.60*70mm

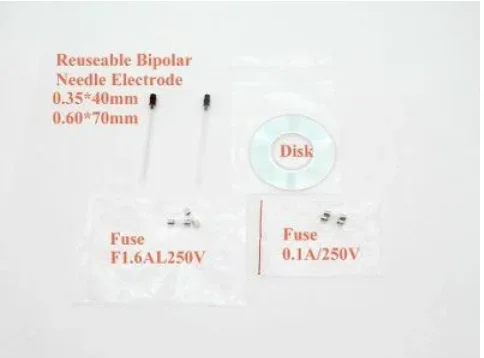

9. Reuseable Bipolar Needle Electrode R039035408, 0.35*40mm, R039060706, 0.60*70mm


10. Concentric Needle Connecting Wire


11. 1mm Connecting Lead Wire


12.  Disc Electrode


13.  Ring Electrode


14.  Surface Electrode


15.  Ground Electrode(Include lead cable)


16.  One-off Unipolar Needle Electrode


17.  From 1 to 2 Conversion Cable


18.  Surface Electrode Conversion Cable


19. Fuse 0.1A/250V, 5*20mm


20. Fuse F1.6AL250V, 5*20mm


21. Flash Stimulator


22.  Audio Stimulator
