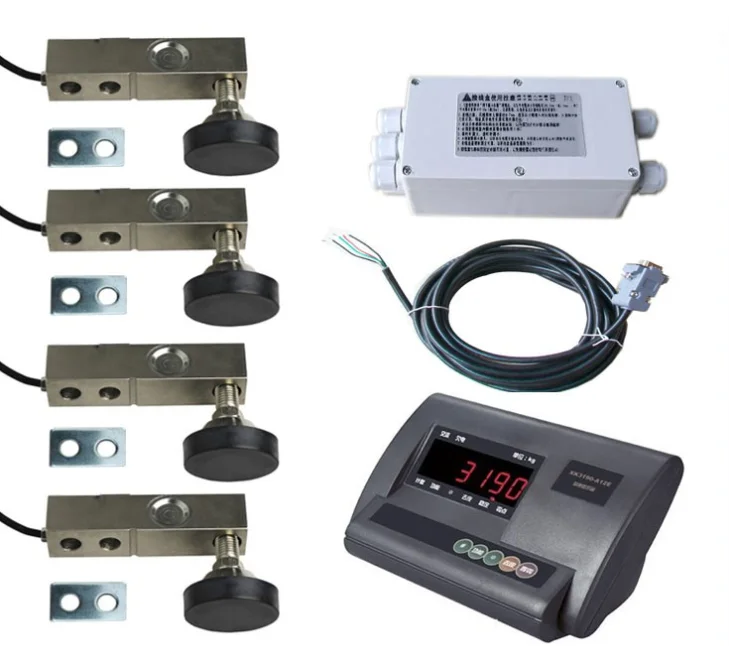

Yaohua instrument xk3190 A12E weighing display weighbridge electronic platform scale weighing instrument indicator
- Category: >>>
- Supplier: Taian Zhonghang Weighing Apparatus Co. Ltd.
Share on (1600430927540):
Product Overview
Description

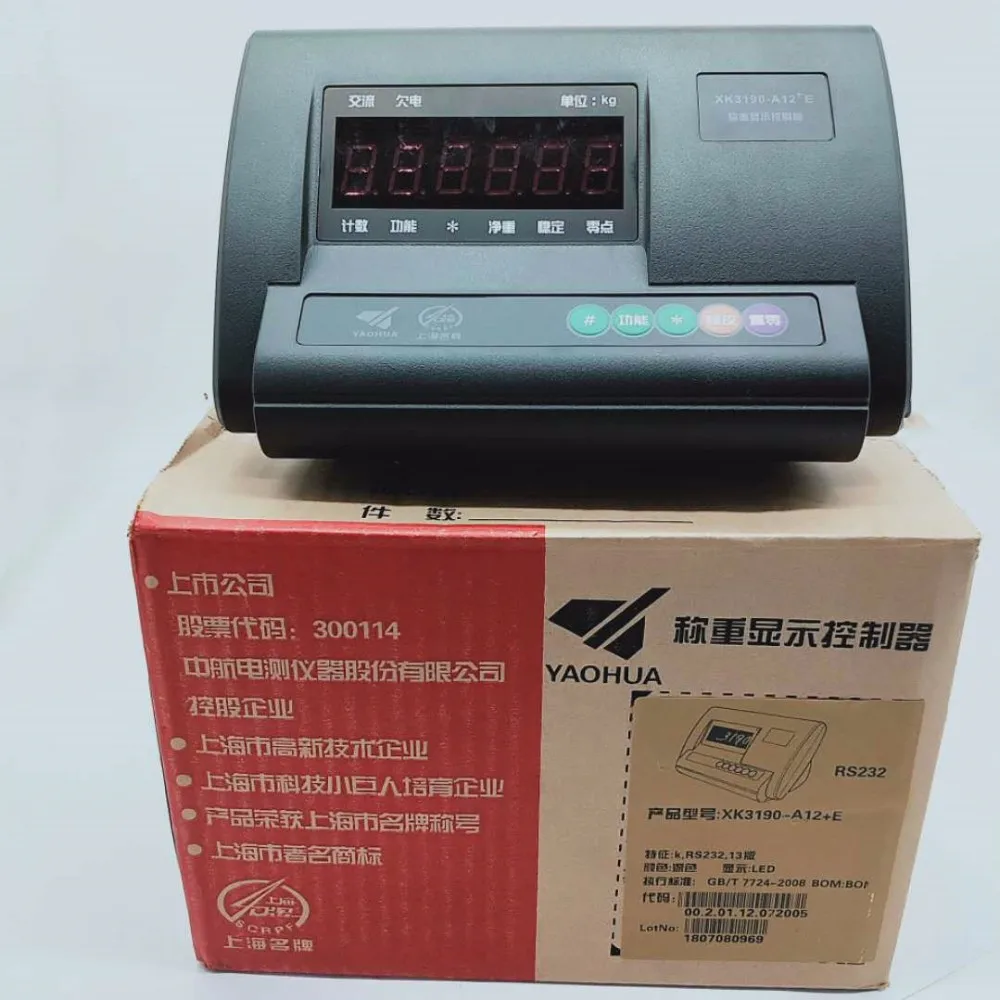

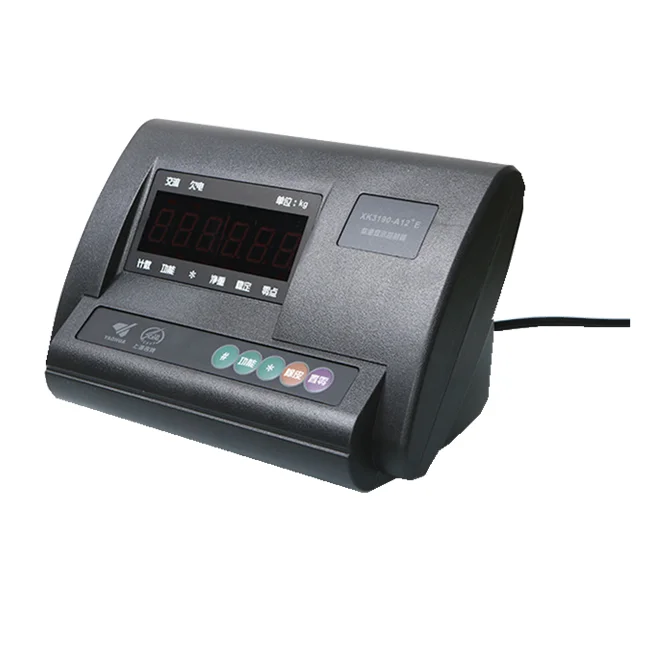

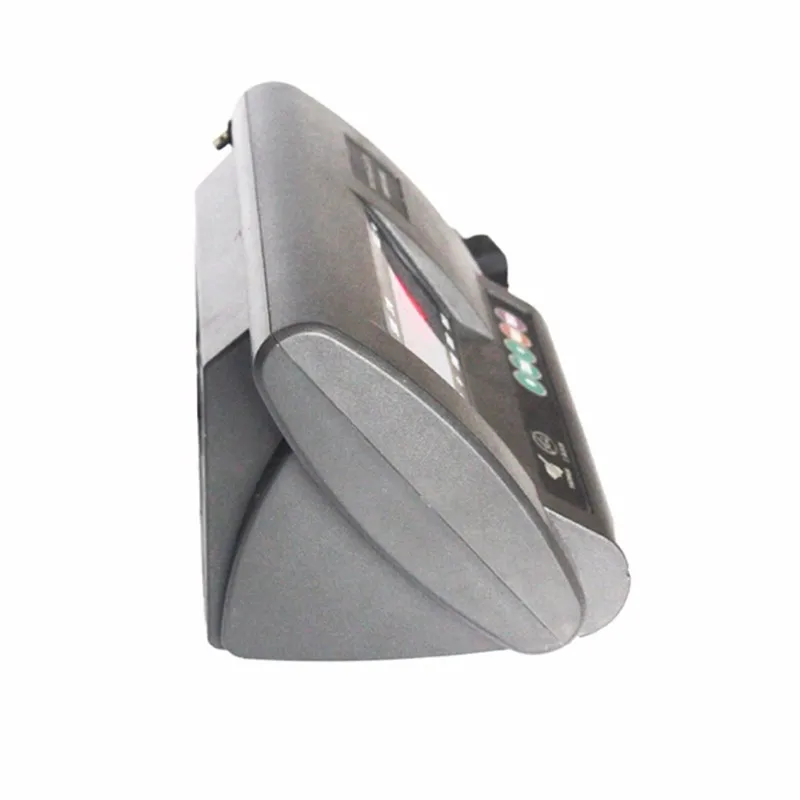

Yaohua instrument xk3190-A12E weighing display weighbridge electronic platform scale weighing instrument indicator
Product Description
Features
A/D conversion with readability 1/30000
Use inner code to replace weight observing and analysis tolerance
Software to strength anti-vibration ability
Zero-tracking, Zero range setup (auto/manual)
Setup digital filter intensity, range and stable time
Counting function with unit data save protection in case of power off
Alarm for low battery and auto power off when low battery
Optional function
1. KG/LB switch function
2. Animal scale function (A12, A12S only)
3. Two fixed-value outputs function with TTL output
A/D conversion with readability 1/30000
Use inner code to replace weight observing and analysis tolerance
Software to strength anti-vibration ability
Zero-tracking, Zero range setup (auto/manual)
Setup digital filter intensity, range and stable time
Counting function with unit data save protection in case of power off
Alarm for low battery and auto power off when low battery
Optional function
1. KG/LB switch function
2. Animal scale function (A12, A12S only)
3. Two fixed-value outputs function with TTL output
Parameter
Model | A12 / A12S | A12E / A12ES | |
Input signal range | -10mV~15mV | ||
Input sensitivity | ≥1μV/e | ||
Load cell Excitation | Dc 5V: /≤150mA | ||
Max. load cell connection | 4 at 350 ohm | ||

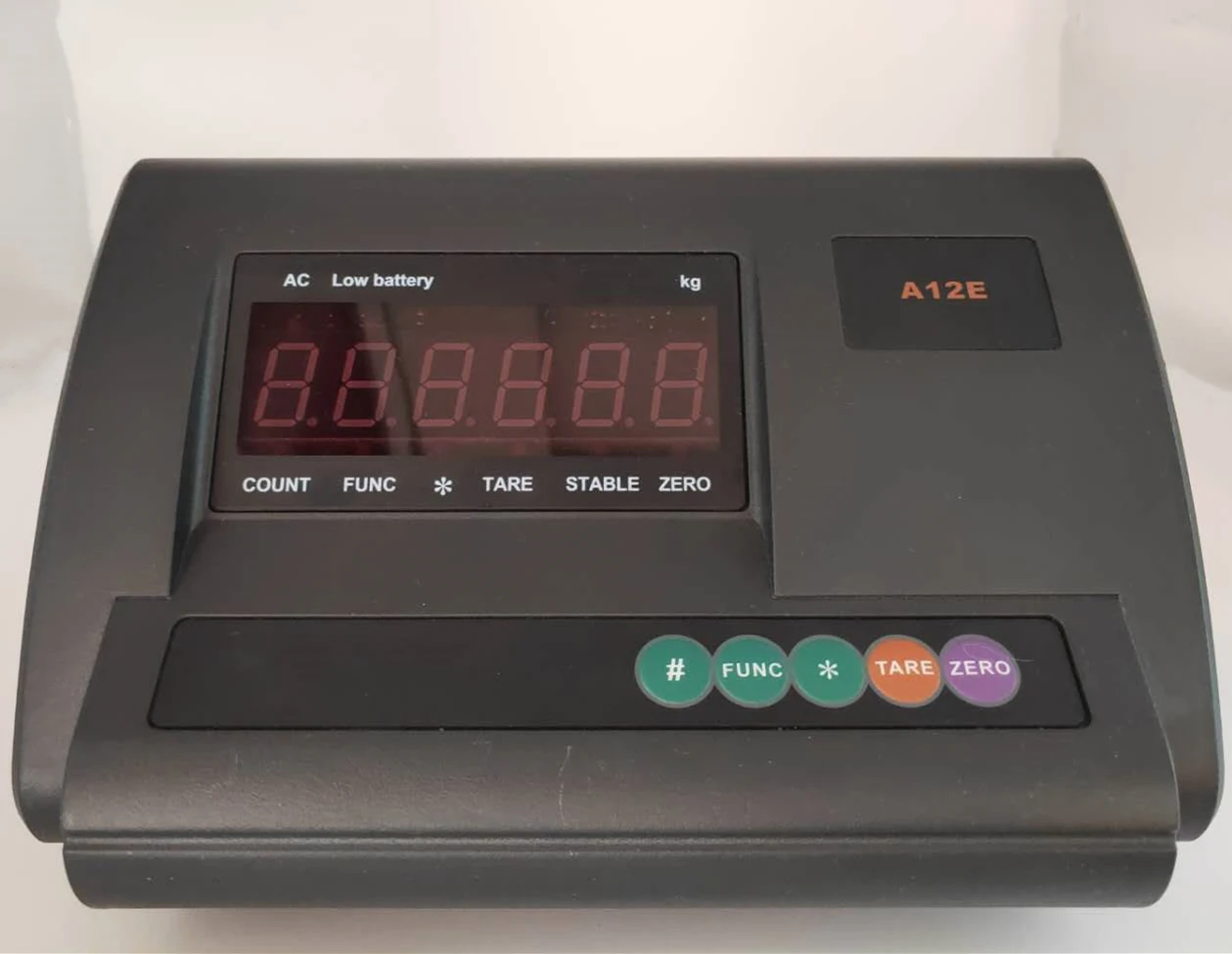

Display | 6 bits LCD, 6 status indications | 6 bits LED, 6 status indication | |

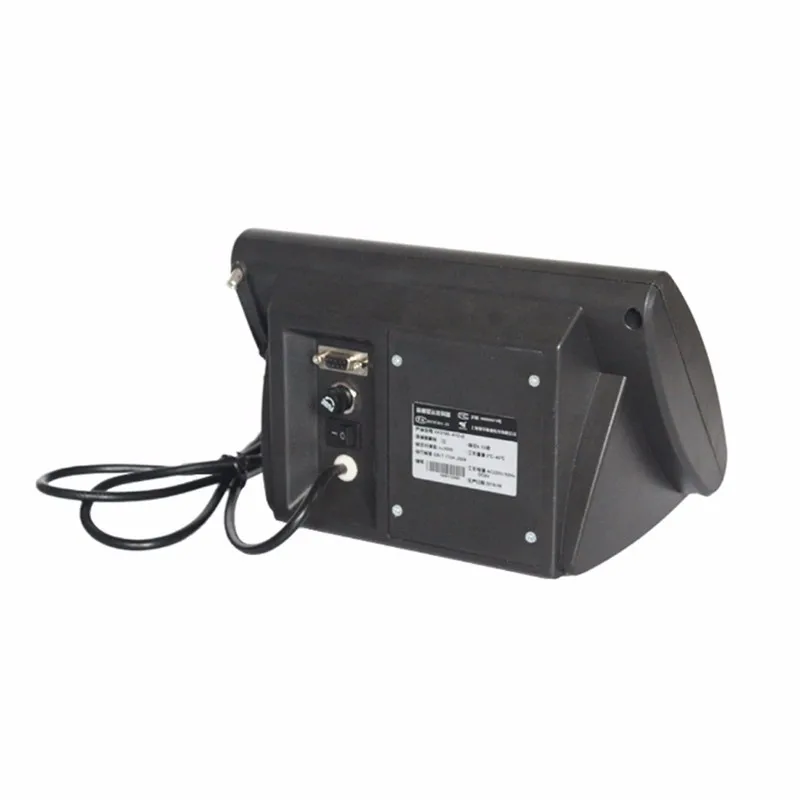

Optional interface | RS232C serial communication | ||
Transmission distance | RS232C≤30 meters | ||
