PRODUCT NAME
EVI DC Inverter House Heating Heat Pump-MONOBLOCK
Heating/Cooling+Domestic Sanitary Hot Water
DC Inverter EVI Compressor Workable at -25℃
PRODUCT DETAILS

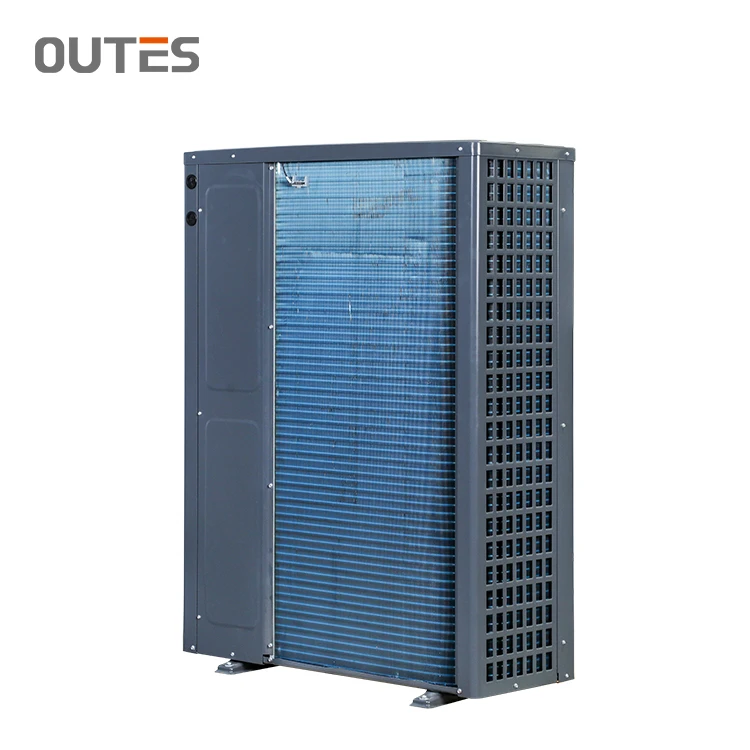

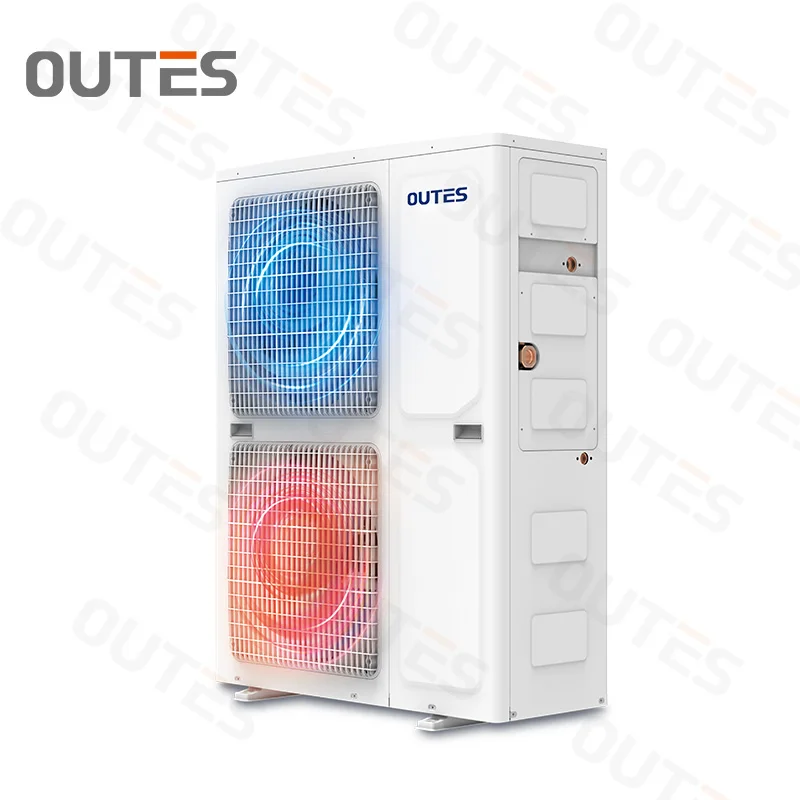

OUTES AIR SOURCE HEAT PUMP Monoblock-DC Inverter
Muilti Thermal Connection is available DC compressor & DC motor
EVI compressor working under -30'C Low Voltage Starting
Low Noise
H-Smart Heating
Intelligent Water Temperature Control
PID spray cooling
Intelligent defrost
Long-distance Intelligent Control
EVI compressor working under -30'C Low Voltage Starting
Low Noise
H-Smart Heating
Intelligent Water Temperature Control
PID spray cooling
Intelligent defrost
Long-distance Intelligent Control
PRODUCT OVERVIEW
PRODUCT SPEC
Model | / | AHb10D | AHb12D | AHb14D | AHb16D | AHb18D | ||
Power Supply | / | 220V~240V/50Hz | 220V~240V/50Hz | 220V~240V/50Hz | 220V~240V/50Hz | 220V~240V/50Hz | ||
WaterProof Level | / | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | ||
Electric Shock Proof Grade | / | Ⅰ | Ⅰ | Ⅰ | Ⅰ | Ⅰ | ||
Heating*（A7/W35) | Heating Input Power | kW | 2.48 | 2.73 | 3.33 | 3.95 | 4.43 | |
COP | W/W | 4.03 | 4.40 | 4.20 | 4.05 | 3.95 | ||
Heating Capacity Min./Max. | kW | 4.2/10 | 0.42 | 5.4/14 | 6.4/16 | 7.17/17.5 | ||
Heating**（A7/W45) | Heating Input Power | kW | 3.06 | 3.51 | 4.18 | 4.90 | 5.42 | |
COP | W/W | 3.08 | 3.20 | 3.15 | 3.06 | 2.95 | ||
Heating Capacity Min./Max. | kW | 3.98/9.42 | 4.56/11.22 | 5.4/13.17 | 6.05/15 | 6.35/16 | ||
Max. Cooling Capacity | kW | 7.0 | 9.0 | 10.0 | 12.0 | 14.0 | ||
Cooling Input Power | kW | 2.80 | 3.05 | 3.50 | 4.60 | 5.76 | ||
EER | W/W | 2.50 | 3.02 | 2.86 | 2.61 | 2.43 | ||
Cooling Capacity Min./Max. | kW | 2.92/7 | 3.6/9 | 4.11/10 | 5.1/12 | 5.8/14 | ||
Max. Water Outlet Temperature | ℃ | 55℃ | 55℃ | 55℃ | 55℃ | 55℃ | ||
Temperature Range of Heating Operation | ℃ | -25~43 | -25~43 | -25~43 | -25~43 | -25~43 | ||
Temperature Range of Cooling Operation | ℃ | 15~43 | 15~43 | 15~43 | 15~43 | 15~43 | ||
Noise | dB(A) | 60 | 58 | 60 | 62 | 62 | ||
Net Weight | kg | 85 | 150 | 150 | 160 | 160 | ||
Packing Dimension(L*W*H) | mm | 1086*446*820 | 1086*446*1490 | 1086*446*1490 | 1086*446*1490 | 1086*446*1490 | ||
Remark：
1、Testing Condition：
Heating condition : Ambient Temp.(DB/WB):7℃/6℃，Water Temp.(In/Out):30℃/35℃.
Cooling condition :Ambient Temp.(DB/WB):35℃/24℃，Water Temp.(In/Out):12℃/7℃.
Hot water condition : Ambient Temp.(DB/WB):20℃/15℃，WaterTemp.(In/Out):15℃/55℃.
2、The above data test reference EN14825:2016
3、The data above is for reference only, Specific data is subject to the nameplate
