Economic compact sewer drain plumbing pipe inspection camera with 9inch DVR 30M 5.3MM push rod 21mm HD camera
- Category: >>>
- Supplier: Shenzhen QYTeco Limited
Share on (1600430965955):
Product Overview
Description
Product Overview

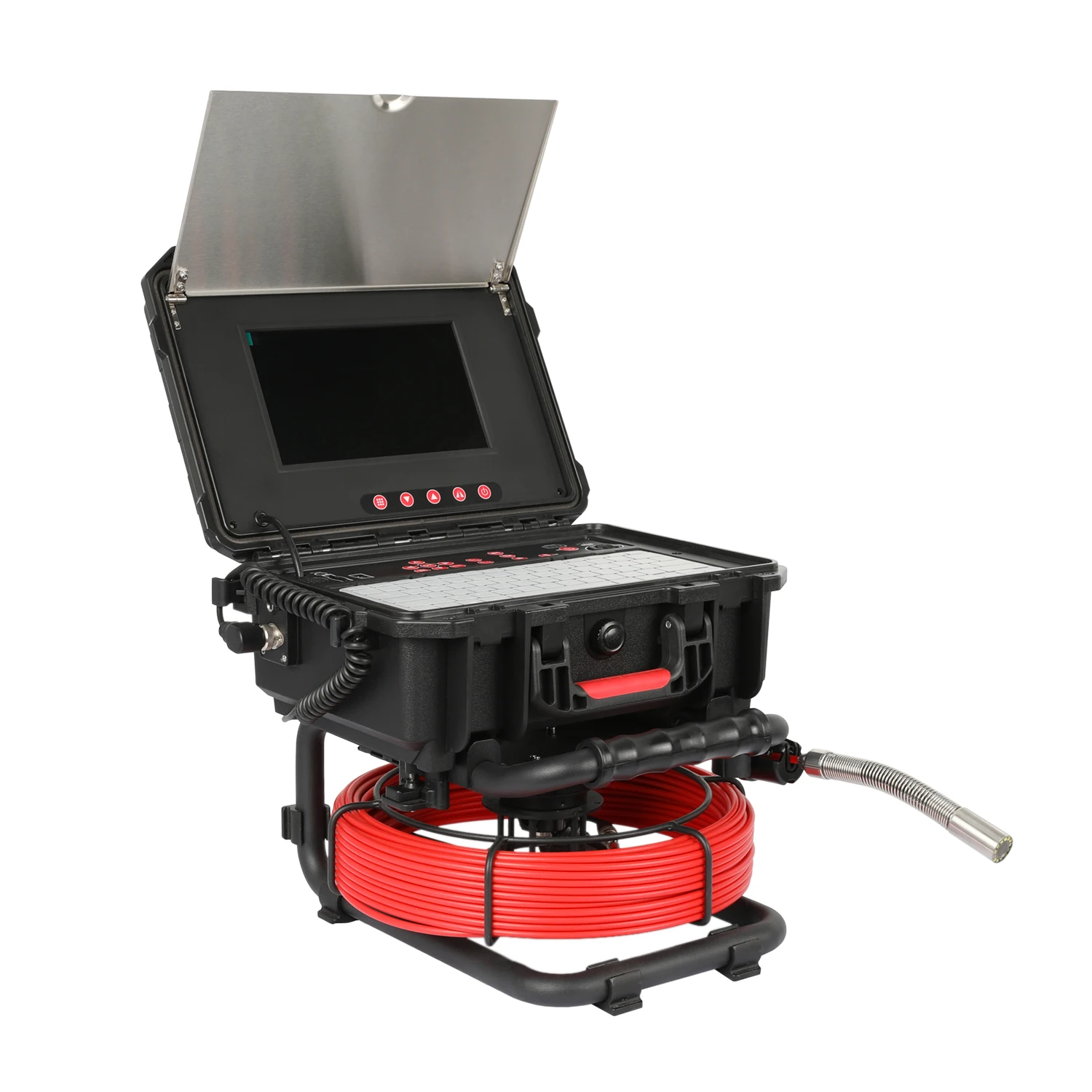

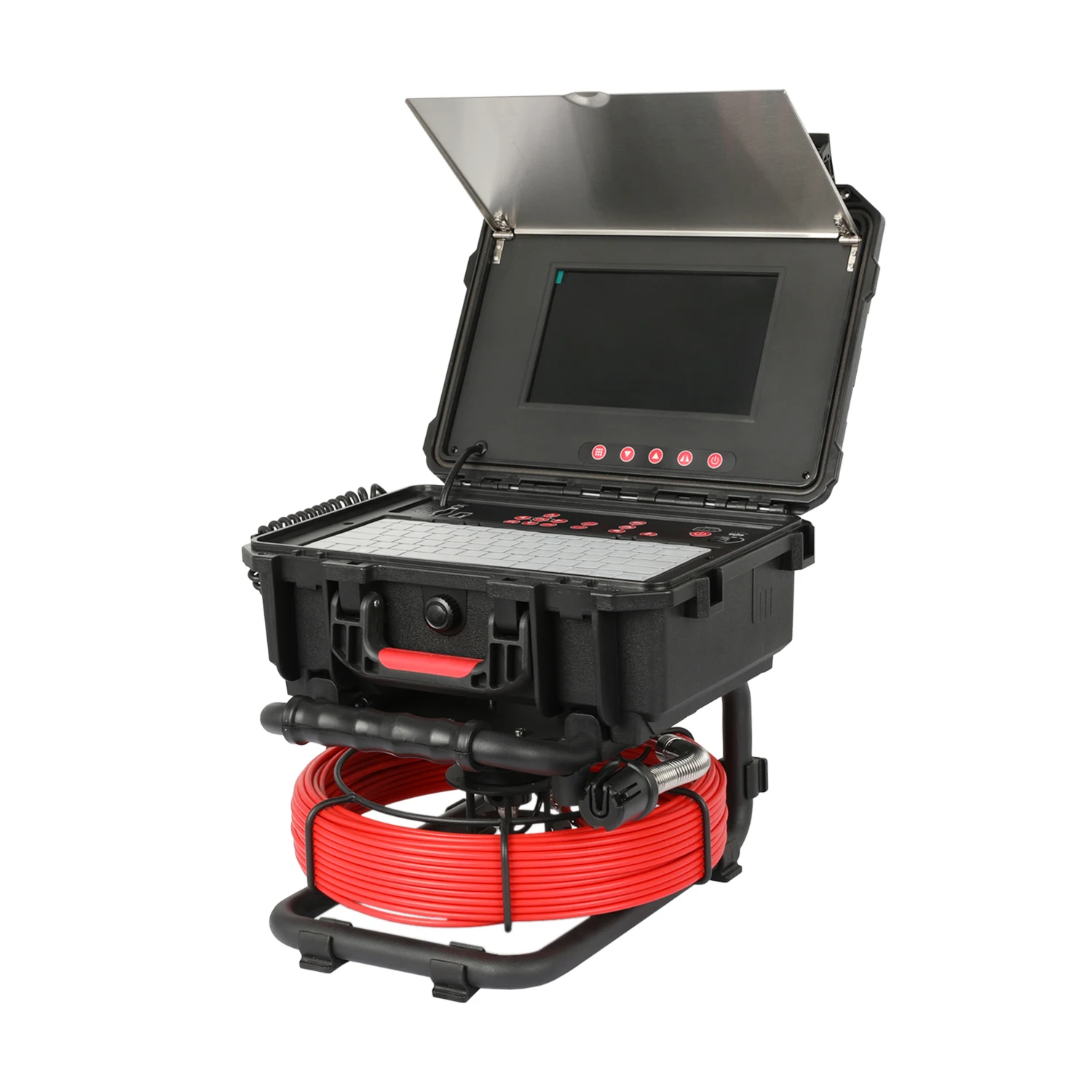

QY6566 Compact Sewer Camera
This compact small size economic sewer camera is designed for the home use, no need special professional plumbing technology to use it. It consists of three main parts: 1. control box with 9inch screen; 2. Metal frame; 3. Cable reel with fiberglass push rod 10-30M and 21mm Camera(covered with sapphire lens). It is suitable for pipes with inner diameter at 25mm-90mm. Ability to go through 90° bends in pipe at 50mm(for 21mm camera with 5.3mm push rod).
FEATURES AT A GLANCE
COMPACT DIMENSIONS
RUGGED FRAME
SIMPLE OPERATION
EASY MAINTENANCE

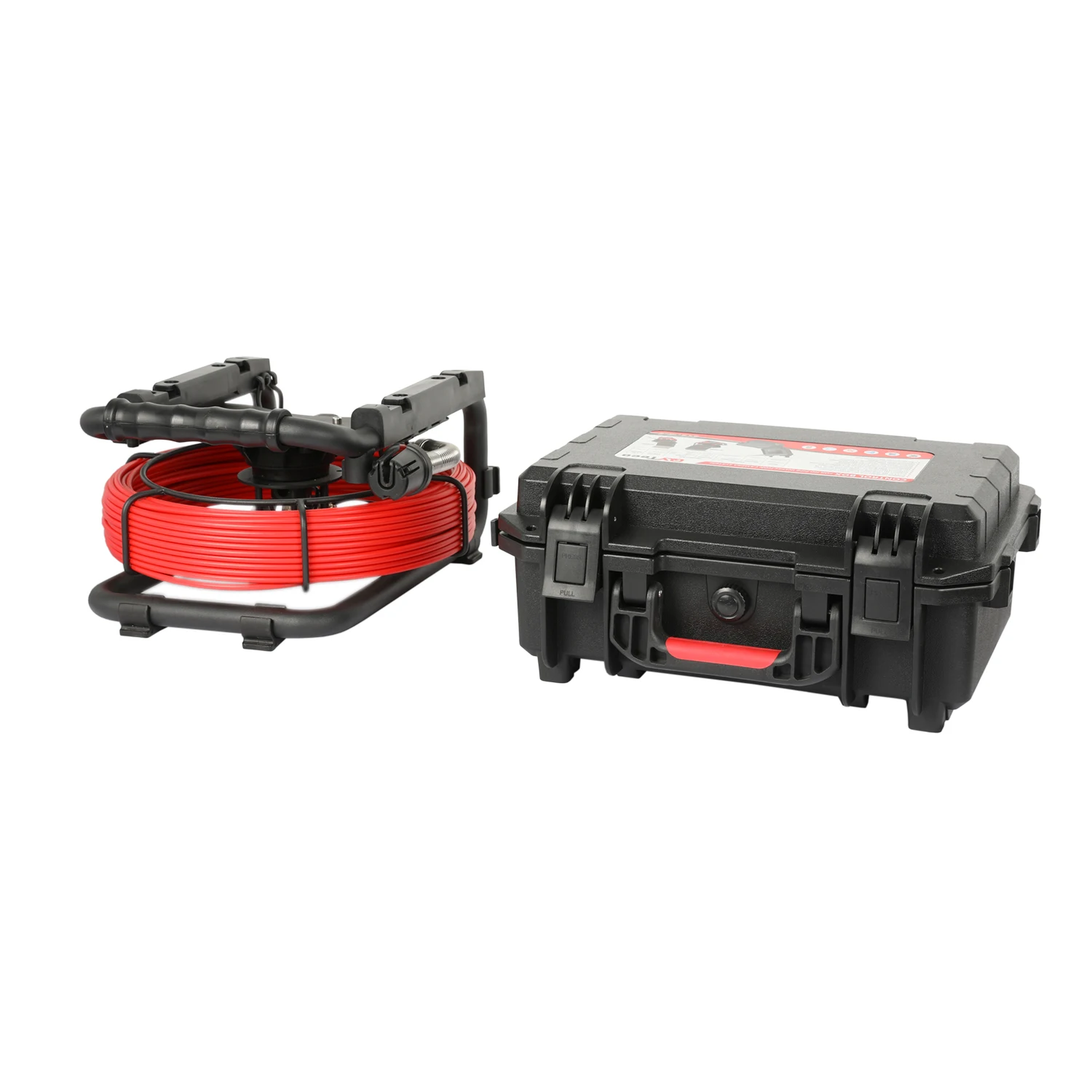

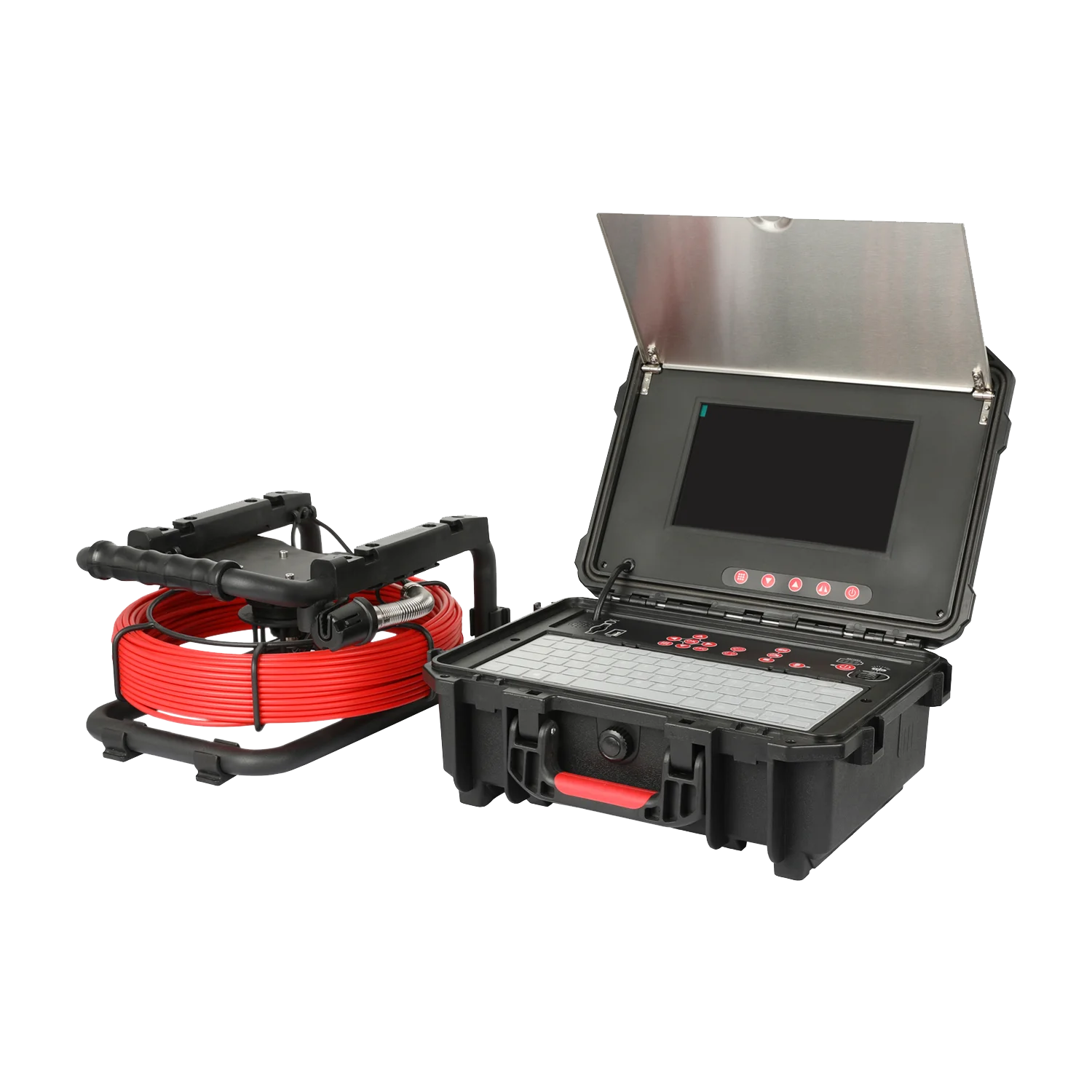

DETACHABLE CONTROL BOX
Right elevation
Left elevation
Front elevation
Features on the function design
1.Camera diameter 12.8mm(with push rod cable diameter 4.8mm cable) and 21mm(with 5.3mm or 6.8mm) are available.
2.Camera head with sapphire glass lens cover and 304 stainless steel housing allow the camera to withstand repeated hits in
various pipes.
3.Whole system is waterproof when the camera head is installed and the control box is closed.
4.9''/13.3" IPS LCD color monitor with standalone power button to turn on/off the screen alone.
5.On-Screen date & time stamp and distance counter.
6.The meter counter reset button can recount the meter at any time as required.
7.The Meter-Feet button can switch the length unit easily.
8.Microphone for local audio recording, just one press on the audio button to turn on/off the audio recording.
9.The LED brightness control button is used pulley button without breakpoint dimming.
10.Wireless keyboard for text input on the real time picture or video like a laptop's, very easy to operate.
11.The external storage SD Card slot and USB port to store still pictures or videos.
12.The cable reel is out of the toolbox for easy cleaning and won't cause dirty in the box.
13.Rechargeable battery lasts up to 7.5hours continuous work(9inch DVR for 7.5hours, 13.3inch for 4hours).

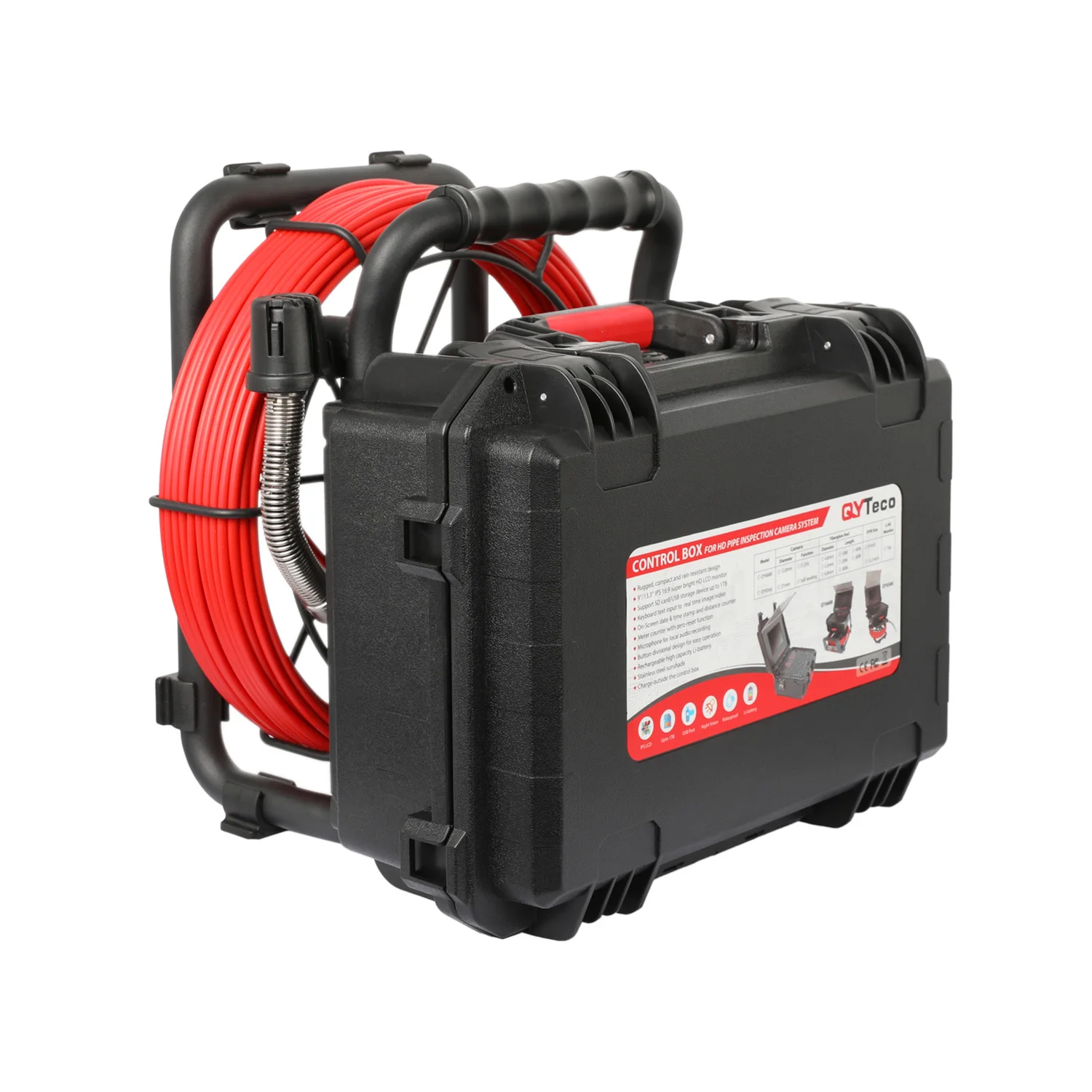

14.Rotatable cable reel mounted in metal frame for convenient operation.
15.All-in-One visual pipe inspection camera system with push rod fiberglass cable length 10/20/30/40m/50m and diameter
φ4.8mm/5.3mm/6.8mm for options.16.Suitable for pipes with inner diameter at 15mm-200mm.
Optional functions/parts:
1. 12.8mm camera head with built-in 512hz transmitter
2. 21mm camera head with built-in 512hz transmitter and self-leveling
3. Wireless 2.4G 5inch monitor to synchronize viewing the host screen when collaborating with multiple people ,you can also take
picture or record video on the 5inch wireless monitor when the SD card is installed.
5.4.8mm blue cable for 12.8mm HD sewer camera, optional 20/30/40/50/60M
5.3mm red cable for 21mm HD sewer camera, optional 20/30/40/50/60M
6.8mm cable with 21mm camera head, optional 20/30/40M
2.Camera head with sapphire glass lens cover and 304 stainless steel housing allow the camera to withstand repeated hits in
various pipes.
3.Whole system is waterproof when the camera head is installed and the control box is closed.
4.9''/13.3" IPS LCD color monitor with standalone power button to turn on/off the screen alone.
5.On-Screen date & time stamp and distance counter.
6.The meter counter reset button can recount the meter at any time as required.
7.The Meter-Feet button can switch the length unit easily.
8.Microphone for local audio recording, just one press on the audio button to turn on/off the audio recording.
9.The LED brightness control button is used pulley button without breakpoint dimming.
10.Wireless keyboard for text input on the real time picture or video like a laptop's, very easy to operate.
11.The external storage SD Card slot and USB port to store still pictures or videos.
12.The cable reel is out of the toolbox for easy cleaning and won't cause dirty in the box.
13.Rechargeable battery lasts up to 7.5hours continuous work(9inch DVR for 7.5hours, 13.3inch for 4hours).
14.Rotatable cable reel mounted in metal frame for convenient operation.
15.All-in-One visual pipe inspection camera system with push rod fiberglass cable length 10/20/30/40m/50m and diameter
φ4.8mm/5.3mm/6.8mm for options.16.Suitable for pipes with inner diameter at 15mm-200mm.
Optional functions/parts:
1. 12.8mm camera head with built-in 512hz transmitter
2. 21mm camera head with built-in 512hz transmitter and self-leveling
3. Wireless 2.4G 5inch monitor to synchronize viewing the host screen when collaborating with multiple people ,you can also take
picture or record video on the 5inch wireless monitor when the SD card is installed.
5.4.8mm blue cable for 12.8mm HD sewer camera, optional 20/30/40/50/60M
5.3mm red cable for 21mm HD sewer camera, optional 20/30/40/50/60M
6.8mm cable with 21mm camera head, optional 20/30/40M
PRODUCT SPECIFICATIONS
Applications
Industrial inspection camera applications:
Locating source of water intrusion.
Locating insects or dead rats or corrosion inside cavity walls.
Black mold inspection, insulation levels etc.
Electrical, plumbing, wiring, network/phone and CATV routing.
Small automotive engines and other related inspections.
Gun bore and related inspections.
Motor Inspections.
HVAC duct systems.
Sewer pipe inspections and related plumbing applications.
Aviation related applications.
Natural gas pipe inspections.
Internal machinery part inspections.
Quality assurance inspections.
Mold and mildew inspections.
Insurance litigation and verification inspections.
Verification of standards protocols in small and tight areas.
Building appraisal applications
Construction, property managers and contractors
Why Choose Us?
R&D Team
We have a group of R&D team with decades of professional experiance in electronic industry:
To ensure the original design and the best of raw material selection.
To provide OEM/ODM/Customized products and services.
To strongthen technicial support before or after sales.
To maintain the innovation of products and the quick reaction capability to the market.
Selling Services
We supply products at producer price. We offer the spare parts for repaire.
We don't set MOQ except for the OEM/ODM/Customized products.
We can provide fast delivery since we always have products in stock and keep the supply of raw materials normal.
We warmly welcome friends of all circles to visit and give full cooperation.
Warranty
Our products are warranted for one full year (checking and repairing services) from the date of purchase which products are not
being damaged by any man-made factors.
FAQ
Price
We provide the competitive factory price based on EXW or FOB. We can quote the best freight cost by courier/air/forwarder for your
reference.
MOQ
We don't have MOQ except for OEM/ODM/customized products. The prices vary depending on order quantity.
Order Process & Payment term
Online order is available now, we also can provide offline order:
Step 1: Please you place order to us by email or message.
Step 2: We send Proforma Invoice to you for your confirmation.
Step 3: You make payment after confirmation.
Payment term :T/T , Western Union(only for payment less than 2000USD)
Step 3: We arrange the delivery and provide tracking information.
Packing
All the inspection camera kit is standard packed with tool case except the 89 series with economical packing by paper box as
standard and tool case optional. Special requirements should be mentioned in order.
Shipping
Shipping way could be chosen according to customer requirements, courier delivery, air cargo, sea cargo or designated freight
forwarding . We will coordinate with every delivery from factory to destination, and keep reporting the status of transportation.
Production Time
Usually our products are in stock, but if one of our product is out of stock, the production time for standard products will be
from 3-15days according to the order quantity. For OEM/ODM/customized products, the production time will be 20-45days different
according to the degree of difficulty or easiness.
Locating source of water intrusion.
Locating insects or dead rats or corrosion inside cavity walls.
Black mold inspection, insulation levels etc.
Electrical, plumbing, wiring, network/phone and CATV routing.
Small automotive engines and other related inspections.
Gun bore and related inspections.
Motor Inspections.
HVAC duct systems.
Sewer pipe inspections and related plumbing applications.
Aviation related applications.
Natural gas pipe inspections.
Internal machinery part inspections.
Quality assurance inspections.
Mold and mildew inspections.
Insurance litigation and verification inspections.
Verification of standards protocols in small and tight areas.
Building appraisal applications
Construction, property managers and contractors
Why Choose Us?
R&D Team
We have a group of R&D team with decades of professional experiance in electronic industry:
To ensure the original design and the best of raw material selection.
To provide OEM/ODM/Customized products and services.
To strongthen technicial support before or after sales.
To maintain the innovation of products and the quick reaction capability to the market.
Selling Services
We supply products at producer price. We offer the spare parts for repaire.
We don't set MOQ except for the OEM/ODM/Customized products.
We can provide fast delivery since we always have products in stock and keep the supply of raw materials normal.
We warmly welcome friends of all circles to visit and give full cooperation.
Warranty
Our products are warranted for one full year (checking and repairing services) from the date of purchase which products are not
being damaged by any man-made factors.
FAQ
Price
We provide the competitive factory price based on EXW or FOB. We can quote the best freight cost by courier/air/forwarder for your
reference.
MOQ
We don't have MOQ except for OEM/ODM/customized products. The prices vary depending on order quantity.
Order Process & Payment term
Online order is available now, we also can provide offline order:
Step 1: Please you place order to us by email or message.
Step 2: We send Proforma Invoice to you for your confirmation.
Step 3: You make payment after confirmation.
Payment term :T/T , Western Union(only for payment less than 2000USD)
Step 3: We arrange the delivery and provide tracking information.
Packing
All the inspection camera kit is standard packed with tool case except the 89 series with economical packing by paper box as
standard and tool case optional. Special requirements should be mentioned in order.
Shipping
Shipping way could be chosen according to customer requirements, courier delivery, air cargo, sea cargo or designated freight
forwarding . We will coordinate with every delivery from factory to destination, and keep reporting the status of transportation.
Production Time
Usually our products are in stock, but if one of our product is out of stock, the production time for standard products will be
from 3-15days according to the order quantity. For OEM/ODM/customized products, the production time will be 20-45days different
according to the degree of difficulty or easiness.
