Closed loop vanilla rose essential cbd oil extract machine for herbal
Product Introduction
20L extraction and concentration tank
is a new product developed by our company on the basis of learning from similar products at home and abroad. It is suitable for the extraction and concentration of Chinese herbal and natural products (water and organic solvents) and volatile aromas. The recovery of oil, the
concentration specific gravity is 1.1-1.38. Equipment composition: extraction tank, reflux condenser, oil-water separator, vacuum pump, recovery tank, concentration tank, temperature controller, stainless steel frame and connecting pipe valves, instruments,
etc.
concentration specific gravity is 1.1-1.38. Equipment composition: extraction tank, reflux condenser, oil-water separator, vacuum pump, recovery tank, concentration tank, temperature controller, stainless steel frame and connecting pipe valves, instruments,
etc.
FEATURES
1) Extracting system is equipped with a reflux condenser, reflux cooler, oil-water separator that can recover aromatic oil in materials in an effective manner.
2) Can be used to water, alcohol and solvent extraction for natural herb extraction. Suitable for extracting and concentration of herbal liquid and tea and fruit juice and recovery of organic solvents in research institutions, universities, hospitals, factory and food industry.
3) It combines multi-functional extracting tank, vacuum concentration tank and solvent recovery tank as a whole and simplify operations with functions of heat reflux circular extraction.
4) The contact part with the material is of qualified stainless steel of SUS304, meeting with GMP standard.
5) Low temperature concentration ensures the material property stability. Dynamic circular evaporation increases heat transfer efficiency, provides an effective solution to decreased heat transfer efficiency with increased concentration, reduce energy consumption and improves efficiency.
6) The extraction basket to improve deslagging efficiency.
7) Optional on-line ultrasonic extraction function: adopts energy-concentrating ultrasonic generator. The unique physical process and cavatition of ultrasonic wave can break or deform plant cell tissues and enhance the strength of solute particle vibration, acceleration shock and sound pressure. Local extreme high temperature and pressure formed on materials make large-volume Chinese herbal fully exposed to the ultrasound probe, which accelerates uniform precipitation of active ingredients and significantly increases extraction rate compared with traditional techniques. Ultrasonic extraction works under normal temperature and effectively reduces the loss of heat-sensitive components.
2) Can be used to water, alcohol and solvent extraction for natural herb extraction. Suitable for extracting and concentration of herbal liquid and tea and fruit juice and recovery of organic solvents in research institutions, universities, hospitals, factory and food industry.
3) It combines multi-functional extracting tank, vacuum concentration tank and solvent recovery tank as a whole and simplify operations with functions of heat reflux circular extraction.
4) The contact part with the material is of qualified stainless steel of SUS304, meeting with GMP standard.
5) Low temperature concentration ensures the material property stability. Dynamic circular evaporation increases heat transfer efficiency, provides an effective solution to decreased heat transfer efficiency with increased concentration, reduce energy consumption and improves efficiency.
6) The extraction basket to improve deslagging efficiency.
7) Optional on-line ultrasonic extraction function: adopts energy-concentrating ultrasonic generator. The unique physical process and cavatition of ultrasonic wave can break or deform plant cell tissues and enhance the strength of solute particle vibration, acceleration shock and sound pressure. Local extreme high temperature and pressure formed on materials make large-volume Chinese herbal fully exposed to the ultrasound probe, which accelerates uniform precipitation of active ingredients and significantly increases extraction rate compared with traditional techniques. Ultrasonic extraction works under normal temperature and effectively reduces the loss of heat-sensitive components.
Parameters and details
Voltage | 380V |
Power | 9000W |
Extraction tank volume degree | 20L/0.025m³ |
Raw material inventory | 0.3-5Kg/batch |
Minimum inventory | 0.3KG |
Evaporation capacity (water) | 4 Kg/h |
Evaporation chamber vacuity | ~-0.08MPa |
Precision of temperature | ±2℃ |
Concentration Ratio | 1.1 ~ 1.38 |
Machine Material | SUS 304 Stainless Steel (SUS316 optional) |
Dimension | 1750*1000*1960mm |
Extract Tank
Add the material and solvent into this tank to start the extracting . Integrated and compact design allows less installation area . Works directly with water and power.
Concentrate Tank
The system are equipped with outer circular evaporating concentrator with high concentrating efficiency, concentration ratio 1.1 ~ 1.38. Low temperature concentration ensures the material property stability.

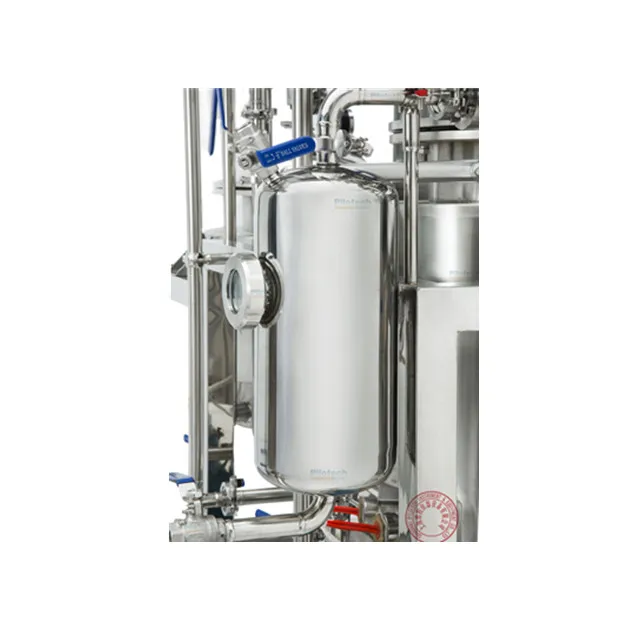

Solvent Recovery Tank
When doing concentration , this tank can recovery the solvent

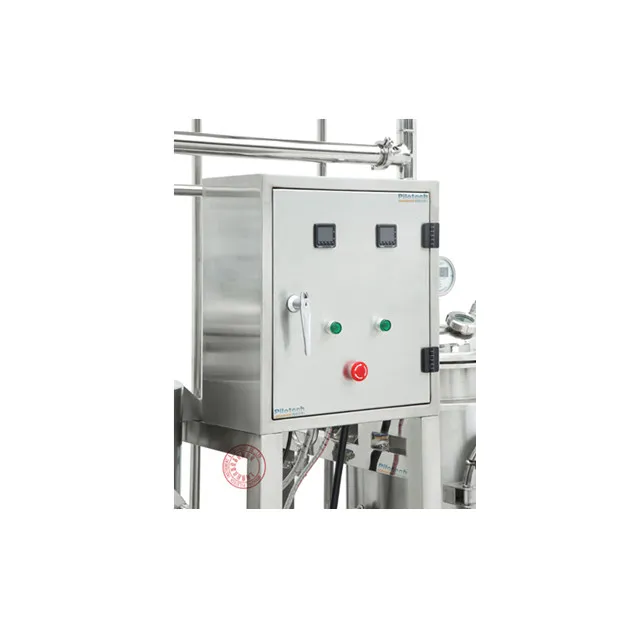

Omron Temperature Controller
This part is to operate the temperature when extracting and concentrating .

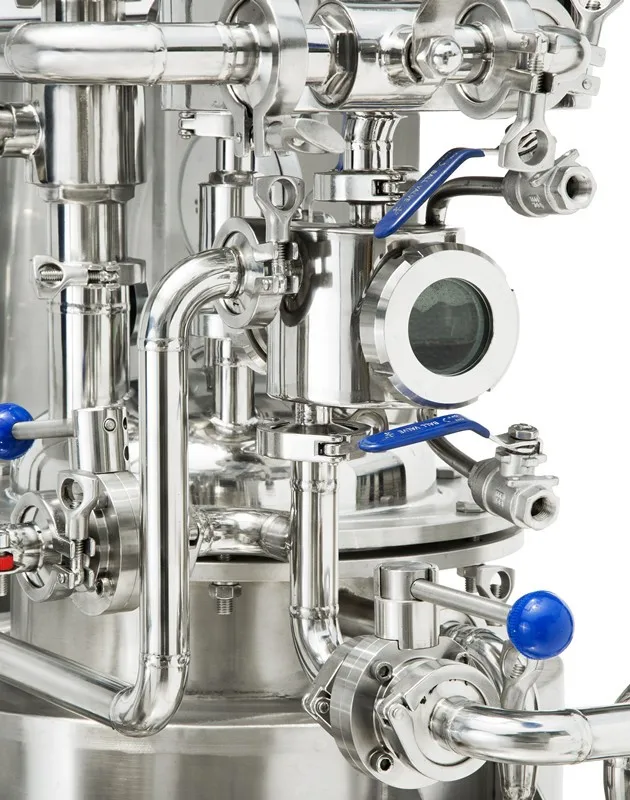

Sight Glass
Viewing the process through the sight glass.The contact part with the material is of qualified stainless steel of SUS304, meeting with GMP standard.
Application and outputs
20L EXTRACTION TANK.
Our extract machine has a good performance for natural herb extraction.
Suitable for extracting and concentration of herbal liquid and tea and fruit juice and recovery of solvents in research
institutions , universities , hospitals , factory and food industry.
Dynamic circular evaporation increases heat transfer efficiency, provides an effective solution to decreased heat transfer efficiency with increased concentration, reduce energy consumption and improves efficiency .
Suitable for extracting and concentration of herbal liquid and tea and fruit juice and recovery of solvents in research
institutions , universities , hospitals , factory and food industry.
Dynamic circular evaporation increases heat transfer efficiency, provides an effective solution to decreased heat transfer efficiency with increased concentration, reduce energy consumption and improves efficiency .
Our factory
Pilotech has more than 17 years of experience in extraction equipment production, and our multifunctional extraction equipment has a wide application in factories around the world and university labs of traditional Chinese herb and health food.
Pilotech extraction equipment is suitable for small-scale , medium-scale and pilot tests in labs, with specifications of 5L, 10L, 20L, 50L, 100L, and 200L. We can also customize our products according to your order, properties of your materials and your capacity.
Pilotech extraction equipment is suitable for small-scale , medium-scale and pilot tests in labs, with specifications of 5L, 10L, 20L, 50L, 100L, and 200L. We can also customize our products according to your order, properties of your materials and your capacity.
Our Customer
FIC in July 2021
Certificate showing
Product Packing
Support sea, air, express ,DHL, UPS, Fedex etc.
Relative Products
YC-010
Lab multi-function
extracting tank
YC-018
Pilot Lab Spray Dryer
YC-1000
Lab Spray Granulator
YC-1800
Lab Spray Dryer(with fluid bed function)
YC-2000
Vacuum Spray Dryer
YC-500
Benchtop Spray Dryer
Maintenance and After-sales
To ensure that the extraction equipment you purchased works well, before delivery, we will conduct sealing tests and test operating for 72 hours. If the tests and operation went well, another extraction and concentration test will be made using materials. If no failure emerged, then we will arrange for delivery. Once you receive the goods, we will send you video guidance for install and operation.
If there is any problem with the machine, you can describe the problem to us. Our engineers can know which part has the problem through your description. You can buy damaged fittings from us or in the your country after the warranty period. We tell you how to replace it. It is very easy.
If there is any problem with the machine, you can describe the problem to us. Our engineers can know which part has the problem through your description. You can buy damaged fittings from us or in the your country after the warranty period. We tell you how to replace it. It is very easy.
