factory price ip65 aluminum shell chemical industry gas station tunnel light canopy light gas station
- Category: >>>
- Supplier: Shenzhen Yaorong Technology Co. Ltd.
Share on (1600430979591):
Product Overview
Description
Product Description

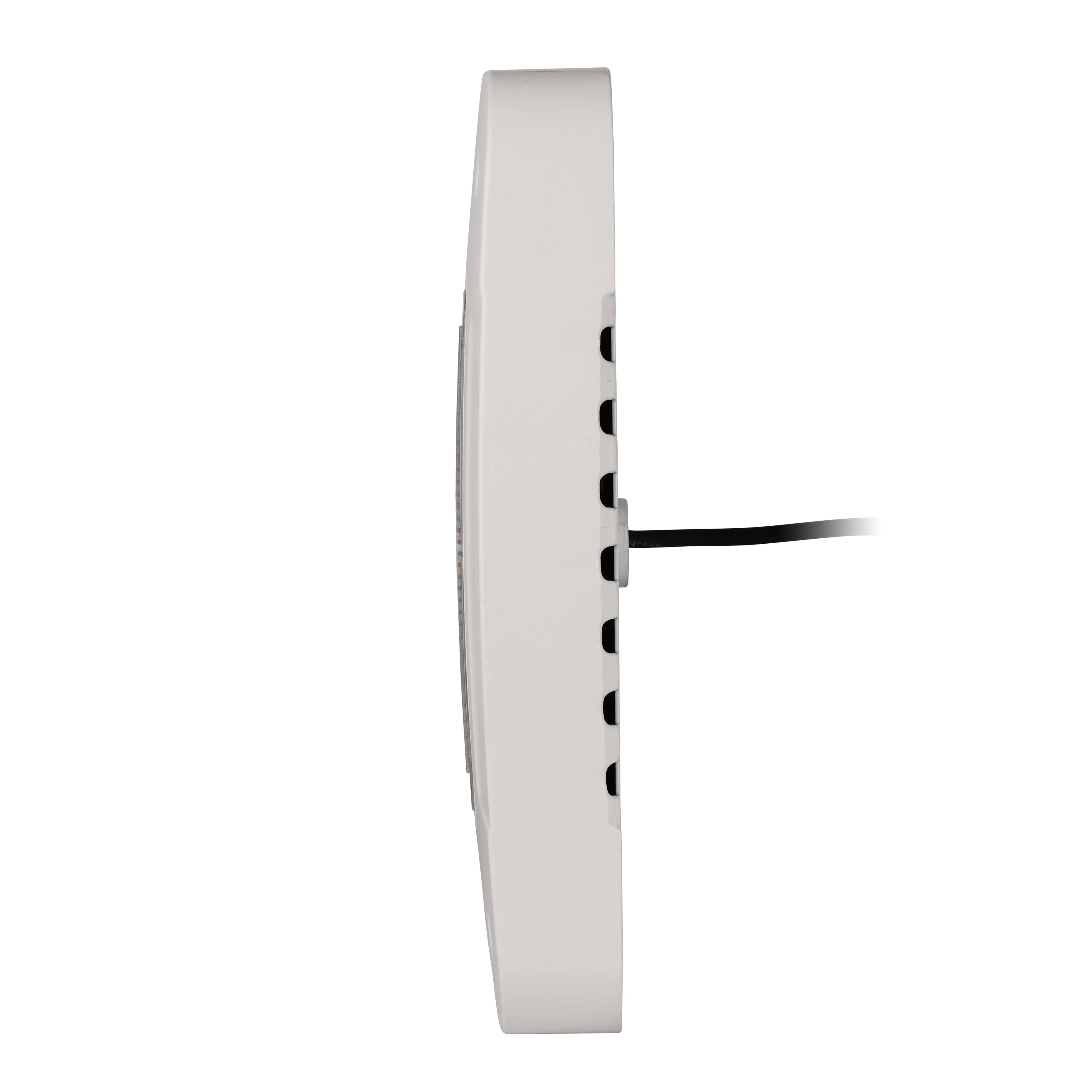

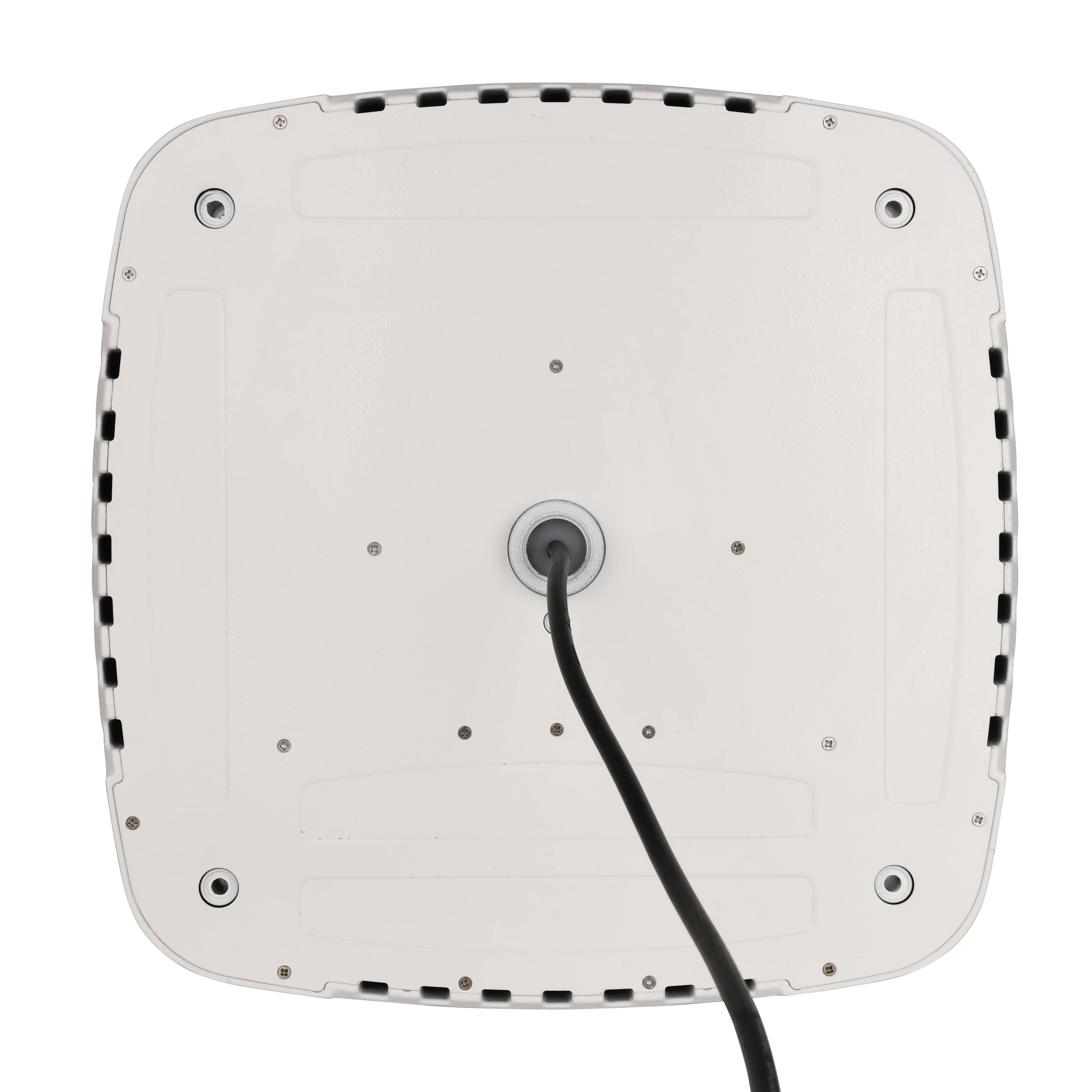

LED Gas Station Canopy Light
Product Fetures
1. Die-cast aluminum body, good heat dissipation.
2. High light transmittance stripe PC cover and anti-glare design.
3. White housing powder coat finish.
4. Ceiling and pipe installation,can meet di.erent environments installation requirements.
5. Meet UL DLC certification requirements.
6. 5 years warranty.
2. High light transmittance stripe PC cover and anti-glare design.
3. White housing powder coat finish.
4. Ceiling and pipe installation,can meet di.erent environments installation requirements.
5. Meet UL DLC certification requirements.
6. 5 years warranty.
Electric Parameter
1. Input Voltage: 120～277V
2. Luminous E.cacy: >125 Lm/W
3. Color Temperature: 4000K/5000K/5700K.
4. CRI: Ra>70.
5. Working temperature: -25～+45℃.
6. PF: .0.9
2. Luminous E.cacy: >125 Lm/W
3. Color Temperature: 4000K/5000K/5700K.
4. CRI: Ra>70.
5. Working temperature: -25～+45℃.
6. PF: .0.9
Application
Gas station, Parking garage, Warehouse, Museums, Art Galleries, Shopping Malls, Hotel, etc.

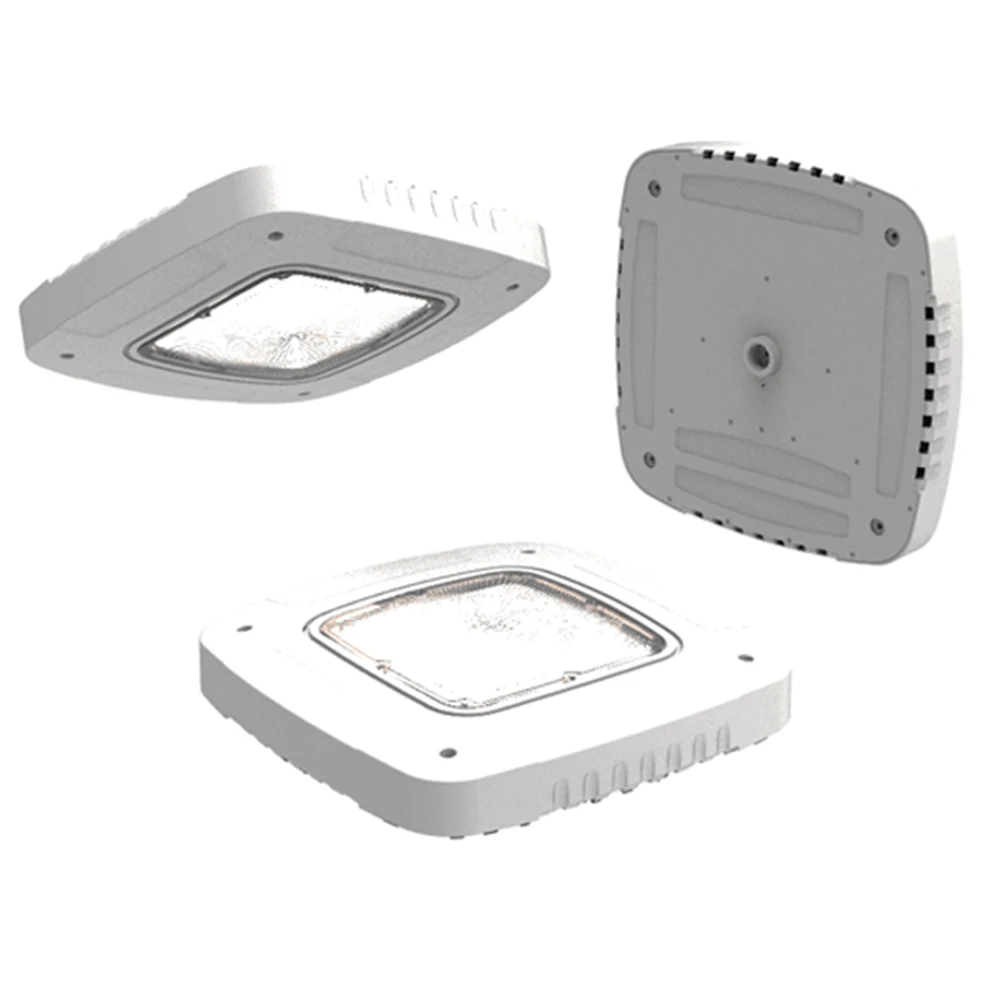

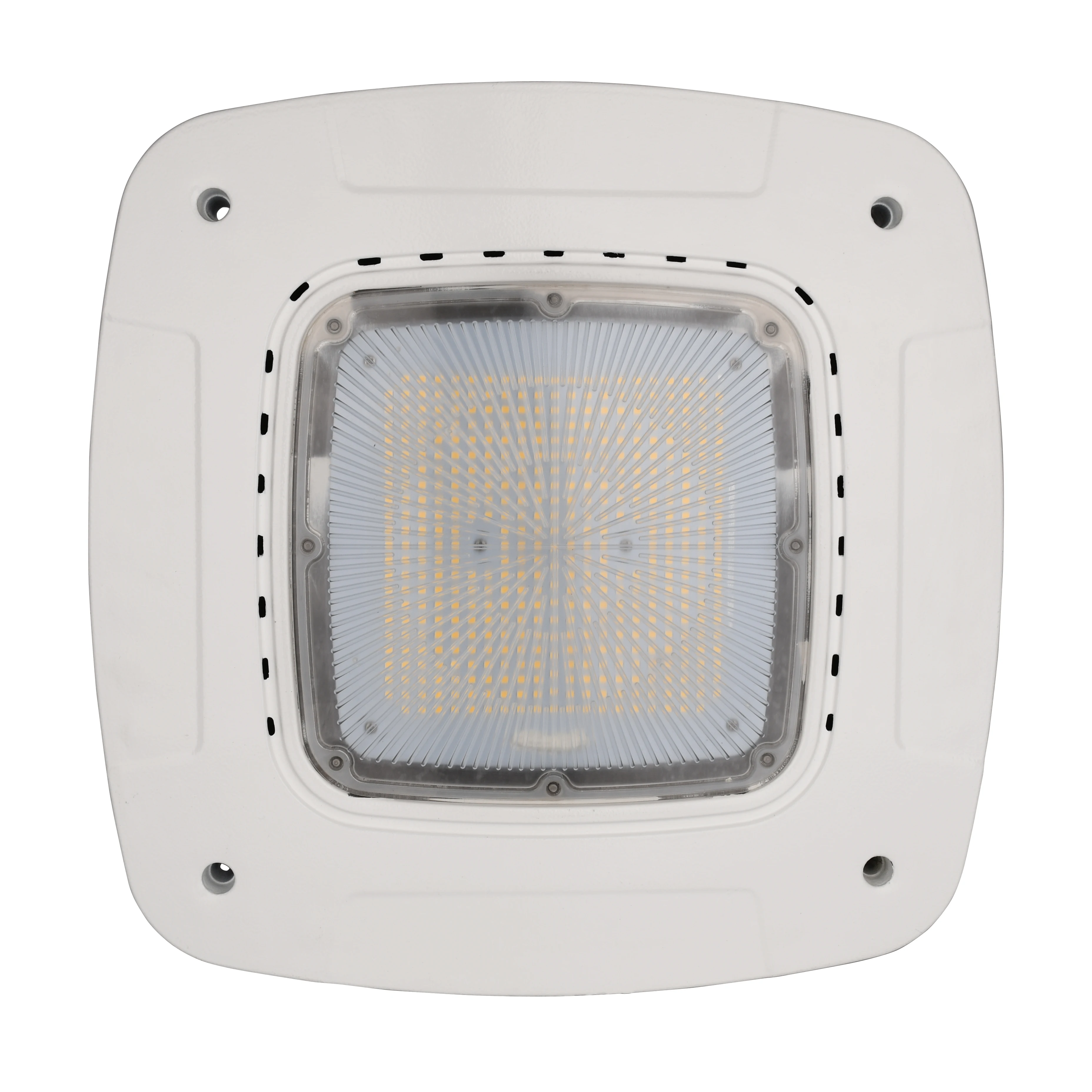

Product Presentation
Product parameter
Model | CCT | CRI | System power | Luminous efficacy | Dimension/MM | |||||
YR-CP380-W100 | 4000-5700K | ≥70 | 100 | 130LM/W | 380*380*75.5 | |||||
YR-CP380-W120 | 4000-5700K | ≥70 | 120 | 130LM/W | 380*380*75.5 | |||||
YR-CP380-W150 | 4000-5700K | ≥70 | 150 | 130LM/W | 380*380*75.5 | |||||
Input voltage: AC100-277V | ||||||||||
LED chip: SMD2835 | ||||||||||
Beam angle: 110° | ||||||||||
Working temperature: -25℃ - 45℃ | ||||||||||
IP grade: IP65 | ||||||||||

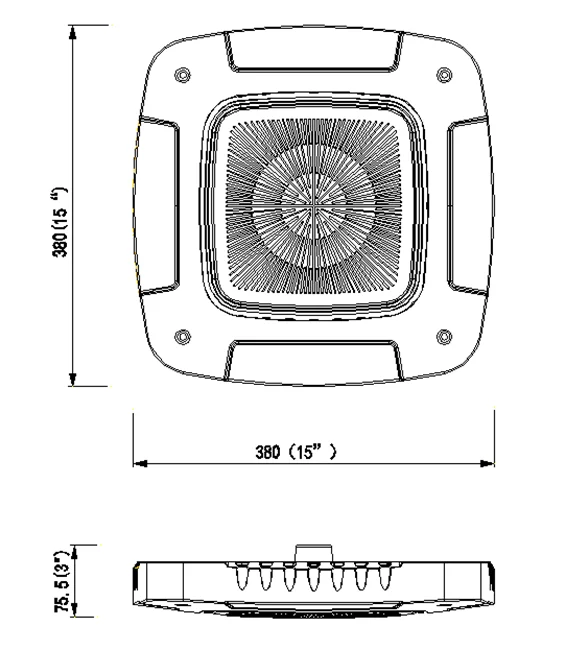

Dimension image

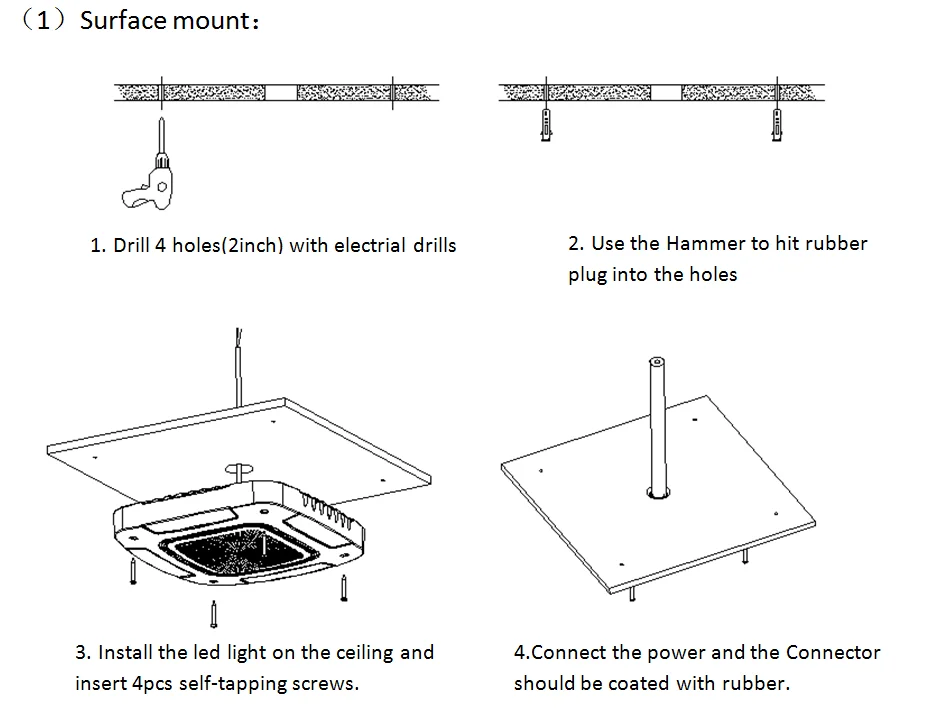

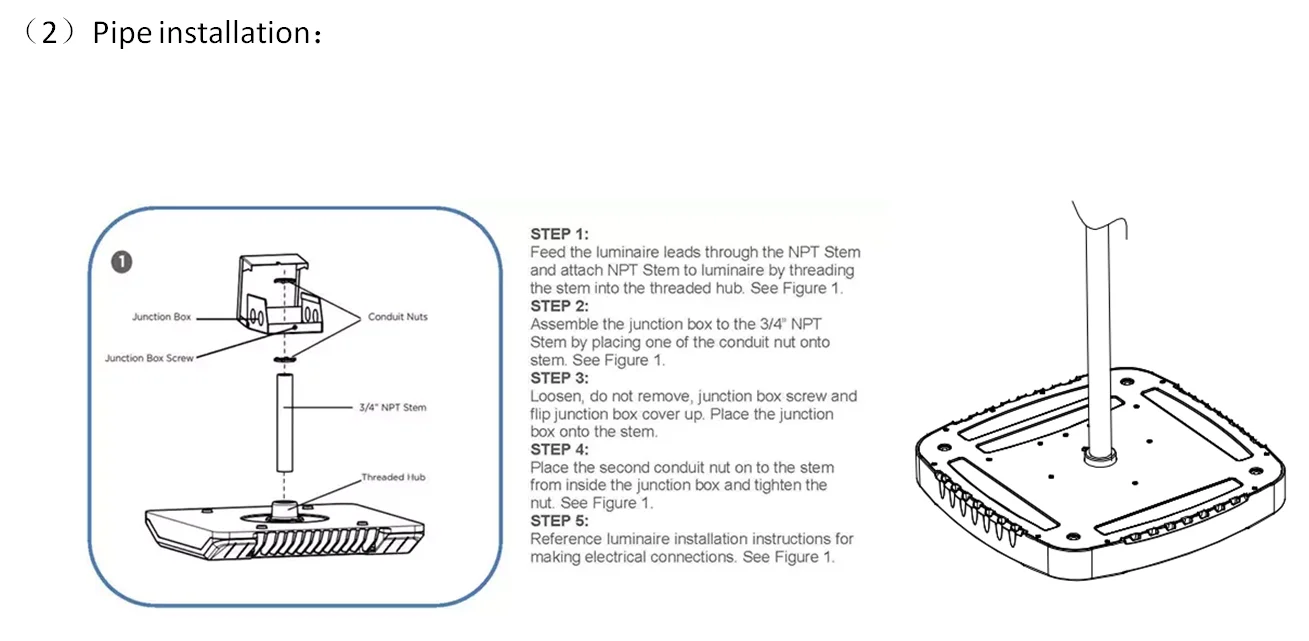

Installation presentation

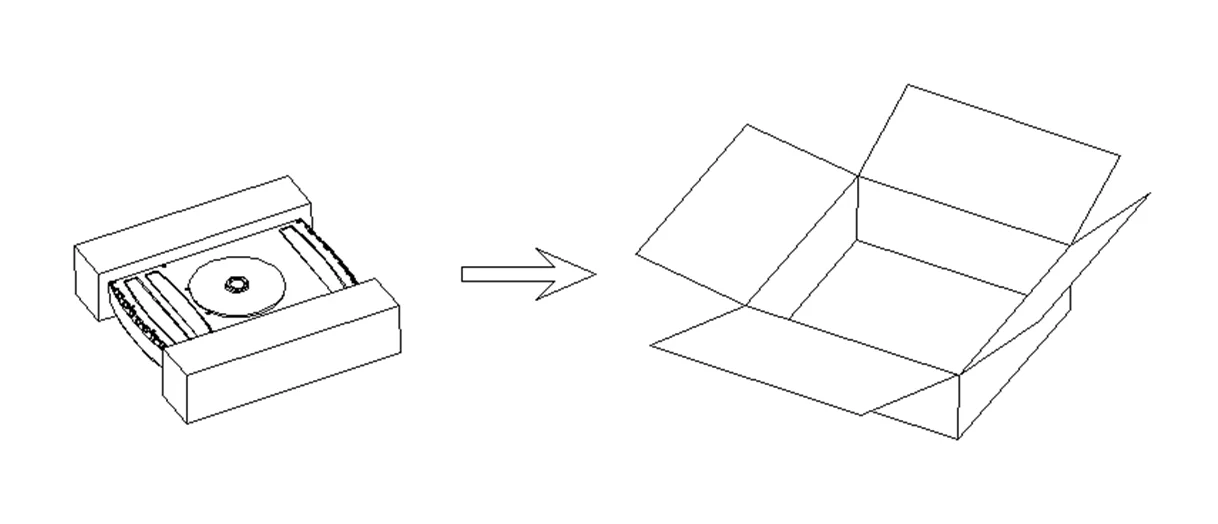

Package information
Model | Carton size/ MM | Net weight | Gross weight |
YR-CP380-W100 | 410*410*120 | 4.5KG | 5.2KG |
YR-CP380-W120 | 410*410*120 | 4.5KG | 5.2KG |
YR-CP380-W150 | 410*410*120 | 4.5KG | 5.2KG |
Certificate
Related Products

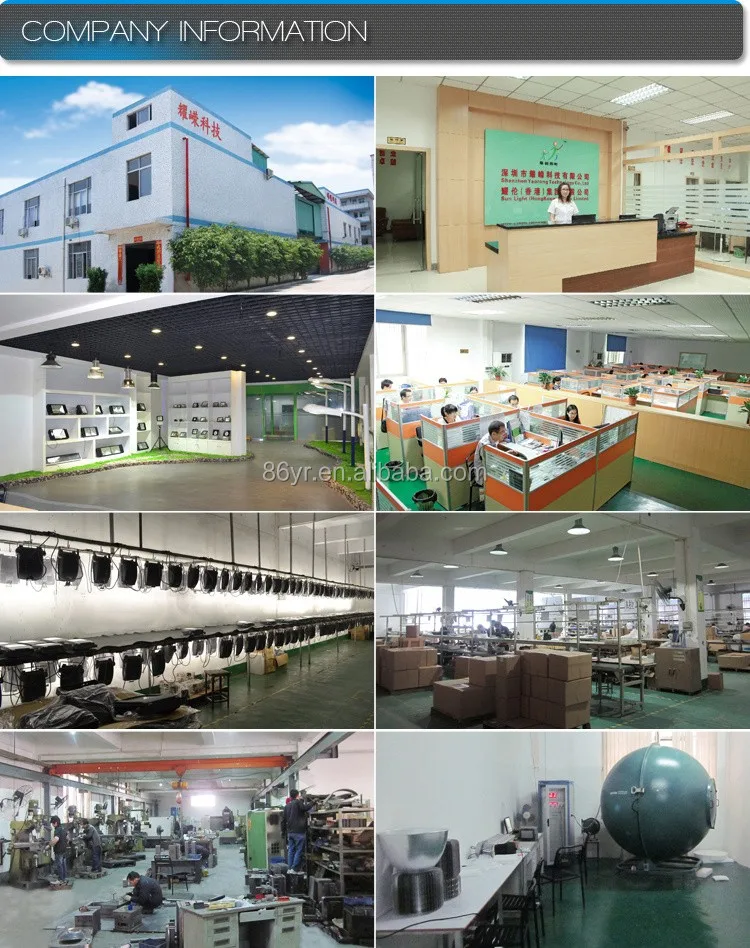

Company Introduction
