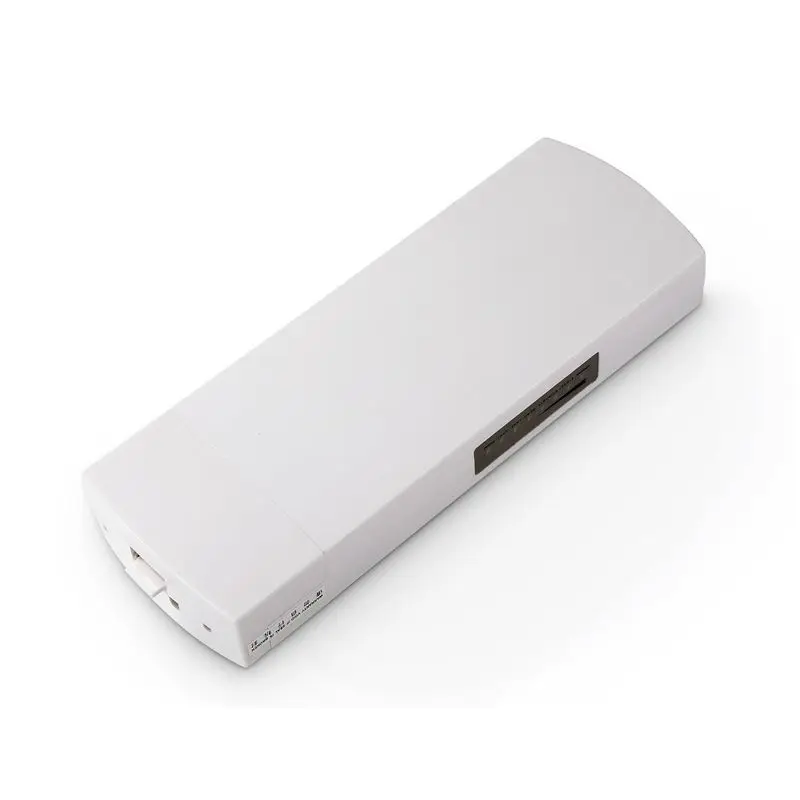

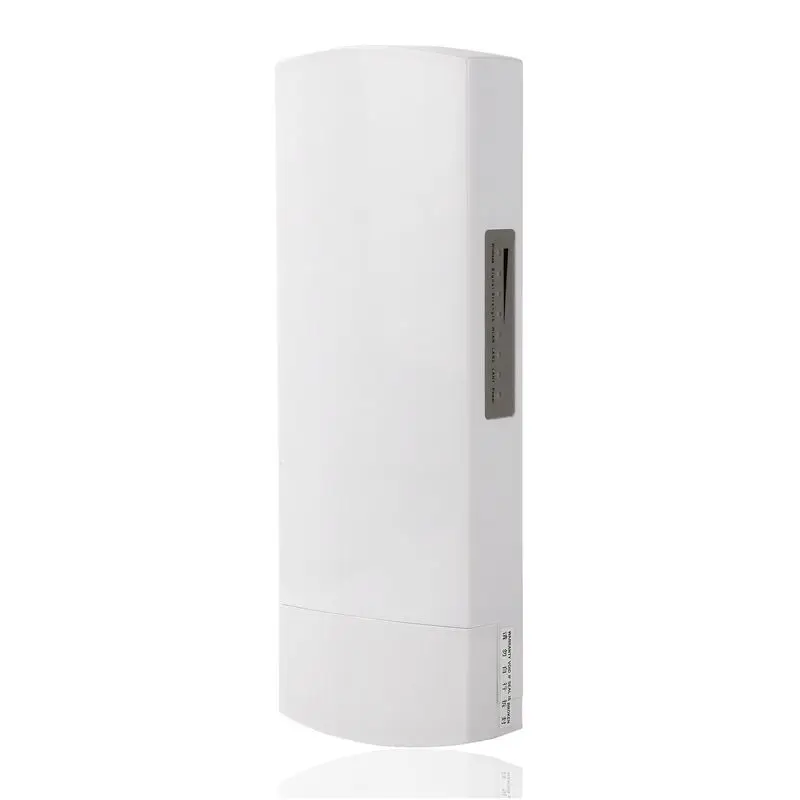

CEP028 Long Range 5KM 5.8G 300Mbps Outdoor Router Point To Point Wireless Wifi Bridge
- Category: >>>
- Supplier: Shenzhen Huasifei Technology Co. Ltd.
Share on (1600431013014):
Product Overview
Description
Product Description
Outdoor High Power Weatherproof CPE/Wifi Extender/Access Point/Router/5.8GHz 300Mbps

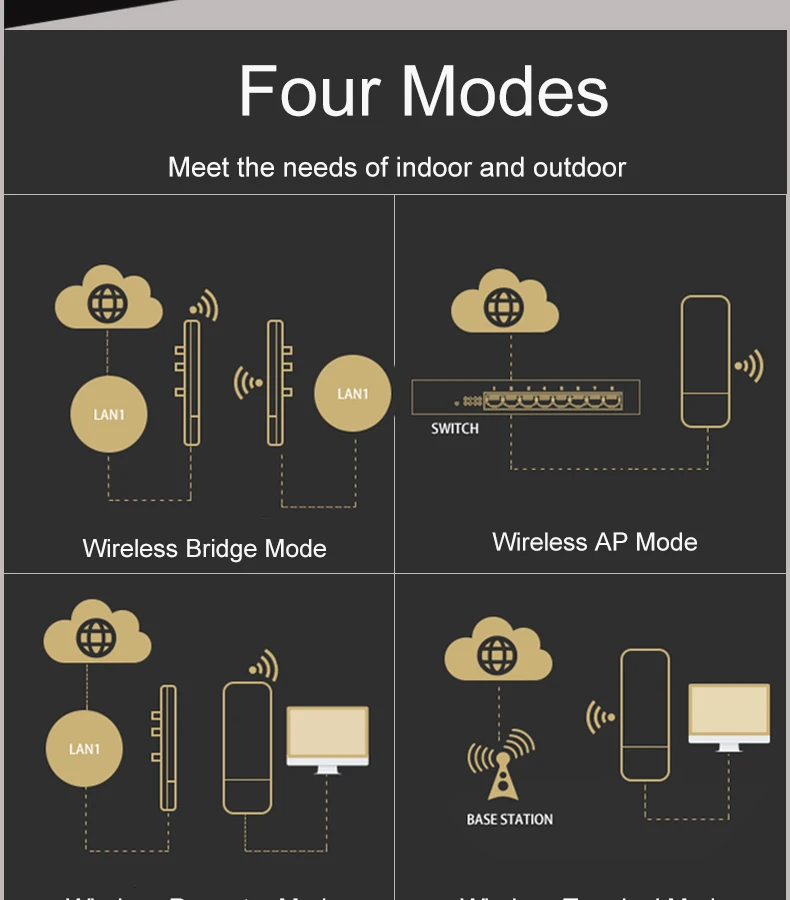

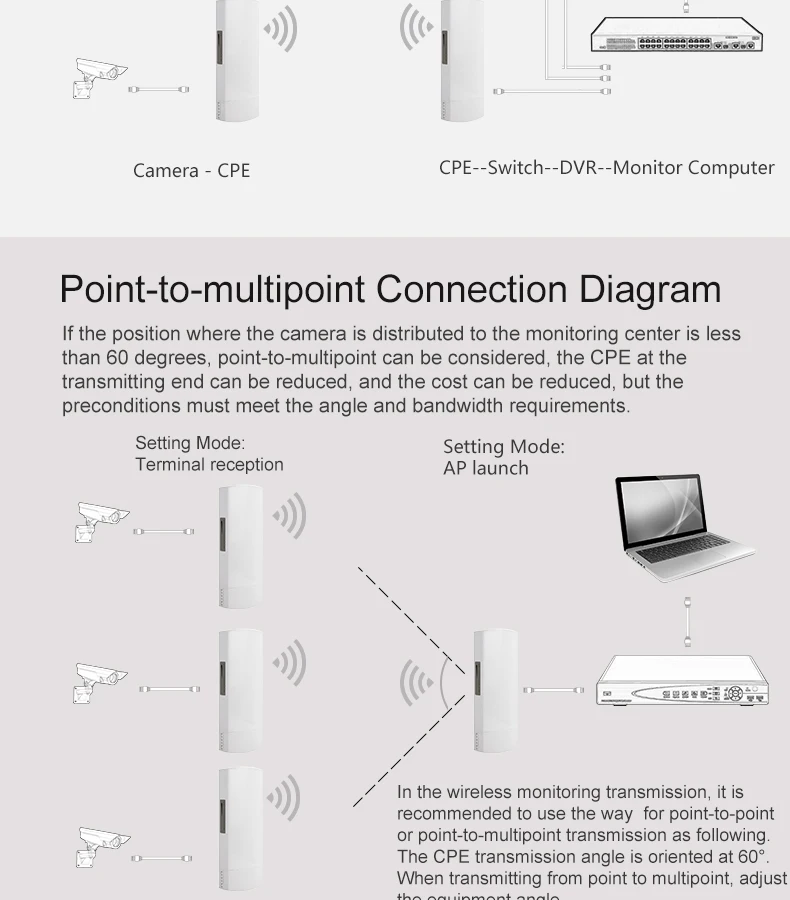

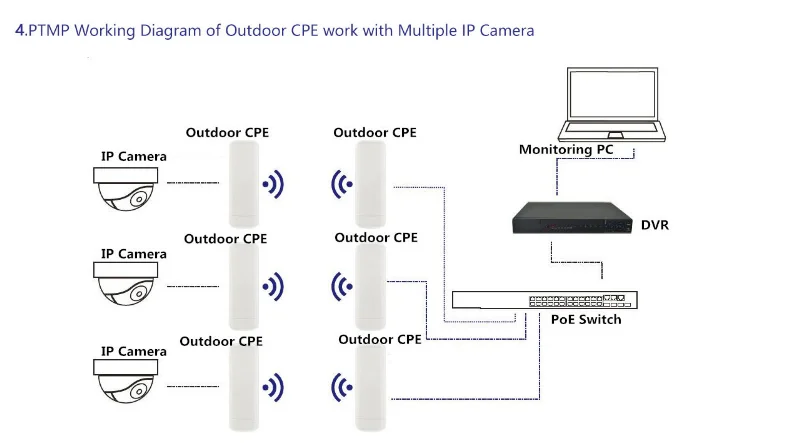

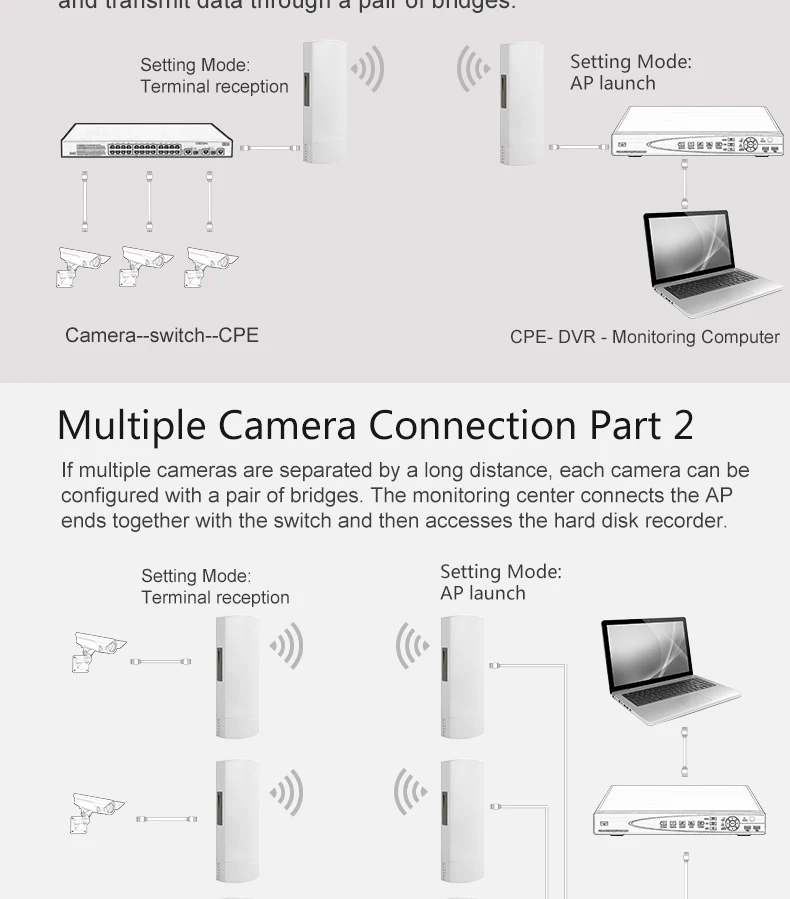

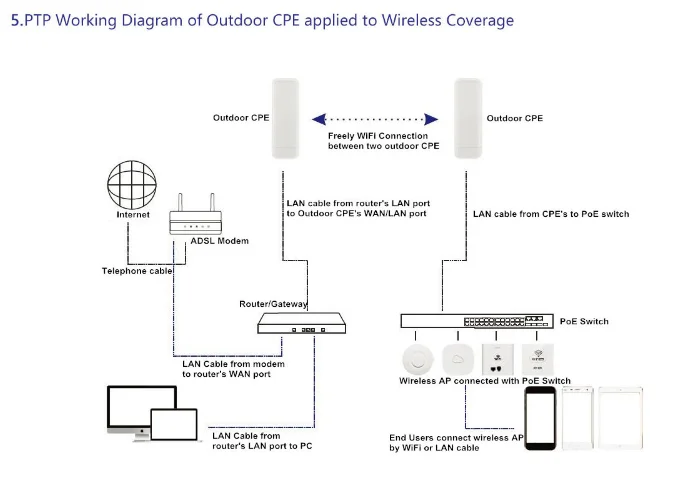

Cpe028 is an outdoor high-performance 300 Mbps 5.8G CPE with an operating frequency of 5g. It supports point-to-point and point to multipoint wireless connections. It has better anti-interference performance than 2.4G products. It can be managed through the web interface.
characteristic:
1. Comply with 5.8GHz IEEE 802.11a and IEEE 802.11n standards
2. Support CSMA / Ca, CSMA / CD, TCP / IP, PPPoE, DHCP, ICMP and NAT protocols

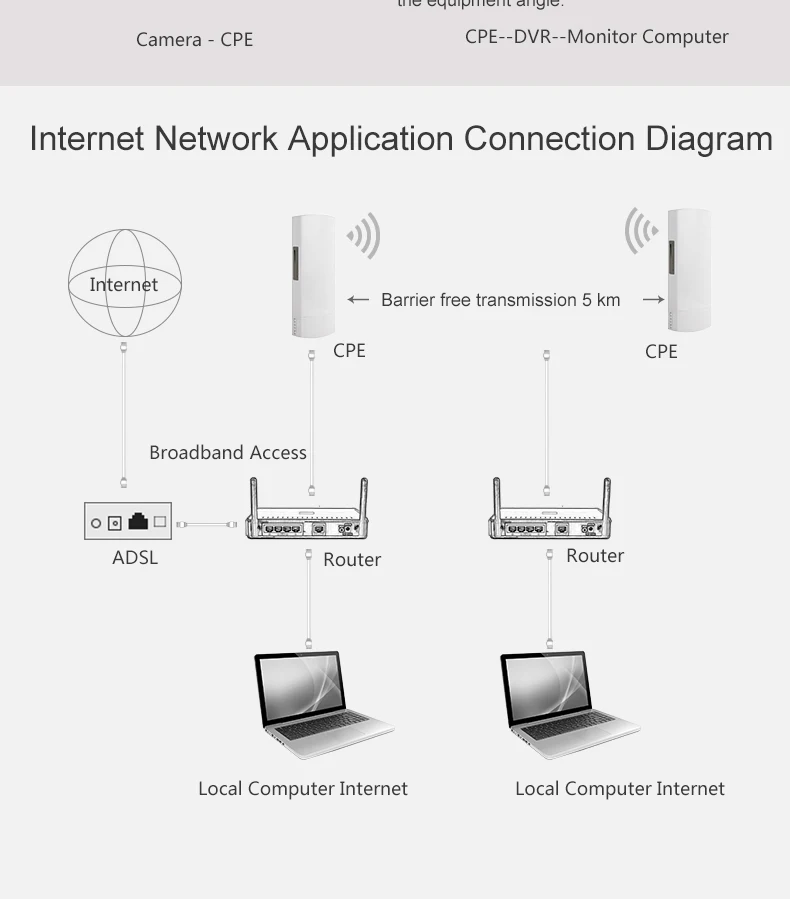

3. Transmission distance: 5km (visible unobstructed environment)
4. Low interference: at present, most wireless devices work at 2.4G frequency, and 5g frequency makes them have better anti-interference performance
5. The transmission speed is up to 300 Mbps, and the built-in 14 DBI directional antenna can significantly improve the transmission and reception performance of wireless signals

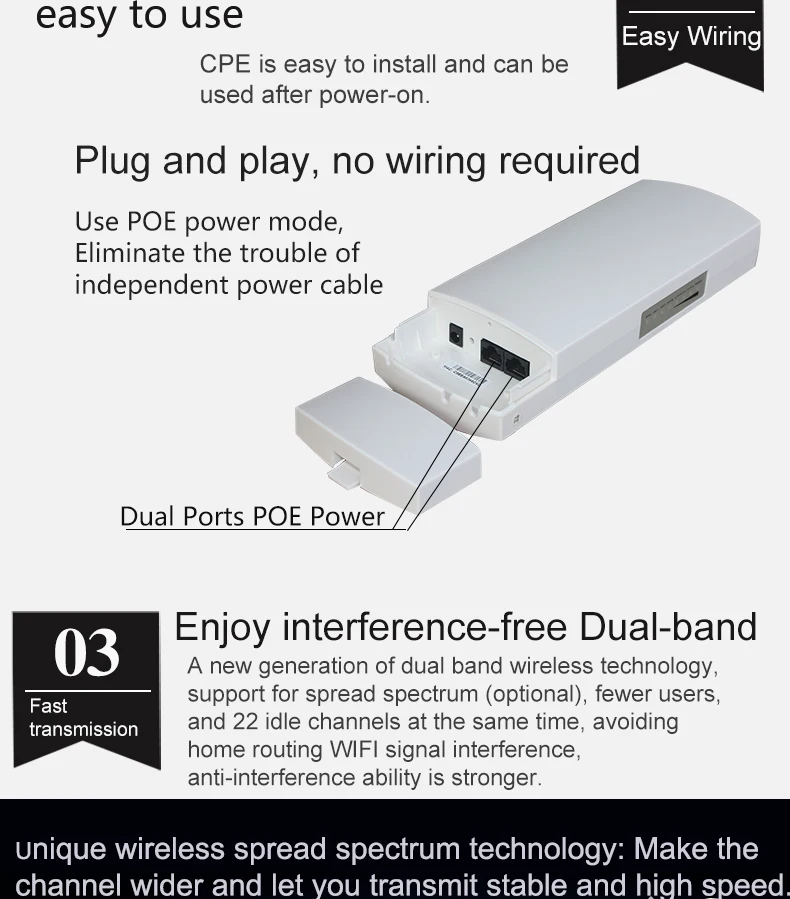

6. Support Poe power supply (50m), easy installation and cost saving
7. Support 64 / 128 bit WEP encryption and WPA - PSK, WPA 2 - PSK security protection
8. Good compatibility and strong anti-interference ability of adjacent channels; It can automatically adjust to the best transmission speed according to the actual signal strength and transmission distance.
Outdoor CPE Technical Specification:
Outdoor CPE | ||||
Item | Specifications | |||
Solution | CPU:AR9344 RF:AR9344 | |||
Standards | IEEE802.3u MDI/MDIX 10/100Mbps IEEE802.11a IEEE 802.11n | |||
DDR | 64Mbyte | |||
FLASH | 8Mbyte | |||
PoE Power | 12V—24V passive POE support | |||
CPU Frequency | 533MHz | |||
Antenna | Internal 14dBi directional panel dual-polarization antenna (horizontal beam 60º, Vertical beam 25º) | |||
Antenna | 2×2 (2Tx,2 Rx) | |||
Physical Ports | 2 10/100Mbps Ports | |||
Reset Button | Restore factory settings | |||
Firmware Upgrade | Through Web and TFTP | |||

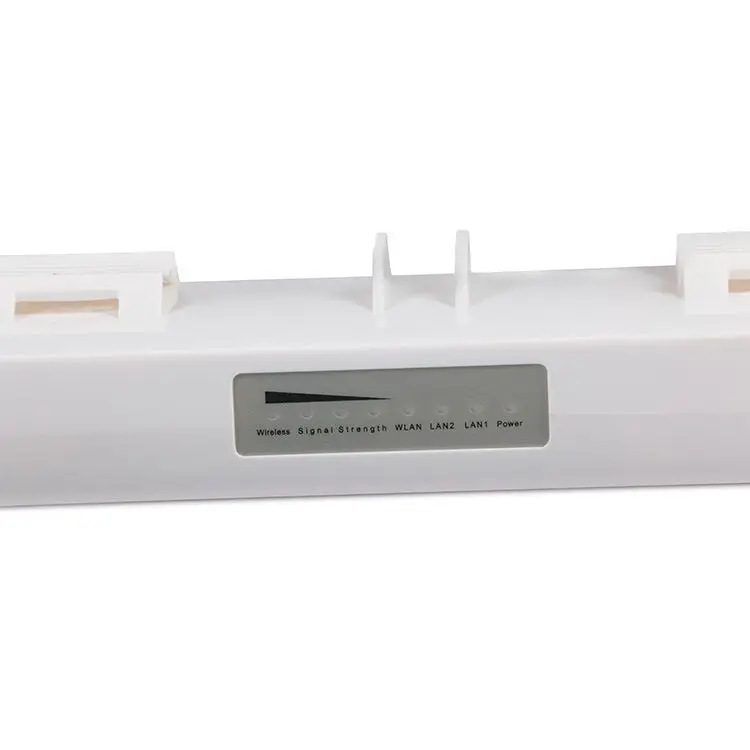

LED | Power LED l On :The power is on/system starts l Off: The power is off/system closes Lan LED l Off:There is no other device connected to the port l On:There is other device connected to the port l Blinking:There is data transmission on the port Wireless LED(AP Mode) l Off:No wireless connection l Blinking:There is wireless data transmission Wireless Signal Strength LED(Client mode) l Four signal strength indication LED all lighting up means the signal strength is at highest level; l Four signal strength indication LED all blinking means the signal strength is at weakest level | |||
Power Supply | 12VDC 1.5A or 18VDC 1A | |||
Data Transfer Rate | 11a: 54M, 48M, 36M, 24M, 18M, 12M, 9M, 6Mbps HT20:7.2M,14.4M,21.7M,28.9M,43.3M,57.8M,65M,72.2M,14.4M,28.9M, 43.3M,57.8M,86.7M,115.6M,130M,144.4M HT40:15M,30M,45M,60M,90M,120M,135M,150M,30M,60M,90M,120M, 180M,240M,270M,300M | |||
Transmission Type | DSSS | |||
Modulation Type | OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK | |||
RF Frequency range | 5.725 GHz ~ 5.850 GHz (channel 149 ~ 165) | |||
RF Power | 802.11a | 6-24Mbps | 24.0 ± 2.0dBm | |
36-48Mbps | 23.0 ± 2.0dBm | |||
54Mbps | 22.0± 2.0dBm | |||
802.11n | HT20 | MCS 0-3 | 23.0 ± 2.0dBm | |
MCS 4 | 22.5 ± 2.0dBm | |||
MCS 5 | 21.5 ± 2.0dBm | |||
MCS 6 | 21.0 ± 2.0dBm | |||
MCS 7 | 20.0 ± 2.0dBm | |||
HT40 | MCS 0-3 | 23.0 ± 2.0dBm | ||
MCS 4 | 22.5 ± 2.0dBm | |||
MCS 5 | 21.5 ± 2.0dBm | |||
MCS 6 | 21.0 ± 2.0dBm | |||
MCS 7 | 20.0 ± 2.0dBm | |||
Sensitivity |
| IEEE 802.11a 6Mbps= -90dBm 54Mbps =-71dBm | IEEE 802.11n HT 20 MCS 0=- 86dBm MCS 7=- 68dBm HT 40 MCS 0=- 83dBm MCS 7=- 65dBm | |
Power consumption | 8W Max | |||
Environment | ||||
Operation Temperature | -20~+70°C | |||
Operation Humidity(non-condensation) | 10%~95% RH | |||
Store Temperature | -40~+85°C | |||
Store Humidity(non-condensation) | 10%~95% RH | |||
Environmental Standards | RoHs Compliance | |||

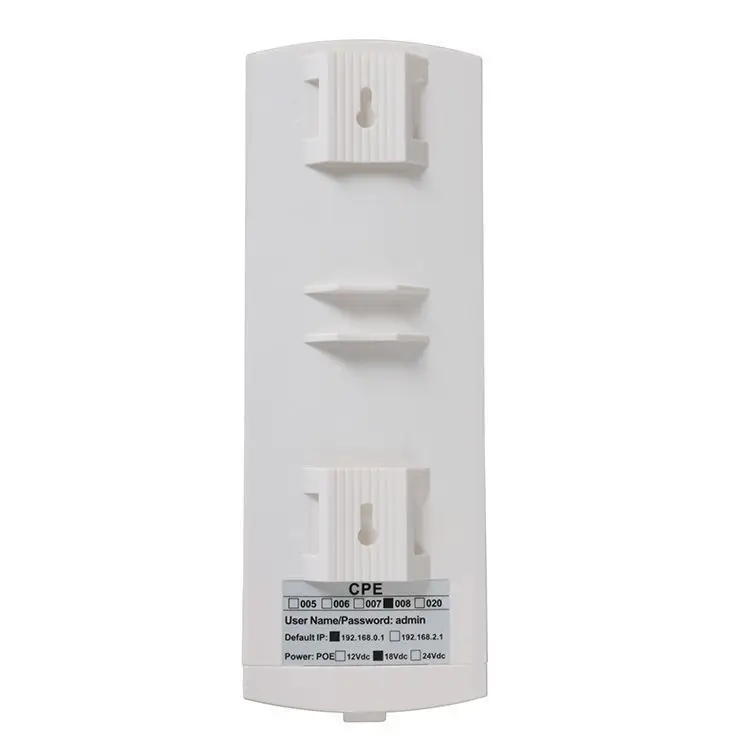

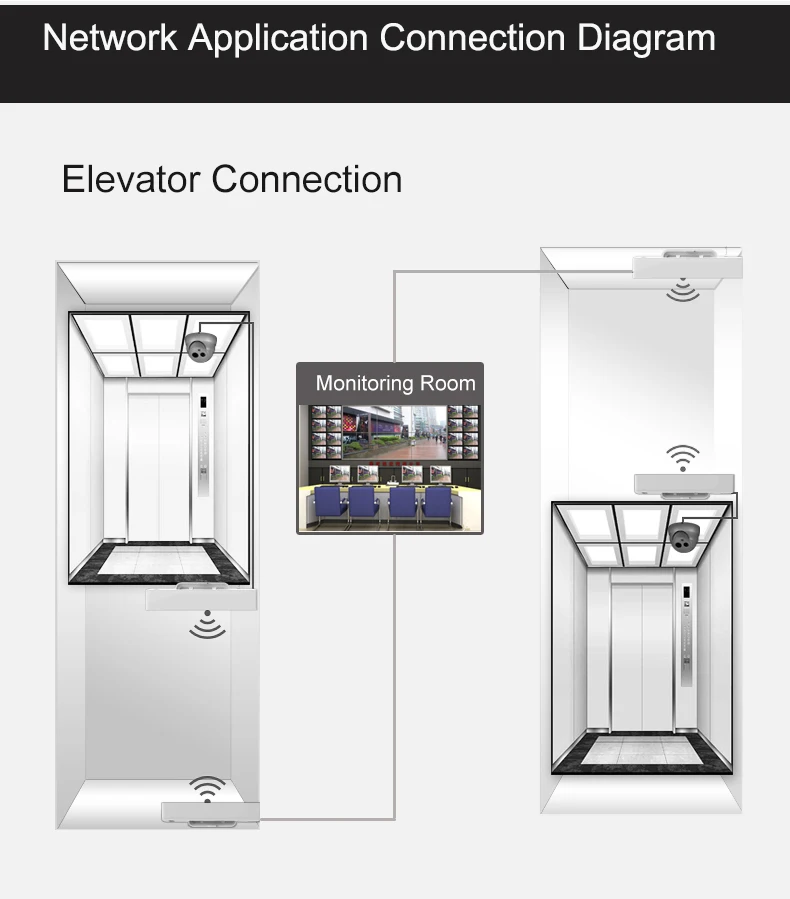

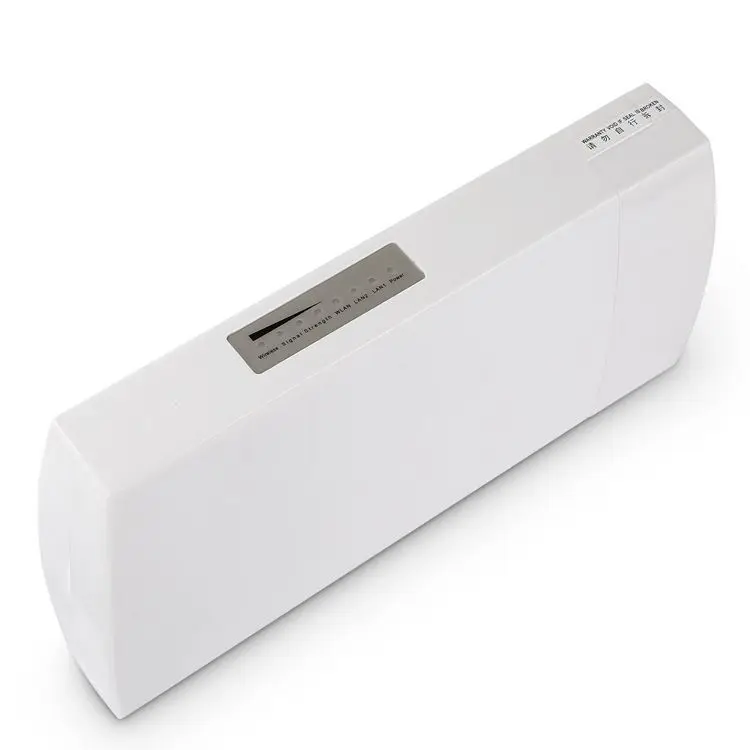

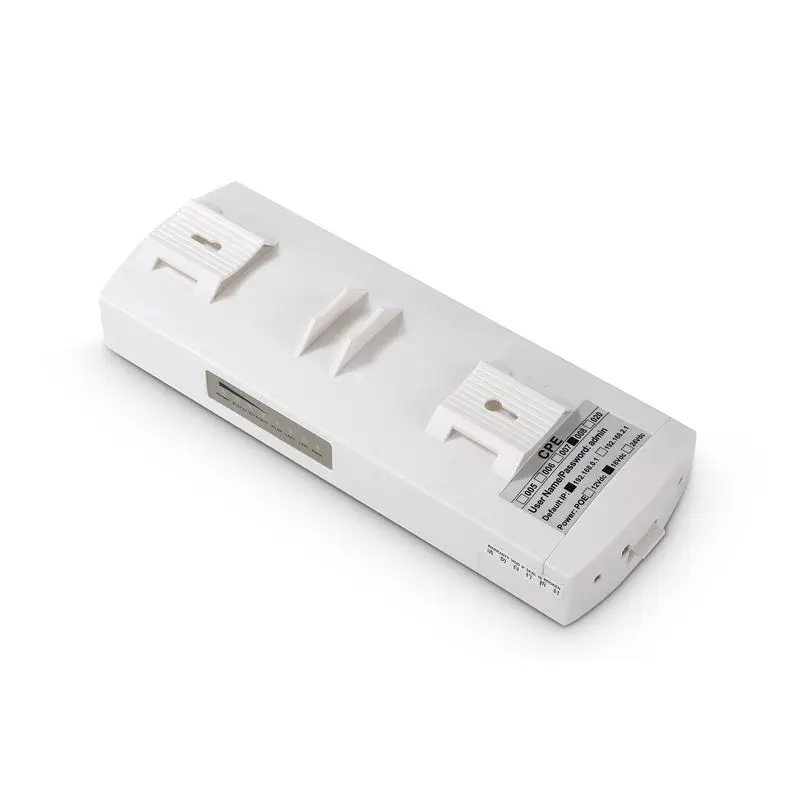

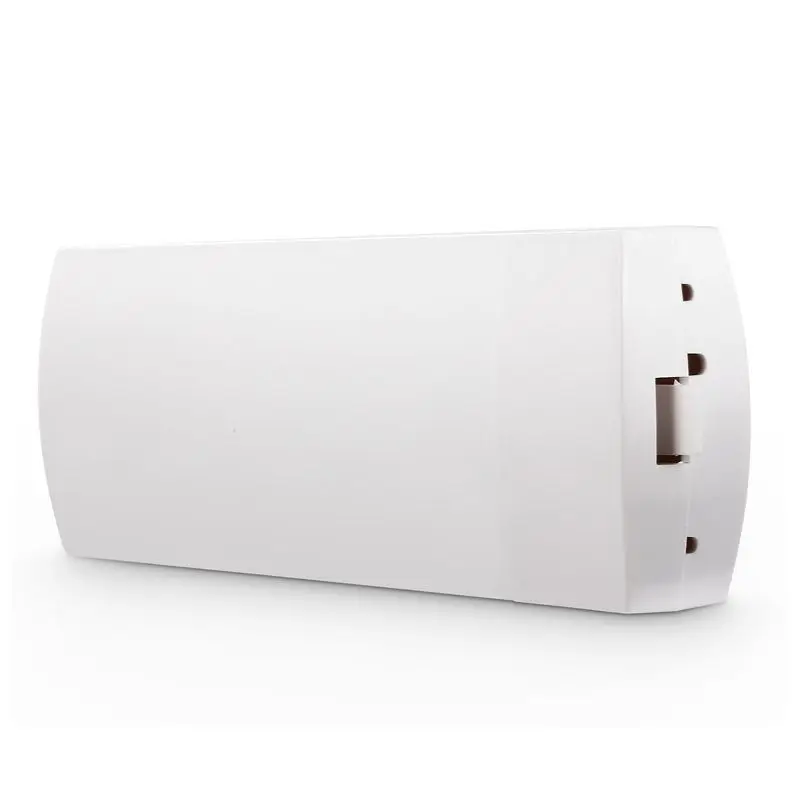

Detailed image
Company Information

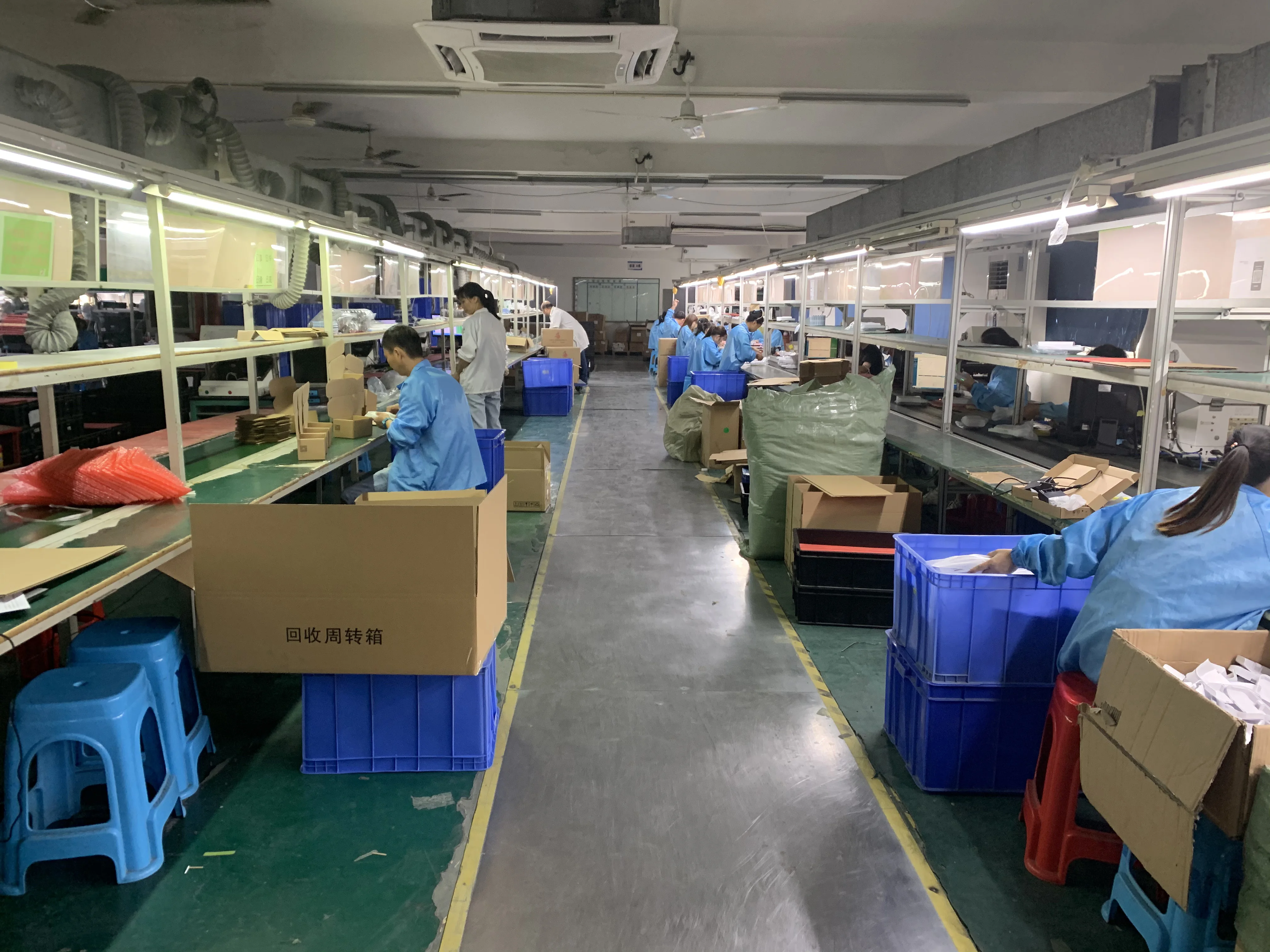

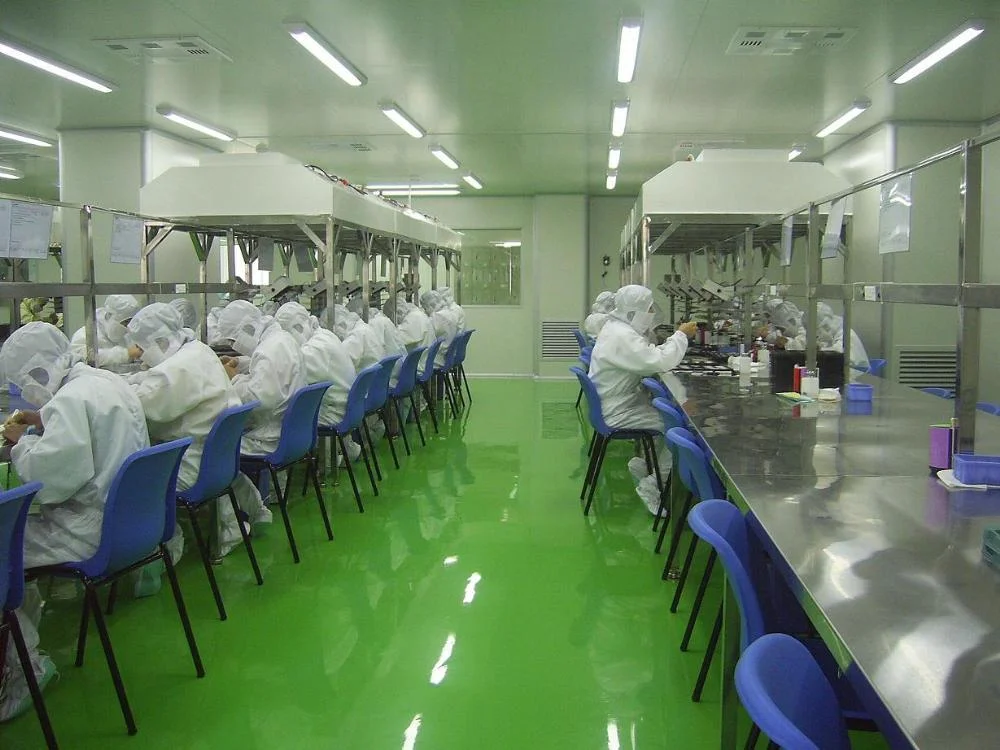

HUASIFEI is a manufacturer professional in R&D and producing network equipments, products are included Access Point, openWRT wifi router, Vehicle router, outdoor CPE, 3G/4G/5G wifi router. HUASIFEI also is a wifi coverage sloutions provider, provides the solution for hotel, school,hospital,enterprise,vehicle field etc. with 50 people R&D team and around 700 people in factory, 20,000 Square meters production scale, is very skilled at processing OEM/ODM design, also builds the long term cooperation with Mediatek, Broadcom,Qualcomm, capably offering good quality product and fast after-sale service.Till now, HUASIFEI's products have exported to over 30 countries and regions.
