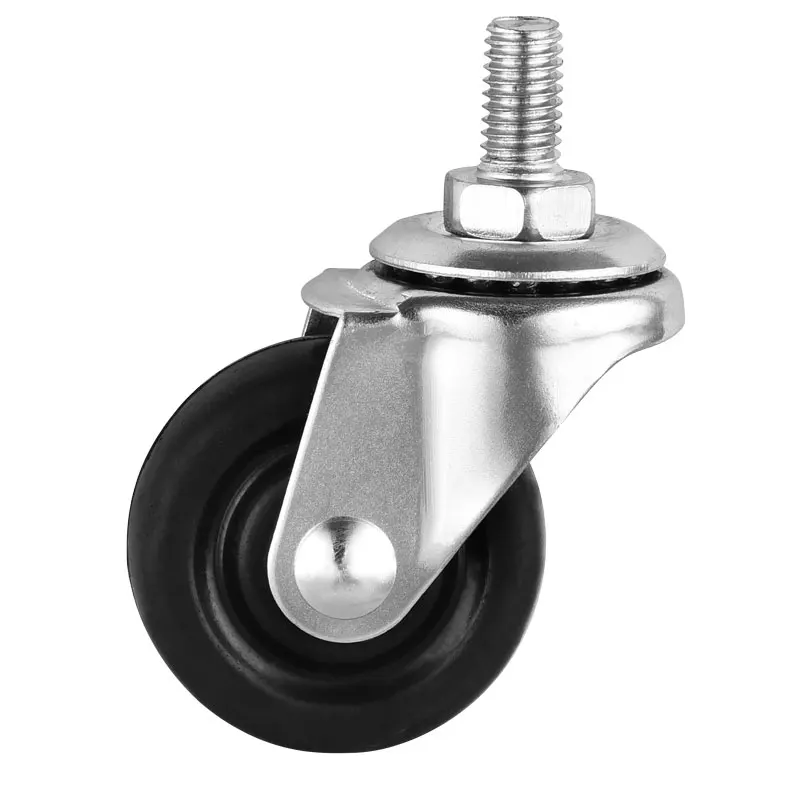

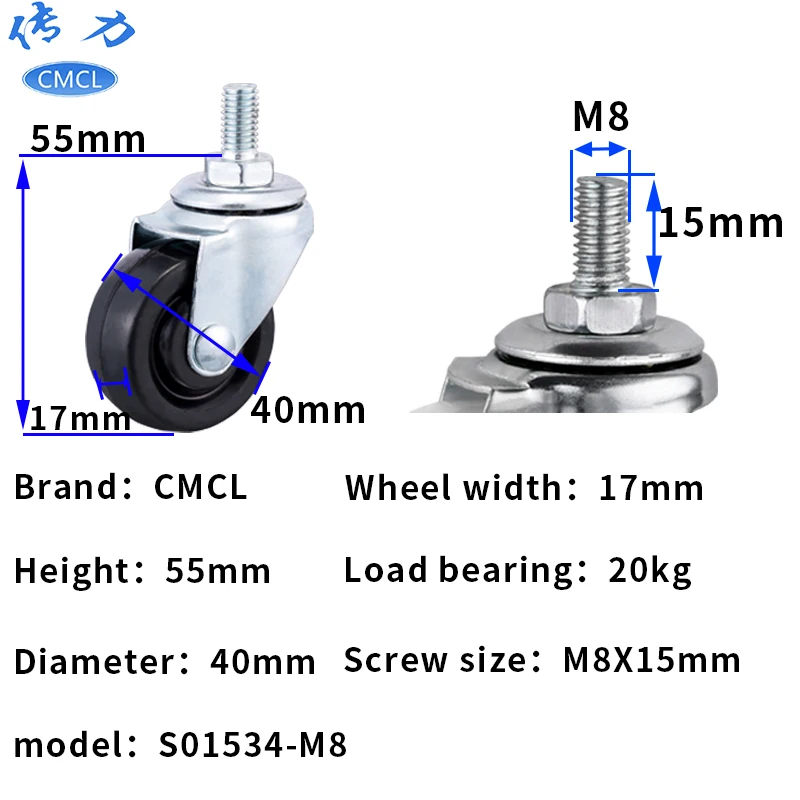

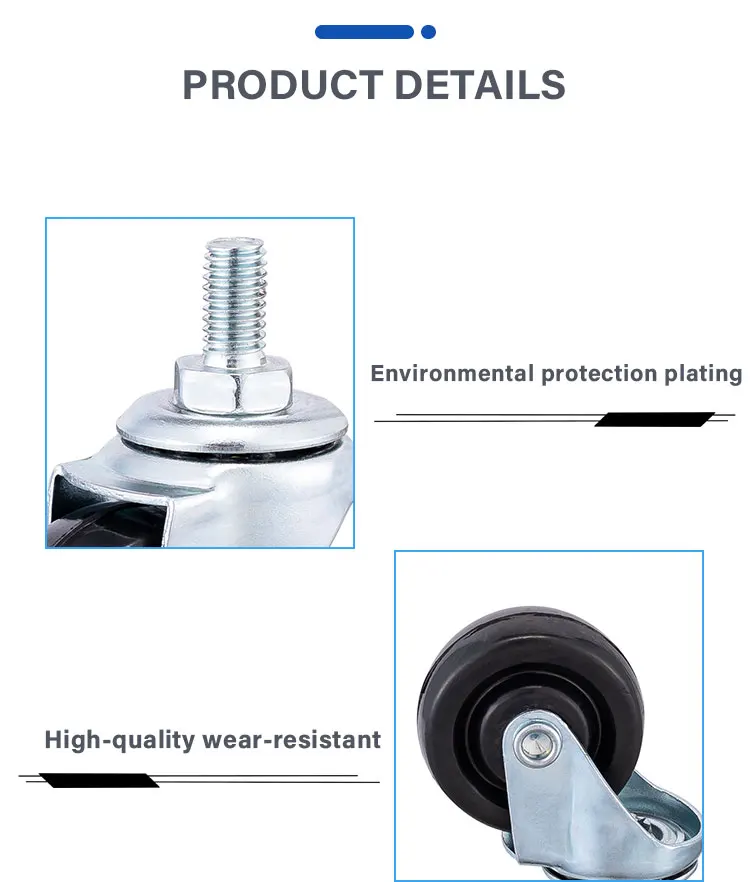

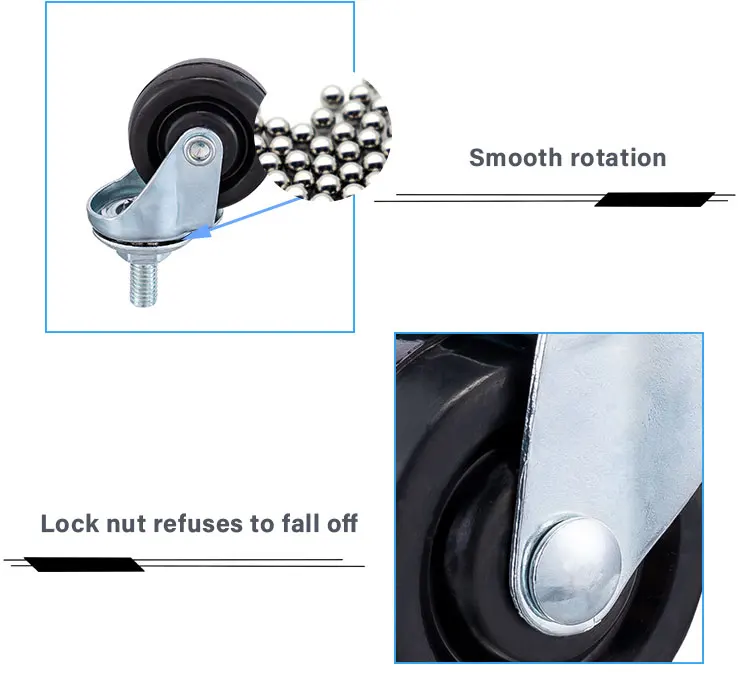

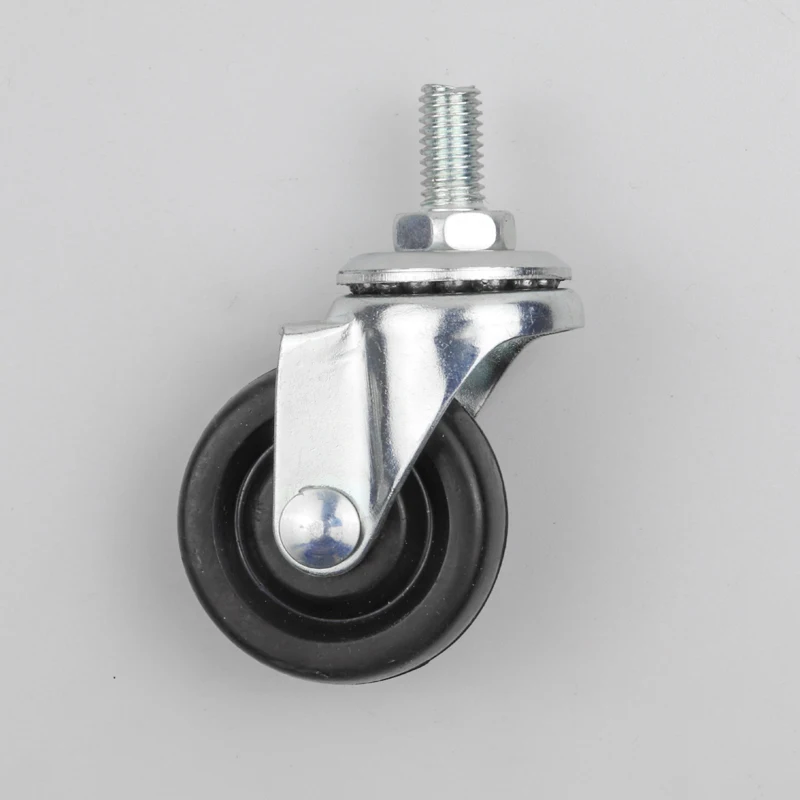

Silent castor M8x15 Caster Wheel Rubber Black Caster 1.5 Inch Rubber Caster
- Category: >>>
- Supplier: Foshan Chuanli Caster Manufacturing Co. Ltd.
Share on (1600431018903):
Product Overview
Description
Products Description

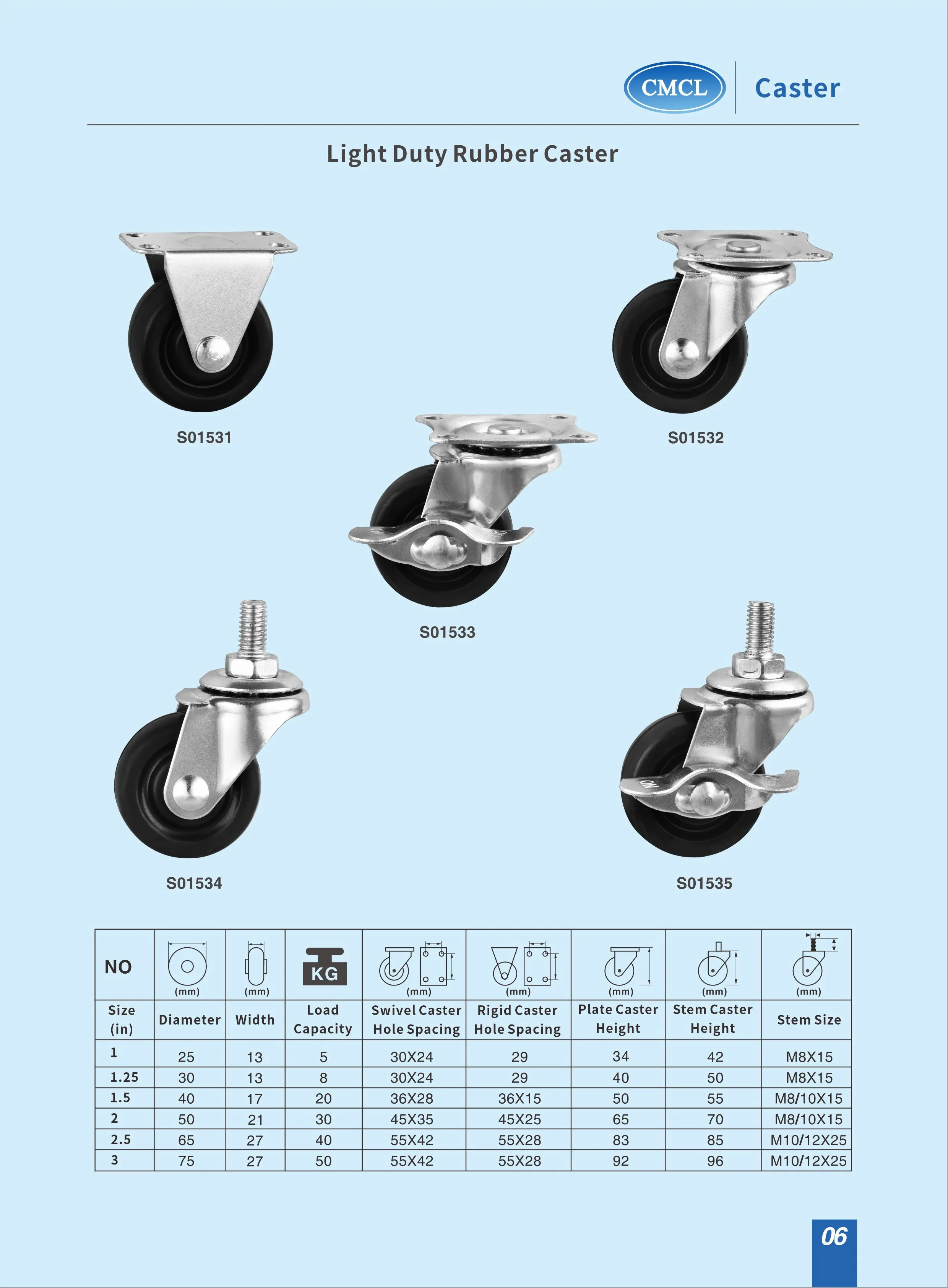

Size and specification | ||||||||||||||
Size | Diameter (mm) | Width (mm) | Load Capacity (kg) | Top Plate size (L mm*W mm) | Height (mm) | Height (mm) | Stem size | |||||||
1.5 inch | 40 | 17 | 20 | 60x43 | 55 | 60 | M6/M8/M10x15 | |||||||
2 inch | 50 | 21 | 30 | 70x50 | 70 | 72 | M8/M10x15 | |||||||
2.5 inch | 65 | 27 | 40 | 92x64 | 85 | 90 | M10/M12x25 | |||||||
3 inch | 75 | 27 | 50 | 92x64 | 96 | 103 | M10/M12x25 | |||||||

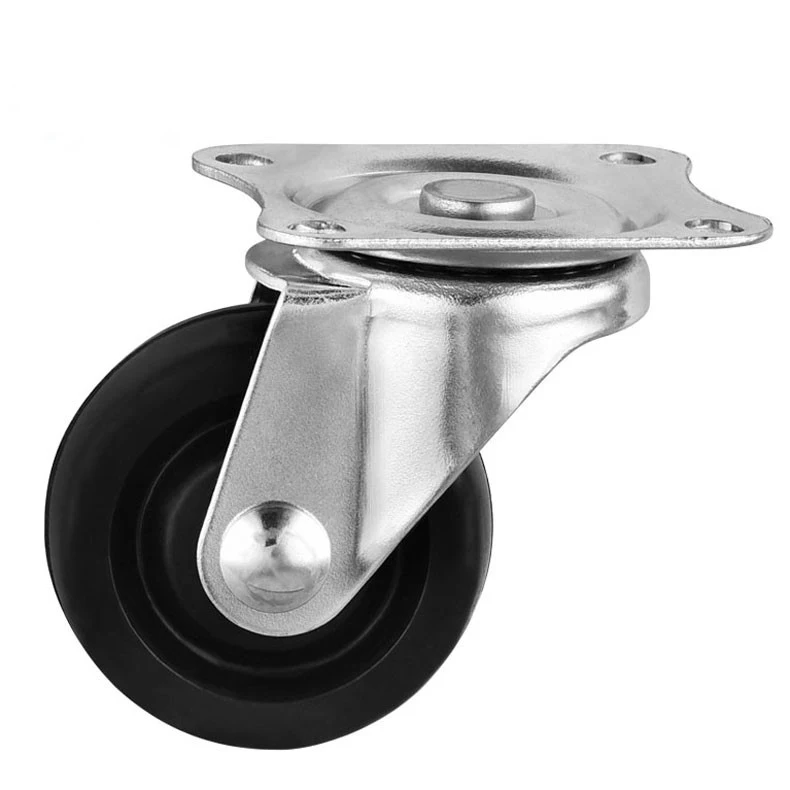

Size | Diameter (mm) | Width (mm) | Load Capacity (kg) | Swivel Hole (L mm*W mm) | Rigid Hole (L mm*W mm) | Height (mm) | Bolt hole diameter | ||
1.5 inch | 40 | 17 | 20 | 36x28 | 36x15 | 50 | 5.2 | ||
2 inch | 50 | 21 | 30 | 45x35 | 45x25 | 65 | 6.2 | ||
2.5 inch | 65 | 27 | 40 | 55x42 | 55x28 | 83 | 8.2 | ||
3 inch | 75 | 27 | 50 | 55x42 | 55x28 | 92 | 8.2 | ||
Product Applications
Company Profile
Recommend Products

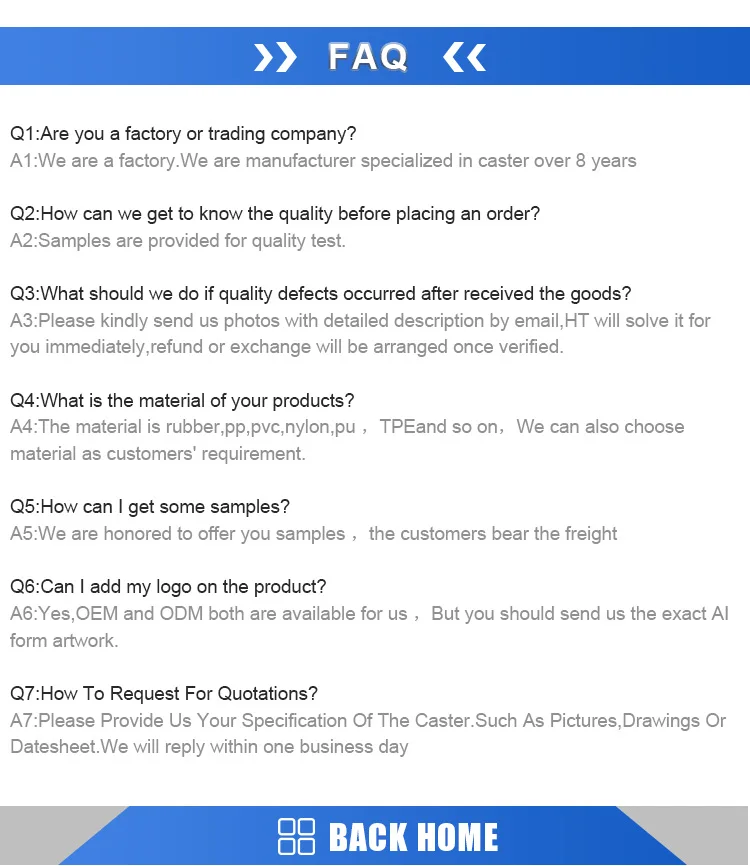

FAQ
