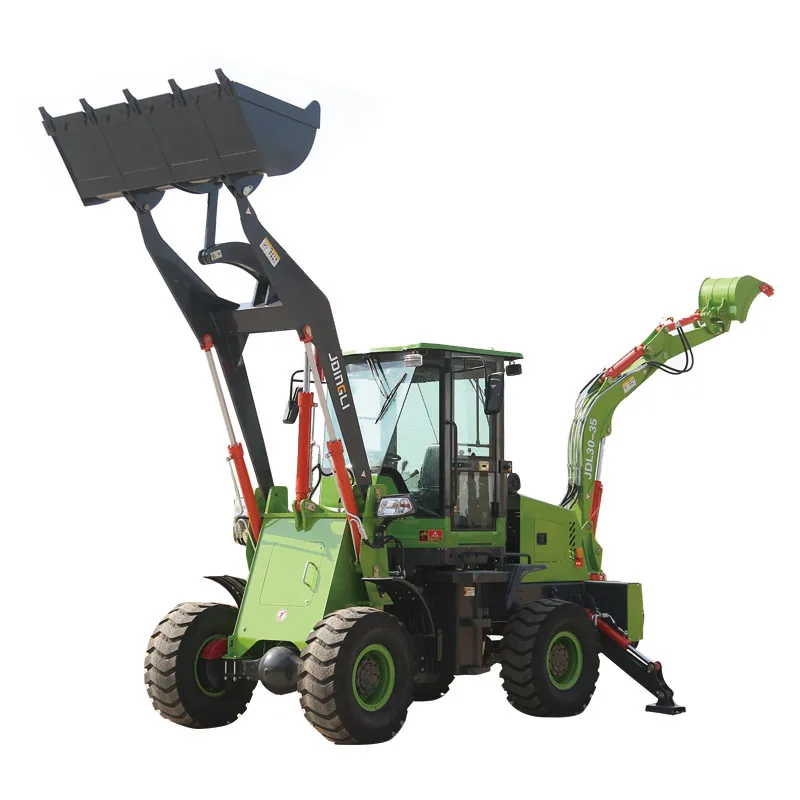

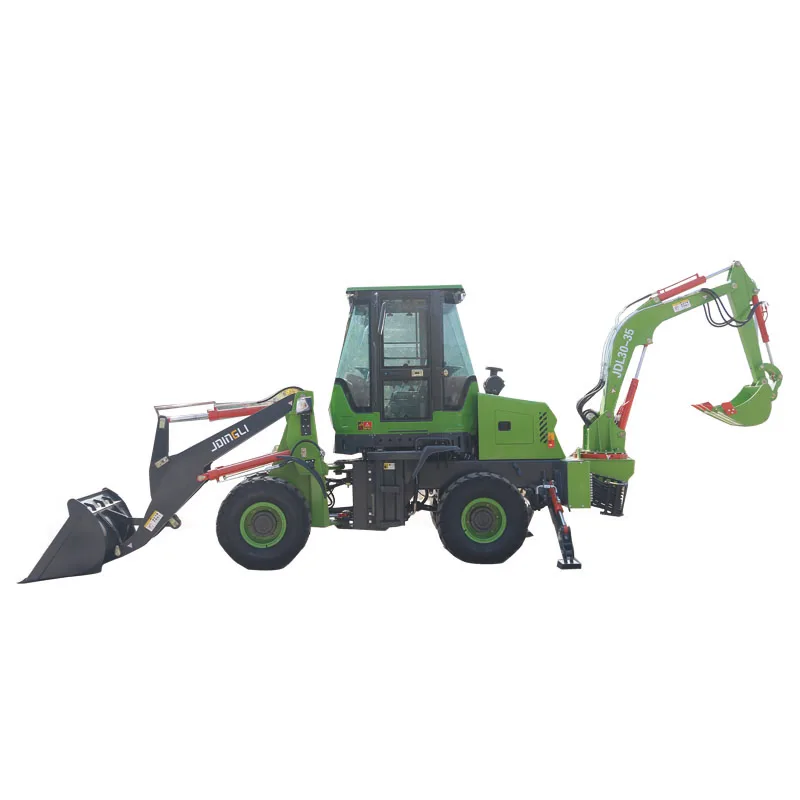

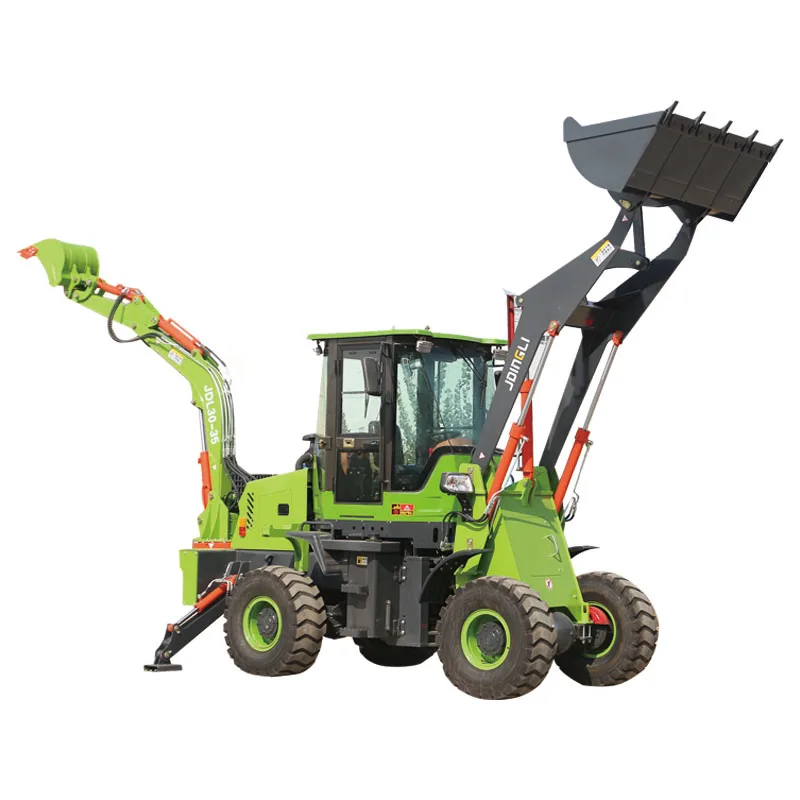

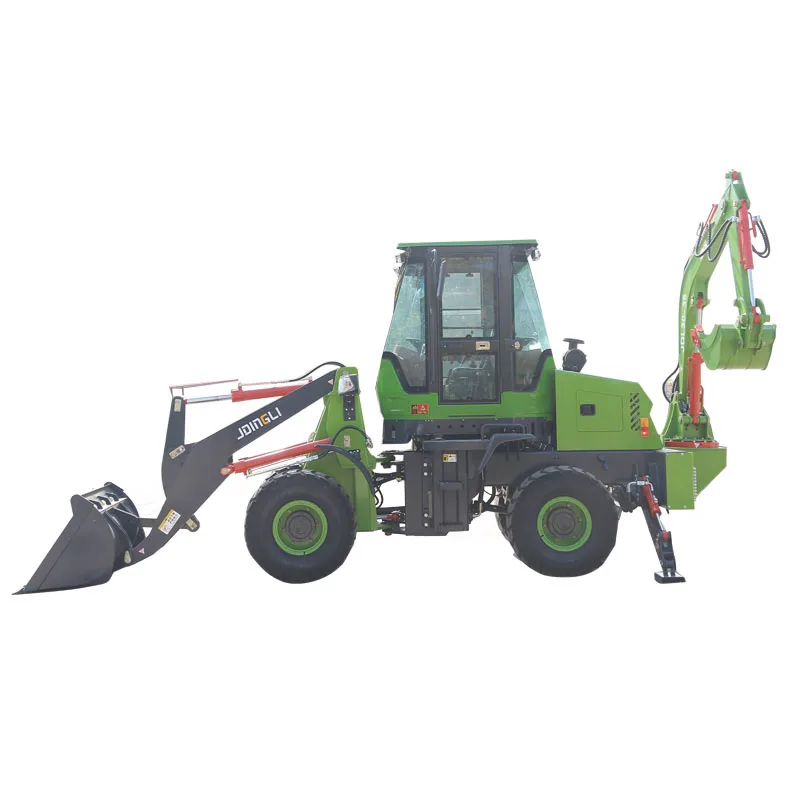

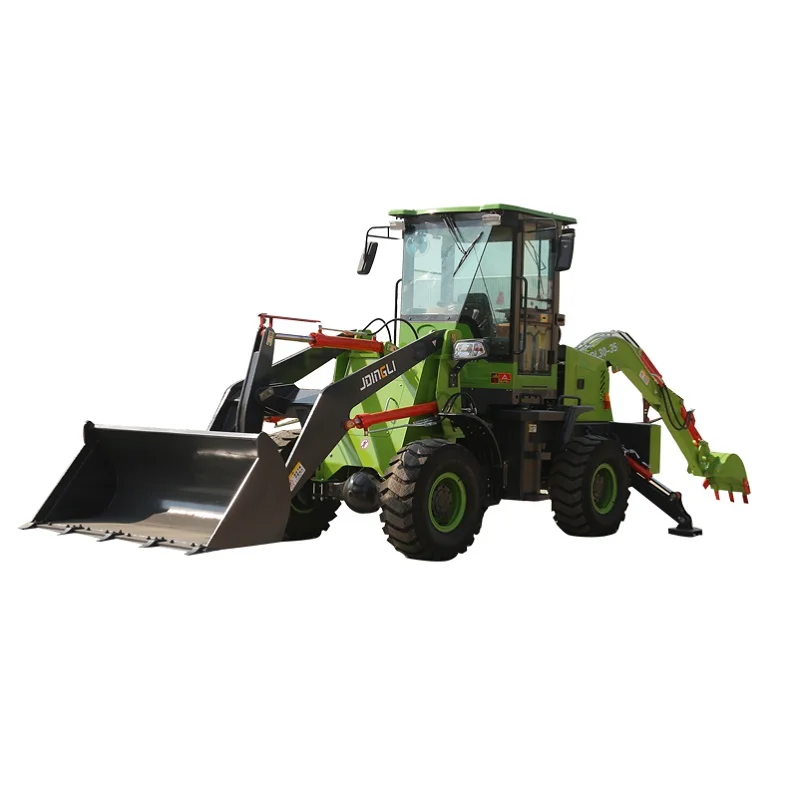

JDL 30-35 CE CERTIFIED EARTH MOVING MACHINERY MINI BACKHOE LOADER 3CX 4CX MODEL JDL30-45 BACKHOE LOADER FOR SALE

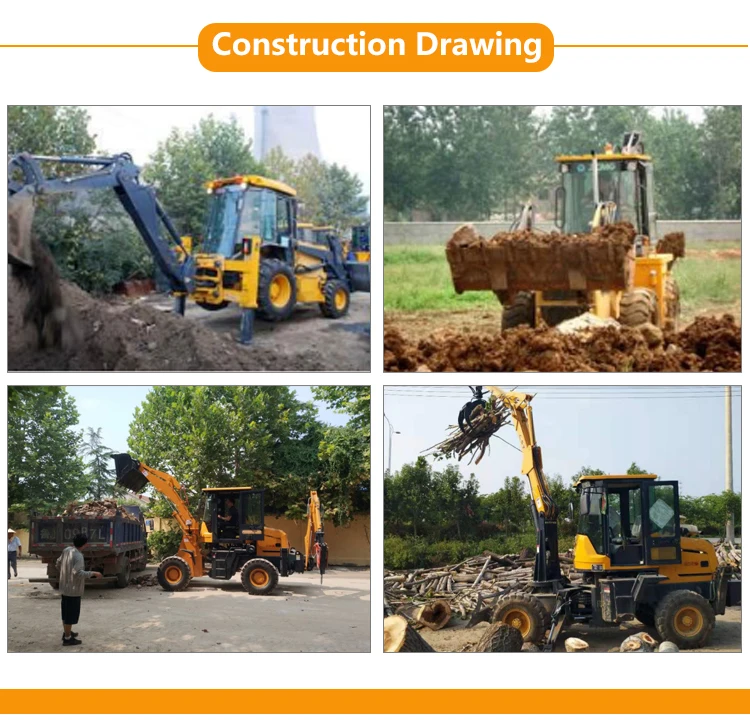

Backhoe Loaders provide superior digging, trenching, back-filling and material handling capability and can be used for many applications, including but not limited to General Construction, Demolitions and Excavations, Landscaping, Breaking Asphalt and Paving. JDL backhoes deliver the power and precise handling you need when operating in areas where using larger equipment is not practical.

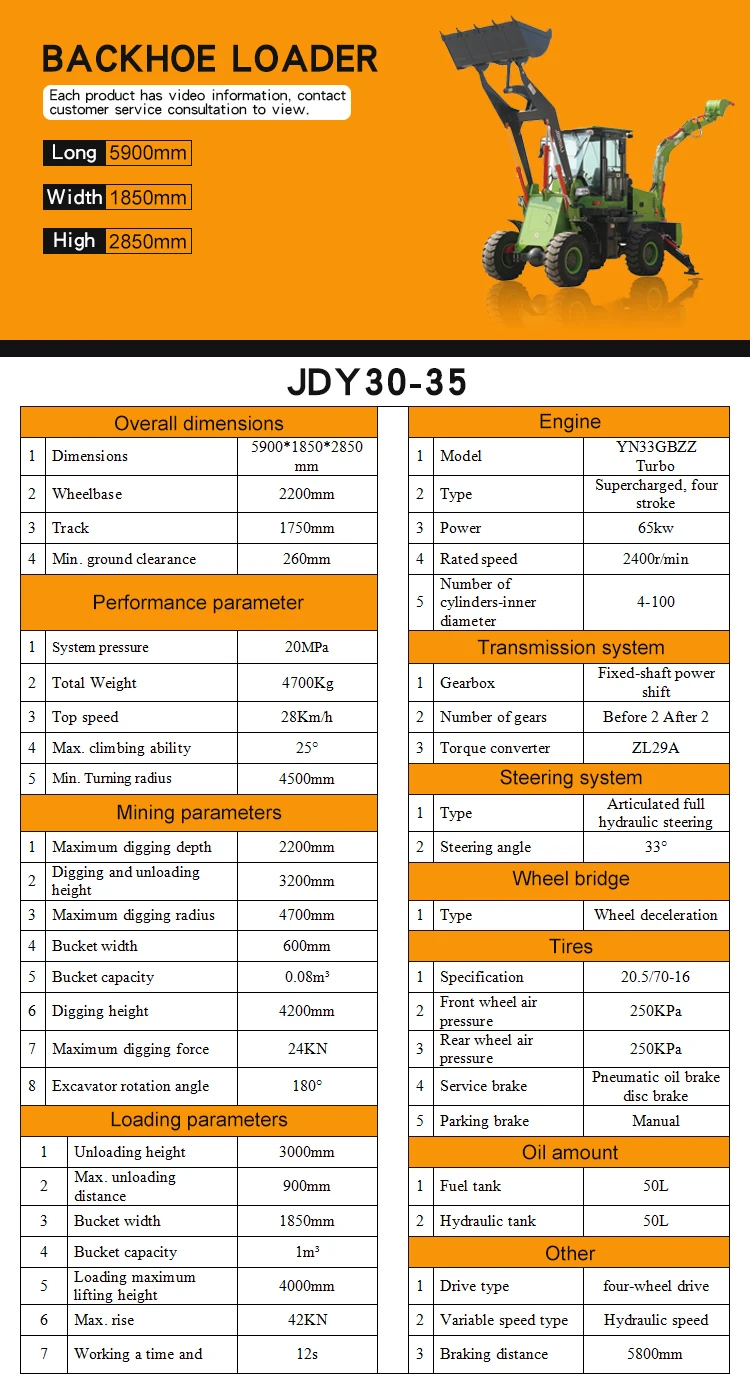

MAIN PARAMETERS:
Dimensions | 5900*1850*2850 mm |
Wheelbase | 2200mm |
Track | 1750mm |
| Min. ground clearance | 260mm |
System pressure | 20MPa |
Total Weight | 4700Kg |
Top speed | 28Km/h |
Max. climbing ability | 25° |
Min. Turning radius | 4500mm |
| Maximum digging depth | 2200mm |
Digging and unloading height | 3200mm |
| Maximum digging radius | 4700mm |
Bucket width | 600mm |
Bucket capacity | 0.08m³ |
Digging height | 4200mm |
| Maximum digging force | 24KN |
| Excavator rotation angle | 180° |
Unloading height | 3000mm |
Max. unloading distance | 900mm |
Bucket width | 1850mm |
Bucket capacity | 1m³ |
Loading maximum lifting height | 4000mm |
Max. rise | 42KN |
Working a time and | 12s |

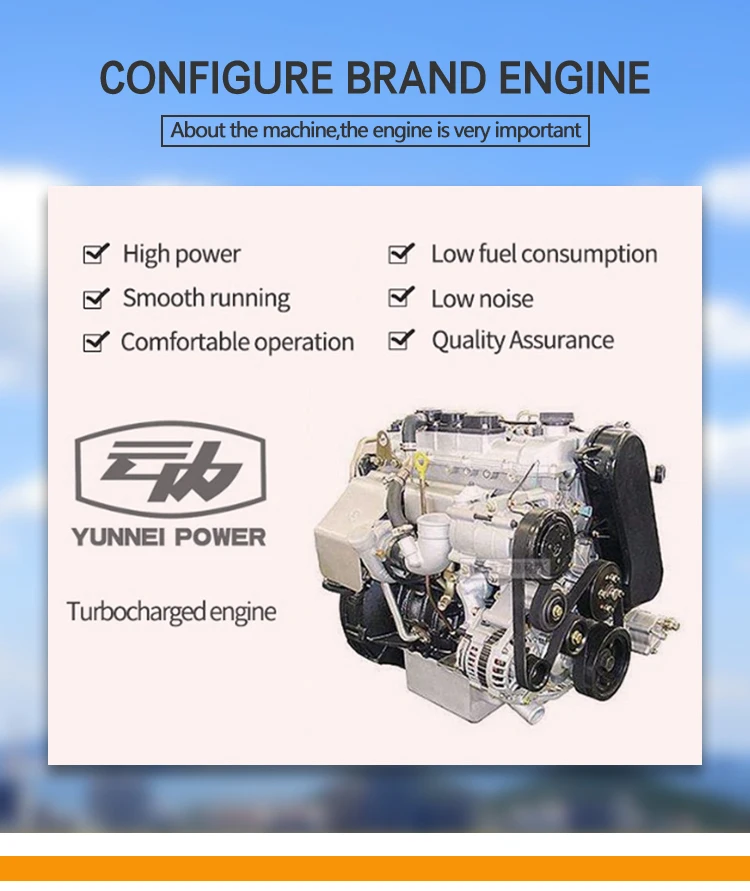

| ENGINE MODEL | YN33GBZZ |
| ENGINE TYPE | Supercharged, four stroke |
| RATED POWER | 65kw |
| ROTARY SPEED | 2400r/min |
Number of cylinders-inner diameter | 4-100 |
| Gearbox | Fixed-shaft power shift |
| Number of gears | Before 2 After 2 |
| Torque converter | ZL29A |
| STEERING TYPE | Articulated full hydraulic steering |
| Steering angle | 33° |
| WHEEL AXLE TYPE | Wheel deceleration |
Specification | 20.5/70-16 |
Front wheel air pressure | 250KPa |
Rear wheel air pressure | 250KPa |
Service brake | Pneumatic oil brake disc brake |
Parking brake | Manual |
Fuel tank | 50L |
Hydraulic tank | 50L |
Drive type | four-wheel drive |
Variable speed type | Hydraulic speed |
Braking distance | 5800mm |

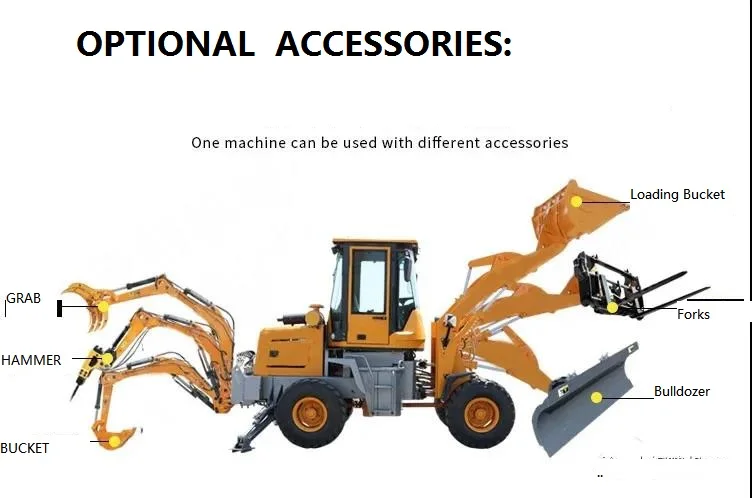

OPTIONAL ATTACHMENTS:
