Product Overview
Description

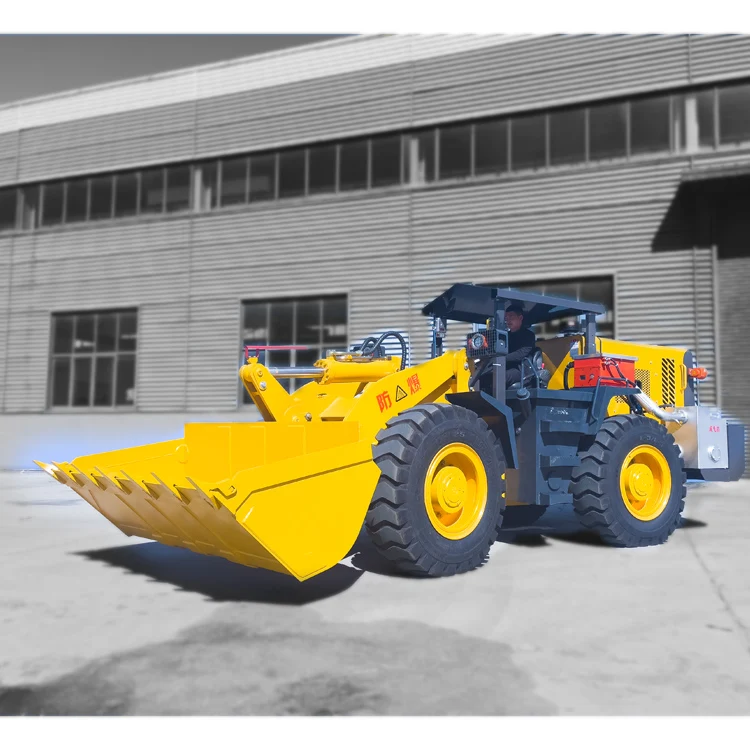

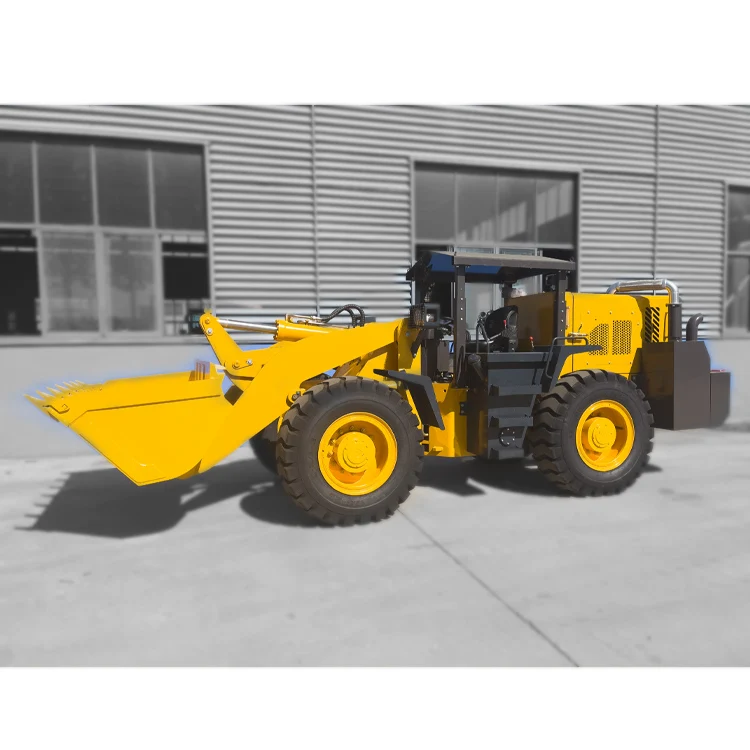

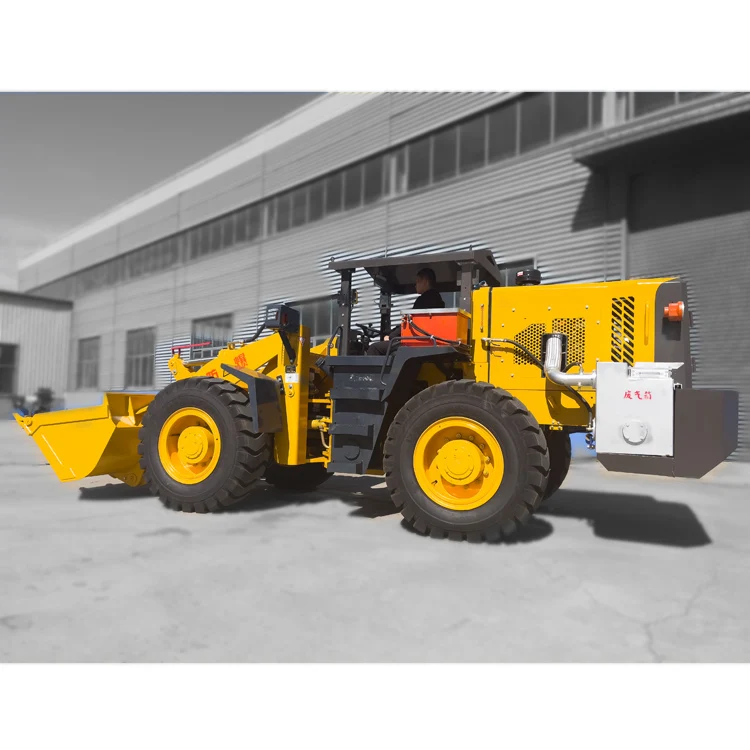

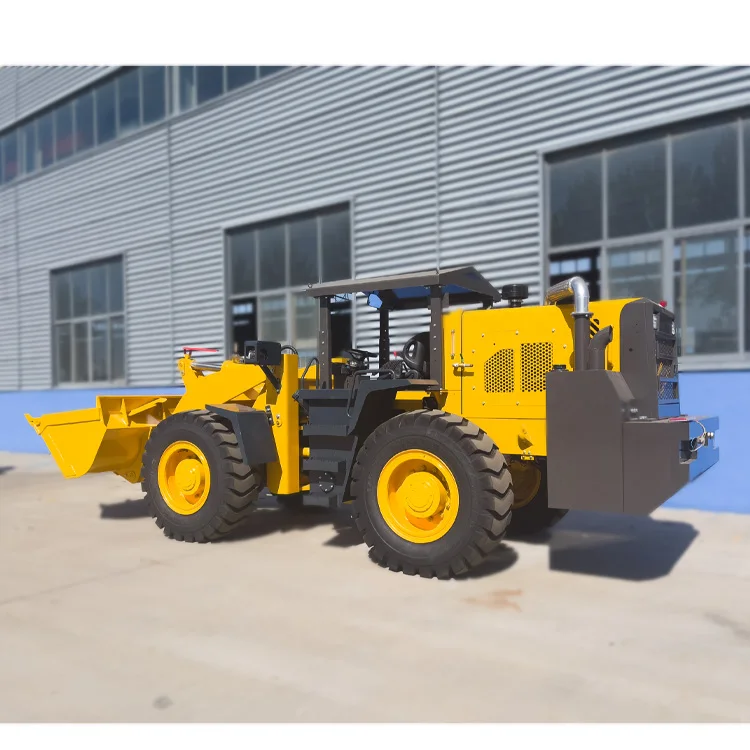

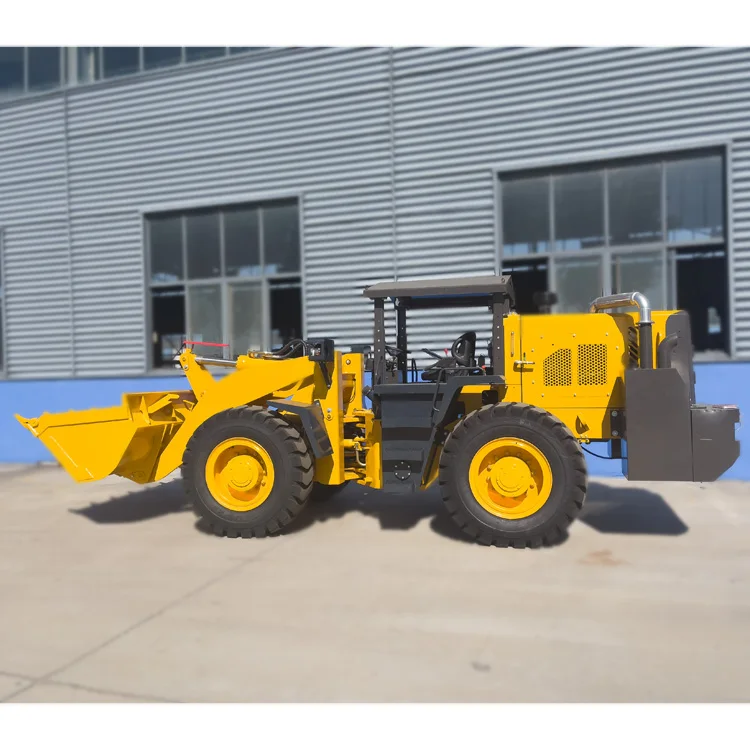

3 Ton underground loader
Main specification and characters of BESLA underground wheel loader
1. The ultra-low classis and the side cabin offer comfortable, safe, reliable driving experiences in ultra-low mines.
2.The large steering angle makes it suitable for flexible operation in narrow mine tunnels
3.Big light more safe.
4. Power shift gear-box, good reliability easy to maintain
5. Large capacity battery. continuous lighting work for 4 hours.
6. Higher efficiency. loading withraw coal up to 120 Cubic meter in one hour.
7. Side seat design draw on the experience of Scooptram side seat.greatly improved the front and rear visual range.
8. CUMMINS 4BTA3.9-C80 60KW 4 cylinders engine.china made YTO LR4A3Z-22 70KW optional.
9. Integrated torque converter transmission.The smaller and more compact structure, small occupied space.
10. Specifically tailored for the mine operation counter-shaft power-shift gearbox, YJ280 torque converter.
11. Air over hydraulic break system, caliper break system.Wet brake axle available according to requirement..
12. Over load protection system.Disc brake shield,All LED light.Alarm lamp excavator teeth.
13.New design layout of the Hood.Increase counterweight in the front.
14.Optional:Joystick control;Wheel protection chains;Smooth anti puncture narrow tire.
Side dump bucket;Breaking hammer;Narrow bucket without teeth.
1. The ultra-low classis and the side cabin offer comfortable, safe, reliable driving experiences in ultra-low mines.
2.The large steering angle makes it suitable for flexible operation in narrow mine tunnels
3.Big light more safe.
4. Power shift gear-box, good reliability easy to maintain
5. Large capacity battery. continuous lighting work for 4 hours.
6. Higher efficiency. loading withraw coal up to 120 Cubic meter in one hour.
7. Side seat design draw on the experience of Scooptram side seat.greatly improved the front and rear visual range.
8. CUMMINS 4BTA3.9-C80 60KW 4 cylinders engine.china made YTO LR4A3Z-22 70KW optional.
9. Integrated torque converter transmission.The smaller and more compact structure, small occupied space.
10. Specifically tailored for the mine operation counter-shaft power-shift gearbox, YJ280 torque converter.
11. Air over hydraulic break system, caliper break system.Wet brake axle available according to requirement..
12. Over load protection system.Disc brake shield,All LED light.Alarm lamp excavator teeth.
13.New design layout of the Hood.Increase counterweight in the front.
14.Optional:Joystick control;Wheel protection chains;Smooth anti puncture narrow tire.
Side dump bucket;Breaking hammer;Narrow bucket without teeth.
FEATURES AT A GLANCE
Back elevation
Front elevation
Lift elevation
PRODUCT SPECIFICATIONS
Performance | rated loading | 3000kg |
overall weight | 9600kg | |
bucket capacity | 1.8m3 | |
maximum traction force | 97KN | |
maximum breakout force | 127KN | |
maximum grade ability | 30° | |
maximum dump height | 2900mm | |
maximum dump reach | 900mm | |
overall dimension (L×W×H) | 7314×2350×2470mm | |
minimum turning radius | 5097mm | |
Engine | model | Deutz enginesWP6G125E22 |
type | Vertical, in-line, water cooled, 4-stroke diesel engine | |
NO. of cylinder-bore*stroke | 6-105*130 | |
rated power | 92kw—2200r/min | |
maximum torque | 500N.m | |
min. fuel-consume ratio | ≦215Kw/h | |
Transmission system | torque converter | YJ315-X |
gearbox mode | Power shaft normally engaged straight gear | |
gears | 4 forward 2 reverse | |
maximum speed | 40km/h | |
Drive axles | main reducing spiral | bevel gear grade 1reduction |
decelerating mode | Planetary reduction grade 1 | |
wheel base (mm) | 2720mm | |
wheel tread | 1800mm | |
ground clearance | 300mm | |
Hydraulic system | system working pressure | 16MPa |
boom lifting time | 4.83S | |
total time | 9.15±0.5s | |
Brake system | service brake | air assist disc brake on 4 wheels |
parking brake | Manual disk brake | |
Tyre | type specification | 17.5-25 |
front tyre pressure | 0.4Mpa | |
rear tyre pressure | 0.35Mpa |

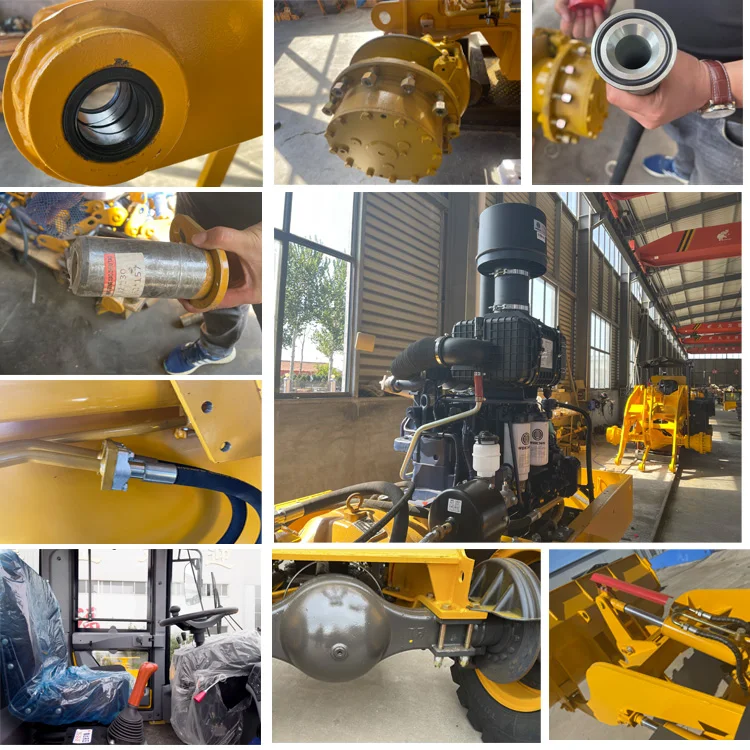

PRODUCT CONFIGURATION
huichai high power engine
new cab with a large space
18 PR Nylon with standard rim
SHANDONG BESLA MACHINERY CO.,LTD.
Our company is located in Laizhou City, Shandong Province, in the center of the machinery industry. Our company has more than 12 years of experience in the field of loaders and forklifts manufacturing.
