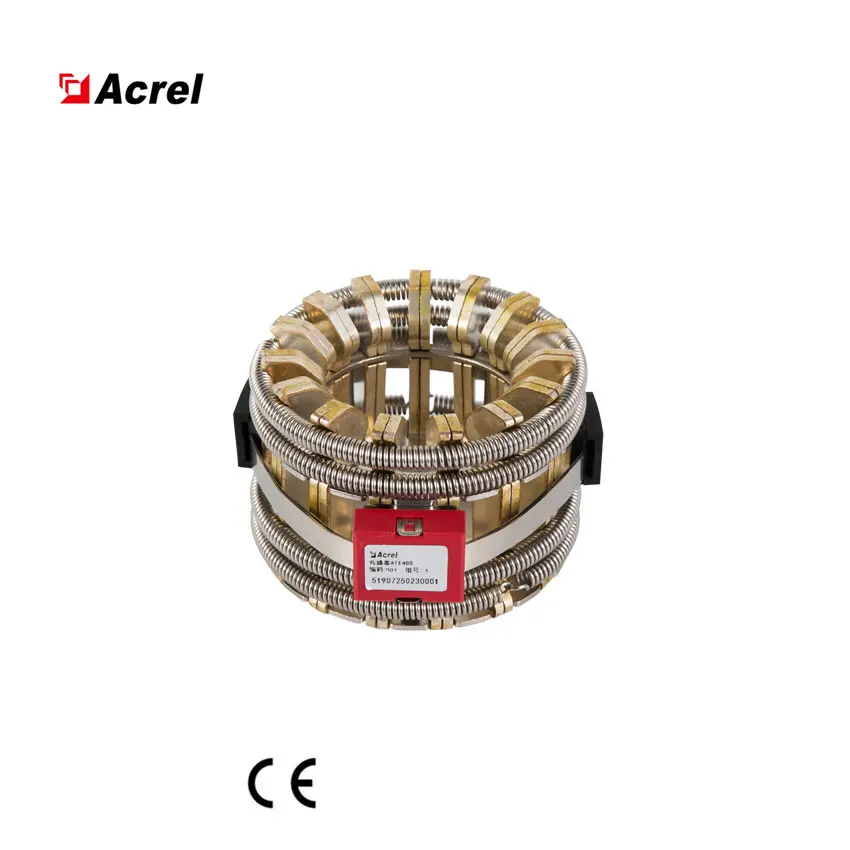

Acrel ATE400 Cable Joint Remote Temperature Monitoring Electrical Wireless Temperature Sensor
- Category: >>>
- Supplier: Jiangsu Acrel Electrical Manufacturing Co. Ltd.
Share on (1600431126953):
Product Overview
Description
Products Description
A Wireless Temperature Monitoring system delivers Great Benefits for Temperature Monitoring
Temperature is certainly among the most commonly measured parameters in industry. Remote temperature monitoring system for
electrical contacts of switchgear, ring main unit,GCK,transformer or any other electric devices aiming for the safe use and
real-time temperature monitoring while with prompt over-temperature alarm.
electrical contacts of switchgear, ring main unit,GCK,transformer or any other electric devices aiming for the safe use and
real-time temperature monitoring while with prompt over-temperature alarm.
Wireless Temperature Sensor

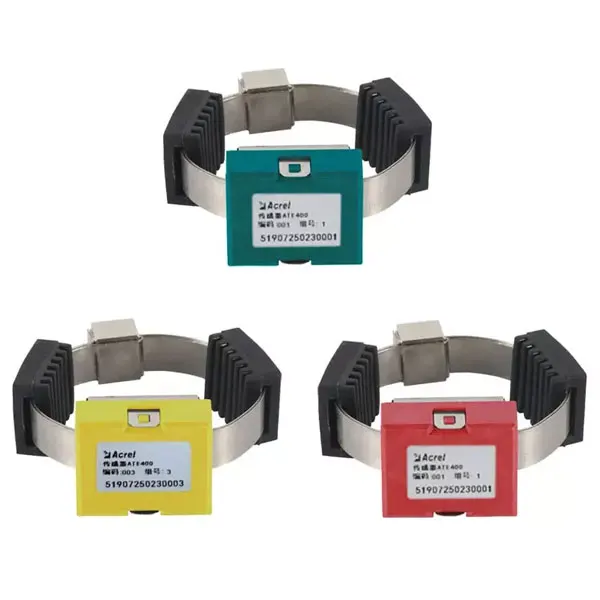

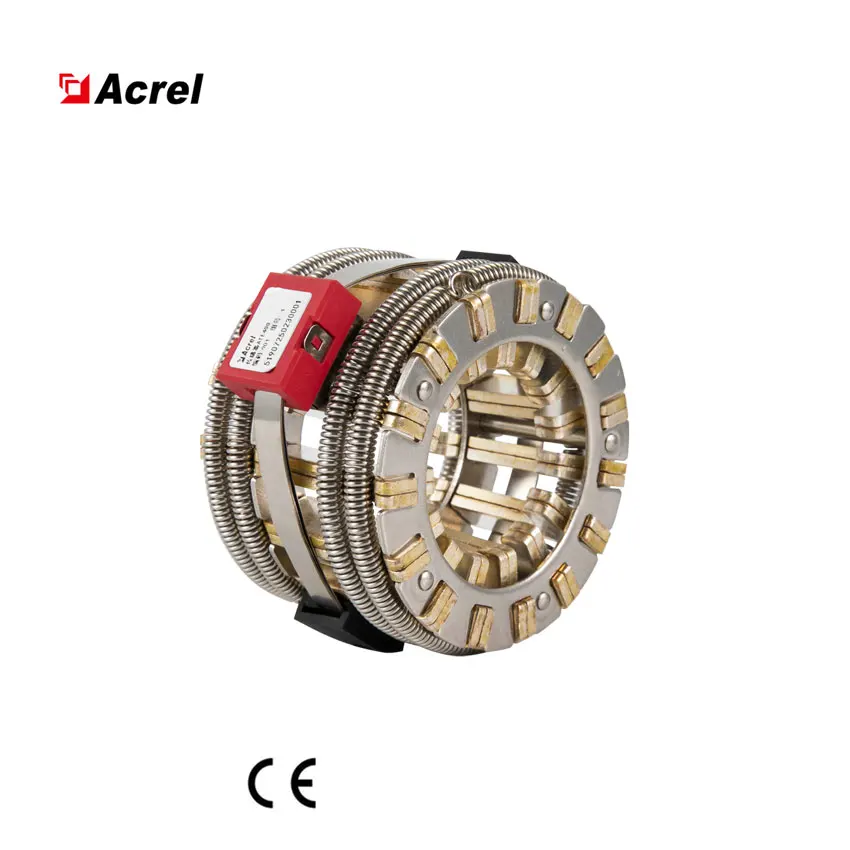

ATE400 Wireless Temperature Sensor
● Wireless transmit,470MHz;
● Wireless transmission distance, 150 meters in open area;● Battery -powered, more than 5 years;
● Widely temperature measuring range, -50℃~+125℃.
ATE200 Wireless Temperature Sensor
● Wireless transmit;
● Wireless transmission distance, 150 meters;
● Fase sampling frequency,25s;
● Battery -powered,more than 5 years;
● Widely temperature measuring range, -40℃~125℃
● Wireless transmission distance, 150 meters;
● Fase sampling frequency,25s;
● Battery -powered,more than 5 years;
● Widely temperature measuring range, -40℃~125℃
ATE100 Wireless Temperature Sensor
● Wireless transmit,2.4GHz;
● Wireless transmission distance, 10 meters;
● Fast sampling frequency, 25s;
● Battery -powered, more than 5 years;
● Widely temperature measuring range, -40℃~+125℃
● Wireless transmission distance, 10 meters;
● Fast sampling frequency, 25s;
● Battery -powered, more than 5 years;
● Widely temperature measuring range, -40℃~+125℃
ATE100M Wireless Temperature Sensor
● Wireless transmit
● Wireless transmission distance, 150 meters;
● Fast sampling frequency, 25s;
● Battery -powered, more than 5 years;
● Widely temperature measuring range, -40℃~+125℃.
● Wireless transmission distance, 150 meters;
● Fast sampling frequency, 25s;
● Battery -powered, more than 5 years;
● Widely temperature measuring range, -40℃~+125℃.
Wireless Transceiver
ATC450-C Wireless Transceiver
● Wireless temperature measurement;
● Measuring 60 points;
● 1 RS485 serial communication, Modbus-RTU;
● Power supply adapt with DC24V
● Measuring 60 points;
● 1 RS485 serial communication, Modbus-RTU;
● Power supply adapt with DC24V
ATC600-C Wireless Transceiver
● Wireless temperature measurement;
● Measuring 240 points;
● 1 RS485 serial communication, Modbus-RTU;
● 2 alarm relays
● Power supply adapt with AC/DC220V, AC/DC110V.
● Measuring 240 points;
● 1 RS485 serial communication, Modbus-RTU;
● 2 alarm relays
● Power supply adapt with AC/DC220V, AC/DC110V.
Temperature Monitor
ARTM-Pn Wireless Temperature Monitor
● Wireless temperature measurement, maximum measuring 60 points;
● 4 digital inputs;
● 2 alarm relays;
● LCD display;
● Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;
● 1 RS485 serial communication, Modbus-RTU.
● 4 digital inputs;
● 2 alarm relays;
● LCD display;
● Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;
● 1 RS485 serial communication, Modbus-RTU.
Acrel-2000T/A Collection Device
● Wireless temperature measurement, 240 points;
● Power supply adapt with AC220V, DC220V, DC110V, AC110V;
● Temperature Curve;
● High temperature alarm, buzzer;
● 1 RS485 serial communication, Modbus-RTU;
● 1 Ethernet communication.
● Power supply adapt with AC220V, DC220V, DC110V, AC110V;
● Temperature Curve;
● High temperature alarm, buzzer;
● 1 RS485 serial communication, Modbus-RTU;
● 1 Ethernet communication.
Technical parameters
ACREL Model | ATE100 | ATE100M | ATE200 | ATE400 | ||
Power supply | powerd by battery | powered by CT sensing(≥ 5A) | ||||
Transmission frequency | 2.4Ghz | 2.4Ghz | 470Mhz | |||
Sample cycle | 25s | 15s | ||||
Transmission cycle | 4min | 15s | ||||
Measuring range | -40℃~125℃ | -50℃~125℃ | ||||
Accuracy | ±2℃ | ±1℃ | ||||
Communication distance | 10m in open space | 150m in open space | ||||
Operation Life | >5years(battery life) | >10years | ||||
Installation | Screw bolted installed | Belted | fixed by compound metal | |||
Application | busbar outlet and connection of cable | circuit breaker contact,busbar,cable contact and other big current | ||||
Practical Application

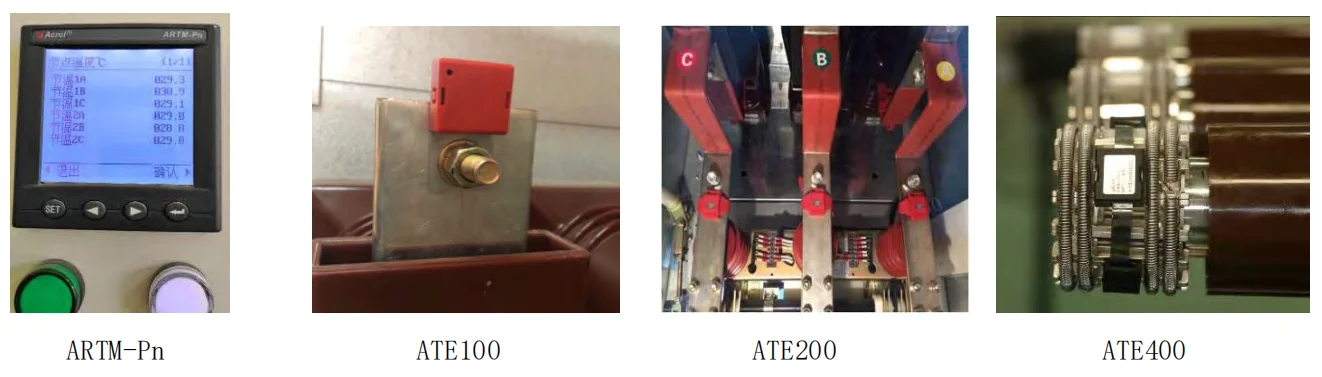

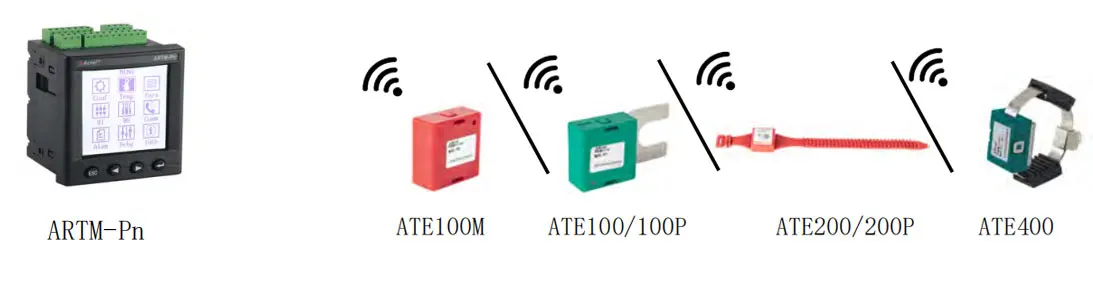

Wireless temperature measurement of electrical contacts in high and low voltage cabinets (single cabinet on-site display)

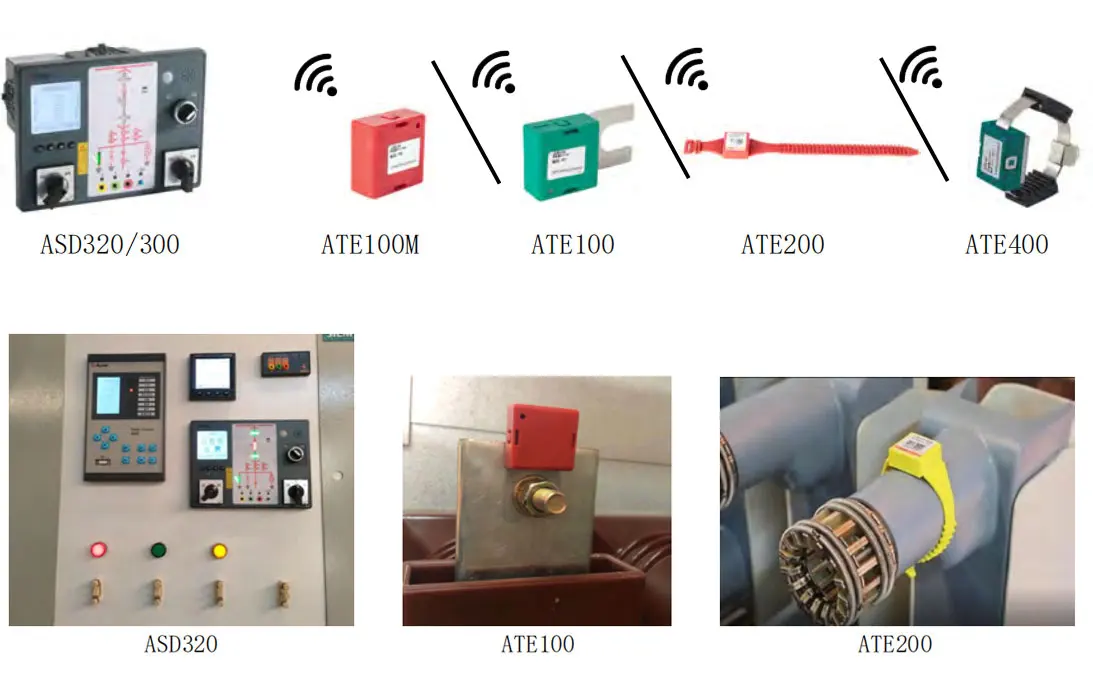

Wireless temperature measurement with operation and display function for electrical contacts in high and low voltage cabinets (single cabinet on-site display)

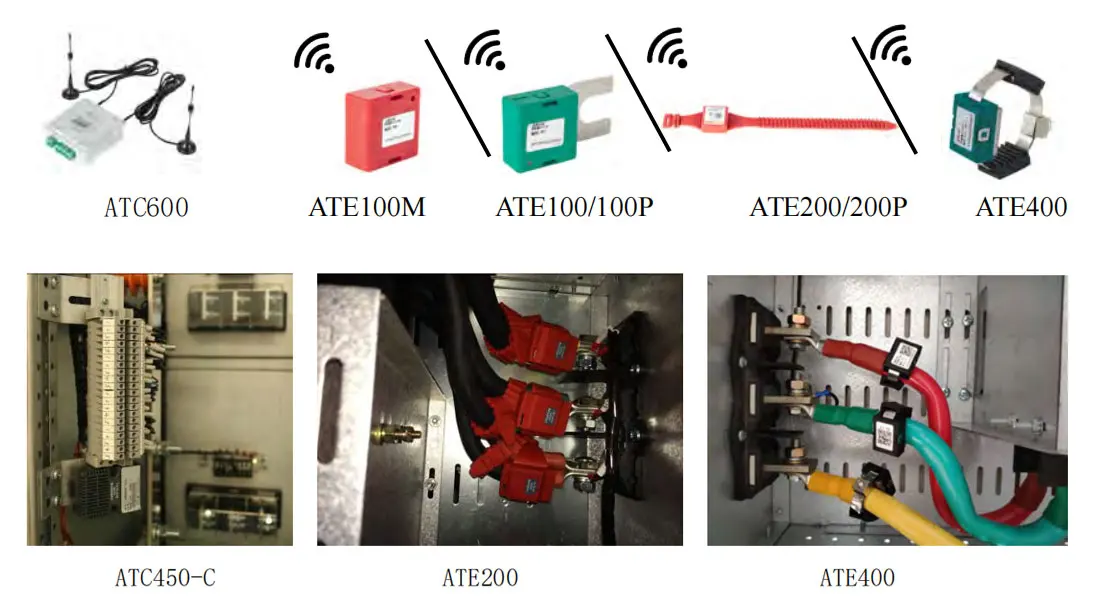

Wireless temperature measurement of electrical contacts in high and low voltage cabinets (no need for local display
