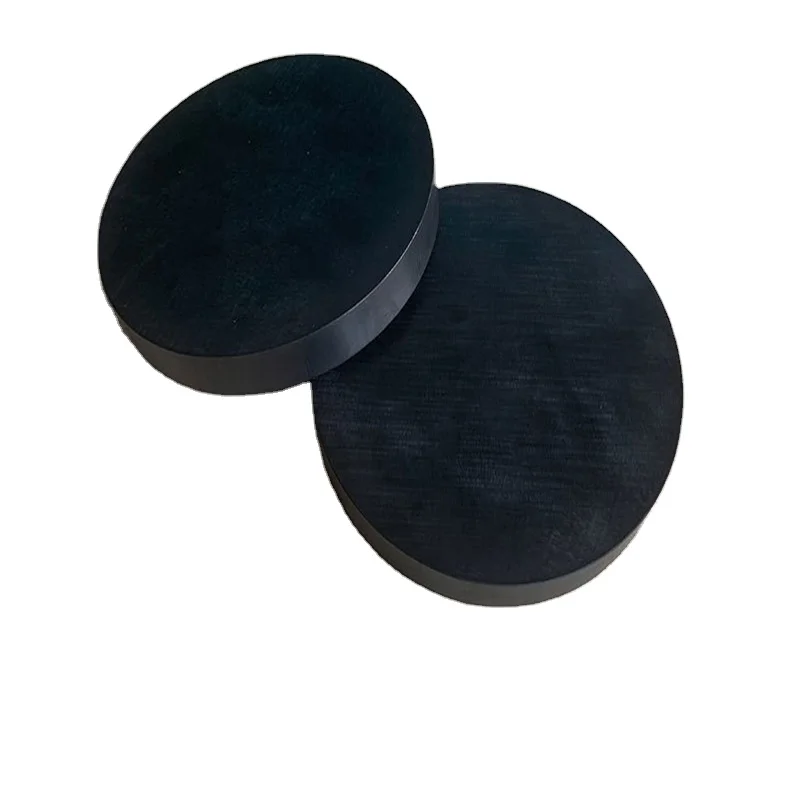

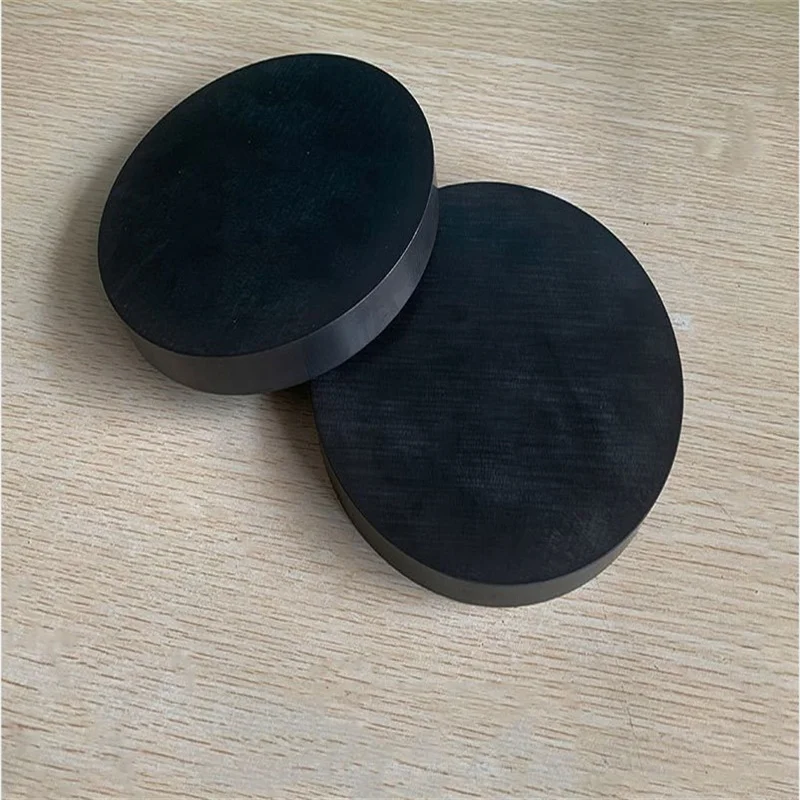

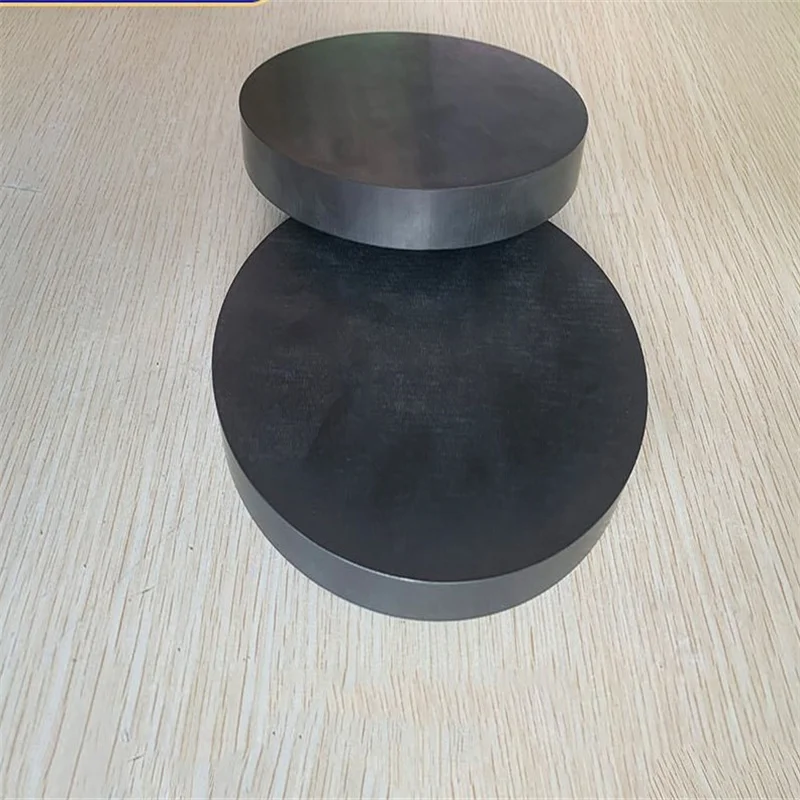

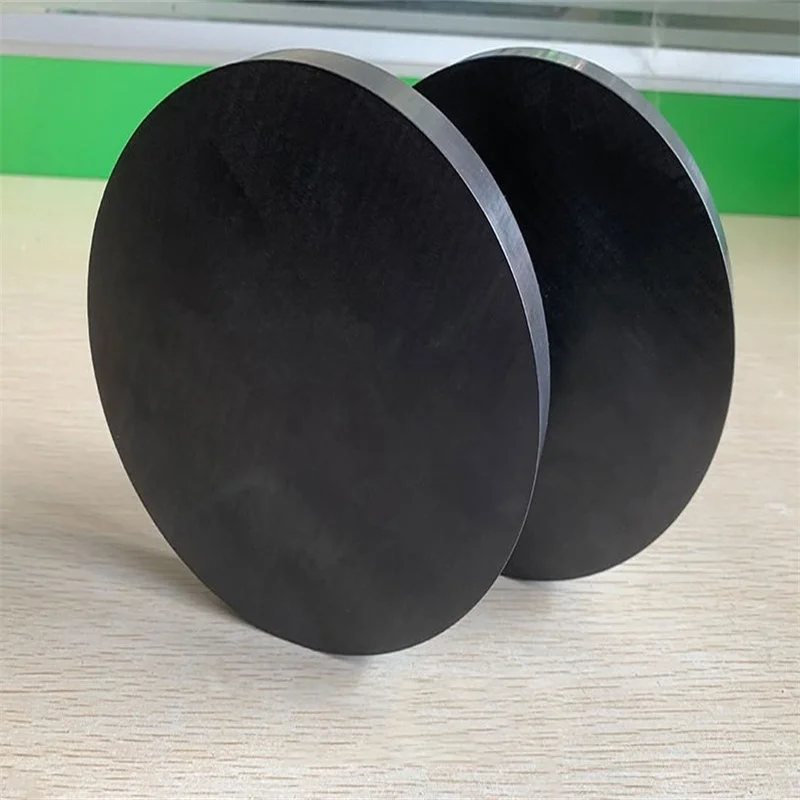

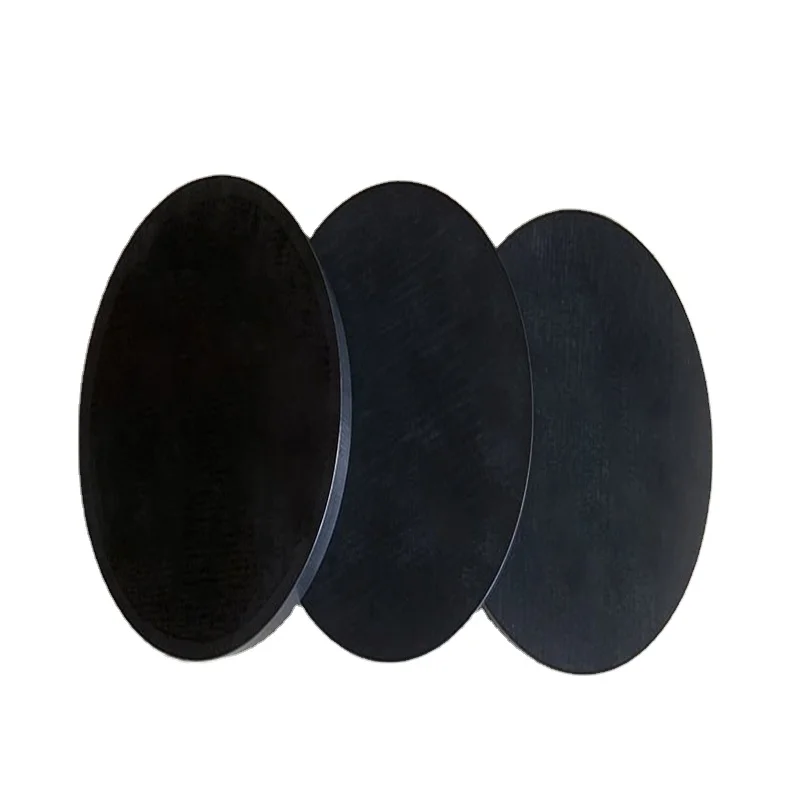

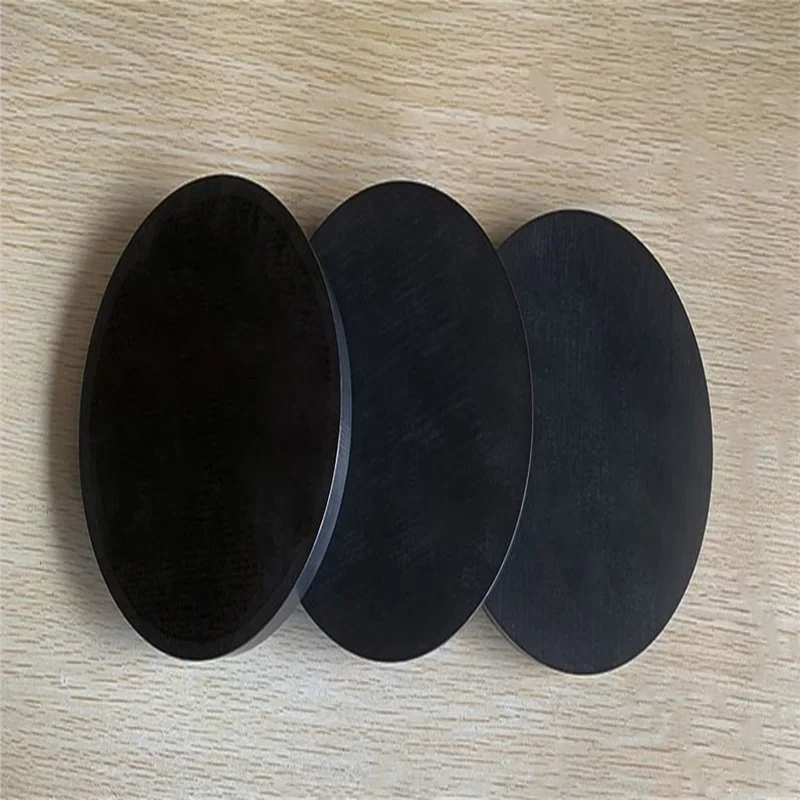

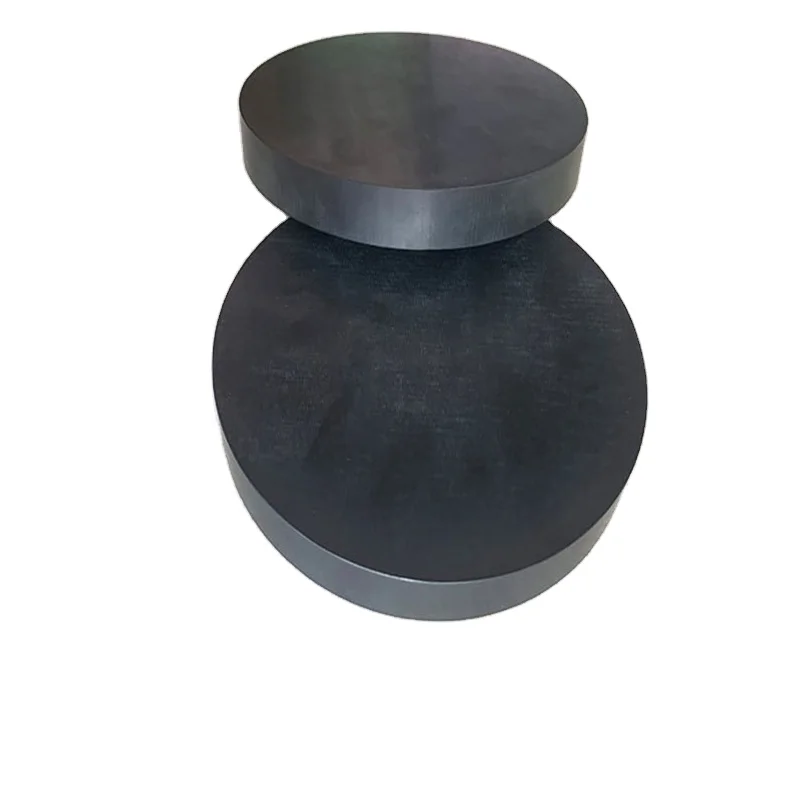

Customized Silicon Nitride Plate Si3N4 Substrate Ceramic Board
- Category: >>>
- Supplier: Hoyue Technology (lianyungang) Co. Ltd.
Share on (1600431398144):
Product Overview
Description
Product Description
Silicon nitride is produced in three main ways; Gas Pressure Sintering silicon nitride (GPSSN) , Hot Isostatic Pressing siliconnitride (HIPSN) and Hot Pressed silicon nitride (HPSN). Three way can pore-free densified compacts with low amounts of sinteringadditives can be obtained. So they present high strength with high reliability and good heat resistance. These properties makethem one of the best candidate materials for heat engine component as well as other industrial fields application.
Silicon Nitride (Si3N4) has good high temperature strength, creep resistance and oxidation resistance.In addition, its low thermal
expansion coefficient gives excellent thermal shock resistance compared with most ceramic materials.
expansion coefficient gives excellent thermal shock resistance compared with most ceramic materials.
The fact that this ceramic material is an extremely low-friction and non-magnetic material with a very low specific weight,
excellent dry running properties and therefore superior emergency operating features is what makes it the material of choice for
demanding applications,like ceramic bearing.
excellent dry running properties and therefore superior emergency operating features is what makes it the material of choice for
demanding applications,like ceramic bearing.
Silicon Nitride Ceramic Properties
> Color: Gray and Gray-black Density: 3.2~3.25 g/cm3 Hardness: HRA 92~94 Highest Operating
> Temperature: 1300 ~1600 ℃ Thermal Conductivity: 23-25 W.(M.K)-1 Bending > Strength: ≥ 900 Mpa Fracture Toughness: 6~8 (Mpa.m1/2)
> Thermal Expansion Coefficient (at 0~1400℃): 2.95~3 ×10-6/℃
> Color: Gray and Gray-black Density: 3.2~3.25 g/cm3 Hardness: HRA 92~94 Highest Operating
> Temperature: 1300 ~1600 ℃ Thermal Conductivity: 23-25 W.(M.K)-1 Bending > Strength: ≥ 900 Mpa Fracture Toughness: 6~8 (Mpa.m1/2)
> Thermal Expansion Coefficient (at 0~1400℃): 2.95~3 ×10-6/℃
Product Features
>Very low density >High wear resistance and corrosion resistance >High temperature resistance >Good flexural strength and high
fracture toughness >Very good thermal shock resistance >Dimensional stability and aging resistance >Excellent sliding properties
(tribology) >Biocompatibility (for use in hygiene and the >food and beverage industry)
>Very low density >High wear resistance and corrosion resistance >High temperature resistance >Good flexural strength and high
fracture toughness >Very good thermal shock resistance >Dimensional stability and aging resistance >Excellent sliding properties
(tribology) >Biocompatibility (for use in hygiene and the >food and beverage industry)
Specification
√ low density, low weight | √ greatly electrical insulation |
√ non-wetting to non-ferrous metals | √ high hardness, high wear resistance |
√ low coefficient of thermal expansion | √ outstanding resistance to thermal shock |
√ maximum service temperature up to 1,200 °C | √ superior corrosion resistance to molten metals |
Related Silicon Nitride ceramic products:
Ceramic Seal Rings, Bearings and Sealing Technology
Ceramic Seal Rings, Bearings and Sealing Technology
Ceramic Rollers and Guide Elements
Ceramic Forming Rings and Large Components
Ceramic Rollers and Drawing Cones
Ceramic Rollers and Drawing Cones
Ceramic Bearing Rollers Centering Pins Ceramic Inserts
Ceramic Nozzles Components for Pumps and
Valve
Valve
