Продается лесохозяйственное оборудование, грейфер Xuvol 150P с гидравлическим поворотным механизмом на 360 градусов (1600431638636)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description

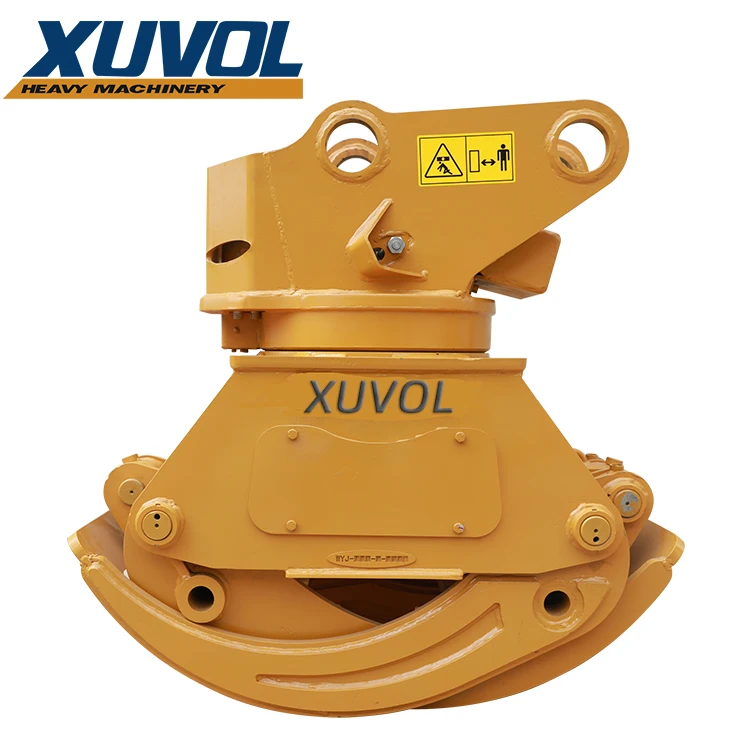

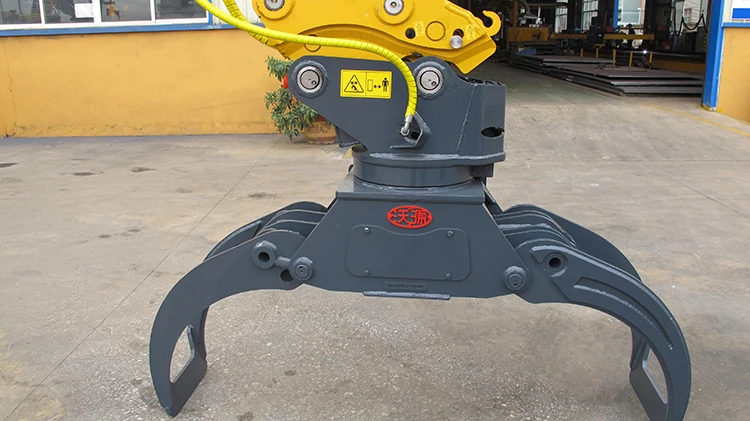

Forestry machinery Log grapple Xuvol 150P with hydraulic 360 degree rotation log grab for sale





Details Images



WYJ-150P
1. Model: WYJ-150P
2. Weight: 650kg
3. Suitable excavator models: 10-15 tons
4. Working pressure: 16~21MPa
5. Rotary drive type: vertical straight tooth, hydraulic brake
6. Clamp drive type: Bunching type, single cylinder and double connecting bar
7. Suitable for large-scale port timber handling construction, eucalyptus handling, bamboo handling, sugarcane handling and other construction occasions, The holding structure will highly improve the operation efficiency.
8. Other name: grabs, excavator grapple, excavator grabs, log grab, excavator attachment, log grab, grapple
Forestry machinery Log grapple Xuvol 150P with hydraulic 360 degree rotation log grab for sale




Grapple Paramenters


Xuvol Grapple Specifications
WYJ-150P







Whole Grapple
Grapple Type
single cylinder/bunching grapple/doubble link
Steel material
Q355B
Optional electric control
Height when clamped(mm)
1060
Height when opened(mm)
1400
Width of inner/outer clamp(mm)
415/475
Open Width Max(mm)
1800±20
Minimum holding circle(mm)
≦φ110
Maximum holding circle(mm)
φ700
Weight (excluding rotation)kg
650
Suitable Excavator(Ton)
10-15

Rotation Support
Rotation method(grapple)
External meshing vertical rotation
Module / raceway diameter
M5/315

Rotation Motor
Motor type
Cycloid motor
Pressure(Mpa)
16

Hydraulic cylinder
Rod diameter/bore size
50/90
Pressure(Mpa)
21






Products Description


Advantages of the grapple:

1.Using special steel, Xuvol WYJ-150P log grapple has the advantages of light weight, good strength, and abrasion resistance;

2.The grapple control method adopts an electronic control handle operating system, equipped with imported solenoid valves, which can control the rotation speed

3.The WYJ-150P can rotate 360 degrees clockwise and counter clockwise, and the operation is smooth;

4.It can be stalled on 10t-15t excavator, use for loading and unloading wood, sugarcane and other materials. Greatly improving work efficiency and greatly saving labor costs.
Forestry machinery Log grapple Xuvol 150P with hydraulic 360 degree rotation log grab for sale




Project

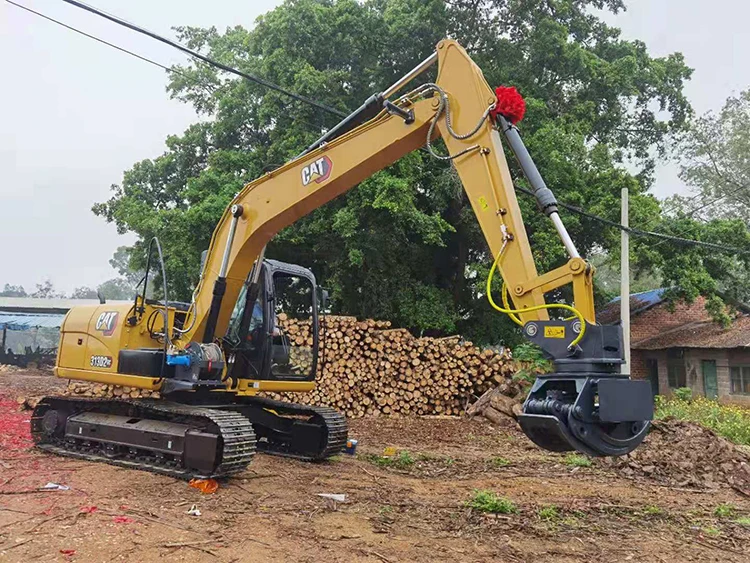

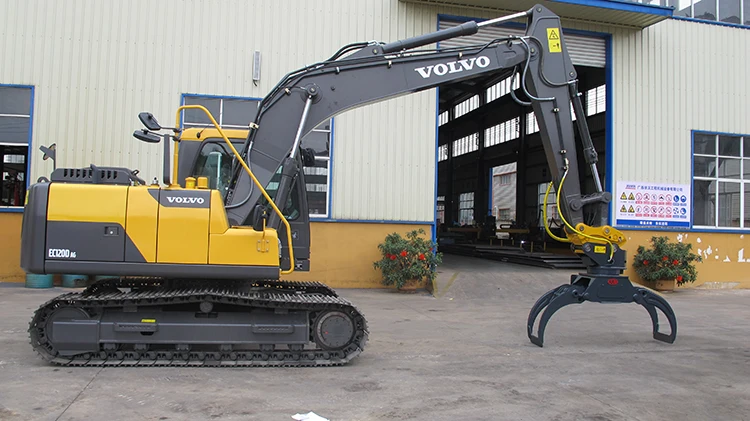

Woyuan log grapple WYJ-150P could be installed on 90% brand of excavator
Forestry machinery Log grapple Xuvol 150P with hydraulic 360 degree rotation log grab for sale









Why choose Xuvol Grapple?


1.More advanced electro-hydraulic ratio technology


OWN Pattents
Obtained: 2 utility model patents
5 design patents
Being accepted:
2 patents
Human-machine Exchange
The Human-machine exchange interface of the fixture set by our company has independent intellectual property rights and can adjust various parameters of the wood clamp
Electro-hydraulic proportional solenoid valve
The electro-hydraulic proportional solenoid valve has strong versatility and can be applied to all excavators on the market




2.Compare with other Brand


Other Brand Grapple
Xuvol Grapple
Proportional control is not available, and the action has a big damage to the object
Electro-hydraulic proportional control can be control to realize the integration of electro-hydraulic, soft and flexible action
Rely on manual control the pressure of the grapple, Poor Personal skills will easily cause damage to the gripping objects
It can be clamped automatically, and the clamping time (0.1~1 second) and clamping pressure are adjustable, which can effectively
protect the clamped object
Unable to weigh
It can weigh the gripped objects and store the data
Unable to send data
Data could be sent to the operator timely, ensure manage the material in time



3.Widely used on 90% of global excavator brands, exported to Japan, Vietnam, Indonesia, England and other countries.






Company Profile


Guangxi Xuvol Construction Machinery Equipment Co.,Ltd
Xuvol specialized in R&D, manufacturing multi-functional excavator attachments for over 15 years. Products range include grapples, mini excavator, timber harvester head, suitable for different model excavators. OEM Service is available. We can design and produce the most suitable excavator attachments by different working condition requirements.Forestry machinery Log grapple Xuvol 150P with hydraulic 360 degree rotation log grab for sale


Workshop


Plasma cutting machine
Welding Robots
Shot blasting machine


Vertical Machining Center
Longmen machining center
Laser Cutter

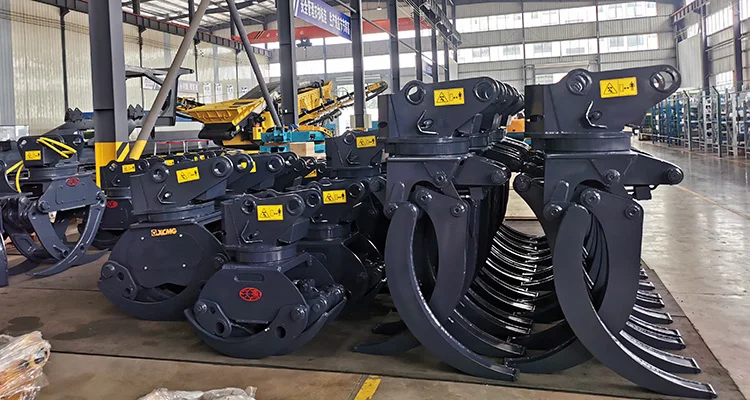

Production Line


Xuvol is the leading manufacturer of grapples in China. Over 1,000 sets are produced and sold annually, and the market share is about 40%!
Forestry machinery Log grapple Xuvol 150P with hydraulic 360 degree rotation log grab for sale







Product packaging




Grapple Package with stretch film and Wooden box
The standard package is wrap with stretch film and tied on wooden pallets. We will do special package by your requirements if you need.
Forestry machinery Log grapple Xuvol 150P with hydraulic 360 degree rotation log grab for sale


Certifications




CE, ISO Certificate
Xuvol excavator grapple meets the most global standard , we gain CE and ISO grapple Certificate. And offer other Certifications by customer requirements.


Xuvol Technology Service Team
333



FAQ

1. Q:Are you manufacturer?

A:Yes, We are one of the leading excavator attachments manufacturer in China. With 15767m² factory area and 5 production lines.

2. Q:Do you offer OEM service?

A: Yes, We have a professional R&D team which ensure to make your idea turn into reality.

3. Q:How do you make sure the quality?

A:We pass CE and ISO Certificate, grapple products widely used on 90% of global excavator brands, exported to Japan, Vietnam, Indonesia, England and other countries.
Forestry machinery Log grapple Xuvol 150P with hydraulic 360 degree rotation log grab for sale
