Stable Quality high efficiency Computer graphic card ATX Power Supply 1600W PSU for VGA Card
- Category: PC Power Supplies >>>
- Supplier: Guangzhou,Qianxi,Electronic,Co.,Ltd.
Share on:
Product Overview
Description
High Wattage Power Supply 1600W
1600W Power Supply Model No. QS-1600W
High Wattage for VGA Card , Industrial PC and Server PC.
Multiple Output Version: 12v,5V.3.3V.5Vsb
High Wattage for VGA Card , Industrial PC and Server PC.
Multiple Output Version: 12v,5V.3.3V.5Vsb
Power Size:165x150x85mm (LXWXH)Power Fan Size: 140x140x25mm
Bearing : Hydraulic Bearing
RPM: 800-2300RPM PWM
Comply : 220/230V
Bearing : Hydraulic Bearing
RPM: 800-2300RPM PWM
Comply : 220/230V
High Efficiency Power Supply Reach to 80 Plus Gold Version
20% Loading : 87.0%
50% loading :87.7%
100% Loading:82.3%
20% Loading : 87.0%
50% loading :87.7%
100% Loading:82.3%
12V/5V/3.3V/5Vsb Outputs 24PIN(With Mesh Sleeve) x 1
P4+4: X1
P6+2 Convert P6+2: X8
SATA+SATA+MOLEX: X4
Total : 16pcs P6+2, 8pcs SATA,4pcs Molex
P4+4: X1
P6+2 Convert P6+2: X8
SATA+SATA+MOLEX: X4
Total : 16pcs P6+2, 8pcs SATA,4pcs Molex
1600W Power Supply Output
12V Output reach to 136A , 1620W
PSU comply with CE.FCC,KC Certification

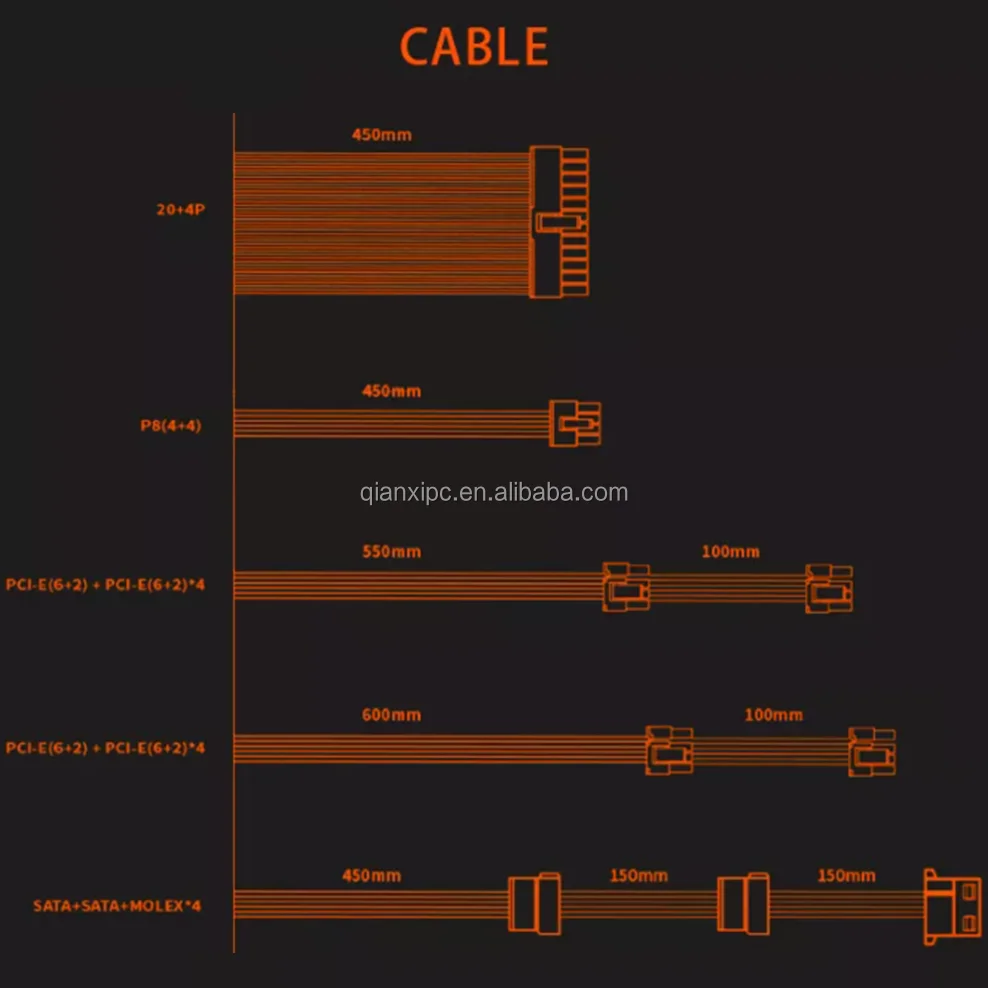

20+4PIN: 450mmP8(P4+4): 450mm
PCI-E(6+2)+(6+2):550+100mm x4
PCE-E(6+2)+(6+2):600+100mm x4
SATA+SATA+MOLEX: 450+150+150MM X4
PCI-E(6+2)+(6+2):550+100mm x4
PCE-E(6+2)+(6+2):600+100mm x4
SATA+SATA+MOLEX: 450+150+150MM X4
ITEM | Specs |
Model | QS1600W |
Watt | 1800W |
Product Size | 165*150*85mm |
Output Voltage | 3.3V/5V/12V |
Input Voltage | 230V |
frequency | 50-60HZ |
Cooling fan | 14CM cooling fan |
Cover | 1.0mm Black Coating Cover, |
Cable Connector | 24P,P8(4+4)，4*IDE,8*SATA,16*P8*6+2) |
Cable Length | 20+4P (Mesh Sleeve) L=480MM |
P8(4+4)Blue Color PIN L=550MM | |
PCI-E (6+2)+(6+2) *4 L=550+150MM | |
PCI-E (6+2)+(6+2) *4 L=600+200MM | |
SATA+SATA+MOLEX *4 L=450MM+150MM+150MM, | |
Package | Bulk package |
