STM32G030F6P6 development board STM32G030 STM32 microcontroller minimum system board learning/evaluation board STM32G030F6P6

Products Description

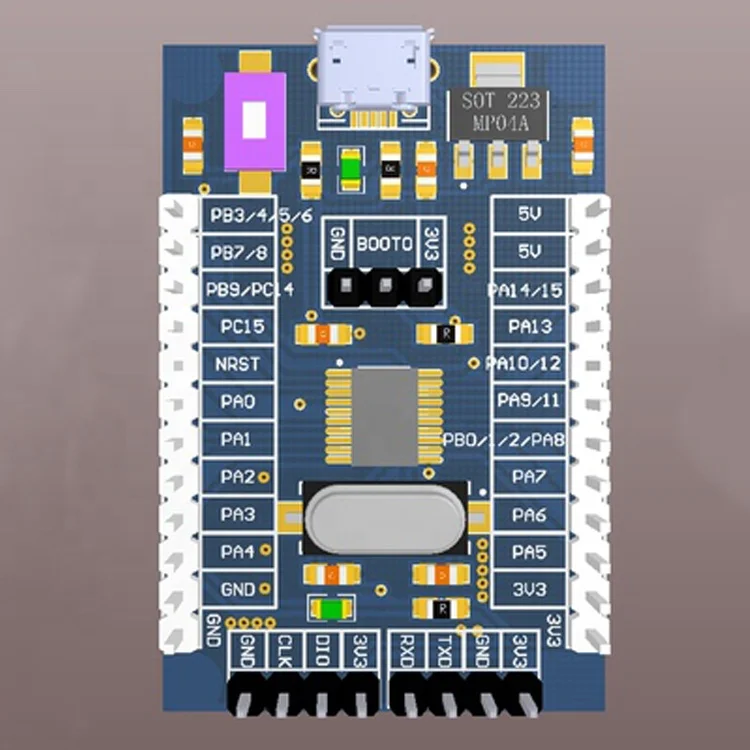

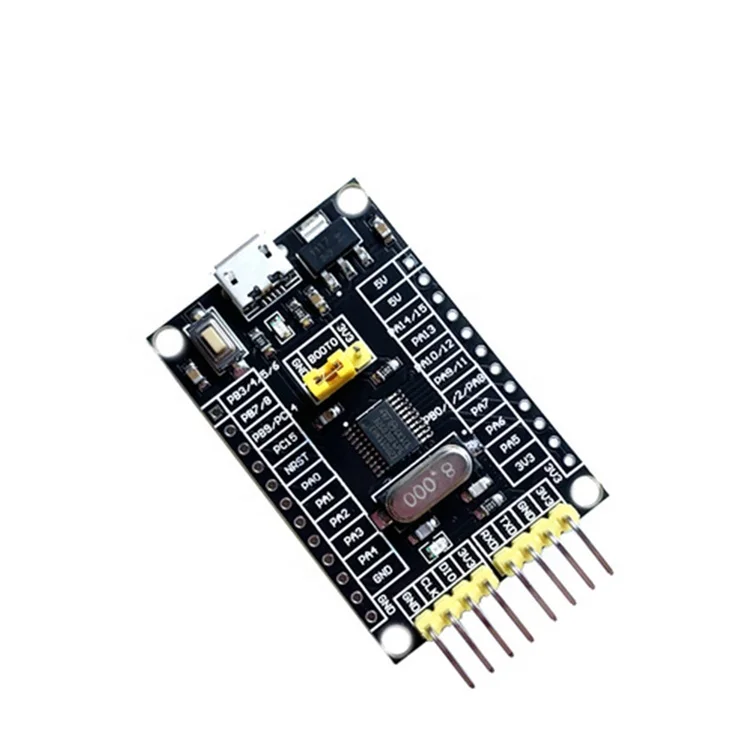

This product is an ARM-Cortex-M0+ core board based on the STM32G030F6P6 chip.

1. The core board provides the most basic circuit for the normal operation of the STM32G030F6P6 chip, including external high-speed crystal oscillator (8MHz) circuit, power management circuit (AMS1117-3.3), debug interface (SWD. mode), BOOT selection circuit, etc.

2. This core board provides all I/O port resources close to all available port resources, reset I/O port resources, BOOT selection port resources, etc.;

3. The core board provides a power monitoring LED (PWR_ LED) and a chip running indicator (with the PC6 pin control in STM32G030F6P6, if the pin is short, the PC6 pin needs to be used, and the PA15_ LED can be disconnected);

4. Power supply mode: (1) You can choose to supply power through the USB-Micro interface on the core board; (2) Connect to the SWD interface through the debugging equipment for power supply (2.7V-3.6V); (3) Connect to the port (5V-12v) corresponding to the silk screen 5V through an external power supply; (4) It is not recommended to use multiple power supply methods at the same time. Cross power supply may easily cause the core board or debugger to be short-circuited and burned out! (5) In order to save the volume of the core board, the core board provides SWD program download/debugging interface, and supports the Sw mode of JLINK, ST-LINK, DAPLINK and other common debuggers for debugging and program download; (6) The core board provides a reset button, which is convenient for users to reset during device debugging (in addition, the reset pin is also drawn, and the core board silk screen layer "R" corresponds to the pin) (7) The core advantage of the core board is to provide users with rapid project deployment needs and as many internal chip resources as possible. Therefore, we have not added any modules and applications on the core board that users may not use.



Part Number	STM32G030F6P6	Shipping	DHL,FedEx,UPS,TNT,EMS,China Post Hong Kong Post
Package	module	Payment	T/T,Western Union,Pay Pal, Trade Assurance
Date Code	2020+newest	plication	Electronic products,PCB BOM Full Service
Brand	New and original	Warranty	180 days

Detailed Images



Features

1. High-performanced, compatible and reliable.
2. 100% original and up-to-date.
3. Secure and environment-friendly
4. high-levelled low-power-consumption designed
5. Durable, steady and stable
