Under floor heating 24V electric thermal actuator nc
- Category: >>>
- Supplier: Jiaxing Forward Trade Co. Ltd.
Share on (1600431986690):
Product Overview
Description
Product Description

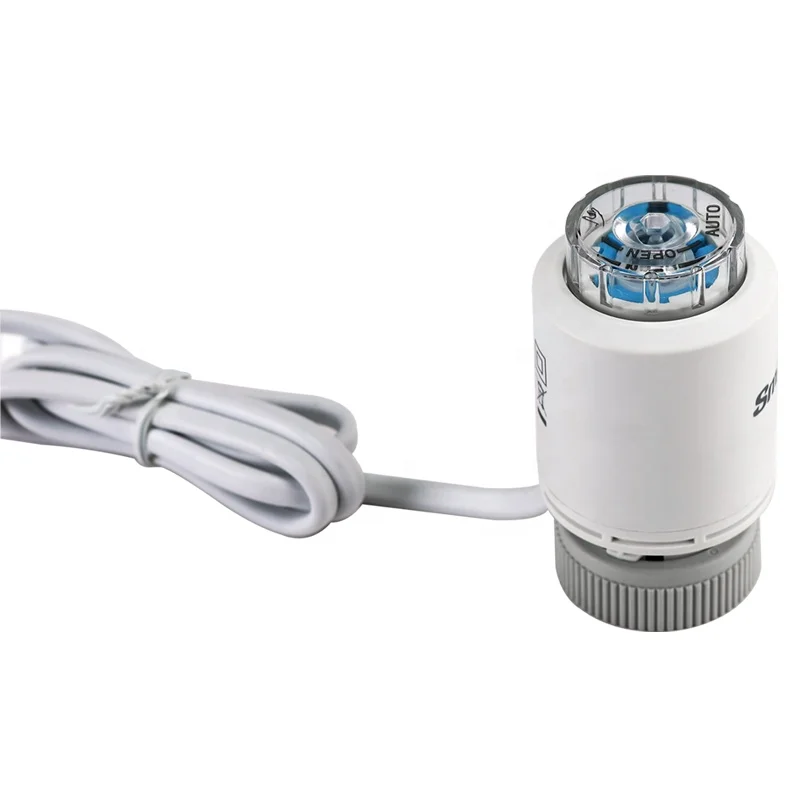

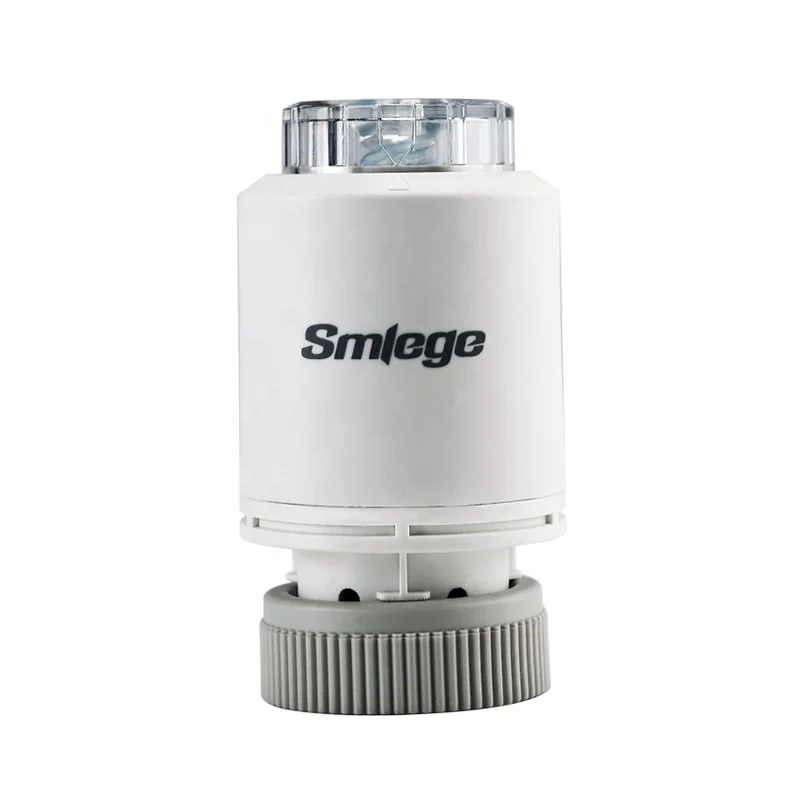

920062PL Thermal actuator

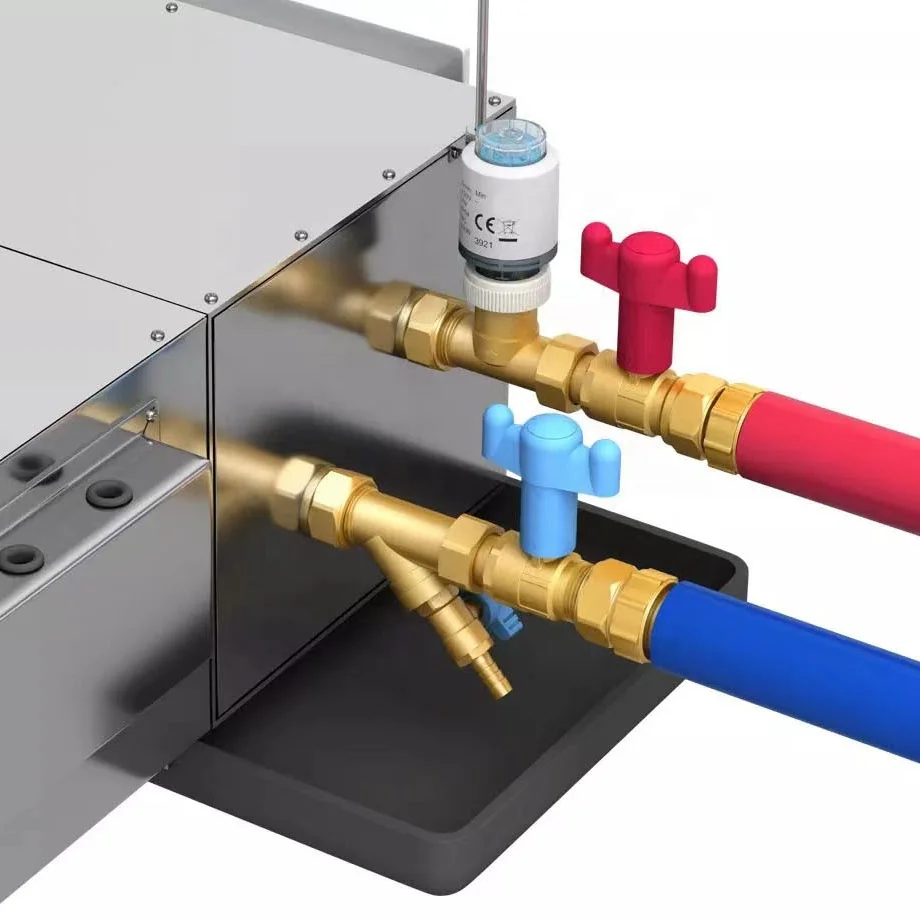

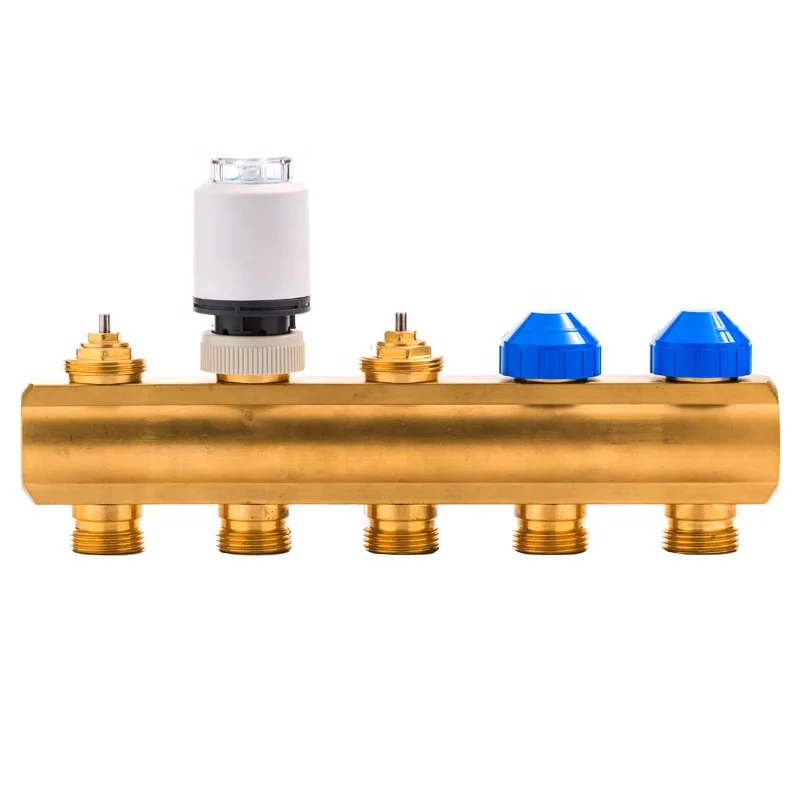

The thermal actuators are mainly used in floor heating systems to control closing and opening of the valves. It is specifically applied to electric drive part of the branch manifold valve, small valve and dynamic balance valve. No noise, low power consumption, 3 years warranty, fast installation and easy disassembly.
Feature:
920062PL actuator is equipped with a control knob for manual opening, valve opening I closing indicator and a device for returning to automatic operation from the manual position when the electric supply is restored.
European directive conformity
CE mark in accordance with directives 2014/35/ EU and 2014/30/ EU.
European directive conformity
CE mark in accordance with directives 2014/35/ EU and 2014/30/ EU.
Feature:
The wax thermostatic element produced by the SMLG with its own patented formula is widely recognized, praised and applied in the
industry for its sensitivity and accuracy. It has also passed the European experimental institutions product certification (ACS,
WRAS)
industry for its sensitivity and accuracy. It has also passed the European experimental institutions product certification (ACS,
WRAS)
Product name | 920062PL thermal actuator | ||
No | Item | Data | |
1 | Type | Normally closed | |
2 | Protective shell | PA+60%GF | |
3 | Colour | Grey+white | |
4 | Voltage | 230 V (ac) - 24 V (ac) - 24 V (dc) | |
5 | Force | 110N | |
6 | Running power consumption | 2.5W | |
7 | Protection class | IP54 | |
8 | Double insulation construction | CE | |
9 | Ambient temperature range | 0-50°C | |
10 | Operating time | opening and closing f「om 3-5 mins O「 60 sec | |
11 | Connection size | M30*1.5mm | |
12 | Length of supply cable | 80 cm | |
Product name | Wax thermostatic element | ||
Maximum Load | 140N | Temperature(℃) Stroke(mm) | |
Minimum Load | 45N | 15℃ ~ 38℃ 2 ± 0.2 | |
Testing Load | 55N | 38℃ ~ 45℃ 1.4 ± 0.15 | |
Spring Rate | 5N/mm | 35℃ ~ 45℃ 2 ± 0.2 | |
Maximum Temperature | 90℃ | 45℃ ~ 60℃ 0.86 ± 0.15 | |
Material | Copper | 15℃ ~ 90℃ 5.4 (Max) | |
Stroke | L=20±0.3mm at 38℃ 55N | ||
Lifespan | 100000 times | ||
Installation and Disassembly

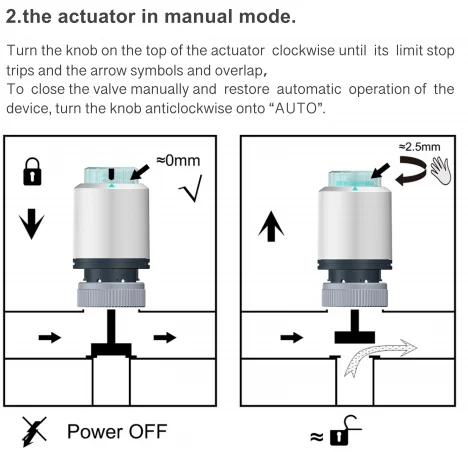

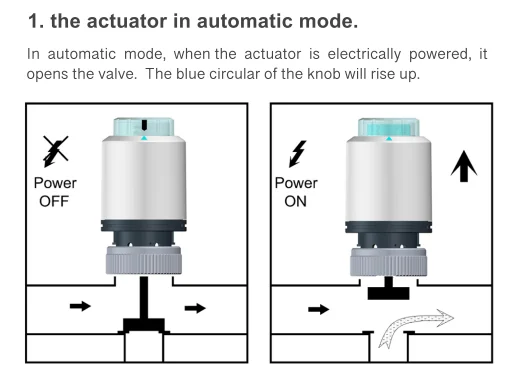

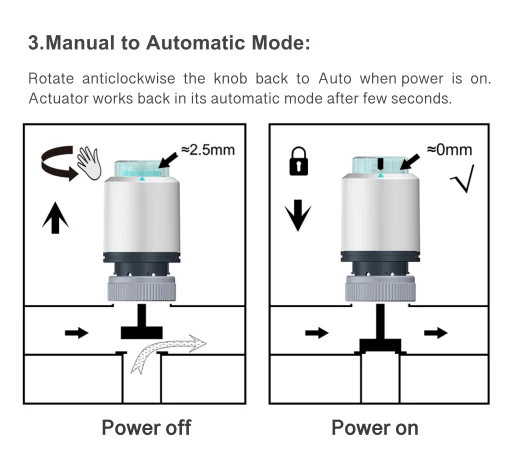

Using thermal actuator
Certifications
Company Profile
Products Packing
Main Products
FAQ
Q: Are you trading company or manufacturer ?
A: Both, actually we are both factory and trading company.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: No, we couldn't offer the sample for free charge and do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shipment.
If you have another question, pls feel free to contact us
A: Both, actually we are both factory and trading company.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: No, we couldn't offer the sample for free charge and do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shipment.
If you have another question, pls feel free to contact us
