8 Port 10/100Mbps Ethernet Unmanaged Switch
- Category: >>>
- Supplier: APT Prosper Technology Co. Ltd
Share on (1600432117132):
Product Overview
Description
Basic Features

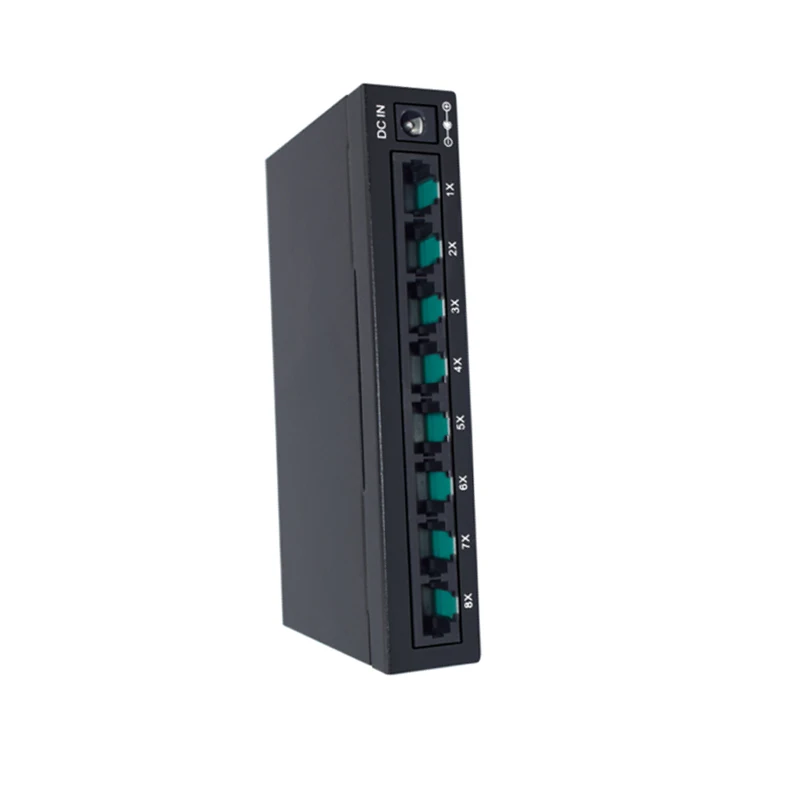

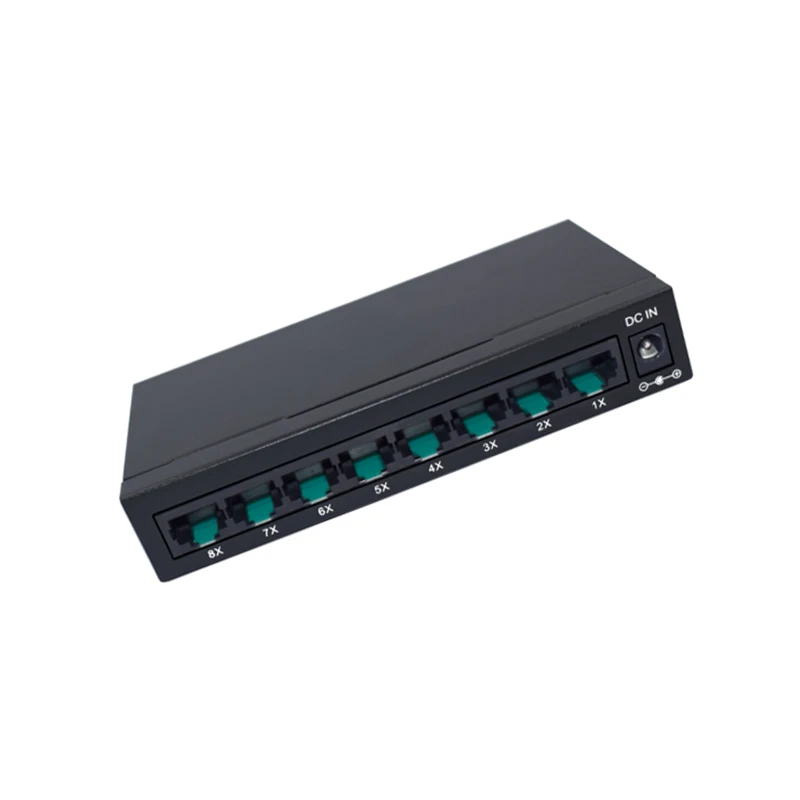

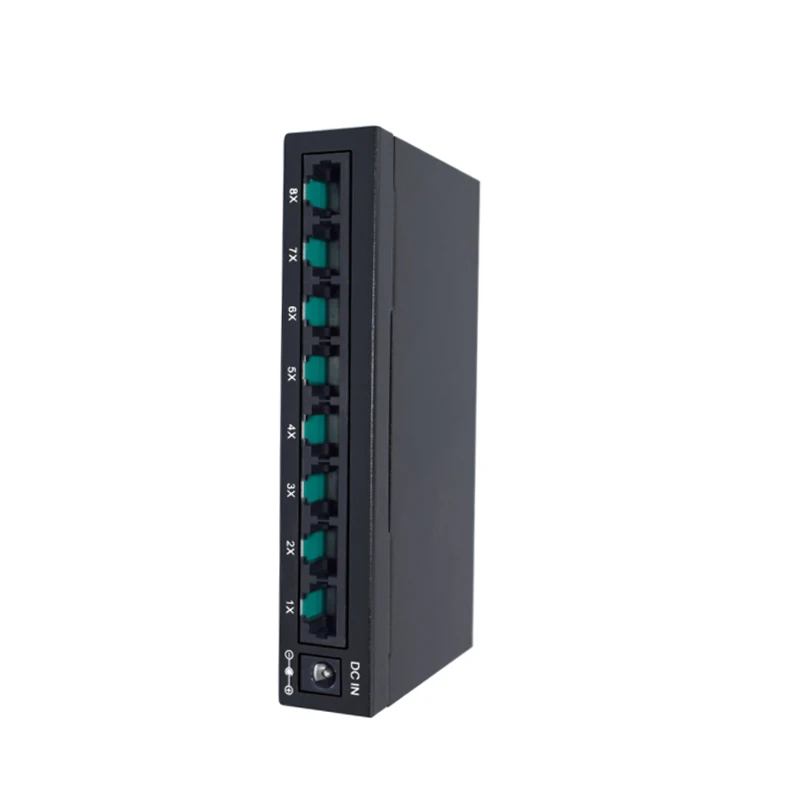

8-Port 10/100Mbps Ethernet Unmanaged Switch
8-port 10/100Mbps Ethernet Unmanaged Switch. It provides high performance Ethernet of tabletop level for you.
provides 8 x 10/100Mbps Auto-Negotiation RJ45 ports. It is a design of high integration level, exquisite,
portable, easy to operate, which is suitable for the small and medium office and home network.
The Switch adopts store-and-forward technology, combining the dynamic memory allocation,
which make certains to effectively distribute the data to each port, when the switch is transmitting and receiving data, the flow control guarantee the data to avoid loss of the data packet. The LED shows the situation of power and network.
portable, easy to operate, which is suitable for the small and medium office and home network.
The Switch adopts store-and-forward technology, combining the dynamic memory allocation,
which make certains to effectively distribute the data to each port, when the switch is transmitting and receiving data, the flow control guarantee the data to avoid loss of the data packet. The LED shows the situation of power and network.
Product Specifications
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
1.6Gbps Switching Capacity
4K Jumbo frame improves performance of large data transfers
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Auto-negotiation ports provide smart integration between 10Mbps and 100Mbps hardware
Fanless design ensures quiet operation
Plug and Play design simplifies installation
Power In : DC 5v 1000ma
Chipset | RTL8309 | ||
Standards | IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, | ||
Network Media (Cable) | 10BASE-T: UTP category3,4,5 cable (maximum 50m) 100BASE-T: UTP category 5,5e cable (maximum 50m) | ||
Number of Ports | 8x 10/100Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX | ||
LED indicators | 10M/100M | Link/Act | |
Other | Power | ||
Transfer Method | Store-and-Forward | ||
Switching Capacity | 1.6G | ||
MAC Address Learning | Automatically learning | ||
Dimensions (L × W × H) | 136*75*24mm | ||
Environment | Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage humidity: 5%~90% non-condensing | ||
Application
Company Profile
APT Prosper Technology Co., LTD (Abb: APTTEK) is headquartered in the Science City of Shenzhen. Under the trend of national revival, the company’s technological innovation and industrialization capability has a rapid growth in the innovation atmosphere.
As a National High-tech Enterprise, Software Enterprise, Private High-tech Enterprise, APTTEK always focus on the FTTx and VoIP Gateway products development, production and sales.
APTTEK has an experienced R&D team. Production base covers total area of 1000 square meters. The main products have passed 3C, CE certifications. The production line imported automatic production & testing system and manufacturing execution system (MES), which improved the digitization of manufacturing, controllability & traceability of production process, production capacity & efficiency, and quality control.Moreover, the company also imported TechExcel project management system in R&D management, which improved the management capability of requirements management, schedule management and risk management.
As a National High-tech Enterprise, Software Enterprise, Private High-tech Enterprise, APTTEK always focus on the FTTx and VoIP Gateway products development, production and sales.
APTTEK has an experienced R&D team. Production base covers total area of 1000 square meters. The main products have passed 3C, CE certifications. The production line imported automatic production & testing system and manufacturing execution system (MES), which improved the digitization of manufacturing, controllability & traceability of production process, production capacity & efficiency, and quality control.Moreover, the company also imported TechExcel project management system in R&D management, which improved the management capability of requirements management, schedule management and risk management.
Shipping and Delivery
1. Can we get a lower price? Any Discount?
Yes, price is not a problem, everything could be negotiated based on the quantity.
2. Can I get a free sample?
Sorry that APTTEK is not available to new customer.
3. We are new in this PON fields, can you help me and recommend me some items?
Yes, of course. It is our pleasure to help you with it.
You only need to offer us more details about your application.
4. What is your MOQ?
No MOQ for any sample test.
5. OEM/ODM Service is available?
Yes, APTTEK havS strong ability to offer customers ODM&OEM products of highest quality.
And it will require the MOQ.
6. For Trade Terms, such as payment and leadtime.
* Payment Terms: We mainly support T/T bank transfer,Paypal and Western Union
* Price Terms: EXW SHENZHEN
* Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent
* Leadtime: Sample order 3-7work days; Bulk order 15-25work days(after your payment)
7. How about the Warranty?
There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence or updated with other
brands.
