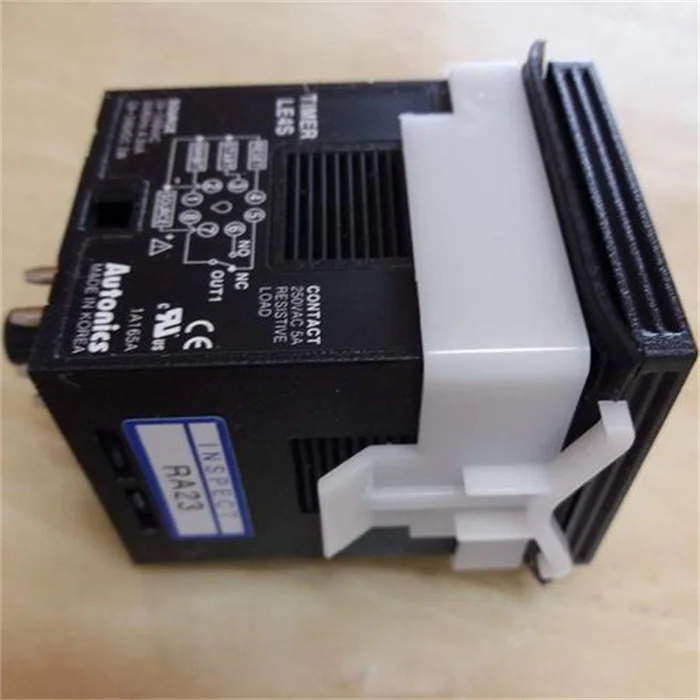

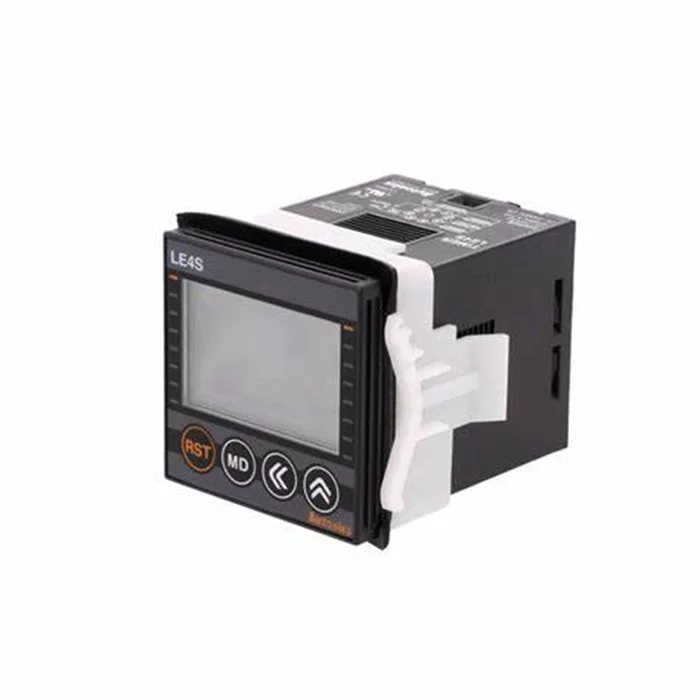

ЖК дисплей, Цифровые таймеры DIN W48 * h48 мм LE4S

Product Overview

Description

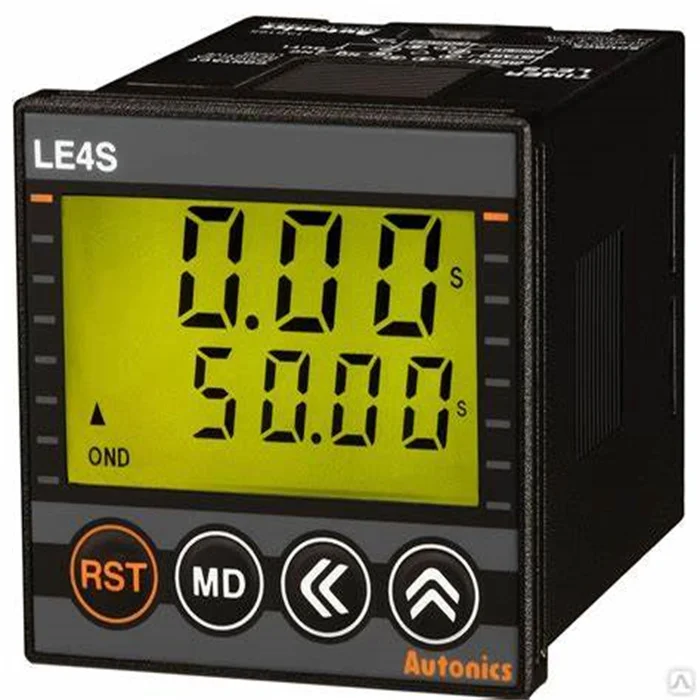

LCD DISPLAY DIGITAL  TIMERS DIN W48*H48mm  LE4S



Display method : 4-digit 7-segment LCD

Operation method : Count up, Count down

Output Operation : ON DELAY, INTERVAL, FLICKER, ON-OFF DELAY, OFF DELAY

Time operation : SIGNAL ON START

Terminal : 8-pin plug

Power supply : 24-240VAC~, 24-240VDC









Display method	4-digit 7-segment LCD
Operation method	Count up, Count down
Output Operation	ON DELAY, INTERVAL, FLICKER, ON-OFF DELAY, OFF DELAY
Time operation	SIGNAL ON START
Terminal	8-pin plug
Power supply	24-240VAC~, 24-240VDC
Setting range	0.01 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 0 min 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 0 hour 1 min to 99 hour 59 min, 0.01 hour to 99.99 hour, 0.1 hour to 999.9 hour, 1 our to 9999 ho
Signal Input Method	No-voltage input(NPN)
Control output_Relay	Time-limit SPDT (1c): 1
Backlight	Backlight function
Approval
Min. signal Width_START	1ms, 20ms (selectable)
Min. signal Width_INHIBIT	1ms, 20ms (selectable)
Min. signal Width_RESET	1ms, 20ms (selectable)
Accessories	Bracket
Environment_Ambient temperature	-10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity	35 to 85% RH
Weight	Approx. 98g
