High end product essential oil press of agrum, essential oil press of citrus
- Category: >>>
- Supplier: Wuhan HDC Technology Co. Ltd.
Share on (1600432156858):
Product Overview
Description
Product Description

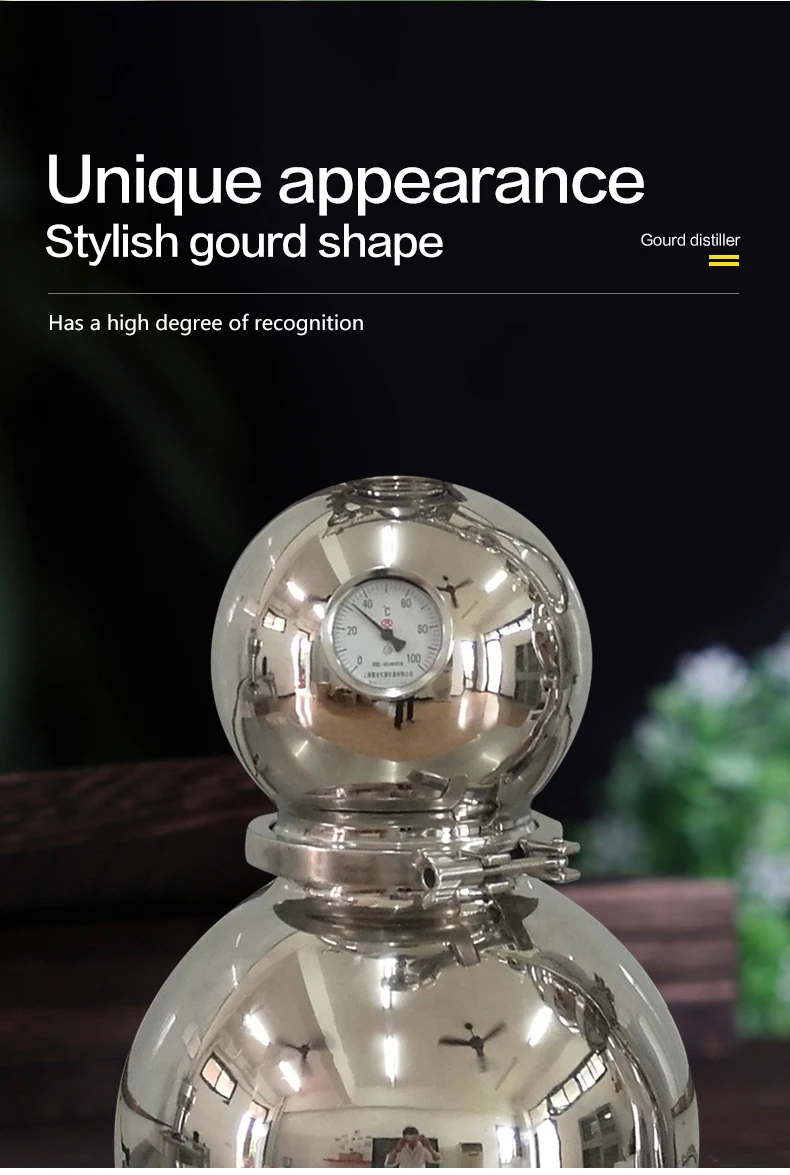

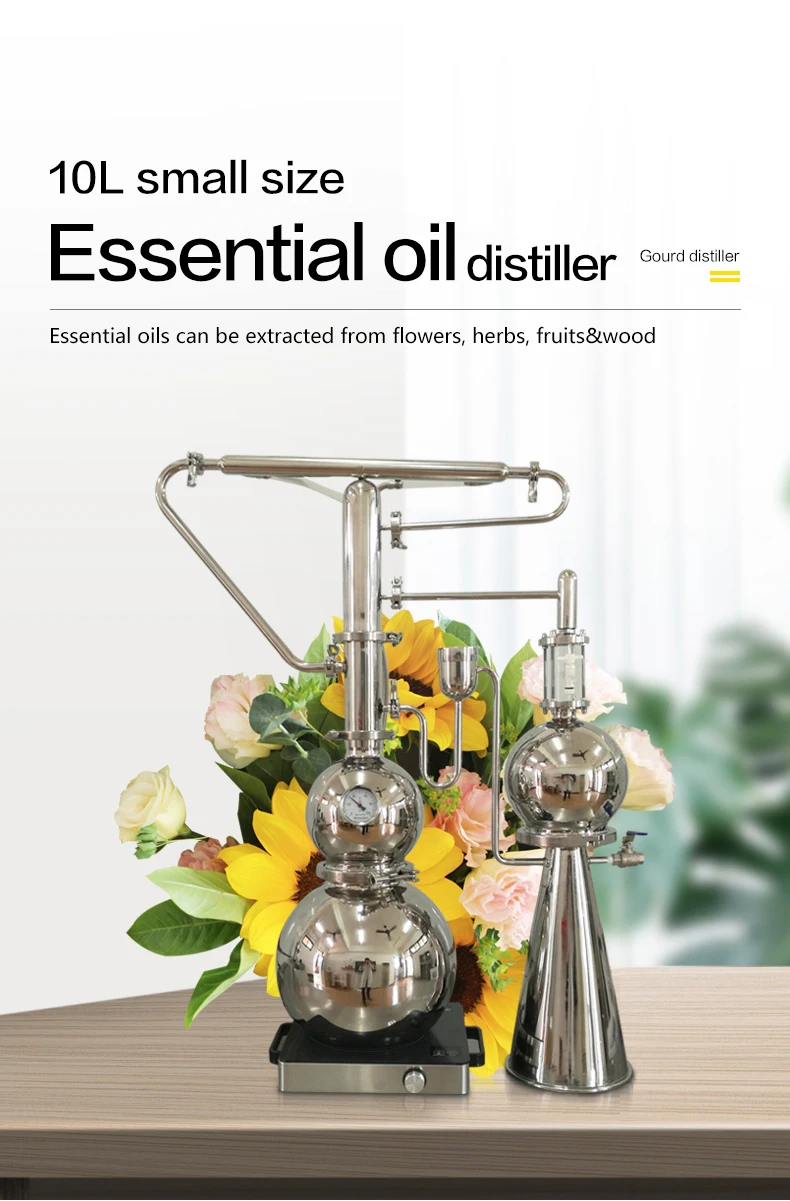

This excellent and multifunctional 10L gourd shape essential oil distillation equipment can be a fabulous gift for beginners who interests in the art of distilling essential oil and hydrolat in small batches from plants in the garden .Main advantage 10L gourd shape essential oil distillation equipment:
(1)By steam-distillation to reach the extraction of essential oils.
(2)Easy operation. One people can operate this machine easily .
(3)High efficiency. Using indirect heating of heat- transfer oil, it can quickly reach 100C high temperature under the conditions
of cleanness, safety and atmospheric pressure.
(4)Compact structure.It covers only about 1.5 square meter.
(1)By steam-distillation to reach the extraction of essential oils.
(2)Easy operation. One people can operate this machine easily .
(3)High efficiency. Using indirect heating of heat- transfer oil, it can quickly reach 100C high temperature under the conditions
of cleanness, safety and atmospheric pressure.
(4)Compact structure.It covers only about 1.5 square meter.
Model | 10L |
Output | 2-4kg/batch |
Packing Size(mm) | 1055*805*345mm |
Packing Weight(kg) | 27.1kg |
Power (kw) | 2.2kw |
Working Voltage(V) | 220V/50HZ Mono phase |
Features
Details Images

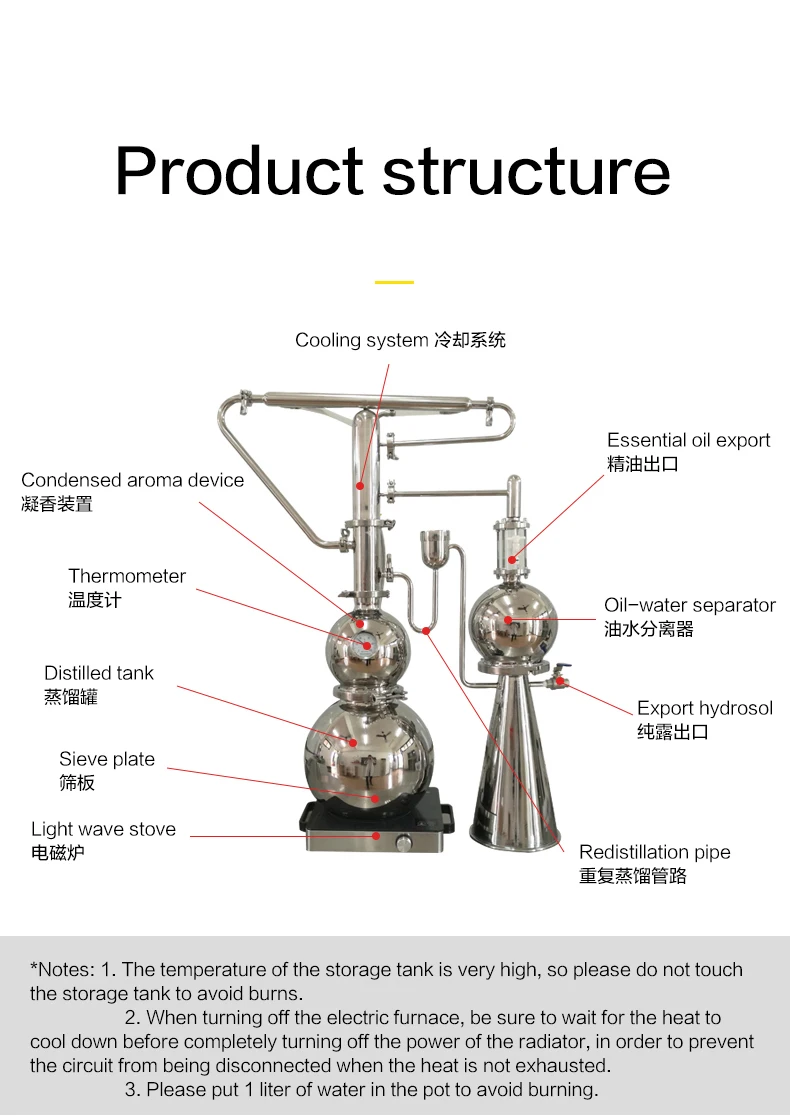

Product structure

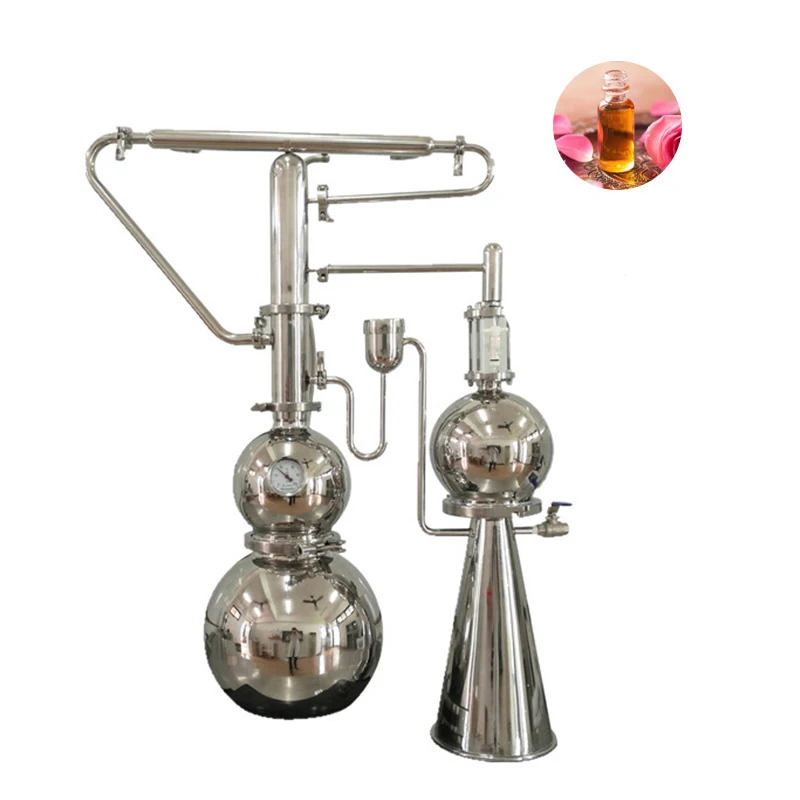

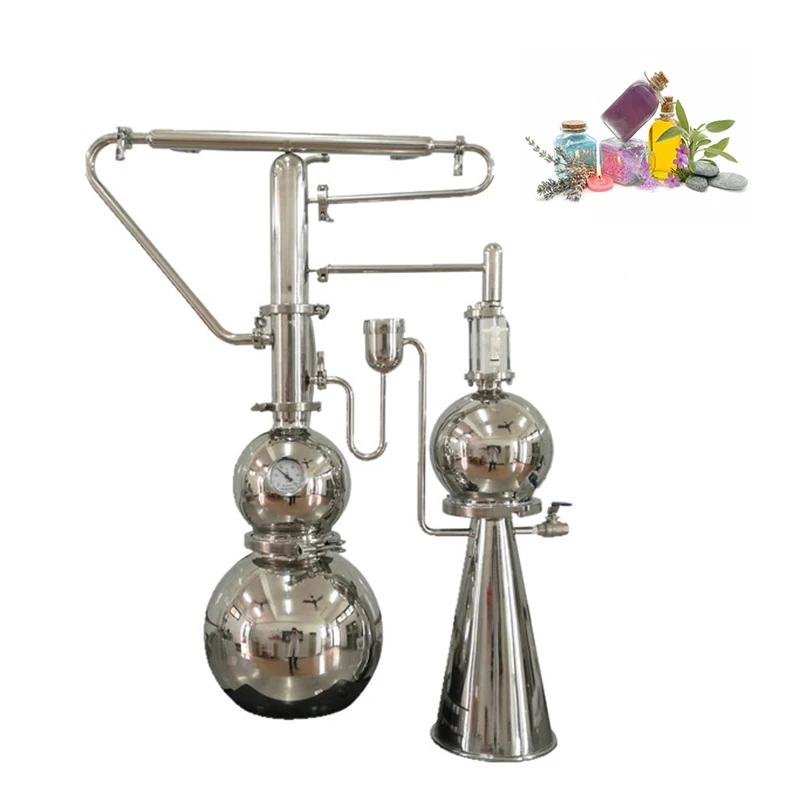

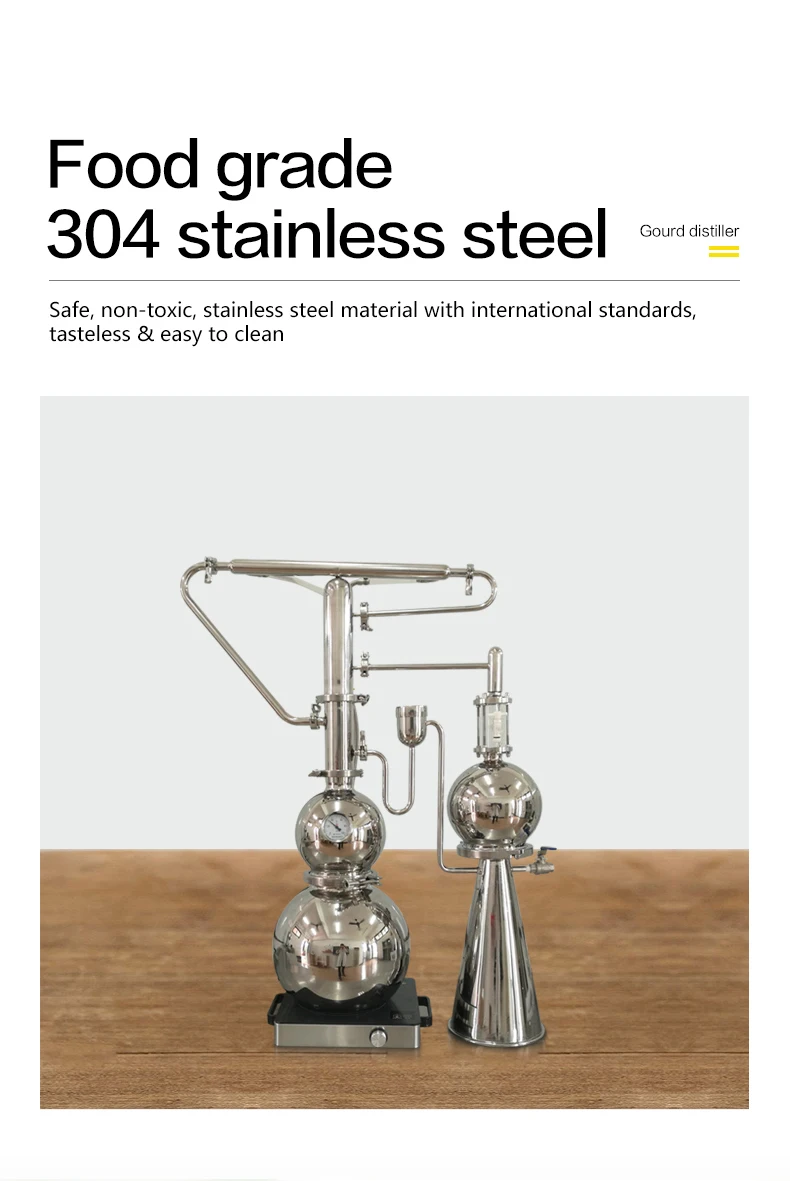

10L Gourd Shape Essential Oil Distillation Equipment | 1. Structure : The equipment is made of distillation kettle, demister, condenser, cooler, oil and water separator, re-distillation device, coagulate fragrance device, 220V 2.2KW electric ceramic stove and related pipes. Distillation equipments are all made of SUS304 stainless steel. The inner surface of the equipment is polished with Ra ≤ 0.6μm and the mirror surface treatment with Ra ≤ 0.8μm to ensure that there is no dead corner and meet the GMP requirements. |
2. Distillation kettle: effective volume: 10L, direct heating with tank bottom.Kettle inside: Design pressure: 0.09 Mpa; Working pressure: atmospheric pressure; Design temperature: 120 ℃; Working temperature:≤ 100 ℃; Working medium: water; Barrel = 1.5mm/SUS304; Upper oval head= 1.5mm/SUS304; Pipeline hole: thermometer connector, reflux inlet, liquid outlet, related pipe joints etc. | |
3. Condenser: vertical condenser, heat exchange area> 0.03 square meter.Tube pass: Design pressure: atmospheric pressure; Working pressure: atmospheric pressure; Design temperature: 100 ℃; Working temperature ≤ 100 ℃; Working medium: secondary steam. Tube pass: Φ 19 x 1.5; Material :SUS304; Shell pass: Design pressure: 0.3 Mpa; Working pressure:atmospheric pressure; Working temperature: 15 ~ 40℃. Working medium: cooling water. | |

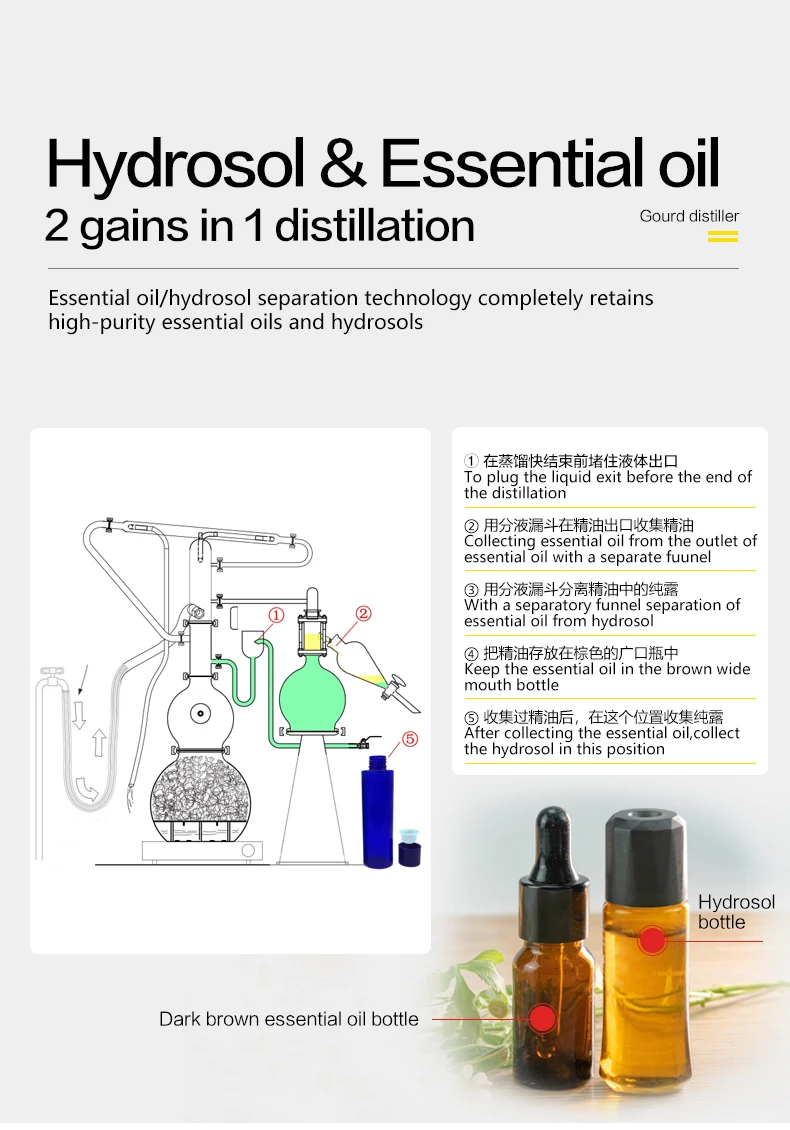

4. Oil and water separator: tank material: δ1.5mm/SUS304, top glass; Tank volume: 3L; | |

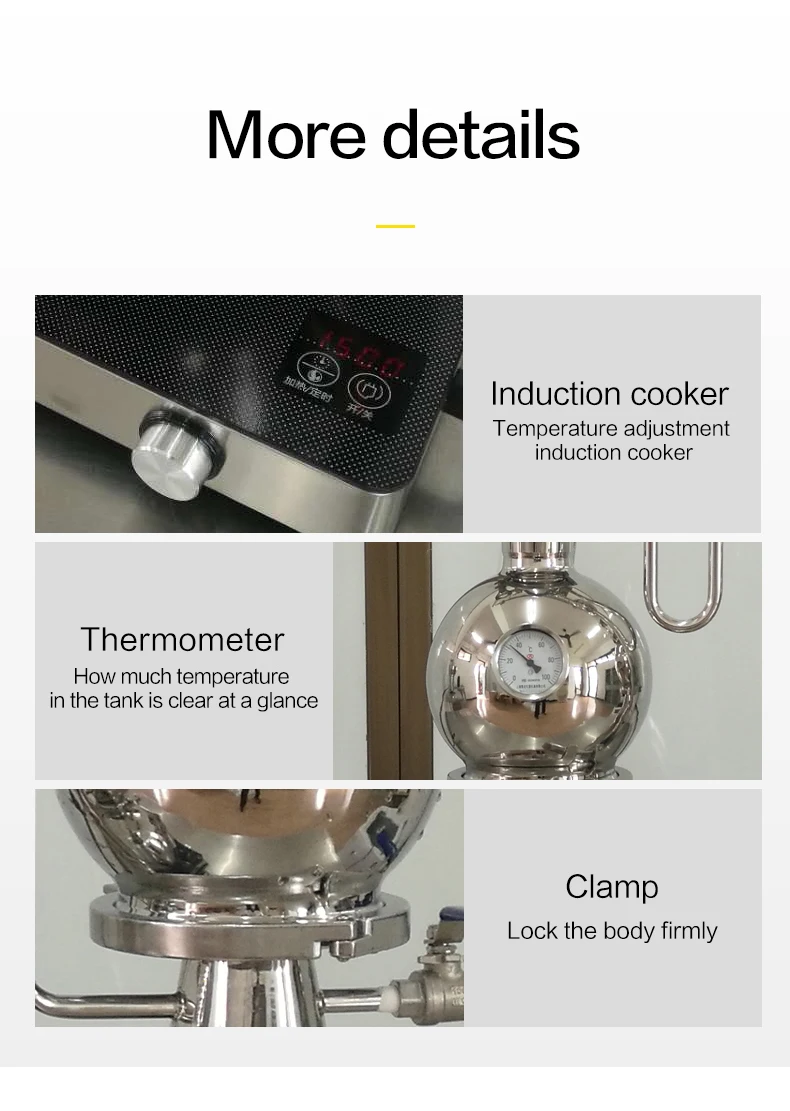

5. Electric ceramic stove: working voltage 220V/50HZ triphase. Maximum heating power: 2.2kw, 22-speed adjustable. | |
6. Accessories: 1pcs electric ceramic stove (light wave furnace), 1pcs thermometer, 1pcs silicone tube and tube clamps. |
Applactions
Application:
Wide application: Essential oil distillation machine could used for vacuum distilling for the flower, plant, leaf, pericarp. such as Lavender, Rosemary, Pine and Fir Needles, Peppermint, Basil, Eucalyptus Leaves etc.
Wide application: Essential oil distillation machine could used for vacuum distilling for the flower, plant, leaf, pericarp. such as Lavender, Rosemary, Pine and Fir Needles, Peppermint, Basil, Eucalyptus Leaves etc.

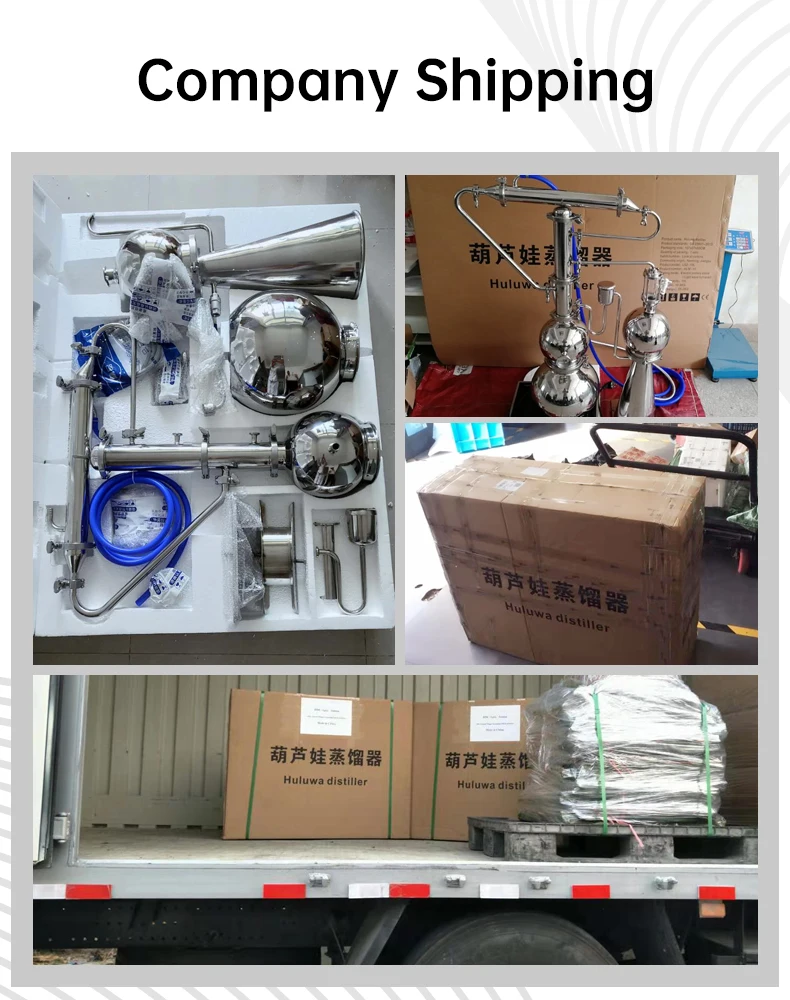

Product packaging
