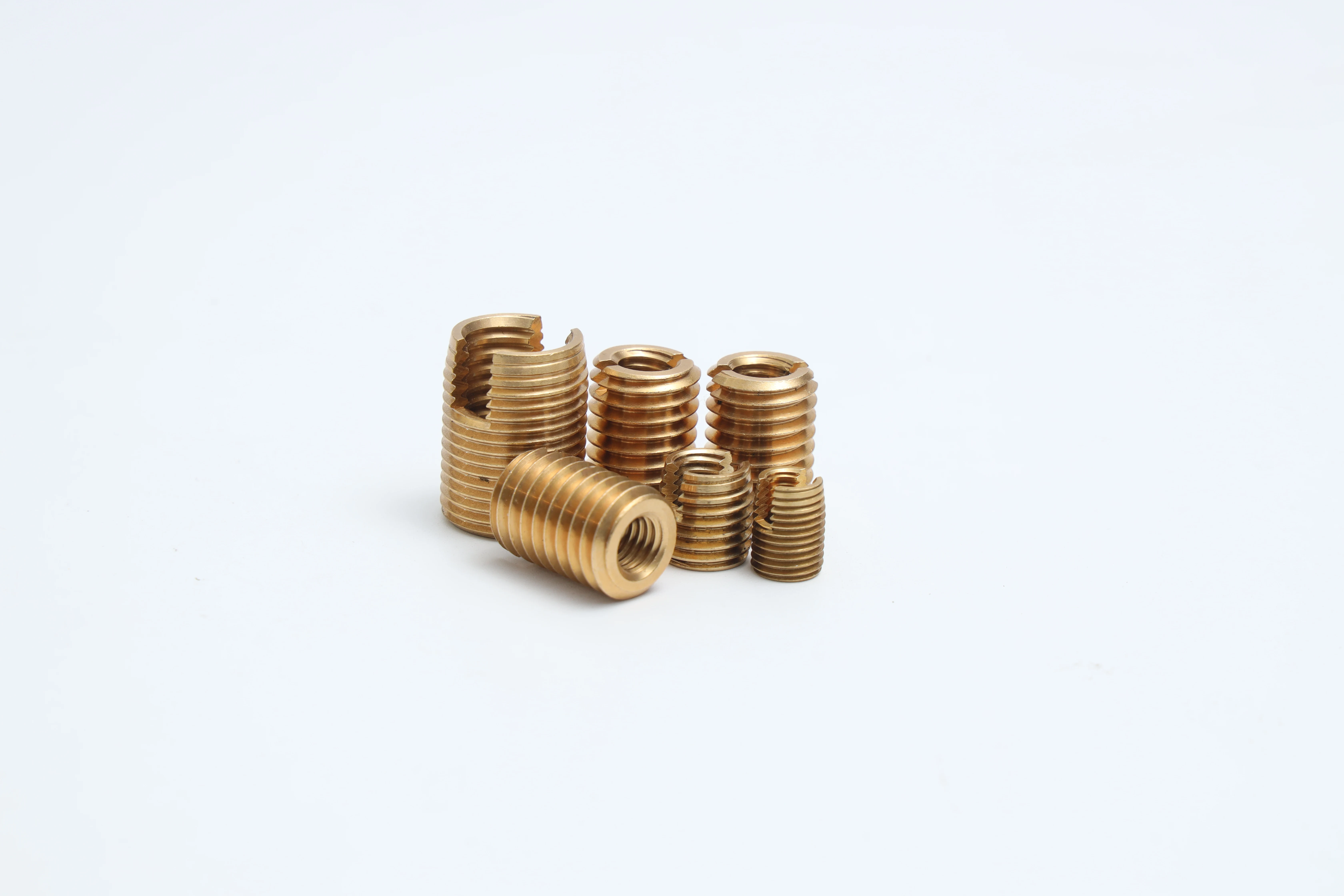

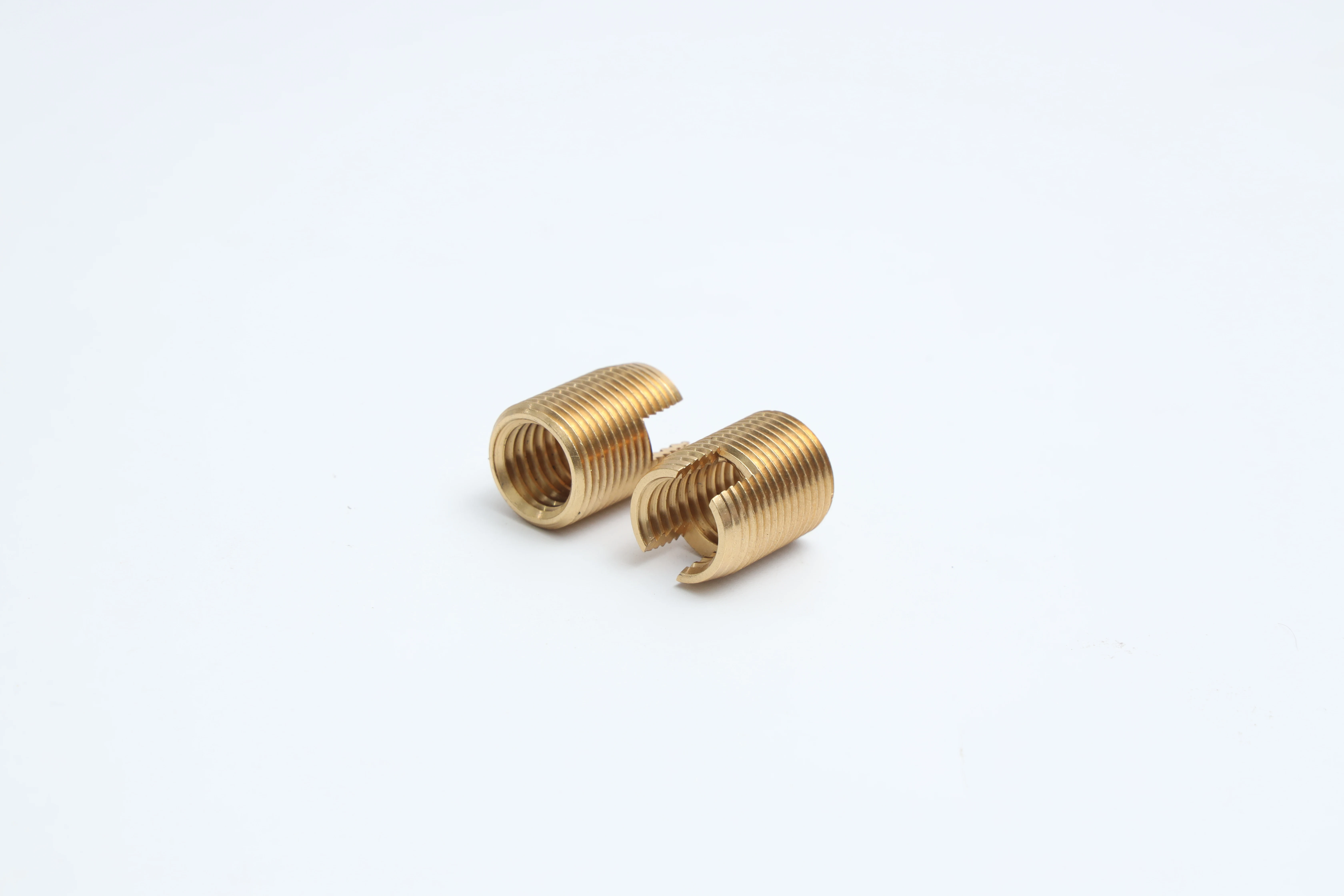

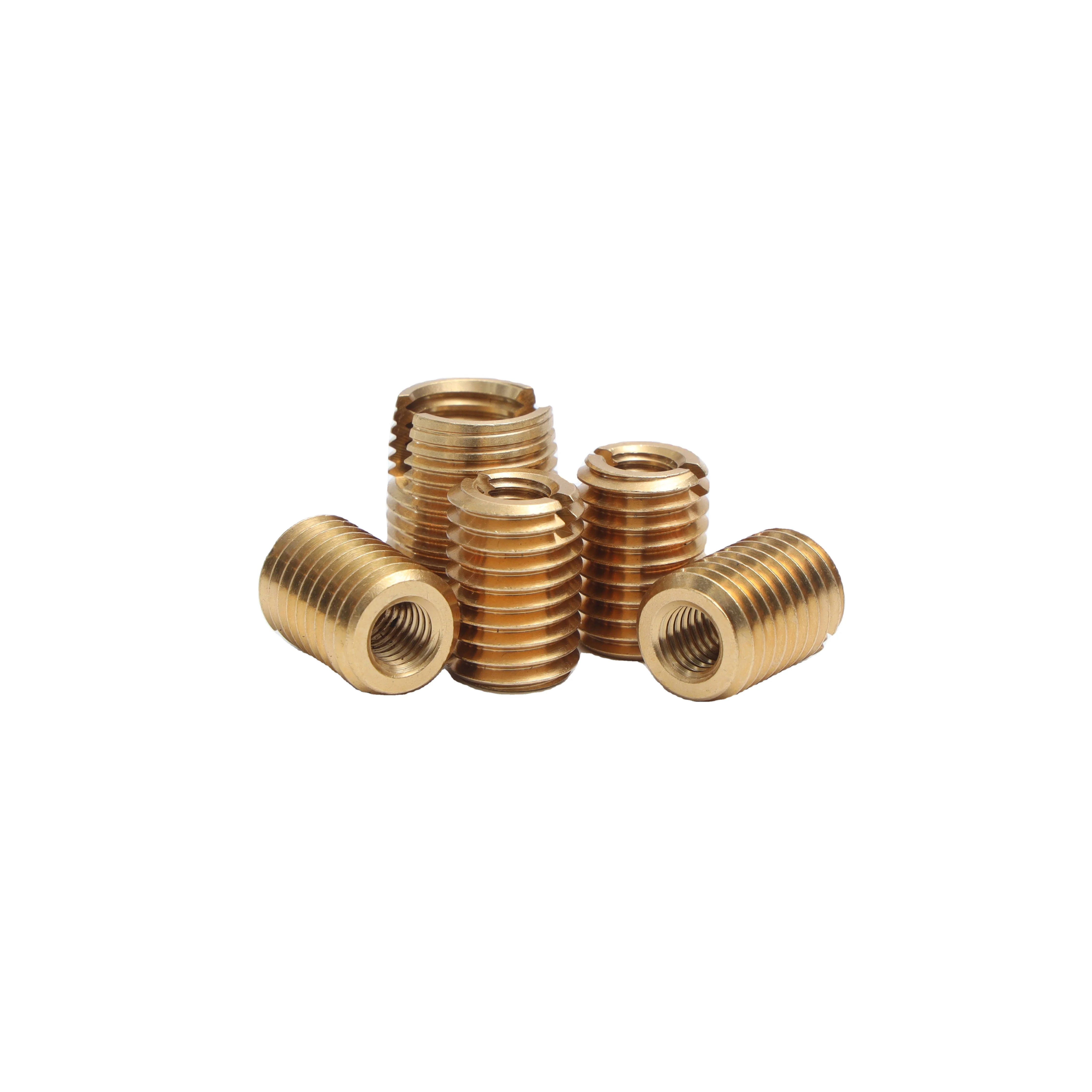

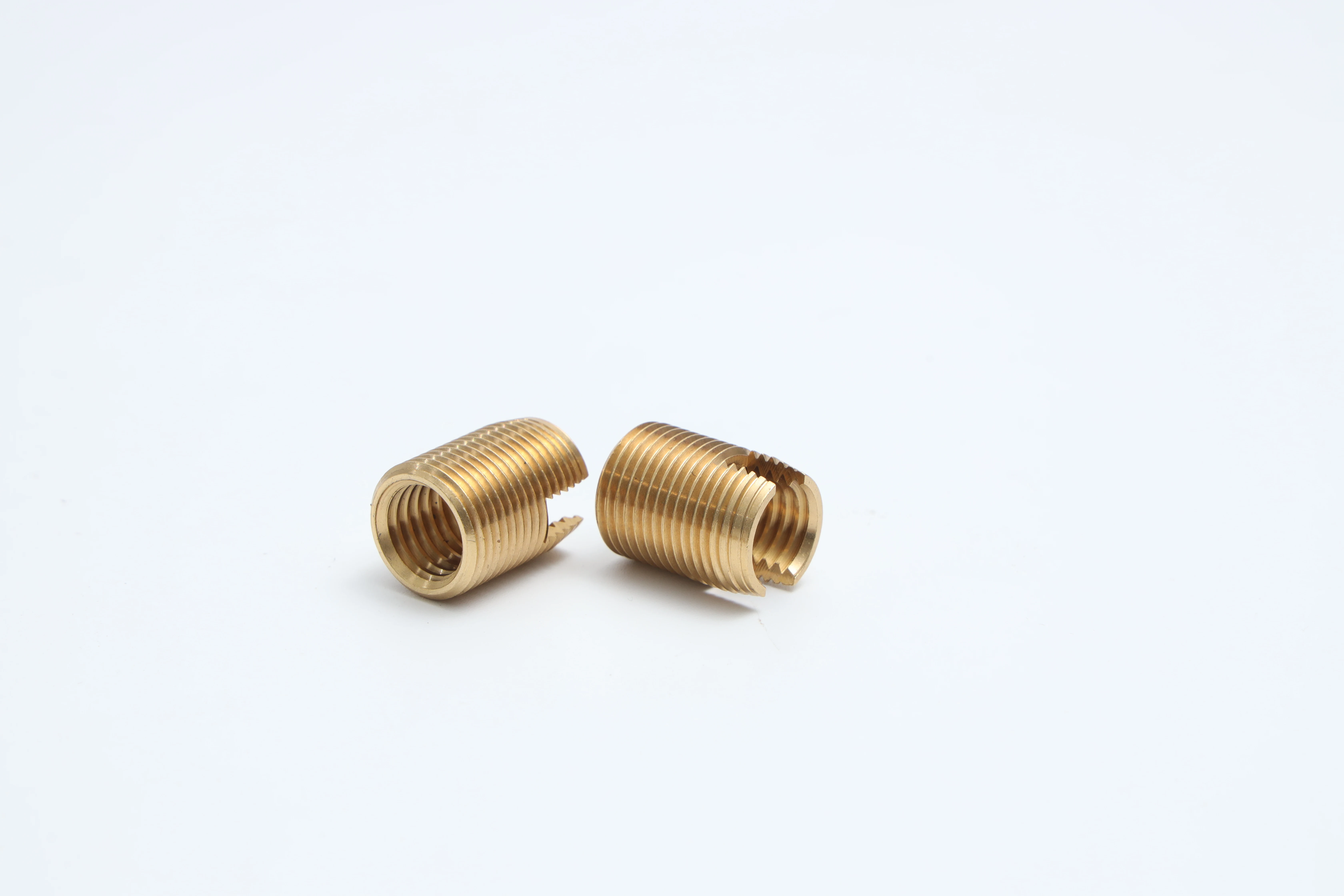

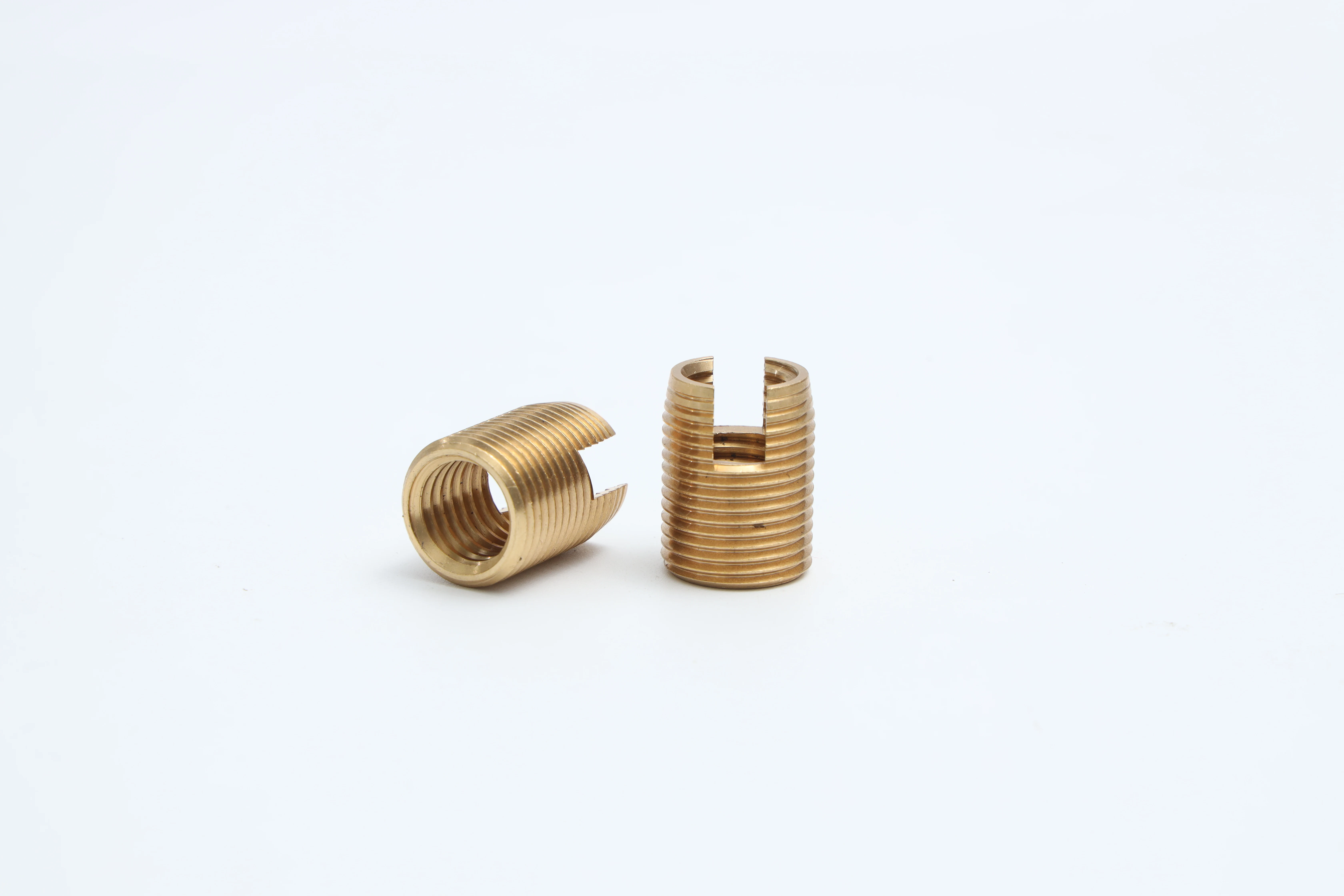

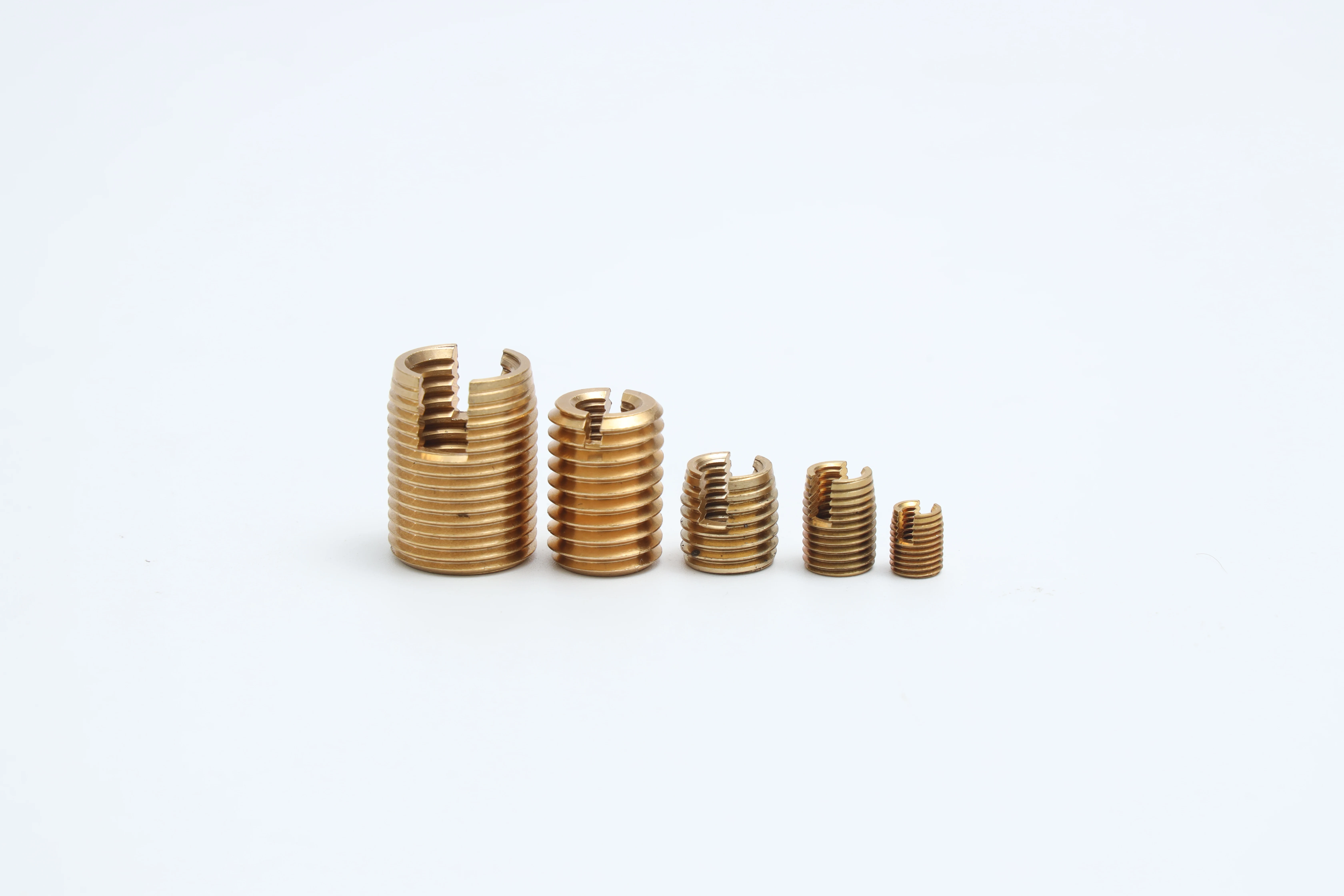

Brass self tapping threaded inserts
Type of self tapping threaded inserts
Commonly used self tapping screw sleeve from the appearance of roughly divided into two types, one is slotted self tapping screw sleeve, the other is three round hole, three round hole is divided into 307 and 308 type two, 307 and 308 respectively in the same diameter, outer diameter and length is not the same. Please refer to the above specification table for details.302 type Slotted self tapping threaded inserts
Internal thread
Length(mm)
External thread E
Refer Hole Diameter (mm)
MinimumHoleDepth(mm)
Plastic
aluminium alloy
Cast Iron
M2.5*0.45
6
M4.5*0.5
4.0-4.1
4.1-4.2
4.2-4.3
8
M3*0.5
6
M5*0.5
4.5-4.6
4.6-4.7
4.7-4.8
8
M3.5*0.6
8
M6*0.75
5.3-5.4
5.5-5.6
5.6-5.7
10
M4*0.7
8
M6.5*0.75
5.8-5.9
6.0-6.1
6.1-6.2
10
M5*0.8
10
M8*1.0
7.1-7.2
7.3-7.5
7.5-7.6
13
M6*1.0
12
M9*1.0
8.1-8.2
8.3-8.5
8.5-8.6
15
M6*1.0
14
M10*1.5
9.0-9.2
9.2-9.3
9.3-9.4
17
M8*1.25
15
M12*1.5
10.6-10.8
11-11.2
11.2-11.4
18
M10*1.5
18
M14*1.5
12.6-12.8
13.0-13.3
13.2-13.4
22
M12*1.75
22
M16*1.5
14.6-14.8
15.0-15.3
15.2-15.4
26
M14*2.0
24
M18*1.5
16.6-16.8
17.0-17.3
17.2-17.5
28
M16*2.0
22
M20*1.5
18.6-18.8
19.0-19.3
19.2-19.5
27
M18*2.5
24
M22*1.5
20.6-20.8
21.0-21.3
21.2-21.5
29
M20*2.5
27
M26*1.5
24.6-24.8
25.0-25.3
25.2-25.5
32
M22*2.5
30
M26*1.5
24.6-24.8
25.0-25.3
25.2-25.5
36
M24*3.0
30
M30*1.5
28.6-28.8
29.0-29.3
29.2-29.5
36
