ODM OEM operation lighting surgical lamp with integrated full hd camera
- Category: >>>
- Supplier: Luoyang Qinzheng Trading Co. Ltd.
Share on (1600432499821):
Product Overview
Description
ODM OEM operation lighting surgical lamp with integrated full hd camera
Features:
1.Minimally Invasive Surgery Mode (MIS): Two modes are available for doctors to choose. When doctors are performing minimally invasive surgery such as endoscopy and endoscopy, they can turn on the minimally invasive surgery mode, which will be used as ambient lighting.
2.Perfect cold light effect: the temperature rise of the doctor's head is <0.5℃, and the extremely low temperature rise of the operation area avoids the loss of body fluids caused by the temperature rise of the patient's surgical site during the operation, thereby solving the impact of the high temperature rise of ordinary shadowless lamps The problem of incision healing.
3.Shadowless lighting performance: The multi-focus design of the reflective bowl is adopted, and the light source in each reflective bowl is just converged to the operation area, and the luminous body composed of German original Osram lamp beads forms a good shadowless effect.
4.Original imported LED lamp beads: The original imported German LED lamp beads are used, and the stable surgical lighting system ensures the lamp life of 60,000 hours. Economical and practical, low maintenance cost.
5.Operating room laminar flow performance: unique streamlined thin and light design, plus one-piece lamp body, no external screws, in line with the requirements of modern clean operating room, making its performance in operating room laminar flow as always excellent.
6.Green energy saving and environmental protection: The energy consumption of the 720/720 lighting system is reduced by 1/3 compared with the traditional operation lamp, and the good energy saving effect is in line with the national advocacy standards for energy saving and environmental protection policies.
7.Outstanding LED technology: After a long period of comprehensive evaluation of LED technology and geometric models, we have selected the best configuration scheme for 720/720, providing a truly pure white, natural green cold light source for the operating room.
8.Excellent balance arm system: The balancer adopts the original imported German "ONDAL" brand. The excellent control performance completely eliminates the drift and instability of the lamp arm, and perfectly presents the best and light mobile performance.
9.Excellent color reproduction index: The color reproduction index is as high as Ra=98 and R9≥97 (red). It is easy to identify the details of the wound tissue, so that the doctor feels the light is soft, and it is not easy to cause visual fatigue during a long operation.
2.Perfect cold light effect: the temperature rise of the doctor's head is <0.5℃, and the extremely low temperature rise of the operation area avoids the loss of body fluids caused by the temperature rise of the patient's surgical site during the operation, thereby solving the impact of the high temperature rise of ordinary shadowless lamps The problem of incision healing.
3.Shadowless lighting performance: The multi-focus design of the reflective bowl is adopted, and the light source in each reflective bowl is just converged to the operation area, and the luminous body composed of German original Osram lamp beads forms a good shadowless effect.
4.Original imported LED lamp beads: The original imported German LED lamp beads are used, and the stable surgical lighting system ensures the lamp life of 60,000 hours. Economical and practical, low maintenance cost.
5.Operating room laminar flow performance: unique streamlined thin and light design, plus one-piece lamp body, no external screws, in line with the requirements of modern clean operating room, making its performance in operating room laminar flow as always excellent.
6.Green energy saving and environmental protection: The energy consumption of the 720/720 lighting system is reduced by 1/3 compared with the traditional operation lamp, and the good energy saving effect is in line with the national advocacy standards for energy saving and environmental protection policies.
7.Outstanding LED technology: After a long period of comprehensive evaluation of LED technology and geometric models, we have selected the best configuration scheme for 720/720, providing a truly pure white, natural green cold light source for the operating room.
8.Excellent balance arm system: The balancer adopts the original imported German "ONDAL" brand. The excellent control performance completely eliminates the drift and instability of the lamp arm, and perfectly presents the best and light mobile performance.
9.Excellent color reproduction index: The color reproduction index is as high as Ra=98 and R9≥97 (red). It is easy to identify the details of the wound tissue, so that the doctor feels the light is soft, and it is not easy to cause visual fatigue during a long operation.
Specifications: | ||||
YXHH-LED-720 | YXHH-LED-520 | |||
Diameter Of Lamp Cap | 720mm | 520mm | ||
Illumination Intensity | 180,000 Lux | 160,000 Lux | ||
Color Temperature | 4300±500 K | 4300±500 K | ||
Light Spot Diameter | 100-350 mm | 100-350 mm | ||
Depth of Focus | ≥1200 mm | ≥1200 mm | ||
Brightness Adjustment (Stepless) | 10-100% | 10-100% | ||
Ra | ≥98% | ≥98% | ||
R9 | ≥97% | ≥97% | ||
Surgeon’s head temperature rise | ≤0.5 | ≤0.5 | ||
Temperature rise of the operator's working range | ≤1.5 | ≤1.5 | ||
Power Supply | AC100-240V 50Hz | AC100-240V 50Hz | ||
LED Services Life | ≥60,000 hours | ≥60,000 hours | ||
Best Install Height | 2700-3000mm | 2700-3000mm | ||
Options
Double 720/520 heads
Model: YXHH-LED-720/720
Model: YXHH-LED-520/520

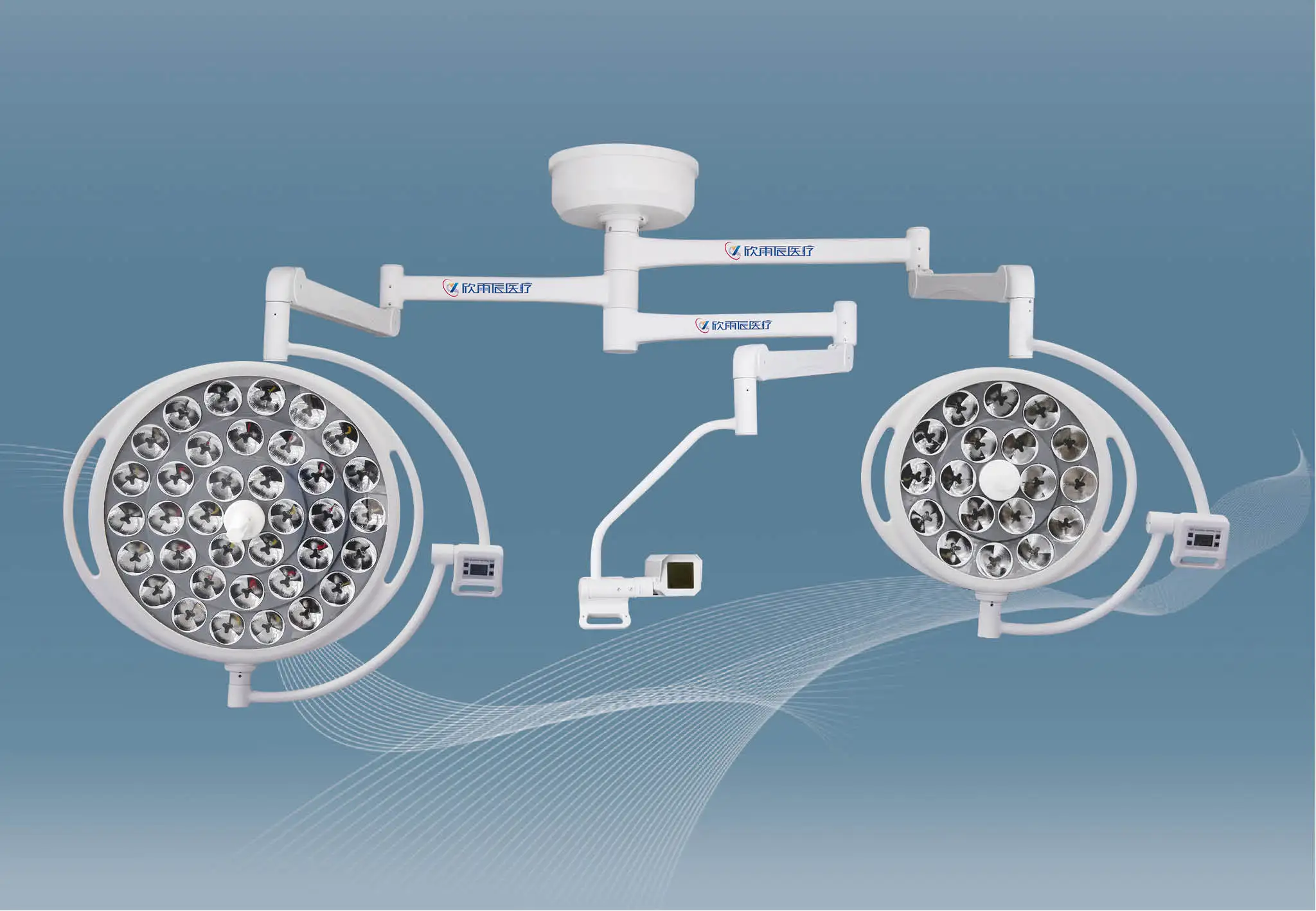

720 head+520 head
Model: YXHH-LED-720/520
720/520 head

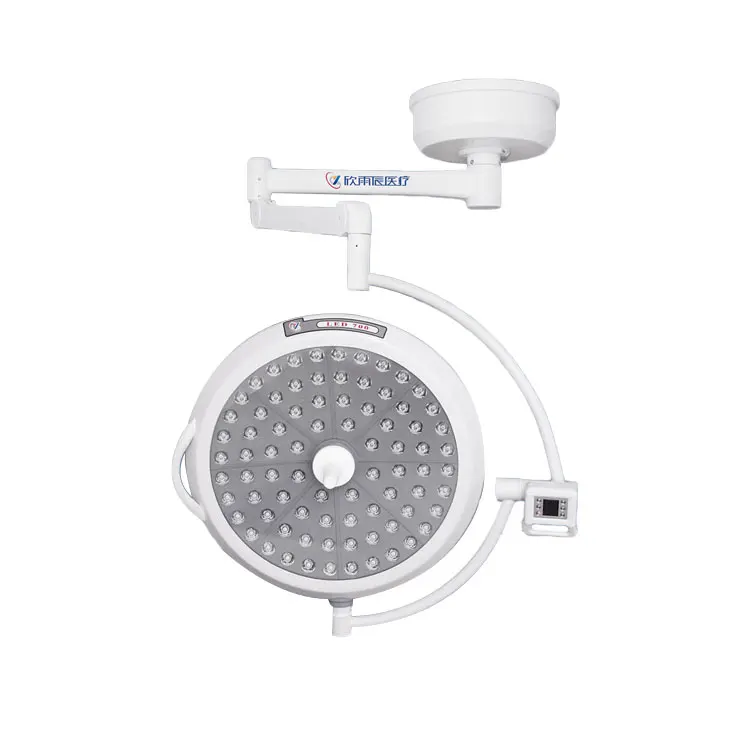

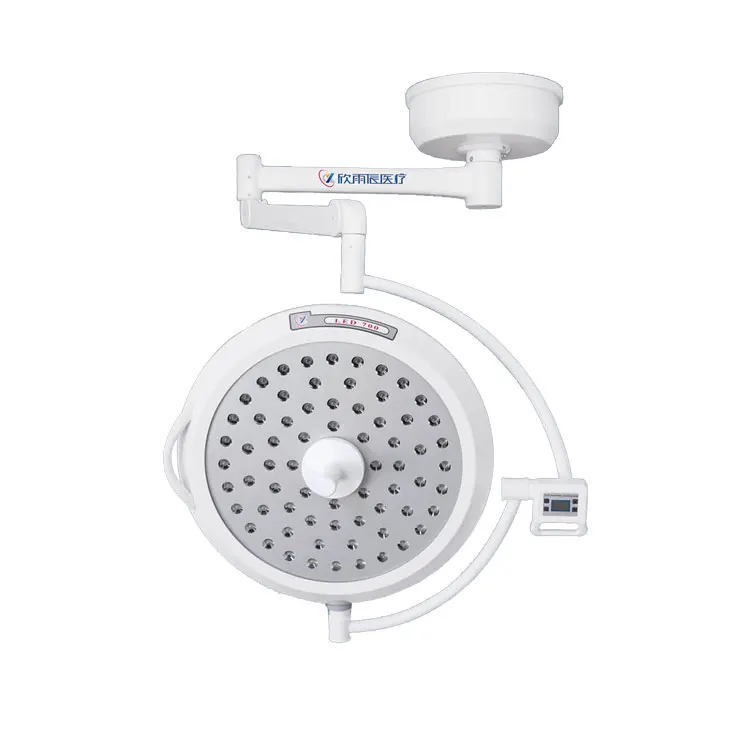

Model: YXHH-LED-720
Model: YXHH-LED-520
Model: YXHH-LED-520
Mobile 720 Mobile 520
Model: YXHH-LED-M720
Model: YXHH-LED-M520
Model: YXHH-LED-M520

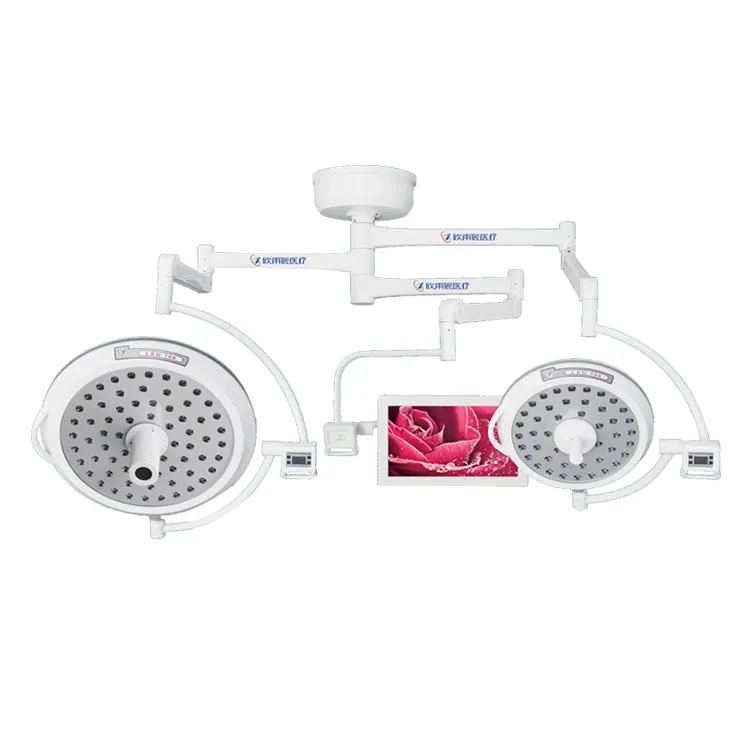

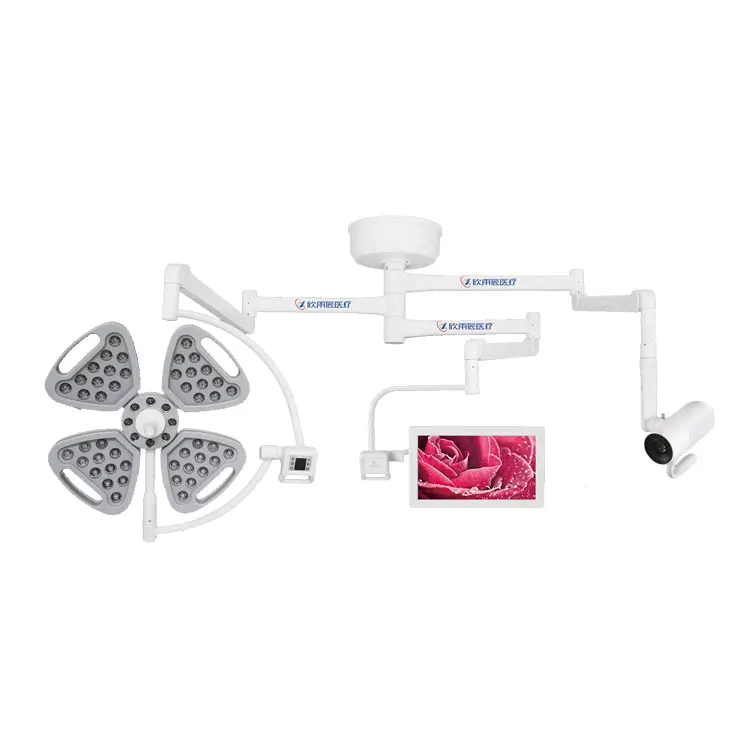

Double head with camera
The effect
About the factory
Xinyuchen Medical Group has nearly 400 employees, including R&D department, production department, sales department, foreign trade department, quality inspection department, after-sales department and other departments. The company has a group of R&D personnel with many years of professional technology and experience, as well as production and processing. It also has a set of superb, complete and skilled production processes in machining, stamping, welding, plastic spraying, assembly to inspection, and has relatively advanced processing and manufacturing capabilities in the country. The company's main products include: surgical shadowless lamp series, electric operating table series, medical pendant bridge series, medical bed series, medical carts and stainless steel series, etc., more than 200 specifications. All products of Shandong Xinyuchen Medical Equipment Group Co., Ltd.
have passed the EU CE safety certification, ISO9001 quality assurance system, ISO13485 medical device quality management system, ISO14001 environmental management system, ISO18001 occupational health and safety management system certification and other honorary qualification certificates, and established The comprehensive, standard and standardized management system effectively guarantees the operation of the quality management system.
have passed the EU CE safety certification, ISO9001 quality assurance system, ISO13485 medical device quality management system, ISO14001 environmental management system, ISO18001 occupational health and safety management system certification and other honorary qualification certificates, and established The comprehensive, standard and standardized management system effectively guarantees the operation of the quality management system.
