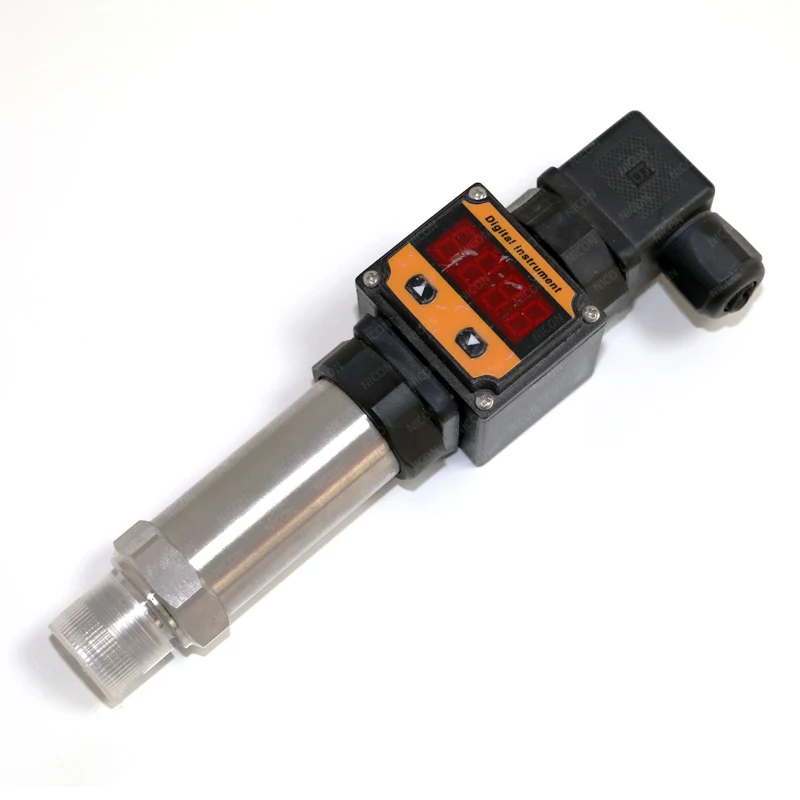

10% discount NICON Economical custom designed liquid crystal display compact pressure transmitter
- Category: >>>
- Supplier: ZHENGZHOU NICON TECH CO. LTD
Share on (1600432506397):
Product Overview
Description

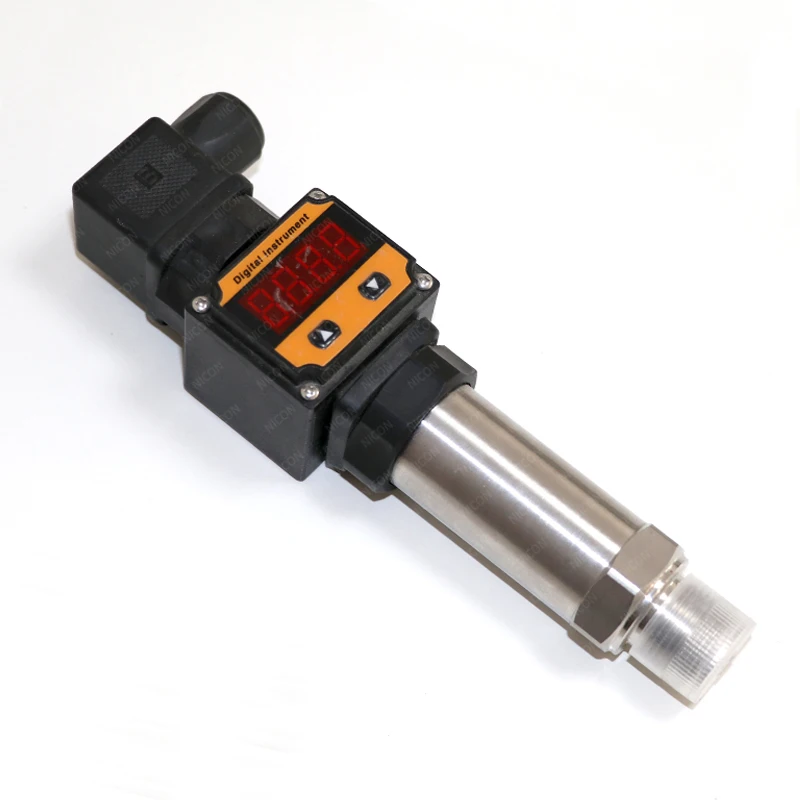

NICON Economical custom-designed liquid crystal display compact pressure transmitter
Product Description
The display pressure sensor uses diffused silicon core as sensitive element. The internal ASIC converts the sensor millivolt
signal into a standard voltage, current or frequency signal, which can be directly connected to the computer interface card,
control instrument, intelligent instrument or PLC. current output mode can be used for distance transmission. It is small, light
weight, all stainless steel sealing structure, can work in a co-corrosion environment. The product is easy to install and has high
vibration and impact resistance.
signal into a standard voltage, current or frequency signal, which can be directly connected to the computer interface card,
control instrument, intelligent instrument or PLC. current output mode can be used for distance transmission. It is small, light
weight, all stainless steel sealing structure, can work in a co-corrosion environment. The product is easy to install and has high
vibration and impact resistance.
Specification
Model | 2166-XX |
Pressure range | -100KPa~0~100MPa |
Pressure measurement | Gauge Pressure, Absolute pressure, Sealing pressure |
Output | 4-20mA |
Process connection | M20×1.5/G1/2( or on your demand) |
Measuring medium | Gaseous,Liquid,Water, gas, air, etc |
Power supply | 12~36VDC/5VDC |
Environment temperature | -30~80ºC |
Relative temperature | 0~90％ |
Medium temperature | -30~80ºC |
Accuracy(linearity,Hysteresis and Repeatability) | 0.1%F.S, 0.25%F.S,0.5%F.S |
Long-term stability | ≤0.2%F.S/year |
Overload | 150% |
Housing material | 304/316 stainless steel |
Production grade | IP65 |
Characteristics
1. High accuracy and good stability.
2. range coverage is wide.
3. no moving parts, high reliability and long service life.
4. not affected by the mass of the medium under test.
5. stainless steel case, IP65 grade of protection.
Advantages:
1. imported core, high stability, high precision.

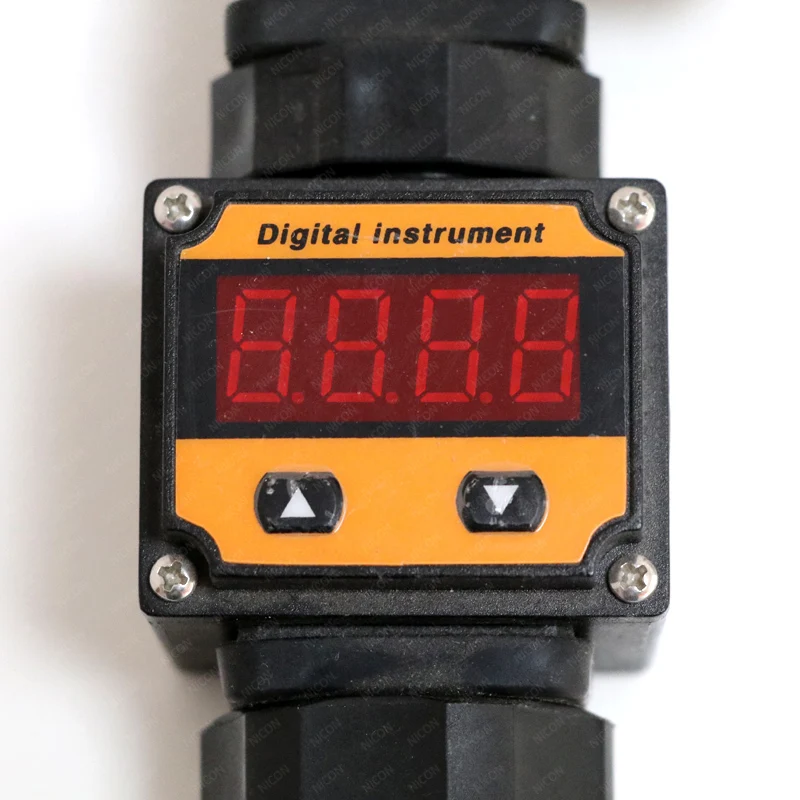

2. LED four-digit display, real-time monitoring of pressure.
3. various connection modes can fully meet the installation requirements of various specific occasions.
4. use German technology, small appearance, strong reliability.
2. range coverage is wide.
3. no moving parts, high reliability and long service life.
4. not affected by the mass of the medium under test.
5. stainless steel case, IP65 grade of protection.
Advantages:
1. imported core, high stability, high precision.
2. LED four-digit display, real-time monitoring of pressure.
3. various connection modes can fully meet the installation requirements of various specific occasions.
4. use German technology, small appearance, strong reliability.

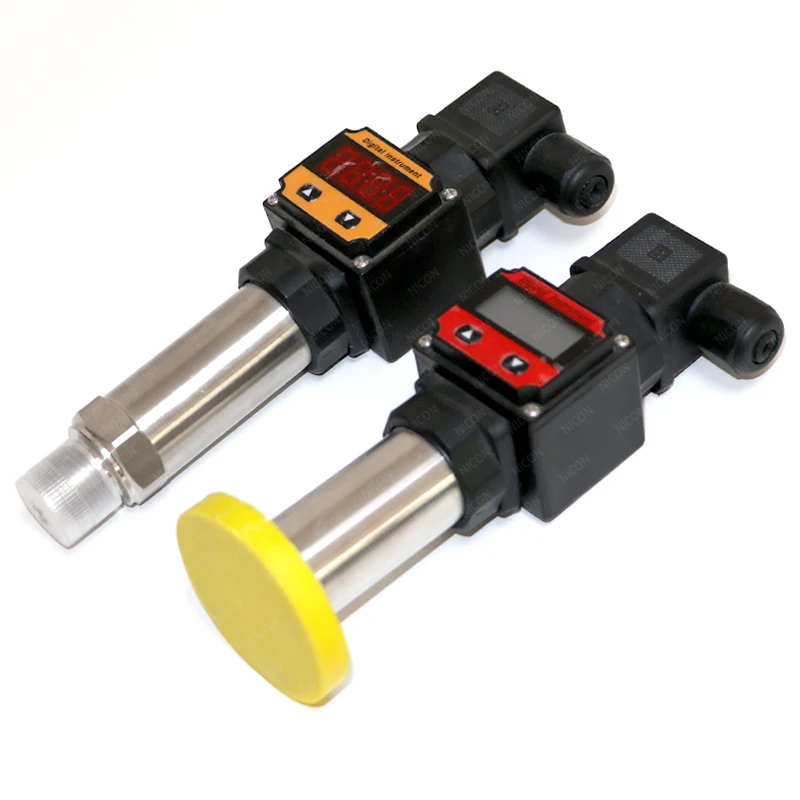

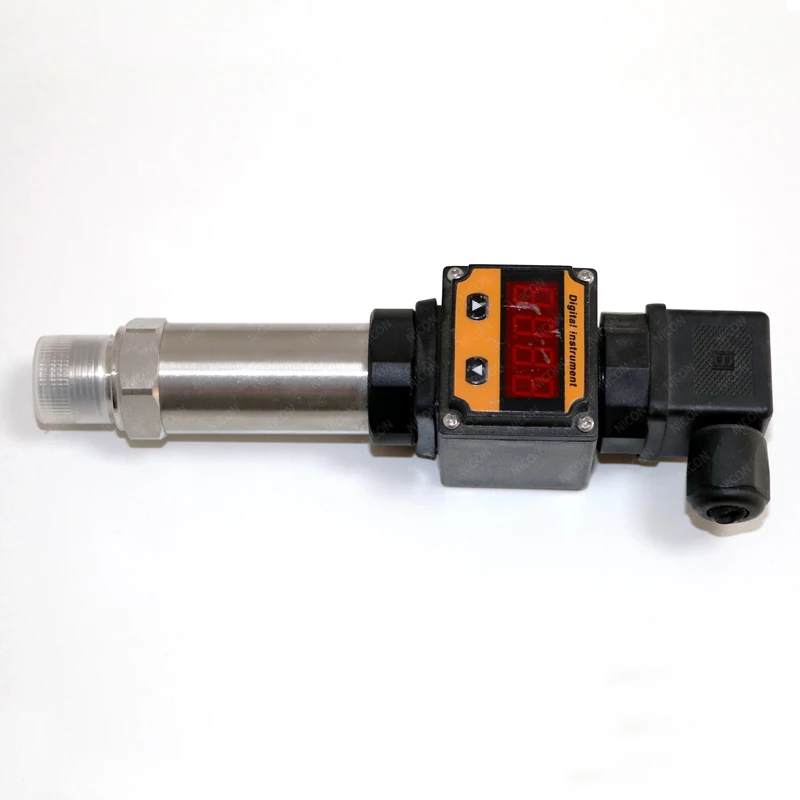

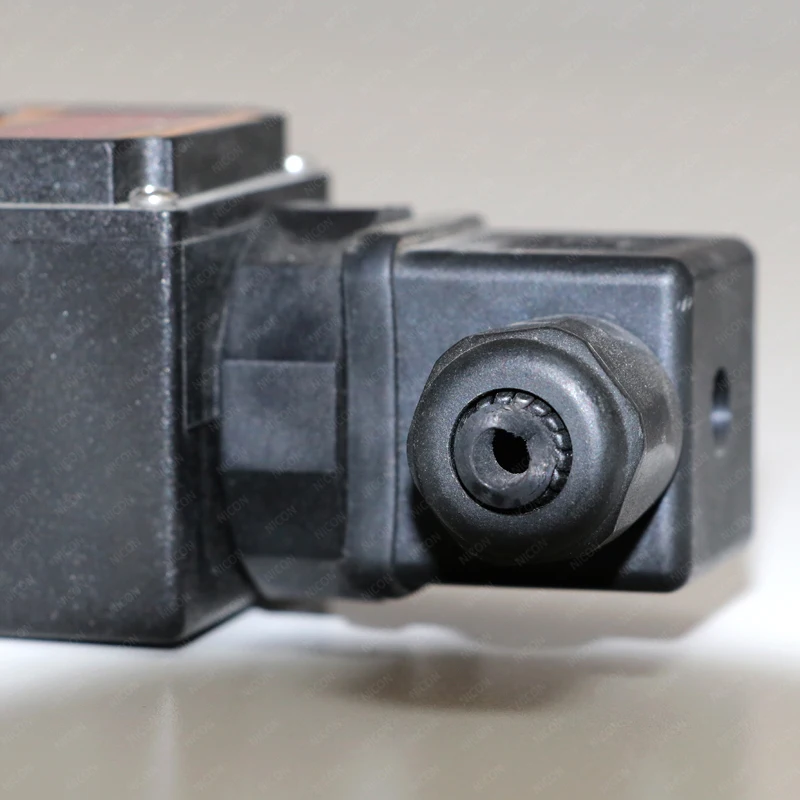

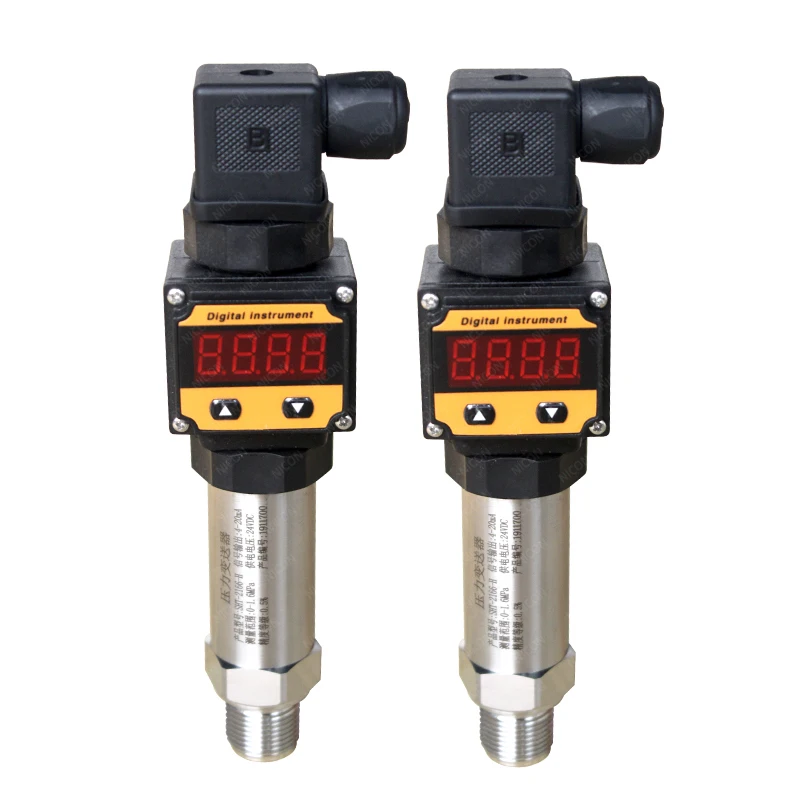

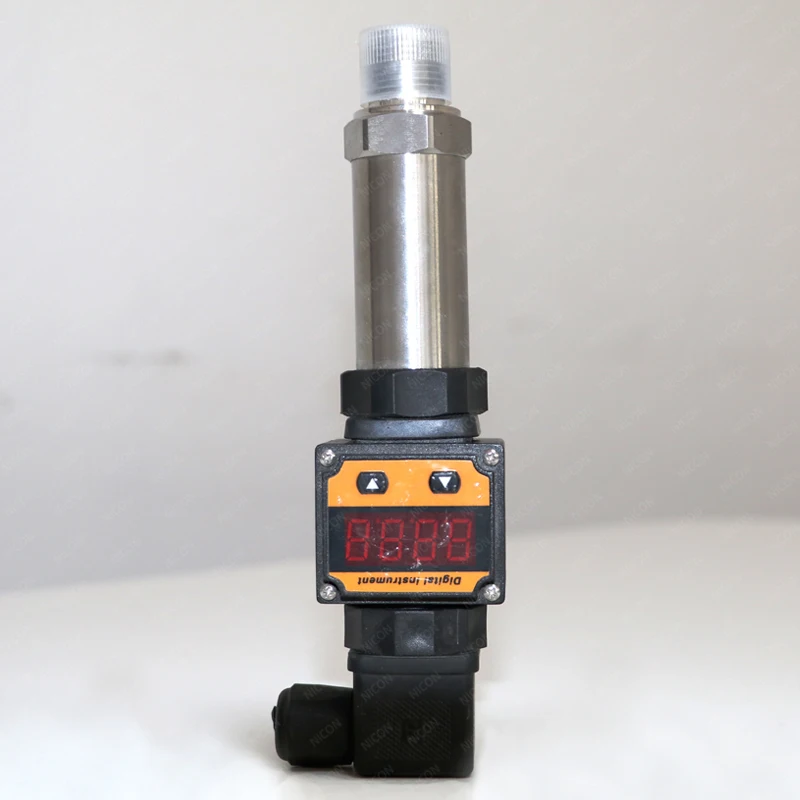

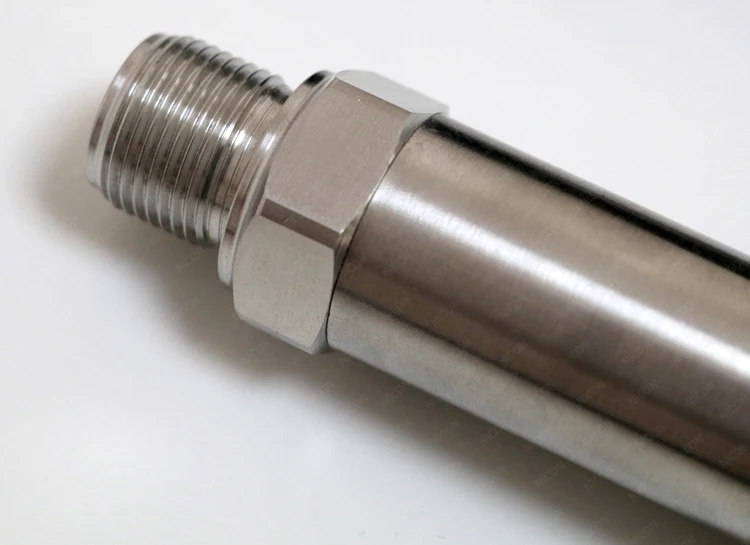

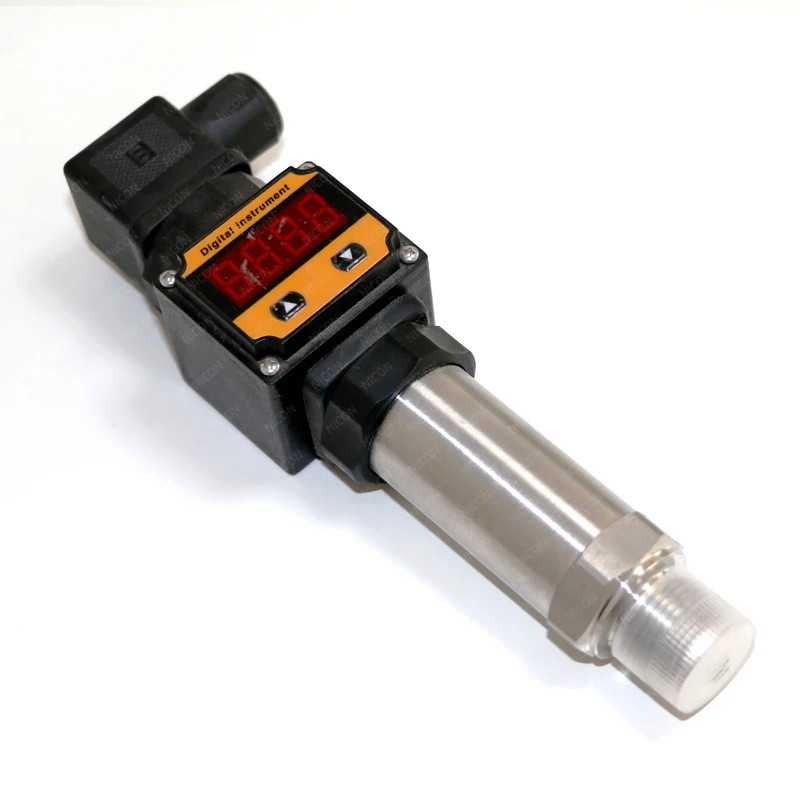

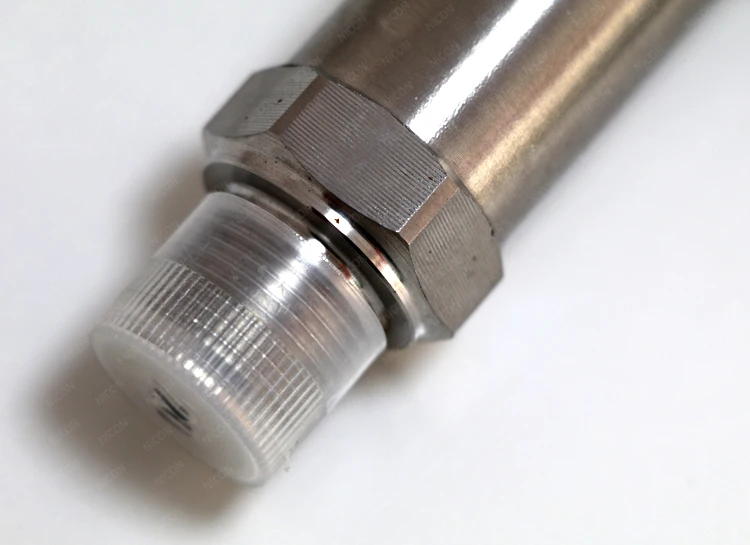

Details Images

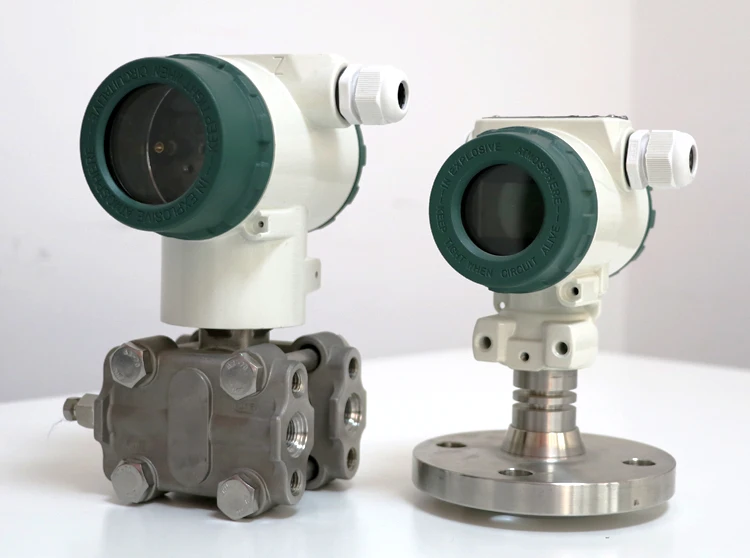

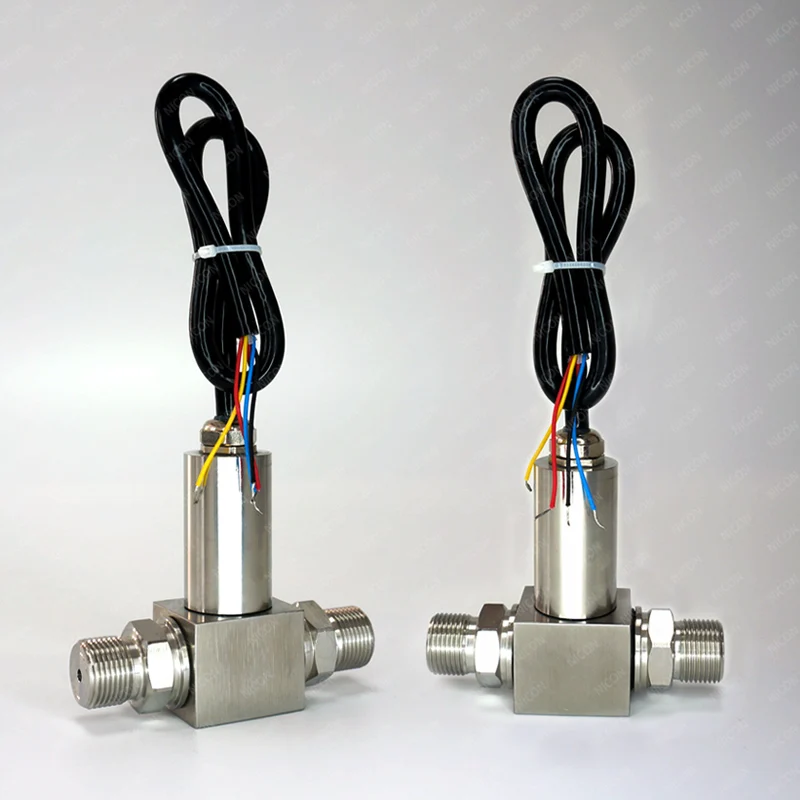

Recommend Products

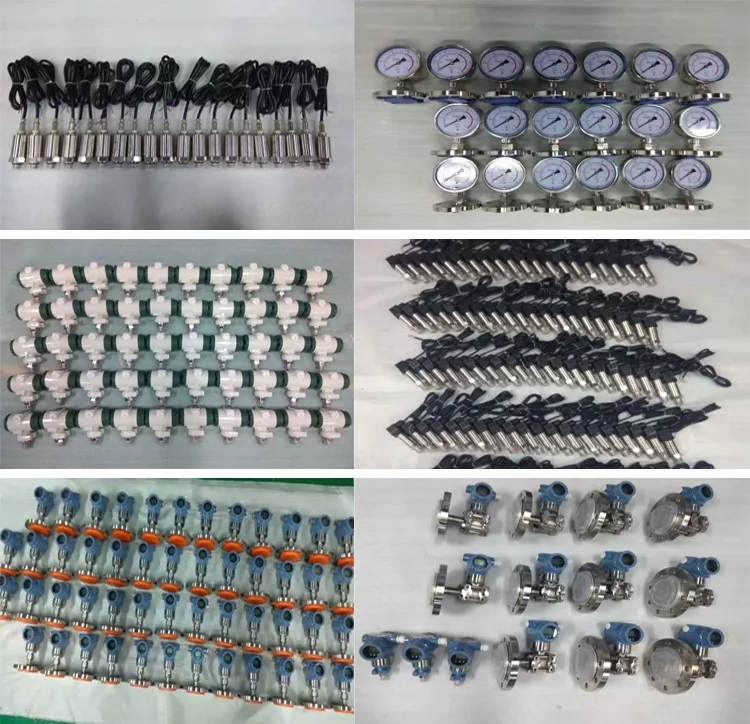

Inventory show

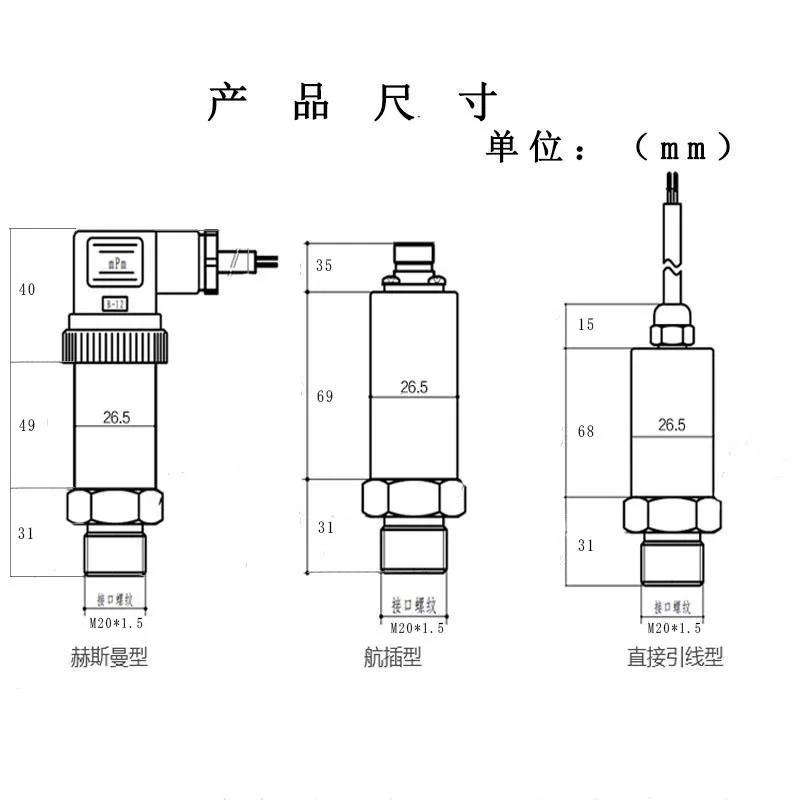

Design Drawing

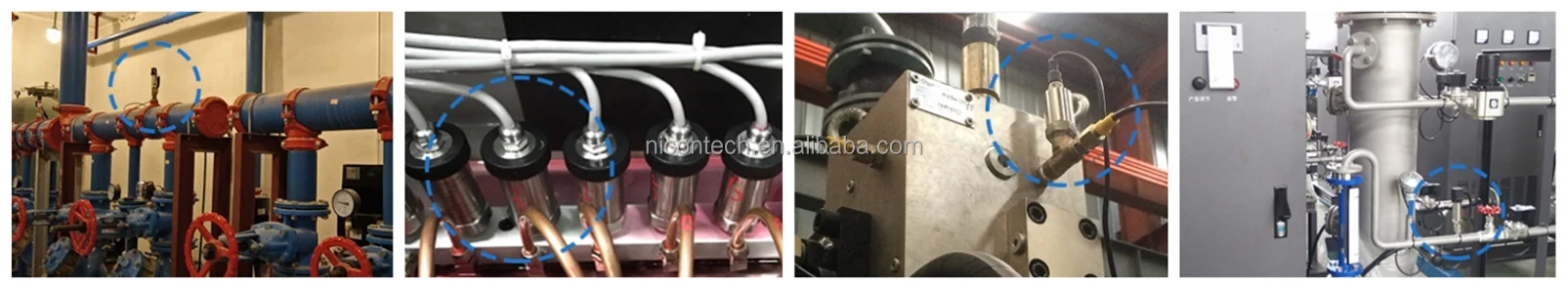

Application
Certifications
Company Profile
FAQ
1. How long will you reply me?
Normally in 1 hours, no more than 12 hours.
2. How can I get the quotation?
Please provide specification and application including sensing element, pressure range, thread connection, pressure type, medium, electronic connection, shell material etc. More details, more accurate quotation and earlier response.
3. Can I get sample?
Contact with our staff online directly and they would check stock for you.
4. Can I visit your factory?
You are warmly welcomed, our factory is located at Zhengzhou city, Henan province, China.
5. Can we use our logo on the products?
Yes, we provide OEM/ODM service.
6. How long is your warranty period?
Warranty period from the date of acceptance of 12 months.
7. What is your terms of payment?
We could accept T/T, L/C, Western union, PayPal, Credit Assurance via Alibaba.
Normally in 1 hours, no more than 12 hours.
2. How can I get the quotation?
Please provide specification and application including sensing element, pressure range, thread connection, pressure type, medium, electronic connection, shell material etc. More details, more accurate quotation and earlier response.
3. Can I get sample?
Contact with our staff online directly and they would check stock for you.
4. Can I visit your factory?
You are warmly welcomed, our factory is located at Zhengzhou city, Henan province, China.
5. Can we use our logo on the products?
Yes, we provide OEM/ODM service.
6. How long is your warranty period?
Warranty period from the date of acceptance of 12 months.
7. What is your terms of payment?
We could accept T/T, L/C, Western union, PayPal, Credit Assurance via Alibaba.
8.How many days we can deliver?
In general, 2-3 days if sample order. 7-10 days if less than 100 pcs.
In general, 2-3 days if sample order. 7-10 days if less than 100 pcs.

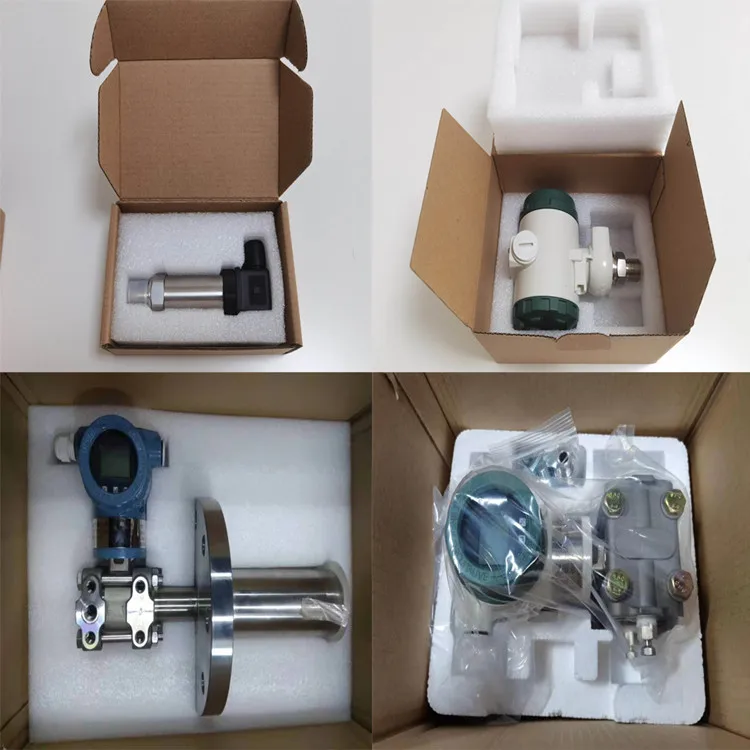

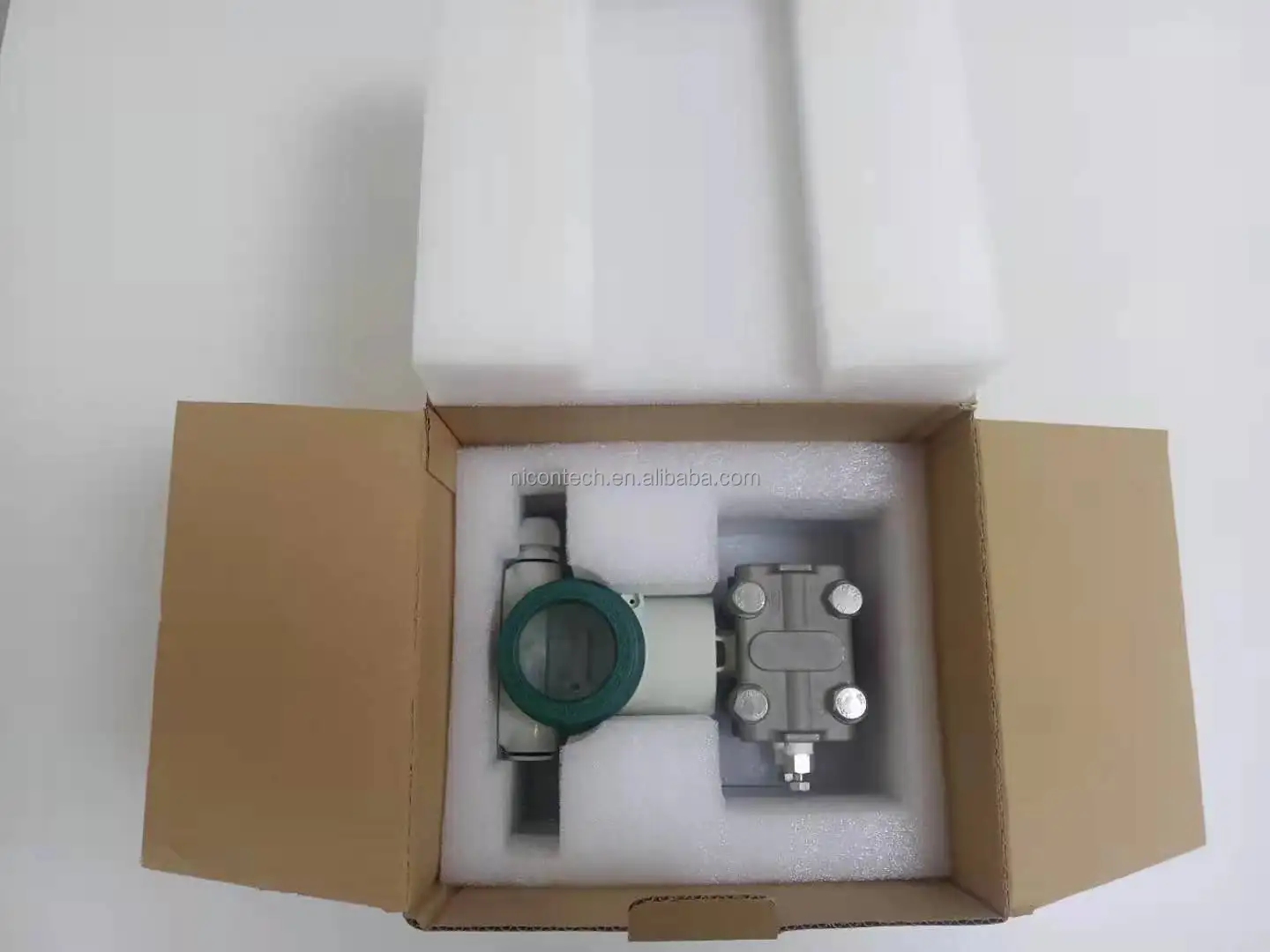

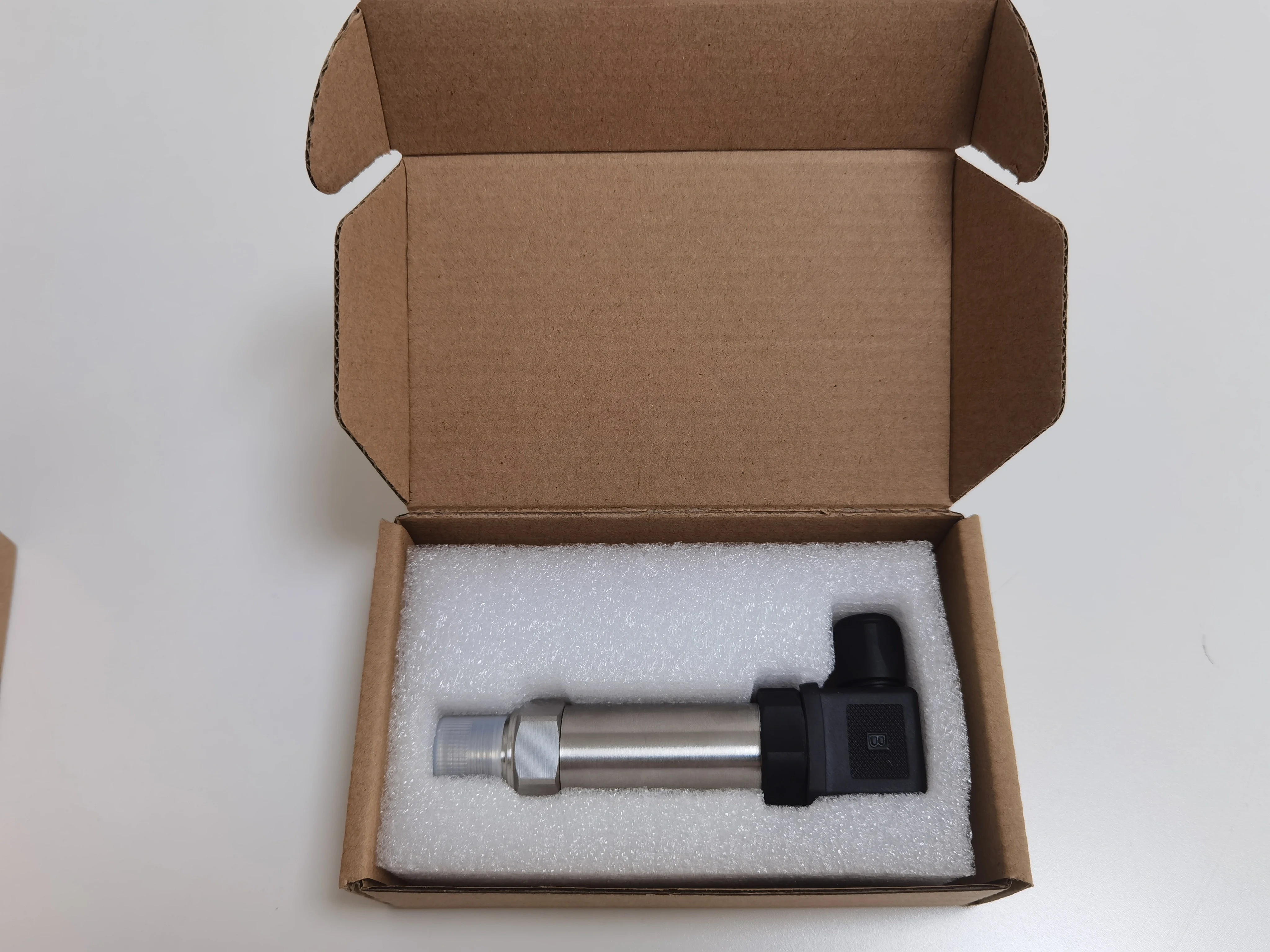

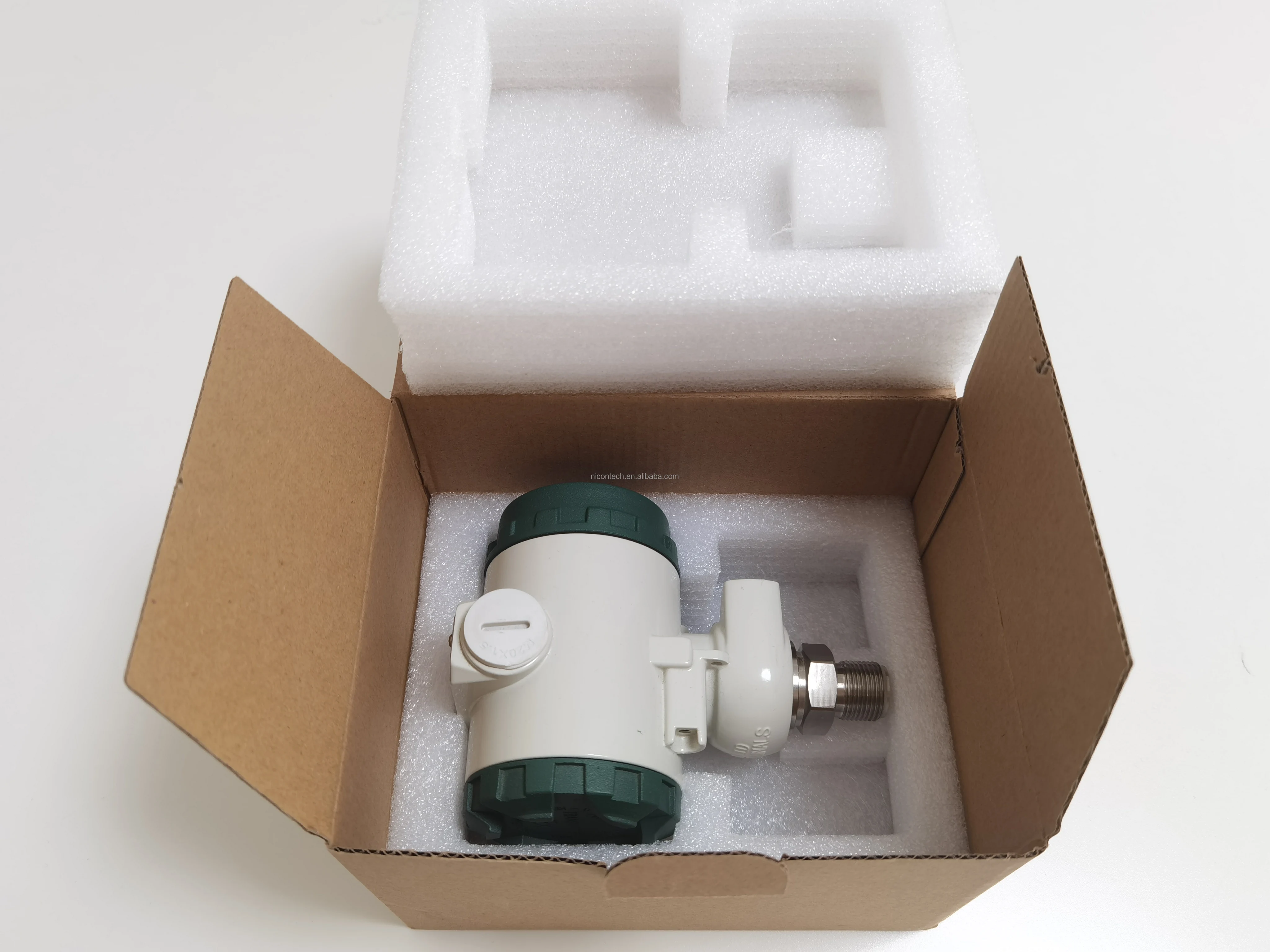

Packaging & Shipping
