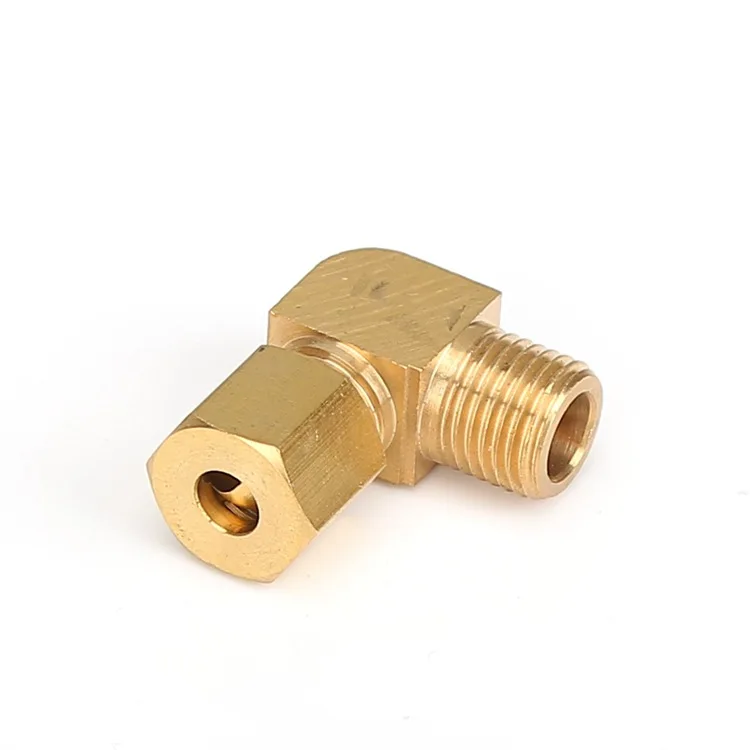

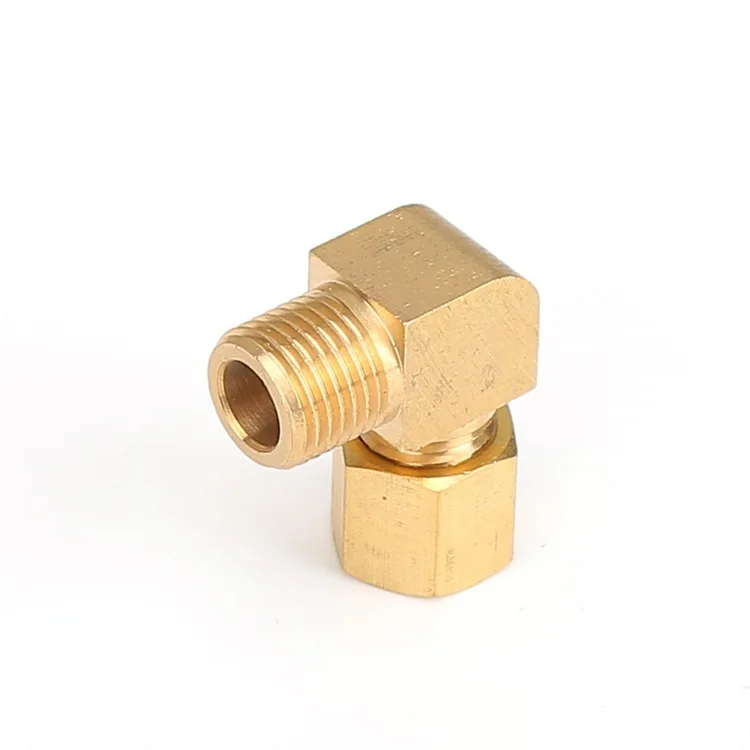

OEM Brass pipe fittings 90 degree Male union elbow compression fittings
- Category: >>>
- Supplier: Zhuji Chenyi Technology Co. Ltd.
Share on (1600432789263):
Product Overview
Description

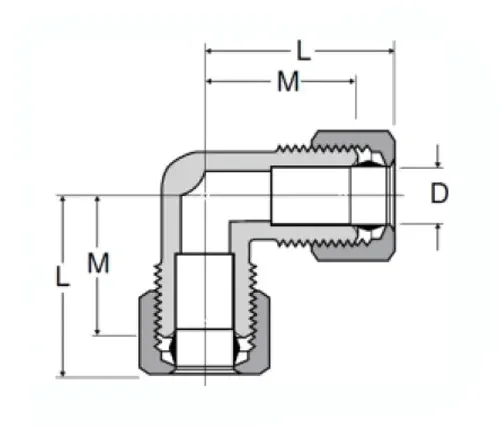

90° MALE UNION ELBOW COMPRESSION FITTINGS
We professional production and sales of a full range of copper accessories.
Product Name | OEM Brass pipe fittings 90 degree Male union elbow compression fittings |
Raw Material | CA 360 Brass for Barstock fitting; CA 377 Brass for forged fittings. |
Processing Method | CNC; |
Operating Pressure | Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size. When using plastic tubing, use the working pressure for type used. |
Temperature Range | -10℃ to +120℃. |
Conformance | Meets specification and standards of ASA, ASME and SAE. |
Markets | Industrial; Packaging; Pneumatic; Printing. |
Typical Application | Instrumentation, hydraulic and Pneumatic systems. |
Application | Air lines; Lubrication Lines; Cooling lines; Industry; Machinery; Compressors; Fluid transfer. |
Product Features:
1. All brass construction;
2. Meet functional requirements of SAE J-512;
3. UL Listed for flammable liquid;
4. Brass or acetal sleeve available
5. No tube preparation;
5. Forged and extruded shapes.
Thread Specification | ||||||||||||||||||
Tube O.D | 1/8" | 3/16" | 1/4" | 5/16" | 3/8" | 1/2" | 5/8" | 3/4" | Customed | |||||||||
Thread size | 5/16-24 | 3/8-24 | 7/16-24 | 1/2-24 | 9/16-24 | 11/16-20 | 13/16-18 | 1"-18 | Customed | |||||||||
