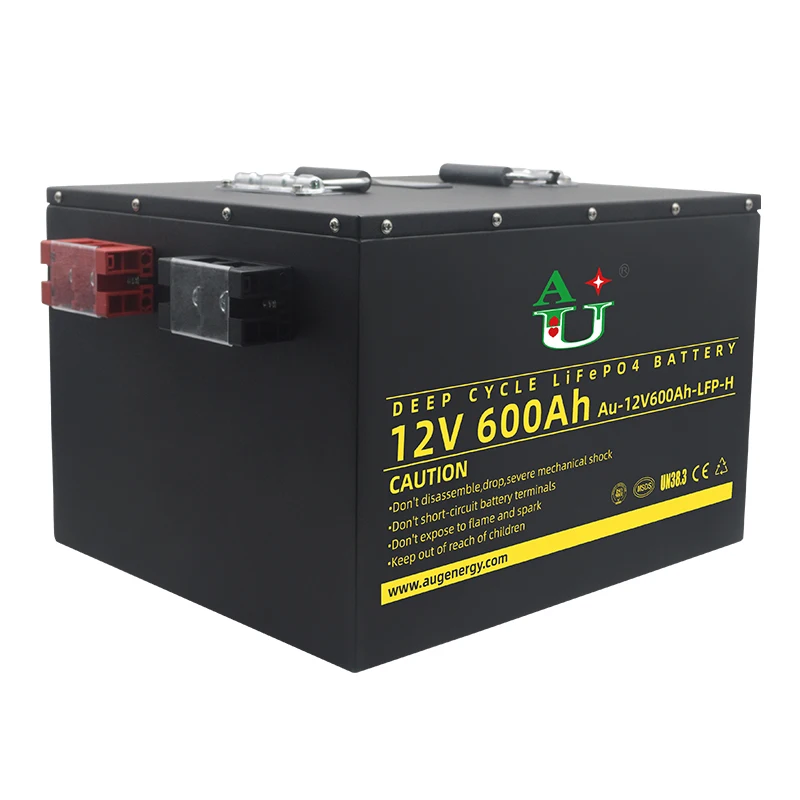

Deep Cycle 12V 600Ah Lifepo4 Lithium Battery Pack Rechargeable Li ion Energy Storage System Battery DIY 24V 48V for Solar Panels
- Category: >>>
- Supplier: Shenzhen Aoyouji Energy Electronics Co. Ltd.
Share on (1600432806006):
Product Overview
Description

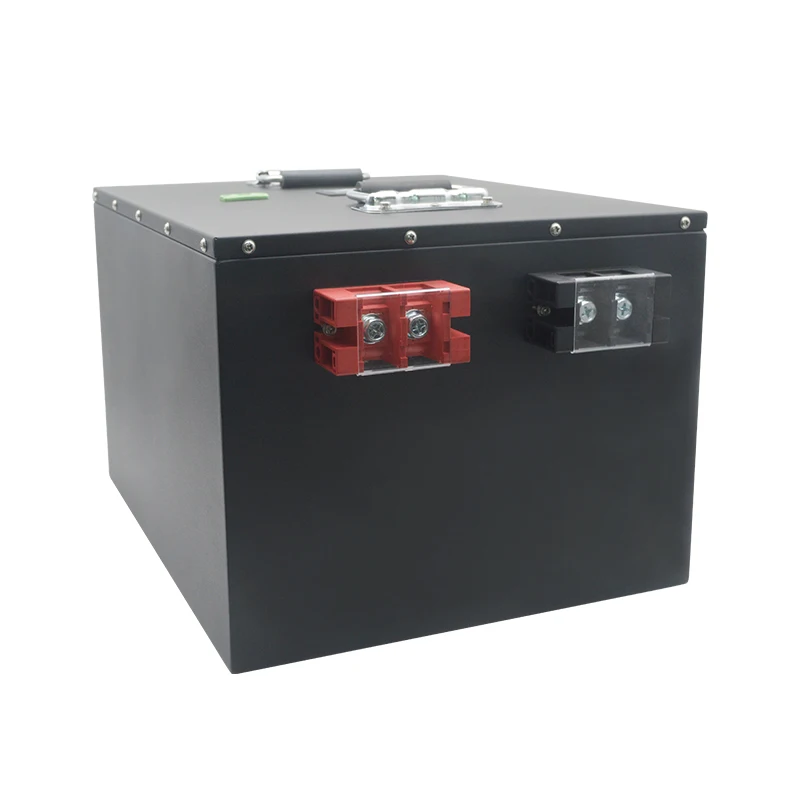

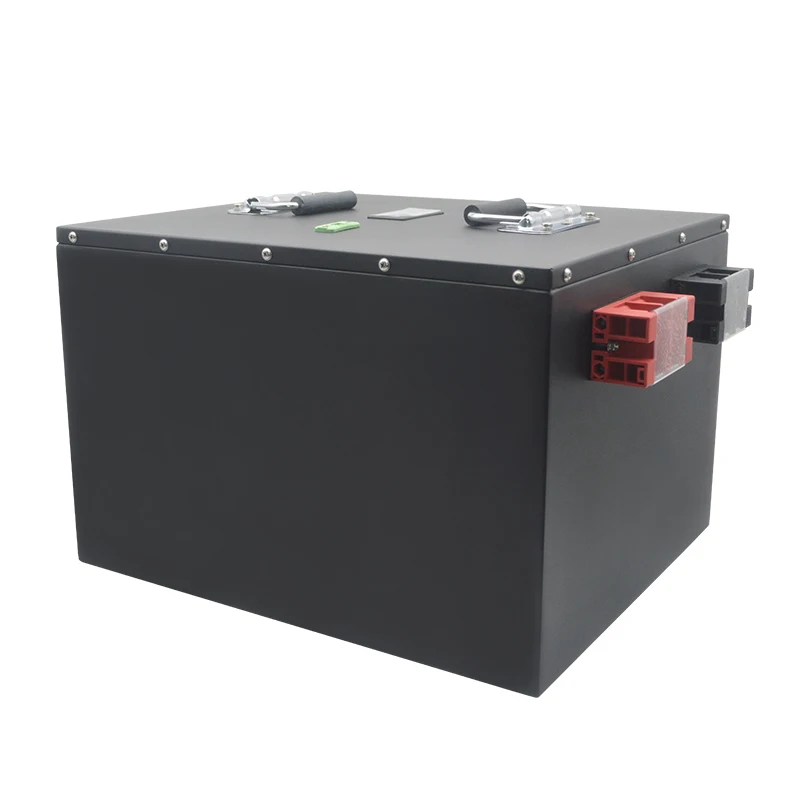

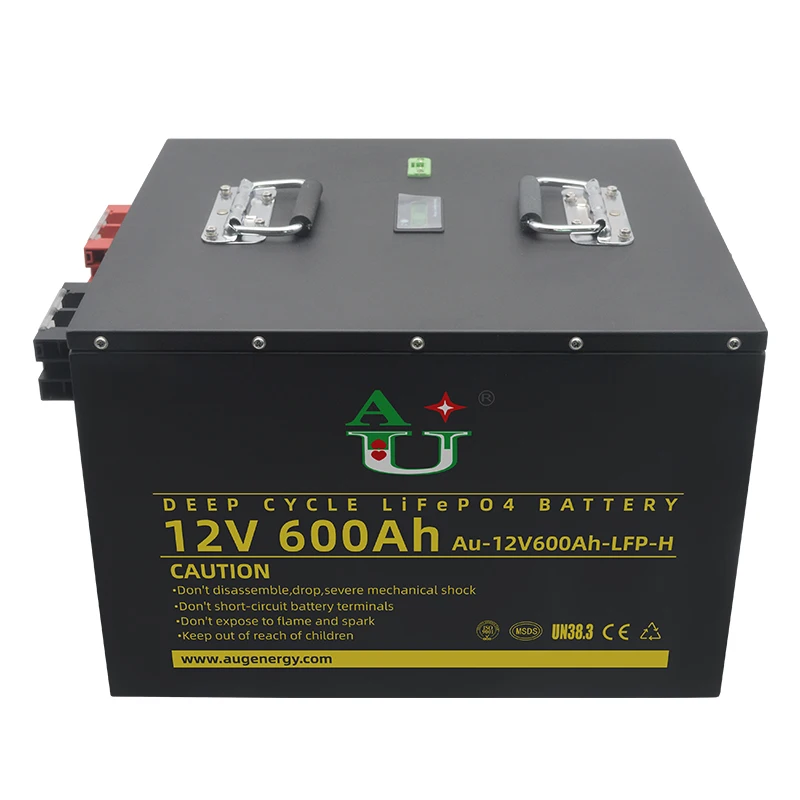

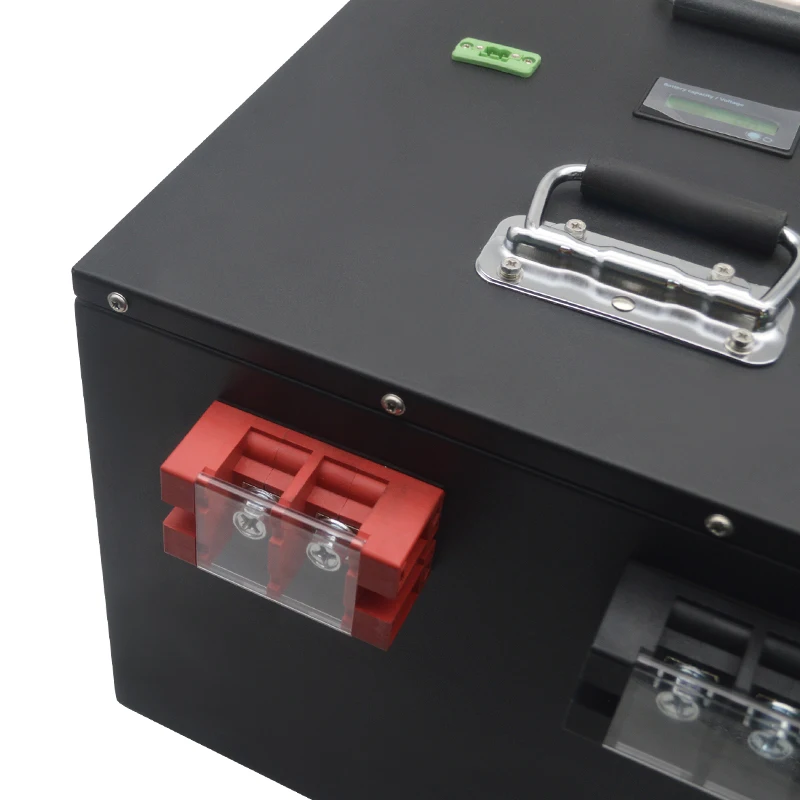

Deep Cycle 12V 600Ah Lifepo4 Lithium Battery Pack Rechargeable Li-ion Energy Storage System Battery DIY 24V 48V for Solar Panels
Specification
Product features
* Brand new grade A lithium battery cells
* Smart BMS included
* Light weight and high performance
* Small internal resistance
* High energy density, low self-discharge
* Pollution free, long cycle life
* No memory effect
* Professional design and quality control
* OEM, ODM are available
* Smart BMS included
* Light weight and high performance
* Small internal resistance
* High energy density, low self-discharge
* Pollution free, long cycle life
* No memory effect
* Professional design and quality control
* OEM, ODM are available
Paremeter | Value |
Battery cell type | Prismatic |
Battery cell material | Lifepo4 |
Product code | AU12600LA |
Nominal Voltage | 12V |
Nominal Capacity | 600Ah |
Series and parallel | 4S2P |
Charging cut-off voltage | 14.4V |
Discharging cut-off voltage | 10.0V |
Charge mode | CC/CV |
Standard charge current | 100A |
Max charge current | 150A |
Standard discharge current | 100A |
Max discharge current | 100A\\200A\\300A |
Cycle life(≥80%DOD) | >4000 Times |

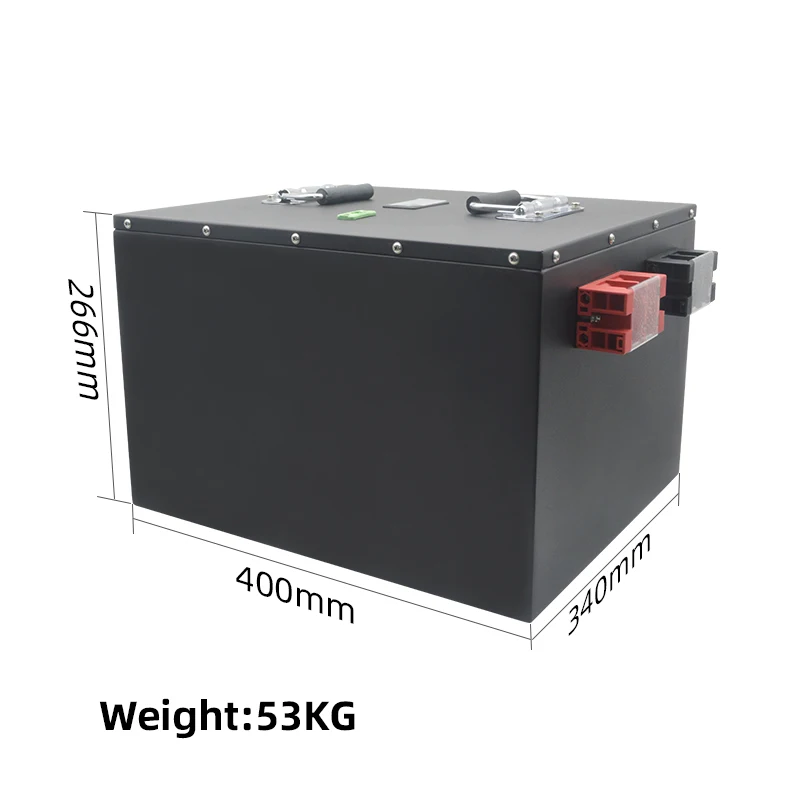

Dimension | 400*340*266mm |
Weight | 53kg |
Shell material | Metal |
Communication method | Bluetooth/RS232/RS458 |
Warranty | 2 years |
Safety instructions
* Stop charging the battery if charging isn't completed within the specified time.
* Stop using the battery if abnormal conditions aer detected during using, charging, or storage, such as abnormal hot, discoloration, deformation and so on.
* Keep away from fire immediately when leakage or foul odors are detected.
* If any liquid from the battery leaks onto your cloths, wash well with fresh water immediately. If the leakage onto your skin or into your eyes, don't rub and wash them with clean water at once, then go to see a doctor immediately.
* If the terminals of the battery become dirty, wipe with a dry cloth before using the battery.
* The battery can be used within specified temperature ranges according to the specification. Don't exceed limited ranges.
* The operating temperature is based on the hottest position of the cell surface in the battery pack.
* Cover terminals with proper insulating tape before disposal.
* Stop charging the battery if charging isn't completed within the specified time.
* Stop using the battery if abnormal conditions aer detected during using, charging, or storage, such as abnormal hot, discoloration, deformation and so on.
* Keep away from fire immediately when leakage or foul odors are detected.
* If any liquid from the battery leaks onto your cloths, wash well with fresh water immediately. If the leakage onto your skin or into your eyes, don't rub and wash them with clean water at once, then go to see a doctor immediately.
* If the terminals of the battery become dirty, wipe with a dry cloth before using the battery.
* The battery can be used within specified temperature ranges according to the specification. Don't exceed limited ranges.
* The operating temperature is based on the hottest position of the cell surface in the battery pack.
* Cover terminals with proper insulating tape before disposal.
Applications
Parts of certificates
Company Profile
AUG ENERGY ELECTRONICS CO.,LTD was founded in HongKong 2009. Passing 13 years hard-working and growth, AUG has became one of leaders in the lithium battery fields. We concentrate on R&D, manufacture, sales, services to become an advanced company. Through our rich experience, AUG is not only provide high-quality standard products, but also can provide OEM, ODM services for our clients, which will help customers to bring their products get to the market faster.
By 2022, AUG have passed ISO9001-2008 quality management system for 10 years. AUG also has passed certifications like CE, ROSH, MSDS, UN38.3, UL1642, IEC62133, etc. Our product have been trusted by customers from more than 40 countries and regions.
AUG's products are widely used for consumer electronics, electric vehicles, electric bikes/scooters, solar storage, energy storage system, RV, AGV, E-forklift, golf carts, UPS and so on.
By 2022, AUG have passed ISO9001-2008 quality management system for 10 years. AUG also has passed certifications like CE, ROSH, MSDS, UN38.3, UL1642, IEC62133, etc. Our product have been trusted by customers from more than 40 countries and regions.
AUG's products are widely used for consumer electronics, electric vehicles, electric bikes/scooters, solar storage, energy storage system, RV, AGV, E-forklift, golf carts, UPS and so on.
Exhibition
Packing & Delivery
Standard Carton Boxes, Wooden Boxes or Customized Packaging As Your Requirement
Air shipping, Sea shipping, Land shipping, Express are all available
FAQ
Q1: Are you a factory or a trading company?
We are a professional lithium battery manufacture and trade factory, established in 2011. Until now, our product have been exported to more than 60 countries and regions. The Factory are is about 3000 squire meter, there are about 80 production technician and our annual output value is 5 million US dollar.
Q2: How can we guarantee quality?
Our company has passed the ISO9001 quality management system for 8 year consecutively. We strictly control the product quality. There will be an inspection report before shipping and each product has 1-3 years warranty.
Q3: Do you have MOQ ?
There is different MOQ for different product, please contact our sales for the specific MOQ.
Q4: what is your lead time if I placed an order?
The lead time for battery cells is 3-7 days, and 7-15 days for special models; 15-20 days for customized battery pack, and 20-40 days for special models; Please contact our sales for details.
Q5: Can you make customized battery?
Yes,please contact our sales and explain your requirements of customization. Our sales will provide specific solutions for you.
Q6: Is the battery BMS included?
Yes,every one of our battery packs includes single reliable BMS to protect customer's safety of use.
Q7: What kind of the package of the battery?
Normally,we will package the batteries according to battery type and shipping methods. For battery cells, we usually use individual carton box to pack them. For battery packs, we will use stronger package like wooden boxes to pack.
Q8: How about the lifespan of your battery?
Normally,there are "calendar life" and "cycle life" for lifespan of the battery. May I know which one you concern?
Q9: How about warranty?
We offer 1-3 years warranty based on different product
Q10: How should I place an order?
Please contact our sales,they will help you confirm the technical requirement and place the order.
