Custom size Brass Nipple joint Insert pneumatic adapter Male swivel hose barb fittings
- Category: >>>
- Supplier: Zhuji Chenyi Technology Co. Ltd.
Share on (1600432820060):
Product Overview
Description

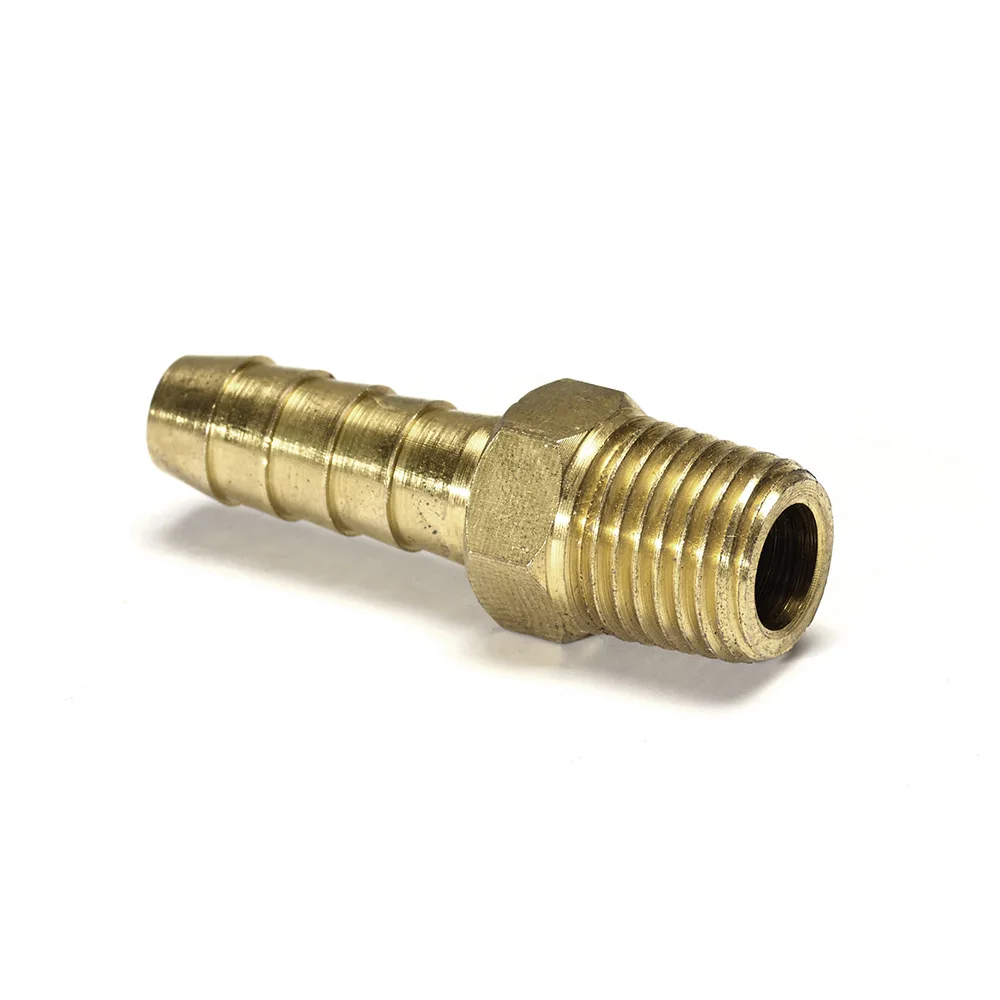

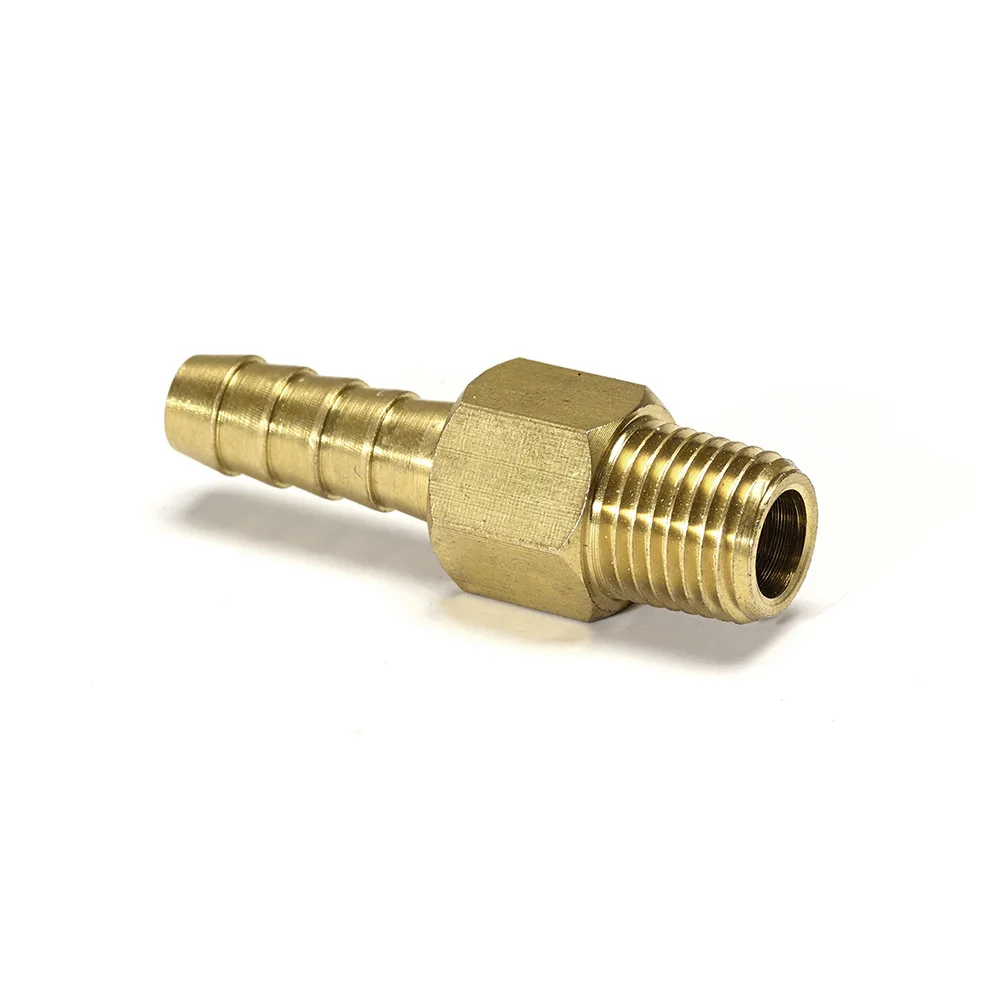

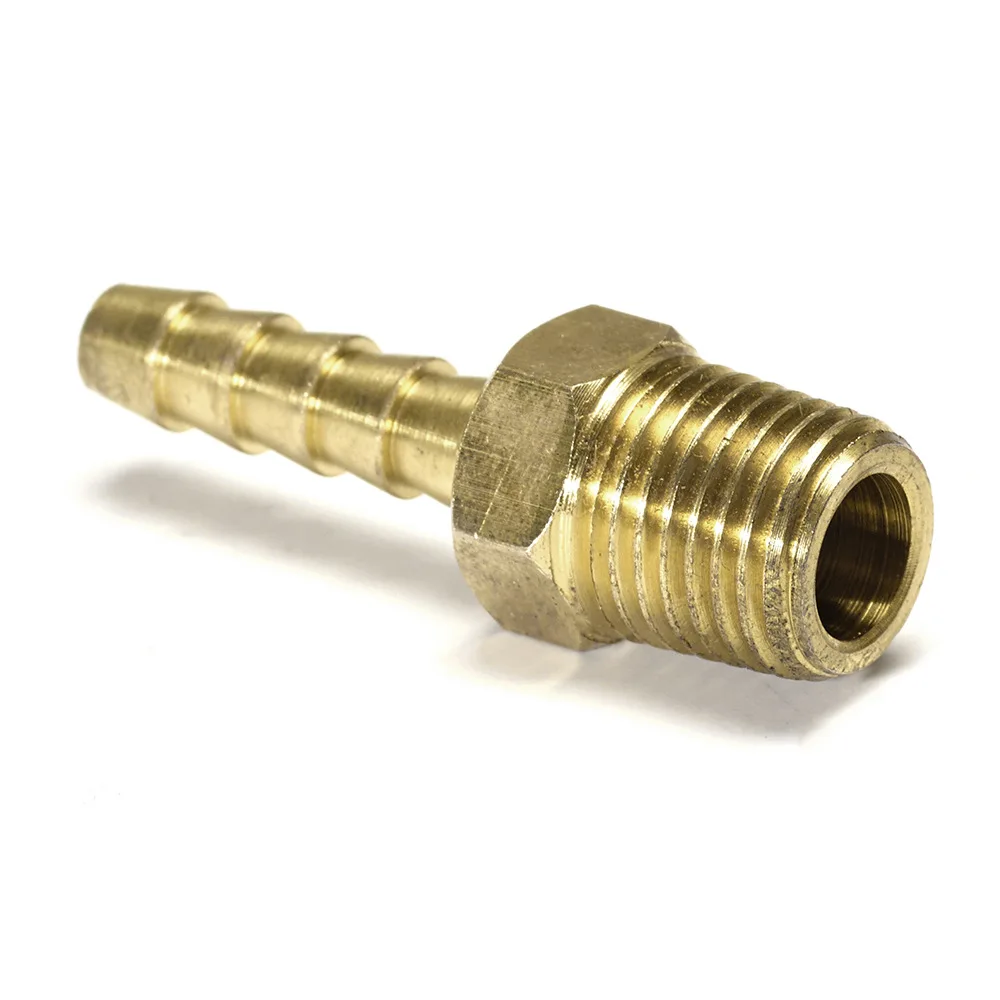

Male Swivel Hose Barb Fittings
We professional production and sales of a full range of copper accessories.
Product Name | Custom size Brass Nipple joint Insert pneumatic adapter Male swivel hose barb fittings |
Raw Material | CA 360 Brass for Barstock fitting; CA 377 Brass for forged fittings. |
Processing Method | CNC; |
Operating Pressure | Will withstand burst pressures of plastic tubing. |
Temperature Range | -40℉ to +160℉. |
Conformance | Meets specification and standards of ASA, ASME and SAE. |
Compatible Tubing | Rubber Hose; GPH Hose. |
Markets | Industrial; Construction; Heavy duty truck; Mobile. |
Typical Application | Temperature control circuits, test apparatus, lubricant, coolant lines, pneumatic circuits, vacuum and fluid systems. |
Vibration | Excellent resistance. |
Product Features:
1. All brass construction;
2. Fluorocarbon O-rings;
3. NPTF, SAE straight thread, metric thread ends;
4. Reusable;
5. Clamp required.

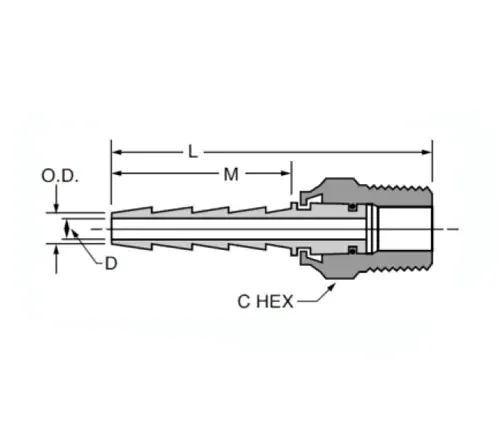

Hose I.D. * Thread | C | D | M | L |
1/4*1/8 | 9/16 | .281 | .97 | 2.12 |
1/4*1/4 | 11/16 | .281 | .97 | 2.12 |
3/8*1/8 | 9/16 | .375 | .97 | 2.12 |
3/8*1/4 | 11/16 | .375 | .97 | 2.12 |
1/2*3/8 | 11/16 | .406 | .97 | 2.14 |
1/2*1/2 | 7/8 | .406 | .97 | 2.33 |
3/4*3/4 | 1-1/16 | .562 | .97 | 2.33 |
