Product Overview
Description
Products Description
1 . General Information
The globe valves in brass serie ILJV are used in heating , refrigeration and air-conditioning systems for the flow control of heated or chilled water for domestic and industrial applications . The valves are motorized by the electric actuators serie AVG at 600 and 1000 N

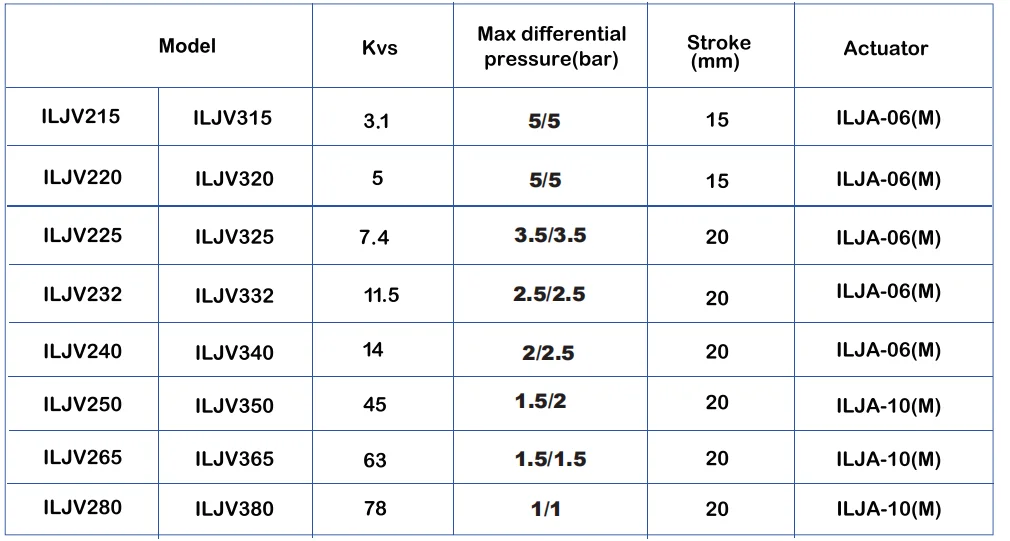

2 . Techinical Data
Fluids type : Hot and cold water ( with glycol max . 50%)
Fluid temperature : -10-100°C
Nominal pressure : 1600 kpa max ( 16 bar )
Control flow characteristics : Equal-percentage ( linear on angle way)
Rangeability : 50:1
Leakage : 0.05% of KVS
Connections : G female thread
Installation position : Horizontal or vertical
Body : Brass
Plug : Ottone
Valve stem : Stainless steel 302
Stem packing : PTFE
The globe valves in brass serie ILJV are used in heating , refrigeration and air-conditioning systems for the flow control of heated or chilled water for domestic and industrial applications . The valves are motorized by the electric actuators serie AVG at 600 and 1000 N
2 . Techinical Data
Fluids type : Hot and cold water ( with glycol max . 50%)
Fluid temperature : -10-100°C
Nominal pressure : 1600 kpa max ( 16 bar )
Control flow characteristics : Equal-percentage ( linear on angle way)
Rangeability : 50:1
Leakage : 0.05% of KVS
Connections : G female thread
Installation position : Horizontal or vertical
Body : Brass
Plug : Ottone
Valve stem : Stainless steel 302
Stem packing : PTFE
3 . Caution
Before valves are mounted , make sure that pipes are clean , free from welding slags , that are perfectly lined up with valve body and not subjected to vibrations . The valve can be mounted in any position except upside-down .While assembling respect the directions indicated by the arrows located on the valve body
In the 2-way valve , when stem is up , the direct way is open , with stem down direct way is closed . In the 3-way valve , when stem is up , the direct way isclosed , with stem down direct way is open .
Before valves are mounted , make sure that pipes are clean , free from welding slags , that are perfectly lined up with valve body and not subjected to vibrations . The valve can be mounted in any position except upside-down .While assembling respect the directions indicated by the arrows located on the valve body
In the 2-way valve , when stem is up , the direct way is open , with stem down direct way is closed . In the 3-way valve , when stem is up , the direct way isclosed , with stem down direct way is open .

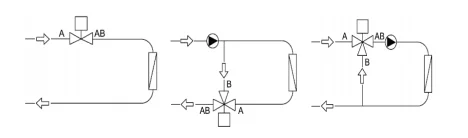

4 . Installation

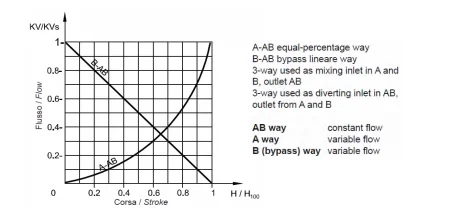

5 . Control flow characteristics

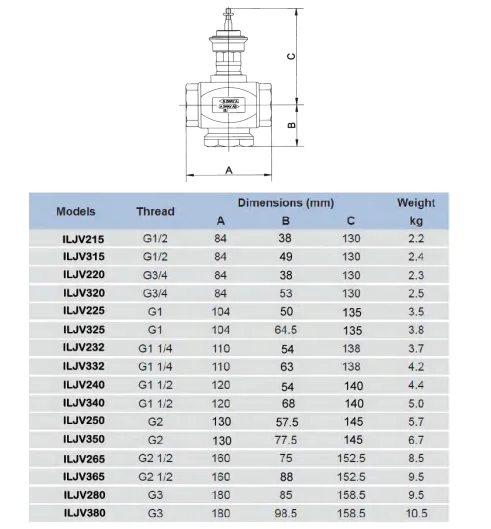

6 . Dimensions and weights
