Bioscrubber System to Remove Methane from Pig Farm
The use of bioscrubber is attracting increasing attention for exhaust gas treatment in intensive pig farming. However, the
challenge is to improve the methane (CH4) removal efficiency Three laboratory-scale bioscrubbers, a methanotroph growth medium (10-times-diluted), and tap water, were established to evaluate the performance of CH4 removal. The results showed that enhanced CH4 removal efficiency (25%) can be rapidly
achieved. The majority of the CH4 was removed in the middle to end part of the bioscrubbers, which indicated that CH4 removal could be potentially optimised by extending the length of the reactor. Moreover, 52–86% of the ammonium (NH4+-N), total organic carbon (TOC), and phosphate (PO43−-P) removal were simultaneously achieved with CH4 removal in the present study. Based on these results, this study introduces a low-cost and simple-to-operate method to improve CH4 removal from pig farm.
In view of this situation, OFS production and research and development of mist deodorization equipment suitable
for animal husbandry needs independently. This set of spray deodorization equipment can rapidly reduce the temperature of livestock and poultry houses in the hot summer, accelerate the flow of air, neutralize the excess positive ions in the air, and increase the negative ion content in the air, thus improving the environment of the feedlot, and atomizing and deodorization the cooling way. Inhibit the growth of bacteria, reduce the disease of livestock, improve the survival rate of livestock and promote the healthy growth of poultry.
challenge is to improve the methane (CH4) removal efficiency Three laboratory-scale bioscrubbers, a methanotroph growth medium (10-times-diluted), and tap water, were established to evaluate the performance of CH4 removal. The results showed that enhanced CH4 removal efficiency (25%) can be rapidly
achieved. The majority of the CH4 was removed in the middle to end part of the bioscrubbers, which indicated that CH4 removal could be potentially optimised by extending the length of the reactor. Moreover, 52–86% of the ammonium (NH4+-N), total organic carbon (TOC), and phosphate (PO43−-P) removal were simultaneously achieved with CH4 removal in the present study. Based on these results, this study introduces a low-cost and simple-to-operate method to improve CH4 removal from pig farm.
In view of this situation, OFS production and research and development of mist deodorization equipment suitable
for animal husbandry needs independently. This set of spray deodorization equipment can rapidly reduce the temperature of livestock and poultry houses in the hot summer, accelerate the flow of air, neutralize the excess positive ions in the air, and increase the negative ion content in the air, thus improving the environment of the feedlot, and atomizing and deodorization the cooling way. Inhibit the growth of bacteria, reduce the disease of livestock, improve the survival rate of livestock and promote the healthy growth of poultry.
FEATURES AT A GLANCE
1. Easy to installation: the factory does not need big changes, standardized installation, fast and convenient.
2. Intelligent control: network intelligent environment controller, mobile phone, computer can be online control, can set the
opening time, speed and so on.
3. Deodorizing and dusting: keep the factory environment dust-free and tasteless.
2. Intelligent control: network intelligent environment controller, mobile phone, computer can be online control, can set the
opening time, speed and so on.
3. Deodorizing and dusting: keep the factory environment dust-free and tasteless.
PRODUCT SPECIFICATIONS
No | Model | OFS-106ATC | OFS-160ATC |
1 | Voltage/Frequency | 220V/380V 50Hz | 220V/380V 50Hz |
2 | Motor Power | 1.05KW | 1.5KW |
3 | Rotational Speed | 220-780RPM | 220-750RPM |
4 | Max. Air Flow | 23000M3/H | 38000M3/H |
5 | Water Pump Power | 0.55KW | 0.75KW |
6 | Housing Material | SMC Fiberglass | SMC Fiberglass |
7 | Impeller Material | 3-blade Aluminum Alloy | 3-blade Aluminum Alloy |
8 | Product Dimension | 1065*1050*2450mm | 1605*1590*2450mm |
PRODUCT CONFIGURATION
V-type fog removal system.
It can effectively block the water particles in the above, making the circulation potion effective savings, increase economic efficiency.
Sprinkling system.
High quality PVC pipes are selected to evenly distribute the water holes to make the sprinkling more uniform, and the blocking port is easier to set and maintain.
Water pump.
Large flow water pump, built-in cutting
function is not easy to jam.
function is not easy to jam.

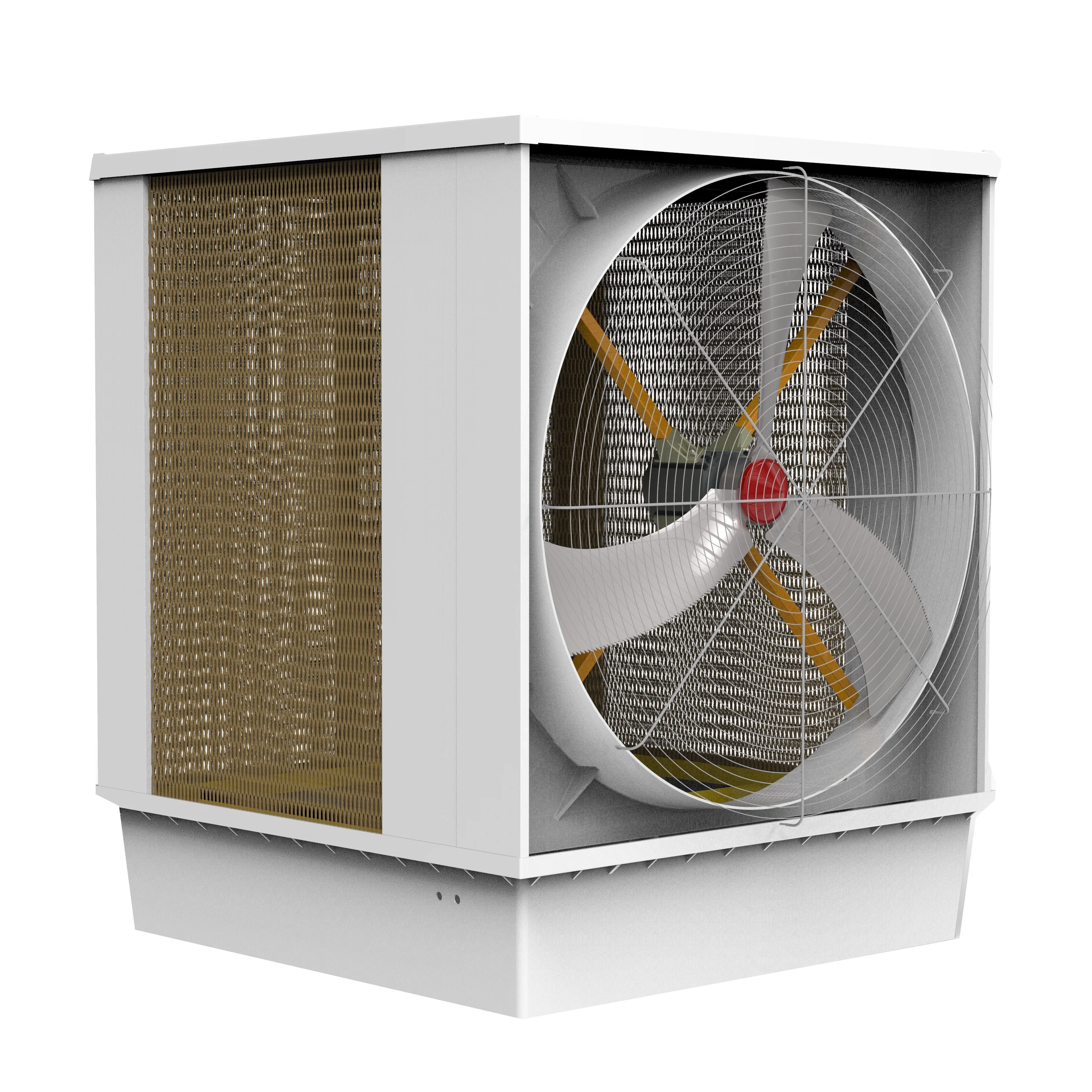

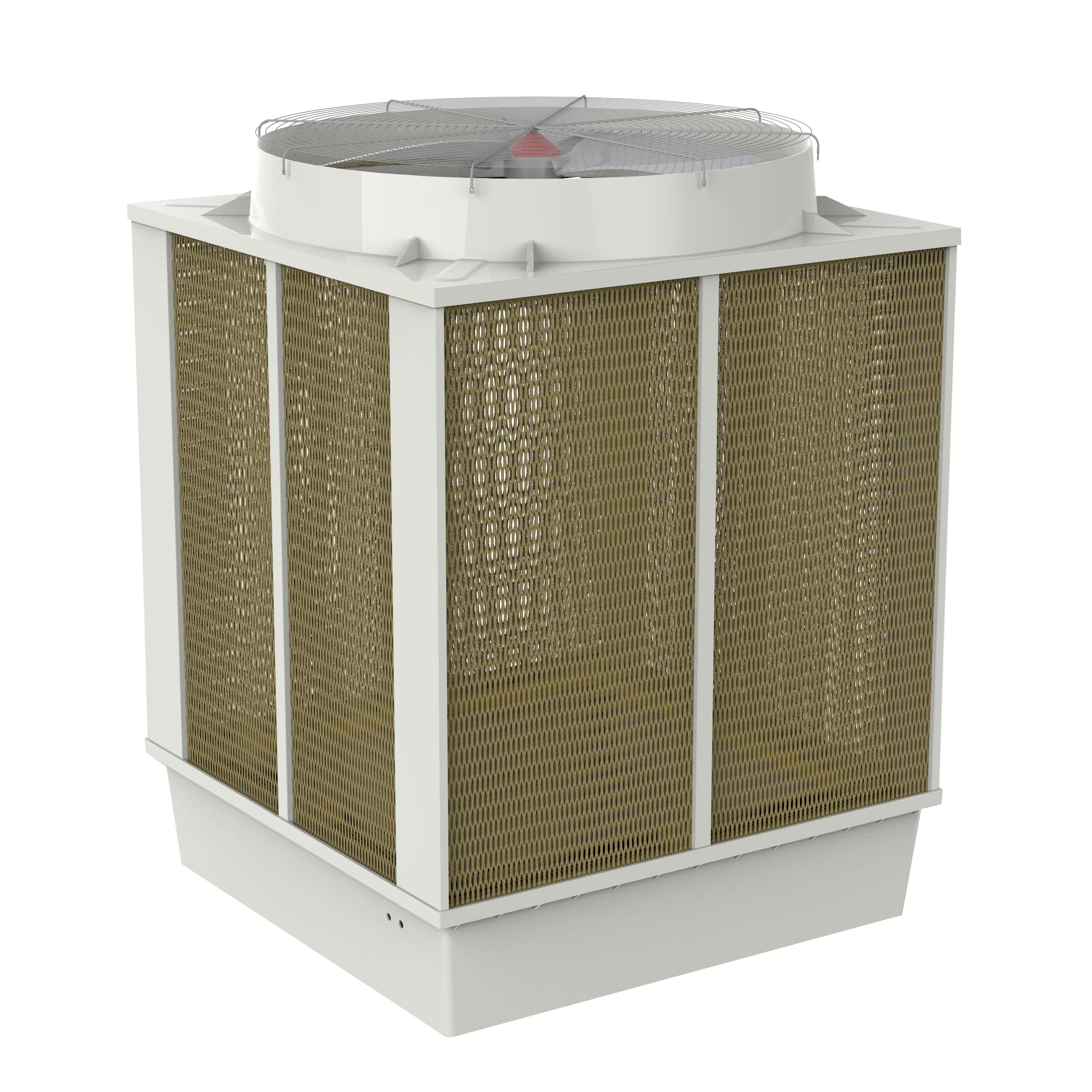

Fan system.
Brushless motor, energy saving, the wind blade matching 3 aluminum alloy.
“S” wave cooling pad.
It make deodorant potion stay in the cooling pad for a longer time, the channel is set with resistance ripples, making the potion
film more effective to remove harmful substances in the air.
film more effective to remove harmful substances in the air.
SALES AND SERVICE NETWORK

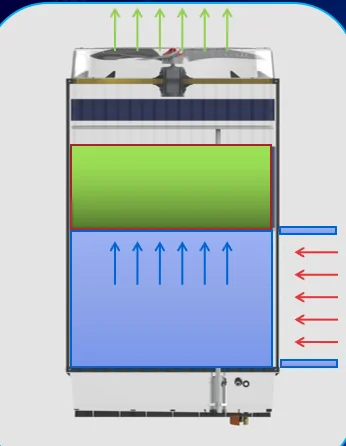

Working Principle.
The water containing mixed deodorant liquid medicine is automatically fed into the water tank through the automatic drug delivery equipment, and the water tank is full when the liquid medicine is stopped. The water pump and the fan start at the same time, and the water pump pumps the liquid medicine into the water pipe, and the water flows down through the deodorant curtain to form a water film;The fan starts to pump out the polluted air in the factory. After the first blue purification area, the harmful particles are precipitated, and then the air and the harmful particles are purified and precipitated through the water curtain water film in the second green area. The water vapor then evaporates upwards, and the water drops are collected and fall through the defogging system, and then the purified air is discharged.
First layer purification:
light blue water purification layer: through the dense water drop area, after the water drop collision to produce large
and small water drops, the air will further reduce the
harmful substances.
Second layer purification:
green deodorant curtain purification layer: after the air of the water purification layer, through the S cross water curtain, the air interacts with the water film on the resistance ripple in the S wave, making the harmful substances in the air removed, and the discharged air is basically tasteless.

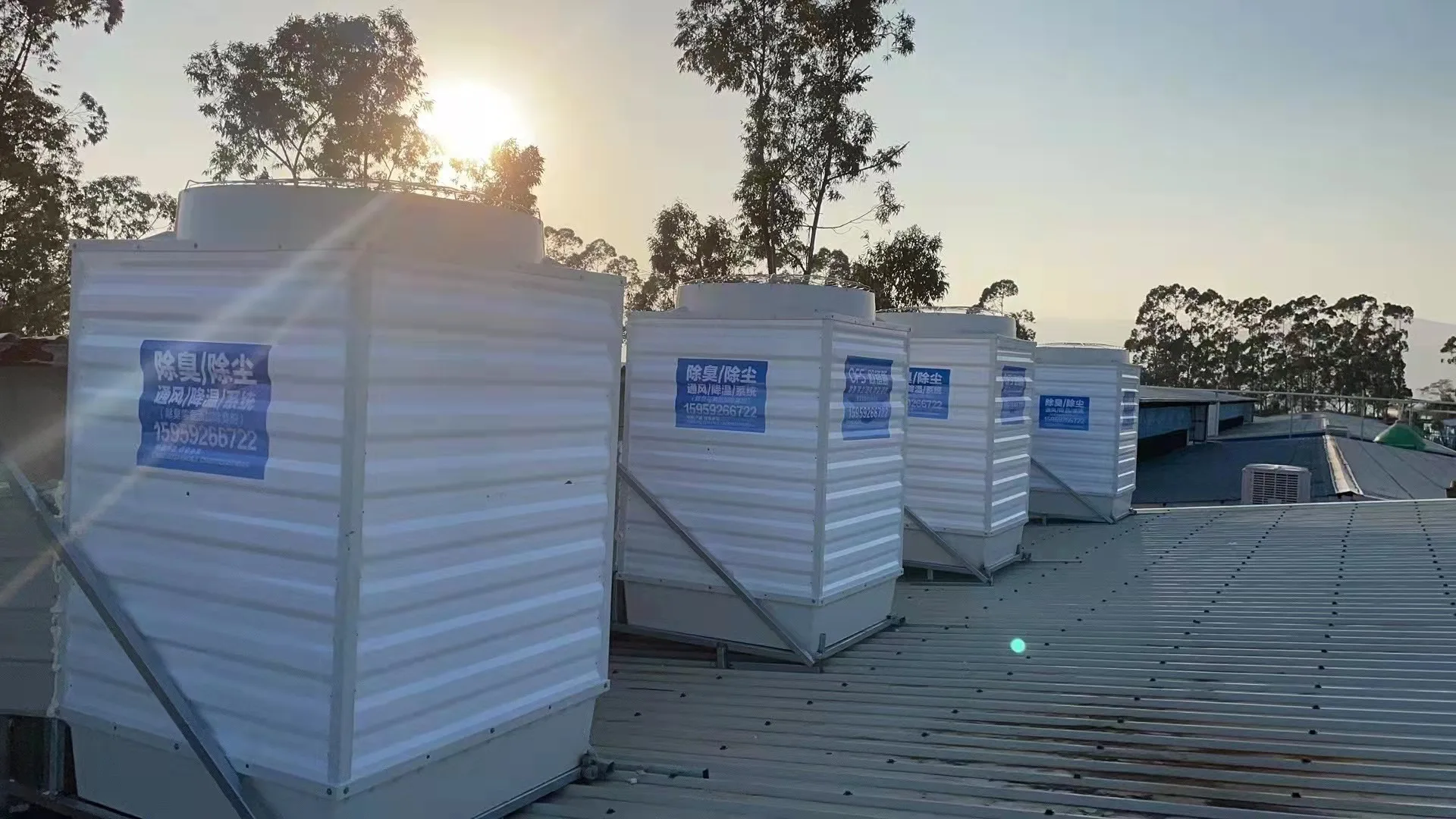

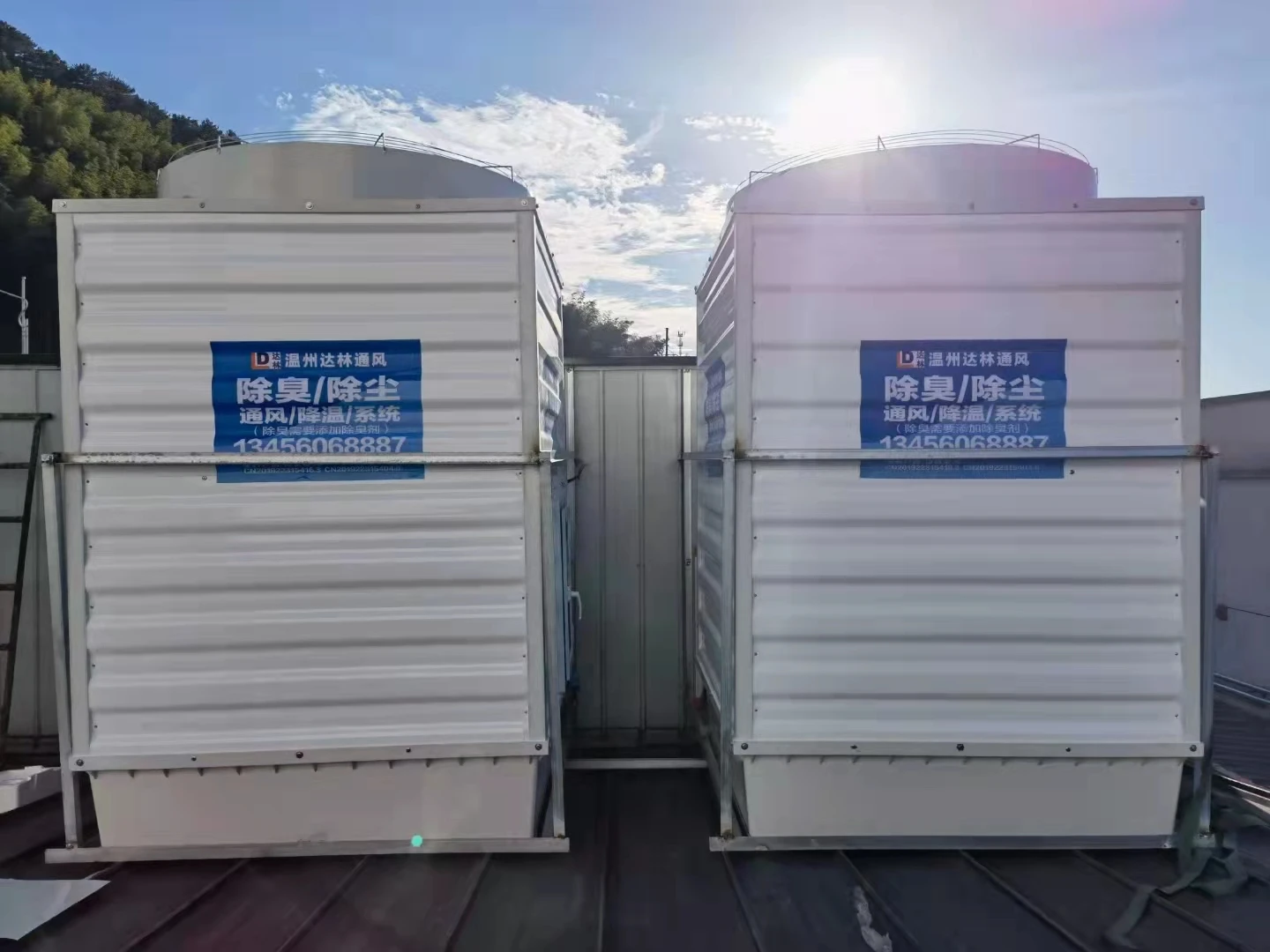

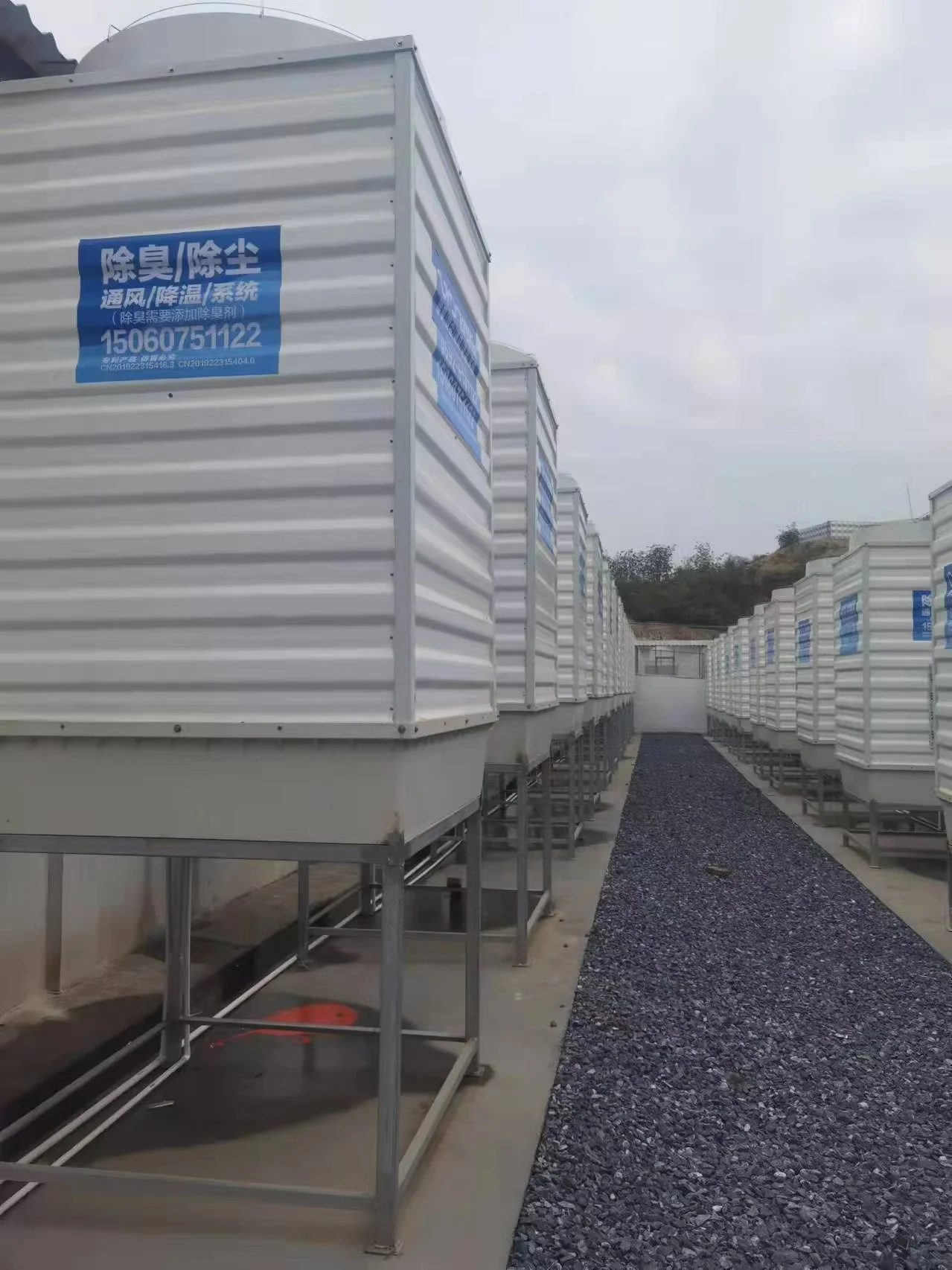

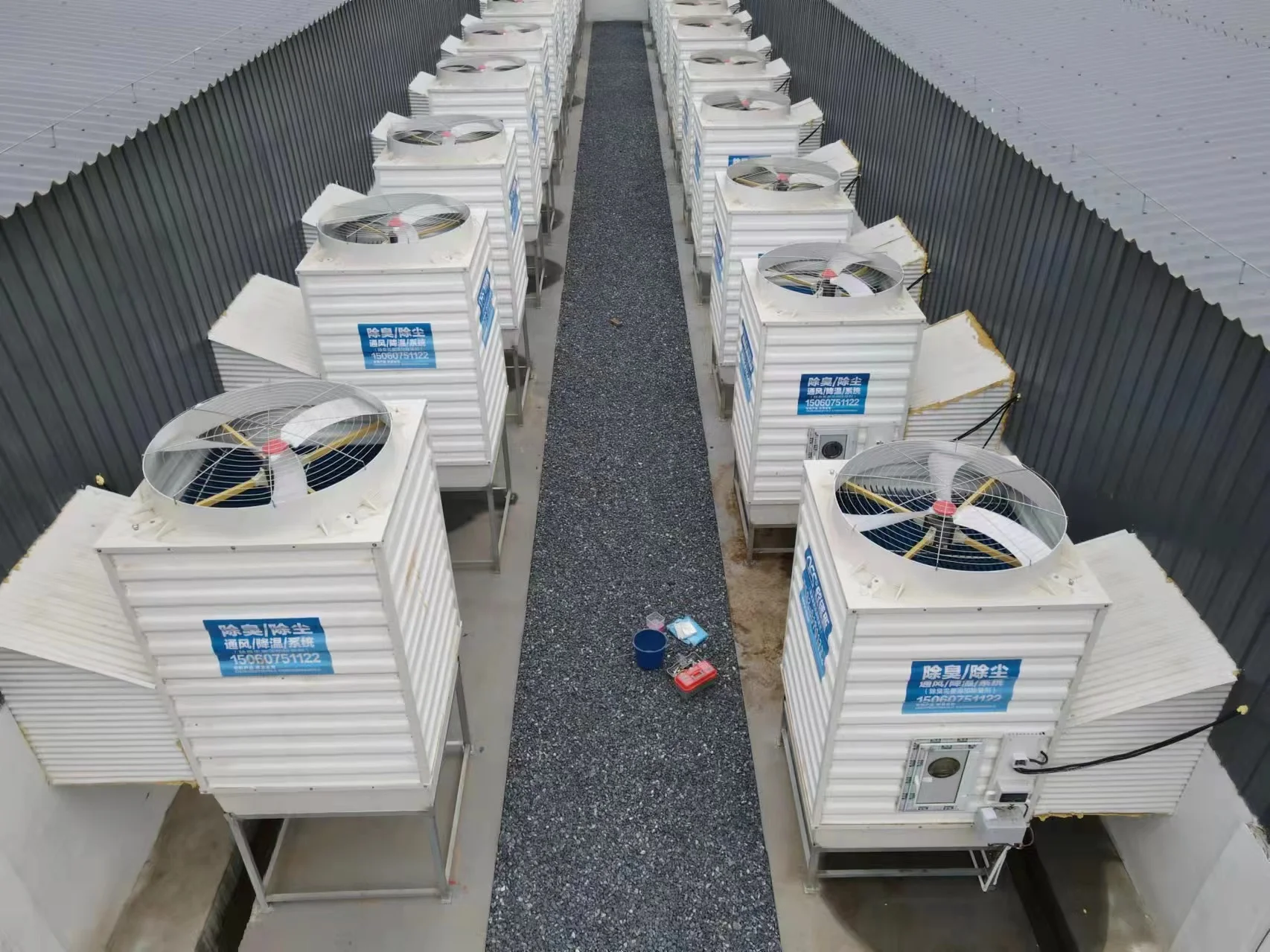

Successful Project
