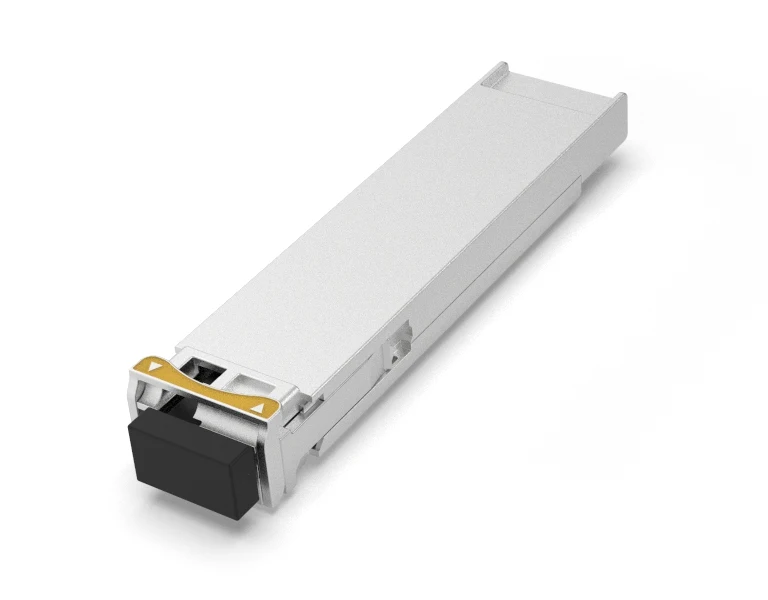

10G BIDI XFP ZR 1550Tx 1490Rx 80km DDM LC for commercial optical module
- Category: >>>
- Supplier: Zhejiang Litian Video Information Technology Co. Ltd.
Share on (1600433103216):
Product Overview
Description
Product Features
Supports 9.95Gb/s to 11.3Gb/s bit rates
1550nm EML laser and APD receiver for HXXX-AL5483x
Up to 80km on 9/125µm SMF
Hot-pluggable XFP footprint
Duplex LC/UPC type pluggable optical interface
RoHS compliant and lead-free
Support Digital Diagnostic Monitoring interface
Single +3.3V power supply
Maximum power consumption 2.0W
No Reference Clock required
Metal enclosure, for lower EMI
Meet ESD requirements, resist 8KV direct contact voltage
Case operating temperature : 0°C to +70°C
1550nm EML laser and APD receiver for HXXX-AL5483x
Up to 80km on 9/125µm SMF
Hot-pluggable XFP footprint
Duplex LC/UPC type pluggable optical interface
RoHS compliant and lead-free
Support Digital Diagnostic Monitoring interface
Single +3.3V power supply
Maximum power consumption 2.0W
No Reference Clock required
Metal enclosure, for lower EMI
Meet ESD requirements, resist 8KV direct contact voltage
Case operating temperature : 0°C to +70°C
Product Number | Data Rate（Gb/s） | Wavelength（nm） | Reach（km） | LD | Tx Power（dBm） | PD | Rx Sens（dBm） | Temperature（℃） |
HXXX-AL5483C | 10 | Tx1550/Rx1490 | 80 | EML | 0～5 | APD | < -24 | 0~70 |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1. Can the price be negotiable?
Re: Yes, best price for you and depend on quantity.
2.what is the lead time?
Re: For standard products,we keep enough stock, shipping out in 1-3 days after PO confirmation.For big quantity and special products,Please check lead time with our sales representative.
Re: Yes, best price for you and depend on quantity.
2.what is the lead time?
Re: For standard products,we keep enough stock, shipping out in 1-3 days after PO confirmation.For big quantity and special products,Please check lead time with our sales representative.
