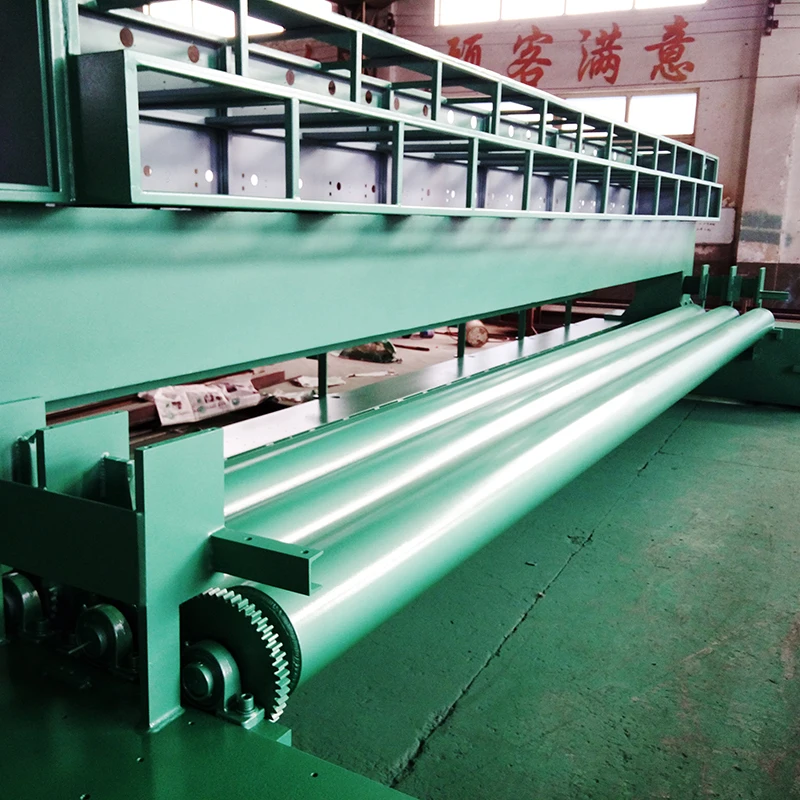

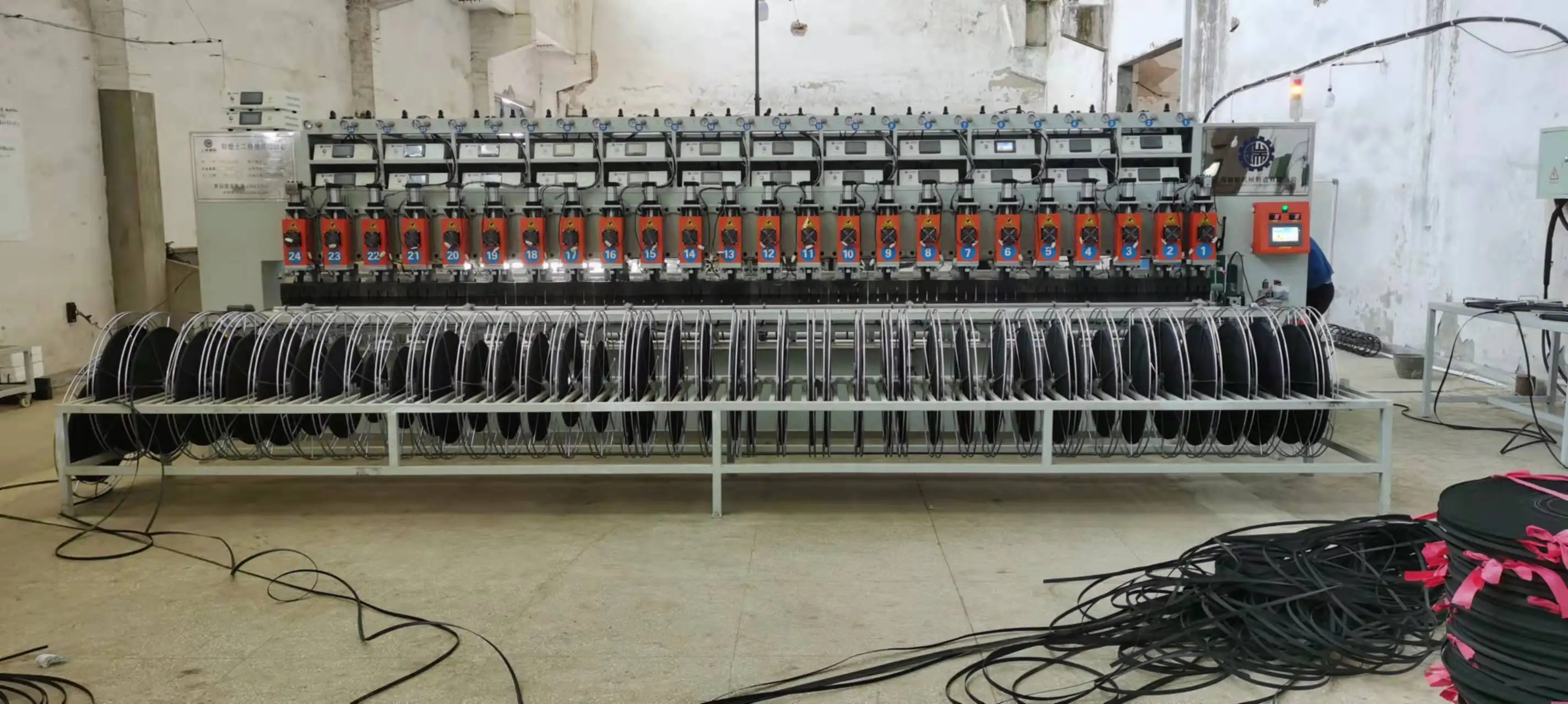

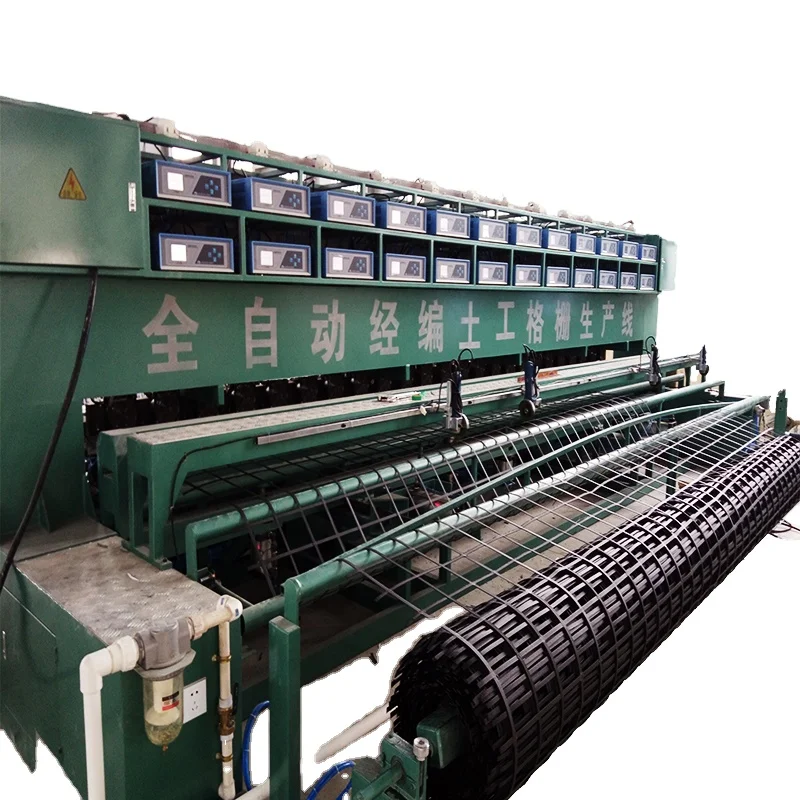

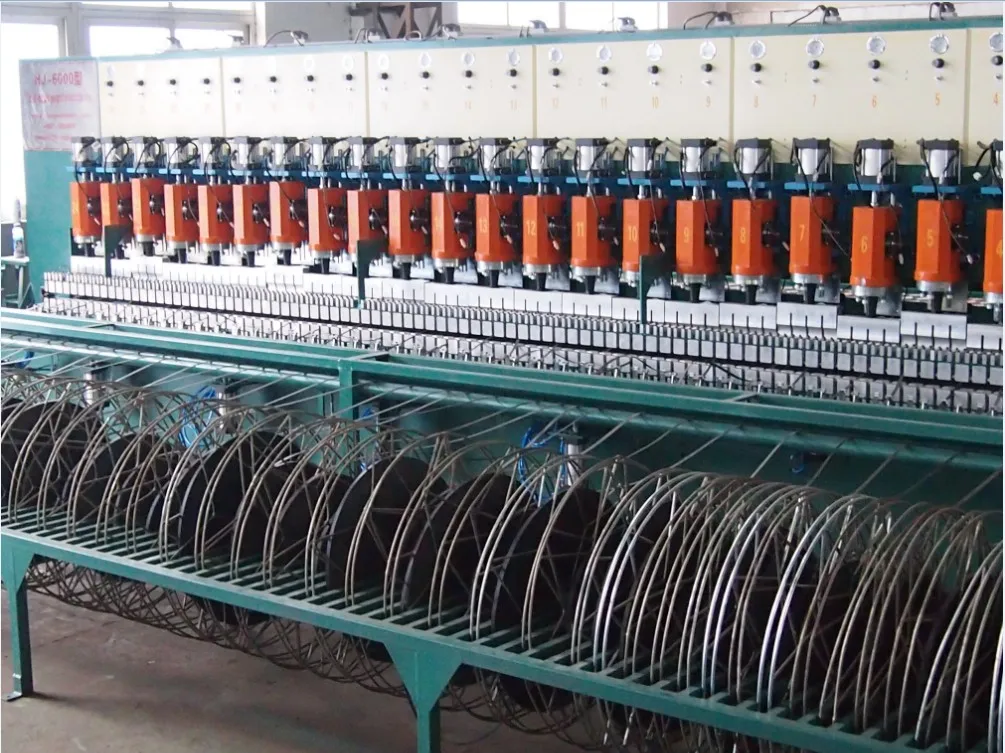

20 Heads Automatic Geogrid Welding Machine ultrasonic Steel Plastic Composite Geogrid used for road construction

Product Overview

Description

          Geogrid is a major geosynthetic material. Compared with other geosynthetics,

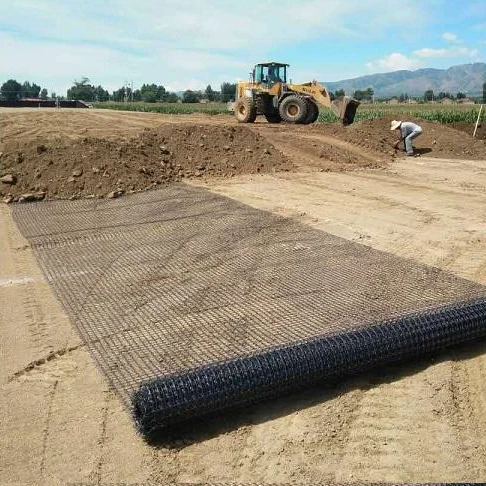

it has unique performance and efficacy. Geogrids are often used as reinforcements for reinforced soil structures or composites.

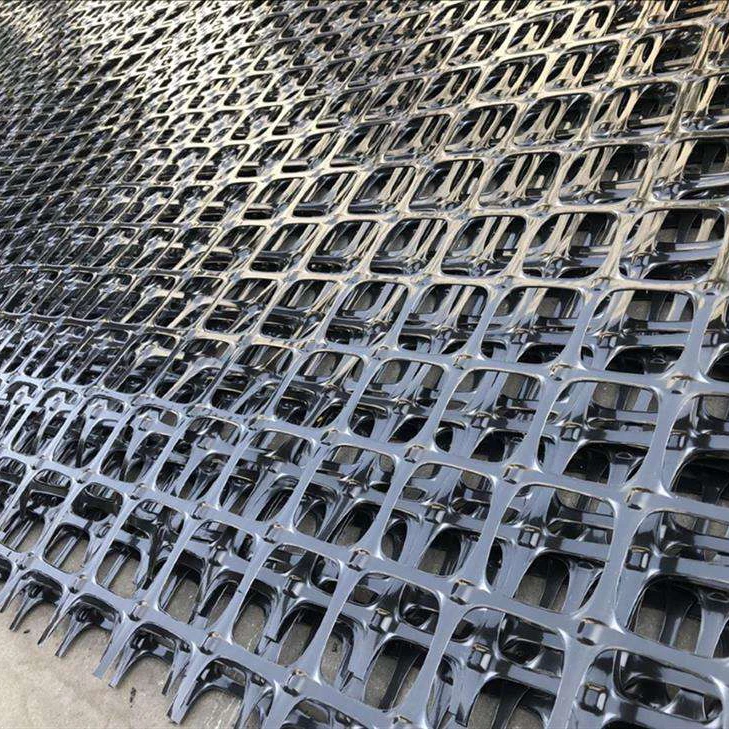

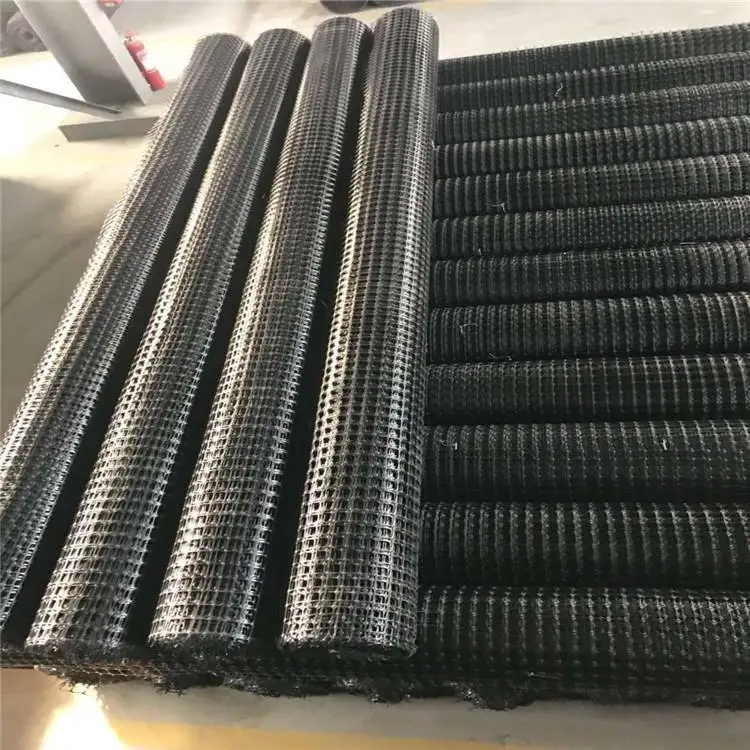

    Geogrid is divided into four categories: plastic geogrid, steel-plastic geogrid, glass fiber geogrid and polyester warp-knitted polyester geogrid.



Geogrid welding machine parameters: Rated Input Voltage : AC380v N50-60HZ three-phase four-wire system
ultrasonic Gnerator : 24pcs,automatic frequency tracking 20 khz 2800w
horn material: CR12MOV
transducer :20khz 24 pcs
Rated input power: 38.5kw
welded material :Plastic-steel,Fiberglass geogrid ,PP,PE,PVC
net size :5-15cm
strips width :8~18.5 mm
strips thickness :1~2.5mm
geogrid width: ≤6000 mm
air compress: 0.6~0.80mpa
air pump; compressor :2.5 -3 M3 /S
machine weight : 5.7 ton
machine size length : 7500 width (mm)* 1800 height(mm)* 2460 (mm)
daily production 24hours: 8000-16000 SQM
Computer Management LG (South Korea),
the display-Weinview (Taiwan)
Pneumatic Yabang (China)
valves, solenoids Airtac (Taiwan)
Low Voltage Products Delixi (China)
Material vibrator (crystal) ceramics (Germany)
