Automatic Injection Carton Packing Machine for Medicine Production Line
- Category: >>>
- Supplier: Jinzhou Dongxing Machinery Equipment Co. Ltd.
Share on (1600433278616):
Product Overview
Description
Products Description
Product Introduction:
ZH100 automatic packing machine is intelligent, intermittent automatic packing special equipment, can be loaded into the box into the same time, the machine consists of three parts of origami machine (manual folding), vacuum suction (open molding of paper box) and packing machine (push loaded and instructions into the box, batch number printing, closed box port, etc.). Through a series of photoelectric control, the guarantee of packaging quality. Max. speed of 140 boxes / min. Suitable for pharmaceutical, food, cosmetics and other industries.
Product Features:
has many kinds of applicable products. For different kinds of packaging, automatic loading of the packing machine by adjusting various parts and adding the corresponding loading device for different products.
The frame adopts an integrated frame structure. The steel strength of the body is large and small deformed, to ensure that the user is still the working state of the factory after hoisting, transportation, decoration and use.
consists of monitoring, alarm and fault display system for sensing elements, photoelectric protection and mechanical overload protection
has no series of protection measures such as no supply instructions, no suction box, inadequate box alarm, no overload or automatic shutdown for many times to ensure the safe operation of the machine.
The whole machine is controlled by PLC human-machine interface to automatically complete the complete set of drug unloading and delivery, manual folding and delivery, paper box opening and delivery, drug packing, carton batch number printing, paper box sealing, and finished product delivery
Do.
is equipped with a connected line reserve interface, which can be connected with multiple soft bags, blisters and other automatic packaging machines to form a one-stop packaging production line (the length range of the machine is determined with the composition of the customer's carton size connection equipment).
ZH100 automatic packing machine is intelligent, intermittent automatic packing special equipment, can be loaded into the box into the same time, the machine consists of three parts of origami machine (manual folding), vacuum suction (open molding of paper box) and packing machine (push loaded and instructions into the box, batch number printing, closed box port, etc.). Through a series of photoelectric control, the guarantee of packaging quality. Max. speed of 140 boxes / min. Suitable for pharmaceutical, food, cosmetics and other industries.
Product Features:
has many kinds of applicable products. For different kinds of packaging, automatic loading of the packing machine by adjusting various parts and adding the corresponding loading device for different products.
The frame adopts an integrated frame structure. The steel strength of the body is large and small deformed, to ensure that the user is still the working state of the factory after hoisting, transportation, decoration and use.
consists of monitoring, alarm and fault display system for sensing elements, photoelectric protection and mechanical overload protection
has no series of protection measures such as no supply instructions, no suction box, inadequate box alarm, no overload or automatic shutdown for many times to ensure the safe operation of the machine.
The whole machine is controlled by PLC human-machine interface to automatically complete the complete set of drug unloading and delivery, manual folding and delivery, paper box opening and delivery, drug packing, carton batch number printing, paper box sealing, and finished product delivery
Do.
is equipped with a connected line reserve interface, which can be connected with multiple soft bags, blisters and other automatic packaging machines to form a one-stop packaging production line (the length range of the machine is determined with the composition of the customer's carton size connection equipment).
Main technical parameters:
Maximum production capacity | ≤ 140 box / points |
Amount of compressed air used | 0.5Mpa. 50 L / min |
Sucbox mode | Vacuum |
Selection of paper boxes | 250-350g/m.2 |
Box size applicable range (long × W × H) mm | (85-130) × (40-80) × (12-80) mm. |
Specification size applicable range (long × wide) mm, quality of paper | (100-300) × (80-2l0) mm, 55-65g/m.2 |
Working noise | ≤ 80dB. |
Total power | 4.5Kw. |
Power supply | 380V 50Hz. |
Complete machine weight | 2400Kg. |
External size (long × W × high) | 3400 × 1300 × 1830mm. |
Product Advantages:
Pure mechanical drive structure, with the cam, swing arm to complete complex movements, smooth operation, safe and reliable;
Most parts can be adjusted, only need to replace a little mold can complete the replacement of product types;
Extend the carton platform, extend the supplementary carton cycle, reduce the labor intensity;
The able parts and consumption parts are easy to be dismantled and replaced, and high-quality parts are selected to reduce the replacement frequency and save the cost of later use.
Pure mechanical drive structure, with the cam, swing arm to complete complex movements, smooth operation, safe and reliable;
Most parts can be adjusted, only need to replace a little mold can complete the replacement of product types;
Extend the carton platform, extend the supplementary carton cycle, reduce the labor intensity;
The able parts and consumption parts are easy to be dismantled and replaced, and high-quality parts are selected to reduce the replacement frequency and save the cost of later use.

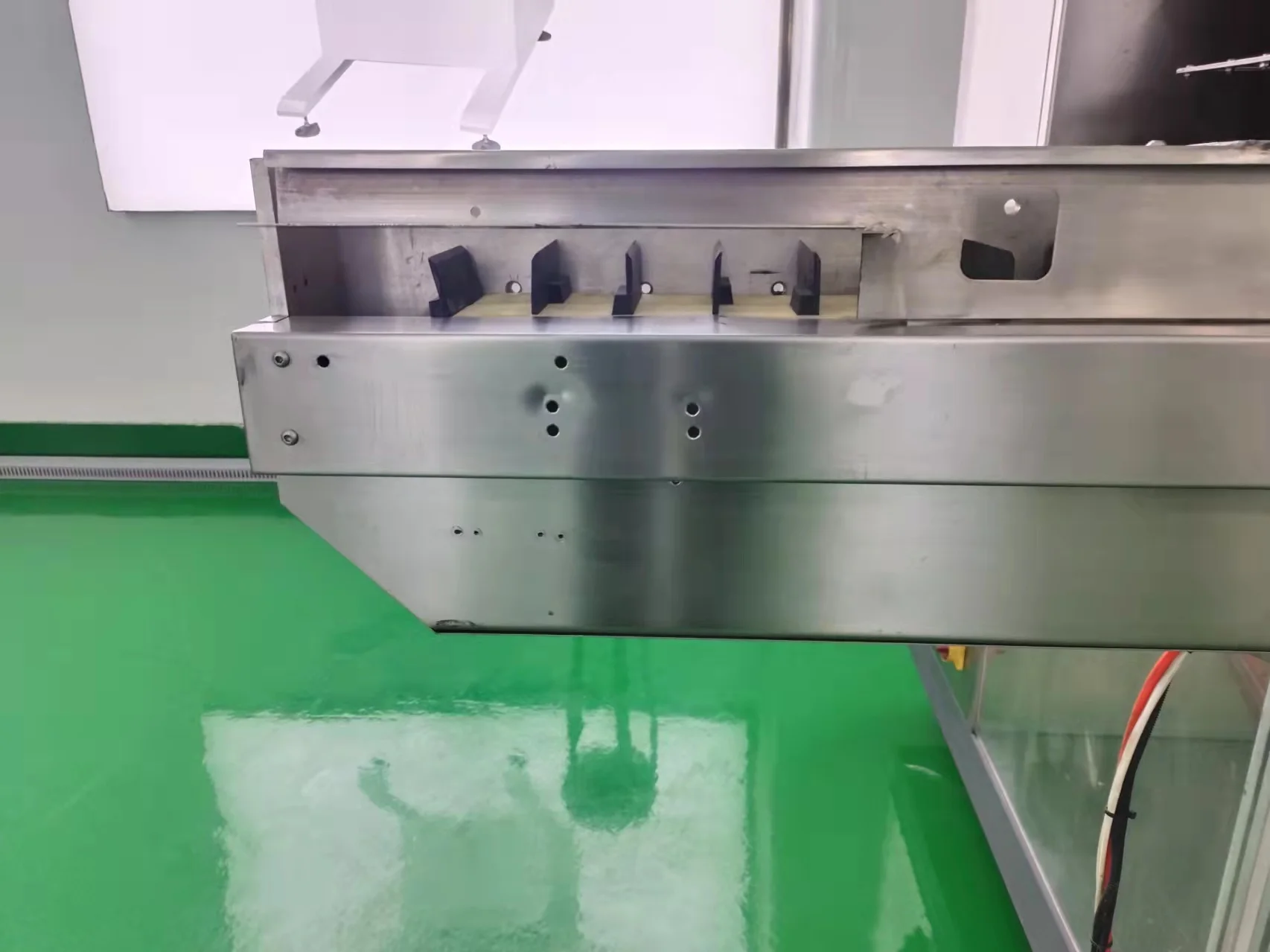

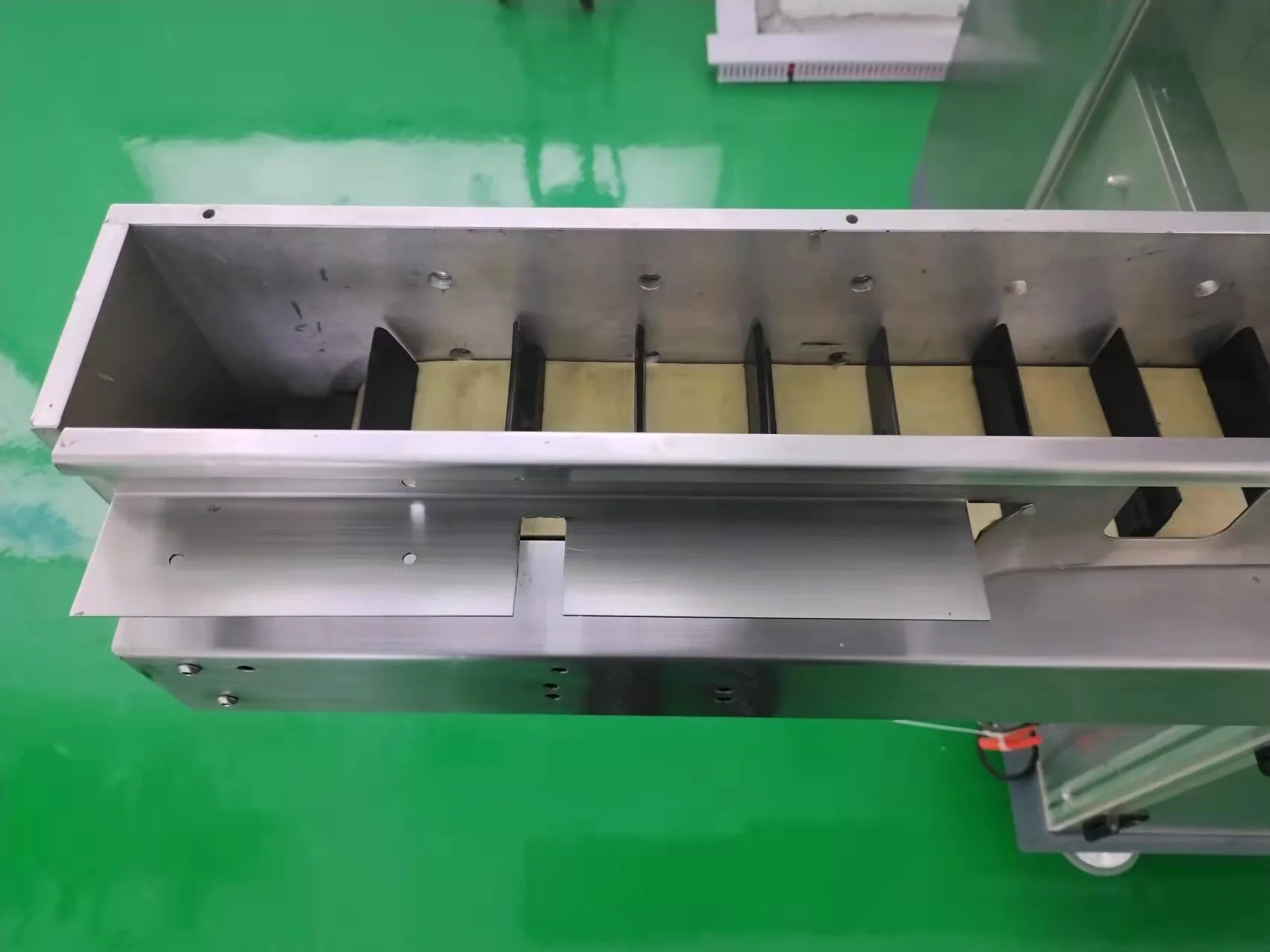

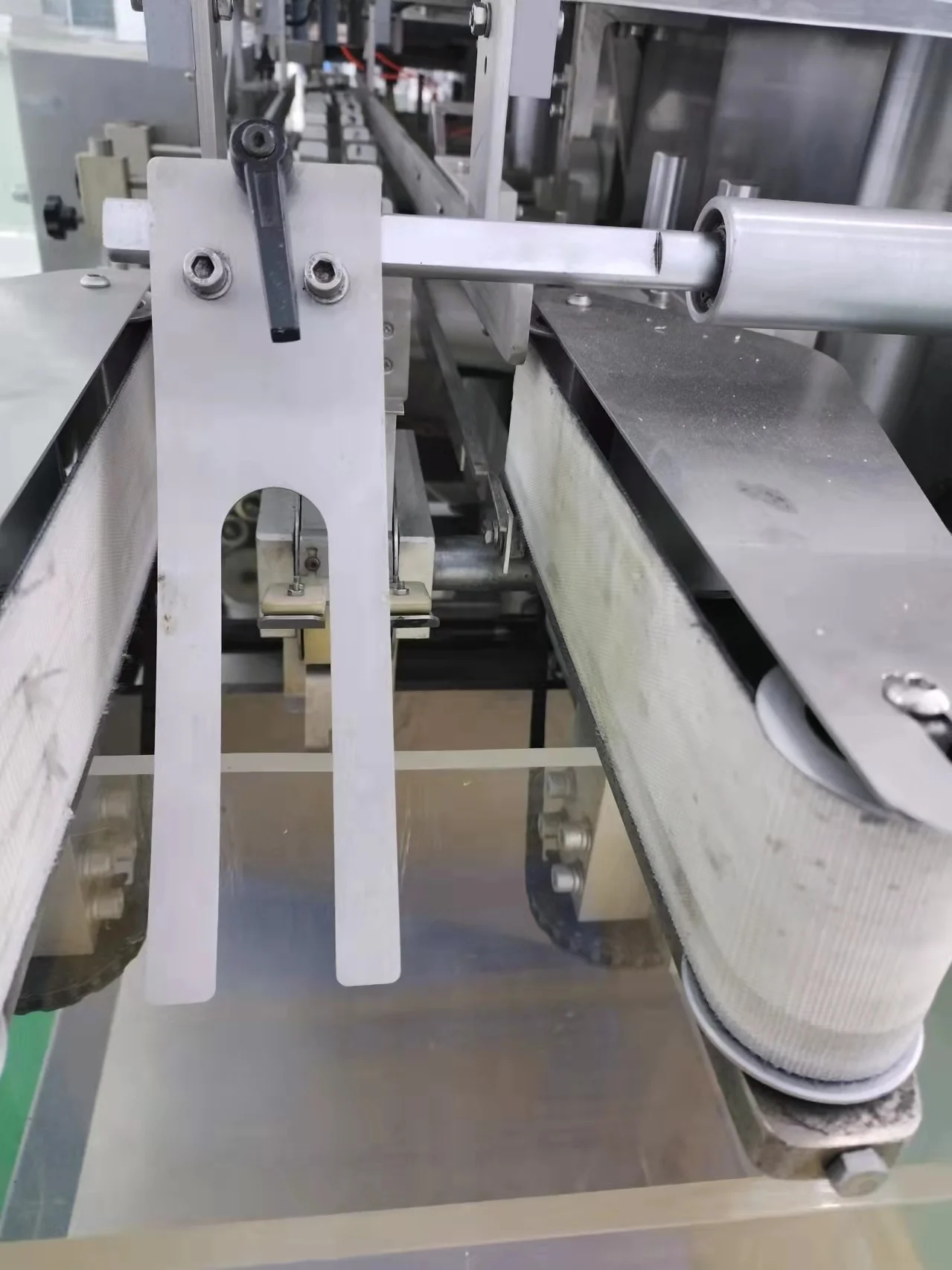

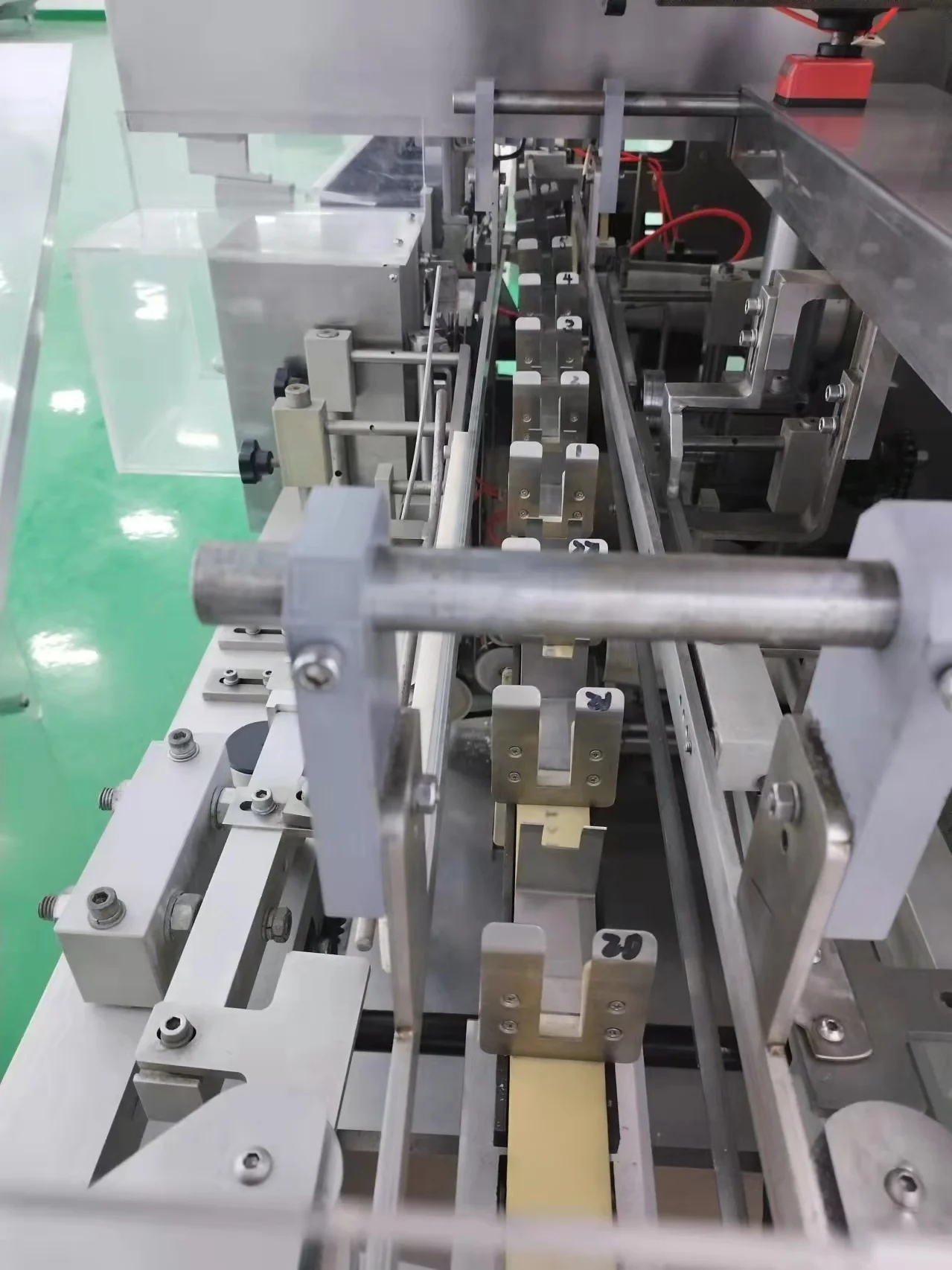

product display
